1. Extronics Engineering Services

2. Extronics Technical Services The ATEX Directive has increased the demand for bespoke solutions in many areas of industry including the Chemical, Pharmaceutical, Oil and Gas industries which have applications where standard products on the market are not always suitable in their own right for the user’s requirements. Extronics multidiscipline capabilities, matched with a high level of expertise and ingenuity provide the diversity necessary to design and engineer solutions based upon the various concepts of protection for applications in both hazardous and extreme environments. Complete solutions are provided augmented with the necessary documentation including a technical construction file and certification.

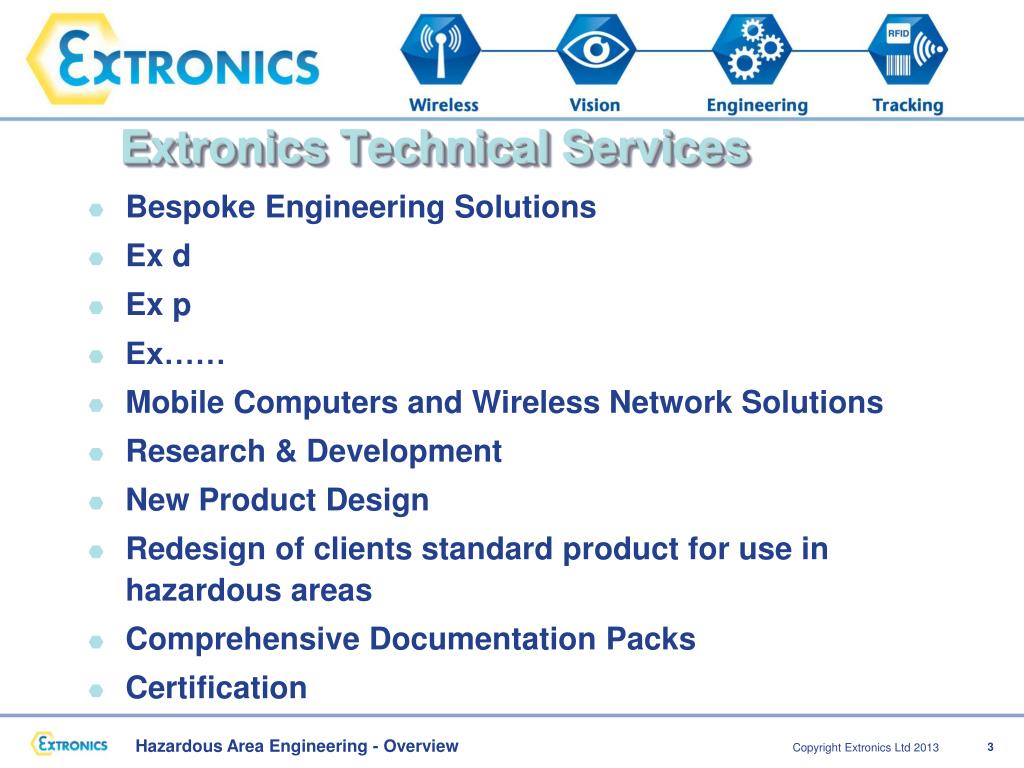

3. Extronics Technical Services • Bespoke Engineering Solutions • Ex d • Ex p • Ex…… • Mobile Computers and Wireless Network Solutions • Research & Development • New Product Design • Redesign of clients standard product for use in hazardous areas • Comprehensive Documentation Packs • Certification

4. Ex d Solutions: Zone 1/ 21 Flame Stack Ignitor

5. Ex d Solutions: Zone 1 Noxious Gas Purge Control System

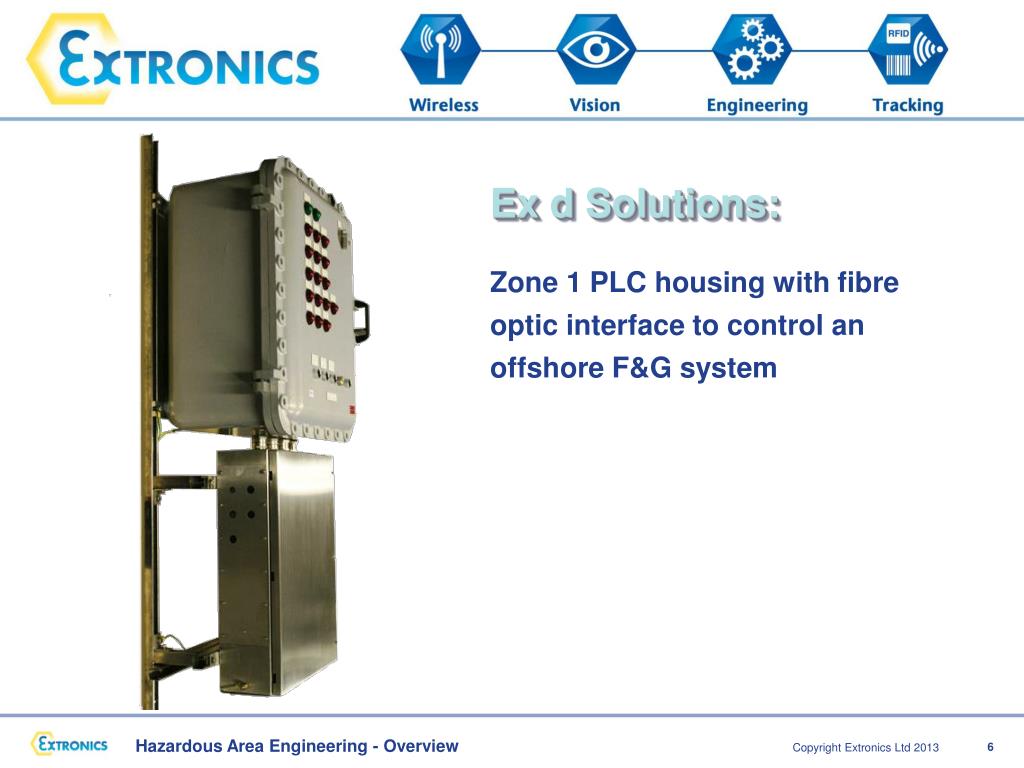

6. Ex d Solutions: Zone 1 PLC housing with fibre optic interface to control an offshore F&G system

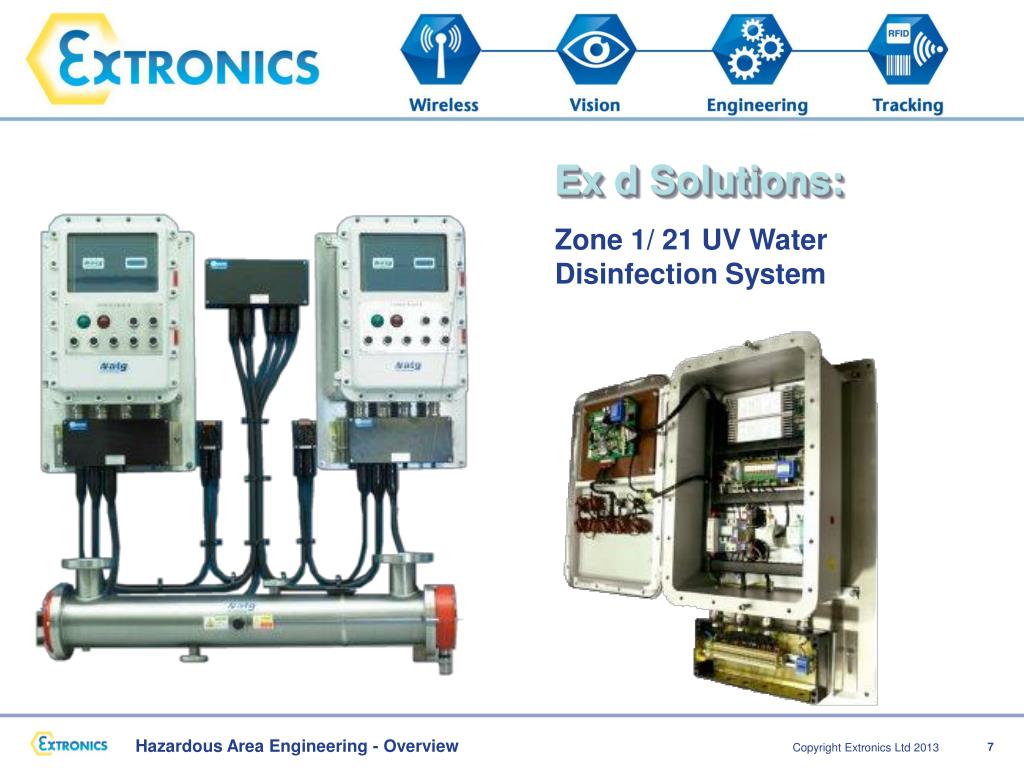

7. Ex d Solutions: Zone 1/ 21 UV Water Disinfection System

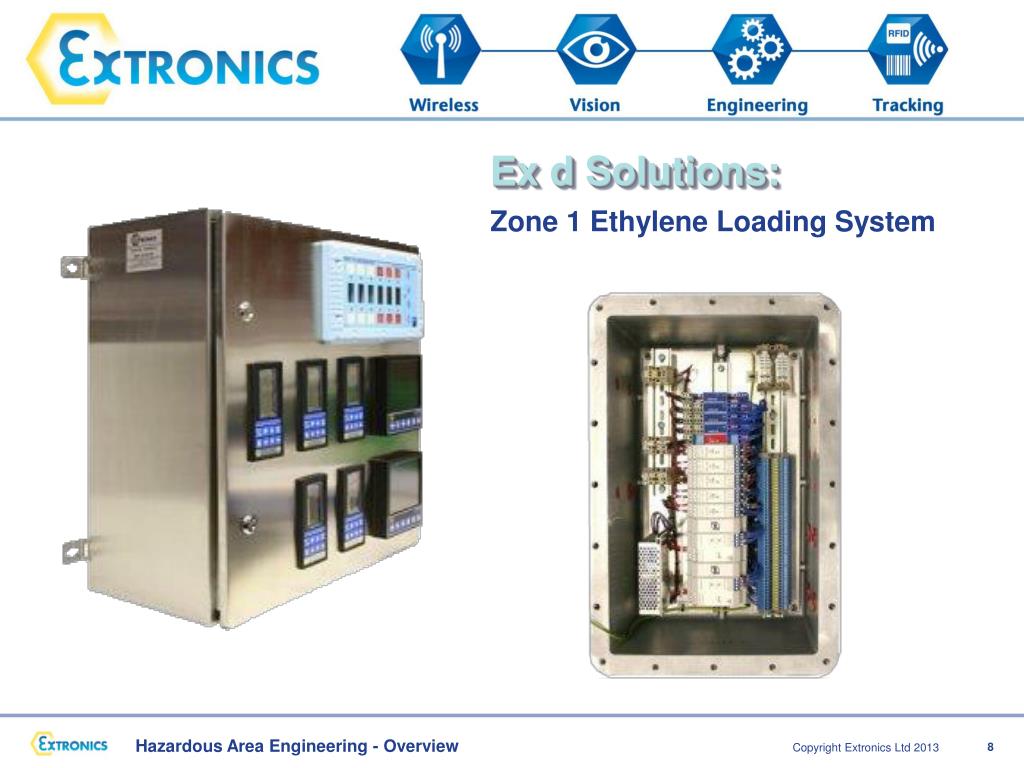

8. Ex d Solutions: Zone 1 Ethylene Loading System

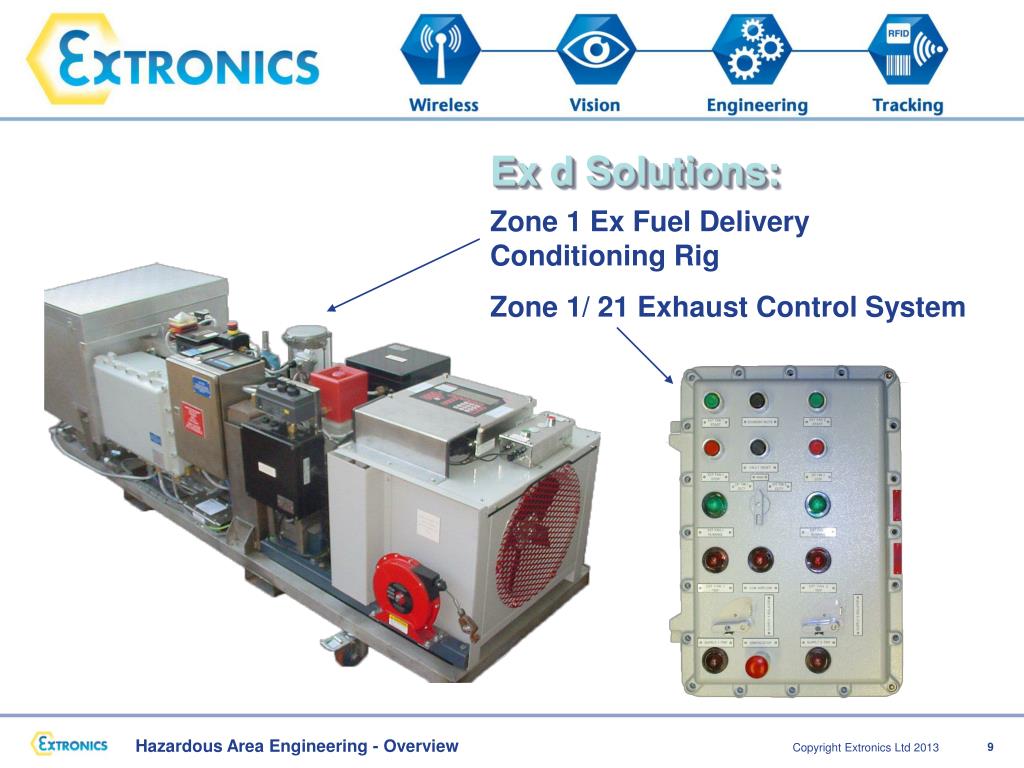

9. Ex d Solutions: Zone 1 Ex Fuel Delivery Conditioning Rig Zone 1/ 21 Exhaust Control System

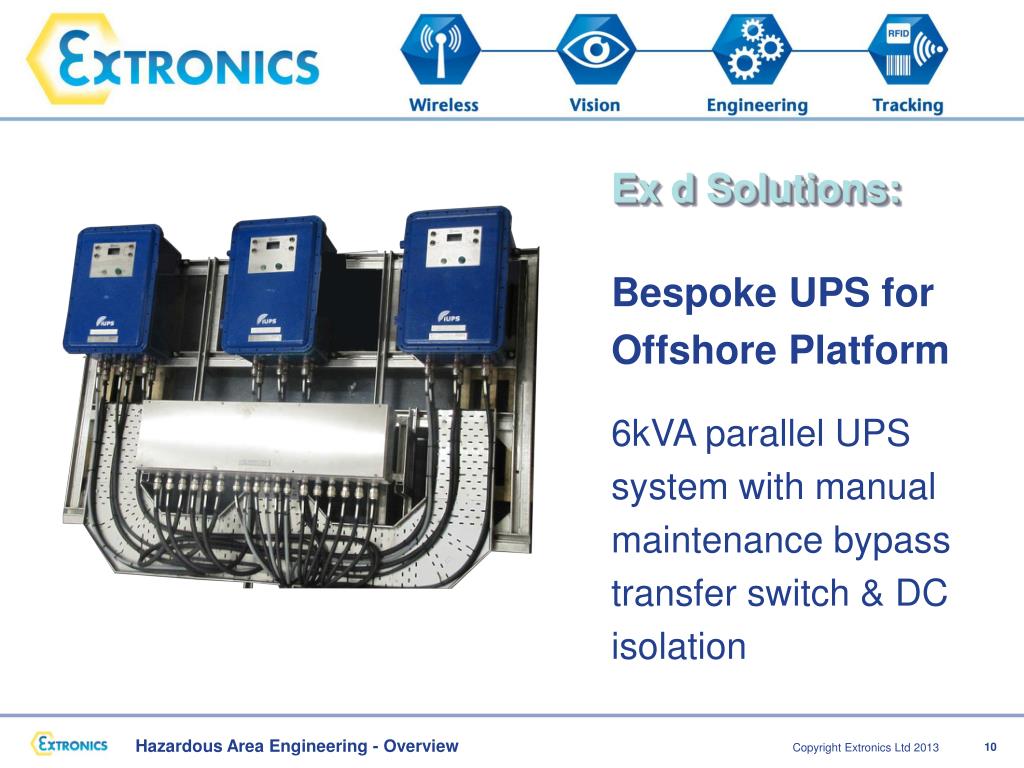

10. Ex d Solutions: Bespoke UPS for Offshore Platform 6kVA parallel UPS system with manual maintenance bypass transfer switch & DC isolation

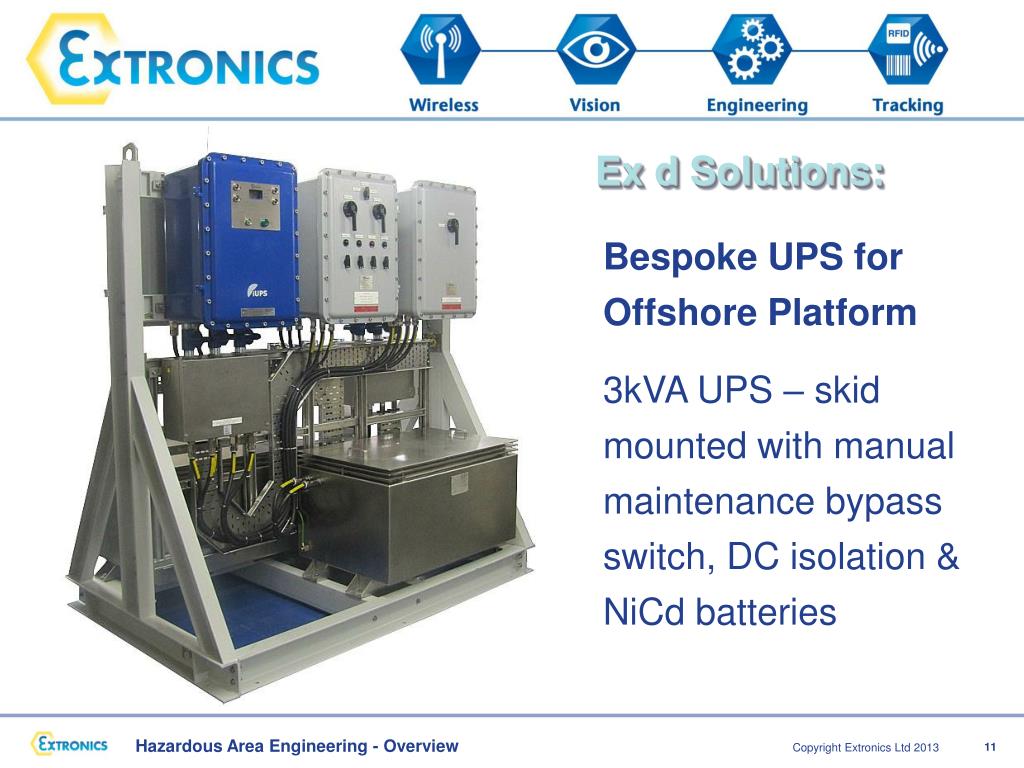

11. Ex d Solutions: Bespoke UPS for Offshore Platform 3kVA UPS – skid mounted with manual maintenance bypass switch, DC isolation & NiCd batteries

12. Visualisation Systems: Zone 1 Incinerator Monitoring system

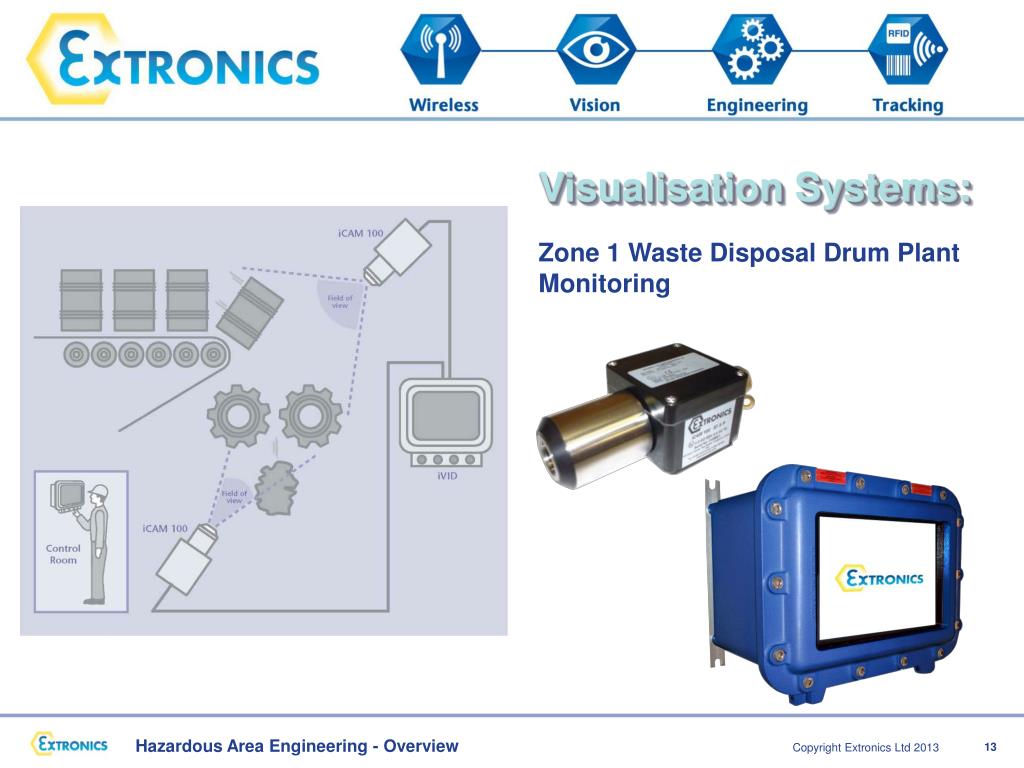

13. Visualisation Systems: Zone 1 Waste Disposal Drum Plant Monitoring

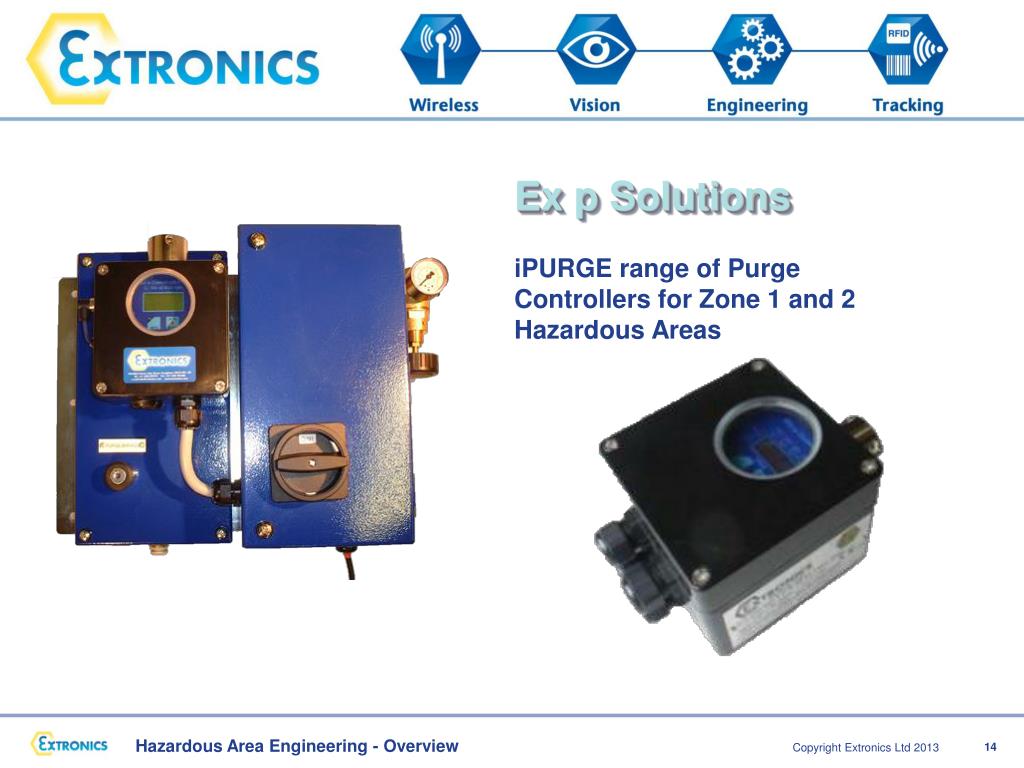

14. Ex p Solutions iPURGE range of Purge Controllers for Zone 1 and 2 Hazardous Areas

15. Ex p Solutions Zone 1 FID Analyser

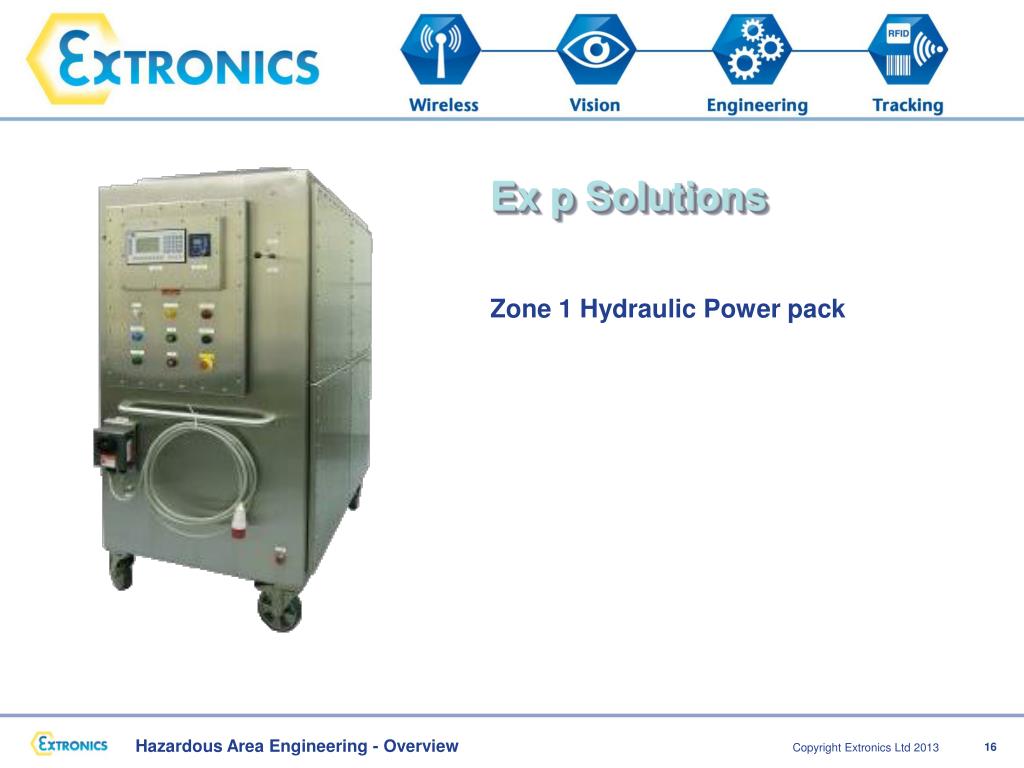

16. Ex p Solutions Zone 1 Hydraulic Power pack

17. Wireless Networks In today’s highly competitive world manufacturers and service companies must ensure optimum efficiency to remain competitive and achieve the expected return on investment. The introduction of PC based control systems and software applications have enabled large cost savings and provided management with visibility over their operations. However fixed workstations located in a control room or on plant has confined workers interface with the systems in their operational locality. Extronics has extended the benefits of mobility through Wireless enablement into the Hazardous Area optimising performance and productivity and opening plant .

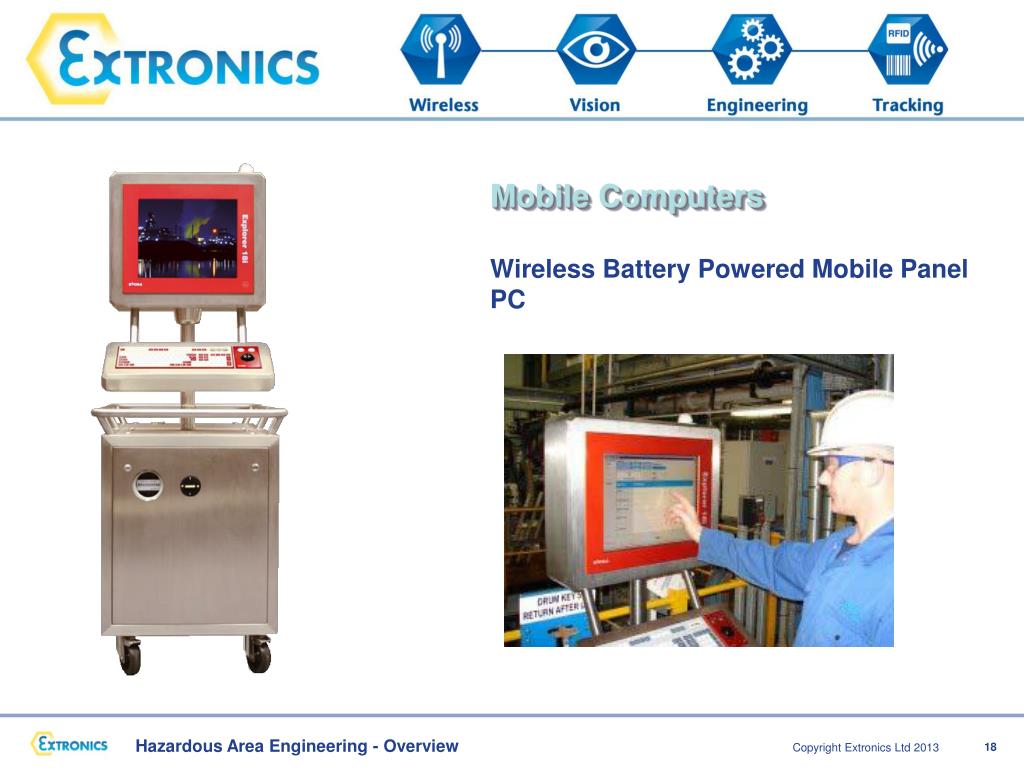

18. Mobile Computers Wireless Battery Powered Mobile Panel PC

19. Wireless Network Solutions Zone 1 USB WiFi Adapter

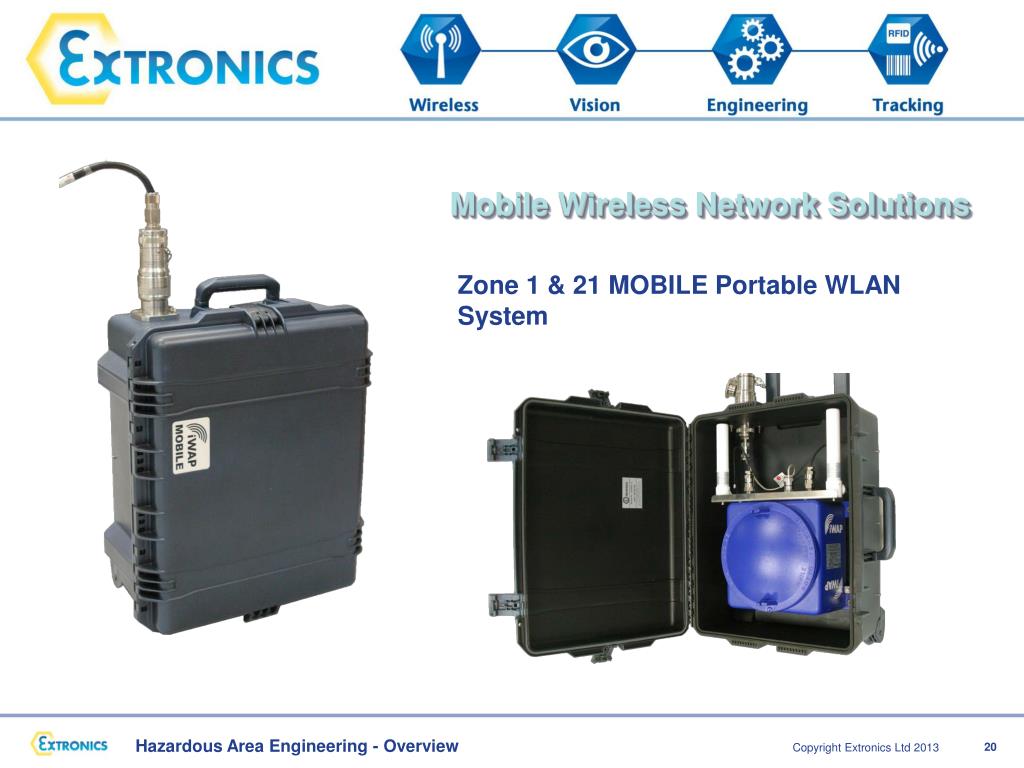

20. Mobile Wireless Network Solutions Zone 1 & 21 MOBILE Portable WLAN System

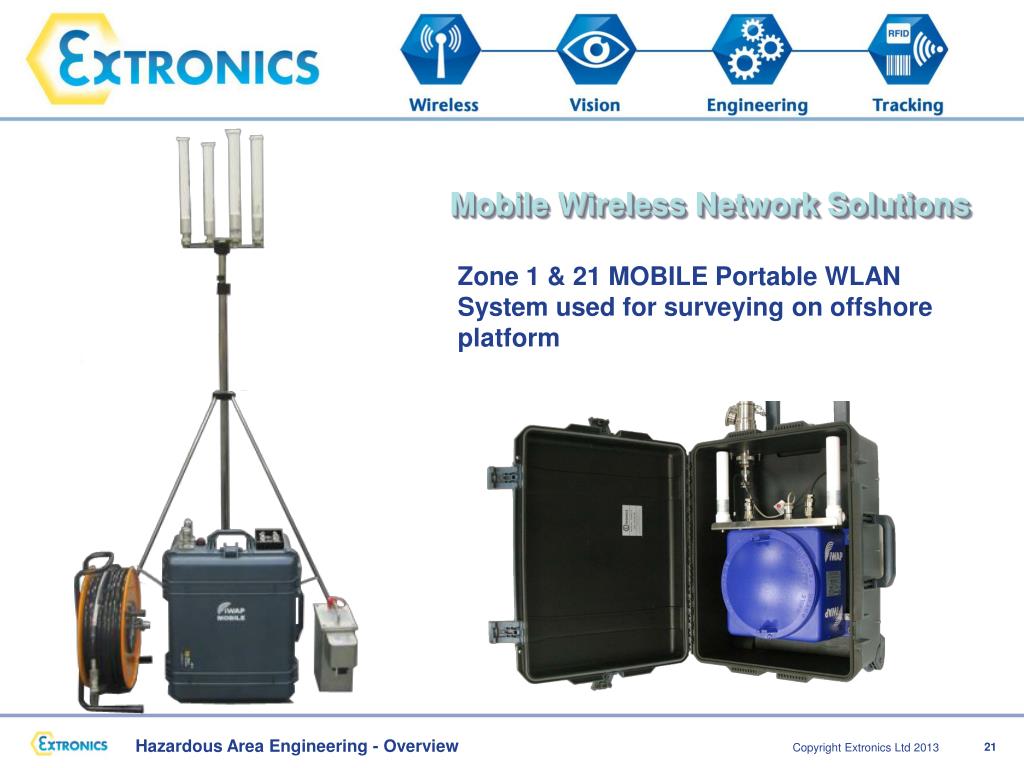

21. Mobile Wireless Network Solutions Zone 1 & 21 MOBILE Portable WLAN System used for surveying on offshore platform

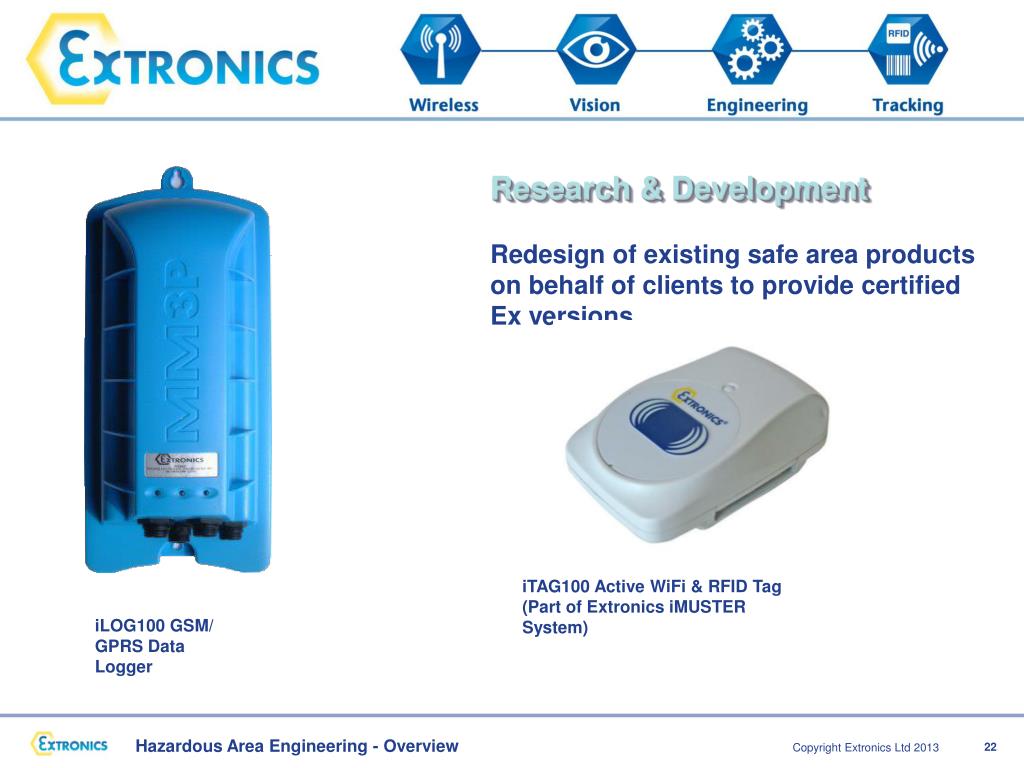

22. Research & Development Redesign of existing safe area products on behalf of clients to provide certified Ex versions iTAG100 Active WiFi & RFID Tag (Part of Extronics iMUSTER System) iLOG100 GSM/ GPRS Data Logger

23. Research & Development Large R & D department working on the development of a focused range of new Extronics products. iCAM50x Range of Zone 0 Digital Cameras iSOLATE500 - Intrinsically Safe RF Galvanic Isolator

24. Certification Certification of products Working in collaboration with notified bodies such as Intertek, Sira, Baseefa ATEX Certificate

25. ABB Limited Aesica Pharmaceuticals Limited Air Products PLC Airbus UK Ltd Akros Chemicals Astra Zeneca Avery Weigh Tronix BAE Systems BJ Services BP Exploration Ciba Speciality Chemicals Conoco Phillips Diageo Eli Lilly Emerson Evonik Degussa GlaxoSmithKline Honeywell Invensys Novartis Pfizer Schlumberger Shell UK Siemens Syngenta Total Yokogawa Wood Group Engineering Extronics Reference List
