Chapter #10

1. Chapter #10 Energy

2. Energy • There are things that do not have mass and volume. • These things fall into a category we call energy. • Energy is anything that has the capacity to do work. • Work if force times distance • Work units are Joules = kgm2/s2 • Force is a push and has units of Newtons (kgm/s2) • Although chemistry is the study of matter, matter is effected by energy. • It can cause physical and/or chemical changes in matter.

3. Law of Conservation of Energy • “Energy can neither be created nor destroyed.” • The total amount of energy in the universe is constant. There is no process that can increase or decrease that amount. • However, we can transfer energy from one place in the universe to another, and we can change its form.

4. Matter Possesses Energy • When a piece of matter possesses energy, it can give some or all of it to another object. • It can do work on the other object. • All chemical and physical changes result in the matter changing energy.

5. Kinetic and Potential Energy • Potential energy is energy that is stored. • Water flows because gravity pulls it downstream. • However, the dam won’t allow it to move, so it has to store that energy. • Kinetic energy is energy of motion, or energy that is being transferred from one object to another. • When the water flows over the dam, some of its potential energy is converted to kinetic energy of motion.

6. Forms of Energy • Electrical • Kinetic energy associated with the flow of electrical charge. • Heat or Thermal Energy • Kinetic energy associated with molecular motion. • Light or Radiant Energy • Kinetic energy associated with energy transitions in an atom. • Nuclear • Potential energy in the nucleus of atoms. • Chemical • Potential energy in the attachment of atoms or because of their position.

7. Converting Forms of Energy • When water flows over the dam, some of its potential energy is converted to kinetic energy. • Some of the energy is stored in the water because it is at a higher elevation than the surroundings. • The movement of the water is kinetic energy. • Along the way, some of that energy can be used to push a turbine to generate electricity. • Electricity is one form of kinetic energy. • The electricity can then be used in your home. For example, you can use it to heat cake batter you mixed, causing it to change chemically and storing some of the energy in the new molecules that are made.

8. Using Energy • We use energy to accomplish all kinds of processes, but according to the Law of Conservation of Energy we don’t really use it up! • When we use energy we are changing it from one form to another. • For example, converting the chemical energy in gasoline into mechanical energy to make your car move.

9. “Losing” Energy • If a process was 100% efficient, we could theoretically get all the energy transformed into a useful form. • Unfortunately we cannot get a 100% efficient process. • The energy “lost” in the process is energy transformed into a form we cannot use.

10. There’s No Such Thing as a Free Ride • When you drive your car, some of the chemical potential energy stored in the gasoline is released. • Most of the energy released in the combustion of gasoline is transformed into sound or heat energy that adds energy to the air rather than move your car down the road.

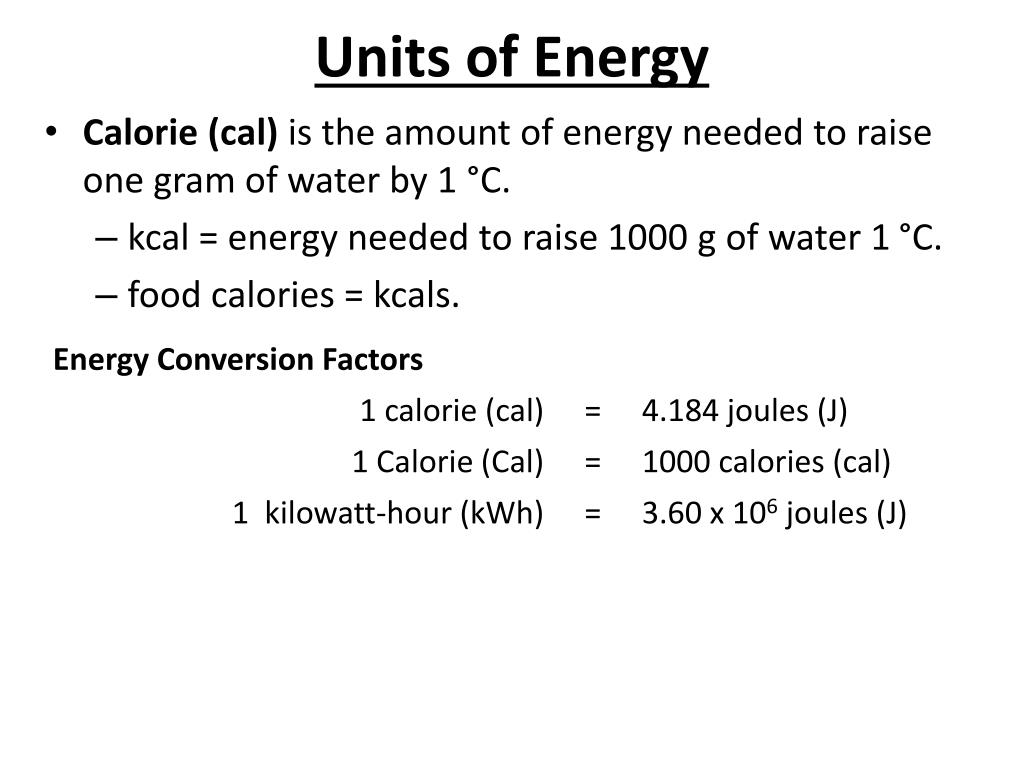

11. Units of Energy • Calorie (cal) is the amount of energy needed to raise one gram of water by 1 °C. • kcal = energy needed to raise 1000 g of water 1 °C. • food calories = kcals.

12. Energy Use

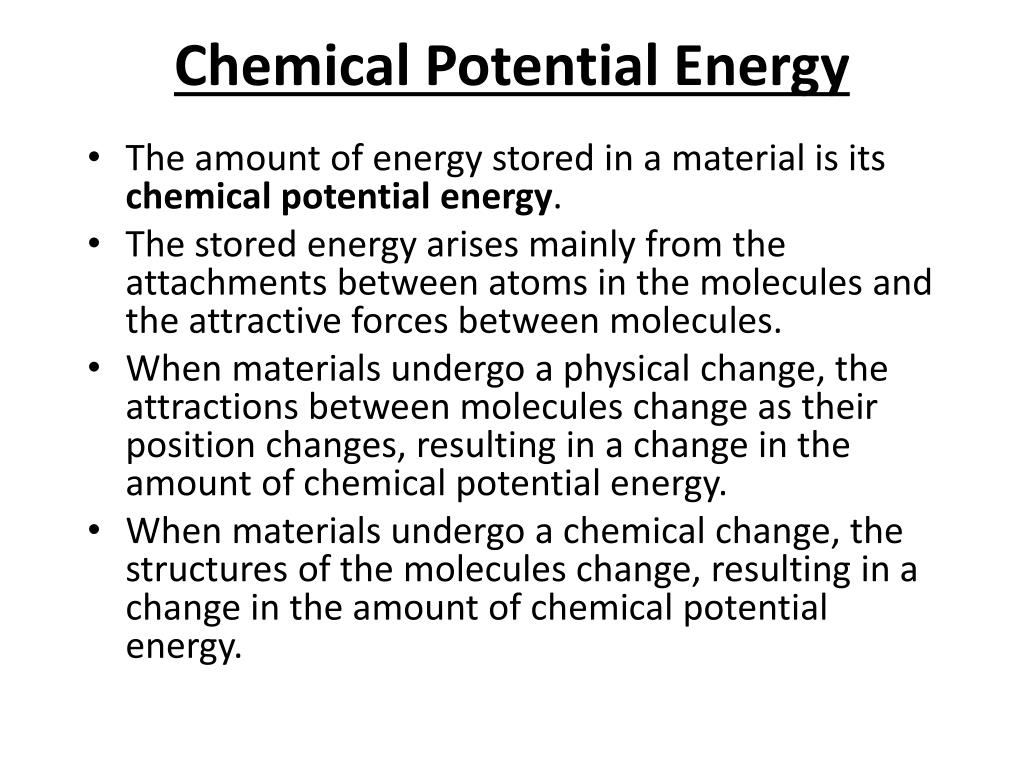

13. Chemical Potential Energy • The amount of energy stored in a material is its chemical potential energy. • The stored energy arises mainly from the attachments between atoms in the molecules and the attractive forces between molecules. • When materials undergo a physical change, the attractions between molecules change as their position changes, resulting in a change in the amount of chemical potential energy. • When materials undergo a chemical change, the structures of the molecules change, resulting in a change in the amount of chemical potential energy.

14. Energy Changes in Reactions • Chemical reactions happen most readily when energy is released during the reaction. • Molecules with lots of chemical potential energy are less stable than ones with less chemical potential energy. • Energy will be released when the reactants have more chemical potential energy than the products.

15. Exothermic Processes • When a change results in the release of energy it is called an exothermic process. • An exothermic chemical reaction occurs when the reactants have more chemical potential energy than the products. • The excess energy is released into the surrounding materials, adding energy to them. • Often the surrounding materials get hotter from the energy released by the reaction.

16. Surroundings reaction Reactants Amount of energy released Potential energy Products An Exothermic Reaction

17. Endothermic Processes • When a change requires the absorption of energy it is called an endothermic process. • An endothermic chemical reaction occurs when the products have more chemical potential energy than the reactants. • The required energy is absorbed from the surrounding materials, taking energy from them. • Often the surrounding materials get colder due to the energy being removed by the reaction.

18. Surroundings reaction Products Amount of energy absorbed Potential energy Reactants An Endothermic Reaction

19. Thermochemical Equations When a chemical or physical change takes place energy is either lost of gained. A Thermochemical equation describes this change. Equations gaining energy are called endothermic and equations losing energy are called exothermic.

20. Thermochemical Equations When a chemical or physical change takes place energy is either lost of gained. A Thermochemical equation describes this change. Equations gaining energy are called endothermic and equations losing energy are called exothermic. Examples: C3H6O (l)4O2 (g) 3CO2(g) + 3 H2O (g) ΔH = -1790 kj Exothermic H2O(l) H2O (g) ΔH = 44.01 kj Endothermic

21. Thermochemical Conversions How many kj of heat are released when 709 g of C3H6O are burned?

22. Thermochemical Conversions How many kj of heat are released when 709 g of C3H6O are burned? C3H6O (l)4O2 (g) 3CO2(g) + 3 H2O (g) ΔH = -1790 kj 709 g C3H6O mole C3H6O 58.1 g C3H6O

23. Thermochemical Conversions How many kj of heat are released when 709 g of C3H6O are burned? C3H6O (l)4O2 (g) 3CO2(g) + 3 H2O (g) ΔH = -1790 kj 709 g C3H6O mole C3H6O 58.1 g C3H6O

24. Thermochemical Conversions How many kj of heat are released when 709 g of C3H6O are burned? C3H6O (l)4O2 (g) 3CO2(g) + 3 H2O (g) ΔH = -1790 kj 709 g C3H6O mole C3H6O 1790 kj = 21800 kj mole C3H6O 58.1 g C3H6O

25. Energy and the Temperature of Matter • The amount the temperature of an object increases depends on the amount of heat energy added (q). • If you double the added heat energy the temperature will increase twice as much. • The amount the temperature of an object increases depending on its mass. • If you double the mass, it will take twice as much heat energy to raise the temperature the same amount.

26. Heat Capacity • Heat capacity is the amount of heat a substance must absorb to raise its temperature by 1 °C. • cal/°C or J/°C. • Metals have low heat capacities; insulators have high heat capacities. • Specific heat= heat capacity of 1 gram of the substance. • cal/g°C or J/g°C. • Water’s specific heat = 4.184 J/g°C for liquid. • Or 1.000 cal/g°C. • It is less for ice and steam.

27. Specific Heat Capacity • Specific heat is the amount of energy required to raise the temperature of one gram of a substance by 1 °C. • The larger a material’s specific heat is, the more energy it takes to raise its temperature a given amount. • Like density, specific heat is a property of the type of matter. • It doesn’t matter how much material you have. • It can be used to identify the type of matter. • Water’s high specific heat is the reason it is such a good cooling agent. • It absorbs a lot of heat for a relatively small mass.

28. Specific Heat Capacities

29. Heat Gain or Loss by an Object • The amount of heat energy gained or lost by an object depends on 3 factors: how much material there is, what the material is, and how much the temperature changed.

30. Practice—Calculate the Amount of Heat Released When 7.40 g of Water Cools from 49° to 29 °C

31. Practice—Calculate the Amount of Heat Released When 7.40 g of Water Cools from 49° to 29 °C First use the specific heat of water4.184 j/g-C and cross out all units except the heat unit, the joule (j), using our four step process 4.184 j g- °C

32. Practice—Calculate the Amount of Heat Released When 7.40 g of Water Cools from 49° to 29 °C First use the specific heat of water4.184 j/g-C and cross out all units except the heat unit, the joule (j), using our four step process 4.184 j 7.40 g g- °C

33. Practice—Calculate the Amount of Heat Released When 7.40 g of Water Cools from 49° to 29 °C First use the specific heat of water4.184 j/g-C and cross out all units except the heat unit, the joule (j), using our four step process 4.184 j 7.40 g 20 °C g- °C

34. Practice—Calculate the Amount of Heat Released When 7.40 g of Water Cools from 49° to 29 °C First use the specific heat of water4.184 j/g-C and cross out all units except the heat unit, the joule (j), using our four step process 4.184 j 7.40 g 20 °C = 620 j g- °C

35. Thermodynamics First Law of thermodynamics: Energy cannot be created nor destroyed. Mathematical Statement: ΔE = q + w ΔE is the change in internal energy of matter. q is the amount of heat into the system w is the amount of work on the system The system is the test tube, beaker or flask The Second Law of Thermodynamics: Entropy of the universe is always increasing.

36. Entropy Entropy is a word used to describe the spreading of matter. For example consider the Universe, is it expanding?

37. Entropy Entropy is a word used to describe the spreading of matter. For example consider the Universe, is it expanding? Yes How about where you live, does matter spread there?

38. Entropy Entropy is a word used to describe the spreading of matter. For example consider the Universe, is it expanding? Yes How about where you live, does matter spread there? Yes How about our natural resources, are they being spread about? Yes

39. Entropy Entropy is a word used to describe the spreading of matter. For example consider the Universe, is it expanding? Yes How about where you live, does matter spread there? Yes How about our natural resources, are they being spread about? The symbol for entropy is S and the change in entropy is ΔS. ΔS>0, means the spreading of matter. House cleaning would have ΔS<0 (more order)

40. Spontaneous Processes Some process proceed without constant outside intervention.

41. Spontaneous Processes Some process proceed with constant outside intervention. For example air escaping out of a tire with a hole in it. Have you ever observed air flowing into a tire with a hole in it? How about aging? Have you ever observed someone getting younger?

42. Spontaneous Processes Some process proceed with constant outside intervention. For example air escaping out of a tire with a hole in it. Have you ever observed air flowing into a tire with a hole in it? How about aging? Have you ever observed someone getting younger? How about shuffling a deck of cards? Does it ever become organized like it came from the factory?

43. Spontaneous Processes Some process proceed with constant outside intervention. For example air escaping out of a tire with a hole in it. Have you ever observed air flowing into a tire with a hole in it? How about aging? Have you ever observed someone getting younger? How about shuffling a deck of cards? Does it ever become organized like it came from the factory? Theoretically, it is possible to shuffle a deck of cards until it has the same order as a new deck of cards.

44. Spontaneous Processes Some process proceed with constant outside intervention. For example air escaping out of a tire with a hole in it. Have you ever observed air flowing into a tire with a hole in it? How about aging? Have you ever observed someone getting younger? How about shuffling a deck of cards? Does it ever become organized like it came from the factory? Theoretically, it is possible to shuffle a deck of cards until it has the same order as a new deck of cards. How many shuffles until a deck has a new order?

45. Spontaneous Processes Some process proceed with constant outside intervention. For example air escaping out of a tire with a hole in it. Have you ever observed air flowing into a tire with a hole in it? How about aging? Have you ever observed someone getting younger? How about shuffling a deck of cards? Does it ever become organized like it came from the factory? Theoretically, it is possible to shuffle a deck of cards until it has the same order as a new deck of cards. How many shuffles until a deck has a new order? 1064

46. Predicting Spontaneity Spontaneous process are always accompanied with spreading of energy or matter; one or the other or both. Enthalpy is a term used to describe spreading of energy. When energy is being spread ΔH<0

47. Predicting Spontaneity Spontaneous process are always accompanied with spreading of energy or matter; one or the other or both. Enthalpy is a term used to describe spreading of energy. When energy is being spread ΔH<0 Is melting of ice spontaneous?

48. Predicting Spontaneity Spontaneous process are always accompanied with spreading of energy or matter; one or the other or both. Enthalpy is a term used to describe spreading of energy. When energy is being spread ΔH<0 Is melting of ice spontaneous? Yes What is being spread, energy or matter?

49. Predicting Spontaneity Spontaneous process are always accompanied with spreading of energy or matter; one or the other or both. Enthalpy is a term used to describe spreading of energy. When energy is being spread ΔH<0 Is melting of ice spontaneous? Yes What is being spread, energy or matter? Matter, right?

50. Predicting Spontaneity Spontaneous process are always accompanied with spreading of energy or matter; one or the other or both. Enthalpy is a term used to describe spreading of energy. When energy is being spread ΔH<0 Is melting of ice spontaneous? Yes What is being spread, energy or matter? Matter, right? Is burning of gasoline spontaneous?
