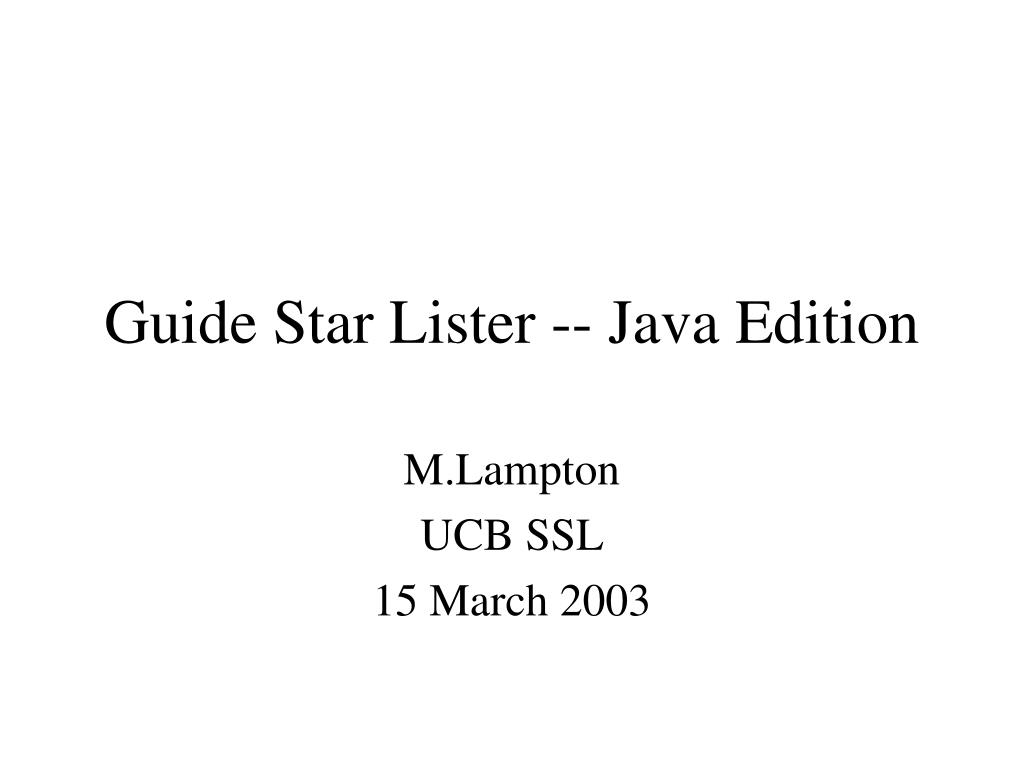

  1. Guide Star Lister -- Java Edition M.Lampton UCB SSL 15 March 2003

  2. Guide Star Lister • Determine s/c orientation • Given a target (RA,dec) on the sky • Given a target location (x,y) on the focal plane • Given DoY hence sun location on sky.. • what s/c orientation (pitch,yaw,roll)? • Find & list all guide stars for that orientation • use GSC2.2 catalog subset for RA, dec, mag • use nominal guider chip locations on focal plane • Do it all in Java.

  3. Focal Plane Coordinates Telescope axis: (0.0, 0.0) meters Spectrometer feed: (+0.1,+0.1) meters

  4. GSC2.2http://www-gsss.stsci.edu/gsc/gsc2/GSC2home.htm • Digitized photographic survey • Palomar Schmidt + UK Schmidt: all sky • Has 456 million entries • Released July 2001 • Goes to about 18.5 in “F” or 19.5 in “J” • 23 fields and 208 bytes per object • Subsets can be downloaded from STScI

  5. GuideStarLister Overview • General purpose methods: • 6 static general purpose math methods • 6 static general purpose timekeeping/astronomy methods • 11 static general purpose vector & matrix methods • Mission specific methods: • “telescope( )” converts star_sc into star_fp • “epocselet( )” converts star_fp into star_sc • “whichchip( )” converts star_fp into ichip, pixrow, pixcol • 5 solver support functions • given target RA,dec coordinates & solar constraints • solve for attitude vector and unitary matrix • GSC parser analyzes Guide Star Cat 2.2 data • Took a Java novice (me) five weekends to write • 670 lines. • approx 10% is comments

  6. public static void main(String args[]) throws Exception { double [][] umat = new double[3][3]; System.out.println("..determining attitude....."); epocselet(TARGET_FPX, TARGET_FPY, tgt_sc); // get tgt_sc setup(TARGET_DOY); // get approx ori[] solve(); // get exact ori[] get3x3mat(ori, umat); // get umat[][] showattitude(); System.out.println("...RA.......dec.....Rmag....chip...row...col"); int[] chipvec = new int[3]; int nrec=0, ngood=0; File myfile = new File("gs.dat"); if (myfile.exists() && myfile.canRead()) // LJ p.308 try { FileReader fr = new FileReader(myfile); BufferedReader br = new BufferedReader(fr); String record = ""; while ((record = br.readLine()) != null) { nrec++; if (isguidestar(umat, record, chipvec)) { ngood++; showstar(record, chipvec); } } System.out.println("Records="+nrec+" good="+ngood); } catch (FileNotFoundException e) { System.out.println("file is not available"); } } main( )

  7. static boolean telescope(double star_sc[], double fp[]) // Converts star_sc vector to focal plane coords, meters. // Returns true if all is OK, otherwise returns false. // For differentiability this model responds to a full circular field; // but actual telescope is useful only over annulus 0.006<s<0.013 // M.Lampton UCB SSL Feb 2003 { double x = star_sc[0]; double y = star_sc[1]; double z = star_sc[2]; double err = Math.abs(x*x + y*y + z*z - 1.0); double s = Math.sqrt(x*x + y*y); // s=sin(OffAxisAngle) if ((s>0.0145) || (z<0.99) || (err>TOL)) { fp[0]=0.0; fp[1]=0.0; return false; // outside circular field or norm error } // Coefs fit to TMA63 distortion 0.006<s<0.013 // M.Lampton SPIE 4849 p.215 2002 // The RMS fit error is 1 microns RMS double a1=21.442388; double a3=2154.5181; double a5=216569.56; double radius = a1*s + a3*s*s*s + a5*s*s*s*s*s; double azim = Math.atan2(y, x); fp[0] = radius * Math.cos(azim); fp[1] = radius * Math.sin(azim); return true; } telescope( )

  8. static boolean epocselet(double fpx, double fpy, double star[]) // Inverse telescope: given (fpx,fpy) on focal plane, // computes the direction to the star in SC coordinates. // Returns 1 if OK; otherwise zero. // For differentiability, this routine allows full disk r<0.3 meters; // but actual telescope will image only over annulus 0.129<r<0.285. // M.Lampton UCB SSL Feb 2003 { double FL = 22.0; double fpr = Math.sqrt(fpx*fpx + fpy*fpy); if (fpr>0.3) return false; star[0] = star[1] = 0.0; // initially zero double [] trial = {0.0, 0.0, 1.0}; // trial values int i; for (int n=0; n<10; n++) { star[0] += (fpx - trial[0])/FL; star[1] += (fpy - trial[1])/FL; star[2] = Math.sqrt(1.0 - SQR(star[0]) - SQR(star[1])); if (!telescope(star, trial)) return false; } return true; } epocselet( )

  9. static boolean whichchip(double fpxy[], int ipix[]) // Given a focal plane fpxy[] in meters, // computes which chip and which pixel gets the photon. // Returns true if some chip succeeds, else false. // NOTE: ipix[0]=chipid, ipix[1]=col, ipix[2]=row. // Ultrasimplified! really there are various tilts etc. // M.Lampton UCB SSL Feb 2003 { int npix = 3238; // pixels on each axis double h = 0.017; // half size of chip, meters double [][] c = { {0.150000, 0.150000}, // xy center of chip zero {0.150000, -0.150000}, // xy center of chip one {-0.150000, -0.150000}, // xy center of chip two {-0.150000, 0.150000}}; // xy center of chip three double x = fpxy[0]; double y = fpxy[1]; ipix[0] = ipix[1] = ipix[2] = 0; for (int i=0; i<4; i++) { if (((x-c[i][0]-h)*(x-c[i][0]+h)<0) && ((y-c[i][1]-h)*(y-c[i][1]+h)<0)) { ipix[0] = i; // chipid = 0,1,2,3 ipix[1] = (int) (npix * ((x-c[i][0]+h))/(2*h)); ipix[2] = (int) (npix * ((y-c[i][1]+h))/(2*h)); return true; } } return false; } whichchip( )

  10. static void parseGSCrecord(String record, double star[]) // Parses GSC record into star[] = {RA, dec, mag} // M.Lampton UCB SSL Oct 2002, Feb 2003 { String NAMEstr = ""; String RAstr = ""; String DECstr = ""; String Fstr = ""; String classif = ""; star[0] = star[1] = star[2] = 0.0; if (record.length() < 1) return; StringTokenizer st = new StringTokenizer(record); // LJ p.228 int nfield = 0; while (st.hasMoreTokens( )) { String token = st.nextToken(); switch (nfield) { case 0: NAMEstr = token; break; case 1: RAstr = token; break; case 2: DECstr = token; break; case 10: Fstr = token; break; case 21: classif = token; break; default: break; } nfield++; } if (nfield < 23) return; star[0] = Double.parseDouble(RAstr); // LJ p.230 star[1] = Double.parseDouble(DECstr); // LJ p.230 star[2] = Double.parseDouble(Fstr); // LJ p.230 } parseGSCrecord( )

  11. isguidestar( ) static boolean isguidestar(double u[][], String line, int chipvec[]) // tests a GSC record and sees if it is a guide star { double [] radecmag = new double[3]; // ra, dec, mag double [] star_eq = new double[3]; // xyz unitsphere double [] star_sc = new double[3]; // xyz unitsphere double [] star_fp = new double[2]; // fpxy coords parseGSCrecord(line, radecmag); geteqvec(radecmag[0], radecmag[1], star_eq); mult(u, star_eq, star_sc); if (telescope(star_sc, star_fp) == 1) if (whichchip(star_fp, chipvec) && (radecmag[2]<DIMMESTMAG)) return true; return false; }
