  1. Using Views for Customizing Reusable Components in Component-Based Frameworks Anca-Andreea Ivan Vijay Karamcheti New York University

  2. Application Adaptation Motivation: • Applications run in heterogeneous environments. • Network state changes over time. Problem: • Changes in environment state often impact application performance in a negative way. Solution: • Flexibly adapt the application to environment changes.

  3. Choices for Application Adaptation Two classes of application adaptation: • Applications adapt by themselves • Requires code modification • Systems adapt applications: • Applications expose knobs: Tunability Framework • Systems adapt applications by deploying components: • Static linkages: CCM, .NET • Dynamic linkages: Partitionable Services Framework-PSF, CANS

  4. Mail Client Weak Mail Client Cache Mail Server Mail Server Cipher Running Example: Web-Based Mail Application • Components: • Clients can require certain quality of service levels: • Minimum operation time (send/receive). • Confidentiality : privacy required (or not).

  5. Partitionable Services Framework A B PSF secure, fast insecure, slow

  6. Partitionable Services Framework - Protocol User makes request PSF authorizes user PSF customizes comp PSF extracts properties PSF creates plan PSF authorizes nodes PSF deploys comp Nodes authorize comp Nodes link/run comp

  7. Challenges • Descriptive application specification that comprises general application properties. [HPDC 2002] • Efficient planning process that considers application and environment properties. [IPDPS 2003] • Efficient and flexible component customization. • Distributed, single sign-on, cross-domain authorization. • Efficient and secure deployment process.

  8. Challenges • Descriptive application specification that comprises general application properties. [HPDC 2002] • Efficient planning process that considers application and environment properties. [IPDPS 2003] • Efficient and flexible component customization. • Distributed, single sign-on, cross-domain authorization. • Efficient and secure deployment process.

  9. Component Customization - Summary • Definition of component customization • Advantages of component customization • View definition • Example • View run-time support • View generator • View deployment system

  10. Component Customization • “Component customization” denotes the automatic creation of new components based on old components and a few simple rules. • Base component is and implements • MessageInterface • AddressInterface • NotesInterface • One possible component is and implements • MessageInterface • AddressInterface

  11. Advantages of Component Customization • Increased chances to find a valid deployment plan: • New components can have different properties. • Customized, single sign-on access control: • Customizing / removing / adding methods. • Distributing only the minimum necessary code to users . • No need to access sources (Java bytecode modification). • Ease the programming effort: • Defining simple rules instead of duplicating code.

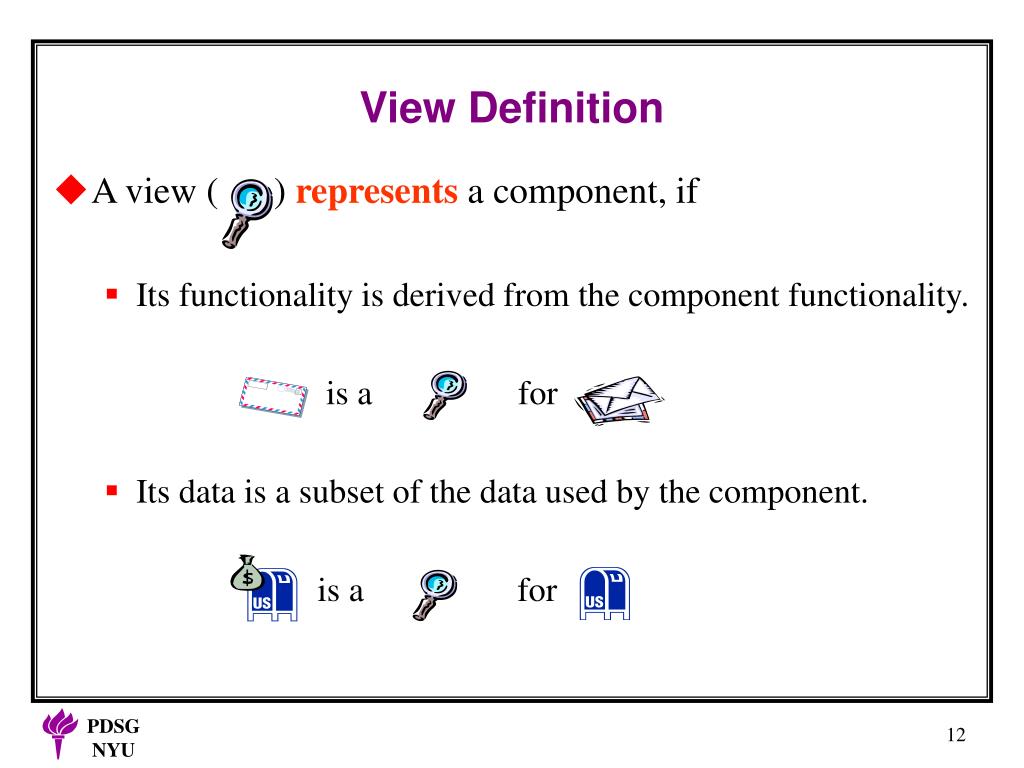

  12. View Definition • A view () represents a component, if • Its functionality is derived from the component functionality. is a for • Its data is a subset of the data used by the component. is a for

  13. MessageInterface m1 x = 3 view WeakMailClient class MailClient MessageInterface m1 AddressInterface AddressInterface m2 m2 y = 4 NotesInterface NotesInterface m3 m3 z ++ z ++ m4 a = 10 Using Views x = 3 y = 6 y = 4 z ++

  14. XML View Description <View name = WeakMailClient /> <Represents name = MailClient /> <Restricts> <Interface name = MessageInterface /> <Interface name = AddressInterface /> <Adds_Methods> <MSign> m4 <MBody> a = 10 <Customizes_Methods> <MSign> m2 <MBody> y = 6

  15. View Generation Tool - VIG • VIG is an automatic view generator. • Input: original component + view definition rules • Output: new component (e.g. view) • Based on bytecode modifier (Javassist) • Operations allowed when defining a view: • Add new fields; copy fields from the original component; • Add new methods; copy or customize methods from the original component; • Restrict interfaces; add new interfaces.

  16. Views – Run-Time System • User makes request. • PSF authorizes user. • PSF customizes components. • PSF extracts link & node & component properties. • PSF creates a valid plan. • PSF authorizes nodes. • PSF deploys components on nodes. • Nodes authorize components. • Nodes run & link components. PSF A

  17. Challenges in deploying views • Expressing views properties (environment properties): • General properties (e.g. privacy, OS - version) • Different administrators. • Authorizing users, node, views: • Different domains. • No centralized certification authority. • No total knowledge about the credential space. • Linking views: • Secure communication channels. • Continuous monitoring of the trust relationships.

  18. View – Run-Time System • Distributed trust managements system • Each domain has its own certification root and defines its own meaningful credentials. • dRBAC [ICDCS 2002] • Communication abstraction to establish secure, authenticated, and continuously monitored links between components. • Switchboard [RESH 2002]

  19. A.user A.partner [→ Dell.linux ]Dell [→ A.comp ]A [→ A.comp ]A [ →A.partner]A Using Views, dRBAC, and Switchboard [Dell.linux→Mail.Node]Mail PSF A

  20. Current status • JDK 1.4 • Bouncycastle 1.16 • Linux, Windows 2000 (XP) • Partitionable Services Framework • http://www.cs.nyu.edu/pdsg/pdsg.htm - Software/PSF • PSF, VIG, Sekitei • Disco: • http://www.cs.nyu.edu/pdsg/pdsg.htm - Software • dRBAC, Switchboard

  21. Related Work • Cross-domain authorization: • DCE, DCOM, Corba • Multiple certification roots • No requirement for total knowledge • Expressing environment properties: • CANS, Ninja, previous version of PSF • Translating between environment and application props. • Granularity of access control: • DCE, Corba, DCOM • Flexible, single sign-on access control

  22. Contributions • Automatic creation of new components (e.g. views) by customizing old components • Increased chances of successful planning • Customized, single sign-on access control • Distributed trust management and role-based access control system (dRBAC) • Expressing component and environment properties • Secure communication channels with continuous monitoring of trust relationships (Switchboard)

  23. Thank you ivan@cs.nyu.edu http://www.cs.nyu.edu/~ivan

  24. Partitionable Services Framework - Protocol • User makes request to access service. • PSF authorizes user before granting access to service. • PSF customizes the set of available components. • PSF extracts link & node properties. • PSF creates a valid plan. • PSF authorizes nodes before deploying components. • PSF deploys components on the nodes. • Nodes authorize components before running them. • Nodes link & run components on nodes.

  25. dRBAC – Distributed RBAC • Self-certifying delegations: [  NY.user ]NY • Third-party delegations: [  NY.user] SE • Assignment delegations: [ SE NY.user ‘] NY • Attributes for delegations [  NY.user w/ BW=100kb ] NY

  26. [  NY.user ] NY User Authorization New York [ SE NY.user ‘] NY Seattle [  NY.user] SE

  27. [  NY.user ] NY [  NY.user] SE [  NY.user] SE ?  NY.user Distributed Authorization [ SE NY.user ‘] NY [ SE NY.user ‘] NY

  28. Node Authorization & Translation Environment Properties New York [  Dell.linux] Dell Seattle [  IBM.xp] IBM [ Dell.linuxMail.node w/ Secure= T ] Mail Mail [ IBM.xp Mail.node w/ Secure= F ] Mail

  29. Component Authorization [  NY.exec w/ CPU = 100 ] NY New York [  NY.exec w/ CPU = 100 ] NY [  NY.exec w/ CPU = 100 ] NY [  NY.exec w/ CPU = 100 ] NY Seattle [NY.exec  SE.exec w/ CPU = 80 ] NY
