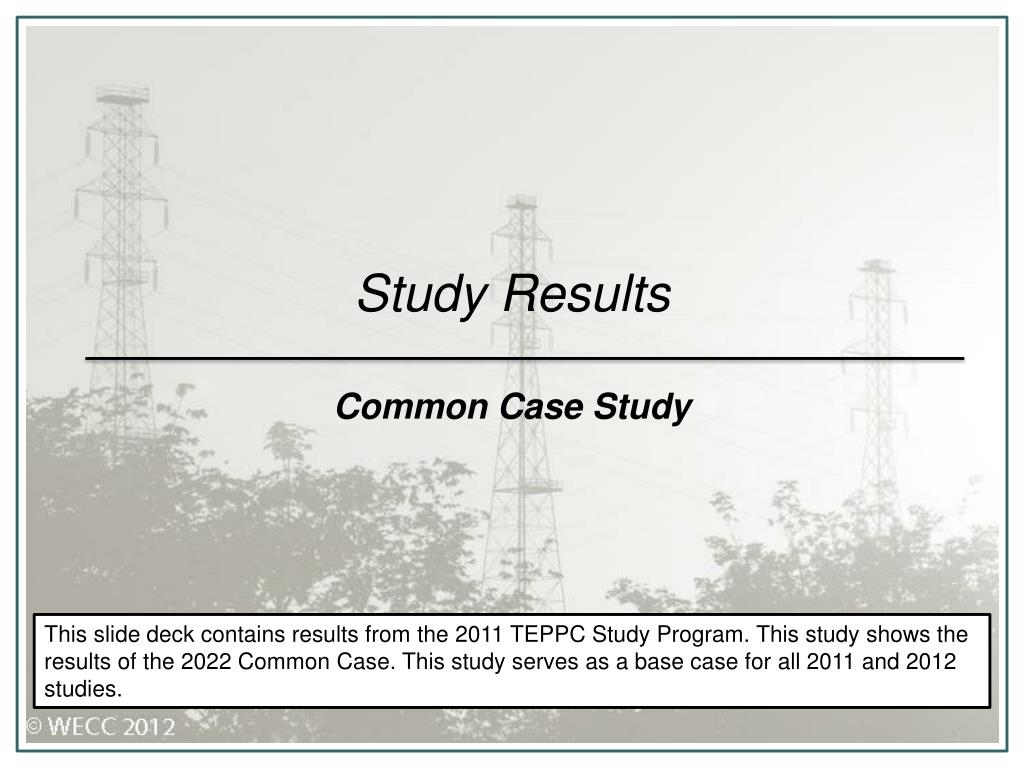

  1. Study ResultsCommon Case Study This slide deck contains results from the 2011 TEPPC Study Program. This study shows the results of the 2022 Common Case. This study serves as a base case for all 2011 and 2012 studies.

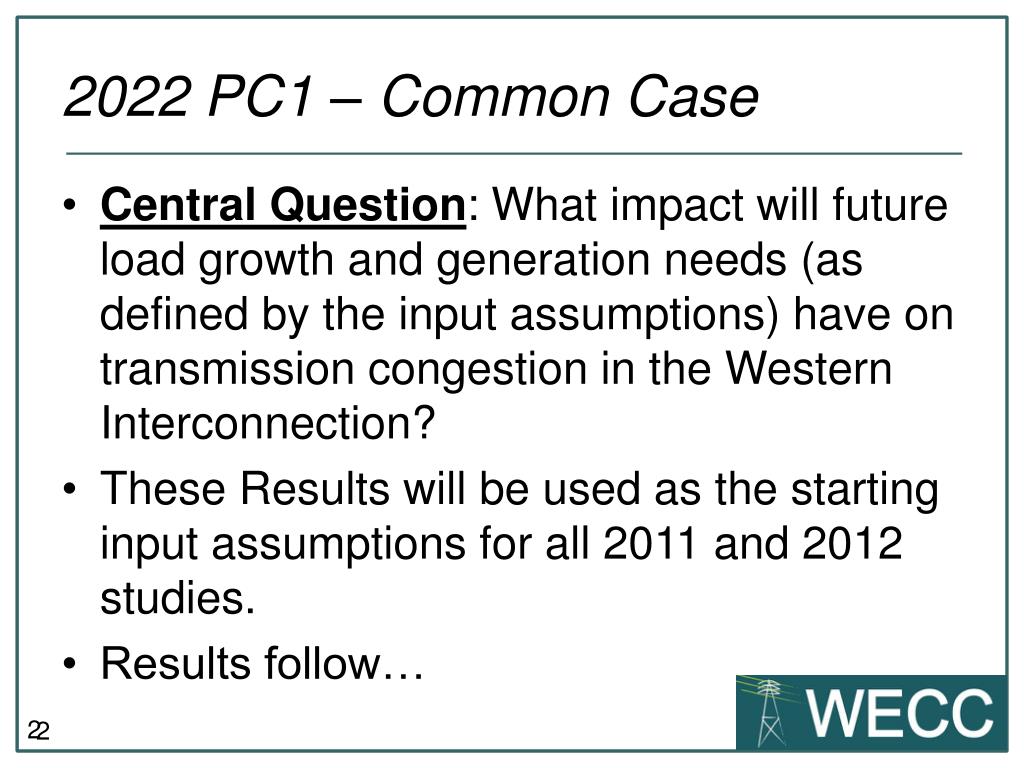

  2. 2022 PC1 – Common Case • Central Question: What impact will future load growth and generation needs (as defined by the input assumptions) have on transmission congestion in the Western Interconnection? • These Results will be used as the starting input assumptions for all 2011 and 2012 studies. • Results follow…

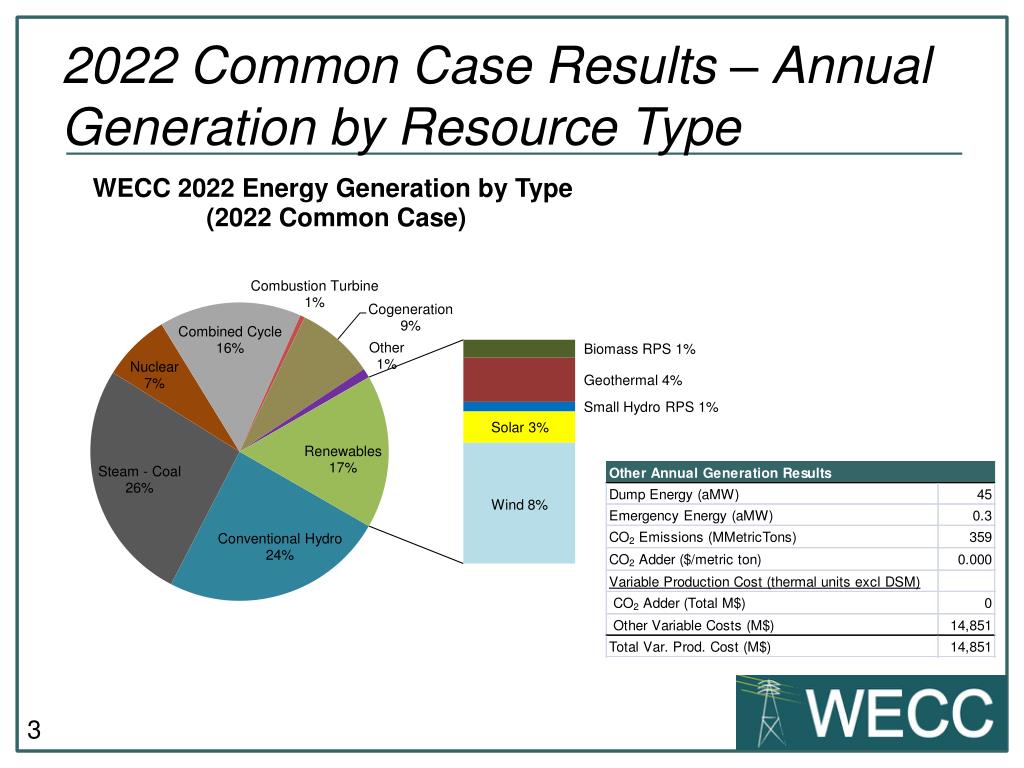

  3. 2022 Common Case Results – Annual Generation by Resource Type

  4. DRAFT

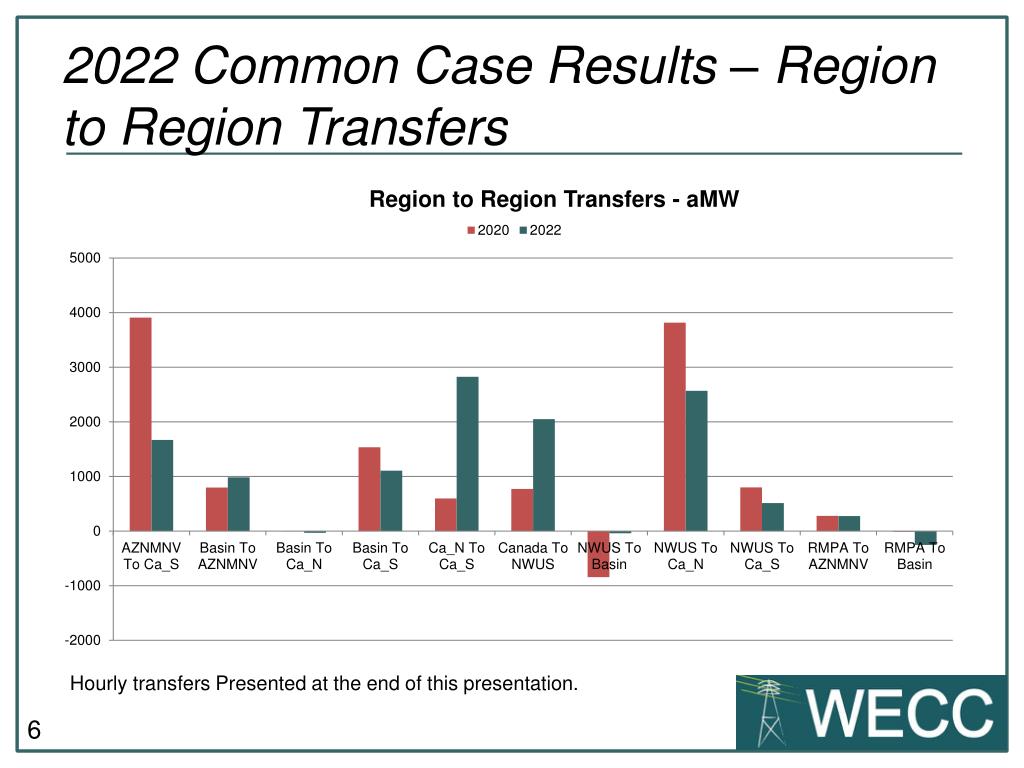

  5. 2022 Common Case Results – Region to Region Transfers Hourly transfers Presented at the end of this presentation.

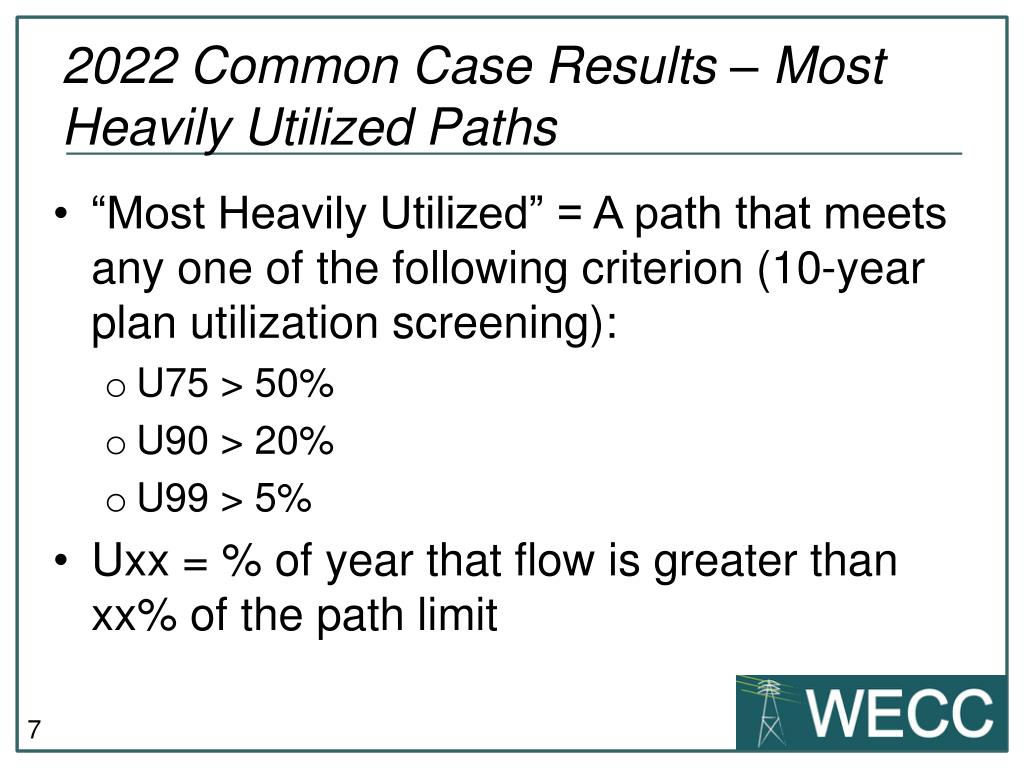

  6. 2022 Common Case Results – Most Heavily Utilized Paths • “Most Heavily Utilized” = A path that meets any one of the following criterion (10-year plan utilization screening): • U75 > 50% • U90 > 20% • U99 > 5% • Uxx = % of year that flow is greater than xx% of the path limit

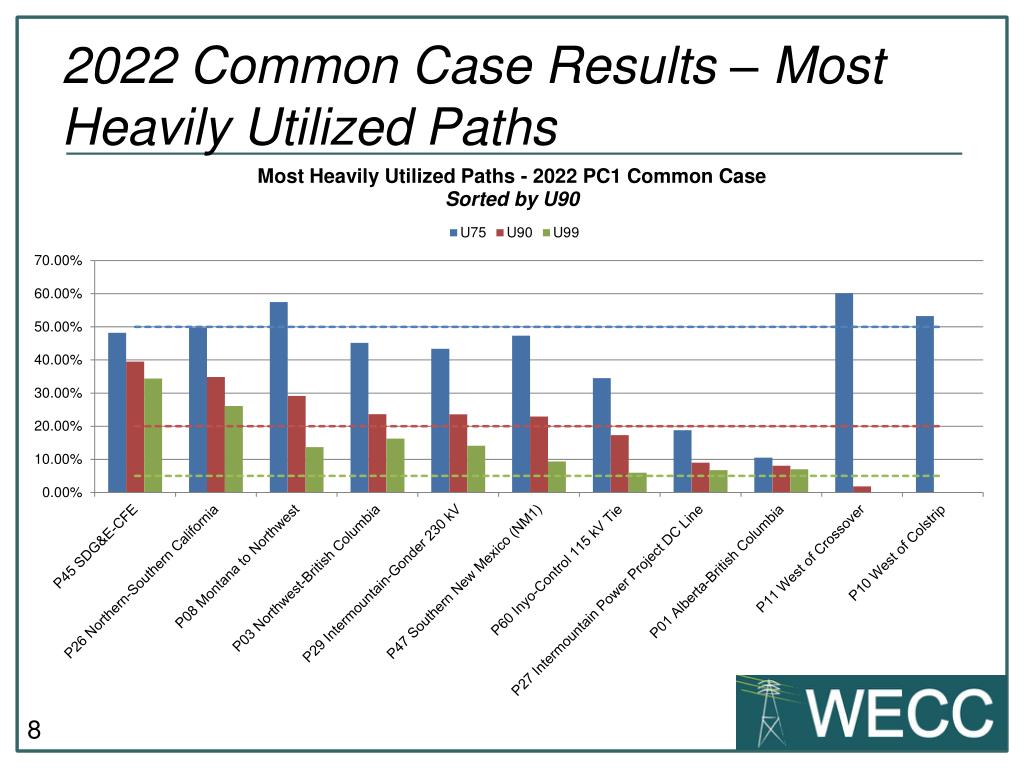

  7. 2022 Common Case Results – Most Heavily Utilized Paths

  8. Hourly region-to-region transfersAZNMNV To Ca_S

  9. Hourly region-to-region transfersBasin To AZNMNV

  10. Hourly region-to-region transfersBasin To Ca_N

  11. Hourly region-to-region transfersBasin To Ca_S

  12. Hourly region-to-region transfersCa_NTo Ca_S

  13. Hourly region-to-region transfersCanada To NWUS

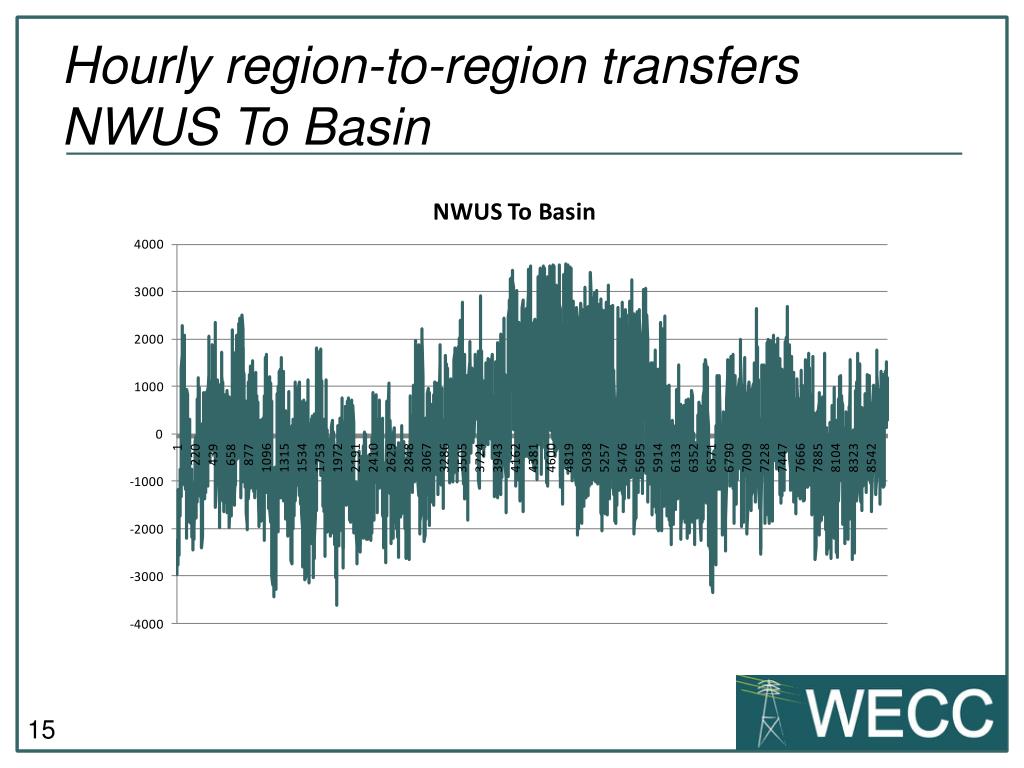

  14. Hourly region-to-region transfersNWUS To Basin

  15. Hourly region-to-region transfersNWUS To Ca_N

  16. Hourly region-to-region transfersNWUS To Ca_S

  17. Hourly region-to-region transfersRMPA To AZNMNV

  18. Hourly region-to-region transfersRMPA To Basin

  19. Hourly region-to-region transfersCalifornia Net Export Hours of net export = 6053 hrs

  20. Questions or thoughts on this study?
