  1. LIST PROGRAMS MODE The HAAS ControlSeries

  2. SLIDE LEGEND PRESS THREE TIMES TO GET TO THIS PAGE (Continued on next slide) Note: ACTIONS To advance through the presentation click on your left mouse button or press <ENTER>. To exit press <ESC>. KEYS INSTRUCTIONS INFORMATION OTHER INFORMATION

  3. LIST PROGRAMS MODE This module is intended to provide you with a familiarization of the List Programs Mode on the Haas Control

  4. Here is where you find the List Programs Buttons

  5. List Programs Buttons Pressing the List Program button on the control will display a list of all of the programs loaded in the control, up to a maximum of 500 programs. LIST PROGRAMS: SELECT PROGRAM: SEND RS232: RECEIVE RS232: ERASE PROGRAM:

  6. List Programs Button: O00123 (Mill HMC2) List Programs Button: Press <LIST PROG> This will bring up the Programs screen and display the programs loaded in the control, up to 500 maximum. An asterisk (*) will be to the left of the selected program. PROGRAM (LIST PROG) O91002 N00000 O00000 O00001 (I.D. Thread Milling) O00002 (I.D. Thread Milling #2) O00022 (Program – VQC) O00123 (Mill HMC2) O01234 (G150 SUB PGM) O08998 (Clipboard) O08999 (DIR LIST) O09000 (vvv Probe) O09023 (REN EASYSET) O09123 (NC PRO ID) O09721 (REN X DIAM) O09722 (REN Y DIAM) O09723 (REN ACT OFFSET) O09724 (SETTING) * O09726 (Basic meas –2t) 60 PROGRAMS 67% FREE (681084 BYTES) ALL TO SEND, RECV, ERASE F1 TO DUP PROG F2 DISK WR, F3 DISK RD, F4 DIR RD

  7. List Programs Button: O00123 (Mill HMC2) To highlight a program for selection do one or a combination of the following: Cursor Up or Down Scroll using the Hand Wheel. Press <HOME>to get to the top of the list. Press <END>to get to the bottom of the list. To highlight and Select a program. Type in the program number andPress<WRITE/ENTER> PROGRAM (LIST PROG) O91002 N00000 O00000 O00001 (I.D. Thread Milling) O00002 (I.D. Thread Milling #2) O00022 (Program – VQC) O00123 (Mill HMC2) O01234 (G150 SUB PGM) O08998 (Clipboard) O08999 (DIR LIST) O09000 (vvv Probe) O09023 (REN EASYSET) O09123 (NC PRO ID) O09721 (REN X DIAM) O09722 (REN Y DIAM) O09723 (REN ACT OFFSET) O09724 (SETTING) * O09726 (Basic meas –2t) 60 PROGRAMS 67% FREE (681084 BYTES) ALL TO SEND, RECV, ERASE F1 TO DUP PROG F2 DISK WR, F3 DISK RD, F4 DIR RD

  8. Select Program Button: O00123 (Mill HMC2) Select Program Button: When the program you want is highlighted Press <SELECT PROG> This will select the program that the cursor is on in the list of programs. An asterisk (*) will be to the left of the selected program. PROGRAM (LIST PROG) O91002 N00000 O00000 O00001 (I.D. Thread Milling) O00002 (I.D. Thread Milling #2) O00022 (Program – VQC) O00123 (Mill HMC2) O01234 (G150 SUB PGM) O08998 (Clipboard) O08999 (DIR LIST) O09000 (vvv Probe) O09023 (REN EASYSET) O09123 (NC PRO ID) O09721 (REN X DIAM) O09722 (REN Y DIAM) O09723 (REN ACT OFFSET) O09724 (SETTING) * O09726 (Basic meas –2t) 60 PROGRAMS 67% FREE (681084 BYTES) ALL TO SEND, RECV, ERASE F1 TO DUP PROG F2 DISK WR, F3 DISK RD, F4 DIR RD

  9. Select Program Button: Select Program Button: When the program you want is highlighted Press <SELECT PROG> This will select the program that the cursor is on in the list of programs. An asterisk (*) will be to the left of the selected program. PROGRAM (LIST PROG) O91002 N00000 O00000 O00001 (I.D. Thread Milling) O00002 (I.D. Thread Milling #2) O00022 (Program – VQC) * O00123 (Mill HMC2) O01234 (G150 SUB PGM) O08998 (Clipboard) O08999 (DIR LIST) O09000 (vvv Probe) O09023 (REN EASYSET) O09123 (NC PRO ID) O09721 (REN X DIAM) O09722 (REN Y DIAM) O09723 (REN ACT OFFSET) O09724 (SETTING) O09726 (Basic meas –2t) 60 PROGRAMS 67% FREE (681084 BYTES) ALL TO SEND, RECV, ERASE F1 TO DUP PROG F2 DISK WR, F3 DISK RD, F4 DIR RD * O00123 (Mill HMC2)

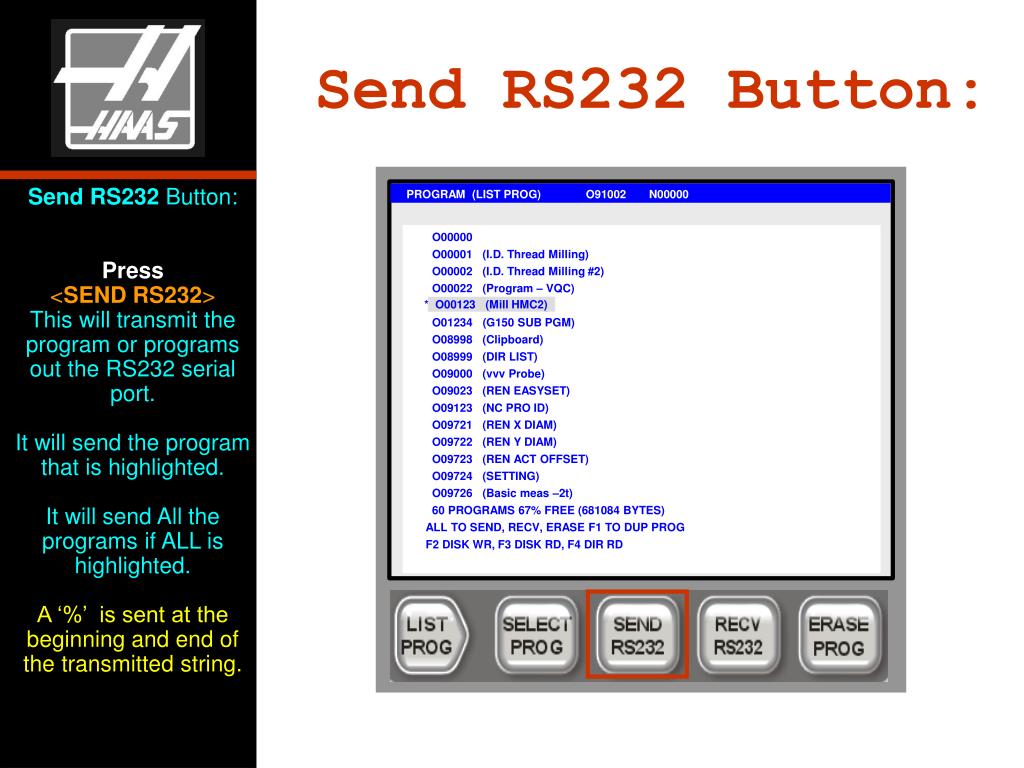

  10. Send RS232 Button: Send RS232 Button: Press <SEND RS232> This will transmit the program or programs out the RS232 serial port. It will send the program that is highlighted. It will send All the programs if ALL is highlighted. A ‘%’ is sent at the beginning and end of the transmitted string. PROGRAM (LIST PROG) O91002 N00000 O00000 O00001 (I.D. Thread Milling) O00002 (I.D. Thread Milling #2) O00022 (Program – VQC) * O00123 (Mill HMC2) O01234 (G150 SUB PGM) O08998 (Clipboard) O08999 (DIR LIST) O09000 (vvv Probe) O09023 (REN EASYSET) O09123 (NC PRO ID) O09721 (REN X DIAM) O09722 (REN Y DIAM) O09723 (REN ACT OFFSET) O09724 (SETTING) O09726 (Basic meas –2t) 60 PROGRAMS 67% FREE (681084 BYTES) ALL TO SEND, RECV, ERASE F1 TO DUP PROG F2 DISK WR, F3 DISK RD, F4 DIR RD * O00123 (Mill HMC2)

  11. Send RS232 Button: Send RS232 Button: It is also possible to send the following via RS232: Parameters Offsets Settings Macro Variables Go to the display for the one you want to transmit and Press <SEND RS232> The following Settings effect RS232 Transmission: Setting 11, 12, 13, 14 and 37. PROGRAM (LIST PROG) O91002 N00000 O00000 O00001 (I.D. Thread Milling) O00002 (I.D. Thread Milling #2) O00022 (Program – VQC) * O00123 (Mill HMC2) O01234 (G150 SUB PGM) O08998 (Clipboard) O08999 (DIR LIST) O09000 (vvv Probe) O09023 (REN EASYSET) O09123 (NC PRO ID) O09721 (REN X DIAM) O09722 (REN Y DIAM) O09723 (REN ACT OFFSET) O09724 (SETTING) O09726 (Basic meas –2t) 60 PROGRAMS 67% FREE (681084 BYTES) ALL TO SEND, RECV, ERASE F1 TO DUP PROG F2 DISK WR, F3 DISK RD, F4 DIR RD * O00123 (Mill HMC2)

  12. Receive RS232 Button: Receive RS232 Button: Press <RECV RS232> This will receive one or more programs from the RS232 serial port. Enter a valid program number before pressing the receive button. If ALL is highlighted, do not enter a program name. The program names will be entered automatically. PROGRAM (LIST PROG) O91002 N00000 O00000 O00001 (I.D. Thread Milling) O00002 (I.D. Thread Milling #2) O00022 (Program – VQC) * O00123 (Mill HMC2) O01234 (G150 SUB PGM) O08998 (Clipboard) O08999 (DIR LIST) O09000 (vvv Probe) O09023 (REN EASYSET) O09123 (NC PRO ID) O09721 (REN X DIAM) O09722 (REN Y DIAM) O09723 (REN ACT OFFSET) O09724 (SETTING) O09726 (Basic meas –2t) 60 PROGRAMS 67% FREE (681084 BYTES) ALL TO SEND, RECV, ERASE F1 TO DUP PROG F2 DISK WR, F3 DISK RD, F4 DIR RD * O00123 (Mill HMC2)

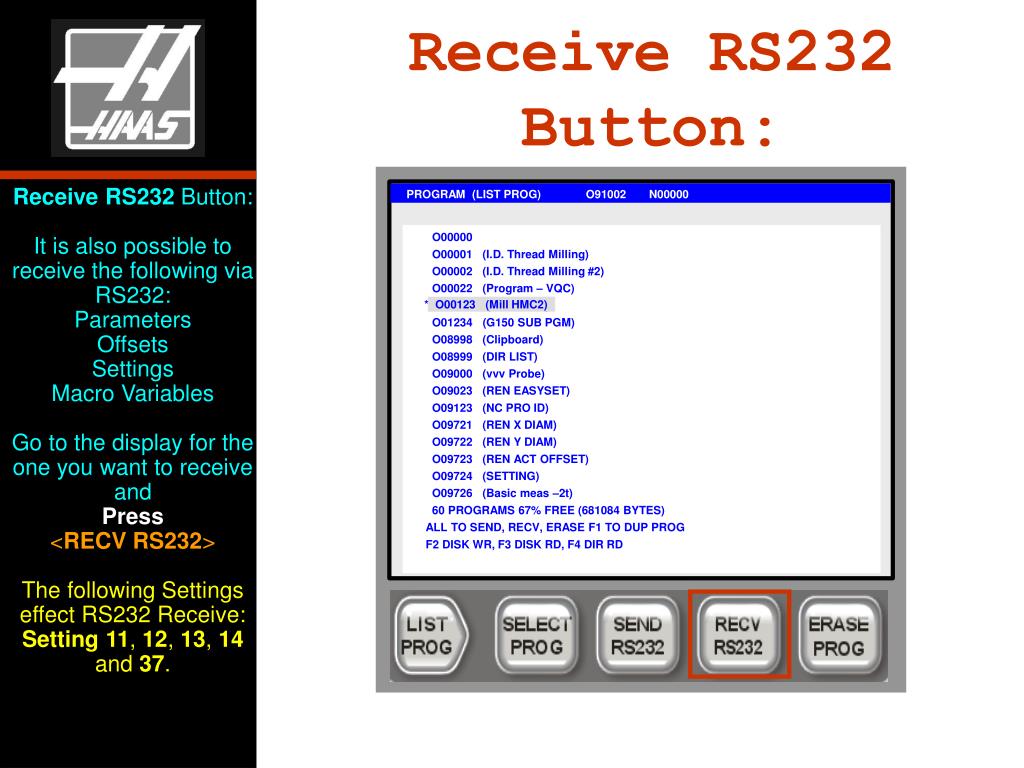

  13. Receive RS232 Button: Receive RS232 Button: It is also possible to receive the following via RS232: Parameters Offsets Settings Macro Variables Go to the display for the one you want to receive and Press <RECV RS232> The following Settings effect RS232 Receive: Setting 11, 12, 13, 14 and 37. PROGRAM (LIST PROG) O91002 N00000 O00000 O00001 (I.D. Thread Milling) O00002 (I.D. Thread Milling #2) O00022 (Program – VQC) * O00123 (Mill HMC2) O01234 (G150 SUB PGM) O08998 (Clipboard) O08999 (DIR LIST) O09000 (vvv Probe) O09023 (REN EASYSET) O09123 (NC PRO ID) O09721 (REN X DIAM) O09722 (REN Y DIAM) O09723 (REN ACT OFFSET) O09724 (SETTING) O09726 (Basic meas –2t) 60 PROGRAMS 67% FREE (681084 BYTES) ALL TO SEND, RECV, ERASE F1 TO DUP PROG F2 DISK WR, F3 DISK RD, F4 DIR RD * O00123 (Mill HMC2)

  14. Erase Program Button: Erase Program Button: Press <ERASE PROG> This will erase the highlighted program, or the program specified in the input buffer. If ALL is highlighted all programs will be erased. PROGRAM (LIST PROG) O91002 N00000 O00000 O00001 (I.D. Thread Milling) O00002 (I.D. Thread Milling #2) O00022 (Program – VQC) * O00123 (Mill HMC2) O01234 (G150 SUB PGM) O08998 (Clipboard) O08999 (DIR LIST) O09000 (vvv Probe) O09023 (REN EASYSET) O09123 (NC PRO ID) O09721 (REN X DIAM) O09722 (REN Y DIAM) O09723 (REN ACT OFFSET) O09724 (SETTING) O09726 (Basic meas –2t) 60 PROGRAMS 67% FREE (681084 BYTES) ALL TO SEND, RECV, ERASE F1 TO DUP PROG F2 DISK WR, F3 DISK RD, F4 DIR RD * O00123 (Mill HMC2)

  15. Prepared by Haas AutomationTraining DepartmentOxnard, CA 93030
