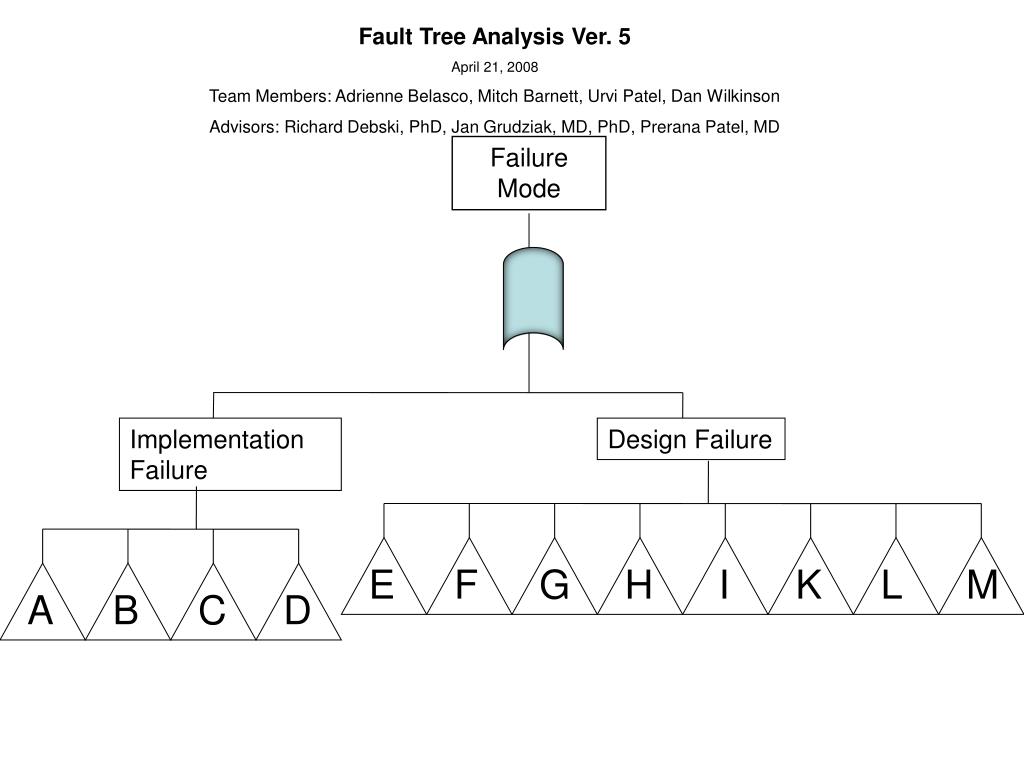

F. G. H. K. L. M. I. A. B. C. D. E. Fault Tree Analysis Ver. 5 April 21, 2008 Team Members: Adrienne Belasco, Mitch Barnett, Urvi Patel, Dan Wilkinson Advisors: Richard Debski, PhD, Jan Grudziak, MD, PhD, Prerana Patel, MD. Failure Mode. Implementation Failure. Design Failure.

Sophia
Télécharger la présentation

Failure Mode

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. F G H K L M I A B C D E Fault Tree Analysis Ver. 5 April 21, 2008 Team Members: Adrienne Belasco, Mitch Barnett, Urvi Patel, Dan Wilkinson Advisors: Richard Debski, PhD, Jan Grudziak, MD, PhD, Prerana Patel, MD Failure Mode Implementation Failure Design Failure

  2. A The screw does not improve healing conditions for the patient preexisting patient condition.

  3. B Improper fitting between screw and removal device Machining Errors in Precision

  4. Contamination during surgical implantation C The screw causes an infection Rejection of the material Material Biocompatibility Patient allergy

  5. D Loosening of scews, decreased stability, and prolonged bone healing Vibration and shock during bone regeneration period post-removal surgery

  6. E Screw shaft breaks due to high torques during removal Bone regeneration results in higher bone-screw adhesion than normal

  7. F Torque generated by the surgeon is more than 10 Nm Bone regeneration results in higher bone-screw adhesion than normal

  8. G Possible screw failure during bone regeneration period Surgeon place the screw at the wrong angle, resulting in added stress Bone regeneration results in higher bone-screw adhesion than normal

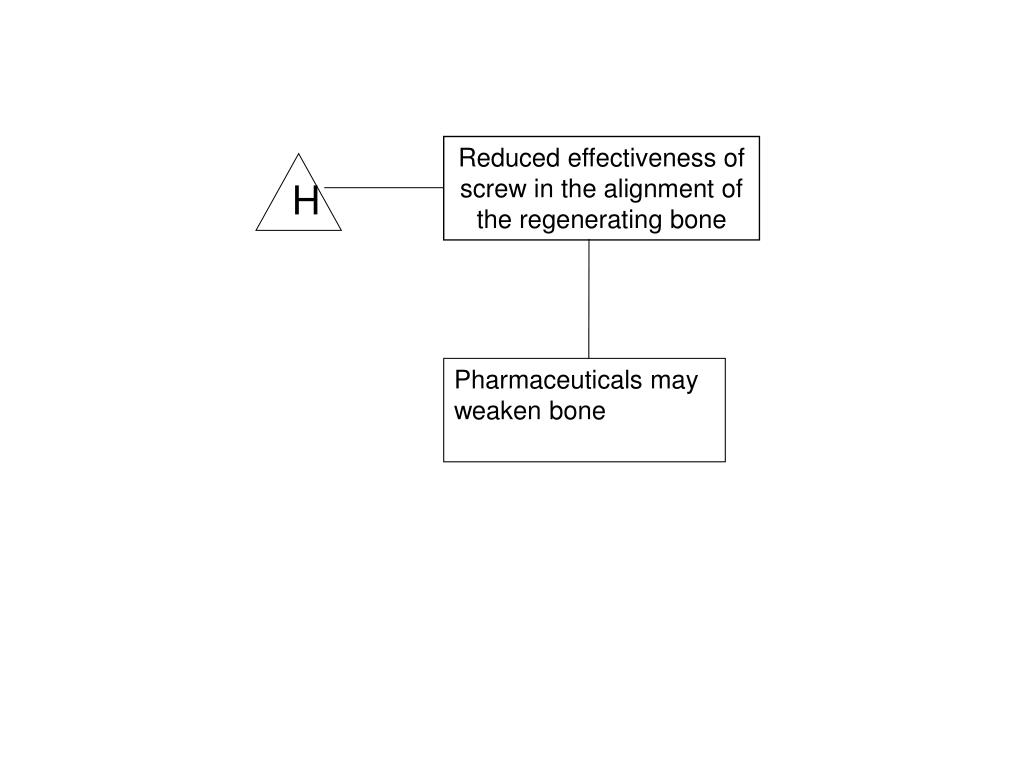

  9. H Reduced effectiveness of screw in the alignment of the regenerating bone Pharmaceuticals may weaken bone

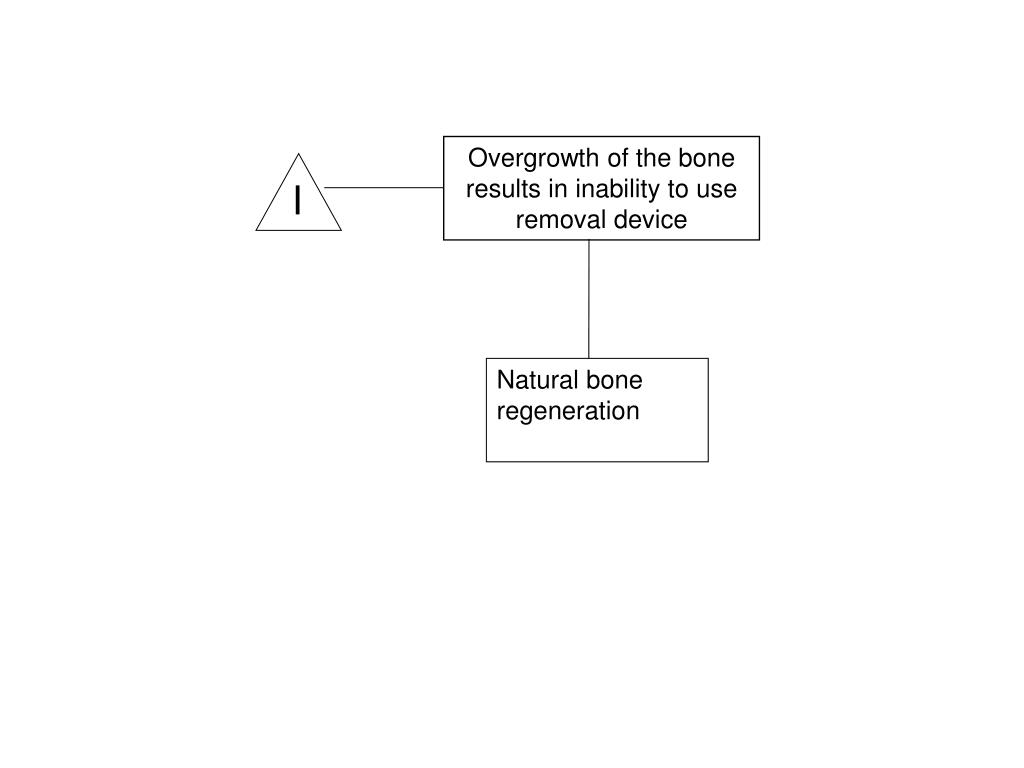

  10. I Overgrowth of the bone results in inability to use removal device Natural bone regeneration

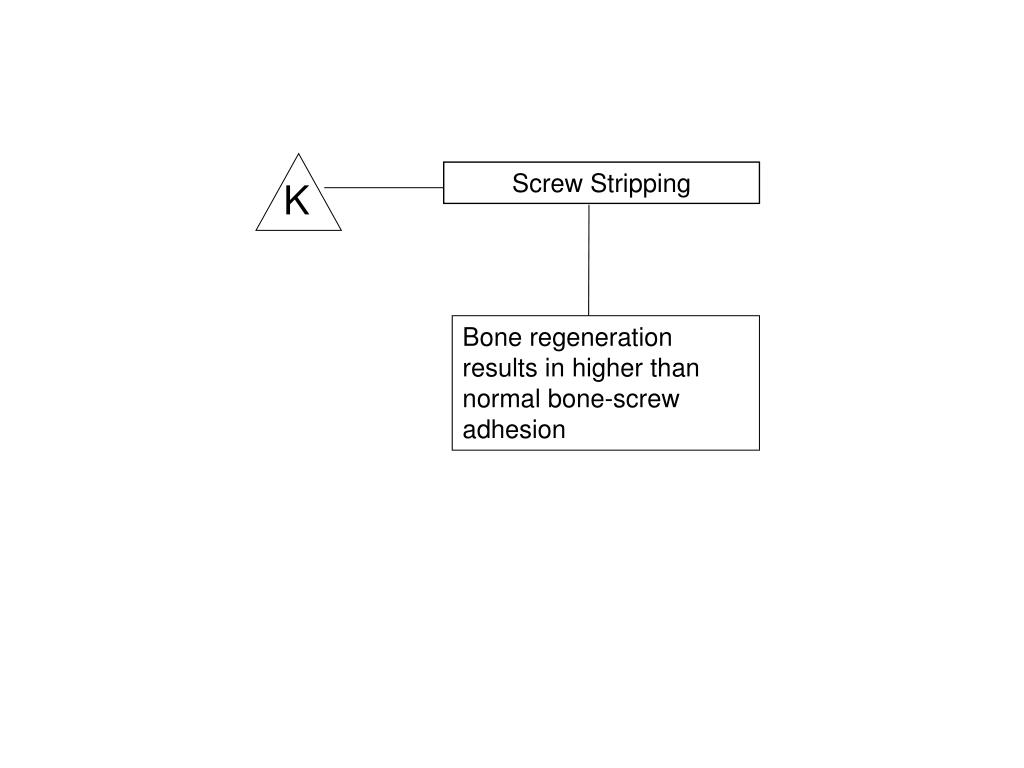

  11. K Screw Stripping Bone regeneration results in higher than normal bone-screw adhesion

  12. L Removal device breaks due to high torques during removal Bone regeneration results in higher bone-screw adhesion than normal

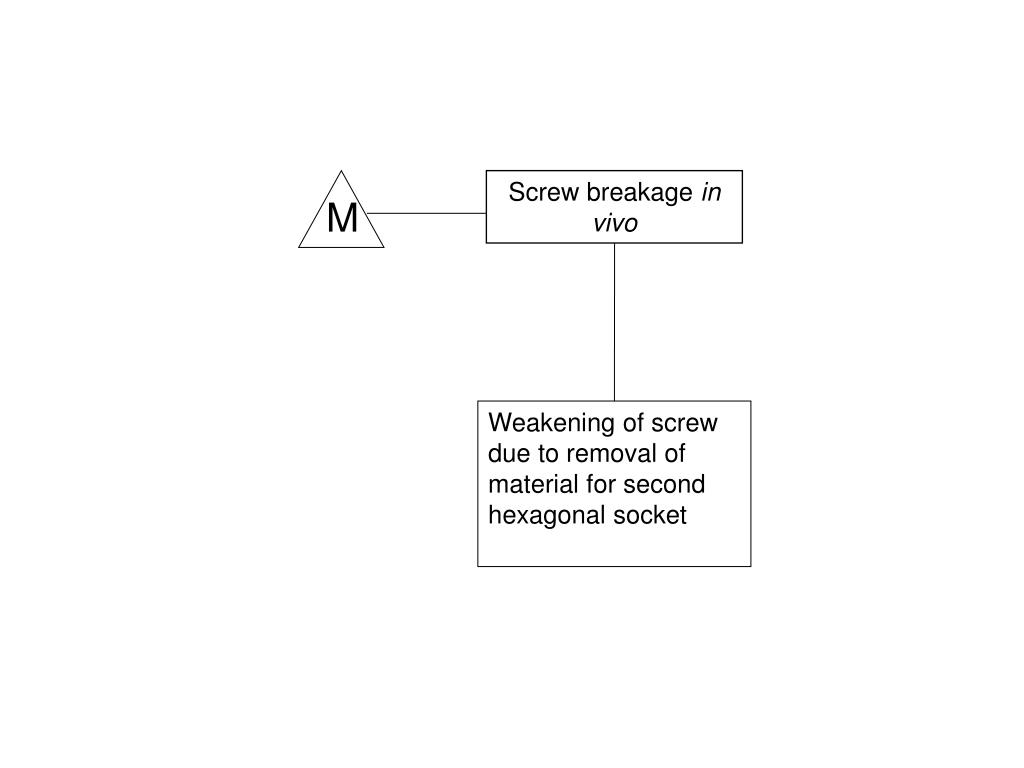

  13. M Screw breakage in vivo Weakening of screw due to removal of material for second hexagonal socket
