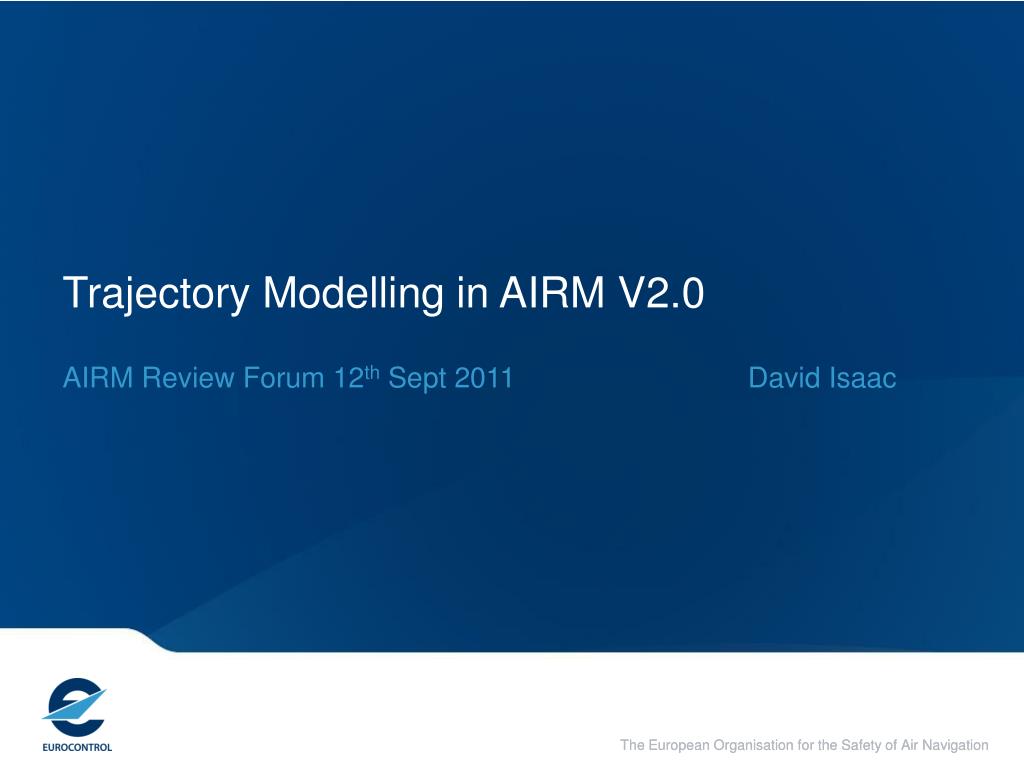

  1. Trajectory Modelling in AIRM V2.0 AIRM Review Forum 12th Sept 2011 David Isaac The European Organisation for the Safety of Air Navigation

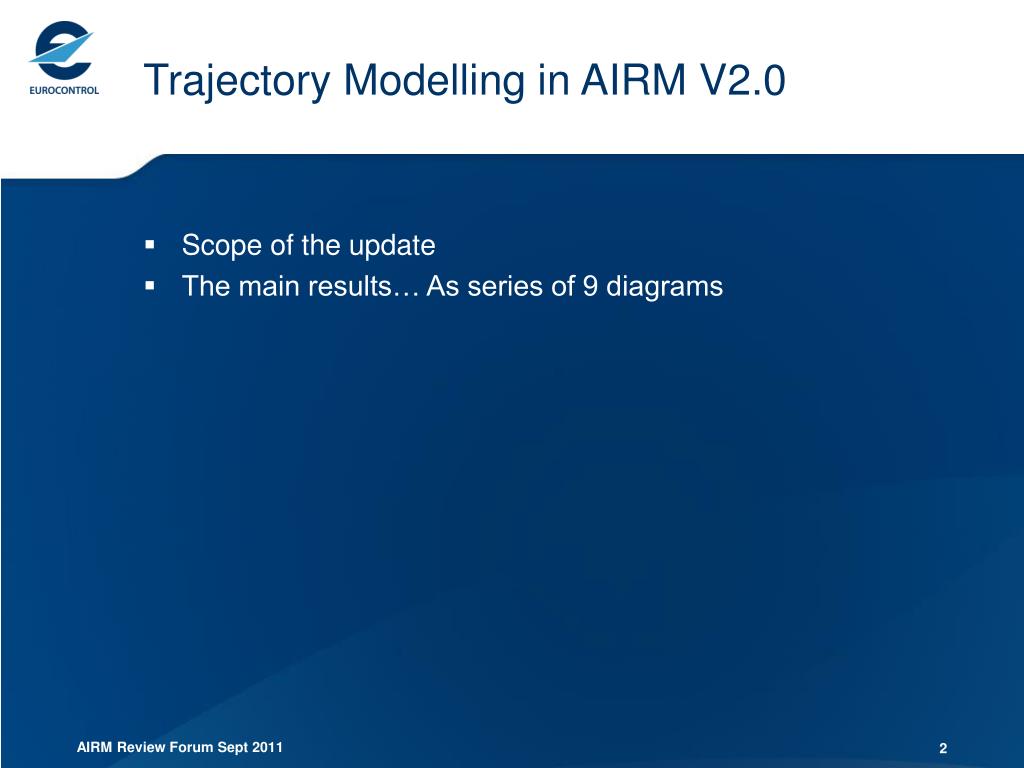

  2. Trajectory Modelling in AIRM V2.0 • Scope of the update • The main results… As series of 9 diagrams AIRM Review Forum Sept 2011

  3. The scope of the update 4.5 OSED Concept Identification Sheet 5.5.1 OSED B4.2 Traj Mgt Doc Intro to Mission Traj AIRM Information Model Update CR 75..84 B4.2 RBT/SBT Issue ADS-C EPP Defn AIRM Review Forum Sept 2011

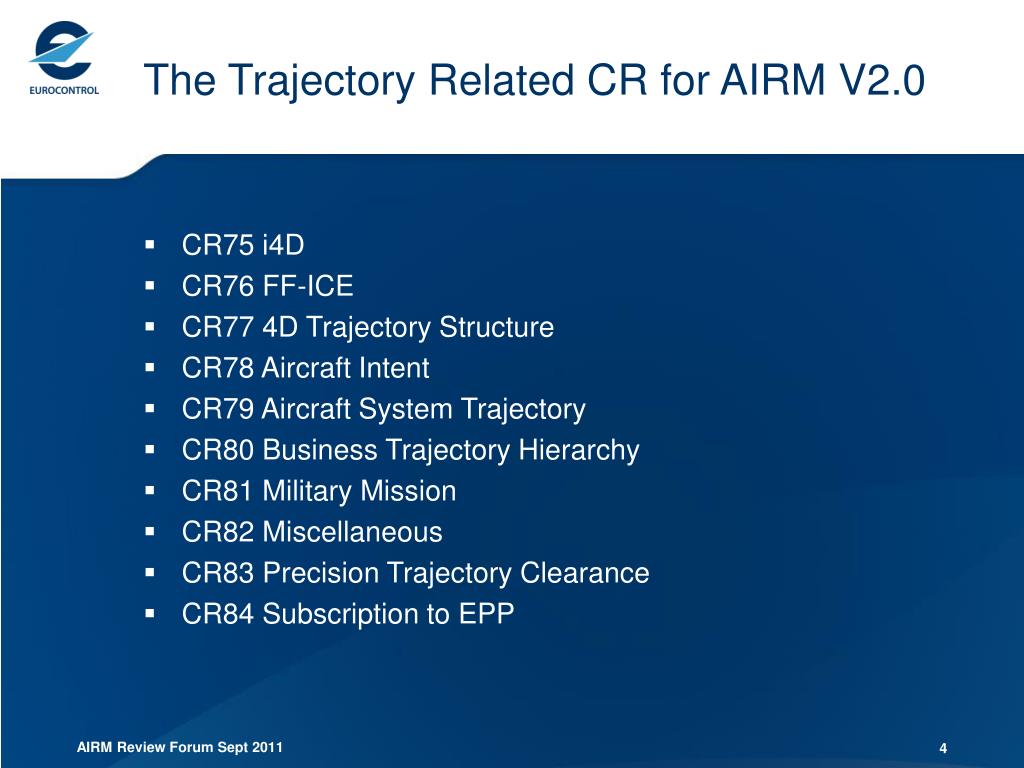

  4. The Trajectory Related CR for AIRM V2.0 • CR75 i4D • CR76 FF-ICE • CR77 4D Trajectory Structure • CR78 Aircraft Intent • CR79 Aircraft System Trajectory • CR80 Business Trajectory Hierarchy • CR81 Military Mission • CR82 Miscellaneous • CR83 Precision Trajectory Clearance • CR84 Subscription to EPP AIRM Review Forum Sept 2011

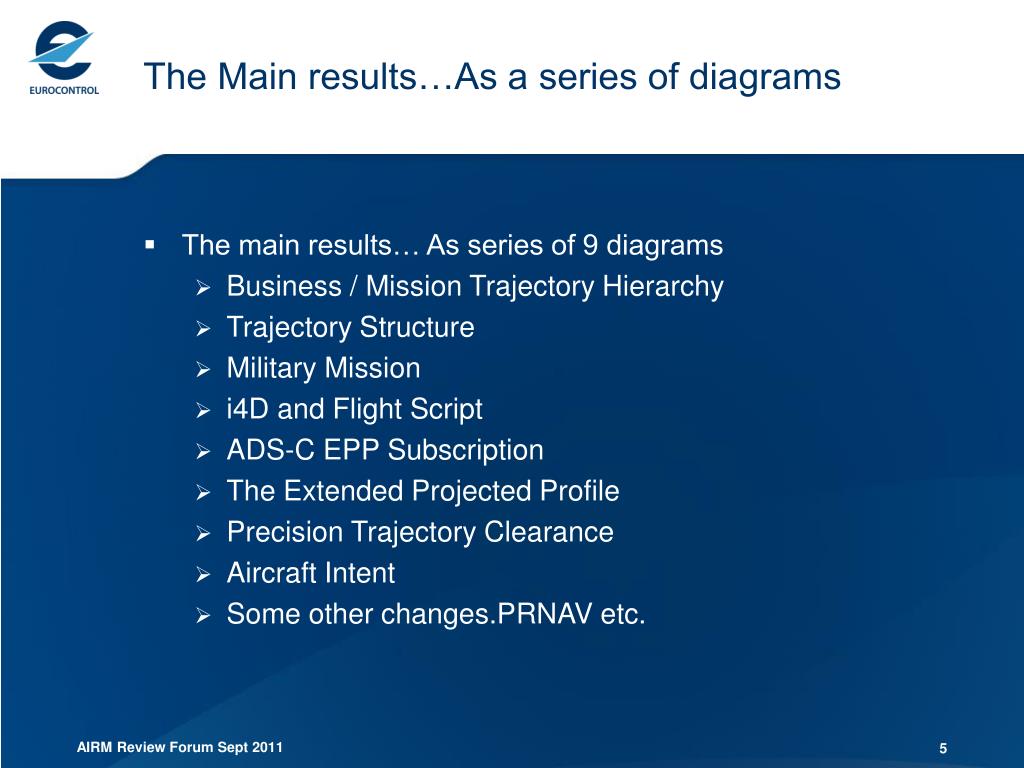

  5. The Main results…As a series of diagrams • The main results… As series of 9 diagrams • Business / Mission Trajectory Hierarchy • Trajectory Structure • Military Mission • i4D and Flight Script • ADS-C EPP Subscription • The Extended Projected Profile • Precision Trajectory Clearance • Aircraft Intent • Some other changes.PRNAV etc. AIRM Review Forum Sept 2011

  6. Business / Mission Trajectory Hierarchy (1 of 9) AIRM Review Forum Sept 2011

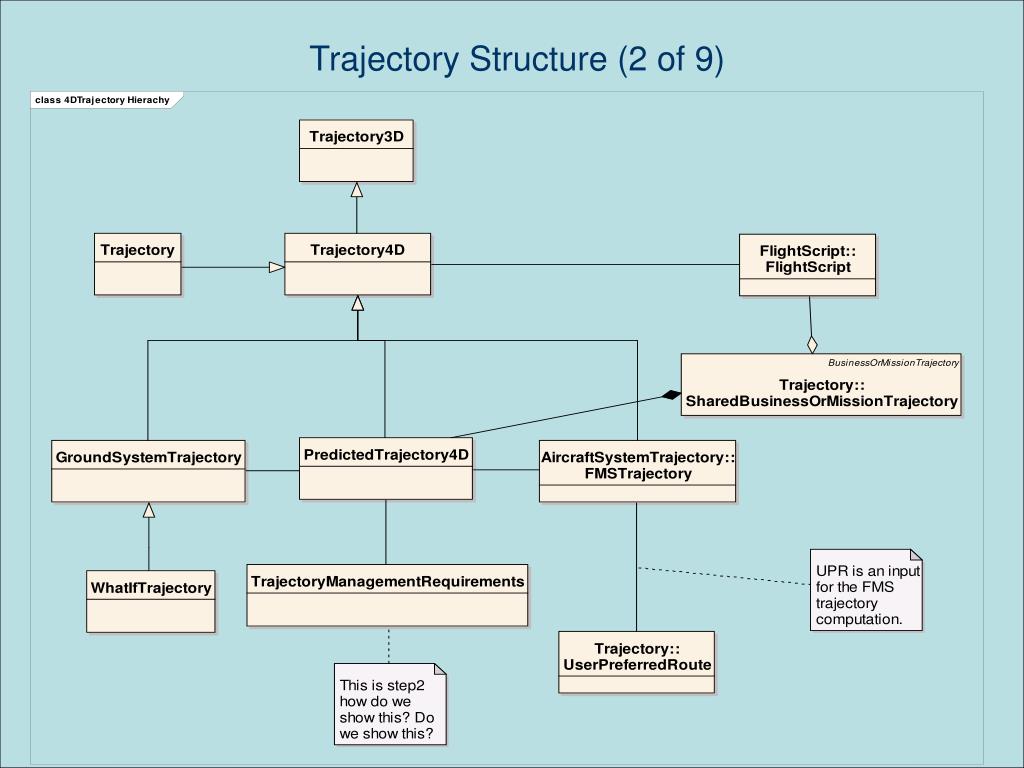

  7. Trajectory Structure (2 of 9) AIRM Review Forum Sept 2011

  8. Military Mission (3 of 9) AIRM Review Forum Sept 2011

  9. i4D and Flight Script (4 of 9) AIRM Review Forum Sept 2011

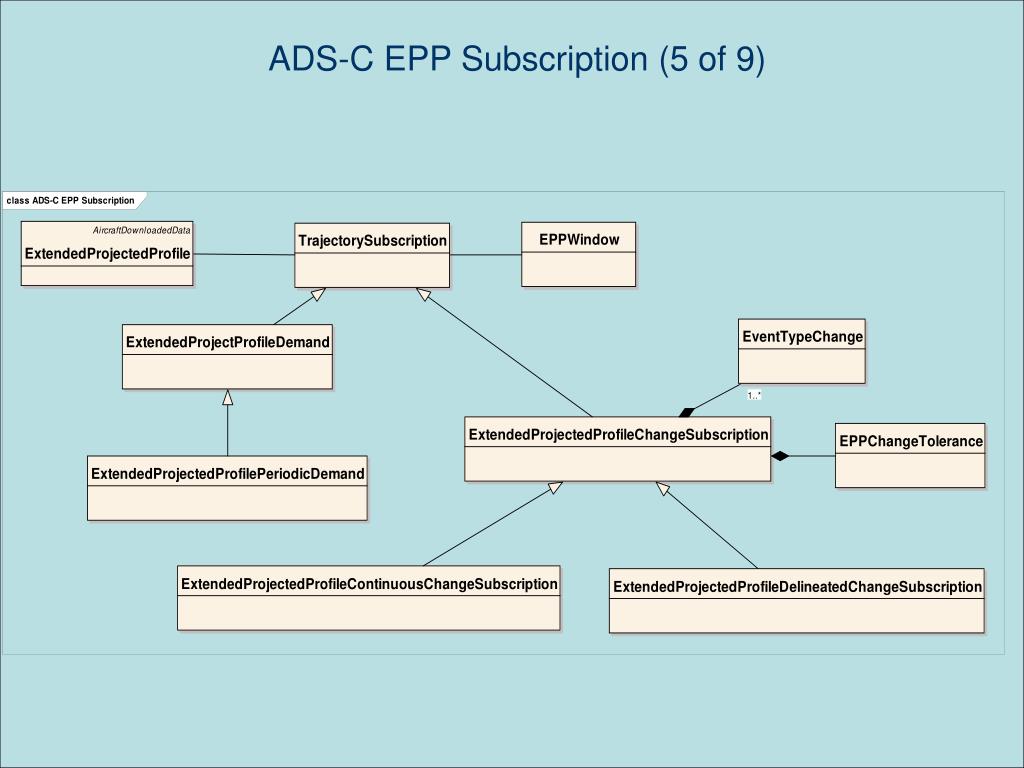

  10. ADS-C EPP Subscription (5 of 9) AIRM Review Forum Sept 2011

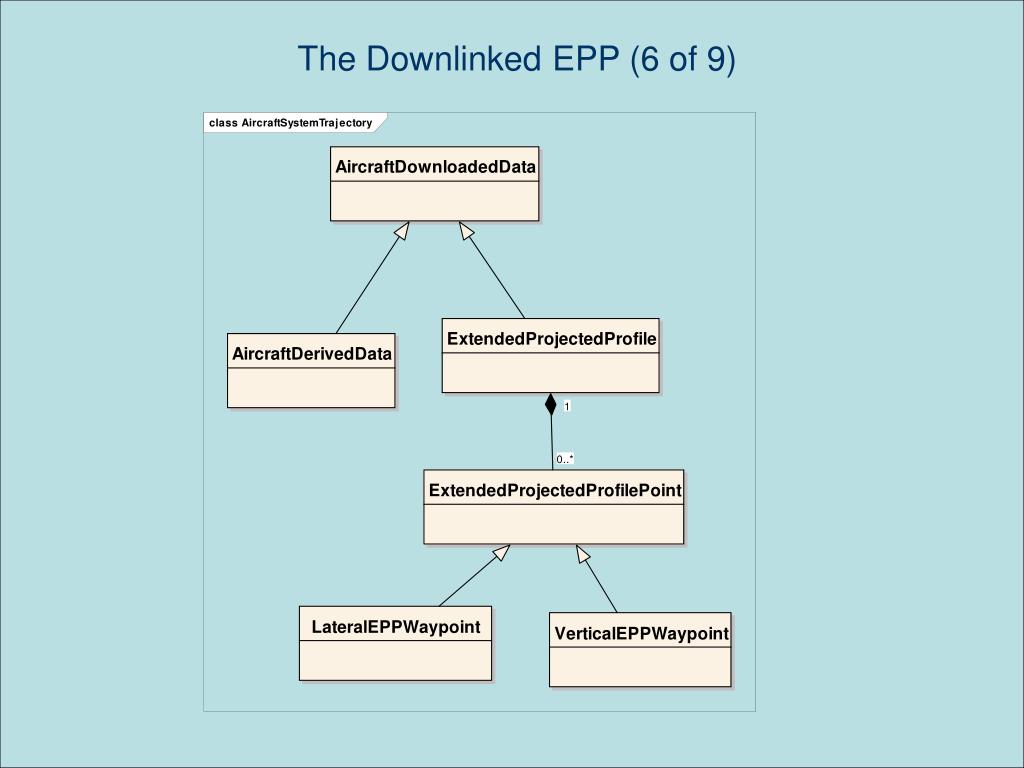

  11. The Downlinked EPP (6 of 9) AIRM Review Forum Sept 2011

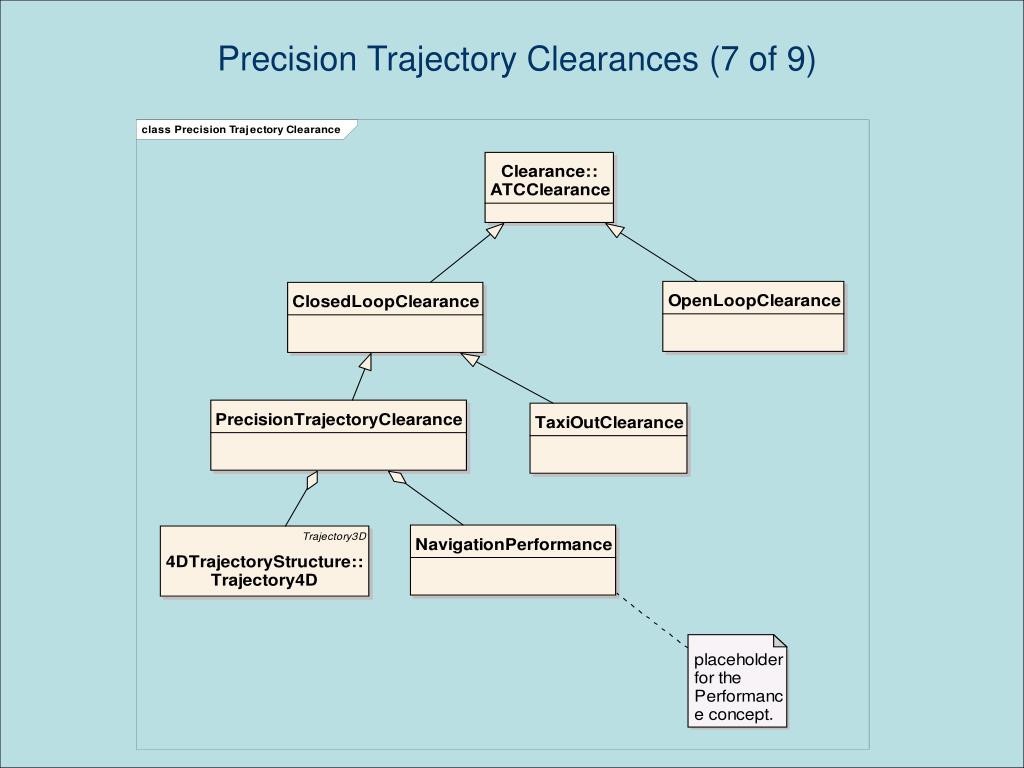

  12. Precision Trajectory Clearances (7 of 9) AIRM Review Forum Sept 2011

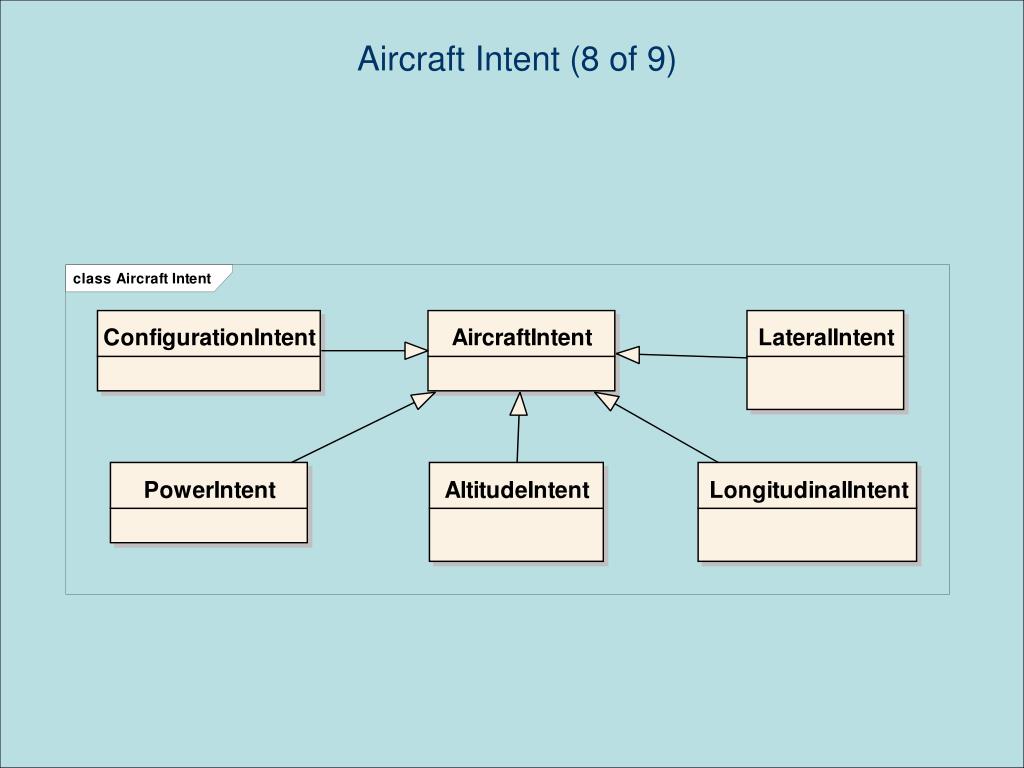

  13. Aircraft Intent (8 of 9) AIRM Review Forum Sept 2011

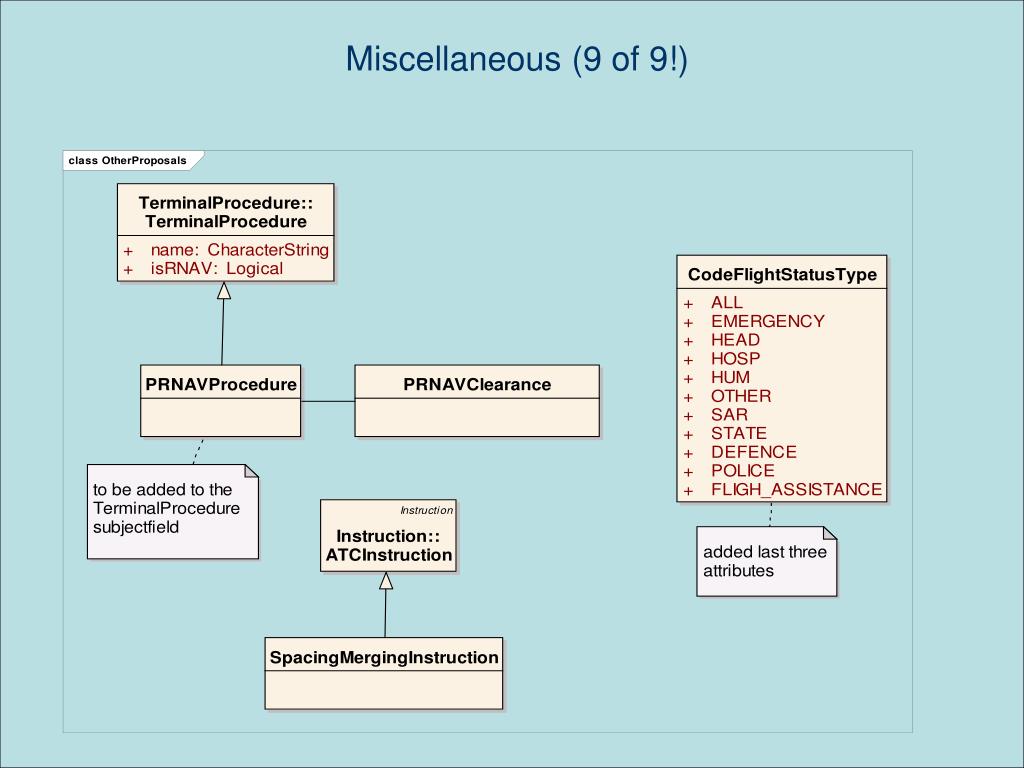

  14. Miscellaneous (9 of 9!) AIRM Review Forum Sept 2011

  15. QUESTIONS? AIRM Review Forum Sept 2011
