  1. Database Design and Normal Forms • why normal forms? • - format standardization (1NF) • - reduction/elimination of redundancies (2NF, 3NF, ...) • theoretical tool for improving/maintaining database design quality • in practice, however: redundancy vs. efficiency • - redundant data may lead to inconsistencies after updates • - but useful for efficiency reasons • (shorter response times) • tradeoff problem: to be decided case by case O. Günther: Database Management Systems

  2. 1st Normal Form (1NF) • all attributes have to be atomic • no „repeating groups“ • important foundation of the relation model • but: may lead to increased redundancy • Ex.: relation Supplies (a) not in 1NF (b) in 1NF repeating groups O. Günther: Database Management Systems

  3. 1NF + for all attributes A and attribute sets X in relation R: • X  A in R X is no real subset of at least one key of R • AND  OR • A not in X A is key attribute (i.e., it belongs to at least one key of R) • note: if R has only one key, this is equivalent to: • 1 NF + each non-key attribute is fully functionally dependent on the key, • i.e., it can not be inferred from part of the key • trivially true for one-column keys • Ex.: relation Supplies • - Supplies (Name, Product, Price) is in 2NF if and only if Price • depends on both Name and Product (free pricing) • - with fixed prices (e.g. books in Germany), Supplies is no longer in 2NF • - possibly decomposition into Supplies’ (Name, Product) and • Costs (Product, Price) 2nd Normal Form (2NF) O. Günther: Database Management Systems

  4. 2NF + for all attributes A and attribute sets X in relation R: • X is a key of R • X  A in R OR • AND  X contains a key of R • A not in X OR • A is a key attribute • note: if there is only one key, this is equivalent to: • 2NF + non-key attributes are mutually independent • sufficient (but not necessary) condition:: • if an FD in the minimal cover contains all attributes of R then R is in 3NF • Ex.: relation Customers (Name, Address, Balance) • - all attributes atomic  1NF • - keys have only one column  2NF • - Address and Balance are mutually independent  3NF 3rd Normal Form (3NF) O. Günther: Database Management Systems

  5. 3NF - An Example • relation R = (C, S, Z) • functional dependencies: F = { CS Z, Z  C} • R in 3NF? • keys of R: • key attributes of R: • 1NF • 2NF • 3 NF O. Günther: Database Management Systems

  6. 3NF - An Example • relation R = (C, S, Z) • functional dependencies: F = { CS Z, Z  C} • R in 3NF? • keys of R: CS, ZS • key attributes of R: • 1NF • 2NF • 3 NF O. Günther: Database Management Systems

  7. 3NF - An Example • relation R = (C, S, Z) • functional dependencies: F = { CS Z, Z  C} • R in 3NF? • keys of R: CS, ZS • key attributes of R: C, S, Z • 1NF • 2NF • 3 NF O. Günther: Database Management Systems

  8. 3NF - An Example • relation R = (C, S, Z) • functional dependencies: F = { CS Z, Z  C} • R in 3NF? • keys of R: CS, ZS • key attributes of R: C, S, Z • 1NF: no problem • 2NF • 3 NF O. Günther: Database Management Systems

  9. 3NF - An Example • relation R = (C, S, Z) • functional dependencies: F = { CS Z, Z  C} • R in 3NF? • keys of R: CS, ZS • key attributes of R: C, S, Z • 1NF: no problem • 2NF: o.k. because Z and C are key attributes • 3 NF O. Günther: Database Management Systems

  10. 3NF - An Example • relation R = (C, S, Z) • functional dependencies: F = { CS Z, Z  C} • R in 3NF? • keys of R: CS, ZS • key attributes of R: C, S, Z • 1NF: no problem • 2NF: o.k. because Z and C are key attributes • 3 NF: o.k. for the same reason O. Günther: Database Management Systems

  11. Decompositon into 3NF • given: relation R, set of FD's F • find: decomposition of R into a set of 3NF relations Ri • algorithm: • IF R in 3NF • THEN stop • ELSE • compute minimal cover F of F; • create a separate relation Ri = A for each attribute Athat does not • occur in any FD in F; • create a relation Ri = XA for each FD X A in F; • if the key K of R does not occur in any relation Ri, create one • more relation Ri = K. • decomposition fulfills • - lossless join • - preservation of dependencies O. Günther: Database Management Systems

  12. Decomposition into 3NF - Example Attributes: L ... Lecture R ... Room I ... Instructor S ... Student T ... Time G ... Grade Relational Schema: R= (L, I, T, R, S, G) Functional Dependencies: O. Günther: Database Management Systems

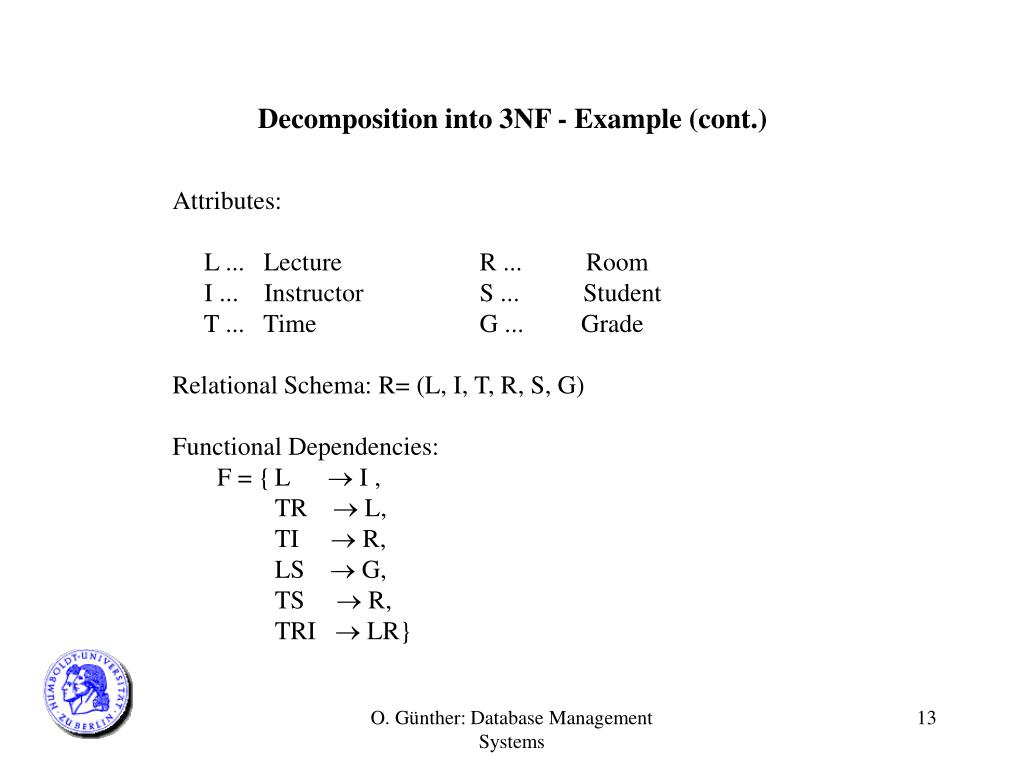

  13. Decomposition into 3NF - Example (cont.) Attributes: L ... Lecture R ... Room I ... Instructor S ... Student T ... Time G ... Grade Relational Schema: R= (L, I, T, R, S, G) Functional Dependencies: F = { L  I , TR  L, TI  R, LS  G, TS  R, TRI  LR} O. Günther: Database Management Systems

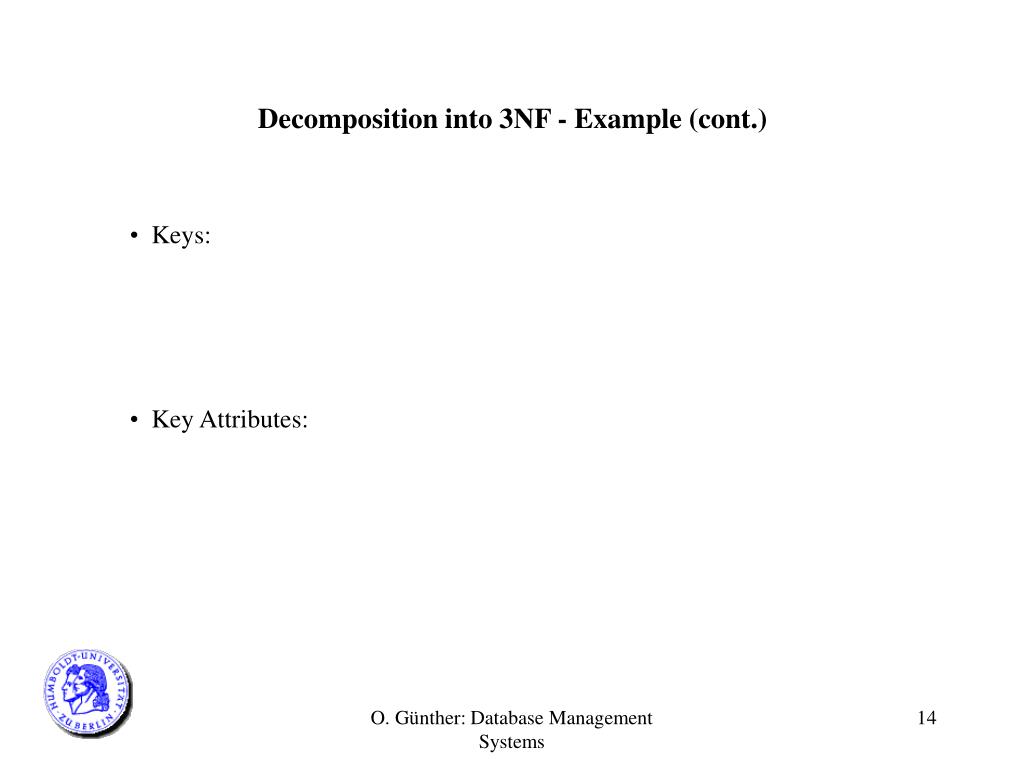

  14. Decomposition into 3NF - Example (cont.) • Keys: • Key Attributes: O. Günther: Database Management Systems

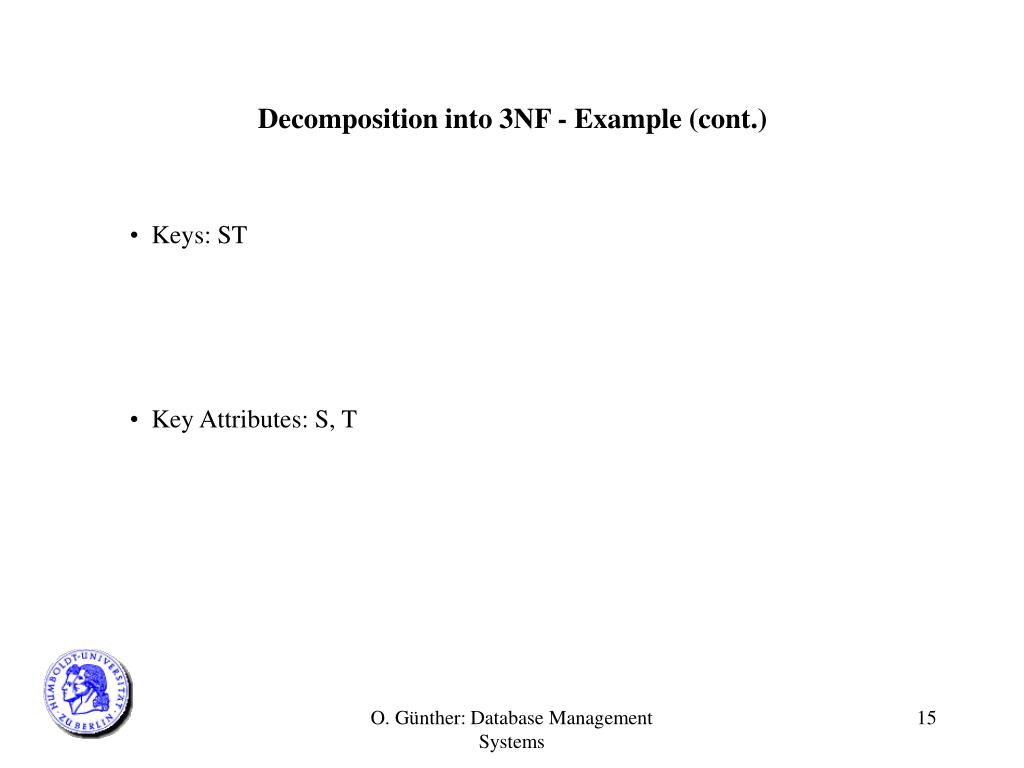

  15. Decomposition into 3NF - Example (cont.) • Keys: ST • Key Attributes: S, T O. Günther: Database Management Systems

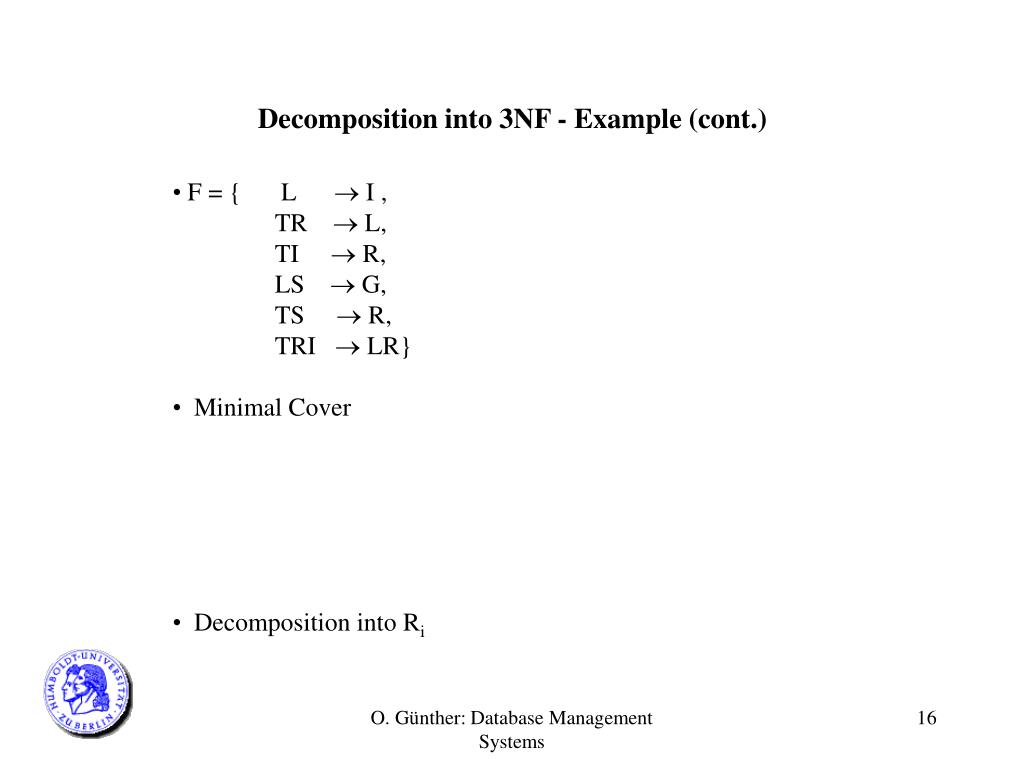

  16. Decomposition into 3NF - Example (cont.) • F = { L  I , • TR  L, • TI  R, • LS  G, • TS  R, • TRI  LR} • Minimal Cover • Decomposition into Ri O. Günther: Database Management Systems

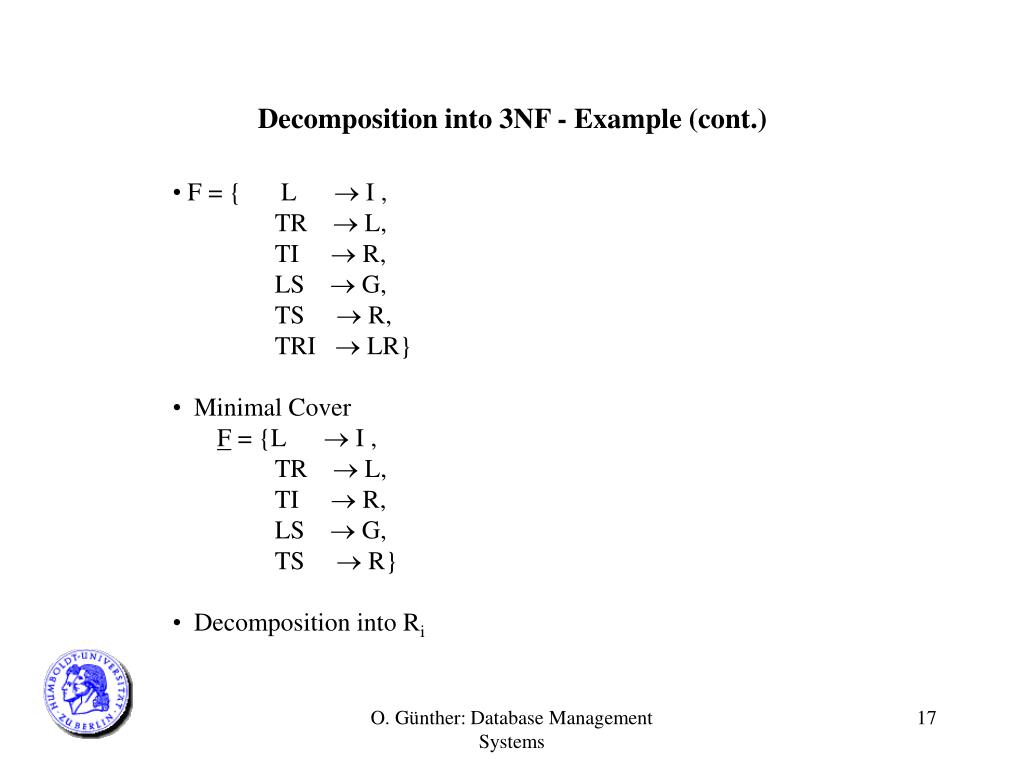

  17. Decomposition into 3NF - Example (cont.) • F = { L  I , • TR  L, • TI  R, • LS  G, • TS  R, • TRI  LR} • Minimal Cover • F = {L  I , • TR  L, • TI  R, • LS  G, • TS  R} • Decomposition into Ri O. Günther: Database Management Systems

  18. Indices • data structures (often tree structures) that serve to accelerate database searches • frequent synonyms: index structures, access methods • Ex.: Supplies (Name, Product, Price) O. Günther: Database Management Systems

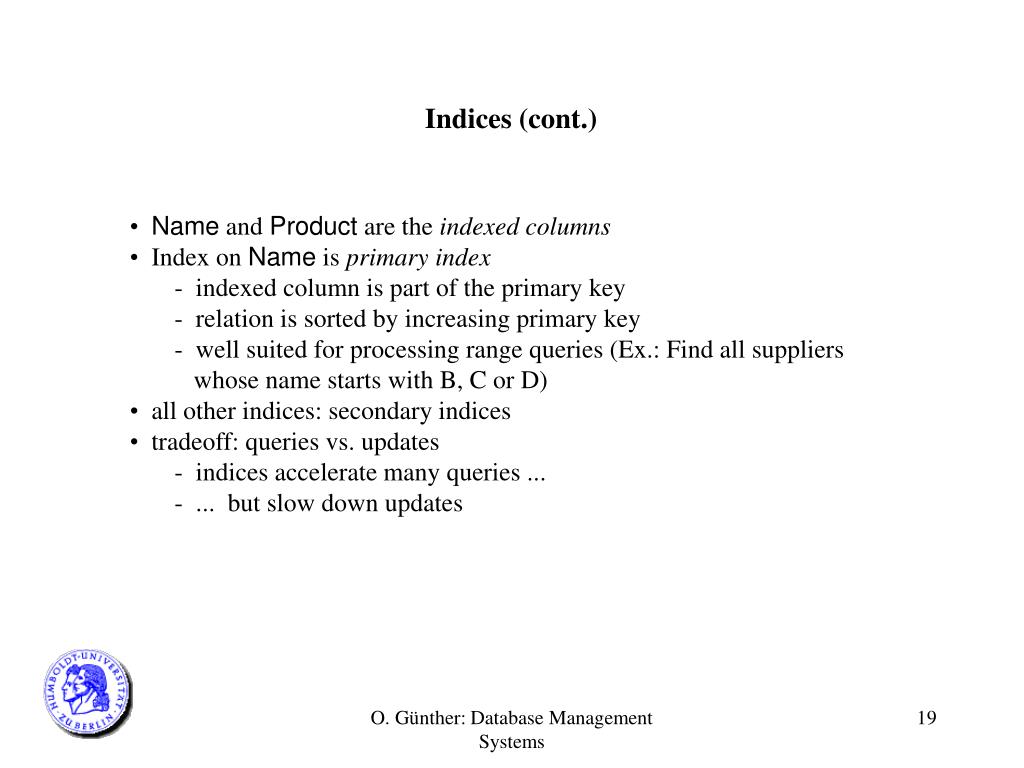

  19. Indices (cont.) • Name and Product are the indexed columns • Index on Name is primary index • - indexed column is part of the primary key • - relation is sorted by increasing primary key • - well suited for processing range queries (Ex.: Find all suppliers • whose name starts with B, C or D) • all other indices: secondary indices • tradeoff: queries vs. updates • - indices accelerate many queries ... • - ... but slow down updates O. Günther: Database Management Systems

  20. Dense vs. Sparse Indices • relations are stored in blocks (pages) on the magnetic disk • crucial cost factor: how many blocks to I have to transfer from disk • to main memory in order to answer the query? • non-dense (or sparse) index: one index entry per block • - for a primary index it suffices to store the smallest key value per block • - index supports the system when looking for the relevant block(s) • - inside each block: local search (cf. telephone directory) • - useful for large relations because very compact • - only possible for columns according to which the relation • has been sorted (cf. phone directory) • - therefore: at most one sparse index per relation • dense index: one index entry per tuple O. Günther: Database Management Systems

  21. How Does a Disk Access Work? Disk Drive Read block Main Memory Write block O. Günther: Database Management Systems

  22. Indexon Name (sparse) Index on Product (dense) Dense vs. sparse indices: An Example Price Oysters Peanuts Oysters Peanuts Lettuce Lettuce O. Günther: Database Management Systems

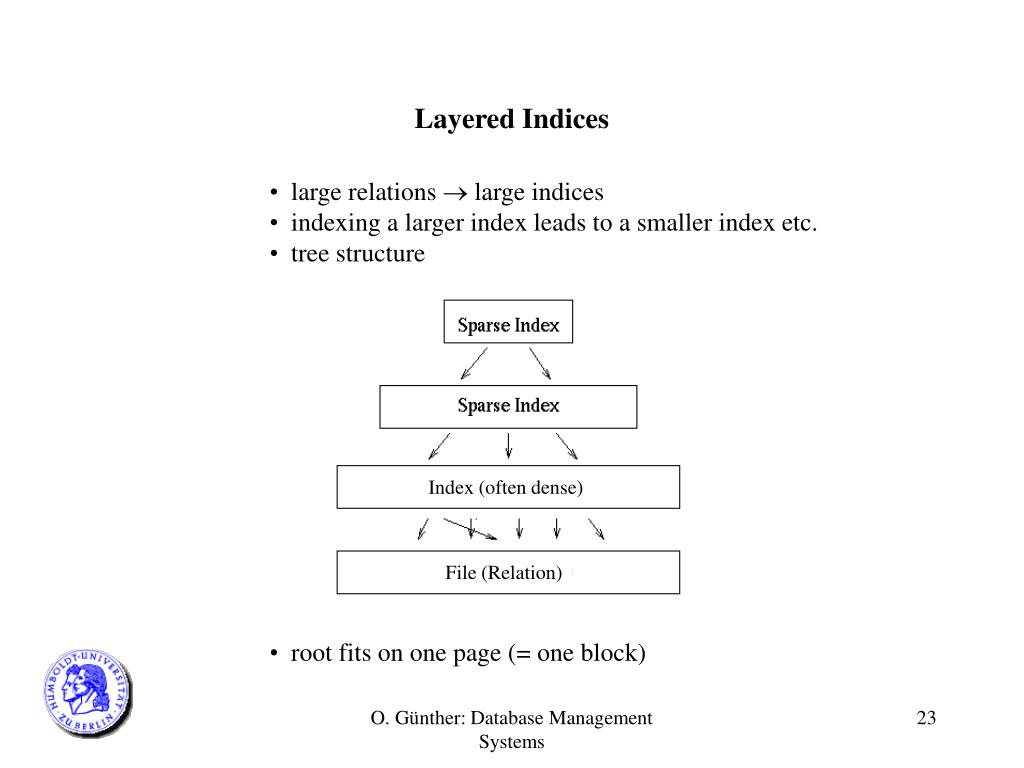

  23. Layered Indices • large relations  large indices • indexing a larger index leads to a smaller index etc. • tree structure • root fits on one page (= one block) Index (often dense) File (Relation) O. Günther: Database Management Systems

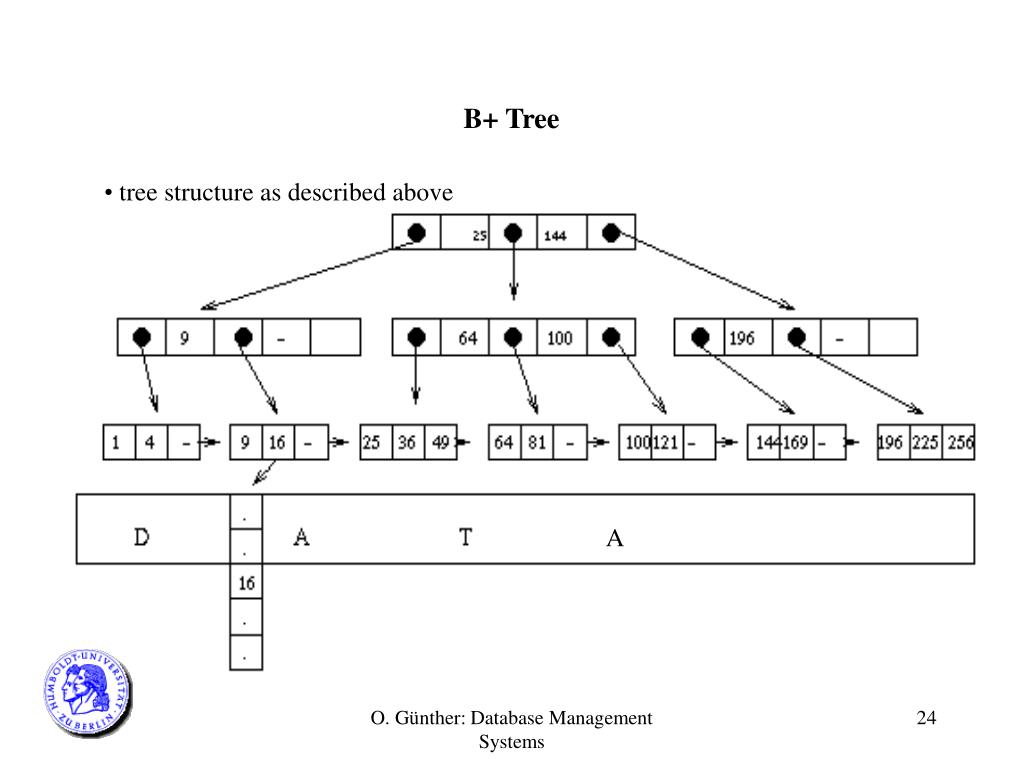

  24. B+ Tree • tree structure as described above A O. Günther: Database Management Systems

  25. B+ Tree(cont.) • B+ trees are balanced (i.e., all leaves are on the same level) • lowest level (leaves): dense, otherwise : sparse • each node fits on one page (  N entries) • N = page size / space requirements per entry (Ex. above: N = 3) • minimal page utilization (guaranteed): N/2 entries O. Günther: Database Management Systems

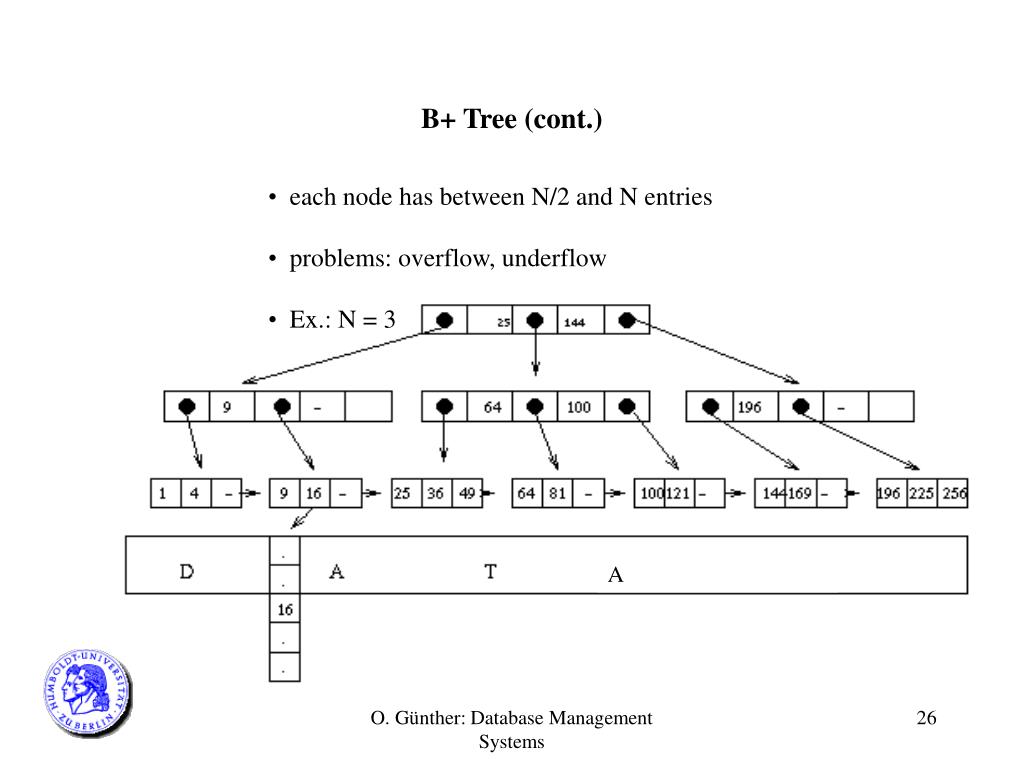

  26. B+ Tree (cont.) • each node has between N/2 and N entries • problems: overflow, underflow • Ex.: N = 3 A O. Günther: Database Management Systems

  27. B+ Tree (cont.) O. Günther: Database Management Systems

  28. B+Baum (cont.) O. Günther: Database Management Systems

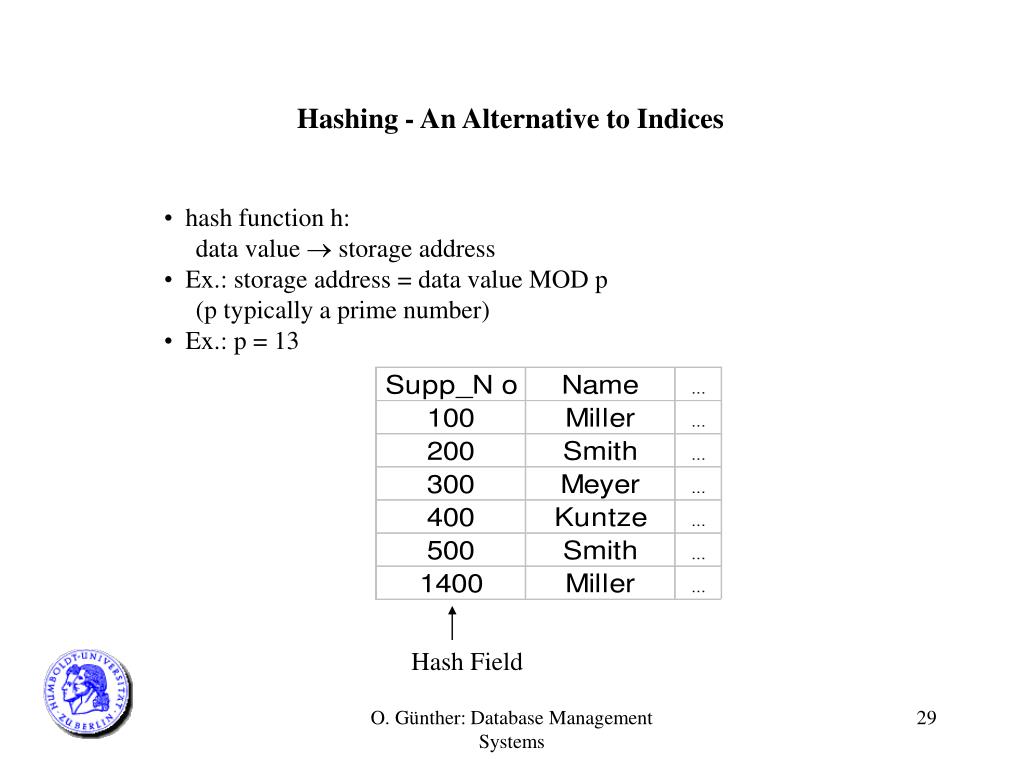

  29. Hashing - An Alternative to Indices • hash function h: • data value  storage address • Ex.: storage address = data value MOD p • (p typically a prime number) • Ex.: p = 13 Hash Field O. Günther: Database Management Systems

  30. Hashing (cont.): Storage Structure • only one hash field per relation! • advantage: very fast access • disadvantage: • - relation dispersed across the disk • - collisions O. Günther: Database Management Systems

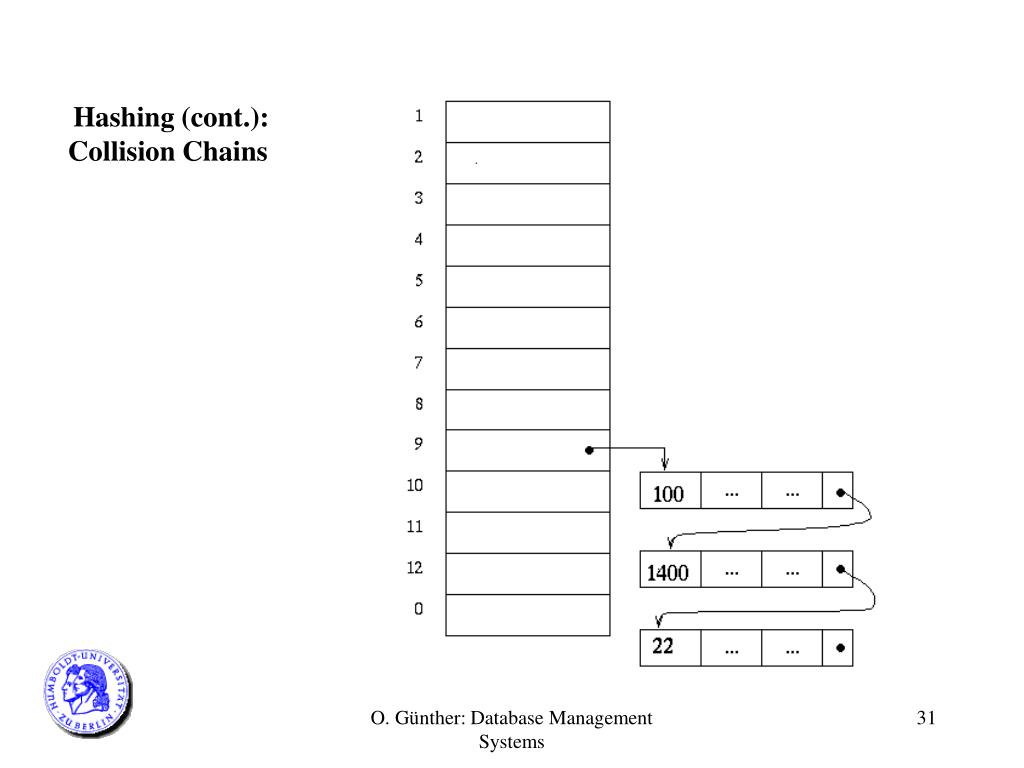

  31. Hashing (cont.): Collision Chains O. Günther: Database Management Systems
