  1. SNS Timing System Overview Brian Oerter (BNL)

  2. SNS Timing System Components • Line locked reference clock (LANL) • GPS based stratum 1 time server & interface to the Rtdl • Eventlink Master • VME eventlink slave module (V124s) • Fiber/electrical distribution • RealTimeDataLink Master • VME utility module (LANL) • Eventlink Monitor • Final design review held 7/31/01 at LANL

  3. Time of Day • Navistar GPS satellite receiver • Network time server • Ethernet interface with NTP • IRIG “B” output • VME module w/IRIG input

  4. Time of day IRIG “B” ETHERNET

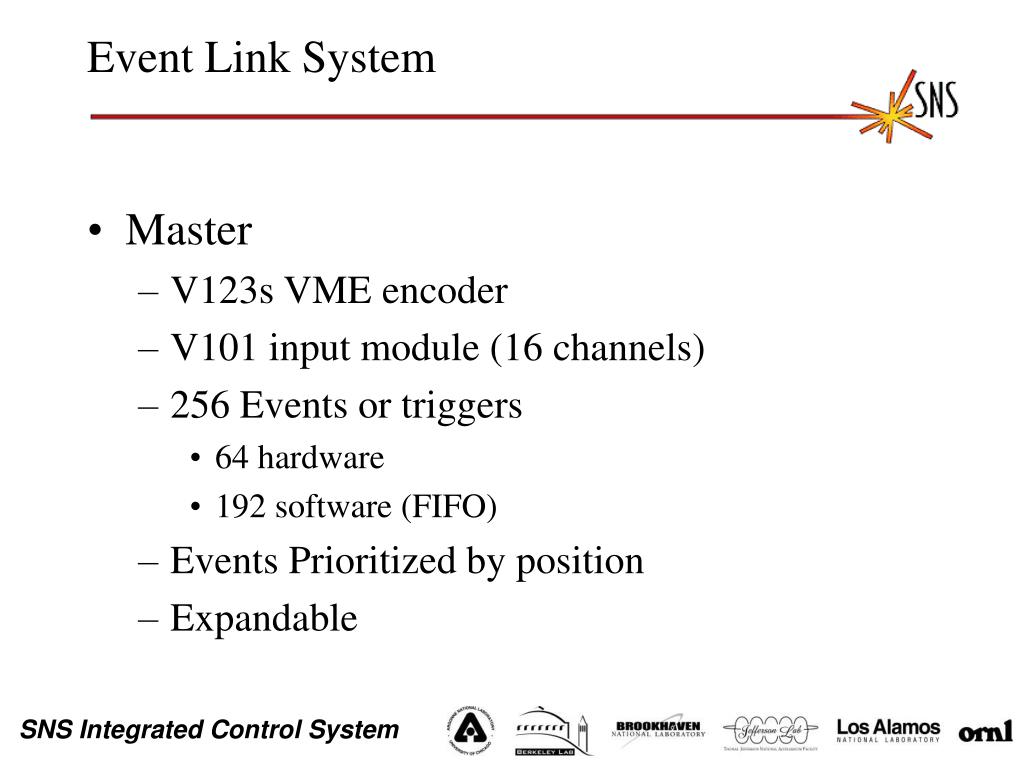

  5. Event Link System • Master • V123s VME encoder • V101 input module (16 channels) • 256 Events or triggers • 64 hardware • 192 software (FIFO) • Events Prioritized by position • Expandable

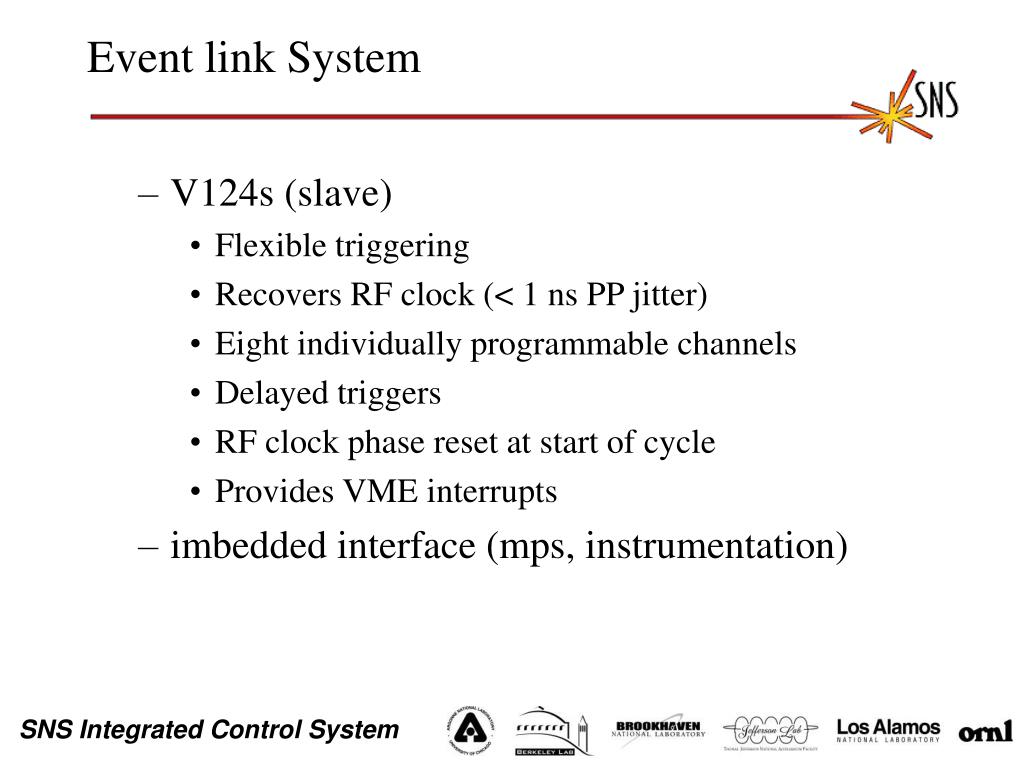

  6. Event link System • V124s (slave) • Flexible triggering • Recovers RF clock (< 1 ns PP jitter) • Eight individually programmable channels • Delayed triggers • RF clock phase reset at start of cycle • Provides VME interrupts • imbedded interface (mps, instrumentation)

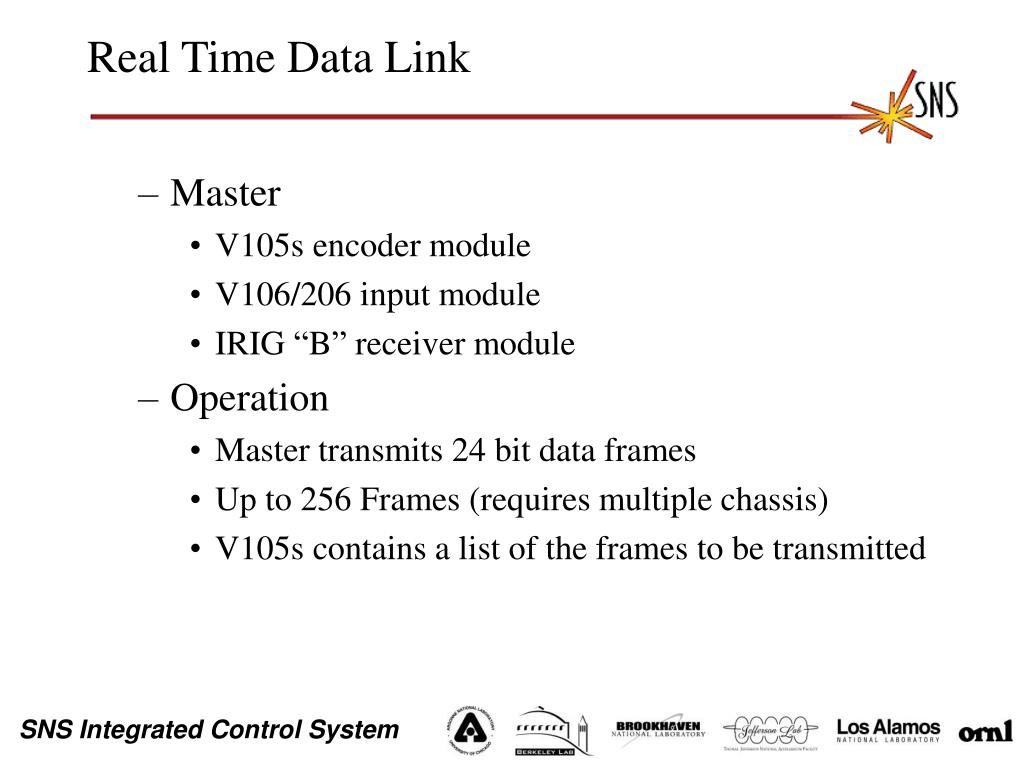

  7. Real Time Data Link • Master • V105s encoder module • V106/206 input module • IRIG “B” receiver module • Operation • Master transmits 24 bit data frames • Up to 256 Frames (requires multiple chassis) • V105s contains a list of the frames to be transmitted

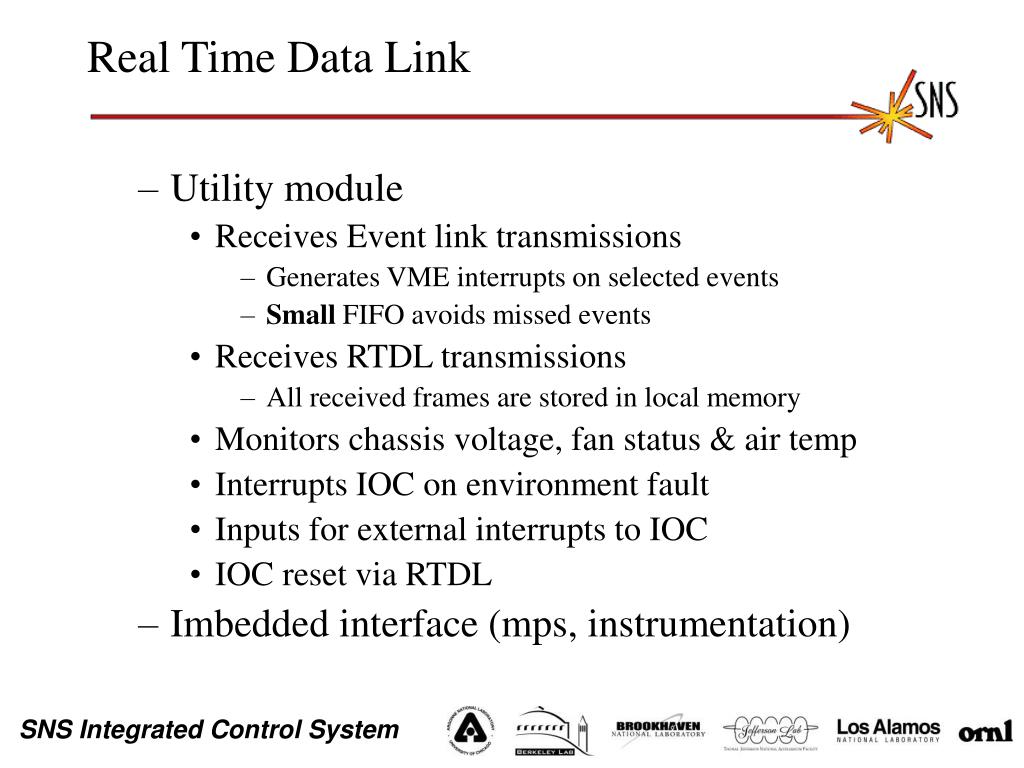

  8. Real Time Data Link • Utility module • Receives Event link transmissions • Generates VME interrupts on selected events • Small FIFO avoids missed events • Receives RTDL transmissions • All received frames are stored in local memory • Monitors chassis voltage, fan status & air temp • Interrupts IOC on environment fault • Inputs for external interrupts to IOC • IOC reset via RTDL • Imbedded interface (mps, instrumentation)

  9. Eventlink Monitor • Receives all events • Filter allows selective event storage • Internal timestamp counter • Events stored in memory with timestamp

  10. Eventlink Monitor AGE 233321 -183312 AU3 249989 -166644 APP 266659 -149974 BSTR_PEAKER_0xB0 273924 -142709 TANDEM_10HZ 289521 -127112 B.F3_A5_TRIGGER 368571 -48062 TANDEM_10HZ 389521 -27112 AFR 399971 -16662 AT0 416633 0 SEB.F10_HS_STRT.RT 416634 1 AGT.END_CAL&JAM.RT 416643 10 AGN.MCR_TR_6.RT 416653 20 AGN.MCR_TR_7.RT 416681 48 AGN.MCR_TR_8.RT 416715 82 AGN.MCR_TR_5.RT 416723 90 AGN.MCR_TR_2.RT 416733 100 AGN.MCR_TR_1.RT 416735 102 AGN.MCR_TR_3.RT 416737 104 AGN.MCR_TR_4.RT 416739 106 EV-SPIN-UP 417783 1150

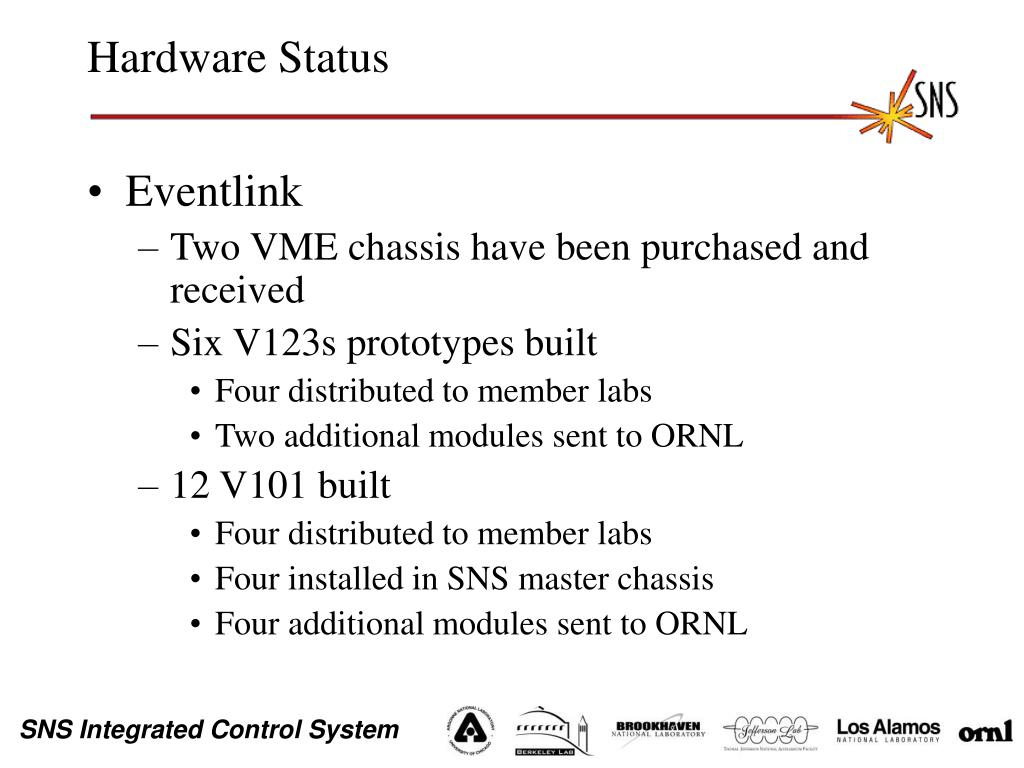

  11. Hardware Status • Eventlink • Two VME chassis have been purchased and received • Six V123s prototypes built • Four distributed to member labs • Two additional modules sent to ORNL • 12 V101 built • Four distributed to member labs • Four installed in SNS master chassis • Four additional modules sent to ORNL

  12. Hardware status (con’t) • V124s • Three prototypes built • One sent to ORNL • 10 pre-production modules on order • 50 more units to be built this year • Work remaining on Eventlink system • Submit V123s changes to drafting & build 2 production modules.

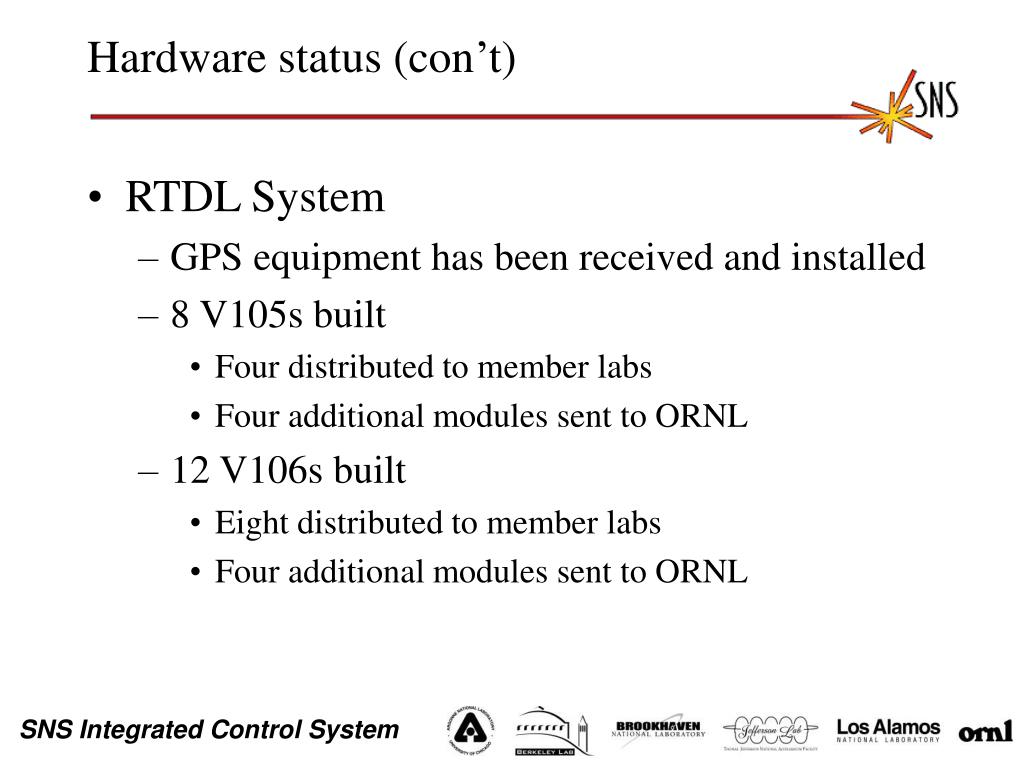

  13. Hardware status (con’t) • RTDL System • GPS equipment has been received and installed • 8 V105s built • Four distributed to member labs • Four additional modules sent to ORNL • 12 V106s built • Eight distributed to member labs • Four additional modules sent to ORNL

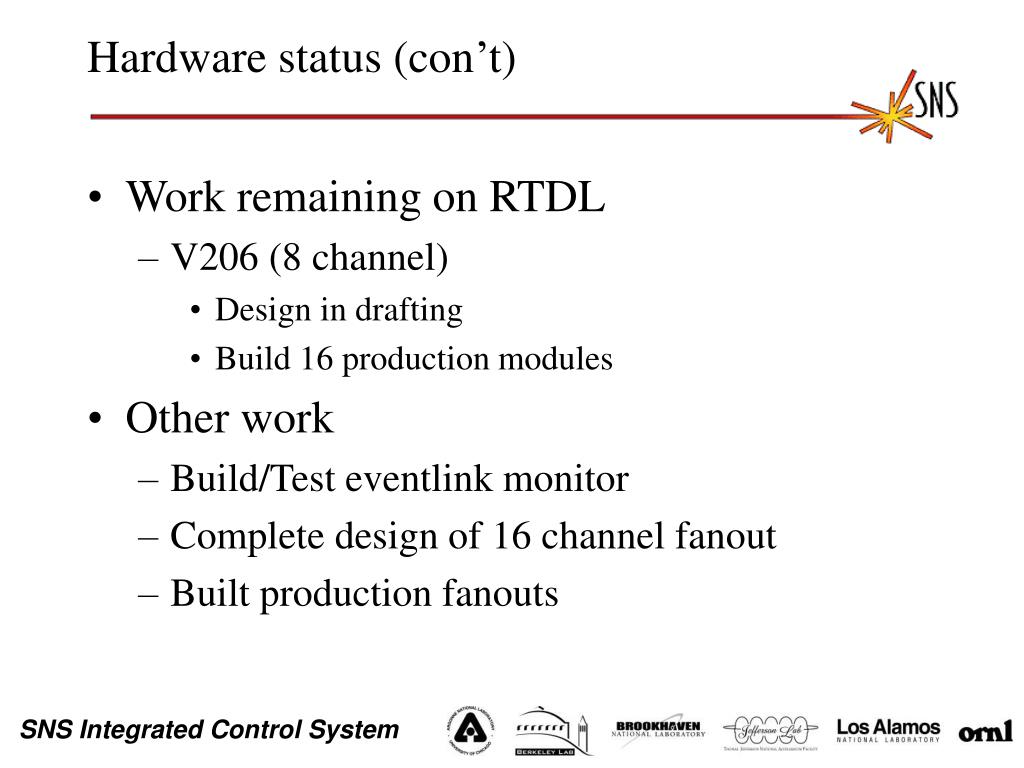

  14. Hardware status (con’t) • Work remaining on RTDL • V206 (8 channel) • Design in drafting • Build 16 production modules • Other work • Build/Test eventlink monitor • Complete design of 16 channel fanout • Built production fanouts
