Main Timing System Overview

oya avatar
oya
11 diapositives · 280 Views · Oct 20, 2014

This presentation by Joze Dedic provides a comprehensive overview of the Main Timing System (MTS) at Cosylab, detailing its architecture, operational view, and evolution within CWO-1 and CWO-2 projects. Key topics include the main timing generator (MTG), MRF integration, hard real-time processing, and transport layer performance, highlighting the distributed MTS requirements and architectural decisions. The talk emphasizes the importance of synchronization in real-time systems and showcases applications across various accelerator facilities, blending theoretical principles with practical implementations.

Main Timing System Overview - slide 1
01 / 11Main Timing System Overview
1 / 17

Télécharger la présentation

Main Timing System Overview
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. the best people make cosylab Main Timing System Overview Joze Dedic (joze.dedic@cosylab.com) … on behalf of CSL MA team

  2. Outline …CWO-1 overview & role; timing system operational view (run, cycles, events) main timing generator, MTG transport layer / MRF main timing receiver, MTR (EVR link to EUC) CWO-2… Cosylab 2010

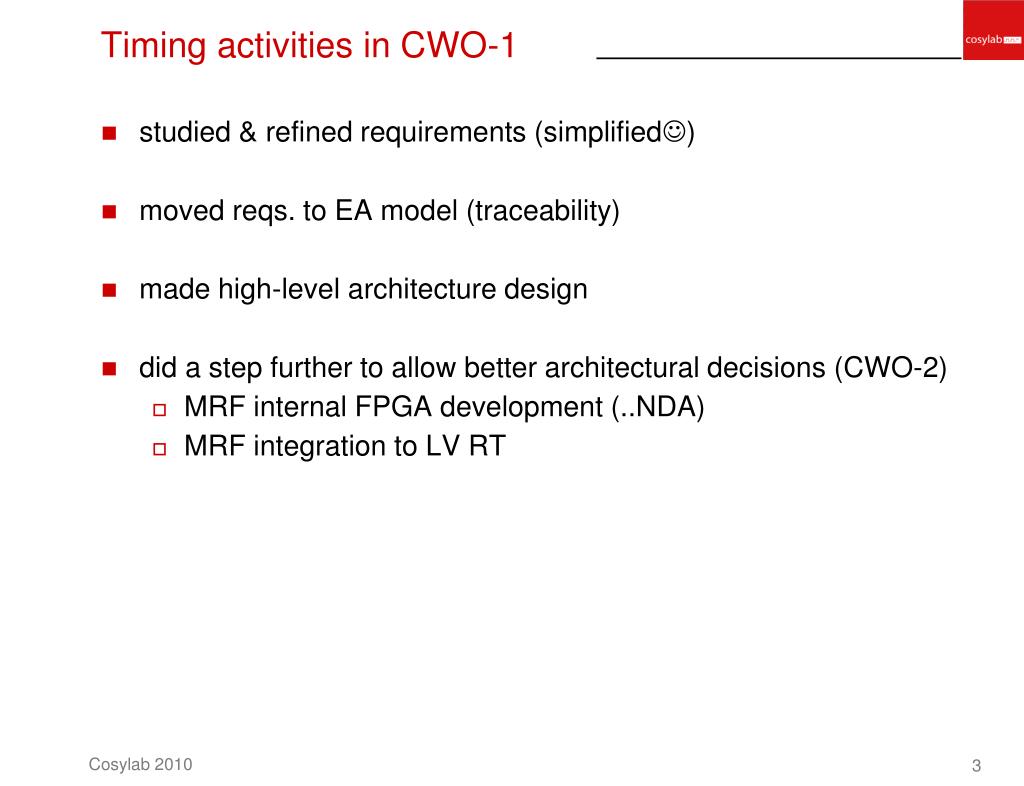

  3. Timing activities in CWO-1 • studied & refined requirements (simplified) • moved reqs. to EA model (traceability) • made high-level architecture design • did a step further to allow better architectural decisions (CWO-2) • MRF internal FPGA development (..NDA) • MRF integration to LV RT Cosylab 2010

  4. Overview & role; • prepare data • process data in hard real-time • make sure everybody gets it @ the same time (200m = ~1ms) • decode events and poke equipment CS MTS transport receivers w. equipment Cosylab 2010

  5. Operational view Cosylab 2010

  6. Main timing generator, MTG flexibility hard real time exection • PXI crate • controller • LV RT • MRF EVG Cosylab 2010 • virtual accelerator tables (priorities) • asynchronously transmitted user data • linac 10 Hz stability pulse…

  7. Transport layer / MRF • hard real-time performance • 16b events/data @ 125 MHz • typ. 25ps jitter • 8ns output resolution • simplistic & robust transport layer • product used at many accs. • SLS, DLS, ASP, SSRF, Elettra, ALBA… • CSL and MRF collaborate • R&D support • MA specific customization: • LV support • specific MTG functionality • EVR wrapper Cosylab 2010

  8. Main timing receiver, MTR • events / (asynch.) user data @125M • (HW) real-time response • trigger equipment via univ. IO module (electrical or optical signal) • trigger application via IRQ • trigger neighboring cards via the 8 bit PXI real-time bus • provide time stamp functionality • (offline) configure • which events to listen in which VA • how to respond Cosylab 2010

  9. CWO-2 activities distribute and agree MTS requirements with all WP holders finalize MTS architecture define verification procedure; FAT/SAT set up mockup demo of MTS work towards final implementation Cosylab 2010

  10. Cosylab 2010

  11. Sync or swim Sopwith Camel timing and synchronization system from 1917 twin Vickers machine guns, synchronized to fire at 500 rounds/min between the blades of the propeller rotating in front of them In the event of a timing error, a few hits on the wooden blades were sufficient for the plane’s own propeller to be shot away. Cosylab 2010
