Overview of Cells

Overview of Cells. Prokaryotes vs Eukaryotes The Cell Organelles The Endosymbiotic Theory. Prokaryotic Cells. Archaea Bacteria. Come in many different shapes and sizes .5 µm – 2 µm, up to 60 µm long

koko
Télécharger la présentation

Overview of Cells

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Overview of Cells • Prokaryotes vs Eukaryotes • The Cell Organelles • The Endosymbiotic Theory

  2. Prokaryotic Cells • Archaea • Bacteria • Come in many different shapes and sizes • .5 µm – 2 µm, up to 60 µm long • Have large surface to volume ration – nutrients from outside can easily reach all parts of the cell

  3. Eukaryotic Cells • Protists • Fungi • Animal Cells • Plant Cells • Like prokaryotic cells, eukaryotic cells come in many different shapes and sizes, but have the same basic set of organelles • Multicellular organisms (fungi, plants and animals) have specialized eukaryotic cells that each perform a particular job and all work together for the benefit of the organism

  4. Eukaryotic Cells Common Organelles • Plasma membrane • Nucleus • Chromatin (DNA) • Nucleolus • Nuclear Envelope • Ribosomes • Rough Endoplasmic Reticulum (rough ER) • Smooth Endoplasmic Reticulum (smooth ER) • Golgi Apparatus • Centrioles • Mitochondria • Cytoskeleton • Vesicles, Peroxisomes, Lysosomes, Small Vacuoles

  5. Eukaryotic Cells Organelles only found in Plants • All those in animal cells except Centrioles • plus • Cell Wall • Chloroplasts • Large Vacuoles • The cell wall and vacuoles help plant cells maintain a rigidshape (keep plant fromdrooping)

  6. Organelles • Organelles are the parts within a cell that have specific functions • Prokaryotic cells (e.g. bacteria) are smaller and less complex (fewer organelles) than eukaryotic cells. Eukaryotic Cells • Plasma Membrane • Cytoplasm • Nucleus • Chromatin (DNA) • Nucleolus • Nuclear Envelope • Ribosomes • Vesicles, Peroxisomes, Lysosomes • Rough Endoplasmic Reticulum • Smooth Endoplasmic Reticulum • Golgi Apparatus • Centrioles • Mitochondria • Cytoskeleton Prokaryotic Cells • Plasma Membrane • Cytoplasm • Cell Wall • DNA (no nucleus) • Ribosomes Plant Cells (eukaryotic) • Cell Wall • Chloroplasts • Vacuole

  7. Polysaccharides Organelles Organelles are made of: • Proteins – made of amino acids • Lipids – made of fatty acids • Carbohydrates - polysaccharides made of sacharides (sugars) • Nucleic Acids (DNA and RNA) – made of nucleotides Nucleic Acids Proteins (Polypeptides) Lipids

  8. Components found in all cells Plasma Membrane • Made of a Phospholipid Bilayer • Various proteins, lipids, and sugars float in membrane • Semipermeable • Small hydrophobic molecules pass easily through • Contains pores that enable water and very small ions to pass through • large molecules must pass through channel proteins

  9. Components found in all cells Plasma Membrane • Eukaryotic cells also membrane-bound internal organelles composed of lipid bilayer membranes • Nuclear Envelope • Golgi Apparatus • Endoplasmic Reticulum (rough and smooth) • Mitochondria • Chloroplasts (in plants) • Vesicles, Lysosomes, Peroxisomes & Vacuoles

  10. Components found in all cells Cytoplasm • The fluid that fills cells and surrounds the organelles • Consists of: • Water (mostly) • Proteins (e.g. hormones and enzymes) • Small Molecules (e.g. ions)

  11. Components found in all cells DNA • Prokaryotic Cells • May be linear or circular • Contained in the nuclear region (nucleoid) • May also include short, circular plasmids • Eukaryotic Cells • Longer (approx. 9 feet per cell in humans), coiled around histone proteins to help pack it into the cell • Always linear • Contained in the nucleus • Known as chromatin when relaxed and chromosomes when condensed (supercoiled)

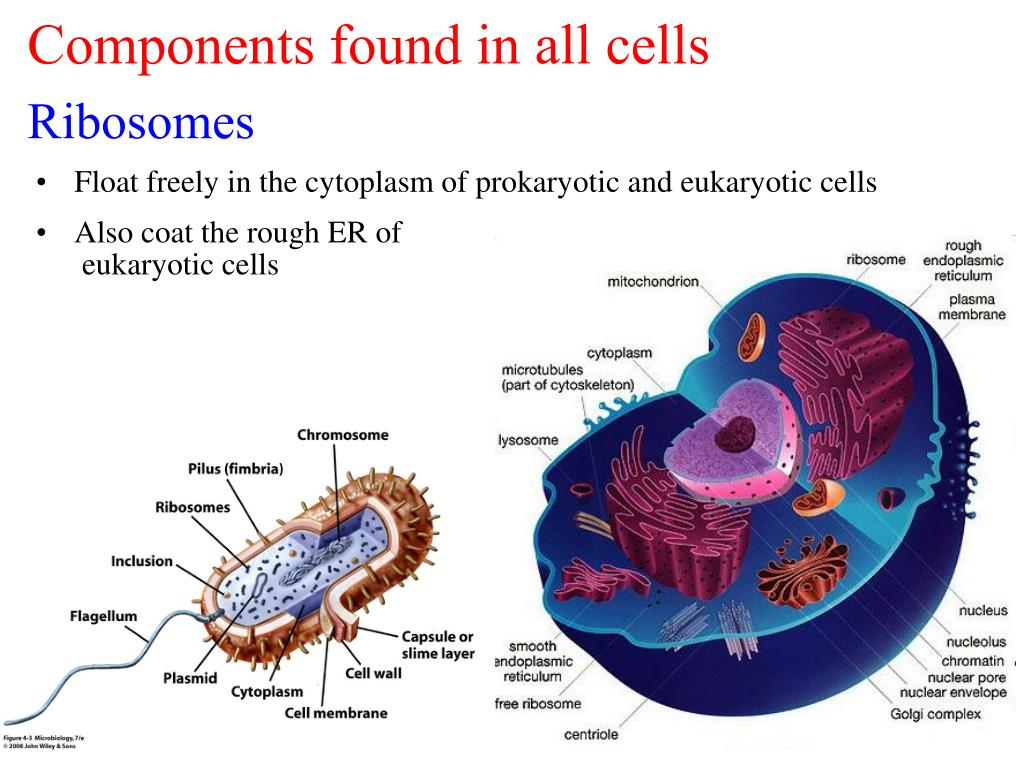

  12. Components found in all cells Ribosomes • Float freely in the cytoplasm of prokaryotic and eukaryotic cells • Also coat the rough ER of eukaryotic cells

  13. Components found in all cells Ribosomes • Build proteins using instructions encoded in DNA

  14. Components found in all cells Ribosomes • Build proteins using instructions encoded in DNA • Complex of protein and rRNA forming two subunits Purple = Proteins Blue = rRNA of small subunit Grey = rRNA of large subunit

  15. Components found only in Eukaryotic Cells Nucleus • Nuclear Envelope • double membrane • nuclear pores allow RNA to exit • Chromatin – “relaxed” DNA • Nucleolus – where ribosomes are assembled
