  1. WLAN:QoS, Z-iteration, andAssertional Security Analysis A.Udaya Shankar Computer Science Dept and UMIACS University of Maryland shankar@cs.umd.edu

  2. Outline • QoS • Z-iteration (performance evaluation) • Assertional Security Analysis A.U.Shankar --- LTS

  3. Outline • QoS Compensating for “physical capture” effect in WLANs • Z-iteration (performance evaluation) • Assertional Security Analysis A.U.Shankar --- LTS

  4. QoS: Throughput fairness • Throughput fairness in 802.11 depends on • MAC access mechanism • Physical-layer characteristics • Most studies downplay physical-layer effect and focus on the MAC CSMA/CA/BEB • We discovered that physical-layer capture is the dominant factor in throughput fairness A.U.Shankar --- LTS

  5. Physical-layer capture effect • Physical-layer capture efffect: • When two frames collide at a receiver, the receiver can extract the stronger frame • Capture occurs consistently for even a few dBm difference in frame signal strengths • Capture occurs frequently in WLANs (due to multipath and fading). A.U.Shankar --- LTS

  6. Ad-hoc Mode Experiments source 1 source 2 sniffer • Sources broadcasting in ad-hoc mode • no beacons, ACKs, and retransmissions • MAC-layer effect minimized • Results • 8% of frames collided • 90% of collisions had capture • 8% higher throughput for stronger station A.U.Shankar --- LTS

  7. Ad-hoc Mode Experiments Signal strengths Throughputs A.U.Shankar --- LTS

  8. Infrastructure Mode Experimentswithout RTS/CTS source 1 source 2 AP sniffer sniffer sink • Results • Weaker station retransmitted 5% of frames • Stronger station retransmitted 0.5% of frames • Stronger station had 7% higher throughput A.U.Shankar --- LTS

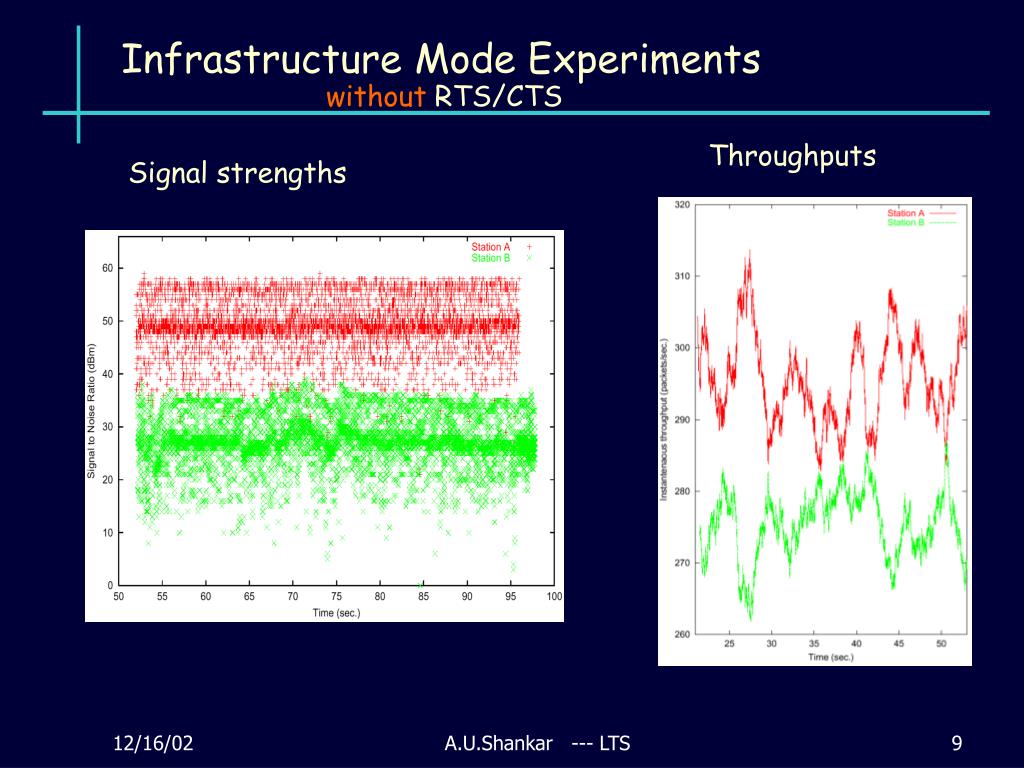

  9. Infrastructure Mode Experimentswithout RTS/CTS Throughputs Signal strengths A.U.Shankar --- LTS

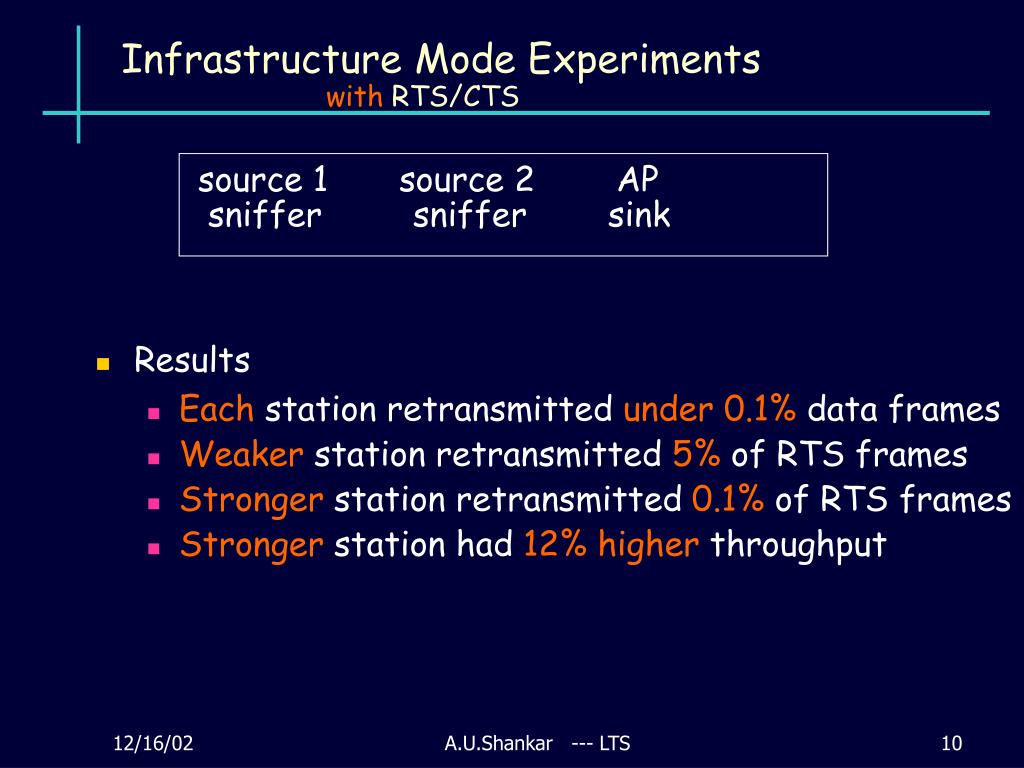

  10. Infrastructure Mode Experimentswith RTS/CTS source 1 source 2 AP sniffer sniffer sink • Results • Each station retransmitted under 0.1% data frames • Weaker station retransmitted 5% of RTS frames • Stronger station retransmitted 0.1% of RTS frames • Stronger station had 12% higher throughput A.U.Shankar --- LTS

  11. QoS: Compensating for Capture • Congestion control based on signal strength • Explicit control • Source controls its send rate based on its signal strength at AP • Implicit control • AP delays packets of stronger sources, thereby inciting transport layer congestion control to throttle down A.U.Shankar --- LTS

  12. QoS: Conclusions • Physical-layer capture is a major cause of MAC throughput unfairness. • Resulting unfairness as high as 12% in favor of station with stronger signal. • Any QoS scheme must account for differing signal strengths of sources. • Investigating explicit and implicit schemes. • Invention disclosure. A.U.Shankar --- LTS

  13. Outline • QoS • Z-iteration Fast evaluation of instantaneous peformance metrics of wireless/wireline networks • Assertional Security Analysis A.U.Shankar --- LTS

  14. Z-iteration: Introduction • Fast evaluation of heterogenous TCP/IP networks • Current evaluation methods are not adequate • analytical methods are inaccurate and coarse • packet-level simulators are slow (e.g. ns, opnet) • Do not capture real-world features • 802.11 rate-switching • Platform dependencies (timers, scheduling) • Goal: Evaluation method that is as accurate as packet-level simulation but much faster • Approach: Based on fast approximate solutions of time-dependent queuing models A.U.Shankar --- LTS

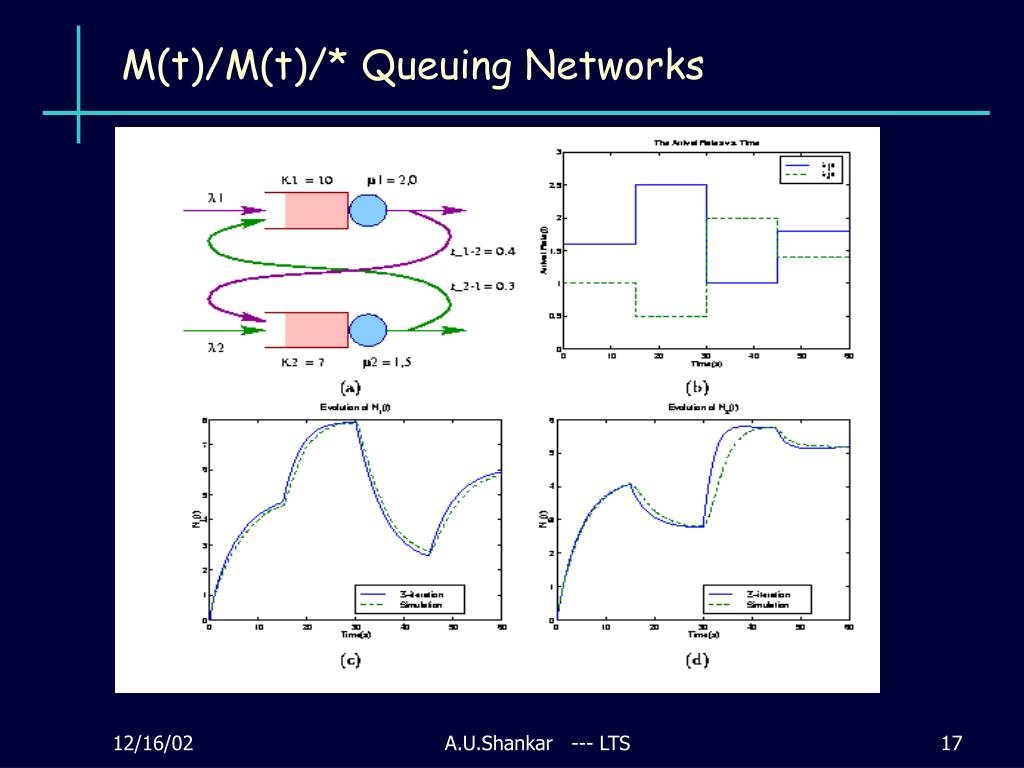

  15. Z-iteration Approach • TCP/IP networks modeled by a queuing network • Traffic modeled by time-dependent stochastic process • Time-dependency: natural modeling of adaptive control (congestion, routing, admission, link scheduling, ...) • Queuing differential equations solved rapidly using Z-iteration approximations • Obtain time evolution of instantaneous ensemble metrics at each link for each connection • average_queue_size(t), blocking(t), utilization(t), … • Validation against ns simulation A.U.Shankar --- LTS

  16. M(t)/M(t)/* Queuing Networks (t) (t) • Start from the flow equation • If we can express B(t) and U(t) in terms of N(t), we would have a single differential equation per queue • For anetwork of queues, each queue i has • So a network of n queues is modeled by n differential equations A.U.Shankar --- LTS

  17. M(t)/M(t)/* Queuing Networks A.U.Shankar --- LTS

  18. M(t)/M(t)/* Queuing Networks A.U.Shankar --- LTS

  19. TCP/IP Networks • Model link by variation of M(t)/M(t)/1/K equations • Model TCP sources by profiles. • Profile of a TCP source: function that describesinst. throughput versus inst. loss rate andinst. roundtrip time. A.U.Shankar --- LTS

  20. Drop-Tail Example 2: 30 nodes, mid-load A.U.Shankar --- LTS

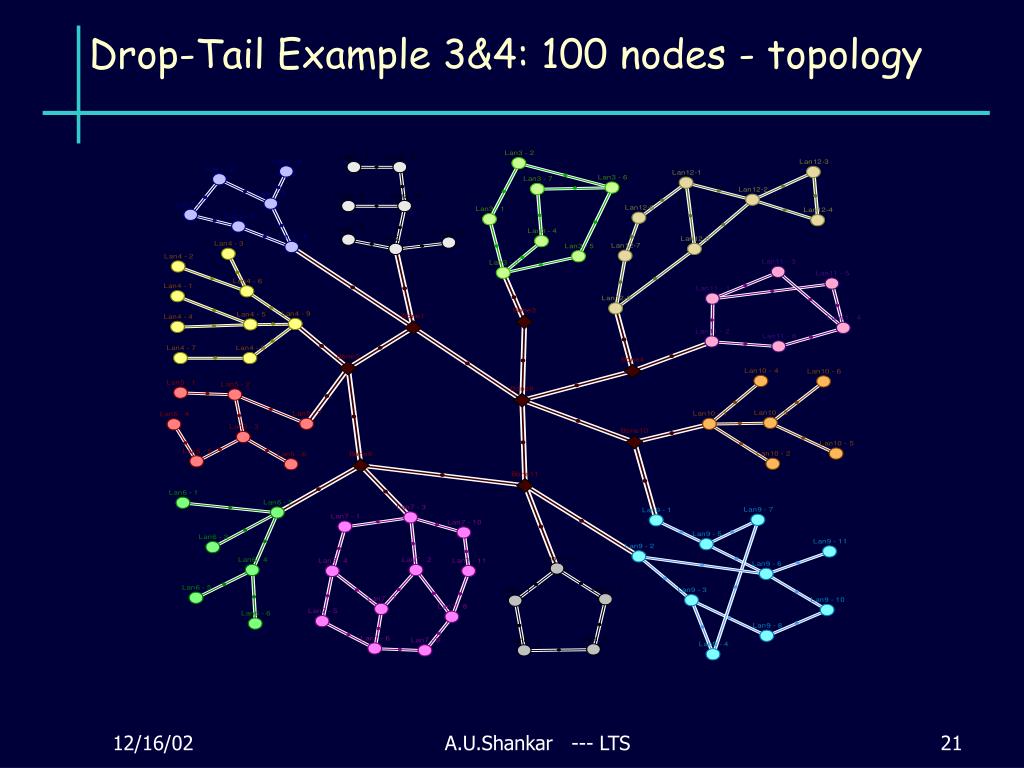

  21. Drop-Tail Example 3&4: 100 nodes - topology A.U.Shankar --- LTS

  22. Drop-Tail Example 3: 100 nodes, mid-load Evaluation time: Z-iteration: 16 sec, ns: 71 - 930 sec A.U.Shankar --- LTS

  23. Drop-Tail Example 4: 100 nodes, high-load Evaluation time: Z-iteration: 29 sec,ns: 146 - 2150 sec A.U.Shankar --- LTS

  24. Summary • Fast accurate time evolution of performance metrics of time-dependent queuing networks • Straightforward modeling of adaptive control mechanisms • Short-term real-time prediction of network traffic • Profiles: natural way to model real-life sources • Extensions • RED, CBQ, ... • WLANs A.U.Shankar --- LTS

  25. Z-iteration for WLAN networks • Model 802.11 sources by profiles • Profile of a 802.11 source: Instantaneous throughput as function of • Number of active stations • Desired and achieved instantaneous rates of active stations • Signal strengths of active stations at AP A.U.Shankar --- LTS

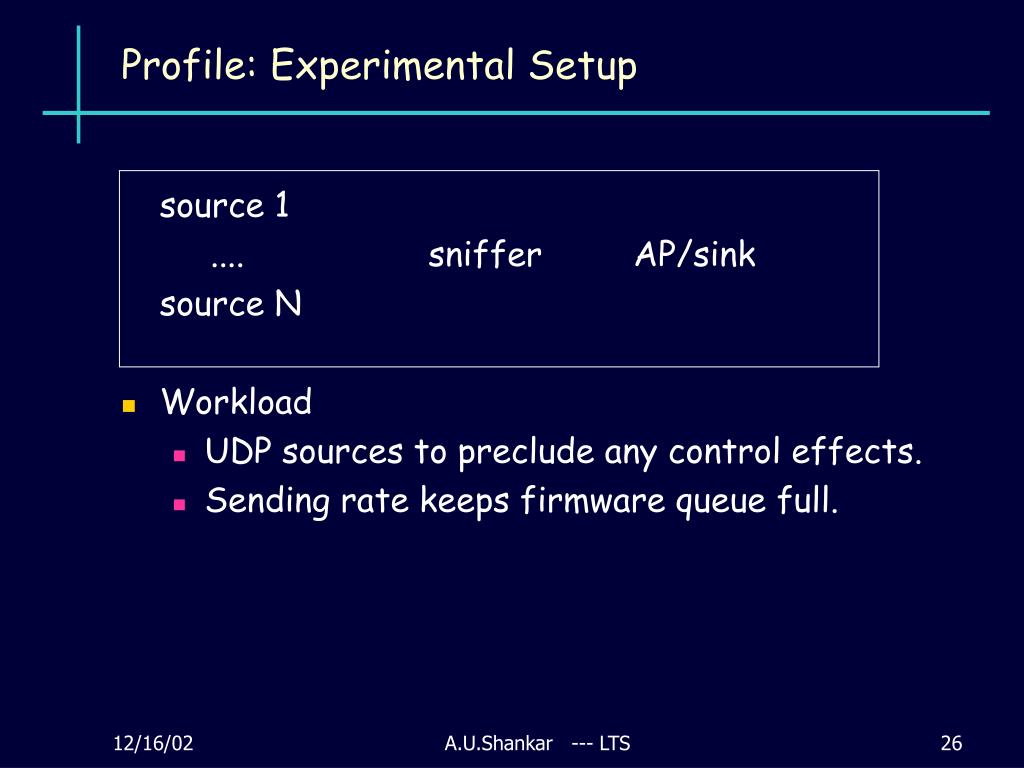

  26. Profile: Experimental Setup source 1 .... sniffer AP/sink source N • Workload • UDP sources to preclude any control effects. • Sending rate keeps firmware queue full. A.U.Shankar --- LTS

  27. General Observations • Susceptible to severe capture-effect • Starvation occurs routinely for more than 8 stations • Rate Switching Algorithm • Station switches to lower transmission rate if there is a packet loss • AP is not bottleneck in processing A.U.Shankar --- LTS

  28. Specific Results • Maximum Instantaneous Throughput for single station is 6.45 Mbps, out of a bit rate of 11 Mbps • Due to DIFS + Backoff • Throughput falls rapidly with number of stations at high load • Susceptible to capture-effect A.U.Shankar --- LTS

  29. Profile of 802.11b (preliminary) N=2 N=3 N=4 Instantaneous Throughput Background Traffic A.U.Shankar --- LTS

  30. Clustering in 802.11 profiles Per-station inst. throughput (pkts/sec) Overall inst. throughput (pkts/sec) A.U.Shankar --- LTS

  31. Outline • QoS • Z-iteration • Assertional Security Analysis Framework for specification, verification, and testing of concurrent systems A.U.Shankar --- LTS

  32. Concurrent System: Cooks in a Kitchen A.U.Shankar --- LTS

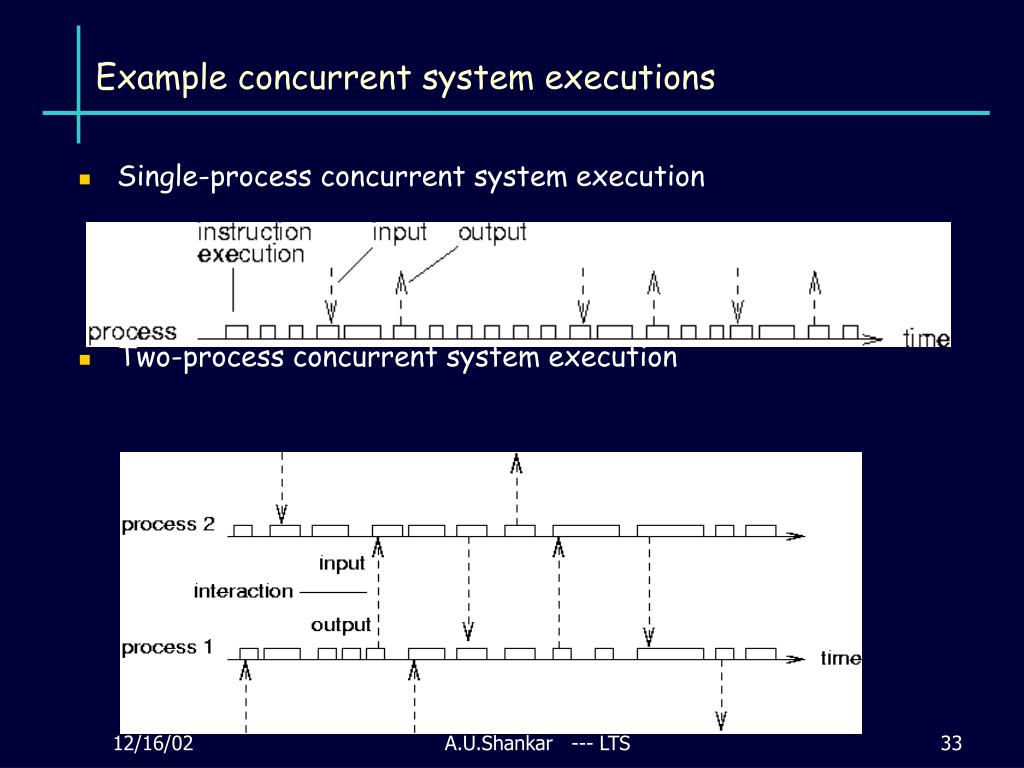

  33. Example concurrent system executions • Single-process concurrent system execution • Two-process concurrent system execution A.U.Shankar --- LTS

  34. SESF (services and systems framework) • Systems and Services specified by programs • service defines acceptable sequences of interactions • service is executable, not constrained by platform • SESF program explicitly indicates • events: atomically-executed statements • externally-controlled events • progress expected (of platform/service) • Service satisfaction • composite program of system and service • Compositionality A.U.Shankar --- LTS

  35. Assertional Analysis and Testing • Analysis • Properties expressed by assertions • invariants, leads-to, • Assertions proved by proof rules or operational reasoning • Routing, transport, concurrency control • Testing • single process: threads and function calls • multi-process: distributed processes and RMI • Transport layer A.U.Shankar --- LTS

  36. Assertions of Security • confined(key, vset) • predicate: true iff value key is confined to variable set vset • vset models principals, systems, ... • handles authentication, confidentiality, ... • Proof rules • Hoare-triple: {predicate} statement {predicate} • {confined(k, v)} x := k {confined(k, v U {x})} • {confined(k, v)} one-way-func(k) {confined(k, v)} A.U.Shankar --- LTS

  37. Future Work • QoS • Control mech compensating for signal-strength • Z-iteration (performance evaluation) • 802.11b profiles • Evaluation of QoS mechanisms • Assertional Security Analysis • Assertions and proof system for security • 802.11 authentication, key distribution, ... A.U.Shankar --- LTS
