Class Project 510

1. Class Project 510 Team Members John A. Watne Jordan D. Howe Ian R. Erlanson Geoffrey A. Reglos Sengdara Phetsomphou

2. Project Overview Problem Description Requirements Analysis Technology Settings and System Design Algorithm Graphical User Interface (GUI) Lesson Learned Future Enhancement

3. Problem Description • In this project, we are attempting to design a Genetic Programming system that will produce a pre-defined mathematical equation equivalent to (y = (x² + 1) / 2), • derived from training data consisting of several values for x and the resulting values for y. • Analogous to DNA evolution, this program will display characteristics, such as crossover and mutation. • A key component of the system • is a fitness and selection function • that will decide if the generated solution meets minimum requirements. • We expect that each subsequent generation of solutions will be “better” – that is, better reproduce the training data – than the previous generation, thus eventually resulting in a correct mathematical equation. • An output is expected to be generated within a fifteen minute time frame.

4. Requirement Analysis • Given training data, consisting of a set of ten positive x values and the matching y values, • the genetic programming system will generate a function that closely matches the pre-defined mathematical function, y = (x² +1)/2. • The resulting function must be generated by the genetic programming system within the allotted fifteen minutes. • The expected output of the system will consist of • the function, • total elapsed time and • any pertinent information related to the resulting function, such as the number of generations evolved, function, fitness value, etc.

5. Requirement Definition - Continued • If the genetic programming system fails to produce a function within an acceptable tolerance level in the fifteen minute time frame, then terminate execution • Output the best function along with its associated fitness value upon termination of the Genetic Programming generation and testing loop, whether due to finding a solution within the desired tolerance, or due to the allocated time expiring • The genetic programming system must run on PCs available in the classroom.

6. Requirement Analysis – cont. Finite State Machine

7. Unified Modeling Language

8. Technology Programming Language Used • Sun Java 1.4 • Development Environments • NetBeans • Eclipse • EditPlus • DOS Prompt • Drawing UML • Microsoft Visio

9. Why Java? • There were a number of programming languages for our use in this project, such as C or C++. • Java was chosen as the programming language of choice for a number of reasons. When we were evaluating the technical skills of each team member, Java was the language with the greatest familiarity in the group. Also, • Java is free to download and use. • The construction of the GP Programs from individual nodes lends itself to an object-oriented methodology, and Java is an object-oriented programming language. • Ease of implementation was another consideration since we are not familiar with the classroom where the presentation will take place.

10. Settings & System Design • Using an object-oriented system design that reflects the UML shown in the Requirements Analysis section, • each class will be implemented by a separate java .class file. • All .class files needed by the genetic programming system will be stored in the same directory on the PC on which the program is run. • For the first version of the program, • all inputs will be hard coded within the java source code, and • the output will be written to the standard output when executed from a command prompt. • Future iterations of the program, to be implemented as time allows, will allow to being a future enhancement, • and perhaps allowing user-chosen values for numeric constraints • such as probabilities of each genetic programming operation, • 5 is a maximum depth of program trees, and maximum time allowed to reach a solution.

11. Settings & System Design – cont. • Random Number Generator • Function and Terminal Set • Data Structure Used • Binary Tree • Stack • Tree Structure Execution and Memory • Initializing GP Population

12. Genetic Operators • Tree-Based Crossover • Consists of choosing two individuals as parents, selecting a random subtree in each parent and then swapping the selected subtrees between the two parents • The probability of crossover in our GP Project has been set at 80% • Mutation • Mutation operates on only one individual tree. When a tree has been selected for mutation, there is an operation to randomly select a point in the tree and replace the existing subtree with a newly randomly generated subtree. The newly generated subtree is created in the same way within the same limitations as the existing tree. The probability of mutation in our GP Project has been set at 10%.

13. Genetic Operators – cont. • The probability of cloning in our GP Project has been set at 15%. • This consists of selecting a program tree from the parent generation and copying it unaltered to the child generation.  • New Entrant • The new entrant involves the creation of a new tree to become part of the generation. This new entrant has not been spawned from prior generations. • The probability of an individual program being a new entrant in our GP Project has been set at 5%.

14. Algorithms by John A. Watne

15. Algorithms • Fitness and Selection • Fitness: sum of squared errors; targeted fitness value = zero. • p(i) = (1 / (n-1)) * [1 - (Fit(i) / Sum Fit(i))] for n > 1; 100% otherwise • Any GP programs with division by zero errors for any x value in the training data are determined to be "Dead On Arrival", and are not allowed to reproduce or count toward the total and average fitness values for the generation. • Method of Tree Traversal • We implanted a post-order method for tree traversal.

16. Algorithms - continued • Sorting • After a new generation of GP programs has been created and each one evaluated, they could be sorted in ascending order of fitness. • This would ease the selection of valid functions into the subsequent generation because the possible solution would be towards the front of the array. We chose not to use any sorting in any part of the GP Project for a number of reasons. • One reason is that we were concerned about the fifteen minute time limit. • Also, we chose to simplify the design to meet the deadline of the project. We are also attempting to implement a GUI and we were concerned that this logic would consume much needed processing time from the CPU. • We have considered adding sorting by fitness value as a future enhancement.

17. Algorithms – continued. Key Correction to Algorithm: • Issue: When reviewing the graph of best fit and average fit of each succeeding generation, the values were swinging up and down, rather than being continuously non-increasing (that is, never increasing; always decreasing or remaining level). • Resolution: Thus, rather than just cloning randomly selected individuals from the prior generation, make sure that the best program from the prior generation survives unchanged as the first program added to the new generation.  This guarantees that the best fit for a program in the new generation can be no worse than the best fit from its previous (parent) generation

18. Best Fit of GP Program by Generation - continued Before Fix:

19. Best Fit GP Program by Generation After Fix:

20. Graphic User Interfaceby Ian R. Erlanson

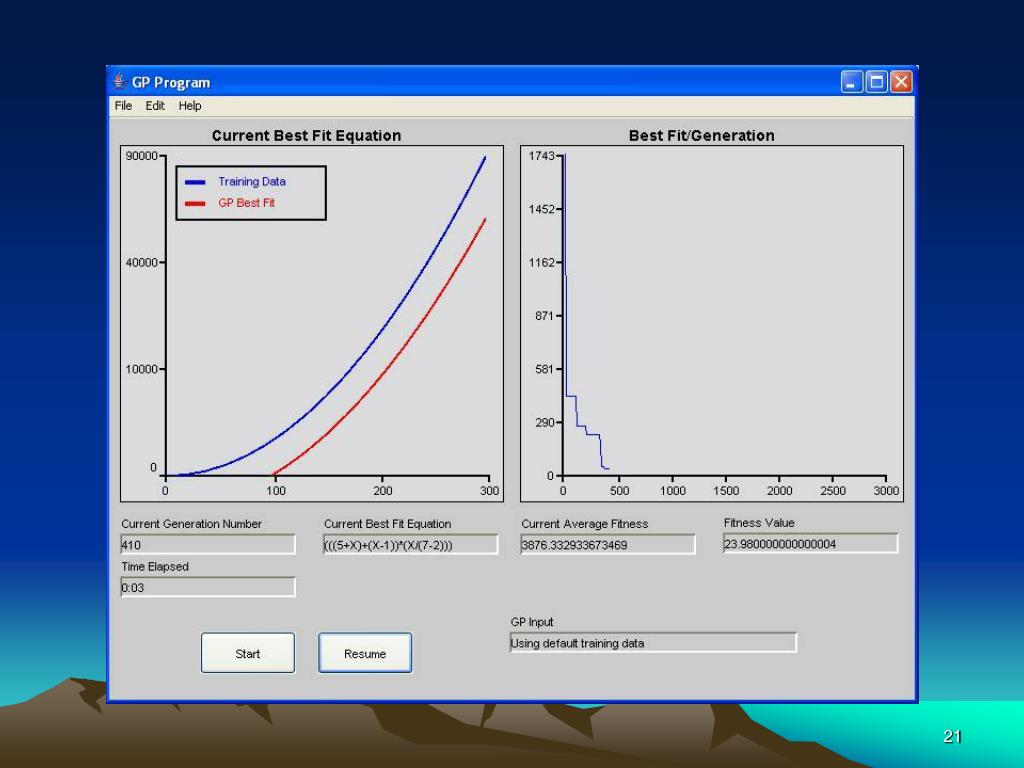

21. Output Screen • Current Generation

22. SUMMARY and Future Enhancement BYGeoffrey A. Reglos

23. Lessons Learned Jordan Howe: • Individual I got good practice at reading and working with other people’s code and writing code that conformed to project specifications. • Group I think we have worked together well in terms of figuring out who’s good at what, and dividing up tasks accordingly. • Technical I hadn’t known about representing arithmetic expressions in trees, and using postfix order to parse them. Sengdara Phetsomphou: • I personally have learned an essential step in the development of a computer program especially when John and others start with a simple solution, then seek to understand that solution’s performance characteristics, which I feel that it helps me to see how to develop the computational procedure for solving a problem. Although I have not fully apprehended the significance of GP program generation in depth, I think I learn from rest of the team members especially on our general approach to developing algorithmic solutions for this project.  Finally, I learn how to use new tool in the Microsoft Visio software.

24. Lesson Learned -continue • Geoffrey Reglos: • I underestimated the work involved with documentation. Thus, I learned about the need for the documenter to work more closely with the developer to understand the details of the program(s). • I learned to work with a group of people in a short term project. We were able work within each individual’s strengths and weaknesses to accomplish a goal of successfully completing the project in a timely manner. The important characteristics of working with this group were communication and trust of some degree. • Although I am able to read and comprehend the code, I feel that I need more exposure to Java to be more involved in future projects.

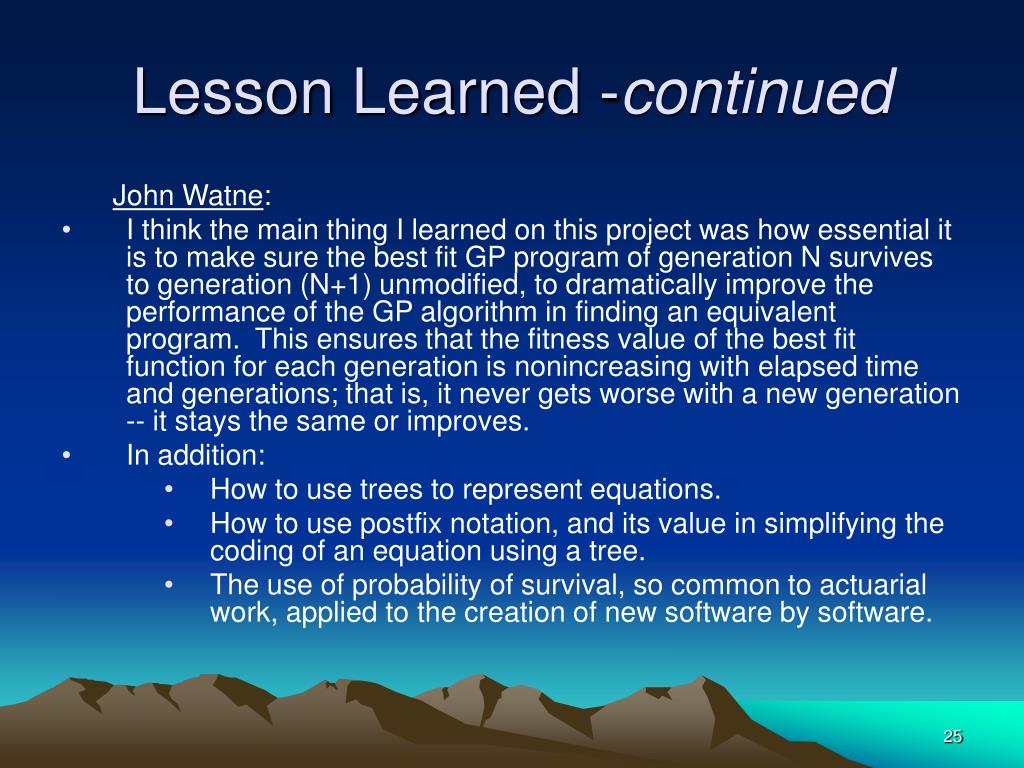

25. Lesson Learned -continued John Watne: • I think the main thing I learned on this project was how essential it is to make sure the best fit GP program of generation N survives to generation (N+1) unmodified, to dramatically improve the performance of the GP algorithm in finding an equivalent program.  This ensures that the fitness value of the best fit function for each generation is nonincreasing with elapsed time and generations; that is, it never gets worse with a new generation -- it stays the same or improves. • In addition: • How to use trees to represent equations. • How to use postfix notation, and its value in simplifying the coding of an equation using a tree. • The use of probability of survival, so common to actuarial work, applied to the creation of new software by software.

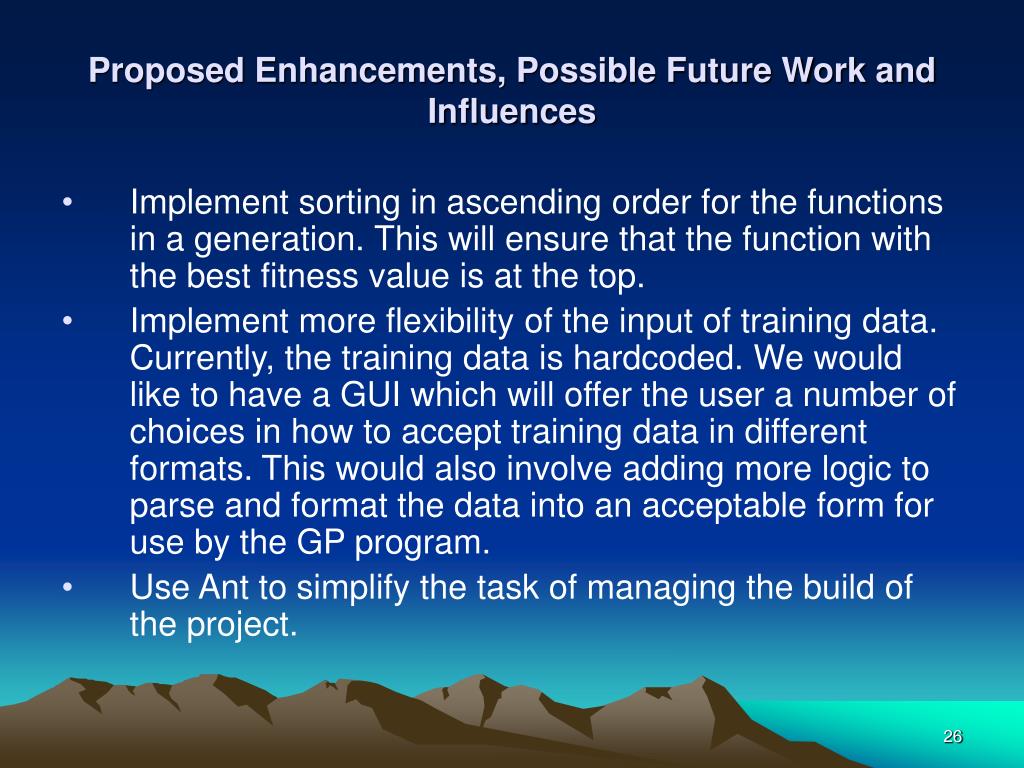

26. Proposed Enhancements, Possible Future Work and Influences • Implement sorting in ascending order for the functions in a generation. This will ensure that the function with the best fitness value is at the top. • Implement more flexibility of the input of training data. Currently, the training data is hardcoded. We would like to have a GUI which will offer the user a number of choices in how to accept training data in different formats. This would also involve adding more logic to parse and format the data into an acceptable form for use by the GP program. • Use Ant to simplify the task of managing the build of the project.

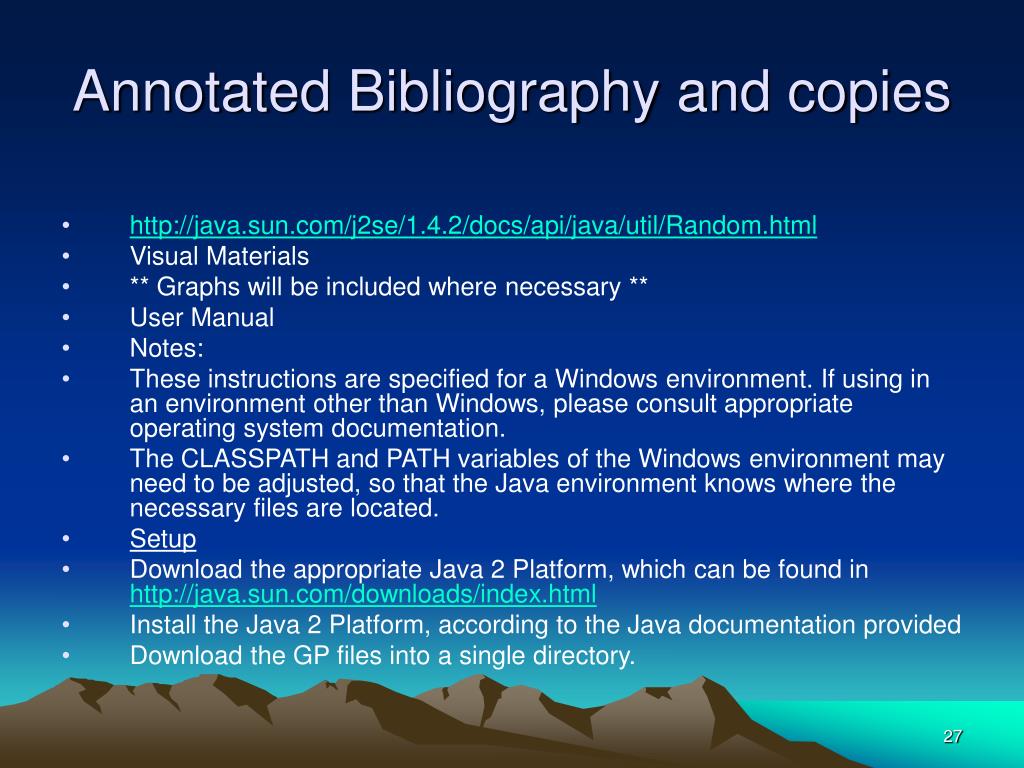

27. Annotated Bibliography and copies • http://java.sun.com/j2se/1.4.2/docs/api/java/util/Random.html • Visual Materials • ** Graphs will be included where necessary ** • User Manual • Notes: • These instructions are specified for a Windows environment. If using in an environment other than Windows, please consult appropriate operating system documentation. • The CLASSPATH and PATH variables of the Windows environment may need to be adjusted, so that the Java environment knows where the necessary files are located. • Setup • Download the appropriate Java 2 Platform, which can be found in http://java.sun.com/downloads/index.html • Install the Java 2 Platform, according to the Java documentation provided • Download the GP files into a single directory.

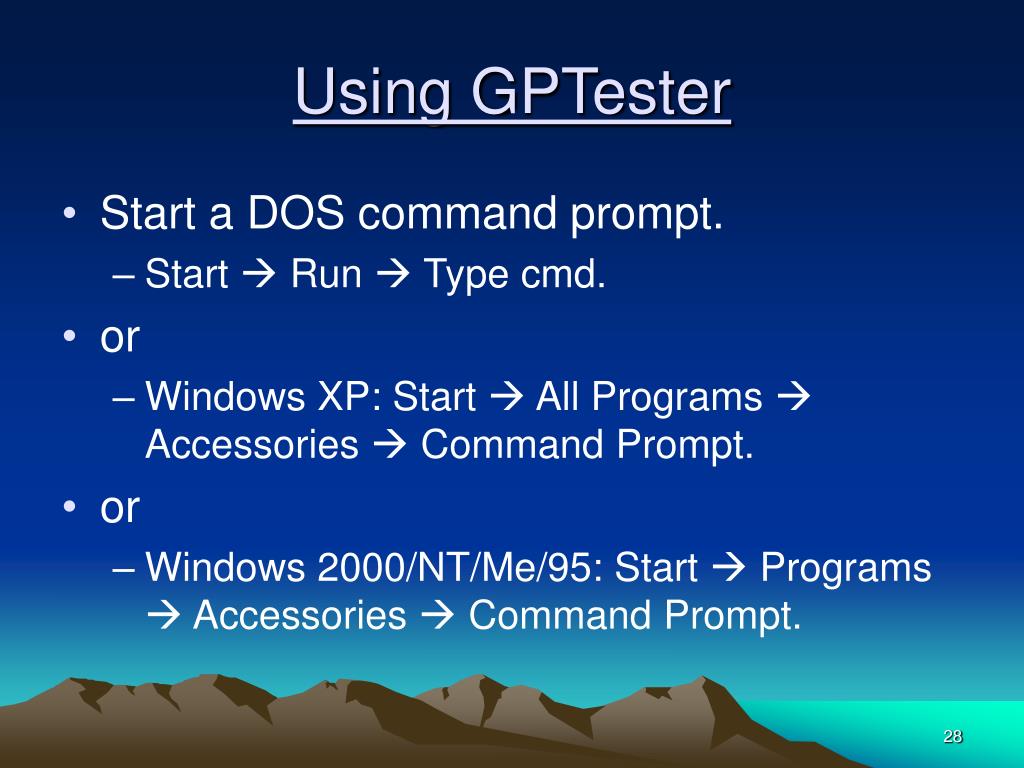

28. Using GPTester • Start a DOS command prompt. • Start  Run  Type cmd. • or • Windows XP: Start  All Programs  Accessories  Command Prompt. • or • Windows 2000/NT/Me/95: Start  Programs  Accessories  Command Prompt.

29. At Dos Prompt

30. How to? • Change into the directory of the GP files (from Step 3 in the Setup section) by using the DOS command cd to move one file forward and cd .. to move one file backward. • To compile the java files, type: javac *.java

31. Output

32. To run the GPTester • Type: java GPTester

33. Q & A QUESTION????
