  1. Data Mining using Fractals and Power laws Christos Faloutsos Carnegie Mellon University

  2. Thank you! • Prof. Hsing-Kuo Kenneth PAO • Prof. Yuh-Jye LEE • Hsin Yeh C. Faloutsos

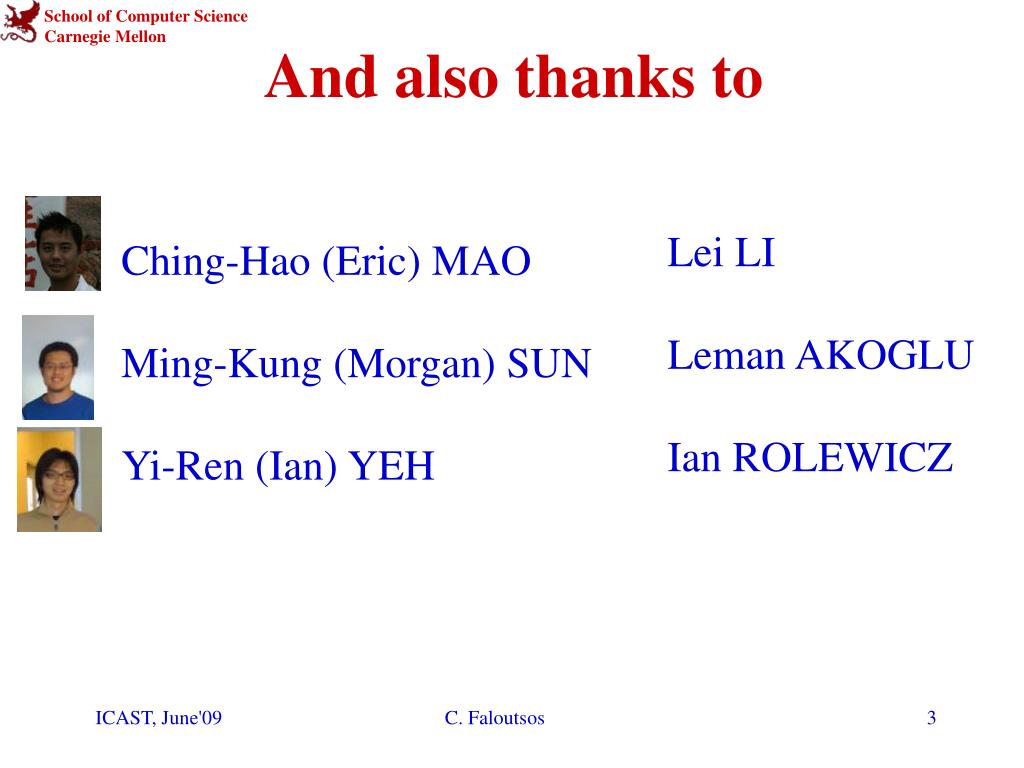

  3. And also thanks to Lei LI Leman AKOGLU Ian ROLEWICZ Ching-Hao (Eric) MAO Ming-Kung (Morgan) SUN Yi-Ren (Ian) YEH C. Faloutsos

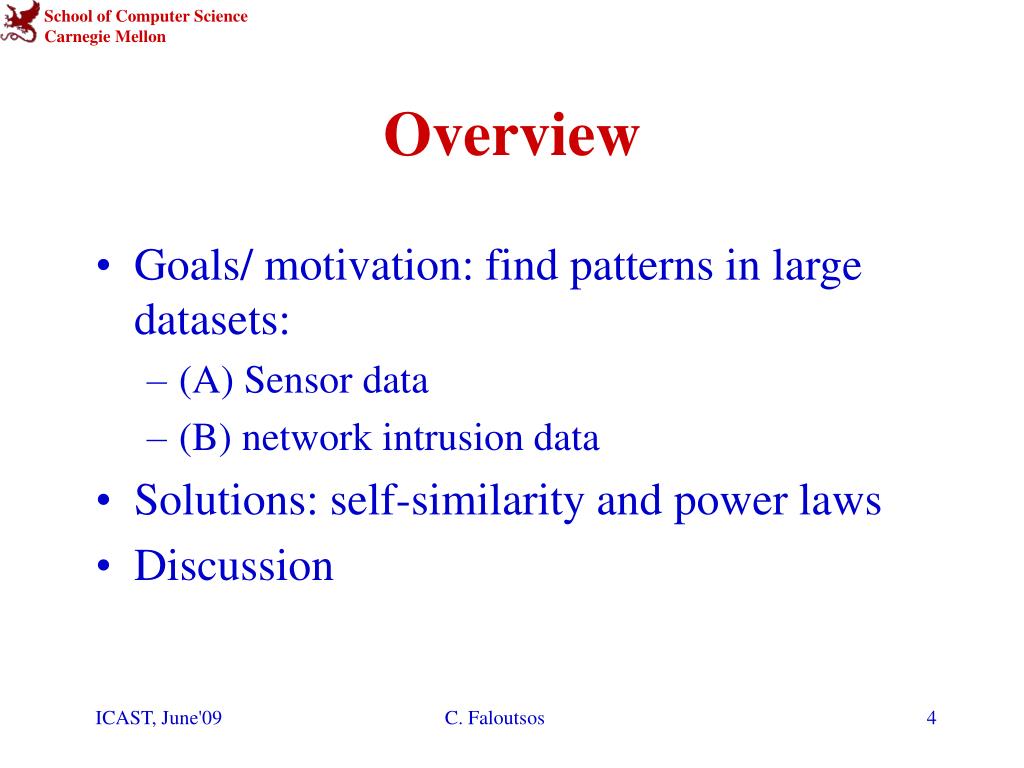

  4. Overview • Goals/ motivation: find patterns in large datasets: • (A) Sensor data • (B) network intrusion data • Solutions: self-similarity and power laws • Discussion C. Faloutsos

  5. # alerts time Applications of sensors/streams • network monitoring C. Faloutsos

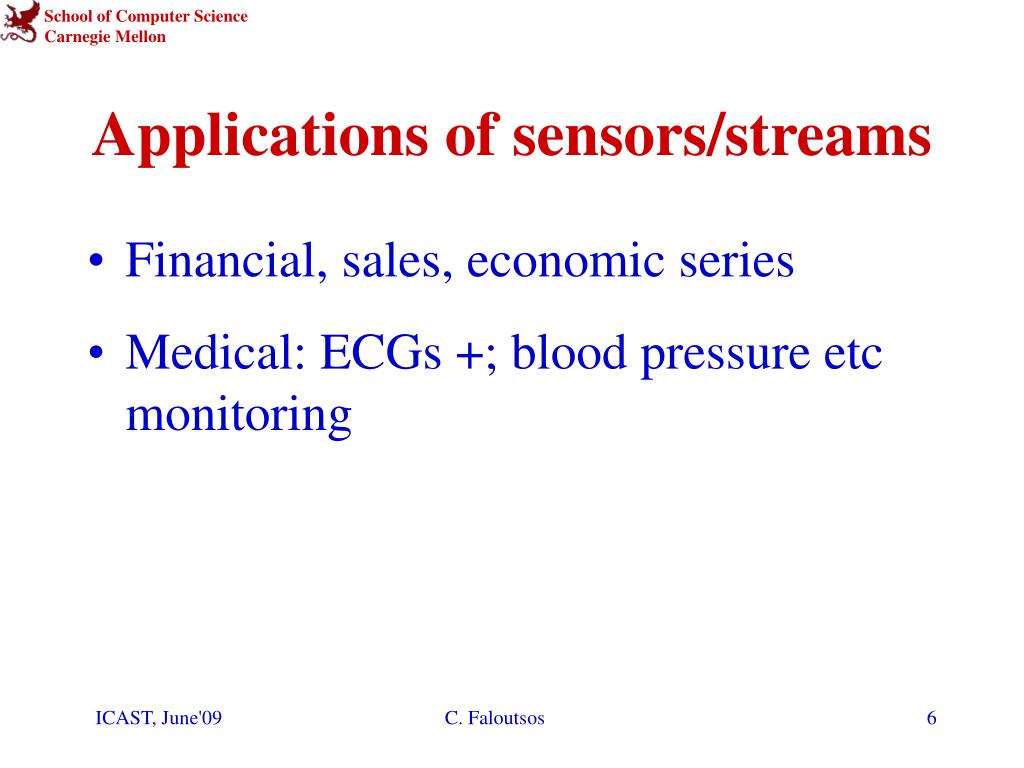

  6. Applications of sensors/streams • Financial, sales, economic series • Medical: ECGs +; blood pressure etc monitoring C. Faloutsos

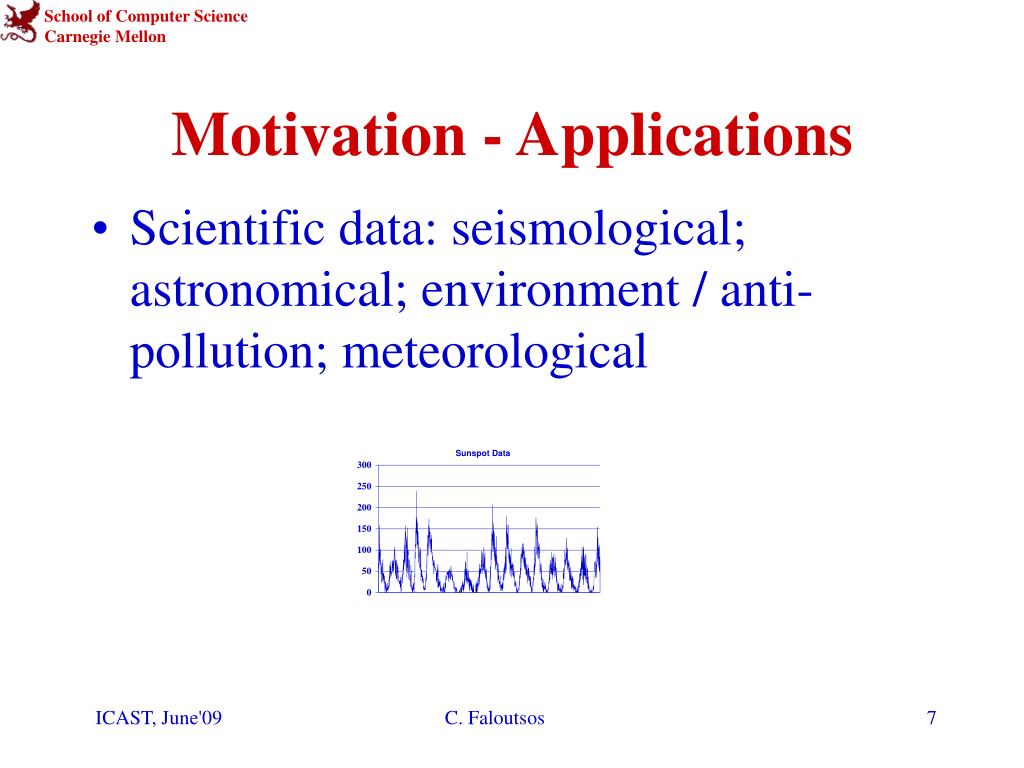

  7. Motivation - Applications • Scientific data: seismological; astronomical; environment / anti-pollution; meteorological C. Faloutsos

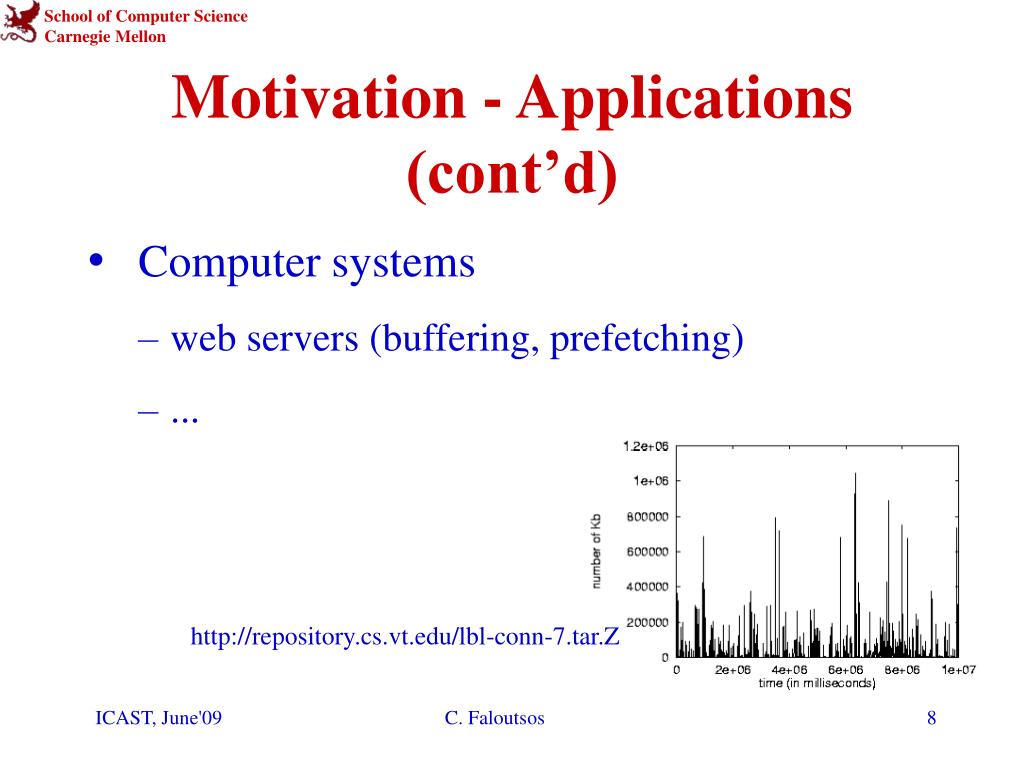

  8. Motivation - Applications (cont’d) • Computer systems • web servers (buffering, prefetching) • ... http://repository.cs.vt.edu/lbl-conn-7.tar.Z C. Faloutsos

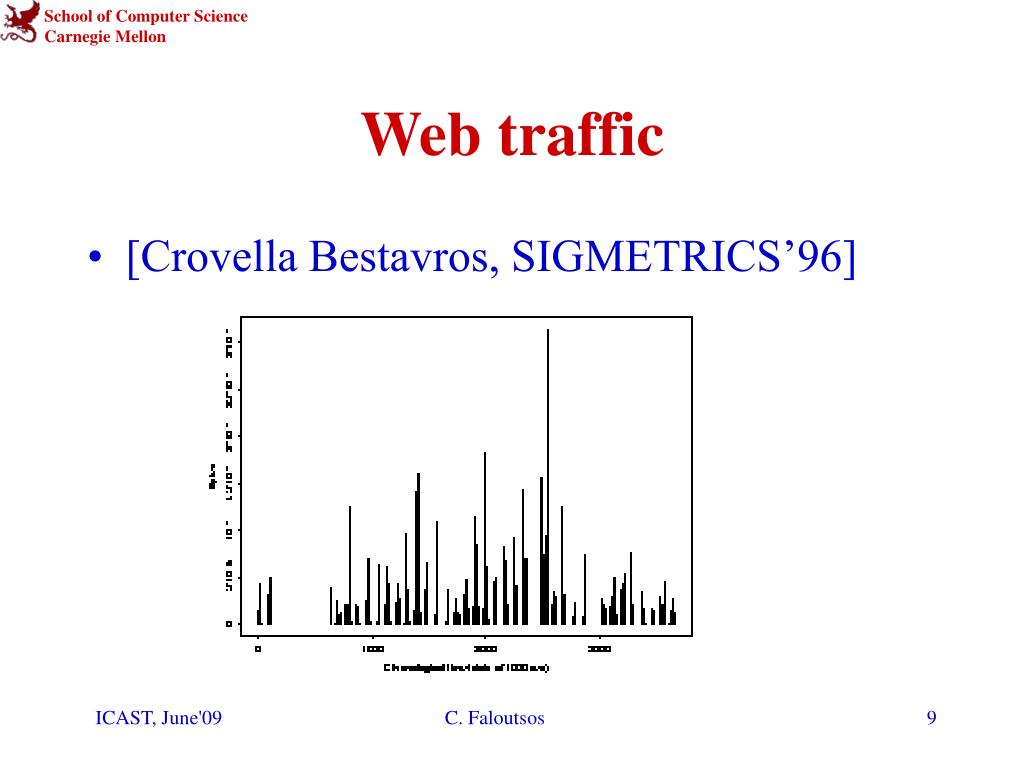

  9. Web traffic • [Crovella Bestavros, SIGMETRICS’96] C. Faloutsos

  10. survivable,self-managing storageinfrastructure a storage brick(0.5–5 TB) ~1 PB . . . . . . Self-* Storage (Ganger+) • “self-*” = self-managing, self-tuning, self-healing, … C. Faloutsos

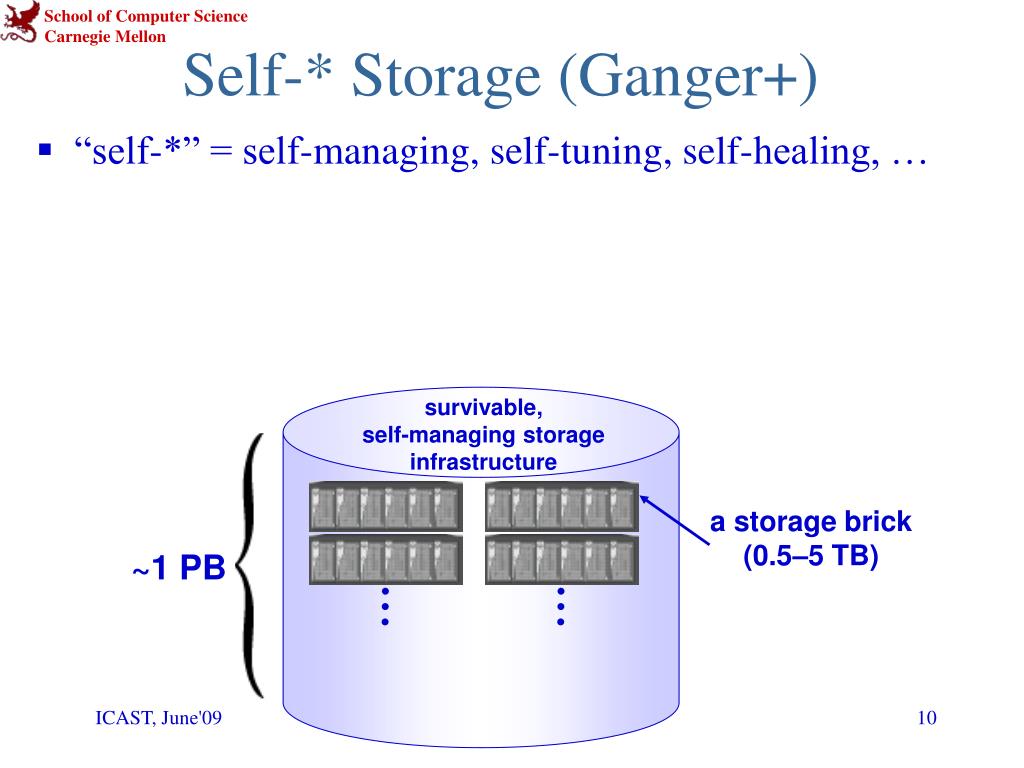

  11. survivable,self-managing storageinfrastructure a storage brick(0.5–5 TB) ~1 PB . . . . . . Self-* Storage (Ganger+) • “self-*” = self-managing, self-tuning, self-healing, … • Goal: 1 petabyte (PB) • www.pdl.cmu.edu/SelfStar C. Faloutsos

  12. Problem definition • Given: one or more sequences x1 , x2 , … , xt , …; (y1, y2, … , yt, …) • Find • patterns; clusters; outliers; forecasts; C. Faloutsos

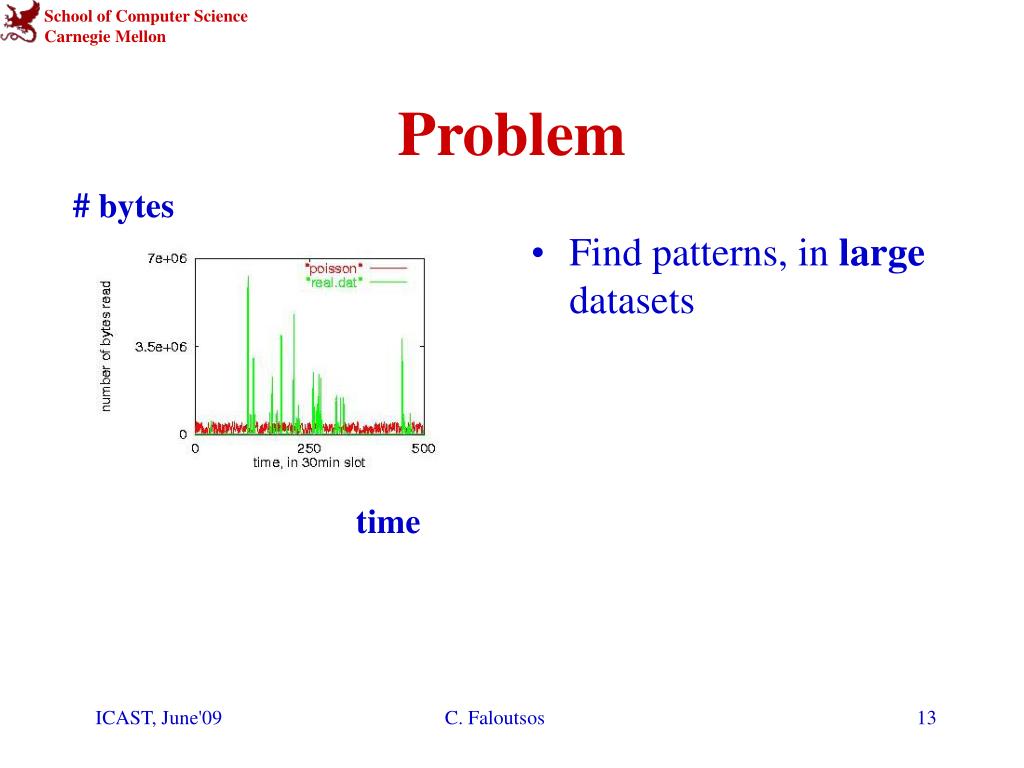

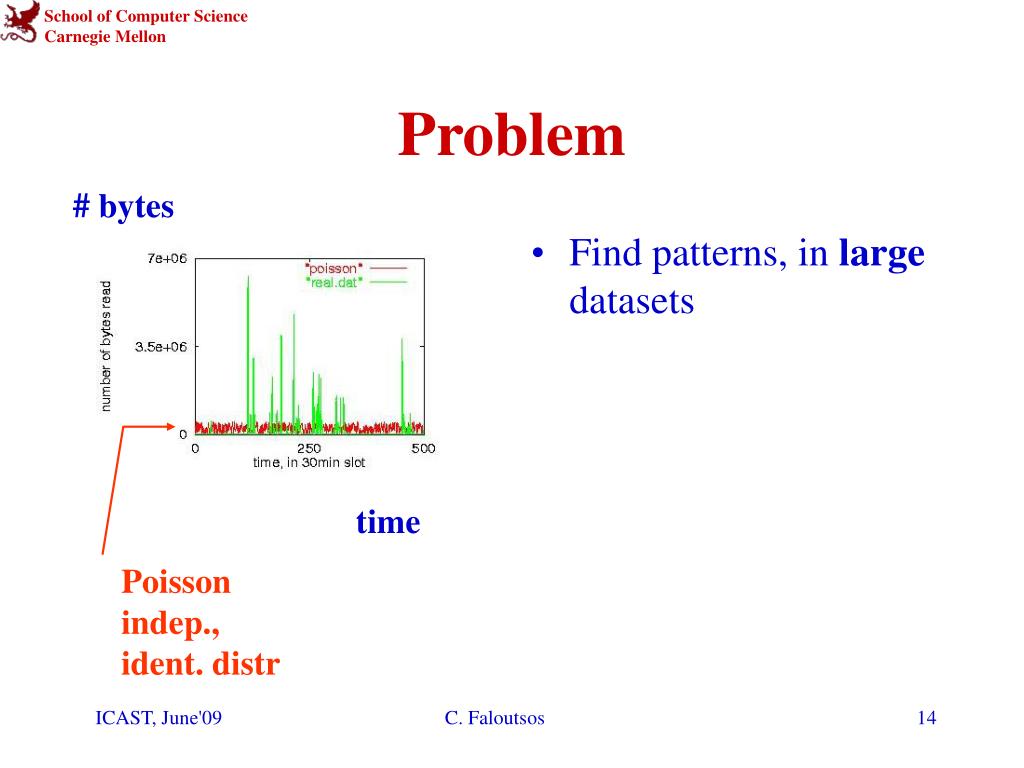

  13. Problem # bytes • Find patterns, in large datasets time C. Faloutsos

  14. Problem # bytes • Find patterns, in large datasets time Poisson indep., ident. distr C. Faloutsos

  15. Problem # bytes • Find patterns, in large datasets time Poisson indep., ident. distr C. Faloutsos

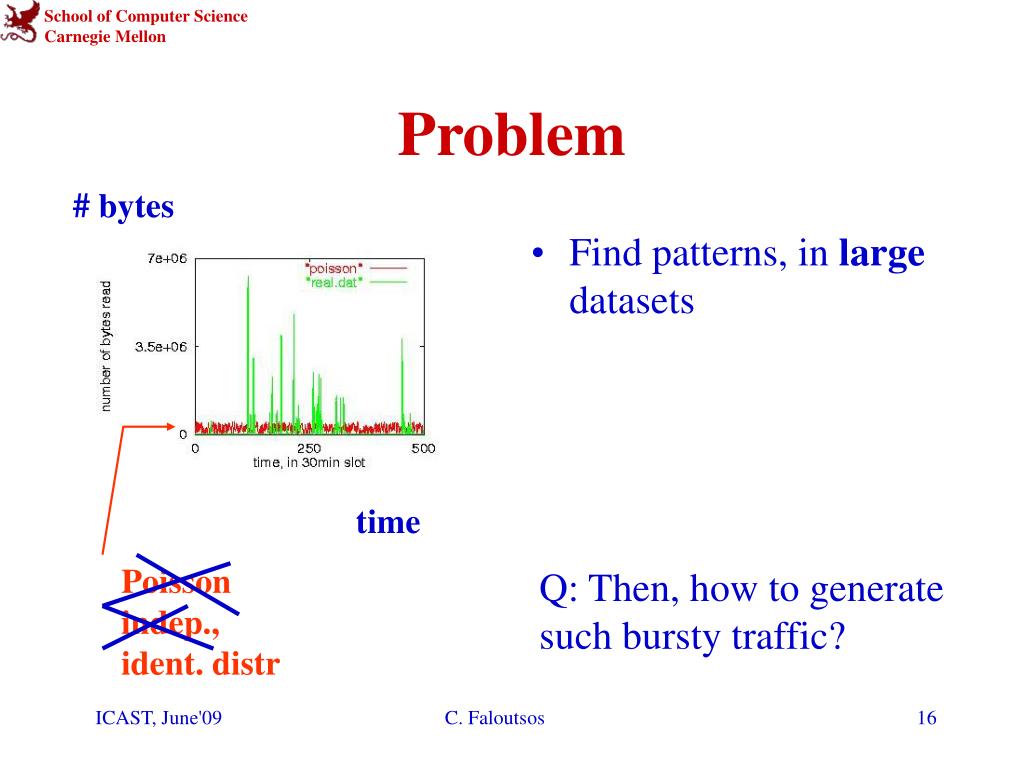

  16. Problem # bytes • Find patterns, in large datasets time Poisson indep., ident. distr Q: Then, how to generate such bursty traffic? C. Faloutsos

  17. Solutions • New tools: power laws, self-similarity and ‘fractals’ work, where traditional assumptions fail • Let’s see the details: C. Faloutsos

  18. Overview • Goals/ motivation: find patterns in large datasets: • (A) Sensor data • (B) network data • Solutions: self-similarity and power laws • Discussion C. Faloutsos

  19. What is a fractal? = self-similar point set, e.g., Sierpinski triangle: zero area: (3/4)^inf infinite length! (4/3)^inf ... Q: What is its dimensionality?? C. Faloutsos

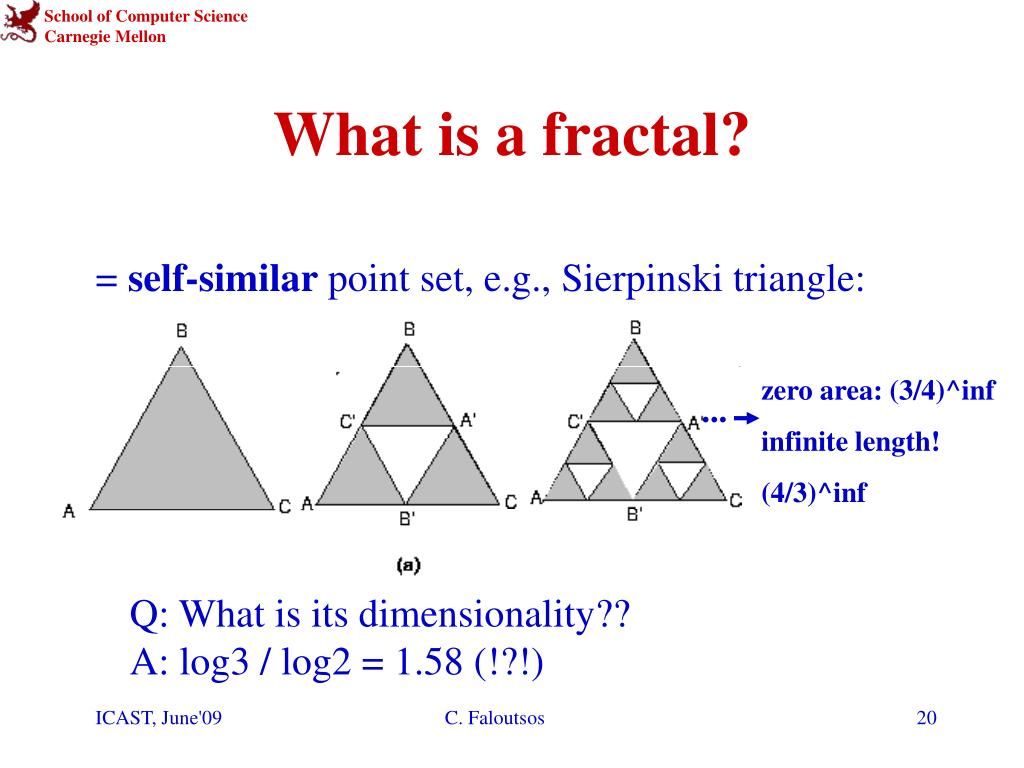

  20. What is a fractal? = self-similar point set, e.g., Sierpinski triangle: zero area: (3/4)^inf infinite length! (4/3)^inf ... Q: What is its dimensionality?? A: log3 / log2 = 1.58 (!?!) C. Faloutsos

  21. Q: fractal dimension of a line? Q: fd of a plane? Intrinsic (‘fractal’) dimension C. Faloutsos

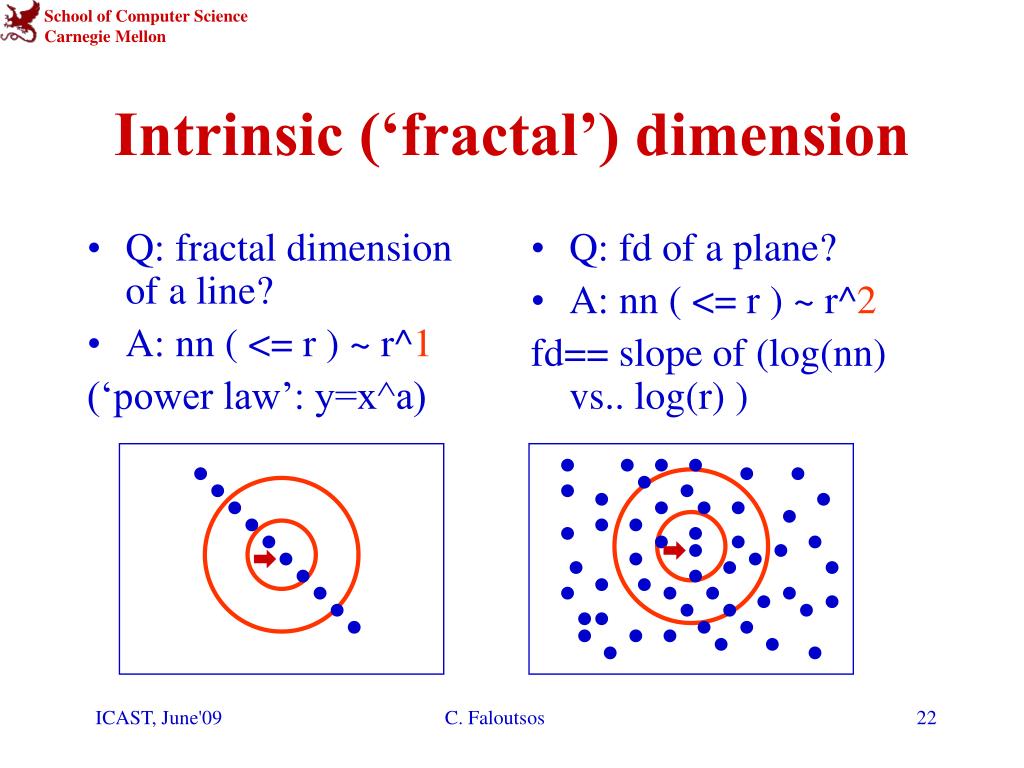

  22. Q: fractal dimension of a line? A: nn ( <= r ) ~ r^1 (‘power law’: y=x^a) Q: fd of a plane? A: nn ( <= r ) ~ r^2 fd== slope of (log(nn) vs.. log(r) ) Intrinsic (‘fractal’) dimension C. Faloutsos

  23. log(#pairs within <=r ) 1.58 log( r ) Sierpinsky triangle == ‘correlation integral’ = CDF of pairwise distances C. Faloutsos

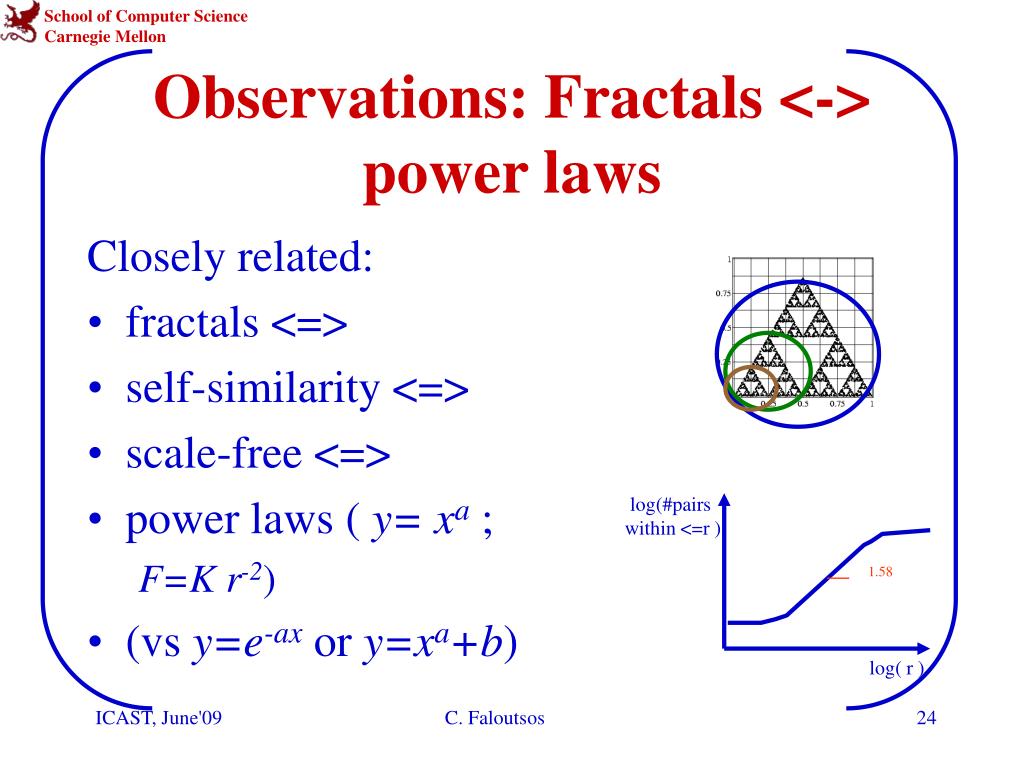

  24. log(#pairs within <=r ) 1.58 log( r ) Observations: Fractals <-> power laws Closely related: • fractals <=> • self-similarity <=> • scale-free <=> • power laws ( y= xa ; F=K r-2) • (vs y=e-ax or y=xa+b) C. Faloutsos

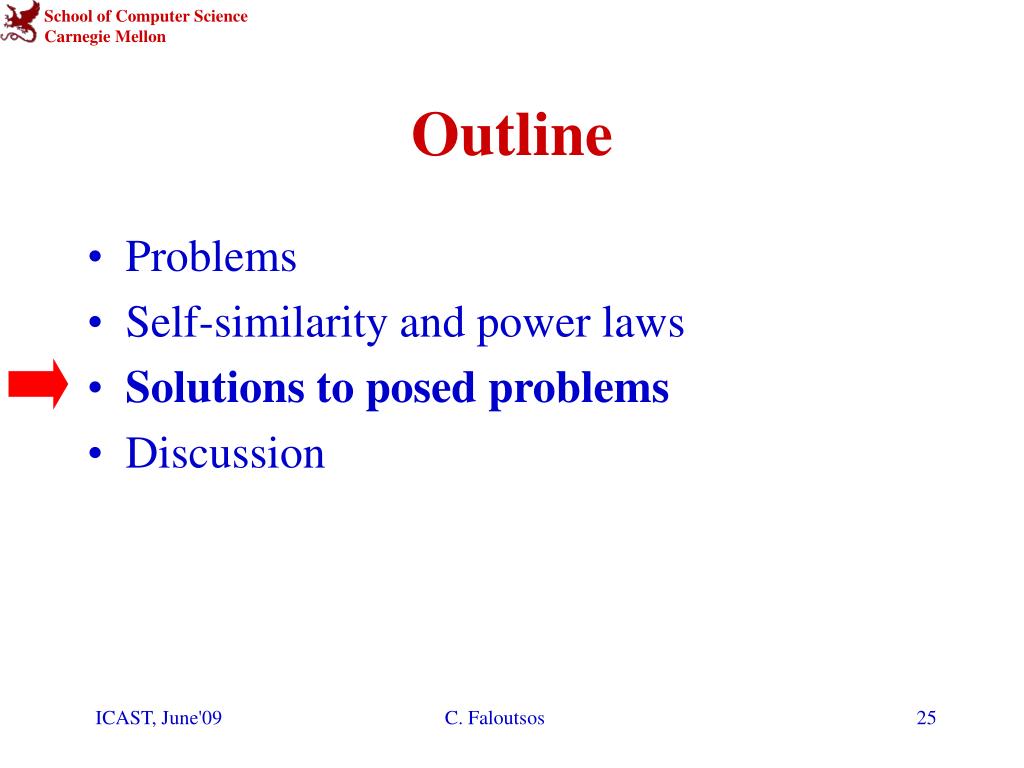

  25. Outline • Problems • Self-similarity and power laws • Solutions to posed problems • Discussion C. Faloutsos

  26. #bytes time Solution #1: traffic • disk traces: self-similar: (also: [Leland+94]) • How to generate such traffic? C. Faloutsos

  27. 20% 80% Solution #1: traffic • disk traces (80-20 ‘law’) – ‘multifractals’ #bytes time C. Faloutsos

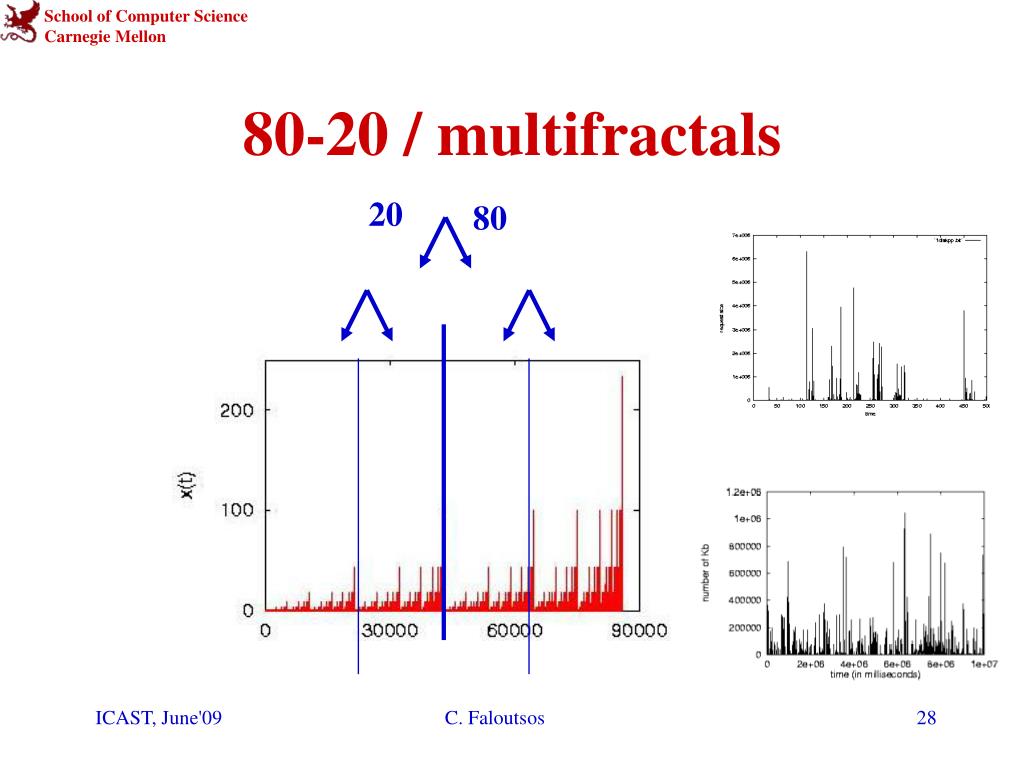

  28. 80-20 / multifractals 20 80 C. Faloutsos

  29. 80-20 / multifractals 20 80 • p ; (1-p) in general • yes, there are dependencies C. Faloutsos

  30. More on 80/20: PQRS • Part of ‘self-* storage’ project time cylinder# C. Faloutsos

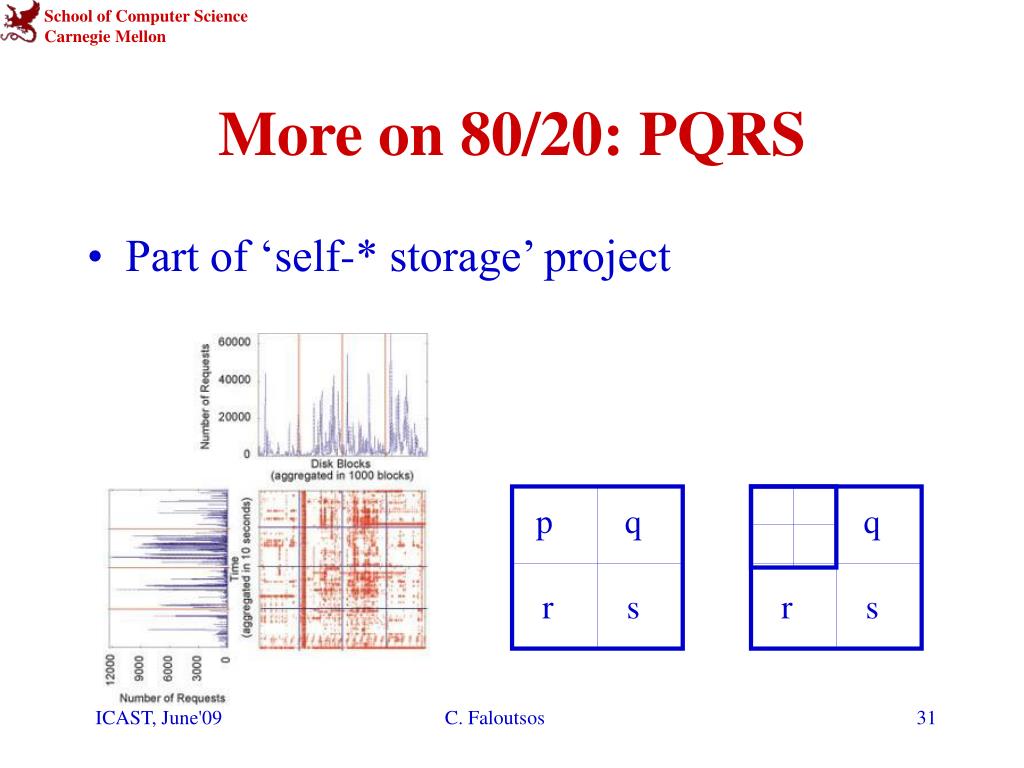

  31. p q r s More on 80/20: PQRS • Part of ‘self-* storage’ project q r s C. Faloutsos

  32. Overview • Goals/ motivation: find patterns in large datasets: • (A) Sensor data • (B) network data • Solutions: self-similarity and power laws • sensor/traffic data • network data • Discussion C. Faloutsos

  33. Problem dfn <source-ip, target-ip, timestamp, alert-type> eg., <192.168.2.5; 128.2.220.159; 3am june 6; ICMP-redirect-host> goal: find patterns / anomalies C. Faloutsos

  34. Power laws in intrusion data count rank C. Faloutsos

  35. C. Faloutsos

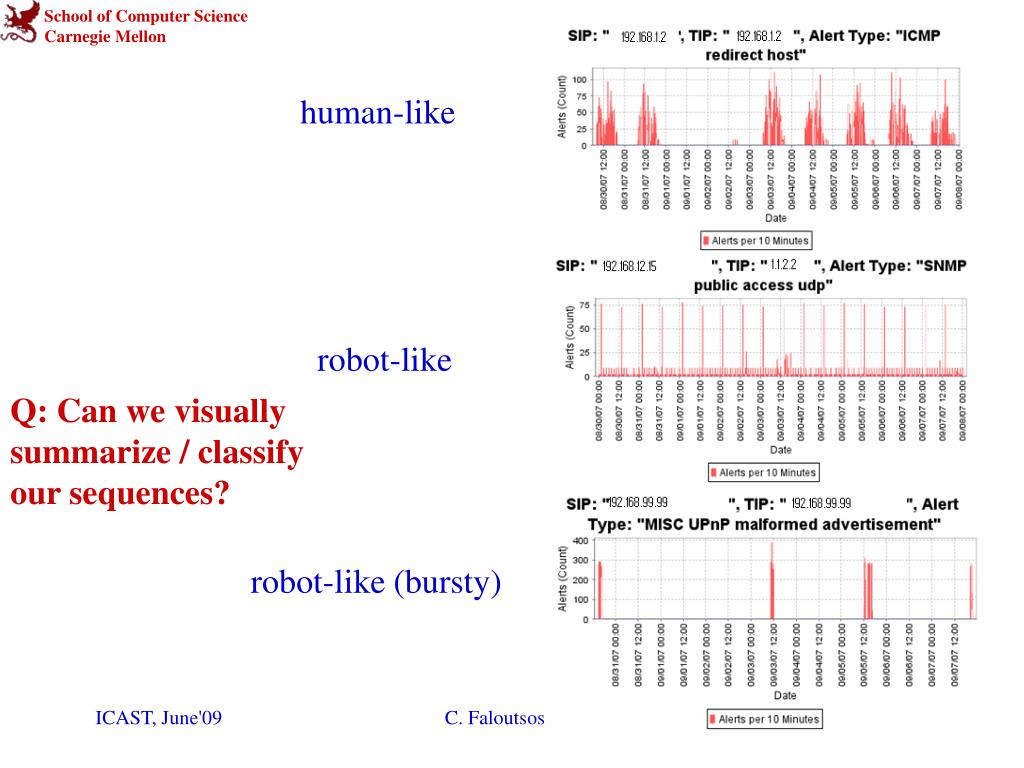

  36. human-like robot-like Q: Can we visually summarize / classify our sequences? robot-like (bursty) C. Faloutsos

  37. Answer: yes! two features: • F1: how periodic (24h-cycle) is a sequence • F2: how bursty it is Q: how to measure burstiness? A: Fractal dimension! C. Faloutsos

  38. Burstiness & f.d. uniform: fd = 1 @same time-tick: fd = 0 C. Faloutsos

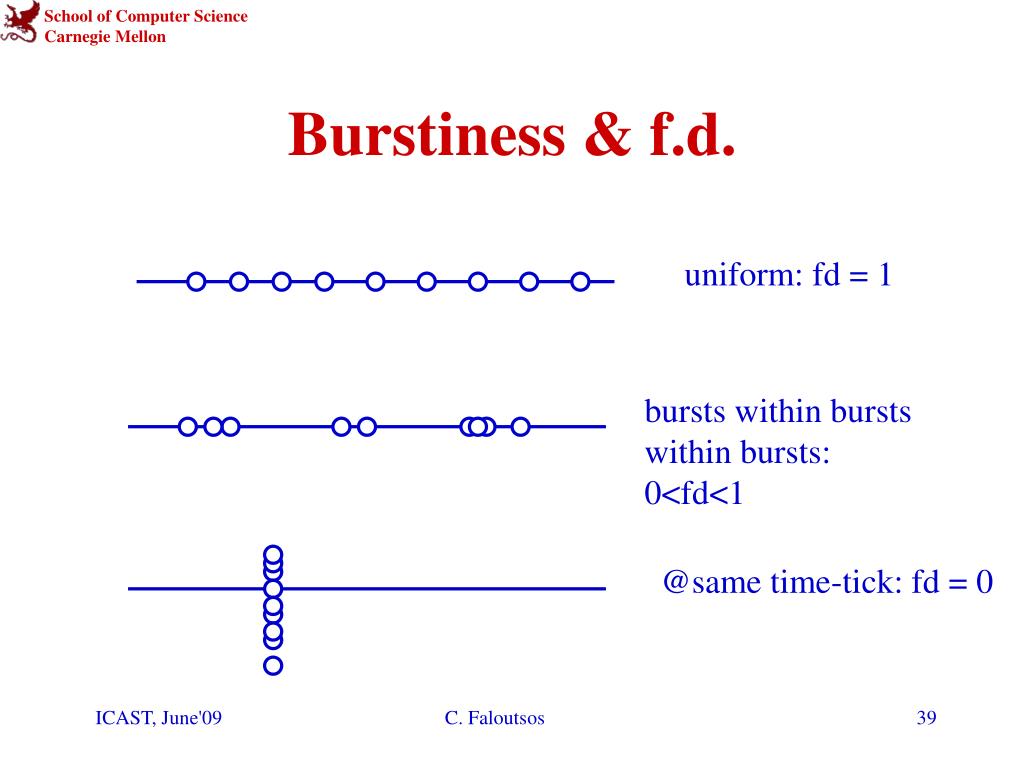

  39. Burstiness & f.d. uniform: fd = 1 bursts within bursts within bursts: 0<fd<1 @same time-tick: fd = 0 C. Faloutsos

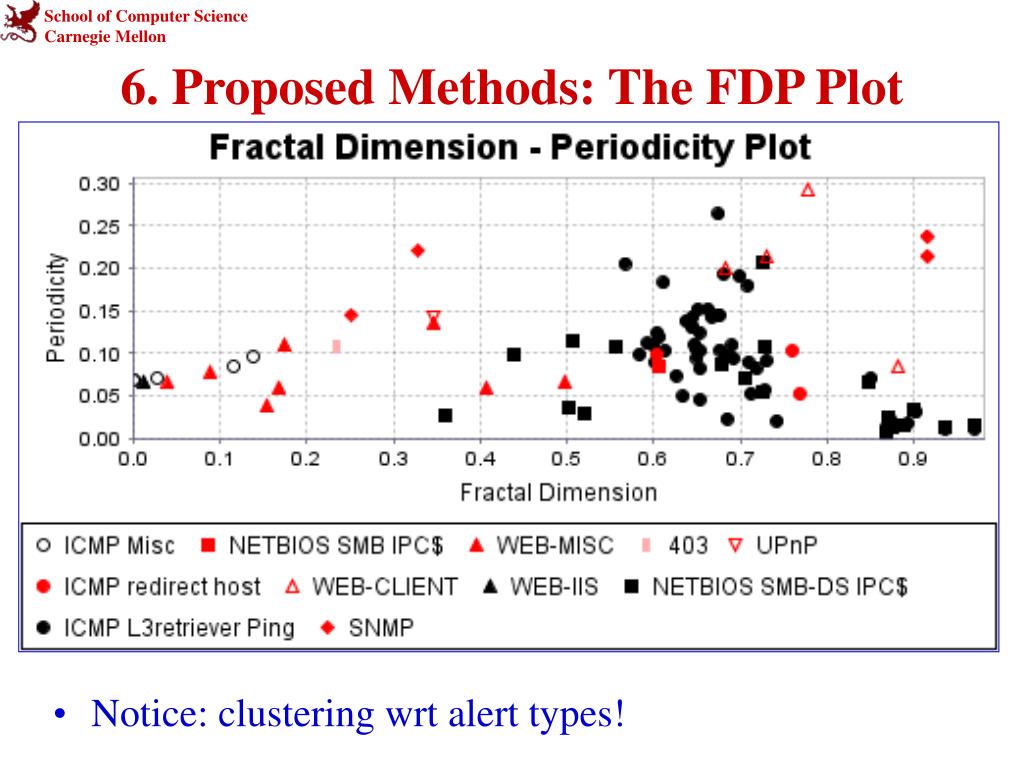

  40. 6. Proposed Methods: The FDP Plot C. Faloutsos Notice: clustering wrt alert types!

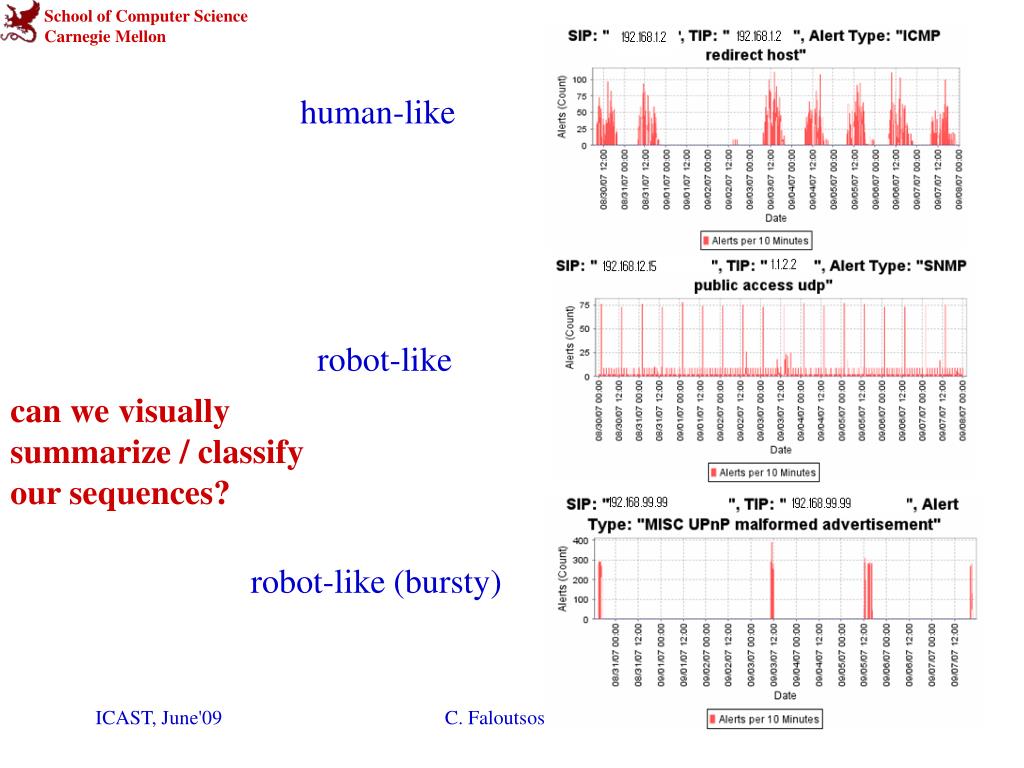

  41. human-like robot-like can we visually summarize / classify our sequences? robot-like (bursty) C. Faloutsos

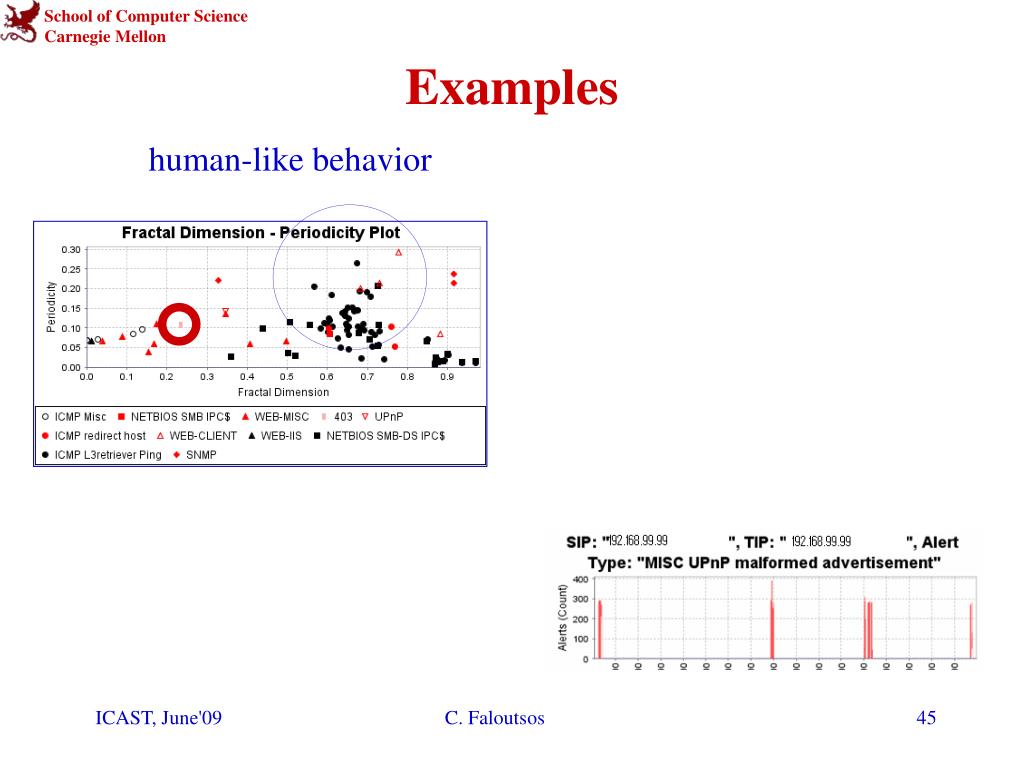

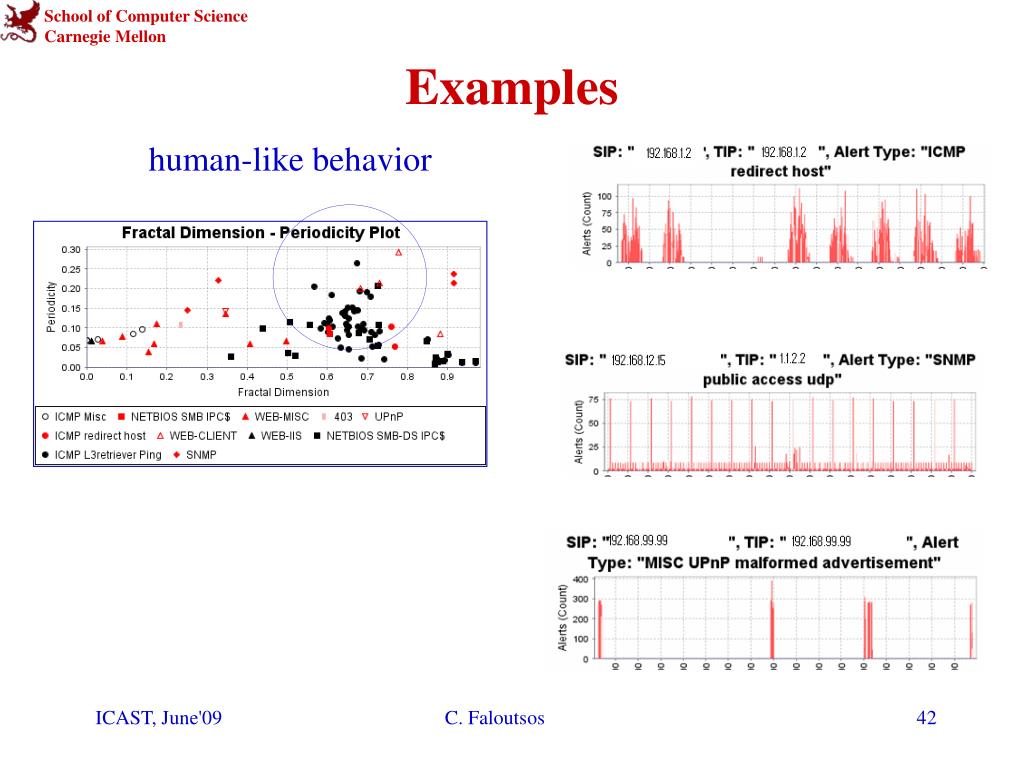

  42. Examples human-like behavior C. Faloutsos

  43. Examples human-like behavior C. Faloutsos

  44. Examples human-like behavior C. Faloutsos

  45. Examples human-like behavior C. Faloutsos

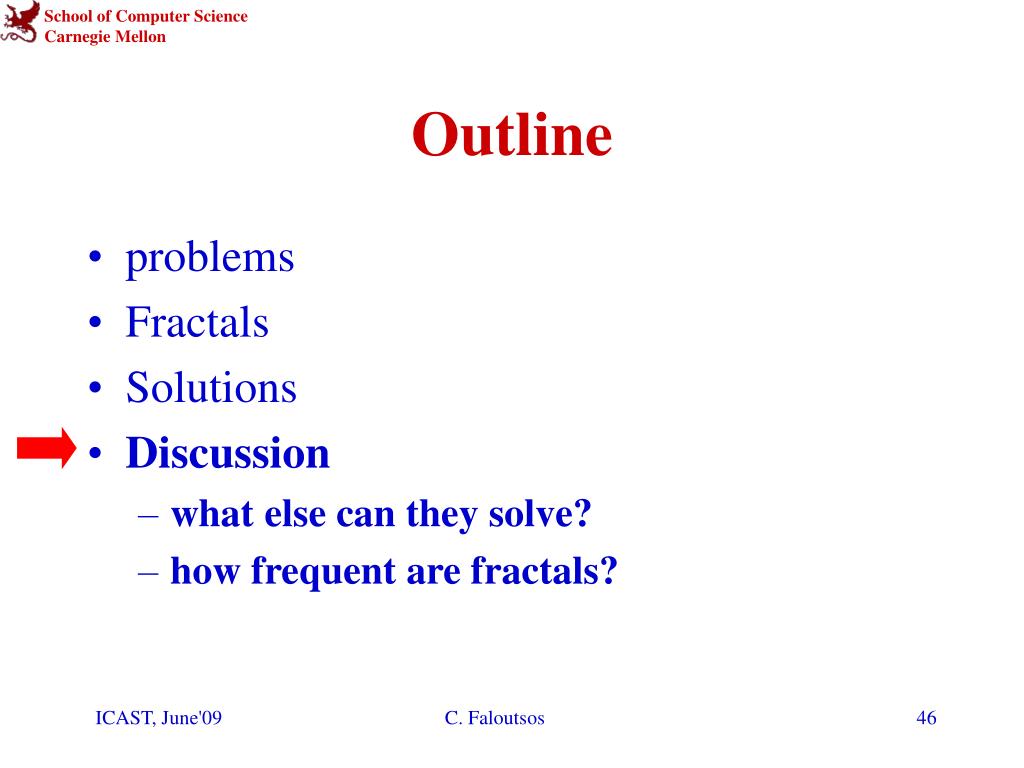

  46. Outline • problems • Fractals • Solutions • Discussion • what else can they solve? • how frequent are fractals? C. Faloutsos

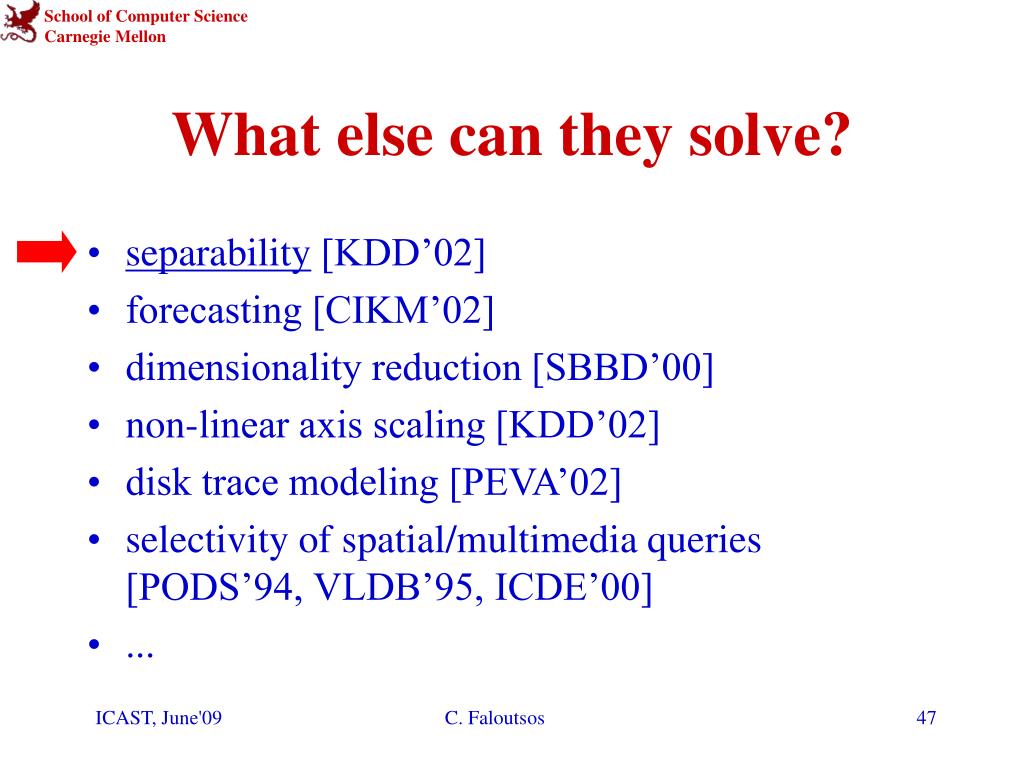

  47. What else can they solve? • separability [KDD’02] • forecasting [CIKM’02] • dimensionality reduction [SBBD’00] • non-linear axis scaling [KDD’02] • disk trace modeling [PEVA’02] • selectivity of spatial/multimedia queries [PODS’94, VLDB’95, ICDE’00] • ... C. Faloutsos

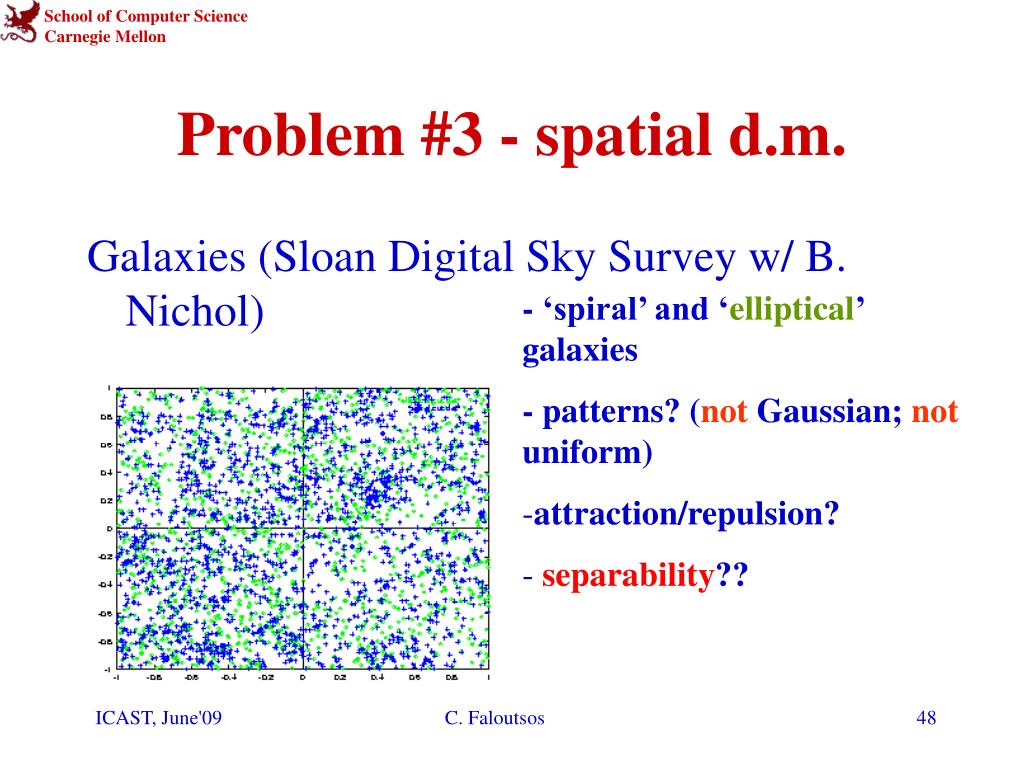

  48. Problem #3 - spatial d.m. Galaxies (Sloan Digital Sky Survey w/ B. Nichol) • - ‘spiral’ and ‘elliptical’ galaxies • - patterns? (not Gaussian; not uniform) • attraction/repulsion? • separability?? C. Faloutsos

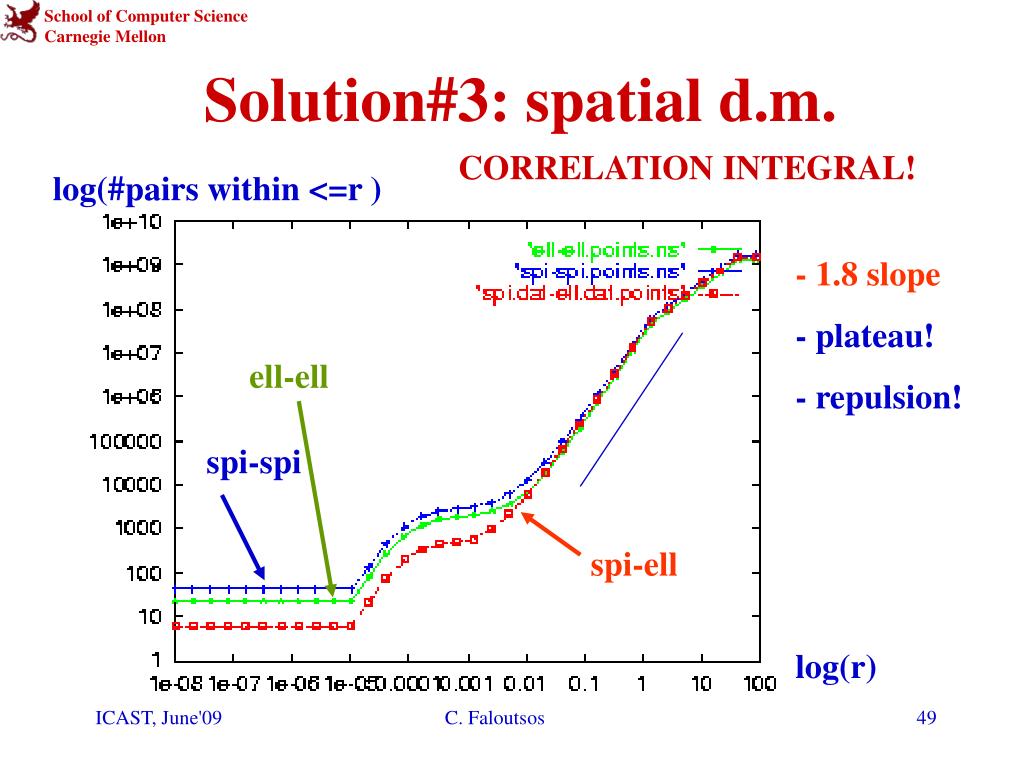

  49. Solution#3: spatial d.m. CORRELATION INTEGRAL! log(#pairs within <=r ) - 1.8 slope - plateau! - repulsion! ell-ell spi-spi spi-ell log(r) C. Faloutsos

  50. Solution#3: spatial d.m. [w/ Seeger, Traina, Traina, SIGMOD00] log(#pairs within <=r ) - 1.8 slope - plateau! - repulsion! ell-ell spi-spi spi-ell log(r) C. Faloutsos
