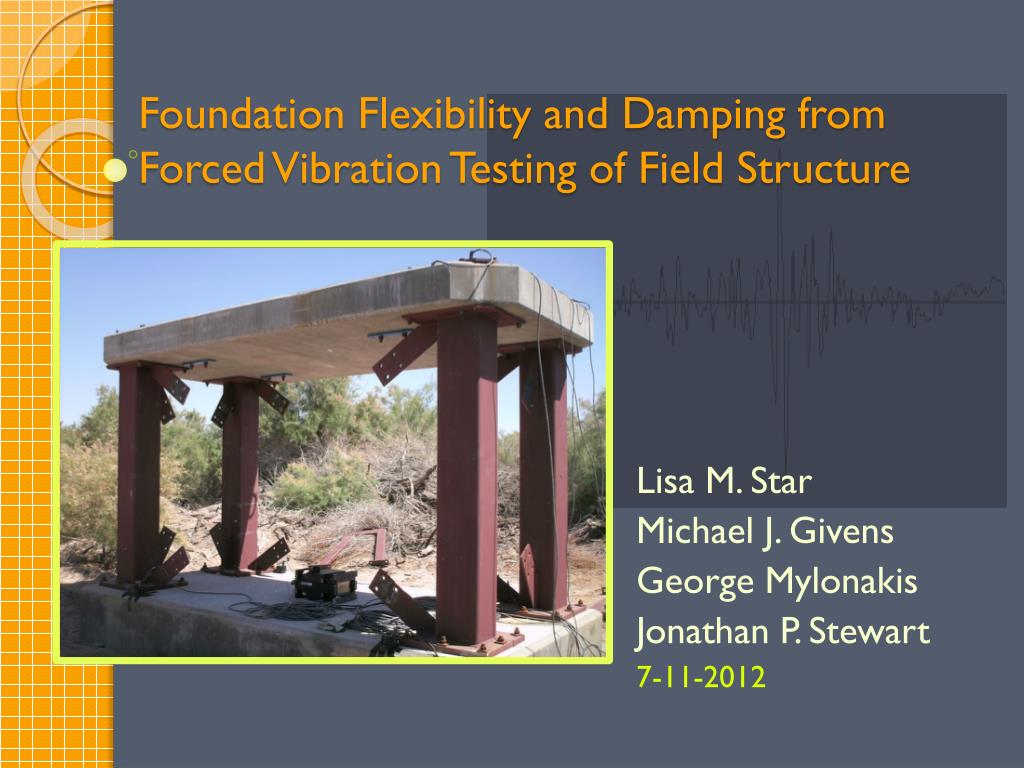

  1. Foundation Flexibility and Damping from Forced Vibration Testing of Field Structure Lisa M. Star Michael J. Givens George Mylonakis Jonathan P. Stewart 7-11-2012

  2. What is Soil-Structure Interaction (SSI)? SSI is the collection of effects that soil behavior has on a structure and structural behavior has on the soil Two Important SSI effects: • Altered Ground Motions (Kinematic Interaction Effects) • Foundation Stiffness and Damping (Inertial Interaction Effects)

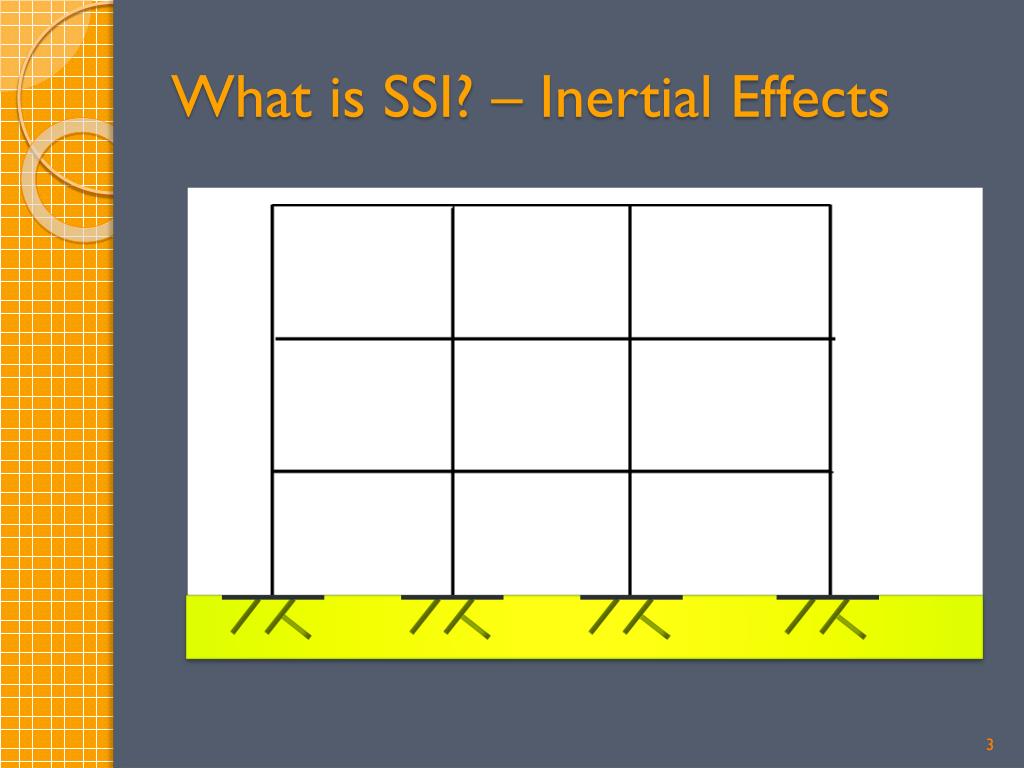

  3. What is SSI? – Inertial Effects

  4. What is SSI? – Inertial Effects

  5. What is SSI? – Inertial Effects

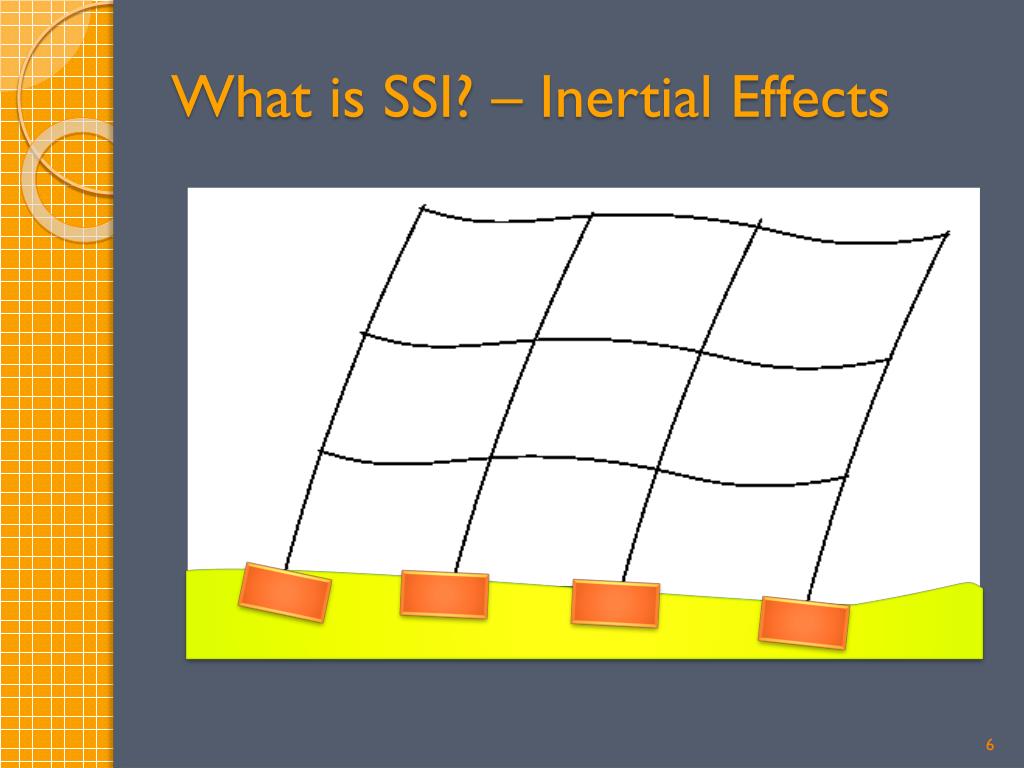

  6. What is SSI? – Inertial Effects

  7. What is SSI? – Inertial Effects

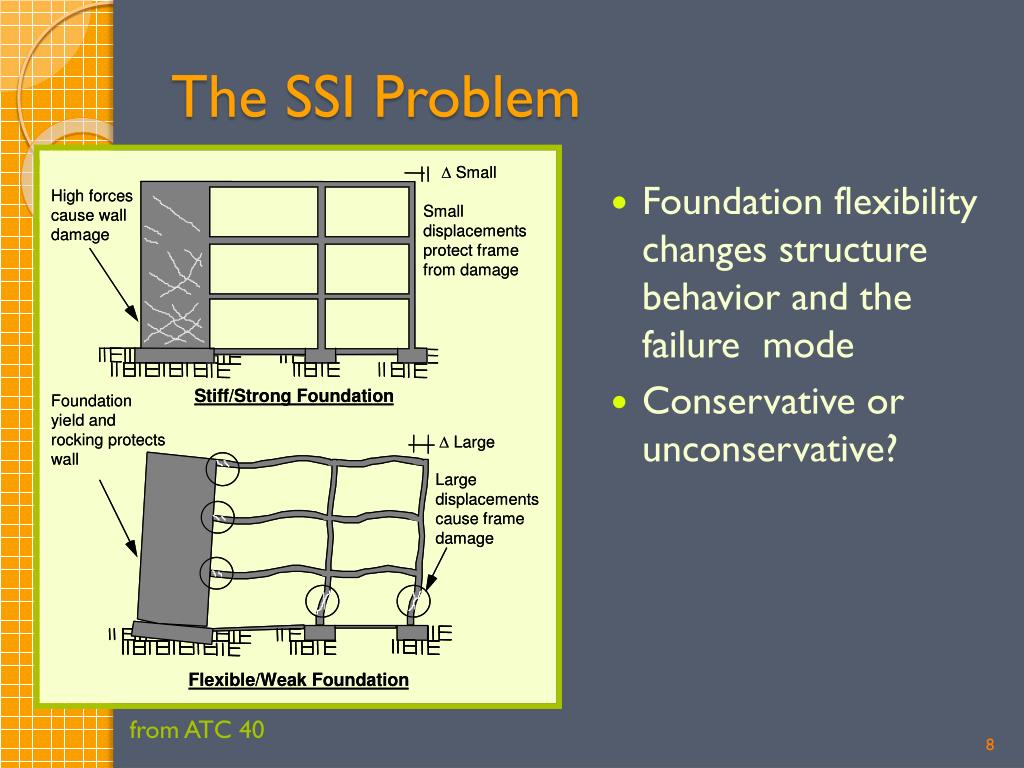

  8. The SSI Problem • Foundation flexibility changes structure behavior and the failure mode • Conservative or unconservative? from ATC 40

  9. UCLA SSI Test Structure • 2.13 m x 4.26 m foundation • 2.13 m tall HSS 12”x12”x1/2” steel columns • 0.25 m thick reinforced concrete upper deck • Removable bracing

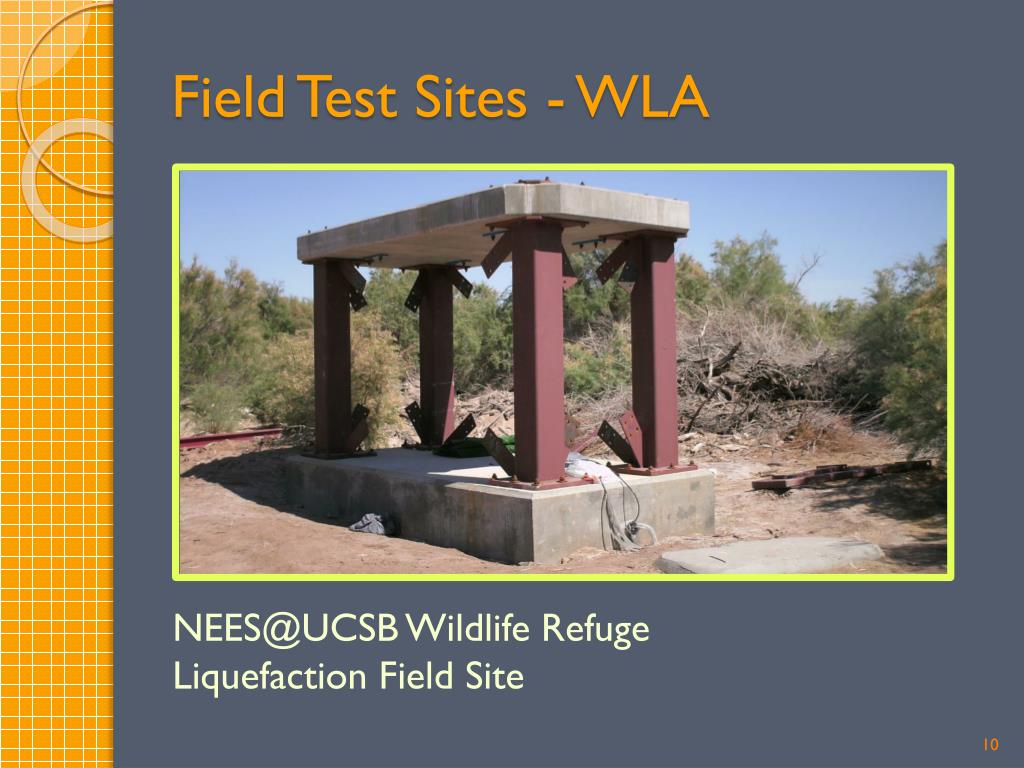

  10. Field Test Sites - WLA NEES@UCSB Wildlife Refuge Liquefaction Field Site

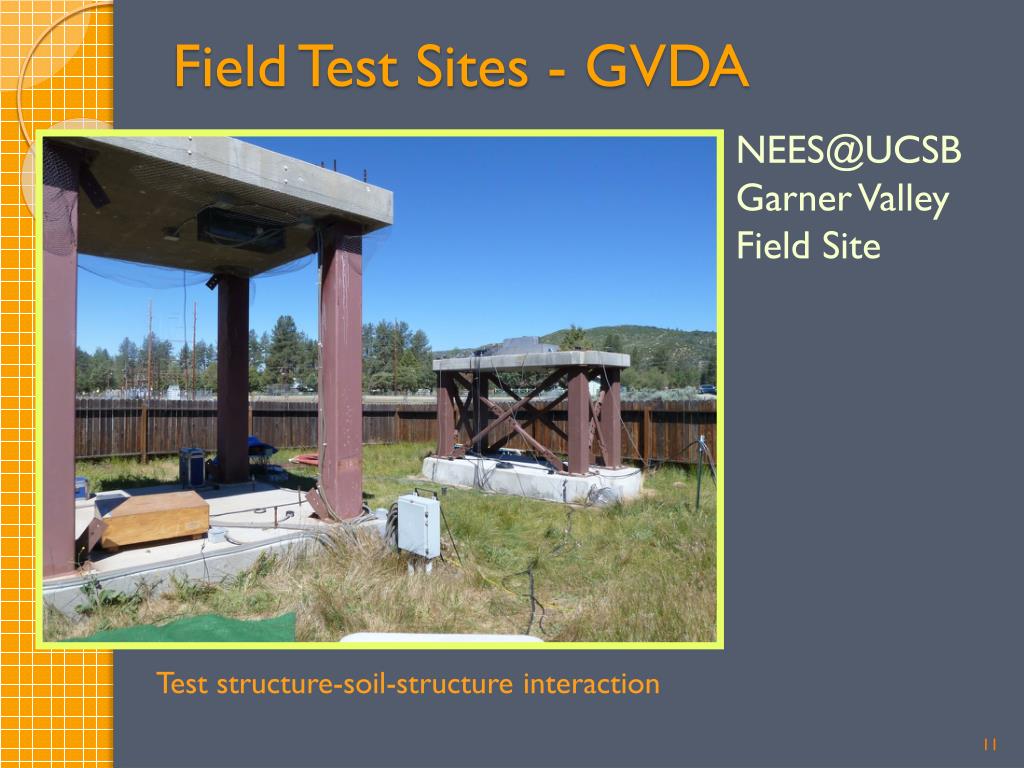

  11. Field Test Sites - GVDA NEES@UCSB Garner Valley Field Site Test structure-soil-structure interaction

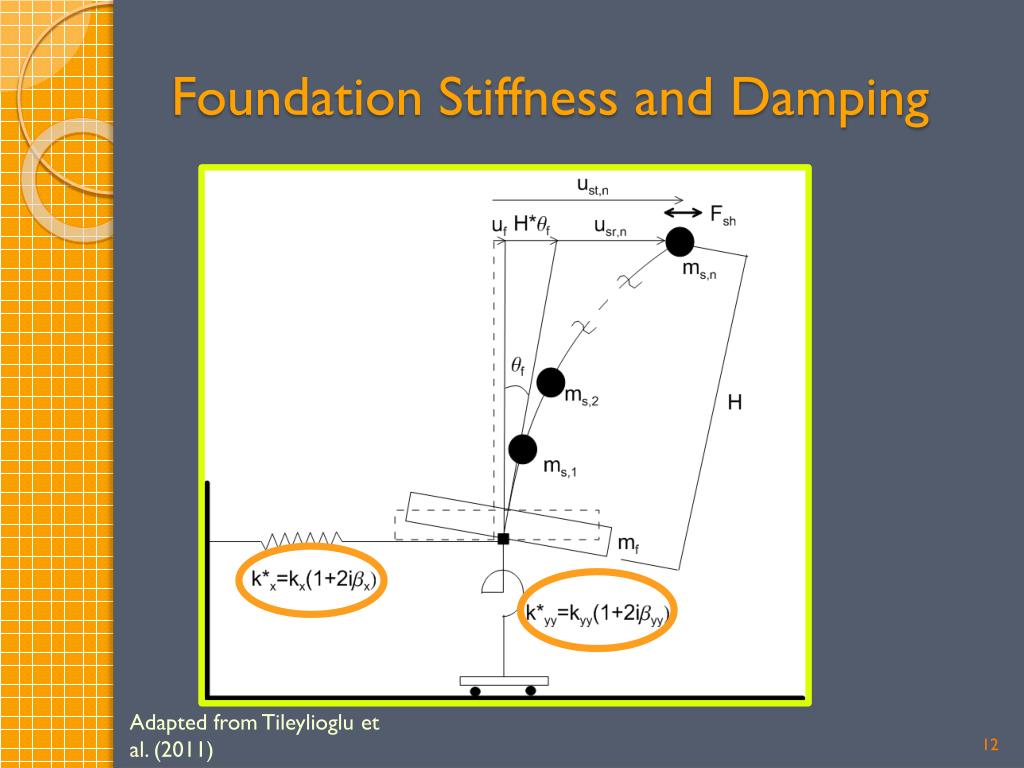

  12. Foundation Stiffness and Damping Adapted from Tileylioglu et al. (2011)

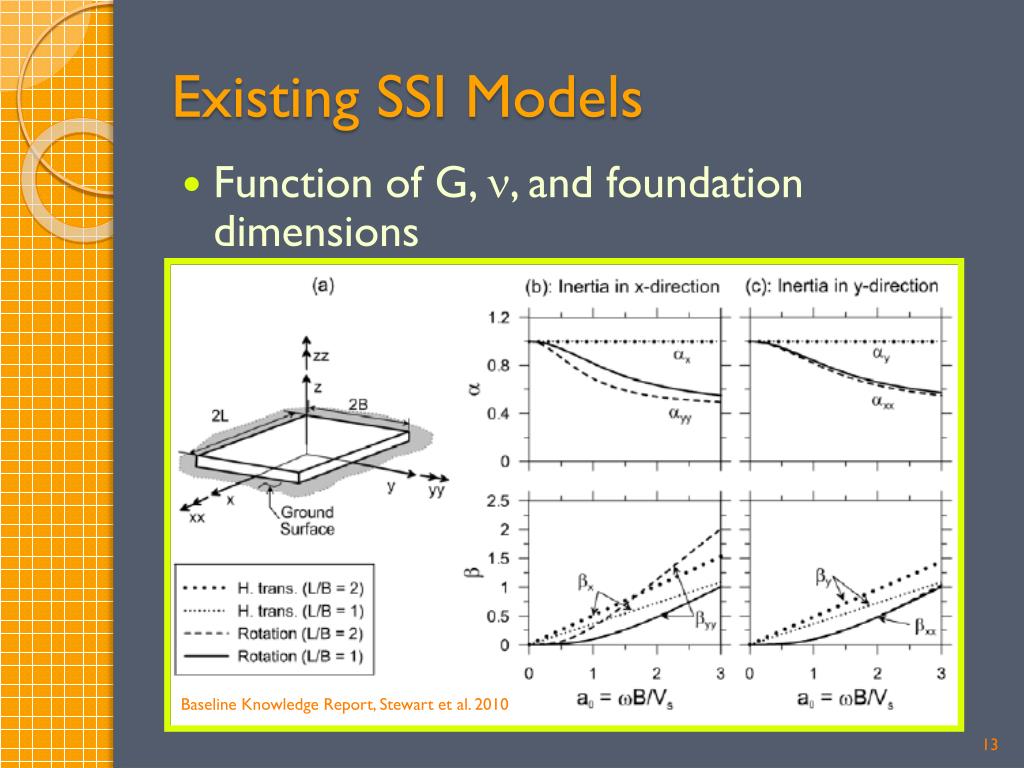

  13. Existing SSI Models • Function of G, , and foundation dimensions Baseline Knowledge Report, Stewart et al. 2010

  14. Foundation Impedance - Theory Translation and Rotation: Adapted from Tileylioglu et al. (2011)

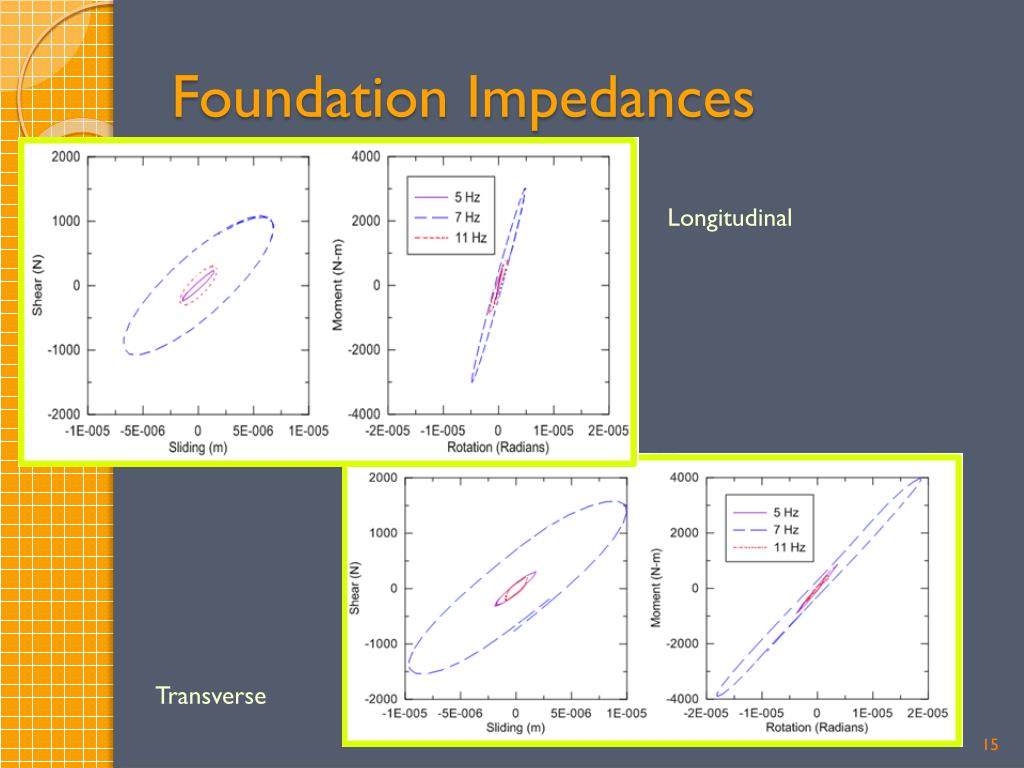

  15. Foundation Impedances Longitudinal Transverse

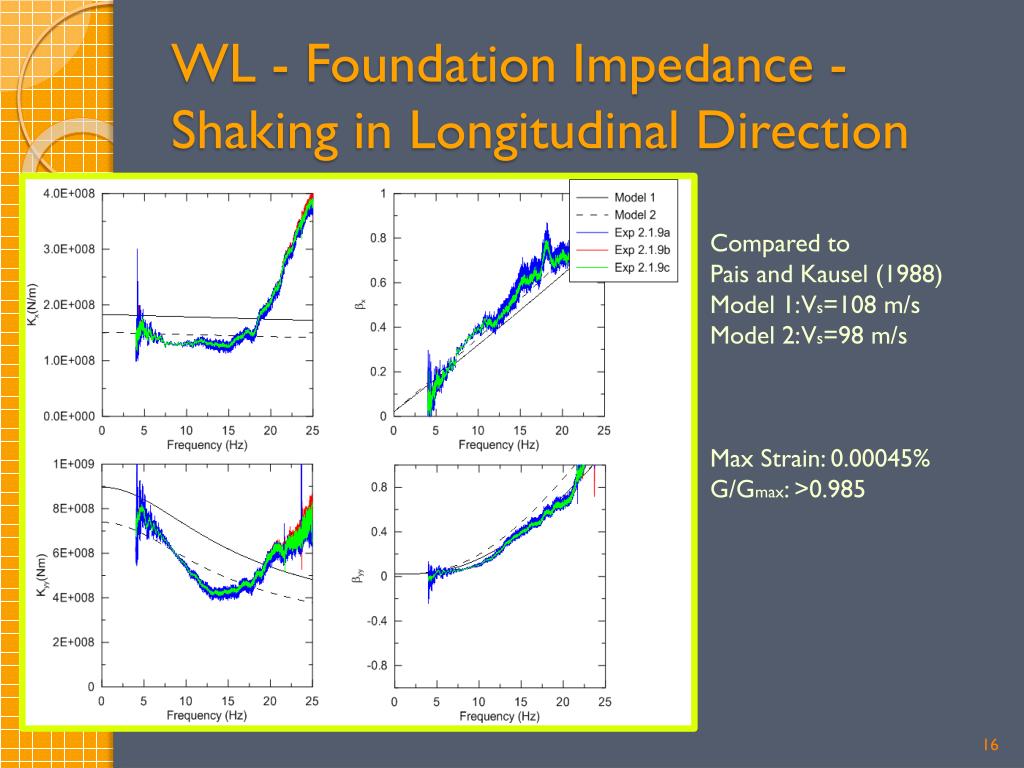

  16. WL - Foundation Impedance - Shaking in Longitudinal Direction Compared to Pais and Kausel (1988) Model 1: Vs=108 m/s Model 2: Vs=98 m/s Max Strain: 0.00045% G/Gmax: >0.985

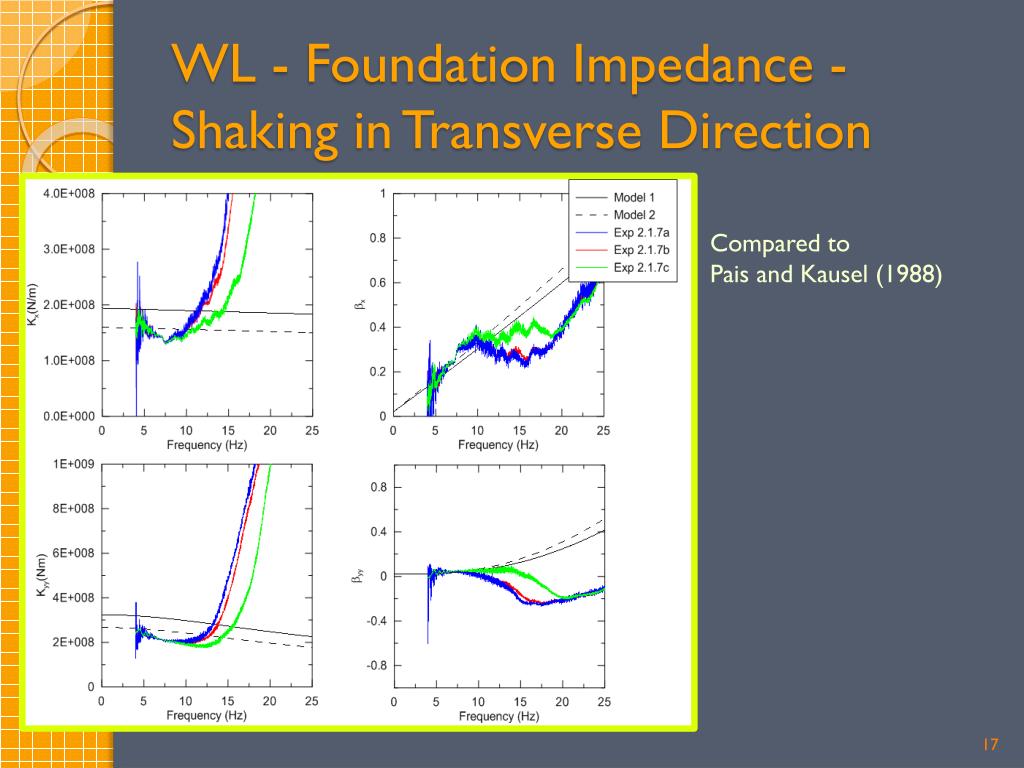

  17. WL - Foundation Impedance - Shaking in Transverse Direction Compared to Pais and Kausel (1988)

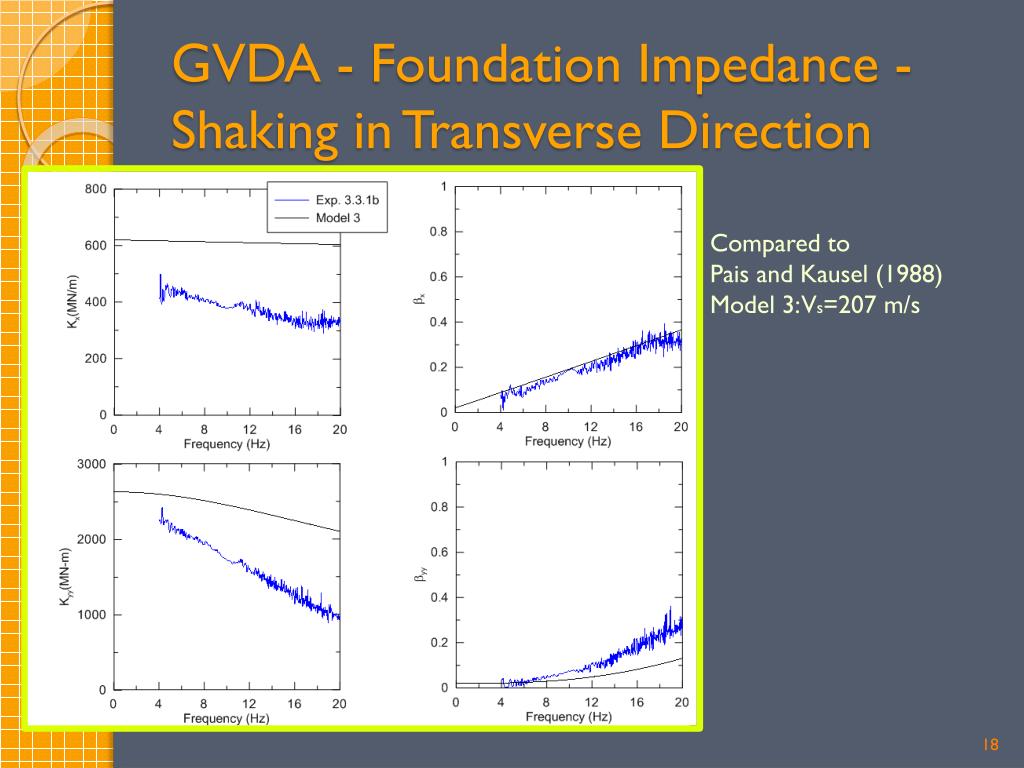

  18. GVDA - Foundation Impedance - Shaking in Transverse Direction Compared to Pais and Kausel (1988) Model 3: Vs=207 m/s

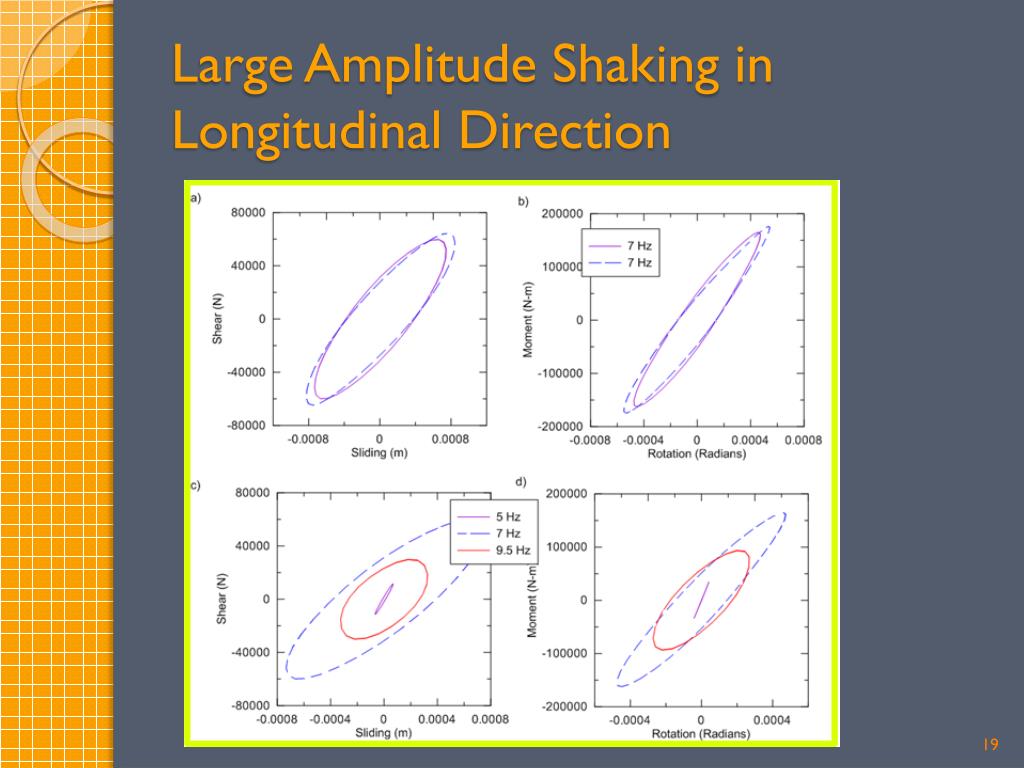

  19. Large Amplitude Shaking in Longitudinal Direction

  20. Large Amplitude - Shaking in Longitudinal Direction Compared to Pais and Kausel (1988)

  21. Large Amplitude - Shaking in Longitudinal Direction Compared to Pais and Kausel (1988)

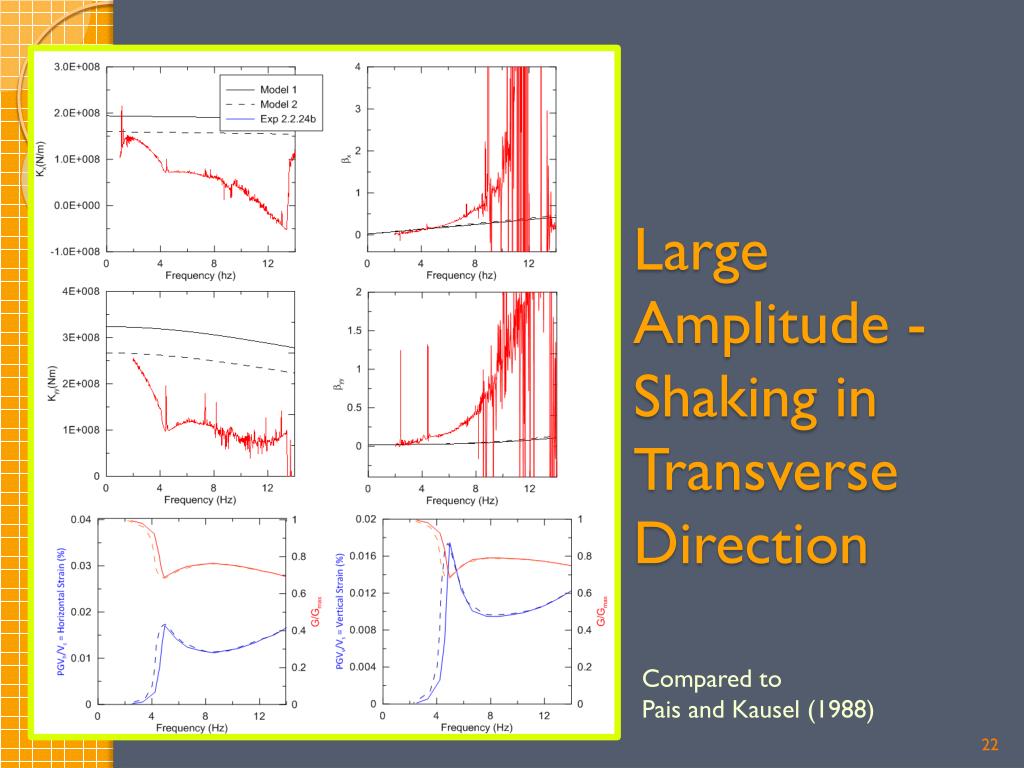

  22. Large Amplitude - Shaking in Transverse Direction Compared to Pais and Kausel (1988)

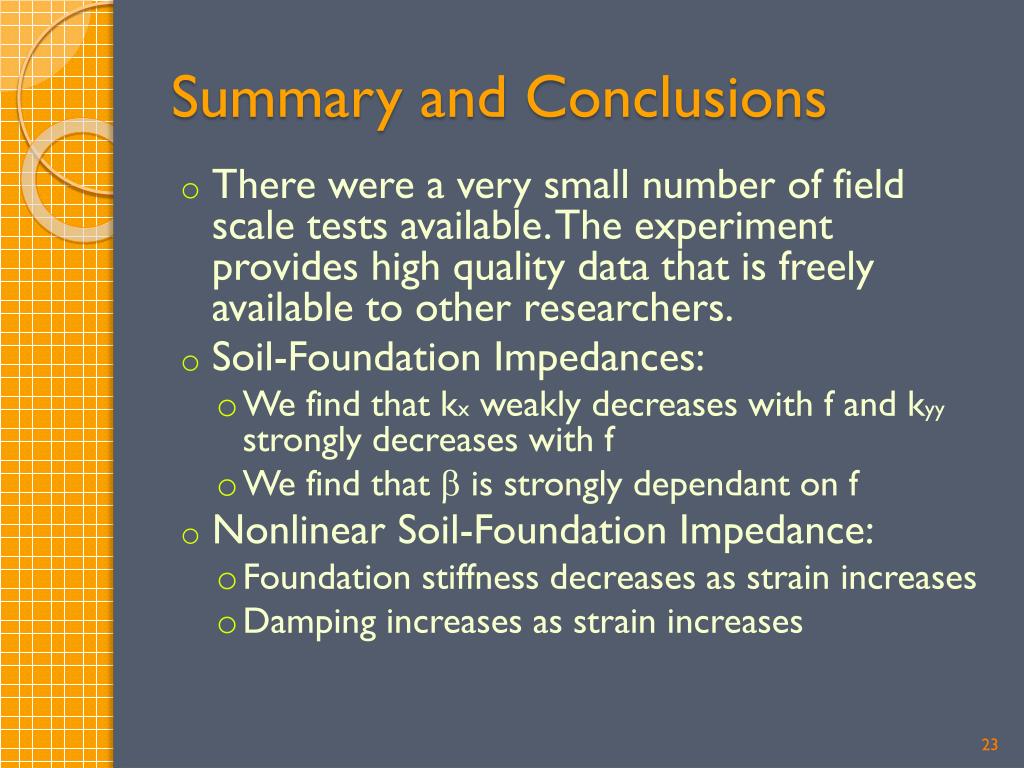

  23. Summary and Conclusions • There were a very small number of field scale tests available. The experiment provides high quality data that is freely available to other researchers. • Soil-Foundation Impedances: • We find that kx weakly decreases with f and kyy strongly decreases with f • We find that  is strongly dependant on f • Nonlinear Soil-Foundation Impedance: • Foundation stiffness decreases as strain increases • Damping increases as strain increases

  24. Acknowledgements • NEES@UCLA • NEES@UCSB • NEES@Utexas • SalihTileylioglu, Ph.D. • NSF CMMI 0618804, PI Jack Moehle • NSF CMMI 0927178 (NEES Operations, PI Julio Ramirez)

  25. Thank You
