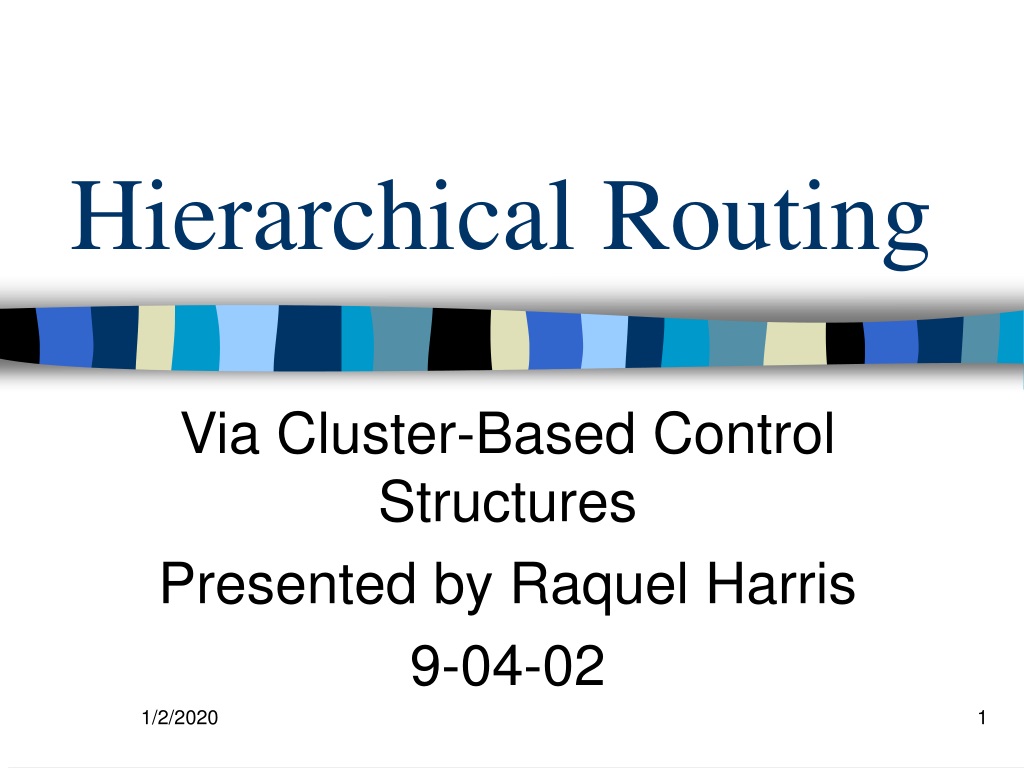

Hierarchical Routing. Via Cluster-Based Control Structures Presented by Raquel Harris 9-04-02. Contents. Introduction Cluster Based Control Structures Transmission Management Link-Cluster Architecture Backbone Formation Clustering Route Efficiency Clustering. Introduction.

kump
Télécharger la présentation

Hierarchical Routing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Hierarchical Routing Via Cluster-Based Control Structures Presented by Raquel Harris 9-04-02

  2. Contents • Introduction • Cluster Based Control Structures • Transmission Management • Link-Cluster Architecture • Backbone Formation Clustering • Route Efficiency Clustering

  3. Introduction • Mobile Wireless Networks are dynamic • State Changes unpredictable • Control functions that manage the network’s performance have to meet these conflicting goals • Respond rapidly and correctly • Minimize consumption of network’s transmission, processing, storage

  4. Introduction • Control Functions • Performed with respect to a control structure - superimposed on the physical network which consists of a set of controllers • For fixed networks the setup of the control structure is an administrative task that is part of the network design process • For mobile wireless networks, a self-organizing control structure is required

  5. Introduction • Selection of a network control structure and algorithm is based on, • Network size • Control functions required • Frequency and magnitude of network state changes • QOS required

  6. Cluster-Based Control Structures • Cluster-based control structures • More efficient use of resources in controlling dynamic networks • Physical network is encapsulated by a virtual network of interconnected clusters • Clusters contain one or more controllers which make control decisions and may distribute cluster state information to outside clusters

  7. Cluster-Based Control Structures • Control Structures attempt to be more efficient by, • Managing transmission to reduce channel contention • Forming routing backbones to reduce network diameter • Abstracting network state information to reduce its quantity and variability

  8. Transmission Management • Transmission interference • Thesis: Reduce interference by separation of transmission times, space, and frequency or spreading code • Thesis: Reduction by coordination of separation

  9. Link-Cluster Architecture • Reduces interference in a multiple-access broadcast environment • Forms distinct clusters for which transmission are scheduled in a contention-free manner • Spread-spectrum multiple access can be used with different codes in each cluster • Automatic organization • Nodes autonomously organize into interconnected clusters • Union of members is the entire network of nodes

  10. Link-Cluster Architecture • Structure • Clusterhead • Each cluster has one or more clusterheads • Schedules transmissions • Allocates resources within the cluster • Gateway • Each cluster has one or more gateways • Attempt to have one per pair • Connect adjacent clusters • Direct connection – member of both clusters • In-direct connection – connected to an adjacent gateway

  11. Link-Cluster Architecture • Ordinary Nodes • Each cluster has zero or more ordinary nodes • Neither clusterheads or gateways • Low-delay paths between cluster members • All members within one hop of the clusterhead (within two hops of each other) • Therefore members of different clusters are at least 2 hops away

  12. Link-Clustered Architecture

  13. Link-Cluster Architecture • Establishing a link-clustered Control Structure involves, • Discovering neighbors with a bi-directional link by broadcasting • Electing clusterheads and forming clusters • Agreeing on gateways between clusters

  14. Link-Cluster Architecture • Clusterhead Election • Identifier-based or Connectivity-based Clustering • Centralized implementation • Node with the lowest or highest numbered identifier or largest number of neighbors becomes the clusterhead • Distributed implementation • Node with lowest or highest numbered identifier elects itself or it’s neighbor with the lowest or highest id unless that neighbor has relinquished clusterhead status • Node with the highest connectivity of all uncovered neighbors becomes clusterhead • Ties are broken by identifier number

  15. Link-Cluster Architecture • Gateway Election • Any node with links to more than one cluster is a candidate gateway • If a node has two clusterheads as neighbors, it is a candidate gateway connecting two overlapping clusters • If a node has one clusterhead neighbor and can reach a second clusterhead in two hops, it is a candidate linked to a candidate gateway in another cluster

  16. Link-Cluster Architecture • Overlapping Clusters • Gateway selected is the one with the highest or lowest id • Disjoint Clusters • Linked pair with one member having the highest or lowest id among all candidates connecting the two clusters • Unambiguous selection may require advertisement of node ids beyond one-hop neighbors

  17. Link-Cluster Architecture • Node Mobility • Clusters must be updated accordingly to ensure proper scheduling of transmissions • All nodes must be capable of executing clusterhead and gateway functions if the network is to be maximally available • With connectivity-based clustering, clusterhead status has potential to change more frequently than identifier-based clustering • Nodes may move out of range of neighbors, losing it’s status as the most connected node

  18. Link-Cluster Architecture • Least Cluster Change Algorithm • Reduces the number of changes in clusterhead status required after node movement • Clusterhead status change only if two clusterheads move within range of each other • One must relinquish the role • Or, if a non-clusterhead node moves out of range of any other node • Becomes clusterhead of its own cluster

  19. Link-Cluster Architecture • Routing Backbone • Traffic is constrained to traverse clusterheads • Can reduce throughput and robustness of network • Congestion • Single point of failure • Many algorithms do not use clusterheads as routing control structure of the network

  20. Backbone Formation Clustering • Routing Backbone • Reduction of route length is more important for multi-hop wireless networks than wireline networks • Larger delays generally experienced at each hop • Can be formed by expanding the transmission range of some or all nodes • Increasing transmission power may increase interference

  21. Backbone Formation Clustering • Near-Term Digital Radio Network (NTDR) • Designed for mobile tactical communications • Frequent node movement and outages • Each cluster has a clusterhead that is linked to form the routing backbone • Nodes are within 1 hop of clusterhead • Intercluster communication is restricted to clusterheads only • Clusters are gateways • No multihop communications • One hop neighbors can communicate directly • Others intracluster communications must traverse the clusterhead

  22. Backbone Formation Clustering • Each node keeps track of the bi-directionally linked neighbors by periodically broadcasting beacons. • May become clusterhead if needed • <MAC address><partition id><clusterhead org><cluster members><link quality from each member><clusterhead transmit power level> • Used to decide whether to become affiliated with the clusterhead • Each cluster communicates on different frequencies • Isolates intercluster and intracluster communications

  23. Backbone Formation Clustering • A low transmission range is used for non-clusterhead members • Allow reuse of frequencies for distant clusters • Reduce interference • Clusterhead Election • Beacon-based only • No clusterheads detected in its vicinity • Can heal a network partition

  24. Backbone Formation Clustering • Must limit the number of nodes simultaneously participating in clusterhead election • Each node waits a short random time interval before retesting the condition and becoming clusterhead if necessary • Each new clusterhead issues beacons proclaiming its status immediately • Elimination • Node can relinquish role as clusterhead if, • It will not partition the network in doing so • All cluster members can join other clusters • Checks staggered randomly among nodes over time to limit the number of simultaneous relinquishes

  25. Backbone Formation Clustering • Cluster Affiliation • Preferred clusters • Same organization affiliation • Signal from the clusterhead is transmitted at low power but received at high strength • Cluster size is relatively small • Affiliation can be refused by the clusterhead • Updated cluster membership is distributed to all clusterheads after affiliation has taken place • Notifies previous clusterhead of new affiliation

  26. Backbone Formation Clustering • Alternate affiliation is sought if, • Clusterhead relinquishes role • Clusterhead’s beacons no longer list member • Clusterhead’s beacons indicate the quality of the link to the clusterhead has become unacceptably poor • Received signal strength from the clusterhead is unacceptably low • Routing • Clusterheads share responsibility for maintaining the routing backbone • Monitor and exchange information about changes in the backbone

  27. Backbone Formation Clustering • Each generates membership information pertaining to its cluster and link-state information (resistance metric included) pertaining to its links to neighboring clusterheads • Floods information over the backbone • Computes least-resistance routes based on this information (using Dijkstra’s SPF) – maintains next hop to use for each destination • Must notify other clusterheads of state change affecting routing in the backbone once detected • May result in unacceptable network performance due to saturation of update messages in a highly mobile network

  28. Backbone Formation Clustering

  29. Backbone Formation Clustering • Virtual Subnet Architecture • Several disjoint routing backbones • Provides fault tolerant connectivity and load balancing in multihop mobile wireless networks • Structure • Initially, the network is partitioned into physical subnets (disjoint clusters) • Virtual subnets are formed by clustering the different physical subnets • Assumption: transmission power is adjustable to retain connectivity • Neighboring subnets are assigned differing frequencies to reduce interference

  30. Backbone Formation Clustering • Subnet clusters and frequencies can be computed offline or computed by distributed procedures • A Maximum number of physical, P, and virtual, Q, subnets is predefined for the network. • Nodes are members of only one physical subnet and zero or more virtual subnets • Ideally one subnet but may belong to more than one if it communicates frequently with subnet members • Address uniquely identifies both physical and virtual affiliations (multiple address for more than one virtual subnet) • Prefix – physical subnet • Suffix – virtual subnet

  31. Backbone Formation Clustering

  32. Backbone Formation Clustering • Mobility • If a node moves out of range of it’s subnet • Needs to join another physical subnet, which typically leads to a new virtual subnet affiliation • Join a subnet whose Q quota has not been filled • Otherwise, joins physical subnet as a guest • New address is announced to all members of the physical and virtual subnets • Guest members do not distribute its address to any virtual subnet • Address Discovery • Source distributes a query within its physical subnet • Address is returned if the destination is affiliated with a virtual subnet of one of the source’s physical subnet member’s

  33. Backbone Formation Clustering • A query is distributed within the virtual subnet if the destination is not found • Address is returned if destination is found in a physical subnet of one of the source’s affiliated virtual subnets • This feature will find guest destinations • Routing • Multiple paths are available to nodes within the virtual subnet architecture • Increases fault tolerance • Direct Routing and long path routing exploits this feature

  34. Backbone Formation Clustering • Direct Routing • Routing by source and destination address • Next hop selection • Source seeks node, x, that is member of source’s physical subnet and destination’s virtual subnet and forwards packet to it. • If destination is a guest, no x is found and the source uses its virtual subnet to forward the packet • If the network is not partitioned and each physical subnet contains a member of each virtual subnet direct routing works very well • Partitions and reconfiguration of the network is highly likely in highly mobile networks however.

  35. Backbone Formation Clustering

  36. Backbone Formation Clustering • Long-Path Routing • Routes are randomly distributed to balance traffic load and assist the network in accommodating partitions • At most Q+P-1 different routes • If subnets are partitioned, intermediate nodes will have to make random selections to route around partitions • Source randomly selects a virtual subnet (at most Q) • If the source is not a member of the virtual subnet selected, the packet is forwarded via node u that is a member of both the virtual subnet and the source’s physical subnet • U forwards the packet through the virtual subnet to a node v located in the destination’s physical subnet • V forwards the packet to the destination node

  37. Backbone Formation Clustering • If the source is a member of the selected virtual subnet • Select at random one of the P-1 (at most) physical subnets within its virtual subnet (VS) and distinct from its own (PS) • Forward packet via PS to a node, w, in both the source’s VS and the PS • Node w forwards the packet within the PS to a node z in the destination’s VS and finally to the destination

  38. Backbone Formation Clustering

  39. Routing Efficiency Clustering • In order to achieve the required network performance goals, • Accurate network state information is required by control functions • Controllers must detect network state changes • Collection and distribution of network state is required • Mobile networks have a higher rate network state changes than fixed networks • Mobility affect interconnectivity and link quality • Wireless networks add the crucial affect of limited and volatile resources

  40. Routing Efficiency Clustering • Updates of current state information may consume large amounts of resources • Transmission, storage and processing • In highly dynamic networks, updates may lag behind the current state • Sensitivity to network changes is a function of the particular control function, resources, volatility of the network state, and magnitude of state change consequences

  41. Routing Efficiency Clustering • Hierarchical Routing • Structure • Network of N nodes is organized into a m-level hierarchy of nested clusters • All level-i clusters are disjoint, 0  i  m • A node is a level-0 cluster grouped into level-1 clusters, etc. • A node’s address are relative to its position in the hierarchy • A concatenation of the labels of the level (m-1) through level-0 clusters • Label of a single level-m cluster is omitted from a node’s address • Node z of figure 4.6 has the address, x.y.z with u as the implicit prefix

  42. Routing Efficiency Clustering

  43. Routing Efficiency Clustering • Cluster Overlap • All the routing schemes presented (with the exclusion of 1) have disjoint clusters at a particular level • Not a requirement • Cluster overlap can be desirable • Node remains reachable after moving out of a cluster • Route length can be reduced • Multiple clustering hierarchies • If 2 level 1 clusters a1 and b1 overlap, each of their level-I ancestral clusters aiand bi must also overlap and a1 b1  ai bifor i  1

  44. Routing Efficiency Clustering • Overlap can be expensive • The number of node addressing information must be distributed and maintained in the network is proportional to the number of addresses per node • Route selection is complicated by the need to determine which cluster to utilize to maximize reachability during movement • Cluster formation and maintenance can be complicated by constraints on the amount of overlapped permitted

  45. Routing Efficiency Clustering • Granularity of network state • Abstraction of network state can reduce the amount of resources required to maintain the network • Abstraction can also result in loss of information and reduce accuracy of control decisions • Routing Schemes • Cluster representative – a network controller that generates and distributes routing information for a particular cluster • Hierarchical routing schemes attempt to prevent a single point of failure w.r.t cluster information • Multiple nodes are capable of quickly assuming the role

  46. Routing Efficiency Clustering • Quasi-hierarchical routing schemes • Most schemes fall into this category • Most are derivatives of the distance-vector routing approach • Each node learns the next node to use in order to reach each level-i cluster within its level-(i + 1) cluster • Strict-hierarchical routing schemes • Each node learns the next level-i cluster to use in order to reach each level-i cluster within its level-(i + 1) cluster and • Each node learns which level-i cluster lies on the boundary of its level-(i + 1) cluster and which are directly linked

  47. Route Efficiency Clustering • Example: ck is the lowest-level cluster with the source and destination nodes • K = 3 • Quasi-hierarchical routing: s0 routes the packet directly to the boundary of dk-1. The packet is then routed to dk-2 boundary and so on. • Strict-hierarchical routing: S0 routes the packet directly to the boundary of sk-1 one level at a time. The packet is then routed through level-(k-2) clusters in dk-1to reach the boundary of dk-2 and so on.

  48. Route Efficiency Clustering

  49. Route Efficiency Clustering • Quasi-hierarchical Routing • Objective of distance vector routing is to determine the next hop on the minimum-cost route from a node to each level-i cluster within the node’s level(i +1) cluster, for 0 i m • A cluster representative advertises to nodes outside of its cluster an abstracted cost for reaching destinations within the cluster • Closest entry routing : cost = 0 • Overall best routing : cost = average of all costs from rep to all nodes in cluster

  50. Route Efficiency Clustering • If x and y are direct linked neighbors belonging to the same level-(j+1) cluster but different level j clusters • when x receives a new cost for level-i cluster, c, contained in x’s level-(i + 1) cluster, from neighbor z, for any 0 i m, x decides if it needs to update its forwarding information for c and if it needs to distribute a new cost advertisement for c to its neighbors • If c is not an ancestral cluster of x, • If Wc-stored > Wc-z + Wx-z x updates its forwarding info for c and replaces the next hop node with z • The cost advertisement is updated and sent to neighbors x determines require it
