Resource Discovery and Routing in Wireless Networks: Techniques and Tools

makan avatar
makan
14 diapositives · 229 Views · Sep 21, 2014

This lecture covers conventional approaches, cluster-based strategies, on-demand routing with caching, and more. Learn about routing methodologies and tools, including STRESS and BRICS. Explore Geo-Routing, Geocast, Rendezvous, Gradient Routing, and Mobility-Assisted Protocols. Dive into geographic routing issues and mobility modeling with Multicast-based Mobility. Discover behavioral analysis and context-aware networks in this comprehensive study. Enhance your understanding of robust wireless services, protocol design, and worms traceback protocols.

#resource discovery and routing in wireless networks: techniques and tools #resource discovery and routing in wireless networks: techniques and tools ppt #powerpoint #presentation
Resource Discovery and Routing in Wireless Networks: Techniques and Tools - slide 1
01 / 14Resource Discovery and Routing in Wireless Networks: Techniques and Tools
1 / 17

Télécharger la présentation

Resource Discovery and Routing in Wireless Networks: Techniques and Tools
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

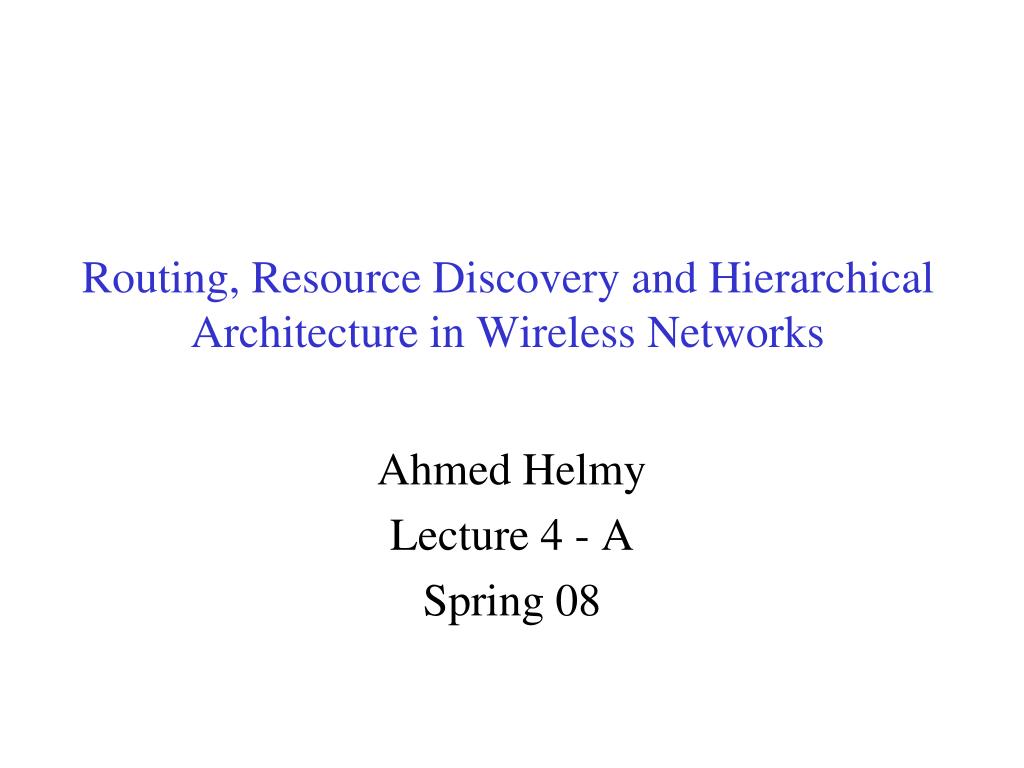

  1. Routing, Resource Discovery and Hierarchical Architecture in Wireless Networks Ahmed Helmy Lecture 4 - A Spring 08

  2. Methodology & Tools Architecture & Protocol Design Test Synthesis (STRESS) Robust Geographic Wireless Services (Geo-Routing, Geocast, Rendezvous) Protocol Block Analysis (BRICS) Query Resolution in Wireless Networks (ACQUIRE & Contacts) Gradient Routing (RUGGED) Multicast-based Mobility (M&M) Mobility Modeling (IMPORTANT) Worms, Traceback in Mobile Networks Mobility-Assisted Protocols (MAID) Behavioral Analysis in Wireless Networks (MobiLib & IMPACT) Context-Aware Networks Birds-Eye View: Research in Wireless Networks @ UFL

  3. Road Map • Unicast Routing with caching • Resource Discovery issues • Contact based architectures • CARD, TRANSFER • Geographic routing issues

  4. Related Reading list • From book (C. Perkins): (one order of reading) • ch 3 DSDV, ch 5 DSR, ch 6 AODV, ch 8 TORA, ch 4 cluster-based, ch 7 ZRP • From the paper reading lists • unicast routing list in syllabus (all papers, most overlap with book, read the book or papers) • broadcast: - broadcsat storm, - min dominating sets • Resource discovery: • book chapter (on-line) • TRANSFER, CARD, MARQ

  5. Related Reading list (contd.) • Mobility Modeling • IMPORTANT, PATHS, BRICS, Bk Chptr (posted) • Partial reading list for geographic routing aspects • GPSR, - LAR, - Geocast, • From my web site • Perfect Geocast • Inaccuracy/inconsistency , • Face routing with inaccuracy • Mobility prediction • Black listing • Book chapter (posted)

  6. Routing and Resource Discovery in Wireless Networks

  7. Conventional Approaches • Flooding: • Simple • Overhead: N-1 transmissions, g.(N-1) receptions (where g is average node degree)… expensive! • Expanding Ring Search: • Repeated floods with expanding TTL • Terminates when target found • Initial TTL & increment have significant impact

  8. Conventional Approaches (contd.) • Reduced Broadcast heuristics (bcast storm ppr): • Probabilistic rebroadcast with p • Counter-based: suppress bcast if cnt rx > cnt thresh • Distance-based: suppress if min(d) < D thresh, where min(d) is min dist to nbr bcast • Location-based: supp if added coverage > Area thresh • Attempts delivery to all nodes • Does not guarantee delivery • Works well when density/redundant bcast is high

  9. Cluster-based and Min. Dominating Set Example connected dominating set, black nodes belong to the backbone constituting a dominating set. - Guarantees delivery - Optimum Dist Algo NP hard - Approximations reduce amount of redundant bcasts to cover all the nodes - re-configuration may be major with dynamics/mobility

  10. On-demand routing with caching

  11. DSR-like routing model: • a querier node Qissues a request for a target resource T. • The request process progresses as follows: • 1. Q performs local lookup, • 2. If a cached route to Tis not found then request a lookup from 1-hop neighbors (within transmission range), • 3. If a cached route is not found (or is invalid) then flood a request throughout the network, • 4.a. Intermediate nodes with cached route to T reply to Q, • 4.b. The target T replies to requests returning multiple paths to Q.

  12. p:hit ratio q: validity ratio qr: obtained by flooding State diagram for on-demand routing in DSR-like mechanisms. Overhead (number of transmitted messages) 1 - local cache lookup: no overhead 2 - Nbr Cache lookup: NC=1+.g, where g av deg, and fraction of nbrs responding 3 - Cost of Flood: CF~(N-1)+g.L+.N..L, where L is av. path length from Q to T, .N is fraction of intermediate nodes responding, and .L is av. path length for such responses • Ov=(1-p1).NC+(1-(p1q1+(1-p1)p2q2)).CF/qr

  13. Define cache efficacy as p.q (hit a valid local or nbr cache) [Recall: Overhead  p.q ]

  14. For small transfers, in mobile, large-scale, wireless networks, cache efficacy is very low, - need new paradigms: - hierarchy, - hybrid/loose hier. Arch.s
