  1. 5x5 Pixel Array Status4 February 2004 Sam Burke Sean Stromberg UCSB HEP Group

  2. ASIC Progress • SPDT Analog Transmission Gate Created

  3. SPDT Transmission Gate

  4. SPDT Transmission Gate • 12x6.75um cell • Blue: Metal1 • Red: Poly1 • Green: Active • Pink: P+ • Yellow: N Well • Lt Green:Active • Blk squares: Contact • Wht #1: Via1 • Gray: Metal2 • Note: N+ not drawn?

  5. SPDT Trans Gate Net List

  6. Transmission Gate • Transient Response • Tlh=59ps • Thl=154ps

  7. PIXEL Usage • 250 um Pixel Size • Area=250^2=62500 um^2 • 18 bit Counter 18*498=8964 um^2 (14%) • Analog Circuits 10,000 um^2 est (16%) • Misc. Glue Logic (7%) • 10 Inverters 10*54= 540 um^2 • 8 DFFR 8*498= 3984 um^2 • Unused Area 62500-23488=39012 um^2 (62%)

  8. PIXEL Area Usage

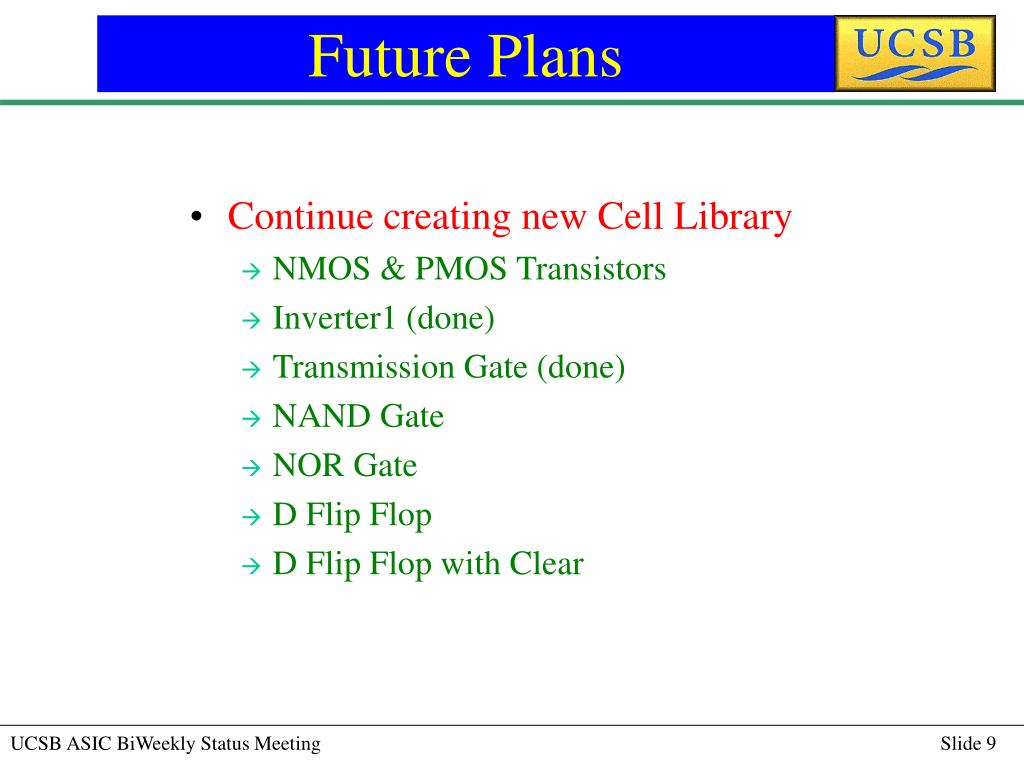

  9. Future Plans • Continue creating new Cell Library • NMOS & PMOS Transistors • Inverter1 (done) • Transmission Gate (done) • NAND Gate • NOR Gate • D Flip Flop • D Flip Flop with Clear
