  1. Enforcer 32 WESystem overviewMore Security More Range More Reliability

  2. Overview The Enforcer two way wireless system is the first truly high security wireless product on the market. It can only be compared to an addressable wired system but instead of using wired bus it uses a wireless one. The Enforcer 32WE supports 32 wireless and 34 wired inputs, 2 wireless external sirens, 32 keyfobs and proximity tags, 75 user codes, 19 programmable and automation outputs and a large variety of wireless accessories. The Enforcer 32WE communicates to alarm receiving (ARC) centres via a high speed PSTN or GSM/GPRS modems. It also provides the users with the ability to receive SMS or IP alarms as well as control remotely the control panel from their smart phone. The Enforcer two way wireless technology is designed to ensure high security protection for users and simple and easy way of installation and maintenance for installers. Enforcer system uses narrow band 868MHz frequency and is able to reach up to 1.6km wireless range in open space.

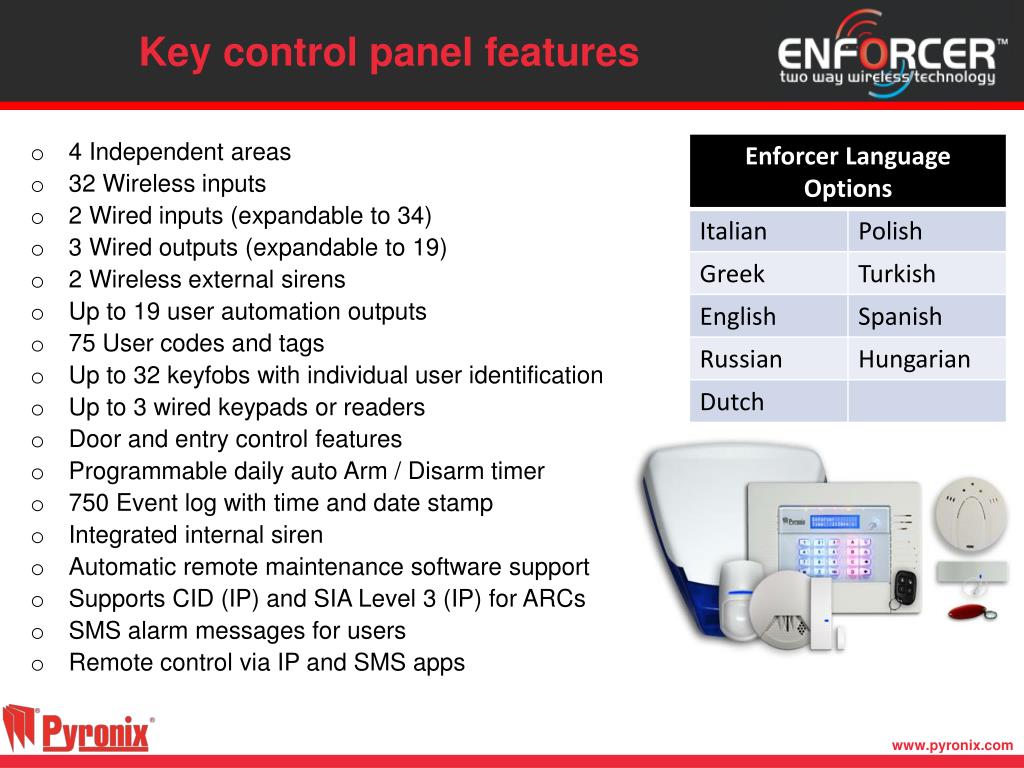

  3. Key control panel features • 4 Independent areas • 32 Wireless inputs • 2 Wired inputs (expandable to 34) • 3 Wired outputs (expandable to 19) • 2 Wireless external sirens • Up to 19 user automation outputs • 75 User codes and tags • Up to 32 keyfobswith individual user identification • Up to 3 wired keypads or readers • Door and entry control features • Programmable daily auto Arm / Disarm timer • 750 Event log with time and date stamp • Integrated internal siren • Automatic remote maintenance software support • Supports CID (IP) and SIA Level 3 (IP) for ARCs • SMS alarm messages for users • Remote control via IP and SMS apps

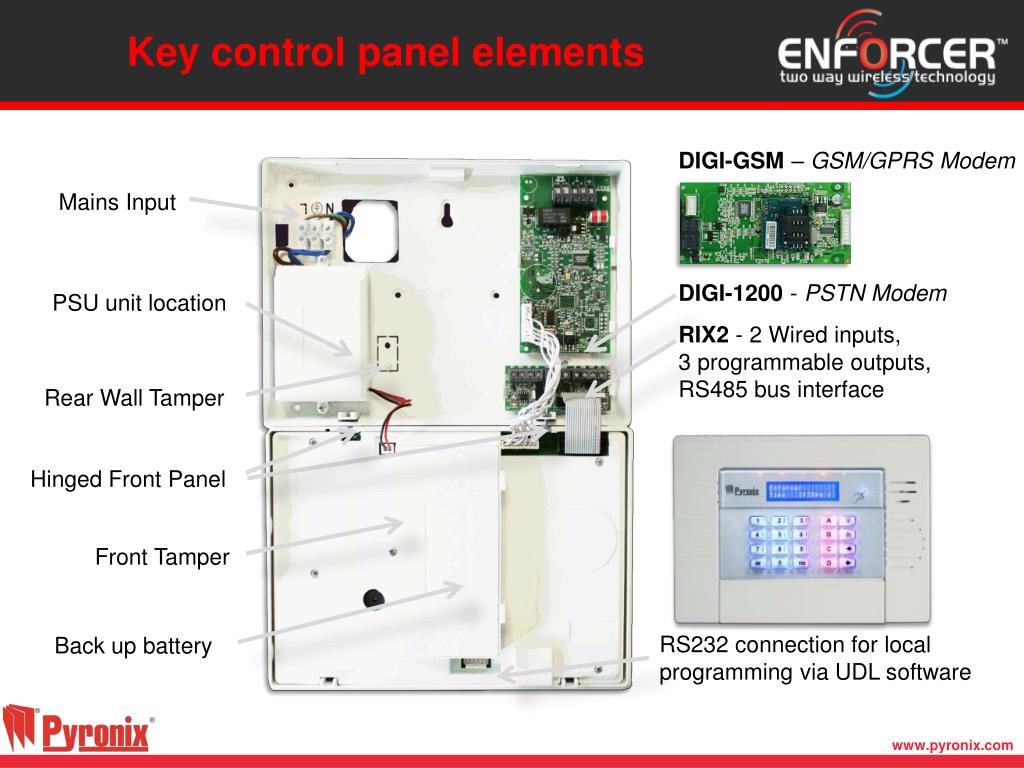

  4. Key control panel elements DIGI-GSM– GSM/GPRS Modem Mains Input DIGI-1200- PSTN Modem RIX2 - 2 Wired inputs, 3 programmable outputs, RS485 bus interface PSU unit location Rear Wall Tamper Hinged Front Panel Front Tamper RS232 connection for local programming via UDL software Back up battery

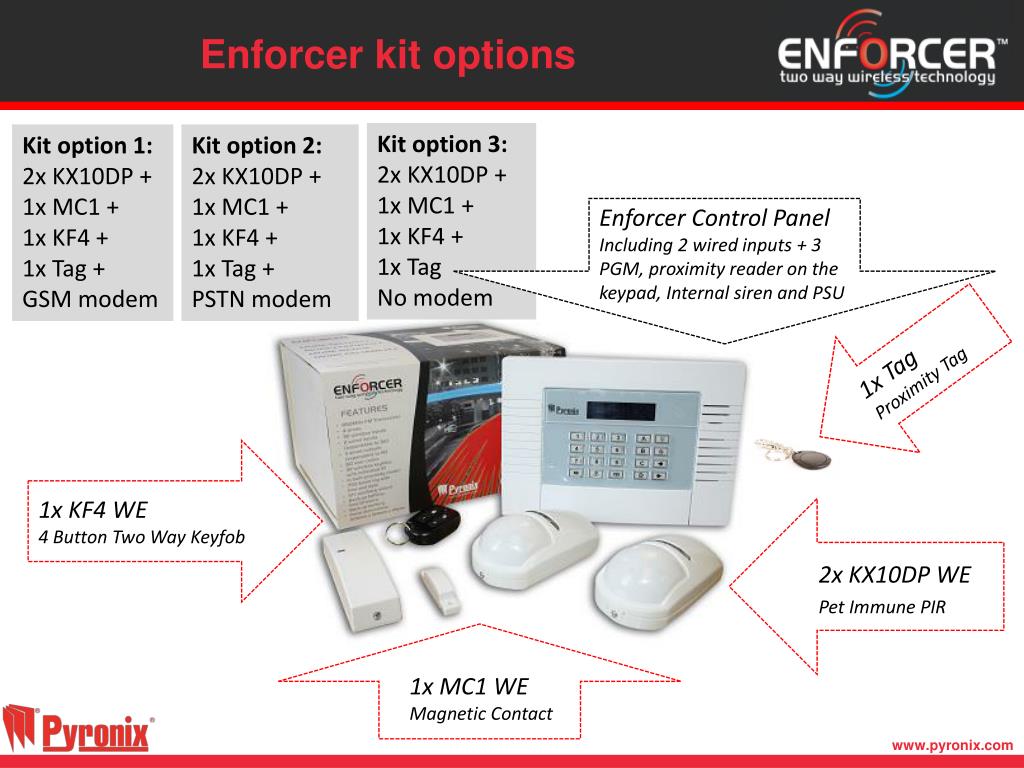

  5. Enforcer kit options Kit option 3: 2x KX10DP + 1x MC1 + 1x KF4 + 1x Tag No modem Kit option 1: 2x KX10DP + 1x MC1 + 1x KF4 + 1x Tag + GSM modem Kit option 2: 2x KX10DP + 1x MC1 + 1x KF4 + 1x Tag + PSTN modem Enforcer Control Panel Including 2 wired inputs + 3 PGM, proximity reader on the keypad, Internal siren and PSU 1x Tag Proximity Tag 1x KF4 WE 4 Button Two Way Keyfob 2x KX10DP WE Pet Immune PIR 1x MC1 WE Magnetic Contact

  6. 32 keyfobs x system: Two way wireless keyfob System arming Alarm System fault System armed System disarmed LCD display on the keypad: Typical keyfob programming: Buttons options: - Arm area A, B, C, D individually or all - Disarm area A, B, C, D individually or all - Show System Status - Activate an output - Create a PA alarm (combination of 2 buttons) Arm one or more Areas Disarm one or more Areas Check system status Turn on the garden light PA alarm

  7. Enforcer 32 WE End
