Methodology from Chaos in IC Implementation

1. Methodology from Chaos in IC Implementation Kwangok Jeong* and Andrew B. Kahng*,** * ECE Dept., UC San Diego ** CSE Dept., UC San Diego

2. Outline • Motivation • Assessment of “Chaos” • Exploitation of “Chaotic” behavior • Conclusion

3. Motivation • Chip implementation flow is a “Chaos Machine” (Ward Vercruysse, Sun Microsystems, ISPD97 talk) • Hard to predict behavior of back-end implementation • “Inherent noise” (Kahng/Mantik, ISQED-2001) • Equivalent inputs to tools result in different outputs • Algorithms and EDA tools are not deterministic or predictable • Most design optimization problems are NP-hard  Heuristic-based approaches • Physical phenomena are too complex  Simplified models  How to exploit “chaotic behavior”

4. Scope of This Work • We assess “chaotic” behavior in design process • When it occurs in design processes • Post-synthesis vs. post-routing • Place- and-route tools’ view vs. signoff tools view • What user inputs affect it most • Input parameter sensitivity to synthesis tools • Input parameter sensitivity to place-and-route tools • We propose a practical method to exploit “chaos” in EDA tools, based on empirical analyses • Sensitivity of input parameters to outcomes  Find safe/easy knobs that don’t change netlists/libraries • Best-of-k: multi-start, multi-run methodologies

5. Outline • Motivation • Assessment of “Chaos” • Exploitation of “Chaotic” behavior • Conclusion

6. Analysis 1: Synthesis vs. Place-and-Route • How strongly correlated are post-synthesis netlist quality and post-routing design quality? • Timing quality of synthesized netlists vs. timing quality after placement and routing, and signoff *AES design Worst quality netlist can result in best quality!

7. Analysis 2: Implementation Vs. Signoff • How strongly correlated are P&R and signoff ? • Timing miscorrelation • Delay calculation • RC parasitic Implementation Worst negative slack comparison from 29 testcases ~200ps underestimation Signoff

8. Beyond Miscorrelation Issues • Kahng and Mantik 2001 – “Noise” • Equivalent inputs result in different outputs • Changing seeds of random number generators • Changing cell/net ordering • Renaming cell instances • Perturbing design hierarchy • Injecting “noise” is practically difficult • Our focus – “Chaos” • Negligible change of inputs  Large change in outputs • E.g., 0.1ps changes affect design quality significantly *JPEG design 89ps difference

9. What Inputs Can Be Perturbed? • Tool-specific options: command options to turn on/off • Not our concern, since these are tool-dependent • Design-specific constraints: • These knobs do not change design signatures  easy and safe knobs to perturb

10. Testbed • Designs • Implemented with TSMC 65nm GPLUS library • Tools

11. Analysis 3: Noise in Synthesis – Timing • What chaotic behavior is associated with input parameters of vendor synthesis tools? • Ideally, results should not vary significantly However, worst negative slack can change by up to 52ps (DesignCompiler) WNS (ns)

12. Analysis 3: Noise in Synthesis – Area • What chaotic behavior is associated with input parameters of vendor synthesis tools? • Synthesized area can change by up to 6% (DesignCompiler) Normalized Area (%)

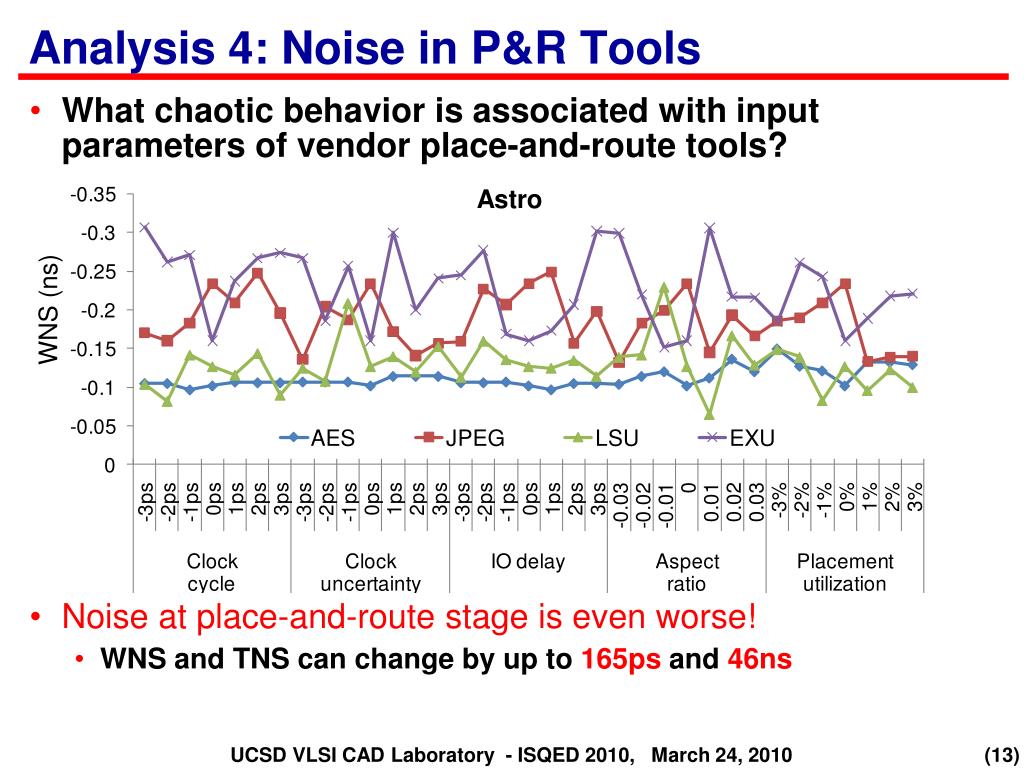

13. Analysis 4: Noise in P&R Tools • What chaotic behavior is associated with input parameters of vendor place-and-route tools? • Noise at place-and-route stage is even worse! • WNS and TNS can change by up to 165ps and 46ns Astro WNS (ns)

14. Analysis 4: Noise in P&R Tools • What chaotic behavior is associated with input parameters of vendor place-and-route tools? • Noise at place-and-route stage is even worse! • WNS and TNS can change by up to 190ps and 69ns • Area can change by up to 16.4% SOC Encounter WNS (ns)

15. Outline • Motivation • Assessment of “Chaos” • Exploitation of “Chaotic” behavior • Conclusion

16. Exploiting Noise in Design Flow • Multi-start and multi-run • When there are idle machines in the compute farm Multi-start: After running on k distinct machines with ignorable perturbations of inputs, choose best out of k different solutions • When there are remaining timing-to-market • Multi-run: After running k sequential jobs with ignorable perturbations of inputs, choose best out of k different solutions • Best-of-k method • Find the best solution from many trials • Larger k better best solution • How to determine k that produces predictably good results?

17. Best-of-k Using Sampling • Which k results in consistent, reasonably good solution? • To obtain statistics: “set of k trials” should be performed a large number (N) of times, for each value of k • Naive procedure: • for each k, • Perform k trials by N times • sk  average of best solutions • For large N, sk is the expected (average) best solution, when we perform k trials • Example: • k = {1, 2, 3, 4, 5, 10}, N = 100 • 2,500 separate runs • Many runs are required! • Best-of-k sampling procedure: • // find “virtual” solution space • Perform N’ trials (N’ < N) • Record solutions  set of solutions S • // best-of-k sampling • for each k • sample k solutions out of S, N different times • sk  average of best solutions • Example: • N’ = 50 • (Sampling from S does not add cost)

18. Application of Best-of-k Sampling(1) • Find best input parameters to perturb using best-of-k sampling • k = 1, 2, 3, …, 10, and N =100  5,500 exp. in naive procedure • S = 7 solutions from each of T, S, B, A, U perturbations • Quality rank of input parameters in P&R • E.g.) AES: clock cycle (T) or input/output delay (B) perturbations result in best solution quality *AES design *EXU design

19. Application of Best-of-k Sampling (2) • Solution quality versus number of trials “k” (with N = 100) • Average solution quality approaches the best solution as “k” increases • Average solution quality is significantly better than worst possible solution quality  best-of-k can avoid bad luck • Best-of-3 shows reasonably good solutions LSU AES EXU JPEG

20. Conclusion and Ongoing Work • Experimental assessment of “chaotic” behavior in commercial EDA tools • Miscorrelation issues between design stages are well-known • Exploiting chaos: Intentional negligible input perturbations can significantly change outputs • Proposed a methodology to exploit the chaotic tool behavior • “best-of-k”: multi-start / multi-run methodology • Efficient sampling method to determine the best number of trials • We also find best input parameters to perturb using best-of-k sampling • Ongoing work • Analysis of potential advantages of “chaos” in advanced physical synthesis tools to reduce miscorrelation-related issues • Evaluation of the benefits of chaos in more advanced signoff methodologies (signal integrity-enabled, path-based STA)

21. Thank You!

22. Backup

23. Potential Cause 1 • Miscorrelation between synthesis and place-and-route • Rank correlation of timing critical paths between synthesis and placement: 0.421 Not critical at synthesis, Critical at placement *AES design

24. Potential Cause 2: Parasitic Miscorrelation • Miscorrelation in delay calculation • With same RC parasitic file (.spef) • May not be a major problem: A few tens of picoseconds difference • Miscorrelation in RC extraction • Implementation tool can underestimate capacitance by 18.6% Implementation Signoff

25. Inherent Noise: Detailed Results • Noise is really random!  Difficult to predict • Red texts are the best in each group

27. AES ASTRO

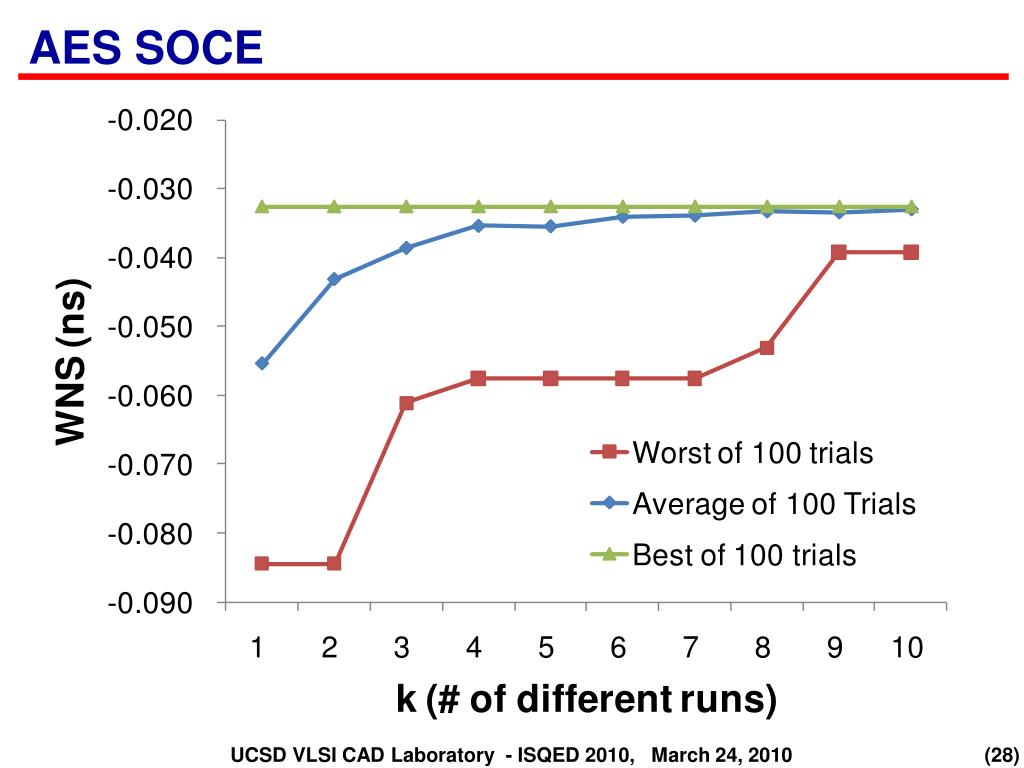

28. AES SOCE

29. JPEG ASTRO

30. JPEG SOCE

31. LSU ASTRO

32. LSU SOCE

33. EXU ASTRO

34. EXU SOCE
