Demulsibility-Characteristics-Tester

Demulsibility Characteristics Tester for Petroleum Oils and Synthetic Fluids is made in accordance with ASTM D1401 "Test Methods for Demulsibility Characteristics of Petroleum Oils and Synthetic Fluids.

labtronuk
Télécharger la présentation

Demulsibility-Characteristics-Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

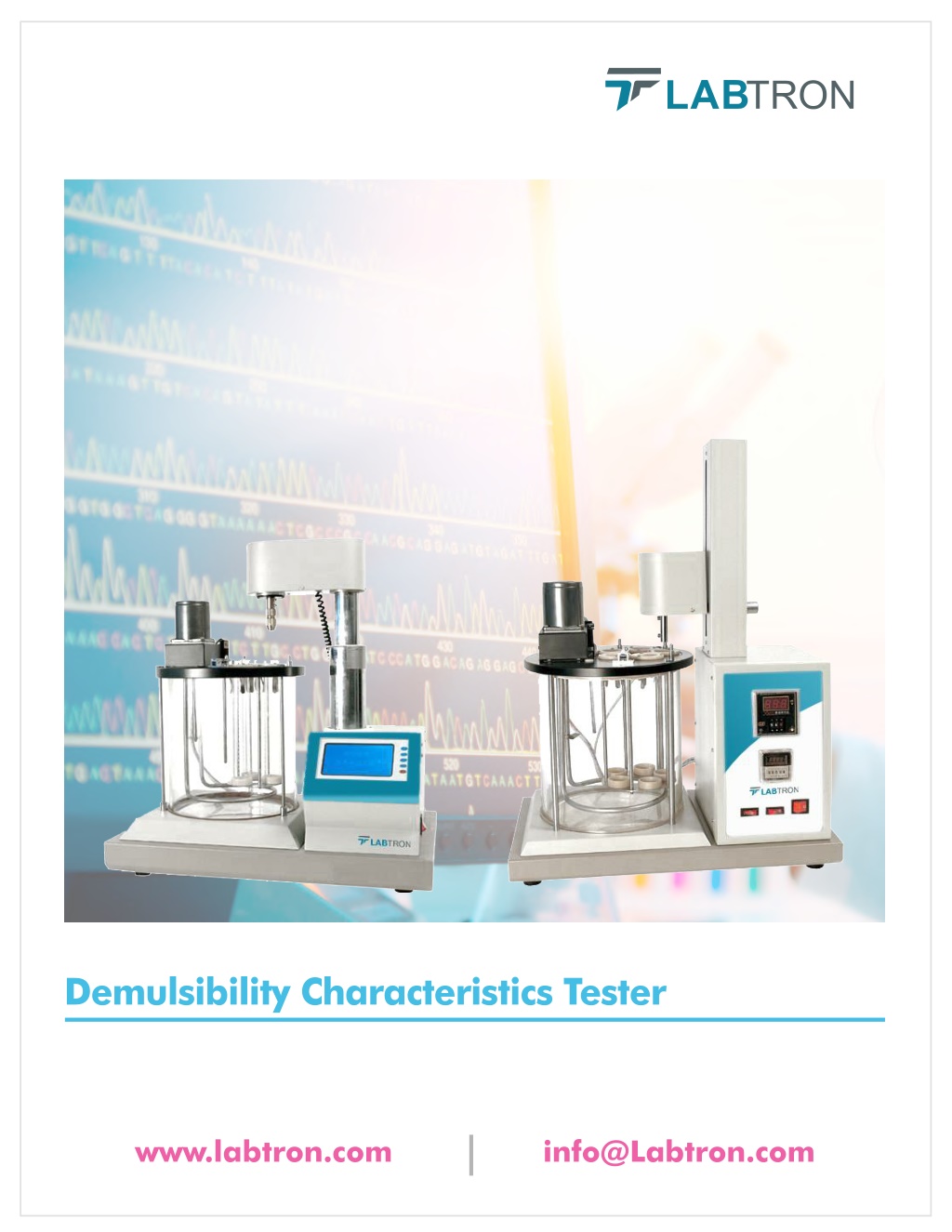

  1. Demulsibility Characteristics Tester www.labtron.com info@Labtron.com

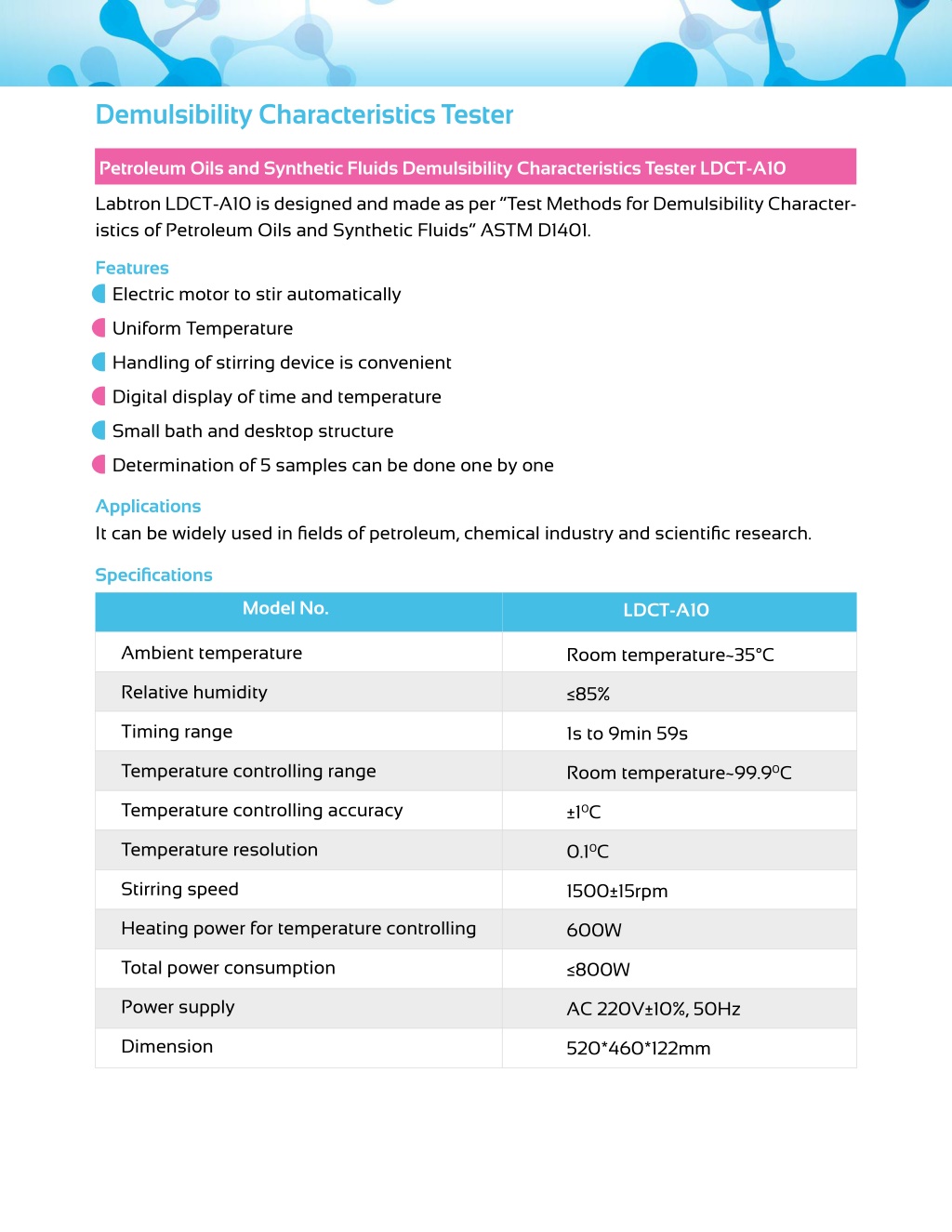

  2. Demulsibility Characteristics Tester Petroleum Oils and Synthetic Fluids Demulsibility Characteristics Tester LDCT-A10 Labtron LDCT-A10 is designed and made as per “Test Methods for Demulsibility Character- istics of Petroleum Oils and Synthetic Fluids” ASTM D1401. Features Electric motor to stir automatically Uniform Temperature Handling of stirring device is convenient Digital display of time and temperature Small bath and desktop structure Determination of 5 samples can be done one by one Applications It can be widely used in fields of petroleum, chemical industry and scientific research. Specifications Model No. LDCT-A10 Ambient temperature Room temperature~35°C Relative humidity ≤85% Timing range 1s to 9min 59s Temperature controlling range Room temperature~99.90C Temperature controlling accuracy ±10C Temperature resolution 0.10C Stirring speed 1500±15rpm Heating power for temperature controlling 600W Total power consumption ≤800W Power supply AC 220V±10%, 50Hz Dimension 520*460*122mm

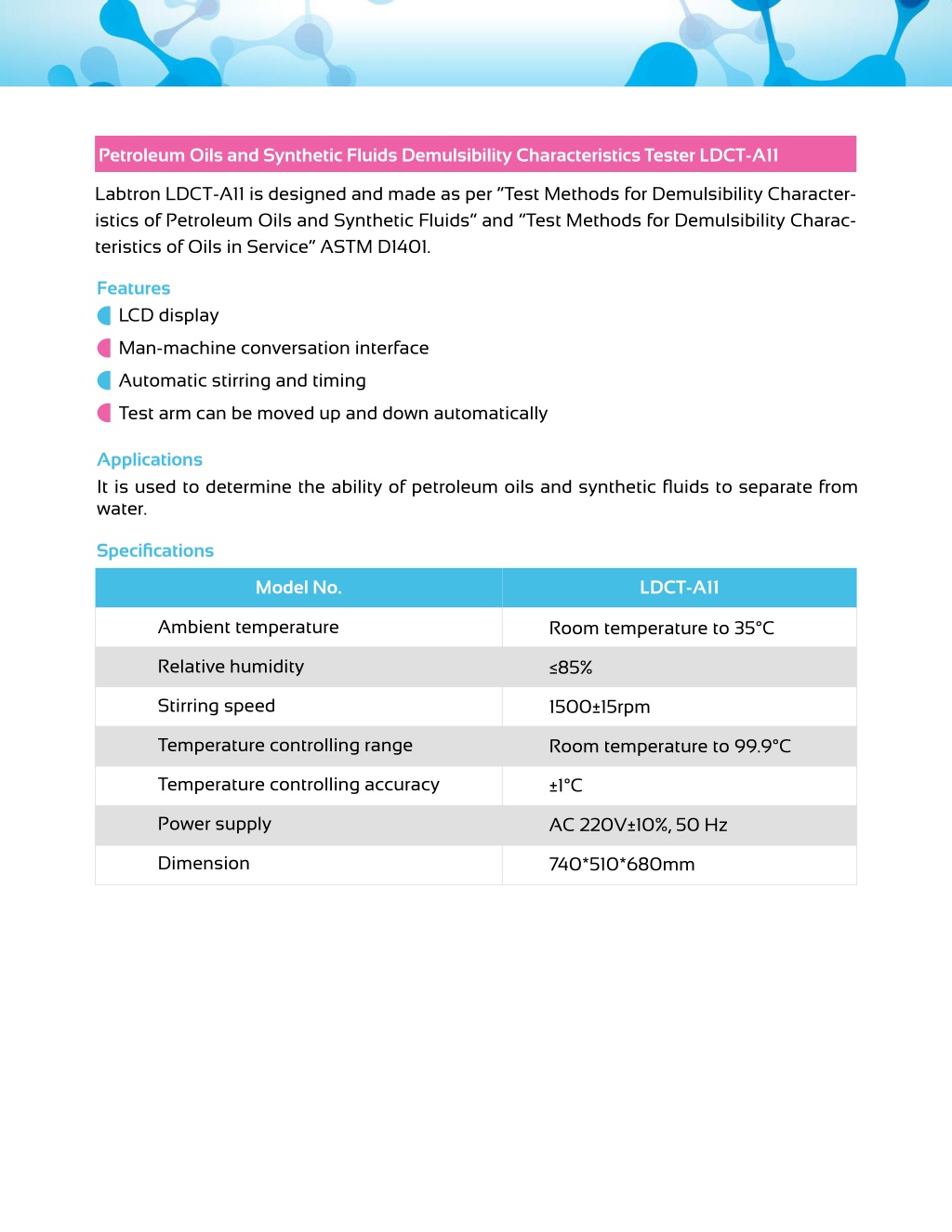

  3. Petroleum Oils and Synthetic Fluids Demulsibility Characteristics Tester LDCT-A11 Labtron LDCT-A11 is designed and made as per “Test Methods for Demulsibility Character- istics of Petroleum Oils and Synthetic Fluids” and “Test Methods for Demulsibility Charac- teristics of Oils in Service” ASTM D1401. Features LCD display Man-machine conversation interface Automatic stirring and timing Test arm can be moved up and down automatically Applications It is used to determine the ability of petroleum oils and synthetic fluids to separate from water. Specifications LDCT-A11 Model No. Ambient temperature Room temperature to 35°C Relative humidity ≤85% Stirring speed 1500±15rpm Temperature controlling range Room temperature to 99.9°C Temperature controlling accuracy ±1°C Power supply AC 220V±10%, 50 Hz Dimension 740*510*680mm

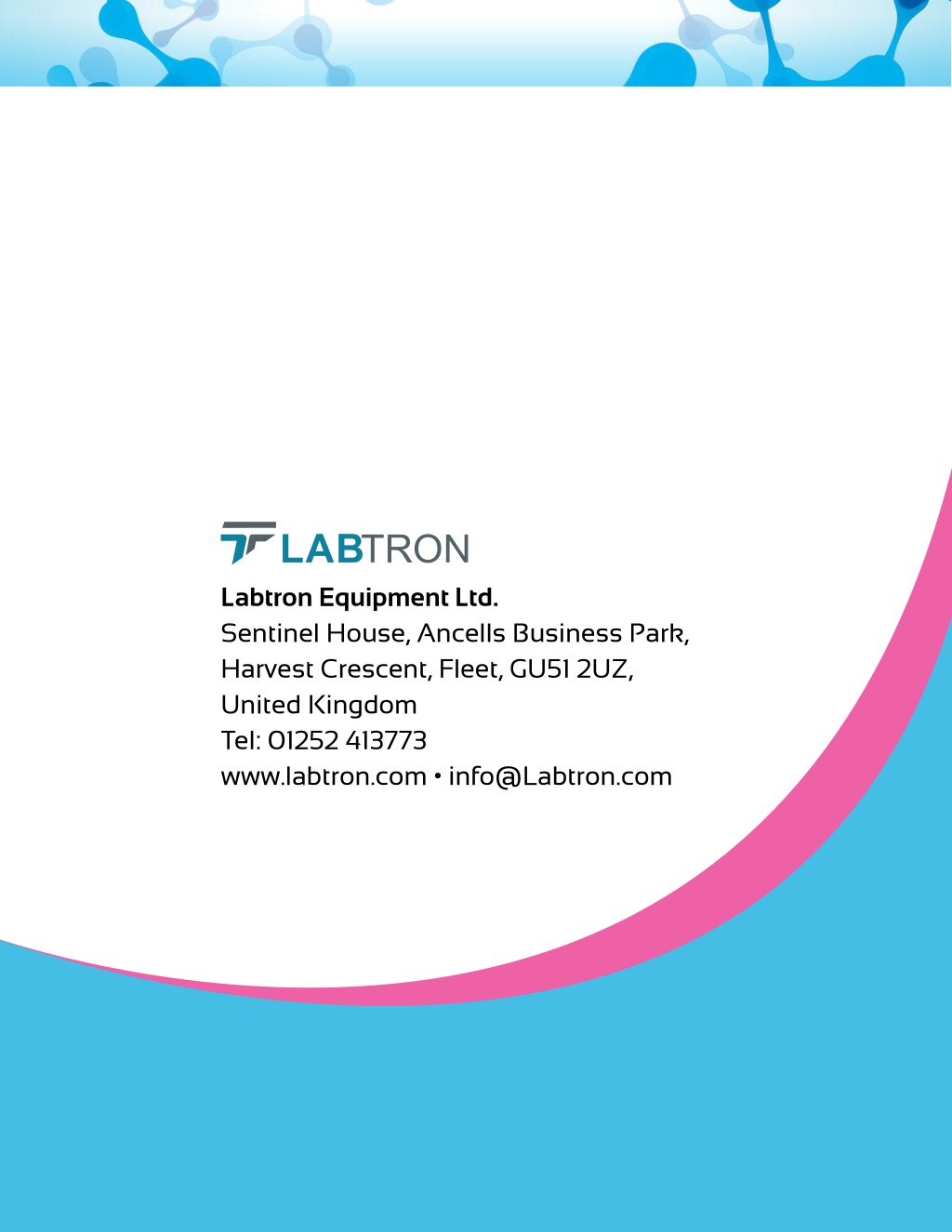

  4. Labtron Equipment Ltd. Sentinel House, Ancells Business Park, Harvest Crescent, Fleet, GU51 2UZ, United Kingdom Tel: 01252 413773 www.labtron.com • info@Labtron.com
