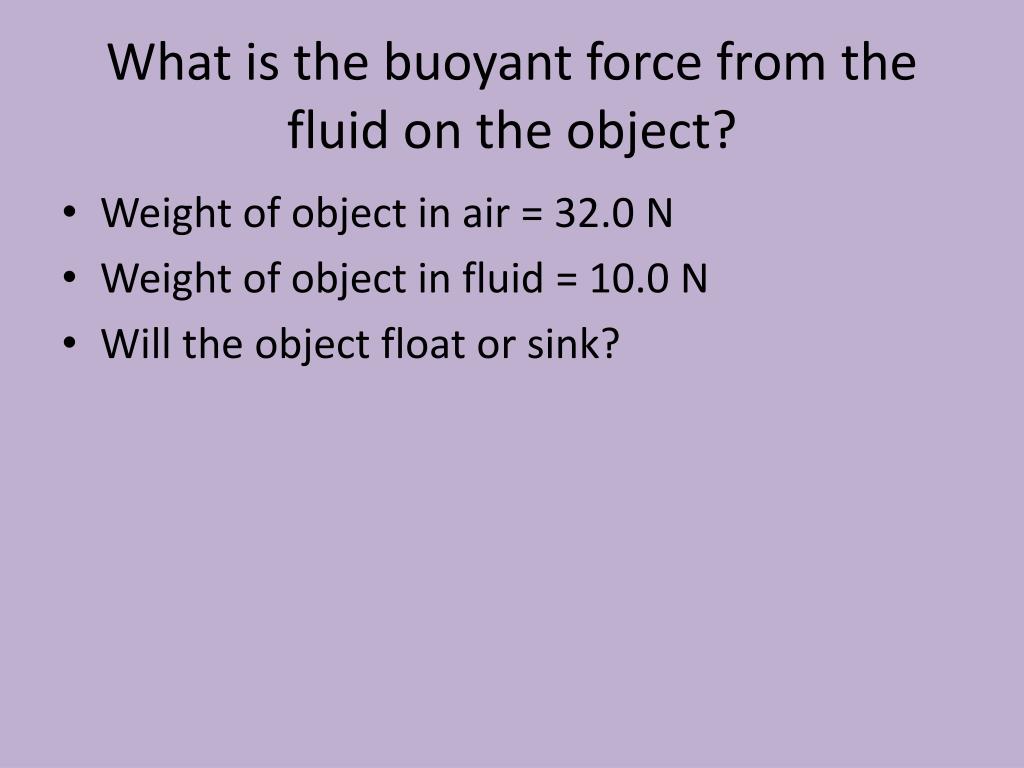

  1. What is the buoyant force from the fluid on the object? • Weight of object in air = 32.0 N • Weight of object in fluid = 10.0 N • Will the object float or sink?

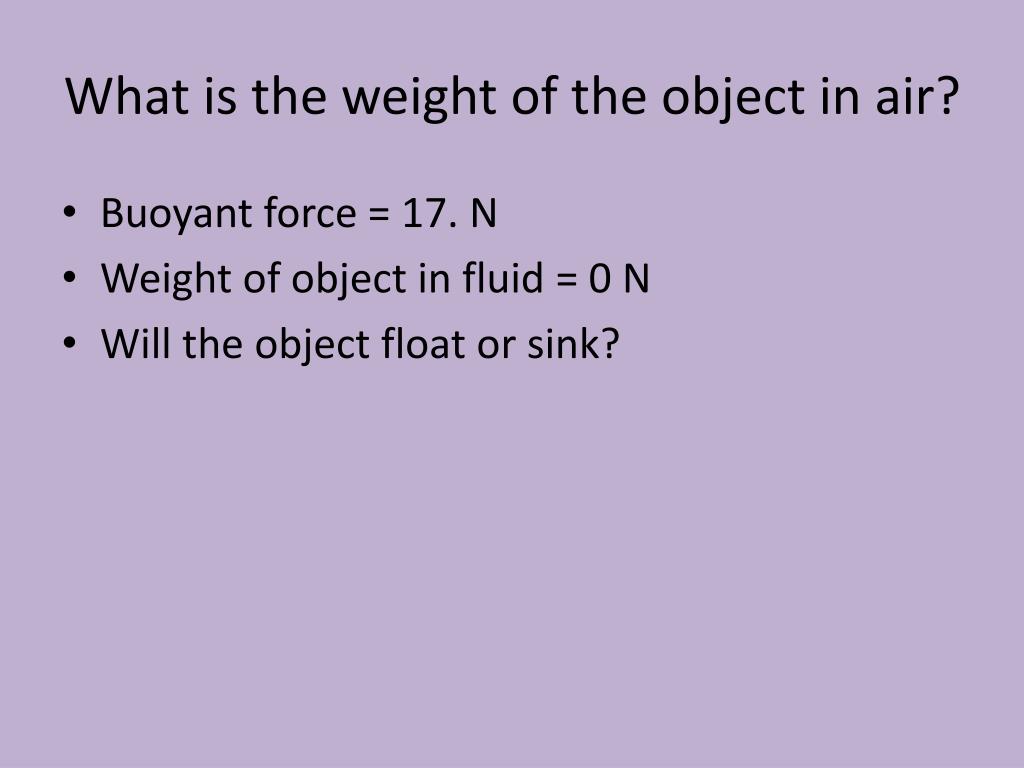

  2. What is the weight of the object in air? • Buoyant force = 17. N • Weight of object in fluid = 0 N • Will the object float or sink?

  3. What is the buoyant force on the object? • Mass of displaced water = 408. g • Weight of object in air = 5.2 N • Will the object float or sink?

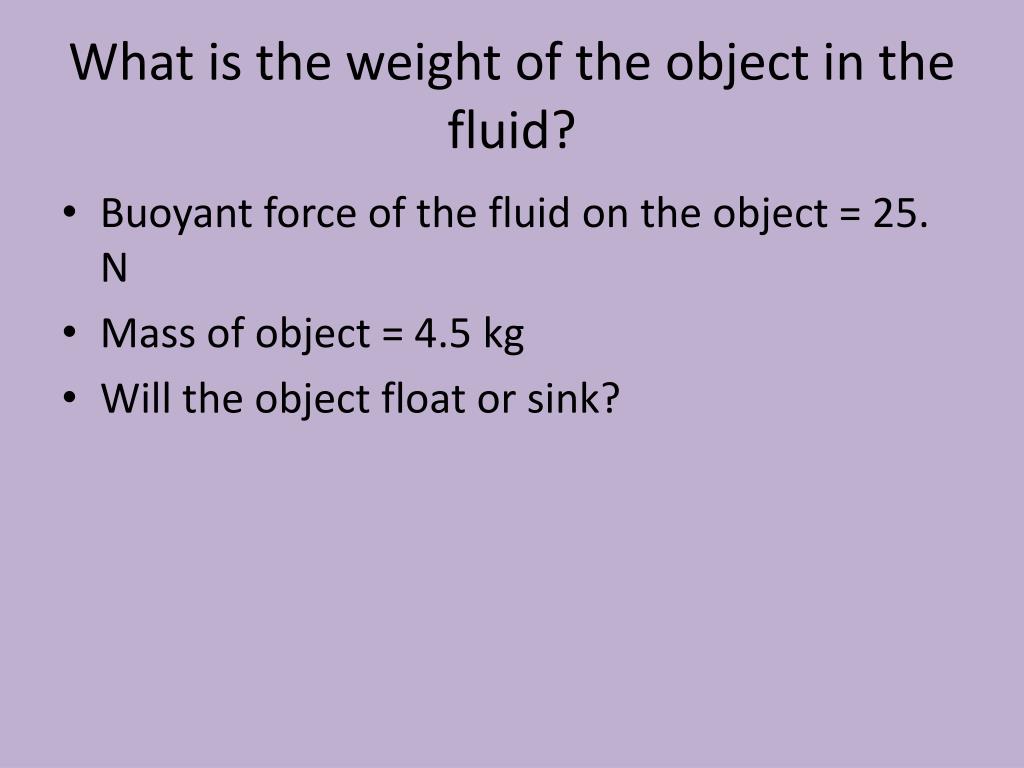

  4. What is the weight of the object in the fluid? • Buoyant force of the fluid on the object = 25. N • Mass of object = 4.5 kg • Will the object float or sink?

  5. When placed in water which will displace more fluid? Object 1 Object 2 • Buoyant force = 12. N • Buoyant force = 20. N When placed in water will the objects float or sink? • Mass of object = • 3.51 kg • Mass of object = • 1.22 kg

  6. 50g 50g • Which has a better chance of floating? Why?

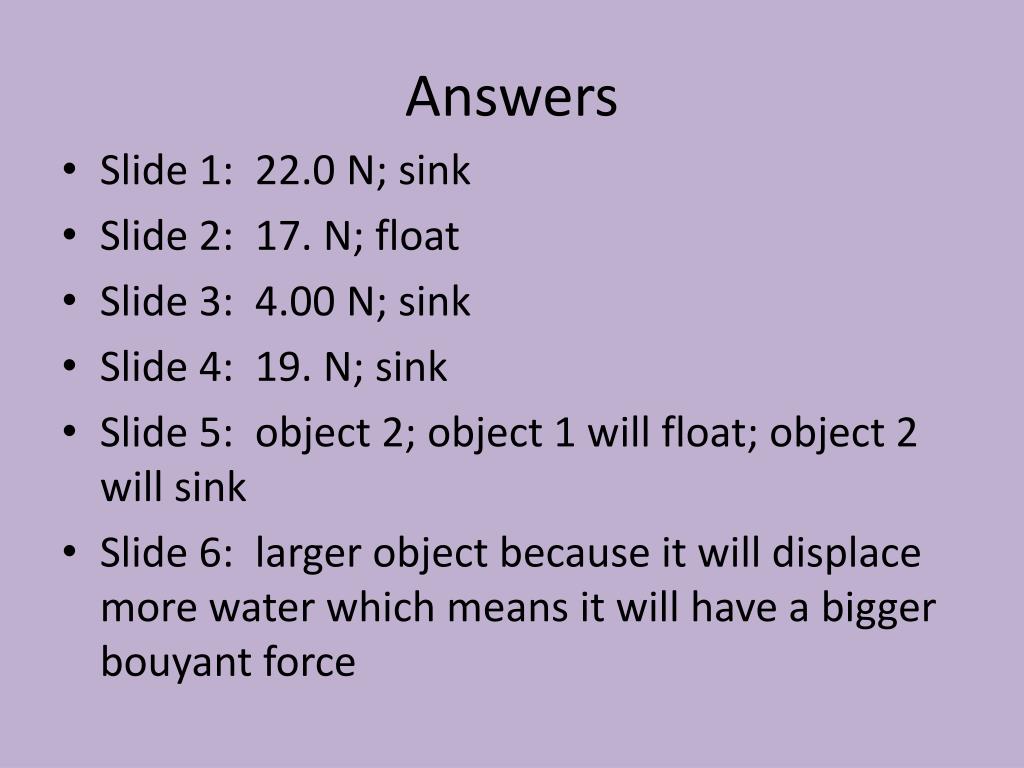

  7. Answers • Slide 1: 22.0 N; sink • Slide 2: 17. N; float • Slide 3: 4.00 N; sink • Slide 4: 19. N; sink • Slide 5: object 2; object 1 will float; object 2 will sink • Slide 6: larger object because it will displace more water which means it will have a bigger bouyant force
