1. Replication: optimistic approaches Marc Shapiro with Yasushi Saito (HP Labs) Cambridge Distributed SystemsGroup

2. Motivations for this work • Peer-to-peer, decentralised write sharing • Lessons and commonalities • Understand limitations • Different solutions: spectrum or discrete points? • Simple formal model Replication: optimistic approaches

3. Optimistic replication • Replicas of shared objects on sites • Without synchronisation: • peer-to-peer read • and update! • Consistency: a posteriori, offline • Merge independent updates • Applications: • high latency networks • disconnected operation • cooperative work • Improves availability & performance Replication: optimistic approaches

4. Example: cooperative engineering with CVS • CVS: developing shared code • Local, disconnected replica: no interference • Conflicts: • Write same file = syntactic • Overlap in file = violates edit semantics • Doesn’t compile, test = violates application semantics • Both sides of a conflict are excluded • Manual repair Replication: optimistic approaches

5. Example: Bayou • General-purpose database • Any replica can update, log actions action = { dependency check, operation, merge-procedure } • Optimistic replication: • epidemic exchange logs • { roll-back, replay }*; commit • dep-check: semantic check for conflict • merge-proc: semantic repair Replication: optimistic approaches

6. Basic vocabulary • While isolated: tentative updates • When connected, reconcile: • Propagate & collect updates • (Conceptually) Restart from initial state • Replay updates (if possible) • Overriding goal: consistency Replication: optimistic approaches

7. 1. Consistency Study component issues of consistency

8. What is consistency? • Consistent with user intents • apply operations • according to user scenario • Consistent with data invariants • dependent actions • pre- and post-conditions • conflict resolution • Replicas consistent with each other • converge towards same values Replication: optimistic approaches

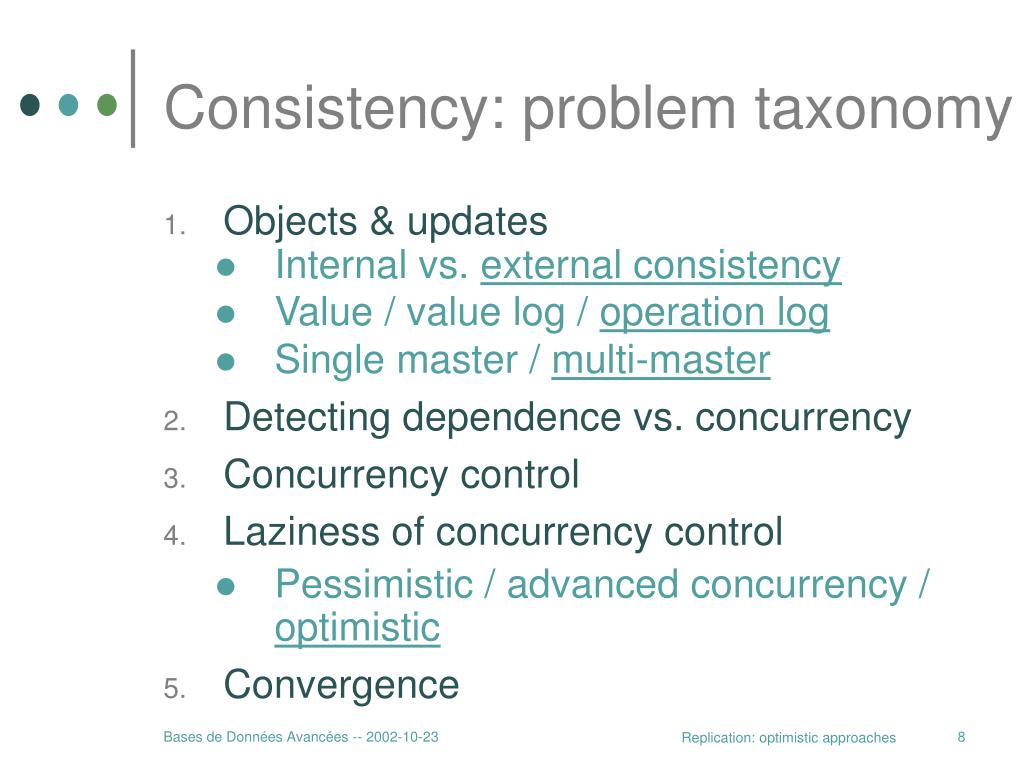

9. Consistency: problem taxonomy • Objects & updates • Internal vs. external consistency • Value / value log / operation log • Single master / multi-master • Detecting dependence vs. concurrency • Concurrency control • Laziness of concurrency control • Pessimistic / advanced concurrency / optimistic • Convergence Replication: optimistic approaches

10. Operation-based reconciliation • Updates: concurrent, unsynchronised • Local log of actions = operation descriptions • object identifier, method, arguments • Multi-log collects local + remote logs • Reconciliation schedule: merge multi-log & run sequentially • Scheduling issues: • Include vs. exclude • Execution order Replication: optimistic approaches

11. 1 0 3 0 4 2 Operation-based model 0 0 Replication: optimistic approaches

12. Dependence vs. concurrency • Two actions are either have a dependency or commutative / concurrent • Dependent actions: • do not conflict • must be scheduled in dependence order • Concurrent actions • potentially conflict • Dependence / concurrency detection is a fundental mechanism Replication: optimistic approaches

13. Concurrency control • Concurrent & no conflict commute: execute both, arbitrary order • Conflict detection options • Conflict resolution options Replication: optimistic approaches

14. Convergence • Liveness: sites receive same/all actions • Safety: given same actions, sites compute the same value • Stability: actions eventually not undone Replication: optimistic approaches

15. 2. Dependency & Concurrency Mechanisms to detect if actions are dependent or concurrent

16. Scalar clocks and timestamps • Wall clock, Lamport clock • Total order • Total order, consistent with causal dependence Schedule in timestamp order Can’t detect concurrency Replication: optimistic approaches

17. Happens-before • e1 precedes e2 in process • e1 sends, e2 receives  e1 e2 (e1 e2)  (e2 e1)  e1 ||e2 • e1 || e2: e1 does not causee2 • e1 e2: e1might cause e2 • Partial order, consistent with causal dependence • Schedule consistent with  Replication: optimistic approaches

18. Syntactic vs. semantic mechanisms • Scalar timestamps • no concurrency detection • very conservative approx. of causality • Vector timestamps • detect concurrency • conservative approx. of causality • Alternative: explicit semantic constraints Replication: optimistic approaches

19. Locks as semantic constraints • Read(x) depends on • previous Write(x) in same process, or • previously-received Write(x), whichever is later • Write(x) depends on • previous Read(*) in same process • More semantic information than Happens-Before • Step in the right direction, but still too coarse Replication: optimistic approaches

20. IceCube: Primitive constraints • Declarative (“static”): • MustHave: a  b if as and ab then bs (not necessarily contiguous nor in order) • Order: a  b if a, bs and ab then a before b in s (not necessarily both nor contiguous) • Within log, across logs • Imperative (dynamic): preCondition (State) Replication: optimistic approaches

21. Log constraints alternatives predecessor- successor parcel • Express user intents: • Predecessor/successor: a  b b  a b uses effect of a; “a causes b” • Parcel: a  b b  a transaction • Alternatives: a  b b  a Replication: optimistic approaches

22. 3. Concurrency control & scheduling Policies for dealing with concurrent actions

23. Optimistic concurrency control & scheduling • Two actions are either: • dependent  schedule in dependence order • concurrent and non-conflicting or commutative  schedule in any order • concurrent and conflicting • schedule in non-conflicting order • or exclude one, the other, or both Replication: optimistic approaches

24. Concurrency control • Concurrent & no conflict commute: execute both, arbitrary order • Conflict detection options: • 2 concurrent actions conflict • only if operate on same object • only if both write • only if violate semantic invariant • Conflict resolution options: • exclude both • exclude 1st, include 2nd (or vice-versa) • execute both in favorable order • (rewrite and execute both) Replication: optimistic approaches

25. pre(x0) post(x0, f(x0)) x1:= f(x0) pre(x1) post(x1, g(x1)) x2:= g(x1) pre(x0) post(x’1, g(x0)) x’1:= g(x0) What is a conflict? • 1 site executes code + pre/post-conditions • Pre/post-conditions often unknown • Dependency between successive actions • Schedule execution must satisfy pre/post-conditions • Violation  conflict Replication: optimistic approaches

26. Thomas’ Write Rule • Pre- / post-conditions unknown • Scalar clocks • no concurrency detect • implicit concurrency control • schedule in clock order • a later action excludes earlier ones • Lost updates • Delete ambiguity: “tombstone” state Replication: optimistic approaches

27. Value-based Version Vector concurrency control • Pre- / post-conditions unknown • Independent objects • actions to different objects commute • VV = per-object vector timestamp • any concurrent writes to object conflict • Resolution: • Manual • Values: “Resolver” per data type Replication: optimistic approaches

28. Bayou scheduling • Disjoint databases; 1 primary / database • Transaction: single database • Action = { dependency check, operation, merge-procedure } • Optimistic replication: • epidemic exchange logs • { roll-back, replay }*; commit • Conflict  dependency check fails •  merge-procedure Replication: optimistic approaches

29. Bayou dependency checks • Write-write conflicts: on replay check that data unchanged • Read-write conflicts: check input data • can detect concurrent updates • semantic: only relevant changes • Application-specific checks • bank account balance > £100 • fine grain Replication: optimistic approaches

30. IceCube: Object constraints • Shared data type advertises staticsemantics • mutually exclusive a b b  a • best order (e.g. bank:credits before debits) a b • Only between concurrent actions • Also: dynamic constraints mutually exclusive best order commute Replication: optimistic approaches

31. IceCube scheduling • Insight: • conflict: choice of which action to exclude • maximise value Replication: optimistic approaches

32. 0 4 0 5 log constraints 0 6 0 7 0 8 log constraints 0 9 0 10 0 11 IceCube execution model dynamic constraints 0 1 object constraints 0 2 Replication: optimistic approaches

33. Search vs. syntactic order Replication: optimistic approaches

34. Performance of IceCube heuristics Replication: optimistic approaches

35. 4. Convergence Can a peer-to-peer system converge? Hard in the general case Formalise to understand limitations, trade-offs

36. Convergence • Liveness: sites receive same/all operations • epidemic multicast • quickly • Safety: sites compute the same value • equivalent schedules • Stability: actions eventually not undone • stable schedules • Users, external world dependency • Garbage collection Replication: optimistic approaches

37. Schedule soundness & equivalence • s sound: • Closed for MustHave as ab  bs • Consistent with Order (a,b s ab)  a before b in s • Equivalence: s  t • s, t sound • as  at • ordering is irrelevant! Replication: optimistic approaches

38. Stability • Peer-to-peer, indefinite tentative update + advisory reconciliation OK • But stability needed: • Users, external world depend on it • Garbage collect multilog • Stable: eventually decisions not changed • committed: definitely included in all schedules • aborted: definitely excluded Replication: optimistic approaches

39. Correctness of stability • Actions known to be stable at site i: • stablei = committedi  abortedi • Live: •  action a, site i: a stablei • Safe: •  site i, schedule si: si sound committedi si •  site i,k: committedi  abortedk =  • Safety invariant: strong, global! Replication: optimistic approaches

40. Maintaining disjointness  site i,k: committedi  abortedk =  Different possibilities • Unilateral abort TWR, Holliday 2000 • Unilateral commit • Deterministic abort / commit rule TWR • Primary (only one) site decides Bayou, CVS • Consensus before deciding Deno, Holliday 2000-2002 Replication: optimistic approaches

41. Maintaining soundness •  site i, schedule si: • si sound committedi si • When aborting a, also abort actions that MustHave a • When committing a, also abort uncommitted actions that are ‘Order’ed before a • Maintain both soundness and disjointness. • Peer-to-peer commitment is hard! Replication: optimistic approaches

42. Stability with TWR • Independent objects • Independent writes (no MustHave nor Order) • All sites take same decision: • Given two writes to same object, abort the earlier • Whether concurrent or not • Write stable when seen by all sites • Disjointness: committedi=  • Soundness: no MustHave (no transactions) Replication: optimistic approaches

43. Stability in Bayou • Databases: • Disjoint • Independent: no multi-DB transaction • 1 primary / database • Log constraints: transactions, time order • Disjointness: Only 1 site decides about a: the primary for the database that a updates • Soundness: whole transaction commits or aborts Replication: optimistic approaches

44. Holliday’s pre-commit protocol • Log constraints: • multi-object transactions • happens-before order • Read transactions commit locally • Read-Write transactions: consensus to commit • convert locks to intentions • pre-commit, vote • commit if quorum ‘yes’ • abort if anti-quorum ‘no’ or conflict with committed Replication: optimistic approaches

45. Trade-offs • Deterministic rule • fast, inflexible • Partition + primary • single point of failure • no MustHave across partition boundaries • Consensus • slow • scalability • impossibility of consensus in asynchronous systems with failure Replication: optimistic approaches

46. 5. Conclusions

47. Need for OR not going away • “Network technology improving: keep everything consistent pessimistically.” • True, but: • Constant latency; unavailable bandwidth • Mobile access  unbounded latency • Increasing numbers of replicas • “Conflicts are rare.” • True, but: • Do occur • Very high cost Replication: optimistic approaches

48. OR pros & cons • Peer-to-peer read/write sharing • OR accepts more updates: • Performance despite latency • Availability despite failures • Increased complexity • Semantic information • Not transparent • Bottleneck moved to commit • Hard to make peer-to-peer • Unless (unacceptable?) restrictions • Unavoidable Replication: optimistic approaches

49. The end Replication: optimistic approaches
