  1. Trilinos 102: Advanced Concepts November 7, 2007 8:30-9:30 a.m. Mike Heroux Jim Willenbring

  2. Overview • How to Create a Trilinos (Compatible) Package • Adding Files to the Build System and Tarball • Adding Configure Options • Using Makefile.export for Tests and Examples • 2D Objects. • Parallel Data Redistribution.

  3. Outline • Creating Objects. • 2D Objects. • Teuchos tidbits. • Performance Optimizations.

  4. How to Create a Trilinos (Compatible) Package • Two primary cases • Using Autotools with an existing package • Starting a new package using Autotools • Both cases are similar • In either case, the package might be • Stand alone • Used via Trilinos/packages/external • Added to Trilinos

  5. How to Create a Trilinos (Compatible) Package • Look at the new_package package • Customize the following files for your package • configure.ac • Makefile.am • src/Makefile.am • test/Makefile.am • example/Makefile.am • Makefile.export.<package>.in • (Some of the necessary changes can be made using scripts supplied by new_package) • Additional instructions are supplied with new_package

  6. Adding Files to the Build System and Tarball • Library source files: CORE = \ $(srcdir)/Epetra_BLAS.cpp \ ... $(srcdir)/Epetra_Object.cpp CORE_H = \ $(srcdir)/Epetra_BLAS.h \ … $(srcdir)/Epetra_ConfigDefs.h • Conditionally compiled files listed with ‘EXTRA_’ prefix • Don’t forget to list header files!

  7. Adding Files to the Build System and Tarball • Makefile.am/.in: • Add the directory the new files are in to ‘SUBDIRS’ in the Makefile.am one level up • SUBDIRS = DIR1 DIR2 • Add the Makefile that will be generated to ‘AC_CONFIG_FILES’ in configure.ac • AC_CONFIG_FILES([Makefile … src/Makefile …]) • Don’t forget to ‘cvs add’ both files • ./bootstrap • Other types of files (scripts, plain text, etc): • Add the name of the file to EXTRA_DIST • EXTRA_DIST = script1 README … • ./bootstrap

  8. Adding Configure Options • TAC_ARG_ENABLE_CAN_USE_PACKAGE(epetra, teuchos, …) • ‘#ifdef HAVE_EPETRA_TEUCHOS’ in source code • TAC_ARG_ENABLE_FEATURE_SUB( epetra, abc, …) • ‘#ifdef HAVE_EPETRA_ARRAY_BOUNDS_CHECK’ in source

  9. Adding Configure Options • TAC_ARG_WITH_PACKAGE(zoltan, [Enable Zoltan interface support], ZOLTAN, no) • AM_CONDITIONAL(HAVE_ZOLTAN, [test "X$ac_cv_use_zoltan" != "Xno"]) • ‘if HAVE_ZOLTAN’ in Makefile.am • AC_SEARCH_LIBS(pow,[m],,AC_MSG_ERROR(Cannot find math library))

  10. Using Makefile.export for Tests / Examples • Makefile.am: include $(top_builddir)/Makefile.export.epetra EXEEXT = .exe noinst_PROGRAMS = CrsMatrix_test CrsMatrix_test_SOURCES = $(srcdir)/cxx_main.cpp CrsMatrix_test_DEPENDENCIES=$(top_builddir)/src/libepetra.a CrsMatrix_test_CXXFLAGS = $(EPETRA_INCLUDES) CrsMatrix_test_LDADD = $(EPETRA_LIBS)

  11. LAL Foundation: Petra • Petra provides a “common language” for distributed linear algebra objects (operator, matrix, vector) • Petra provides distributed matrix and vector services. • Has 3 implementations under development.

  12. Petra Object Model • Perform redistribution of distributed objects: • Parallel permutations. • “Ghosting” of values for local computations. • Collection of partial results from remote processors. • Base Class for All Distributed Objects: • Performs all communication. • Requires Check, Pack, Unpack methods from derived class. • Abstract Interface for Sparse All-to-All Communication • Supports construction of pre-recorded “plan” for data-driven communications. • Examples: • Supports gathering/scatter of off-processor x/y values when computing y = Ax. • Gathering overlap rows for Overlapping Schwarz. • Redistribution of matrices, vectors, etc… • Abstract Interface to Parallel Machine • Shameless mimic of MPI interface. • Keeps MPI dependence to a single class (through all of Trilinos!). • Allow trivial serial implementation. • Opens door to novel parallel libraries (shmem, UPC, etc…) • Graph class for structure-only computations: • Reusable matrix structure. • Pattern-based preconditioners. • Pattern-based load balancing tools. • Basic sparse matrix class: • Flexible construction process. • Arbitrary entry placement on parallel machine. • Describes layout of distributed objects: • Vectors: Number of vector entries on each processor and global ID • Matrices/graphs: Rows/Columns managed by a processor. • Called “Maps” in Epetra. • Dense Distributed Vector and Matrices: • Simple local data structure. • BLAS-able, LAPACK-able. • Ghostable, redistributable. • RTOp-able.

  13. Petra Implementations • Three version under development: • Epetra (Essential Petra): • Current production version. • Restricted to real, double precision arithmetic. • Uses stable core subset of C++ (circa 2000). • Interfaces accessible to C and Fortran users. • Tpetra (Templated Petra): • Next generation C++ version. • Templated scalar and ordinal fields. • Uses namespaces, and STL: Improved usability/efficiency. • Jpetra (Java Petra): • Pure Java. Portable to any JVM. • Interfaces to Java versions of MPI, LAPACK and BLAS via interfaces.

  14. Details about Epetra Maps • Note: Focus on Maps (not BlockMaps). • Getting beyond standard use case…

  15. 1-to-1 Maps • 1-to-1 map (defn): A map is 1-to-1 if each GID appears only once in the map (and is therefore associated with only a single processor). • Certain operations in parallel data repartitioning require 1-to-1 maps. Specifically: • The source map of an import must be 1-to-1. • The target map of an export must be 1-to-1. • The domain map of a 2D object must be 1-to-1. • The range map of a 2D object must be 1-to-1.

  16. 2D Objects: Four Maps • Epetra 2D objects: • CrsMatrix, FECrsMatrix • CrsGraph • VbrMatrix, FEVbrMatrix • Have four maps: • RowMap: On each processor, the GIDs of the rows that processor will “manage”. • ColMap: On each processor, the GIDs of the columns that processor will “manage”. • DomainMap: The layout of domain objects (the x vector/multivector in y=Ax). • RangeMap: The layout of range objects (the y vector/multivector in y=Ax). Typically a 1-to-1 map Typically NOT a 1-to-1 map Must be 1-to-1 maps!!!

  17. Sample Problem x y A =

  18. RowMap = {0, 1} ColMap = {0, 1, 2} DomainMap = {0, 1} RangeMap = {0, 1} Case 1: Standard Approach • First 2 rows of A, elements of y and elements of x, kept on PE 0. • Last row of A, element of y and element of x, kept on PE 1. PE 0 Contents PE 1 Contents • RowMap = {2} • ColMap = {1, 2} • DomainMap = {2} • RangeMap = {2} Notes: • Rows are wholly owned. • RowMap=DomainMap=RangeMap (all 1-to-1). • ColMap is NOT 1-to-1. • Call to FillComplete: A.FillComplete(); // Assumes Original Problem y A x =

  19. RowMap = {0, 1} ColMap = {0, 1, 2} DomainMap = {1, 2} RangeMap = {0} Case 2: Twist 1 • First 2 rows of A, first element of y and last 2 elements of x, kept on PE 0. • Last row of A, last 2 element of y and first element of x, kept on PE 1. PE 0 Contents PE 1 Contents • RowMap = {2} • ColMap = {1, 2} • DomainMap = {0} • RangeMap = {1, 2} Notes: • Rows are wholly owned. • RowMap is NOT = DomainMap is NOT = RangeMap (all 1-to-1). • ColMap is NOT 1-to-1. • Call to FillComplete: A.FillComplete(DomainMap, RangeMap); Original Problem y A x =

  20. RowMap = {0, 1} ColMap = {0, 1} DomainMap = {1, 2} RangeMap = {0} Case 2: Twist 2 • First row of A, part of second row of A, first element of y and last 2 elements of x, kept on PE 0. • Last row, part of second row of A, last 2 element of y and first element of x, kept on PE 1. PE 0 Contents PE 1 Contents • RowMap = {1, 2} • ColMap = {1, 2} • DomainMap = {0} • RangeMap = {1, 2} Notes: • Rows are NOT wholly owned. • RowMap is NOT = DomainMap is NOT = RangeMap (all 1-to-1). • RowMap and ColMap are NOT 1-to-1. • Call to FillComplete: A.FillComplete(DomainMap, RangeMap); Original Problem y A x =

  21. What does FillComplete Do? • A bunch of stuff. • One task is to create (if needed) import/export objects to support distributed matrix-vector multiplication: • If ColMap ≠ DomainMap, create Import object. • If RowMap ≠ RangeMap, create Export object. • A few rules: • Rectangular matrices will always require: A.FillComplete(DomainMap,RangeMap); • DomainMap and RangeMap must be 1-to-1.

  22. Parallel Data Redistribution • Epetra vectors, multivectors, graphs and matrices are distributed via one of the map objects. • A map is basically a partitioning of a list of global IDs: • IDs are simply labels, no need to use contiguous values (Directory class handles details for general ID lists). • No a priori restriction on replicated IDs. • If we are given: • A source map and • A set of vectors, multivectors, graphs and matrices (or other distributable objects) based on source map. • Redistribution is performed by: • Specifying a target map with a new distribution of the global IDs. • Creating Import or Export object using the source and target maps. • Creating vectors, multivectors, graphs and matrices that are redistributed (to target map layout) using the Import/Export object.

  23. int main(int argc, char *argv[]) { MPI_Init(&argc, &argv); Epetra_MpiComm Comm(MPI_COMM_WORLD); int NumGlobalElements = 4; // global dimension of the problem int NumMyElements; // local nodes Epetra_IntSerialDenseVector MyGlobalElements; if( Comm.MyPID() == 0 ) { NumMyElements = 3; MyGlobalElements.Size(NumMyElements); MyGlobalElements[0] = 0; MyGlobalElements[1] = 1; MyGlobalElements[2] = 2; } else { NumMyElements = 3; MyGlobalElements.Size(NumMyElements); MyGlobalElements[0] = 1; MyGlobalElements[1] = 2; MyGlobalElements[2] = 3; } // create a map Epetra_Map Map(-1,MyGlobalElements.Length(), MyGlobalElements.Values(),0, Comm); // create a vector based on map Epetra_Vector xxx(Map); for( int i=0 ; i<NumMyElements ; ++i ) xxx[i] = 10*( Comm.MyPID()+1 ); if( Comm.MyPID() == 0 ){ double val = 12; int pos = 3; xxx.SumIntoGlobalValues(1,0,&val,&pos); } cout << xxx; // create a target map, in which all elements are on proc 0 int NumMyElements_target; if( Comm.MyPID() == 0 ) NumMyElements_target = NumGlobalElements; else NumMyElements_target = 0; Epetra_Map TargetMap(-1,NumMyElements_target,0,Comm); Epetra_Export Exporter(Map,TargetMap); // work on vectors Epetra_Vector yyy(TargetMap); yyy.Export(xxx,Exporter,Add); cout << yyy; MPI_Finalize(); return( EXIT_SUCCESS ); } Example: epetra/ex9.cpp

  24. > mpirun -np 2 ./ex9.exe Epetra::Vector MyPID GID Value 0 0 10 0 1 10 0 2 10 Epetra::Vector 1 1 20 1 2 20 1 3 20 Epetra::Vector MyPID GID Value 0 0 10 0 1 30 0 2 30 0 3 20 Epetra::Vector Output: epetra/ex9.cpp Before Export After Export PE 0 xxx(0)=10 xxx(1)=10 xxx(2)=10 PE 0 yyy(0)=10 yyy(1)=30 yyy(2)=30 yyy(3)=20 Export/Add PE 1 xxx(1)=20 xxx(2)=20 xxx(3)=20 PE 1

  25. Import vs. Export • Import (Export) means calling processor knows what it wants to receive (send). • Distinction between Import/Export is important to user, almost identical in implementation. • Import (Export) objects can be used to do an Export (Import) as a reverse operation. • When mapping is bijective (1-to-1 and onto), either Import or Export is appropriate.

  26. Example: 1D Matrix Assembly -uxx = f u(a) = 0 u(b) = 1 PE 0 PE 1 a x1 x2 x3 b • 3 Equations: Find u at x1, x2 and x3 • Equation for u at x2 gets a contribution from PE 0 and PE 1. • Would like to compute partial contributions independently. • Then combine partial results.

  27. Two Maps • We need two maps: • Assembly map: • PE 0: { 1, 2 }. • PE 1: { 2, 3 }. • Solver map: • PE 0: { 1, 2 } (we arbitrate ownership of 2). • PE 1: { 3 }.

  28. End of Assembly Phase • At the end of assembly phase we have AssemblyMatrix: On PE 0: On PE 1: • Want to assign all of Equation 2 to PE 0 for usewith solver. • NOTE: For a class of Neumann-Neumann preconditioners, the above layout is exactly what we want. Equation 1:Equation 2: Row 2 is shared Equation 2:Equation 3:

  29. Export Assembly Matrix to Solver Matrix Epetra_Export Exporter(AssemblyMap, SolverMap); Epetra_CrsMatrix SolverMatrix (Copy, SolverMap, 0); SolverMatrix.Export(AssemblyMatrix, Exporter, Add); SolverMatrix.FillComplete();

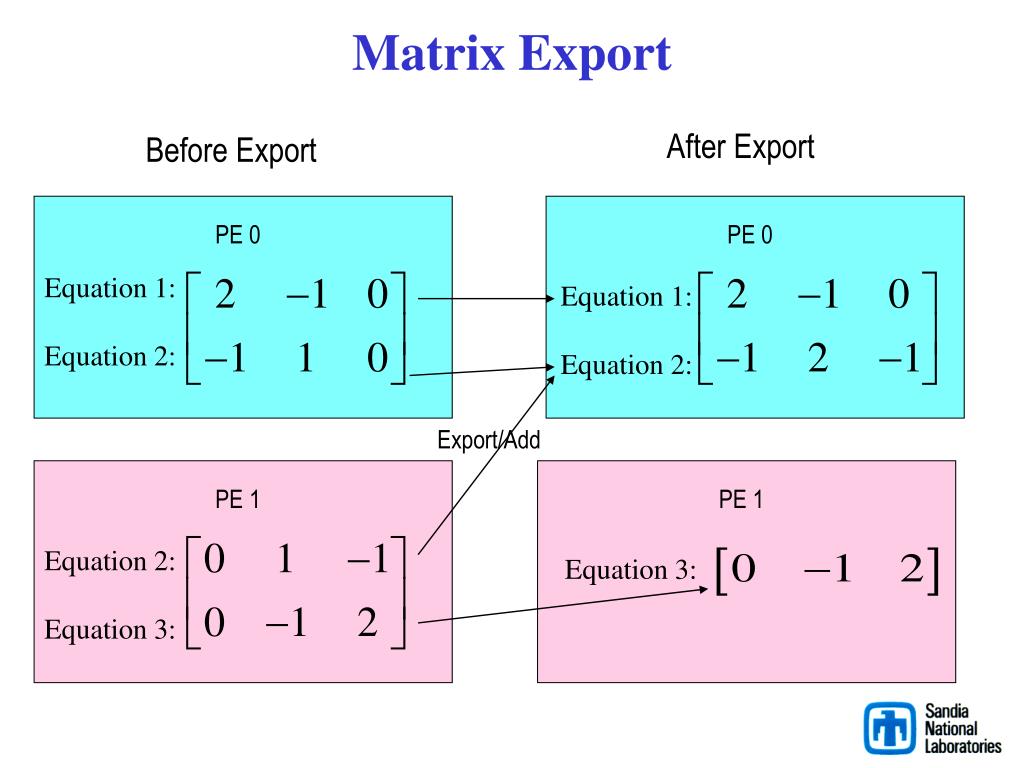

  30. Matrix Export After Export Before Export PE 0 PE 0 Equation 1:Equation 2: Equation 1:Equation 2: Export/Add PE 1 PE 1 Equation 2:Equation 3: Equation 3:

  31. int main(int argc, char *argv[]) { MPI_Init(&argc,&argv); Epetra_MpiComm Comm (MPI_COMM_WORLD); int MyPID = Comm.MyPID(); int n=4; // Generate Laplacian2d gallery matrix Trilinos_Util::CrsMatrixGallery G("laplace_2d", Comm); G.Set("problem_size", n*n); G.Set("map_type", "linear"); // Linear map initially // Get the LinearProblem. Epetra_LinearProblem *Prob = G.GetLinearProblem(); // Get the exact solution. Epetra_MultiVector *sol = G.GetExactSolution(); // Get the rhs (b) and lhs (x) Epetra_MultiVector *b = Prob->GetRHS(); Epetra_MultiVector *x = Prob->GetLHS(); // Repartition graph using Zoltan EpetraExt::Zoltan_CrsGraph * ZoltanTrans = new EpetraExt::Zoltan_CrsGraph(); EpetraExt::LinearProblem_GraphTrans * ZoltanLPTrans = new EpetraExt::LinearProblem_GraphTrans( *(dynamic_cast<EpetraExt::StructuralSameTypeTransform<Epetra_CrsGraph>*>(ZoltanTrans)) ); cout << "Creating Load Balanced Linear Problem\n"; Epetra_LinearProblem &BalancedProb = (*ZoltanLPTrans)(*Prob); // Get the rhs (b) and lhs (x) Epetra_MultiVector *Balancedb = Prob->GetRHS(); Epetra_MultiVector *Balancedx = Prob->GetLHS(); cout << "Balanced b: " << *Balancedb << endl; cout << "Balanced x: " << *Balancedx << endl; MPI_Finalize() ; return 0 ; } Example: epetraext/ex2.cpp

  32. Need for Import/Export • Solvers for complex engineering applications need expressive, easy-to-use parallel data redistribution: • Allows better scaling for non-uniform overlapping Schwarz. • Necessary for robust solution of multiphysics problems. • We have found import and export facilities to be a very natural and powerful technique to address these issues.

  33. Extending Capabilities: Preconditioners, Operators, Matrices Illustrated using AztecOO as example

  34. Epetra User Class Categories • Sparse Matrices: RowMatrix, (CrsMatrix, VbrMatrix, FECrsMatrix, FEVbrMatrix) • Linear Operator: Operator: (AztecOO, ML, Ifpack) • Dense Matrices: DenseMatrix, DenseVector, BLAS, LAPACK, SerialDenseSolver • Vectors: Vector, MultiVector • Graphs: CrsGraph • Data Layout: Map, BlockMap, LocalMap • Redistribution: Import, Export, LbGraph, LbMatrix • Aggregates: LinearProblem • Parallel Machine: Comm, (SerialComm, MpiComm, MpiSmpComm) • Utilities: Time, Flops

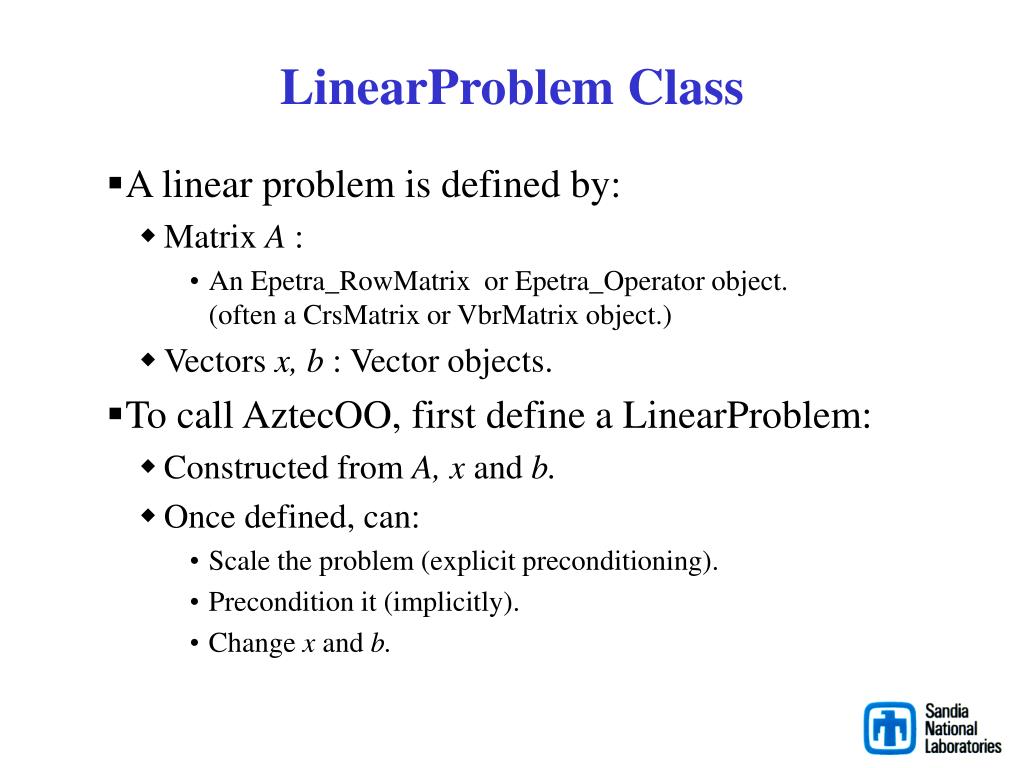

  35. LinearProblem Class • A linear problem is defined by: • Matrix A : • An Epetra_RowMatrix or Epetra_Operator object.(often a CrsMatrix or VbrMatrix object.) • Vectors x, b : Vector objects. • To call AztecOO, first define a LinearProblem: • Constructed from A, x and b. • Once defined, can: • Scale the problem (explicit preconditioning). • Precondition it (implicitly). • Change x and b.

  36. AztecOO • Aztec is the previous workhorse solver at Sandia: • Extracted from the MPSalsa reacting flow code. • Installed in dozens of Sandia apps. • AztecOO leverages the investment in Aztec: • Uses Aztec iterative methods and preconditioners. • AztecOO improves on Aztec by: • Using Epetra objects for defining matrix and RHS. • Providing more preconditioners/scalings. • Using C++ class design to enable more sophisticated use. • AztecOO interfaces allows: • Continued use of Aztec for functionality. • Introduction of new solver capabilities outside of Aztec. • Belos is coming along as alternative. • AztecOO will not go away. • Will encourage new efforts and refactorings to use Belos.

  37. A Simple Epetra/AztecOO Program // Header files omitted… int main(int argc, char *argv[]) { MPI_Init(&argc,&argv); // Initialize MPI, MpiComm Epetra_MpiComm Comm( MPI_COMM_WORLD ); // ***** Create x and b vectors ***** Epetra_Vector x(Map); Epetra_Vector b(Map); b.Random(); // Fill RHS with random #s // ***** Map puts same number of equations on each pe ***** int NumMyElements = 1000 ; Epetra_Map Map(-1, NumMyElements, 0, Comm); int NumGlobalElements = Map.NumGlobalElements(); // ***** Create Linear Problem ***** Epetra_LinearProblem problem(&A, &x, &b); // ***** Create/define AztecOO instance, solve ***** AztecOO solver(problem); solver.SetAztecOption(AZ_precond, AZ_Jacobi); solver.Iterate(1000, 1.0E-8); // ***** Create an Epetra_Matrix tridiag(-1,2,-1) ***** Epetra_CrsMatrix A(Copy, Map, 3); double negOne = -1.0; double posTwo = 2.0; for (int i=0; i<NumMyElements; i++) { int GlobalRow = A.GRID(i); int RowLess1 = GlobalRow - 1; int RowPlus1 = GlobalRow + 1; if (RowLess1!=-1) A.InsertGlobalValues(GlobalRow, 1, &negOne, &RowLess1); if (RowPlus1!=NumGlobalElements) A.InsertGlobalValues(GlobalRow, 1, &negOne, &RowPlus1); A.InsertGlobalValues(GlobalRow, 1, &posTwo, &GlobalRow); } A.FillComplete(); // Transform from GIDs to LIDs // ***** Report results, finish *********************** cout << "Solver performed " << solver.NumIters() << " iterations." << endl << "Norm of true residual = " << solver.TrueResidual() << endl; MPI_Finalize() ; return 0; }

  38. AztecOO Extensibility • AztecOO is designed to accept externally defined: • Operators (both A and M): • The linear operator A is accessed as an Epetra_Operator. • Users can register a preconstructed preconditioner as an Epetra_Operator. • RowMatrix: • If A is registered as a RowMatrix, Aztec’s preconditioners are accessible. • Alternatively M can be registered separately as an Epetra_RowMatrix, and Aztec’s preconditioners are accessible. • StatusTests: • Aztec’s standard stopping criteria are accessible. • Can override these mechanisms by registering a StatusTest Object.

  39. AztecOO understands Epetra_Operator • AztecOO is designed to accept externally defined: • Operators (both A and M). • RowMatrix (Facilitates use of AztecOO preconditioners with external A). • StatusTests (externally-defined stopping criteria). Epetra_Operator Methods Documentation

  40. AztecOO Understands Epetra_RowMatrix Epetra_RowMatrix Methods

  41. AztecOO UserOp/UserMat Recursive Call ExampleTrilinos/packages/aztecoo/example/AztecOO_RecursiveCall • Poisson2dOperator A(nx, ny, comm); // Generate nx by ny Poisson operator • Epetra_CrsMatrix * precMatrix = A.GeneratePrecMatrix(); // Build tridiagonal approximate Poisson • Epetra_Vector xx(A.OperatorDomainMap()); // Generate vectors (xx will be used to generate RHS b) • Epetra_Vector x(A.OperatorDomainMap()); • Epetra_Vector b(A.OperatorRangeMap()); • xx.Random(); // Generate exact x and then rhs b • A.Apply(xx, b); • // Build AztecOO solver that will be used as a preconditioner • Epetra_LinearProblem precProblem; • precProblem.SetOperator(precMatrix); • AztecOO precSolver(precProblem); • precSolver.SetAztecOption(AZ_precond, AZ_ls); • precSolver.SetAztecOption(AZ_output, AZ_none); • precSolver.SetAztecOption(AZ_solver, AZ_cg); • AztecOO_Operator precOperator(&precSolver, 20); • Epetra_LinearProblem problem(&A, &x, &b); // Construct linear problem • AztecOO solver(problem); // Construct solver • solver.SetPrecOperator(&precOperator); // Register Preconditioner operator • solver.SetAztecOption(AZ_solver, AZ_cg); • solver.Iterate(Niters, 1.0E-12);

  42. Ifpack/AztecOO Example Trilinos/packages/aztecoo/example/IfpackAztecOO • // Assume A, x, b are define, LevelFill and Overlap are specified • Ifpack_IlukGraph IlukGraph(A.Graph(), LevelFill, Overlap); • IlukGraph.ConstructFilledGraph(); • Ifpack_CrsRiluk ILUK (IlukGraph); • ILUK.InitValues(A); • assert(ILUK->Factor()==0); // Note: All Epetra/Ifpack/AztecOO method return int err codes • double Condest; • ILUK.Condest(false, Condest); // Get condition estimate • if (Condest > tooBig) { • ILUK.SetAbsoluteThreshold(Athresh); • ILUK.SetRelativeThreshold(Rthresh); • Go back to line 4 and try again • } • Epetra_LinearProblem problem(&A, &x, &b); // Construct linear problem • AztecOO solver(problem); // Construct solver • solver.SetPrecOperator(&ILUK); // Register Preconditioner operator • solver.SetAztecOption(AZ_solver, AZ_cg); • solver.Iterate(Niters, 1.0E-12); • // Once this linear solutions complete and the next nonlinear step is advanced, • // we will return to the solver, but only need to execute steps 5 on down…

  43. Multiple Stopping Criteria • Possible scenario for stopping an iterative solver: • Test 1: Make sure residual is decreased by 6 orders of magnitude. And • Test 2: Make sure that the inf-norm of true residual is no more 1.0E-8. But • Test 3: do no more than 200 iterations. • Note: Test 1 is cheap. Do it before Test 2.

  44. AztecOO StatusTest classes • AztecOO_StatusTest: • Abstract base class for defining stopping criteria. • Combo class: OR, AND, SEQ AztecOO_StatusTest Methods

  45. AztecOO/StatusTest Example Trilinos/packages/aztecoo/example/AztecOO • // Assume A, x, b are define • Epetra_LinearProblem problem(&A, &x, &b); // Construct linear problem • AztecOO solver(problem); // Construct solver • AztecOO_StatusTestResNorm restest1(A, x, bb, 1.0E-6); • restest1.DefineResForm(AztecOO_StatusTestResNorm::Implicit, AztecOO_StatusTestResNorm::TwoNorm); • restest1.DefineScaleForm(AztecOO_StatusTestResNorm::NormOfInitRes, AztecOO_StatusTestResNorm::TwoNorm); • AztecOO_StatusTestResNorm restest2(A, x, bb, 1.0E-8); • restest2.DefineResForm(AztecOO_StatusTestResNorm::Explicit, AztecOO_StatusTestResNorm::InfNorm); • restest2.DefineScaleForm(AztecOO_StatusTestResNorm::NormOfRHS, AztecOO_StatusTestResNorm::InfNorm); • AztecOO_StatusTestCombo comboTest1(AztecOO_StatusTestCombo::SEQ, restest1, restest2); • AztecOO_StatusTestMaxIters maxItersTest(200); • AztecOO_StatusTestCombo comboTest2(AztecOO_StatusTestCombo::OR, maxItersTest1, comboTest1); • solver.SetStatusTest(&comboTest2); • solver.SetAztecOption(AZ_solver, AZ_cg); • solver.Iterate(Niters, 1.0E-12);

  46. Summary: Extending Capabilities • Trilinos packages are designed to interoperate. • All packages (ML, IFPACK, AztecOO, …) that can provide linear operators: • Implement the Epetra_Operator interface. • Are available to any package that can use an linear operator. • All packages (ML, AztecOO, NOX, Belos, Anasazi, …) that can use linear operators: • Accept linear operator via Epetra_Operator interface. • Support easy user extensions. • All packages (ML, IFPACK, AztecOO, …) that need matrix coefficient data: • Can access that data from Epetra_RowMatrix interface. • Can use any concrete Epetra matrix class, or any user-provided adapter.

  47. Summary: Extending Capabilities AztecOO is one example: • Flexibility comes from abstract base classes: • Epetra_Operator: • All Epetra matrix classes implement. • Best way to define A and M when coefficient info not needed. • Epetra_RowMatrix: • All Epetra matrix classes implement. • Best way to define A and M when coefficient info is needed. • AztecOO_StatusTest: • A suite of parametrized status tests. • An abstract interface for users to define their own. • Ability to combine tests for sophisticated control of stopping.
