  1. tf hit – TECHFASS®Home in Touch

  2. #2/21 Content TECHFASS®product lines tf hit – basic description tf hit – standard readers tf hit – hardware concept tf hit – system topology tf hit – standard door control tf hit – typical applications TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

  3. TECHFASS® product lines

  4. #4/21 Product lines Function: programmable ID memory: up to 15,000 PC authorization mode: yes Offline events: up to 57,000 Access groups: 128 Time plans: 64 Addresses per controller: 64 Controllers per system: <32 System administration: PC Free software: system programming, configuration, management (for 10 ID) Licensed SW extensions: basic and complex T&A, visualization, overviews, … Function: configurable ID memory: 2,000 PC authorization mode: yes Offline events: typ. 3,500 Time plans: 64 Addresses per line: 32 Lines per system: unlimited System administration: master cards or PC program Free software: configuration, management Licensed SW extensions: basic and complex T&A, visualization, overviews, … Function: basic ID memory: 2,000 PC authorization mode: N/A Offline events: N/A Time plans: N/A Readers per line: 32 Lines per system: unlimited System administration: master cards or PC program Free software: simple management SW HEA license typ. 3,500 HTP license 64 HMPlicense upgrade H400 license upgrade TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

  5. tf hit – basic description

  6. #6/21 Basic description tf hit =TECHFASS®Home in Touch Product lines focused on most common applications High cost effectiveness of all components Very easy installation and use Step by step installation guides, video guides Detailed documentation for all products Upgradable to professional product lines: APS mini Plus, APS 400 TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

  7. tf hit – standard readers

  8. #8/21 Readers GO76-EM GO12-EM 125 kHz 433 MHz GO65-EM contactless GO80 TargGR-EM long range 125 kHz flush mounting 125 kHz contactless contactless mullionmounting mounting in BPT Targhapanels TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

  9. tf hit hardware concept

  10. #10/21 Hardware concept • Basic features of standard reader • Integrateddoor controller • Memory for 2000 users • Output for direct door lock control • Input for door status monitoring • Input for request to exit button function • Upgrade options • HEA license for events archive in HiT.Access program • HTP license for time plans use in HiT.Access program • Full compatibility with products from professional product lines on HW level: • HMP license – upgrade reader for use in APS mini Plus system • H400 license – upgrade reader for use in APS 400 system TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

  11. #11/21 System contactless readers (125 kHz) Memory ID database Configuration (events archive) (time plans) Local database for 2000 users PC administration (HiT.Access program) Direct door lock control RFID 125 kHz EM Marin HID Proximity Prastel ID reader ID code Optional keypad Communication (RS 485) Request to exit button Simple installation and use Input 2 Standalone administration withmaster cards Door status monitoring Inputs & Outputs Input 1 PC administration withHiT.Access program Reserved Indicators Comm. Status Reading ID Programming Auth. result Door lock control Events archive withHEAlicense Output Time plans withHTPlicense WIEGANDinterface AUX-WO control Standalone administration (master cards) Wiegand interface for AUX-WO remote output module control TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

  12. tf hit system topology

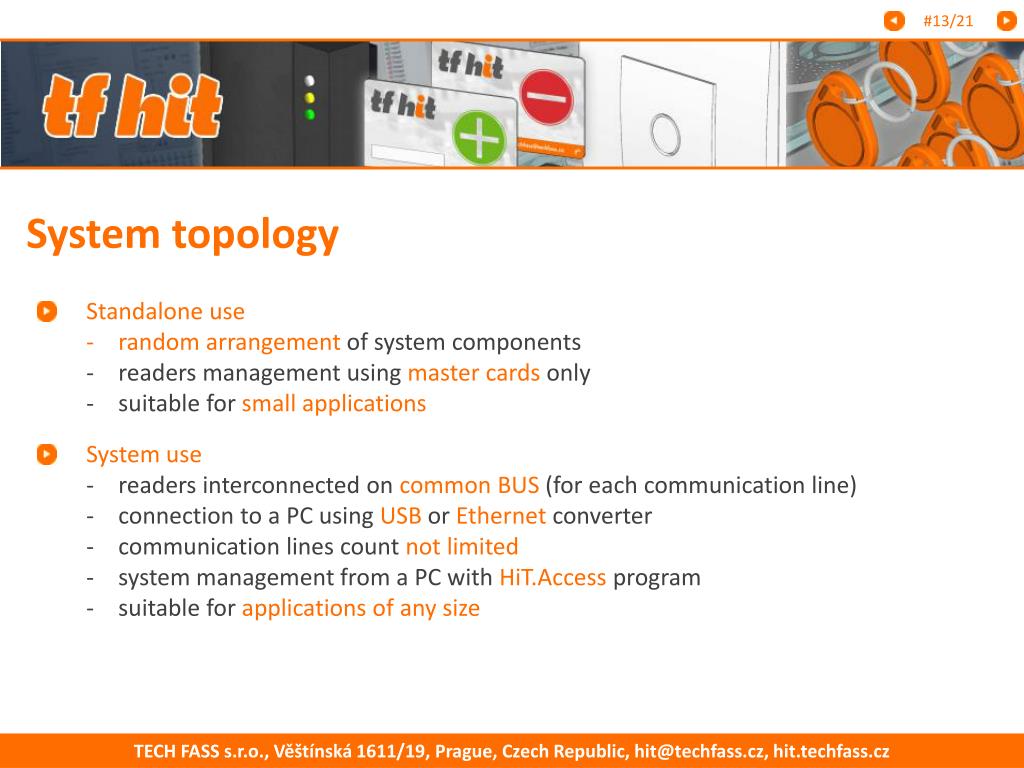

  13. #13/21 System topology • Standalone use • random arrangement of system components • readers management using master cards only • suitable for small applications • System use • readers interconnected on common BUS (for each communication line) • connection to a PC using USBor Ethernet converter • communication lines count not limited • system management from a PC with HiT.Access program • suitable for applications of any size TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

  14. #14/21 Standalone use MASTER CARDS MASTER CARDS READER READER DOOR LOCK DOOR LOCK POWER SUPPLY … OTHER READERS CLICK HERE CLICK HERE POWER SUPPLIER KEY FOBS TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

  15. #15/21 System use READER READER READER READER DOOR LOCK DOOR LOCK DOOR LOCK DOOR LOCK POWER SUPPLY … OTHER READERS RS 485 SYSTEM BUS POWER SUPPLIER LAN CONVERTER USB CONVERTER DESKTOP READER USB USB KEY FOBS PC ETHERNET TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

  16. tf hit – standard door control

  17. #17/21 Configurable parameters and standard use • Parameters configured in HiT.Access program – system use required • Hardware address: 1 ÷ 32 – identifies reader on the communication line • Door lock release time: 0 ÷ 255 seconds • Lock control: direct / reverse – defines the polarity of the door lock control output (required for reverse door locks) • Second input function: none / REX button • Beep on door lock release: yes / no • Standard reader connection • Power supply (required) • Output: door lock control (required) • Input 1: door contact monitoring (optional) • Input 2: REX button (optional) • RS 485BUS: connection to tf hit BUS (optional) • WIEGANDinterface: control of AUX-WO module (optional) TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

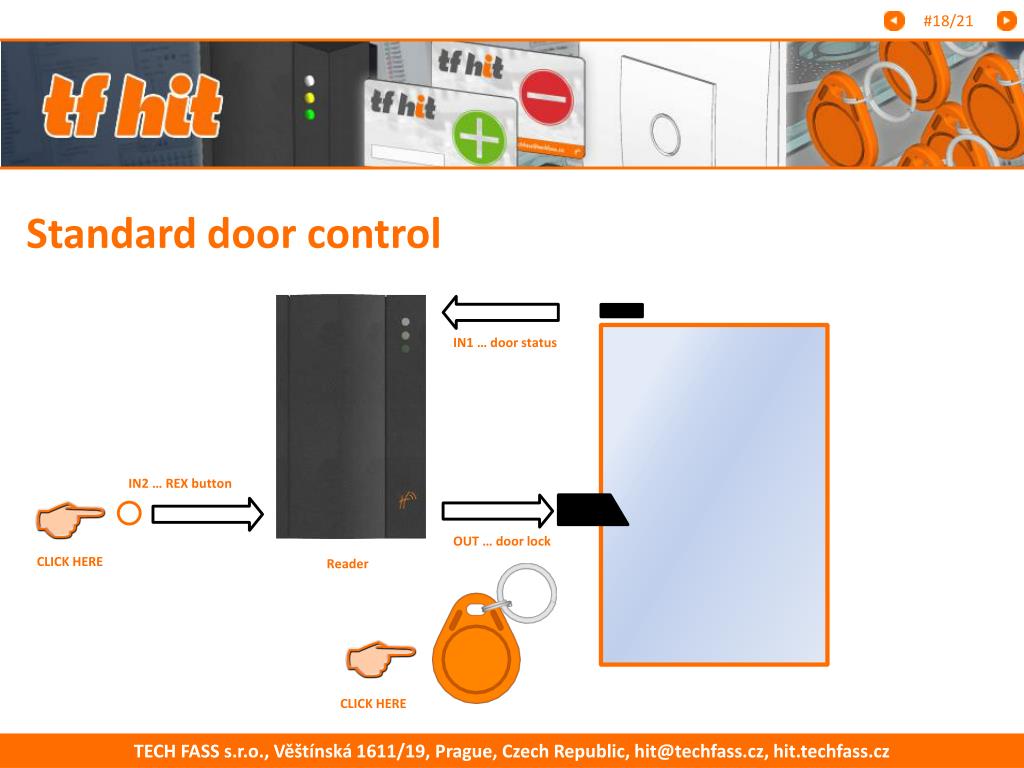

  18. #18/21 Standard door control IN1 … door status IN2 … REX button OUT … door lock Reader CLICK HERE CLICK HERE TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

  19. tf hit – typical applications

  20. #20/21 Typical applications Houses, flats, cottages Block of flats, apartment houses Small companies Hotels, pensions Parking control TECH FASS s.r.o., Věštínská 1611/19, Prague, Czech Republic, hit@techfass.cz, hit.techfass.cz

  21. Thank you for your attention
