  1. Pipelined Processor II (cont’d)CPSC 321 Andreas Klappenecker

  2. Pipelined Datapath Pipeline separation registers, width varies

  3. Control Lines • Instruction fetch: • control signal to read instruction memory and to write PC are always asserted - nothing special here • Instruction decode/register file read: • same thing happens every clock cycle, so no optional control lines to set • Execution/address calculation • RegDst selects the result register, • ALUOp selects the ALU operation • ALUSrc selects Read data 2 or sign-extd. immediate

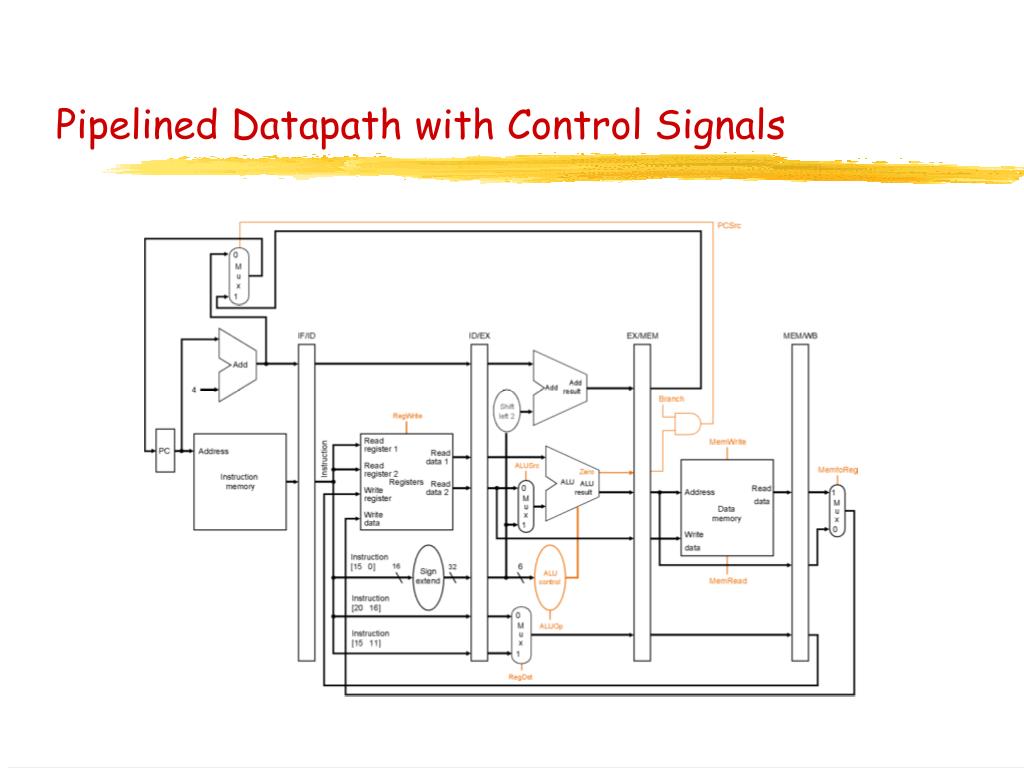

  4. Pipelined Datapath with Control Signals

  5. Control Lines • Memory access • Branch set by branch equal • MemRead set by load instructions • MemWrite set by store instructions • Write back • MemtoReg send ALU result or memory value • RegWrite selects register

  6. Pipelined Datapath with Control Signals

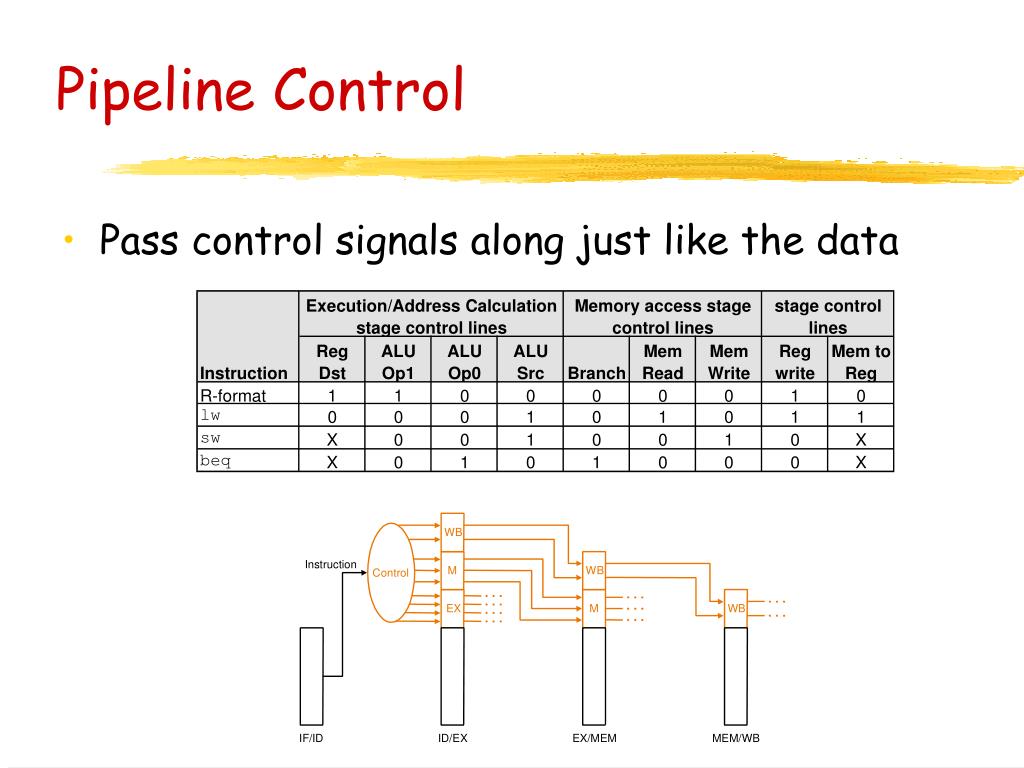

  7. Pipeline Control • Pass control signals along just like the data

  8. Datapath with Control

  9. Data Hazards • Assume that the compiler has to guarantee that no hazards occur • Where do we insert the “nops” ? sub $2, $1, $3 and $12, $2, $5 or $13, $6, $2 add $14, $2, $2 sw $15, 100($2)

  10. Dependencies Data hazard: a dependency that “goes backward in time”

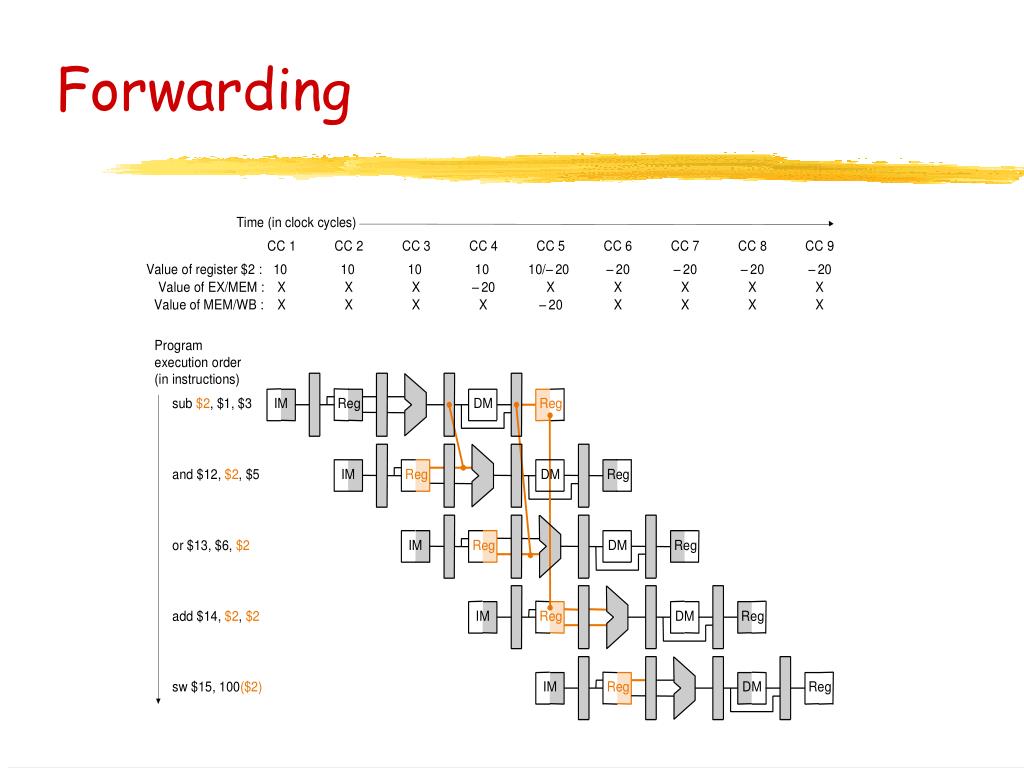

  11. Forwarding

  12. Forwarding

  13. Obstructions to Forwarding • Load word can still cause a hazard: an instruction trying to read a register following a load instruction writing to the same register. • Need a hazard detection unit to “stall” pipeline

  14. Hazard Detection Unit • Stall by letting an instruction that won’t write anything go forward

  15. Branch Hazards • When we decide to branch, other instructions are in thepipeline! • We are predicting “branch not taken” • need to add hardware for flushing instructions if we are wrong

  16. Flushing Instructions

  17. Dynamic Scheduling • The hardware performs the “scheduling” • hardware tries to find instructions to execute • out of order execution is possible • speculative execution and dynamic branch prediction • All modern processors are very complicated • DEC Alpha 21264: 9 stage pipeline, 6 instruction issue • PowerPC and Pentium: branch history table • Compiler technology important • This class has given you the background you need to learn more - read Chapter 6! • More material will be posted!
