  1. Physics for Games Programmers Problem Overview Squirrel EiserlohTechnical DirectorRitual Entertainmentsquirrel@eiserloh.netwww.ritual.comwww.algds.org

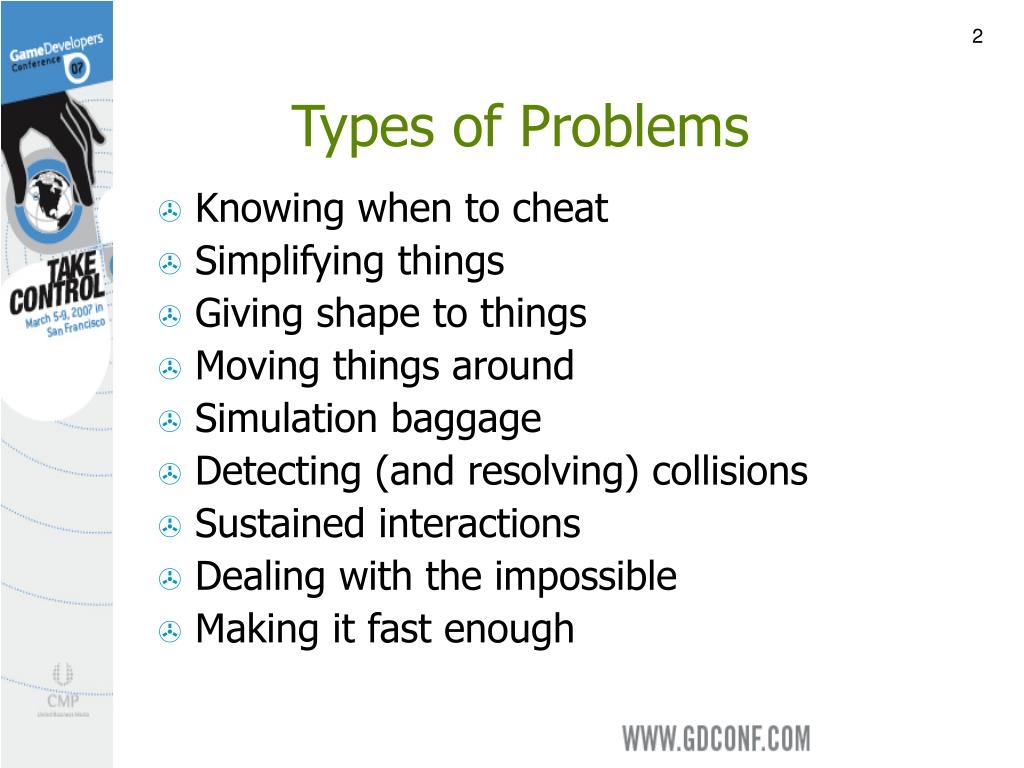

  2. Types of Problems • Knowing when to cheat • Simplifying things • Giving shape to things • Moving things around • Simulation baggage • Detecting (and resolving) collisions • Sustained interactions • Dealing with the impossible • Making it fast enough

  3. Knowing When To Cheat

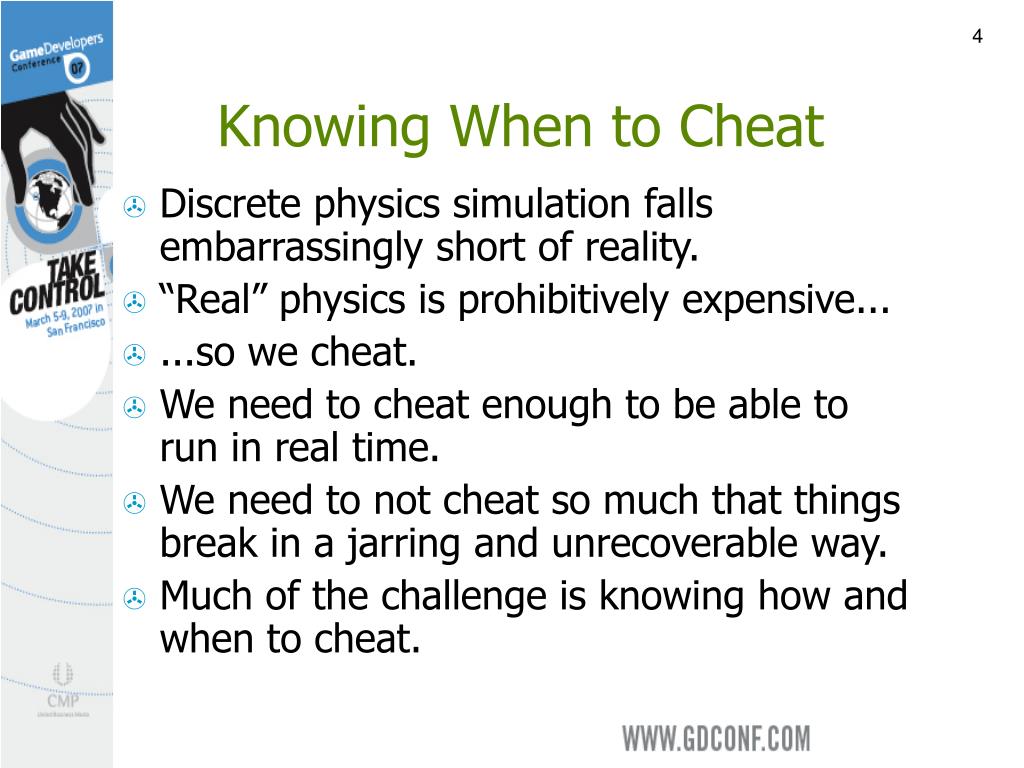

  4. Knowing When to Cheat • Discrete physics simulation falls embarrassingly short of reality. • “Real” physics is prohibitively expensive... • ...so we cheat. • We need to cheat enough to be able to run in real time. • We need to not cheat so much that things break in a jarring and unrecoverable way. • Much of the challenge is knowing how and when to cheat.

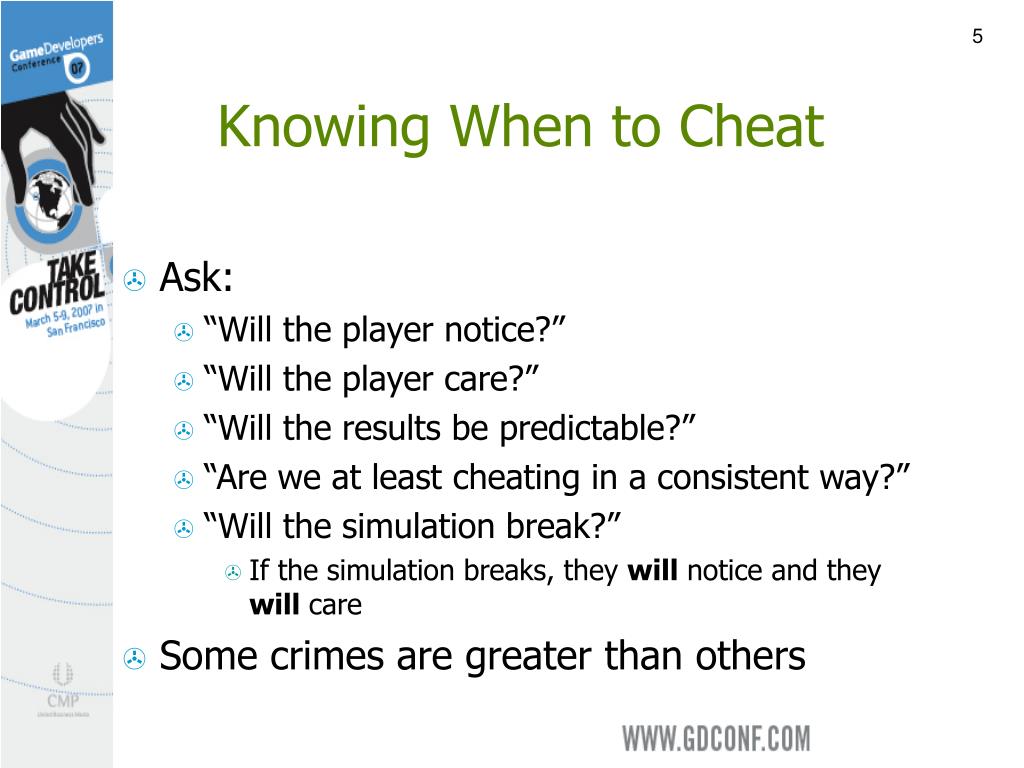

  5. Knowing When to Cheat • Ask: • “Will the player notice?” • “Will the player care?” • “Will the results be predictable?” • “Are we at least cheating in a consistent way?” • “Will the simulation break?” • If the simulation breaks, they will notice and they will care • Some crimes are greater than others

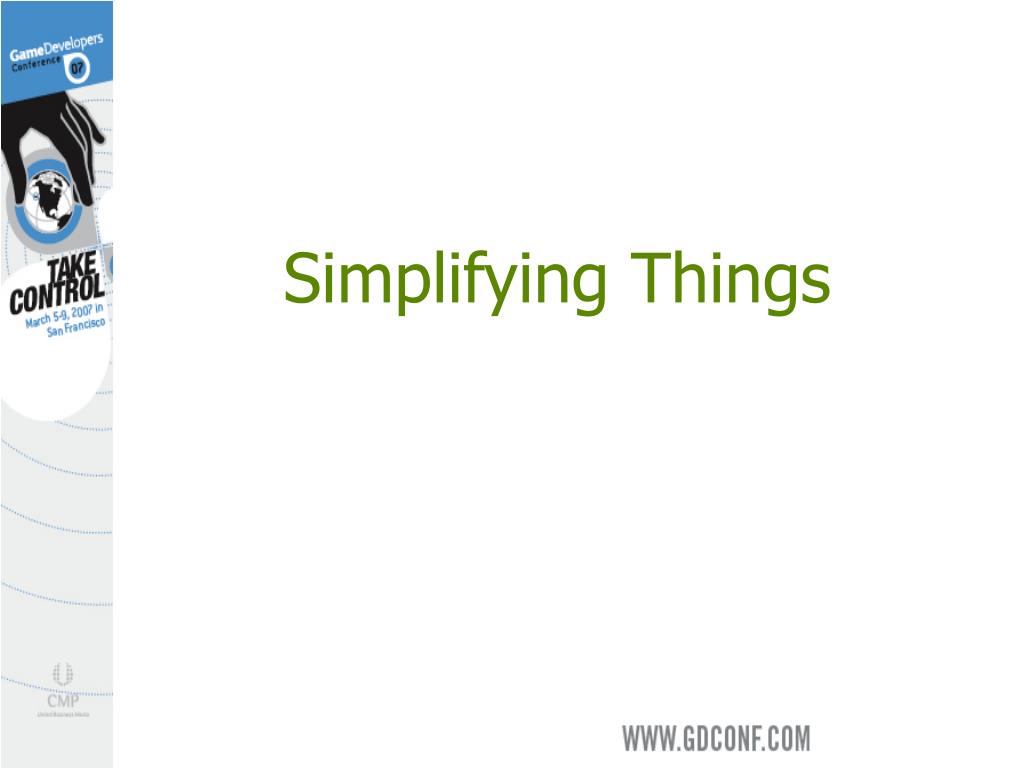

  6. Simplifying Things

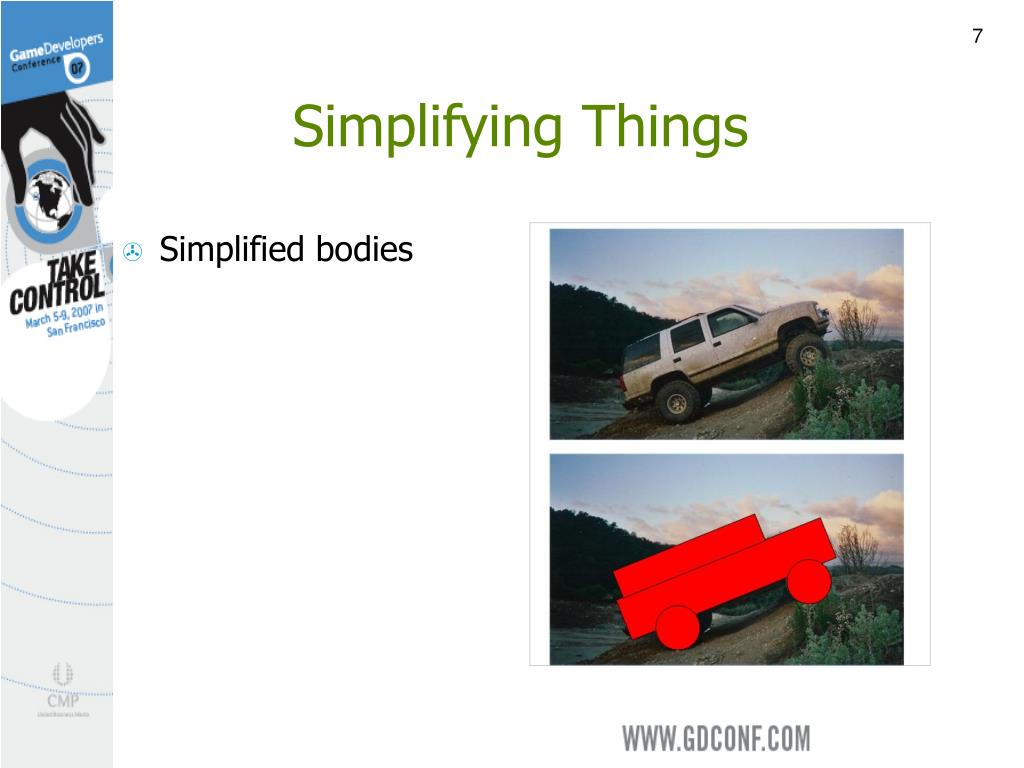

  7. Simplifying Things • Simplified bodies

  8. Simplifying Things • Simplified bodies • Even more simplified bodies

  9. Simplifying Things • Simplified bodies • Even more simplified bodies • Convex bodies

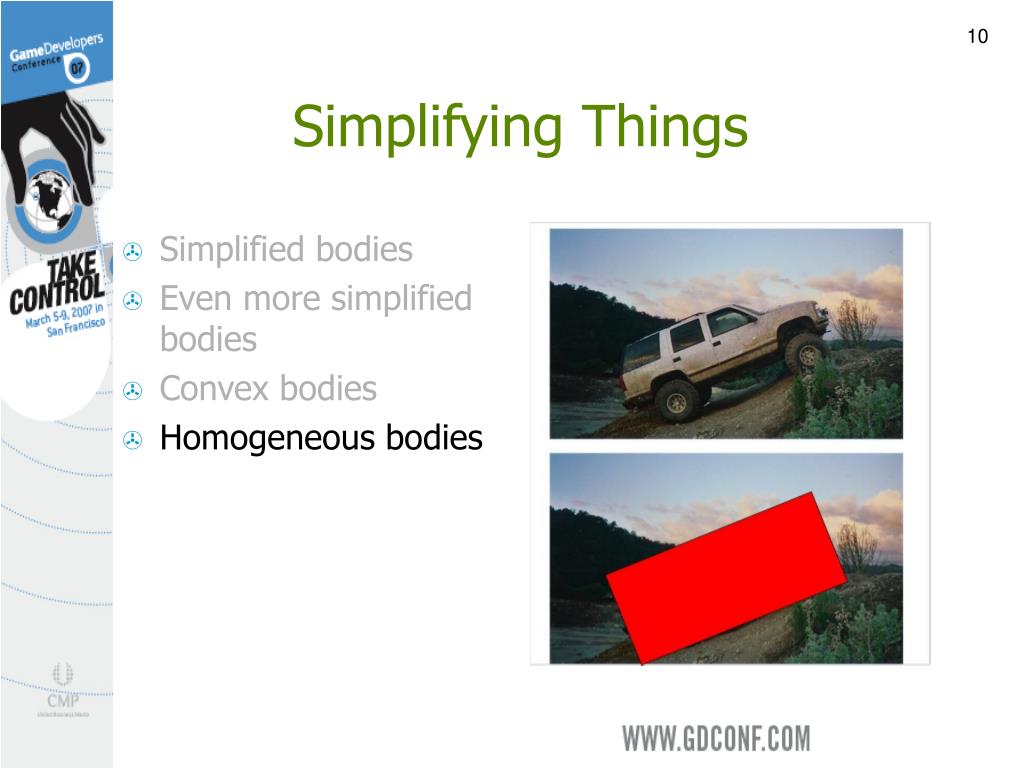

  10. Simplifying Things • Simplified bodies • Even more simplified bodies • Convex bodies • Homogeneous bodies

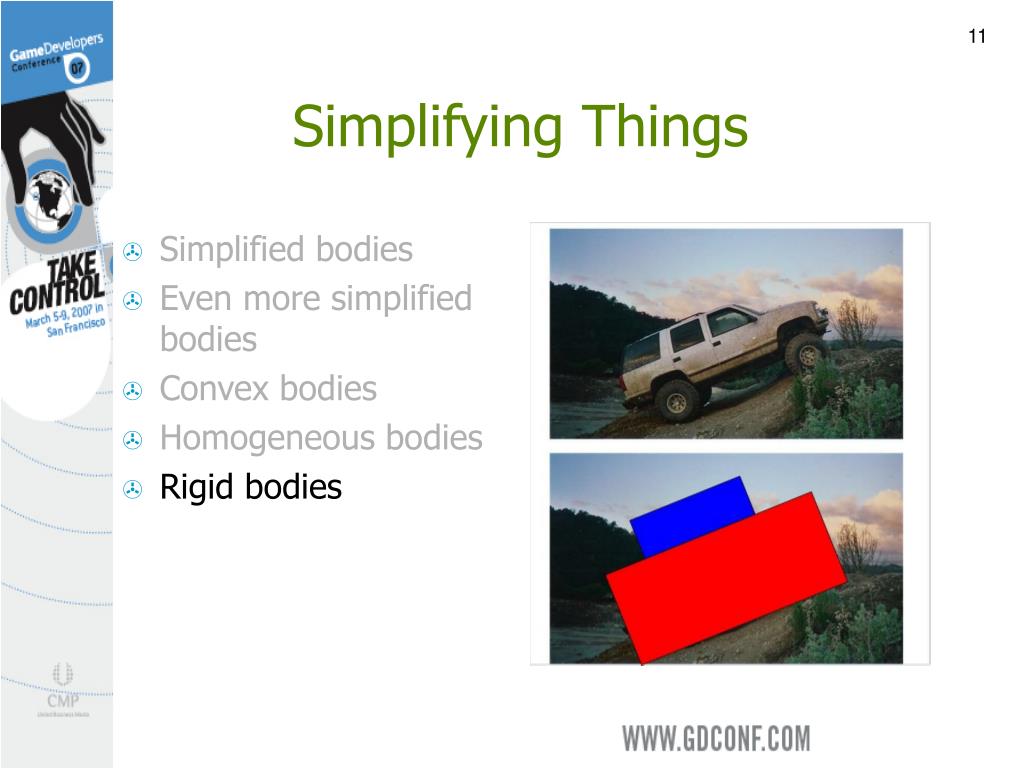

  11. Simplifying Things • Simplified bodies • Even more simplified bodies • Convex bodies • Homogeneous bodies • Rigid bodies

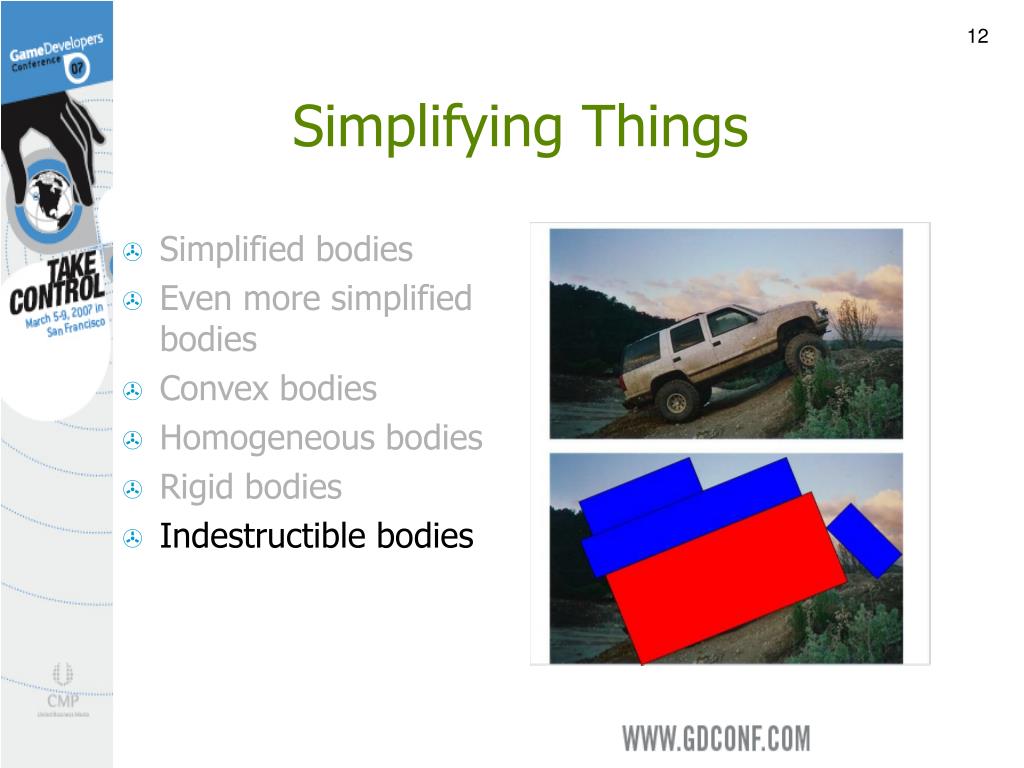

  12. Simplifying Things • Simplified bodies • Even more simplified bodies • Convex bodies • Homogeneous bodies • Rigid bodies • Indestructible bodies

  13. Simplifying Things • Movement is often assumed to be in a vacuum (ignoring air resistance) • Even when air resistance does get simulated, it is hugely oversimplified

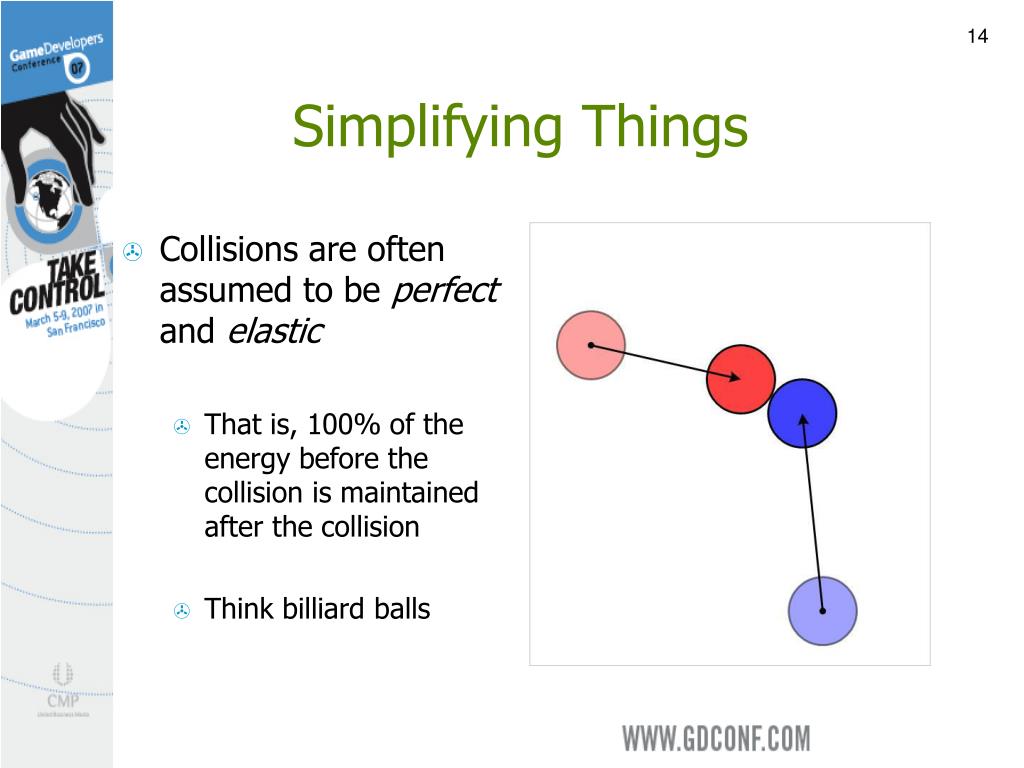

  14. Simplifying Things • Collisions are often assumed to be perfect and elastic • That is, 100% of the energy before the collision is maintained after the collision • Think billiard balls

  15. Giving Shape to Things

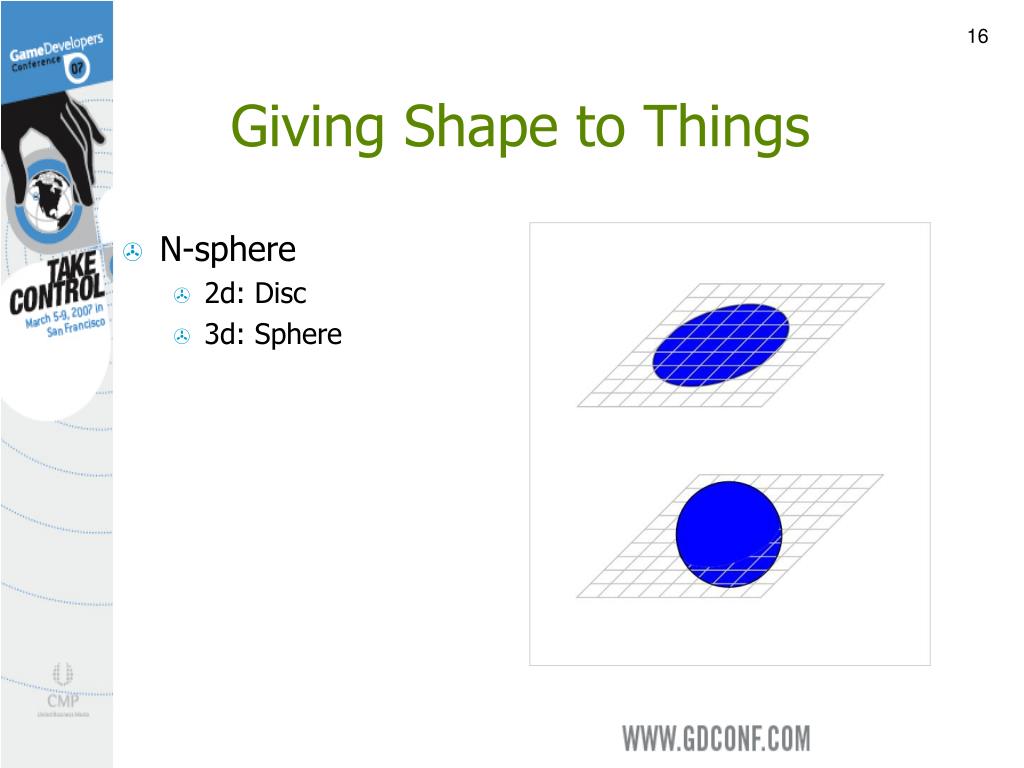

  16. Giving Shape to Things • N-sphere • 2d: Disc • 3d: Sphere

  17. Giving Shape to Things • N-sphere • 2d: Disc • 3d: Sphere • Simplex • 2d: Triangle • 3d: Tetrahedron

  18. Giving Shape to Things • N-sphere • 2d: Disc • 3d: Sphere • Simplex • 2d: Triangle • 3d: Tetrahedron • Convex Polytope • 2d: Convex Polygon • 3d: Convex Polyhedron • a.k.a. “Convex Hull” • a.k.a. “Brush” (Quake)

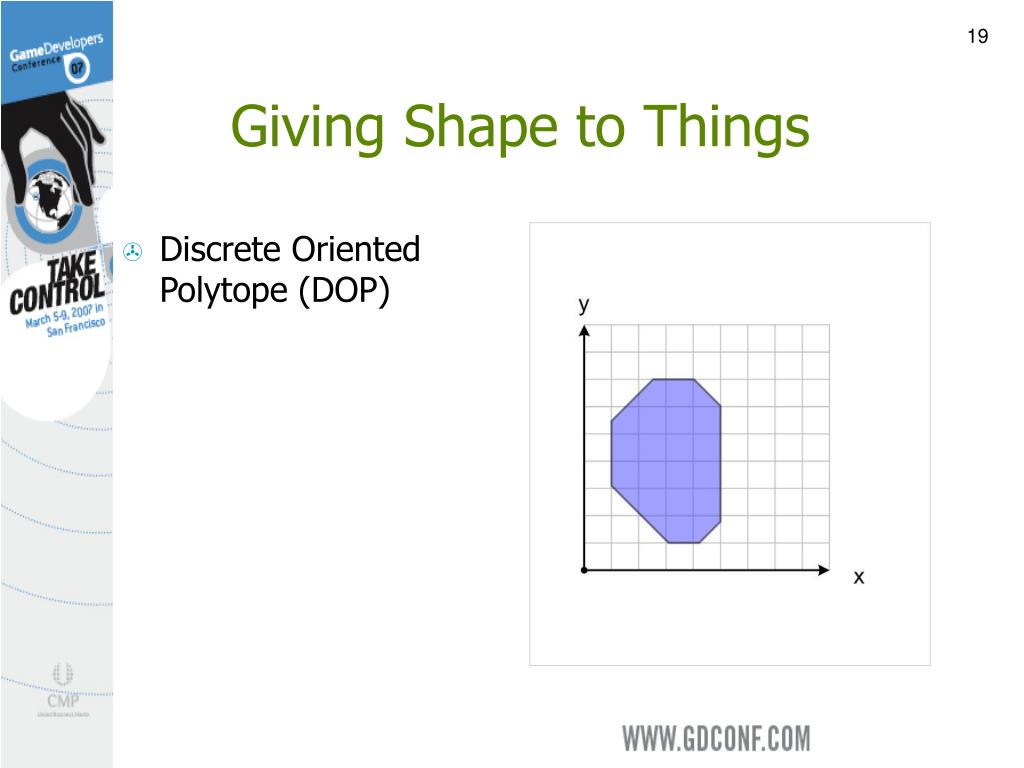

  19. Giving Shape to Things • Discrete Oriented Polytope (DOP)

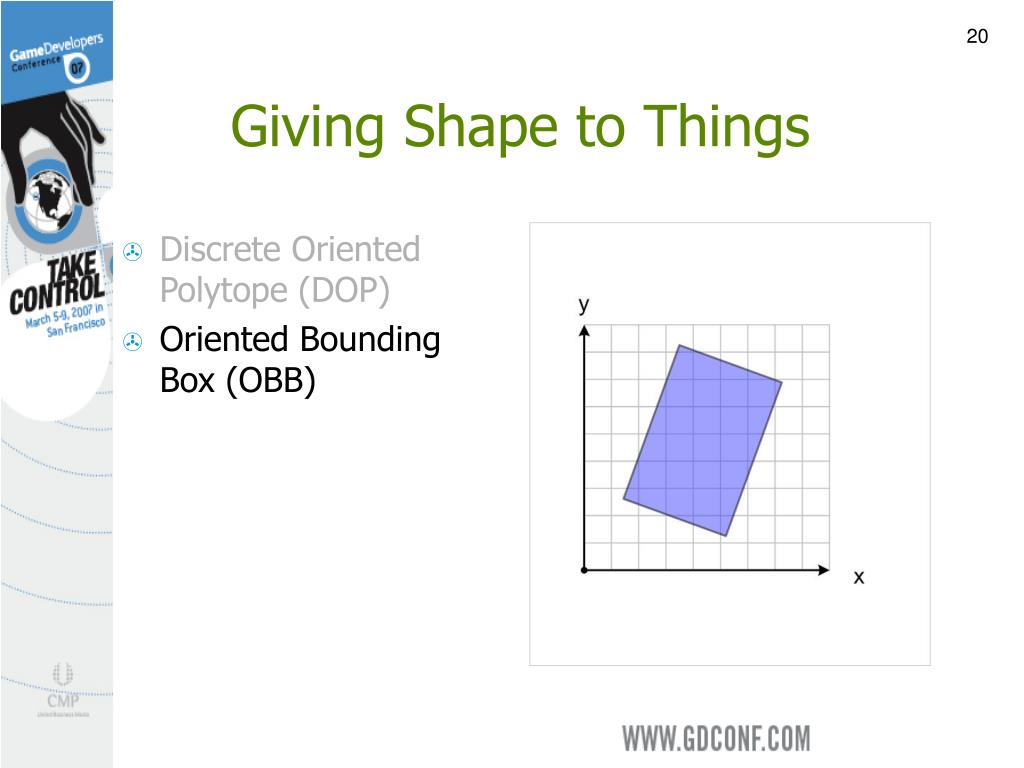

  20. Giving Shape to Things • Discrete Oriented Polytope (DOP) • Oriented Bounding Box (OBB)

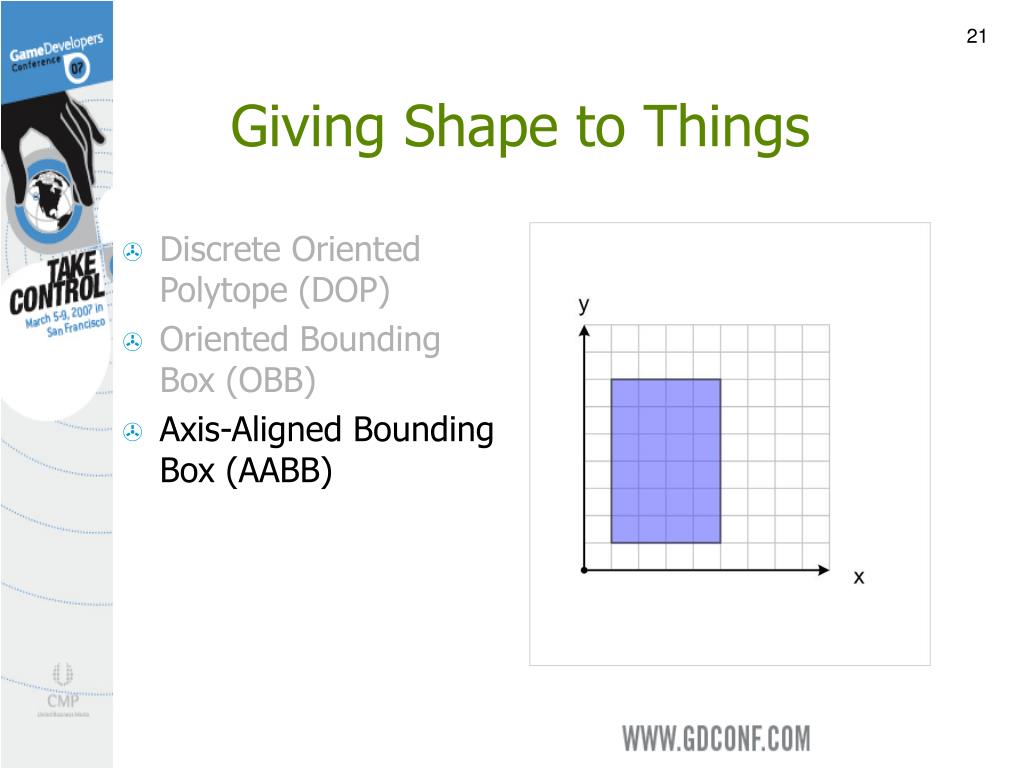

  21. Giving Shape to Things • Discrete Oriented Polytope (DOP) • Oriented Bounding Box (OBB) • Axis-Aligned Bounding Box (AABB)

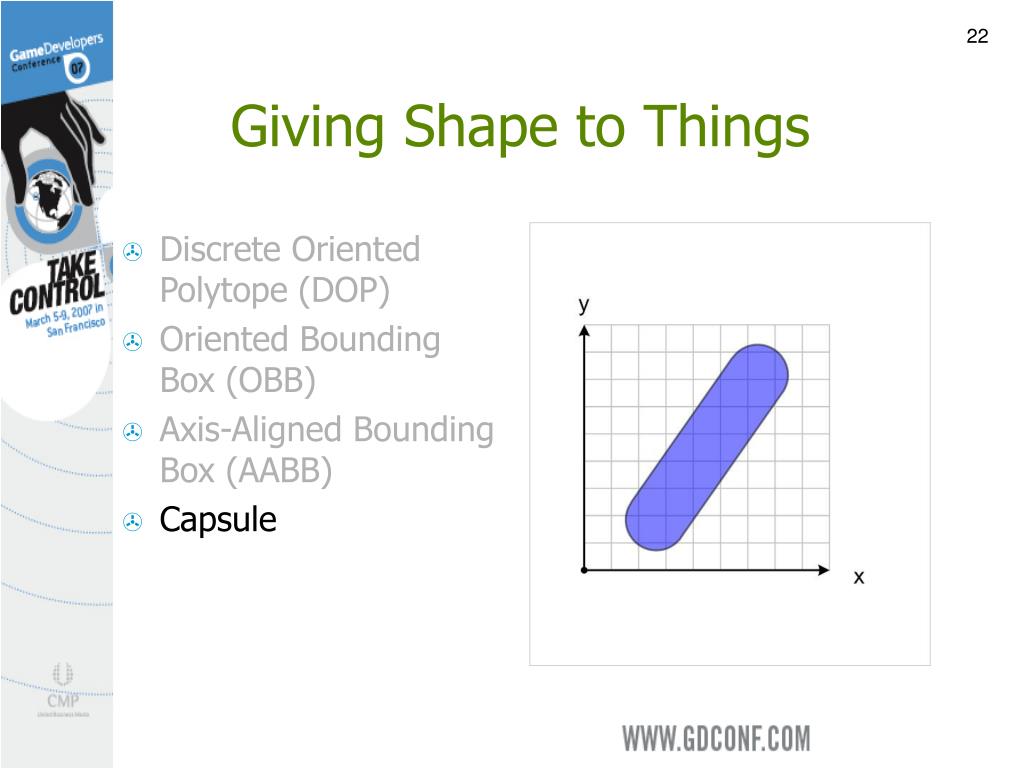

  22. Giving Shape to Things • Discrete Oriented Polytope (DOP) • Oriented Bounding Box (OBB) • Axis-Aligned Bounding Box (AABB) • Capsule

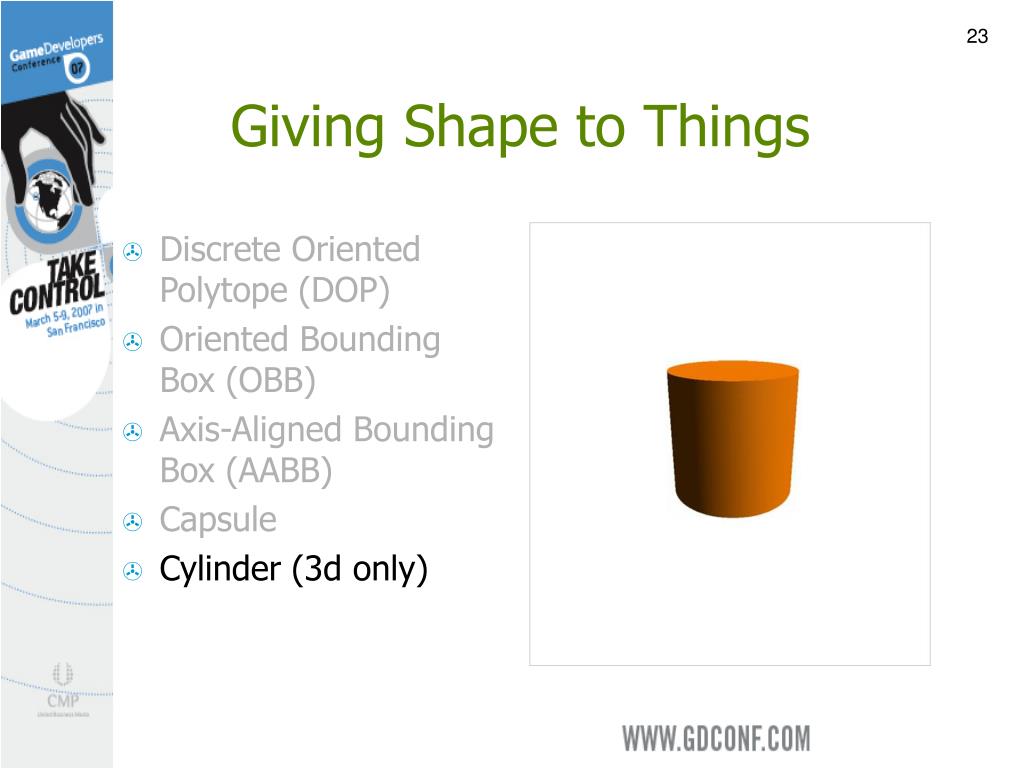

  23. Giving Shape to Things • Discrete Oriented Polytope (DOP) • Oriented Bounding Box (OBB) • Axis-Aligned Bounding Box (AABB) • Capsule • Cylinder (3d only)

  24. Moving Things Around

  25. Moving Things Around • Kinematics • Describes motion • Uses position, velocity, momentum, acceleration

  26. Moving Things Around • Kinematics • Describes motion • Uses position, velocity, momentum, acceleration • Dynamics • Explains motion • Uses forces • ...and impulses

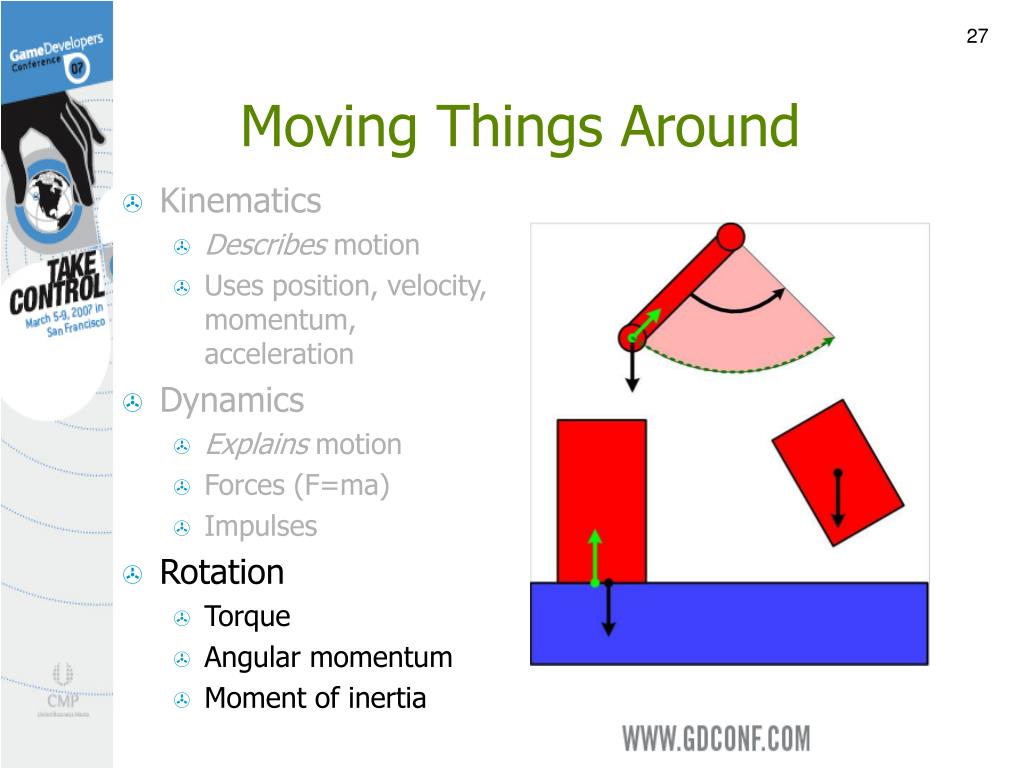

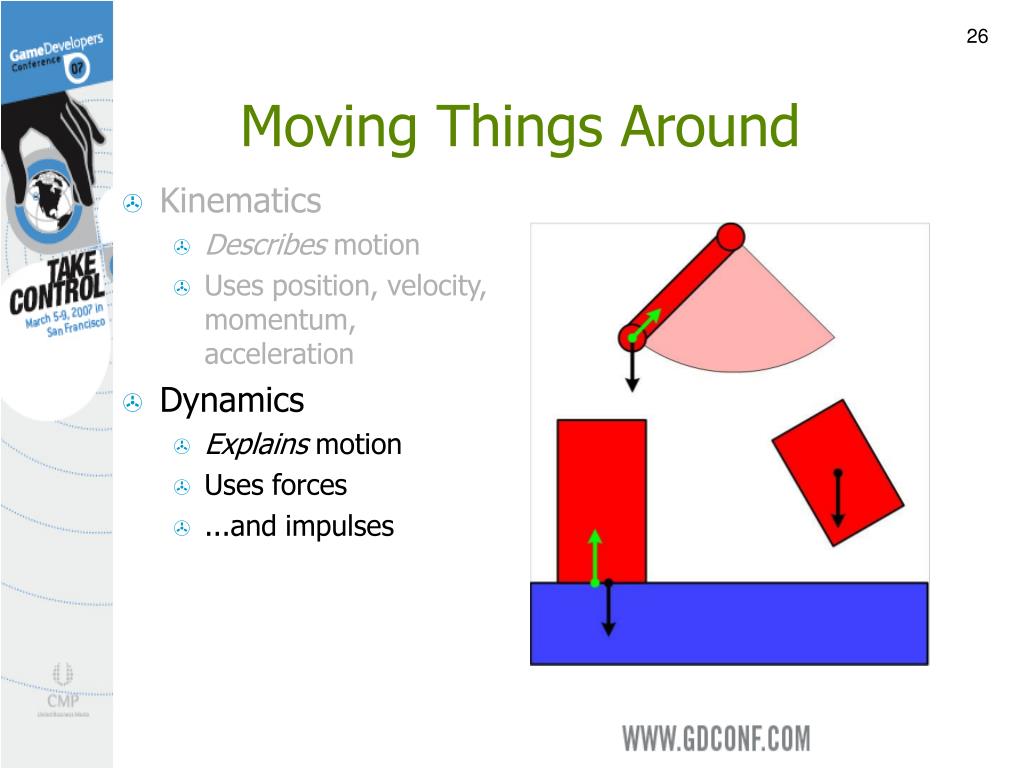

  27. Moving Things Around • Kinematics • Describes motion • Uses position, velocity, momentum, acceleration • Dynamics • Explains motion • Forces (F=ma) • Impulses • Rotation • Torque • Angular momentum • Moment of inertia

  28. Simulation Baggage

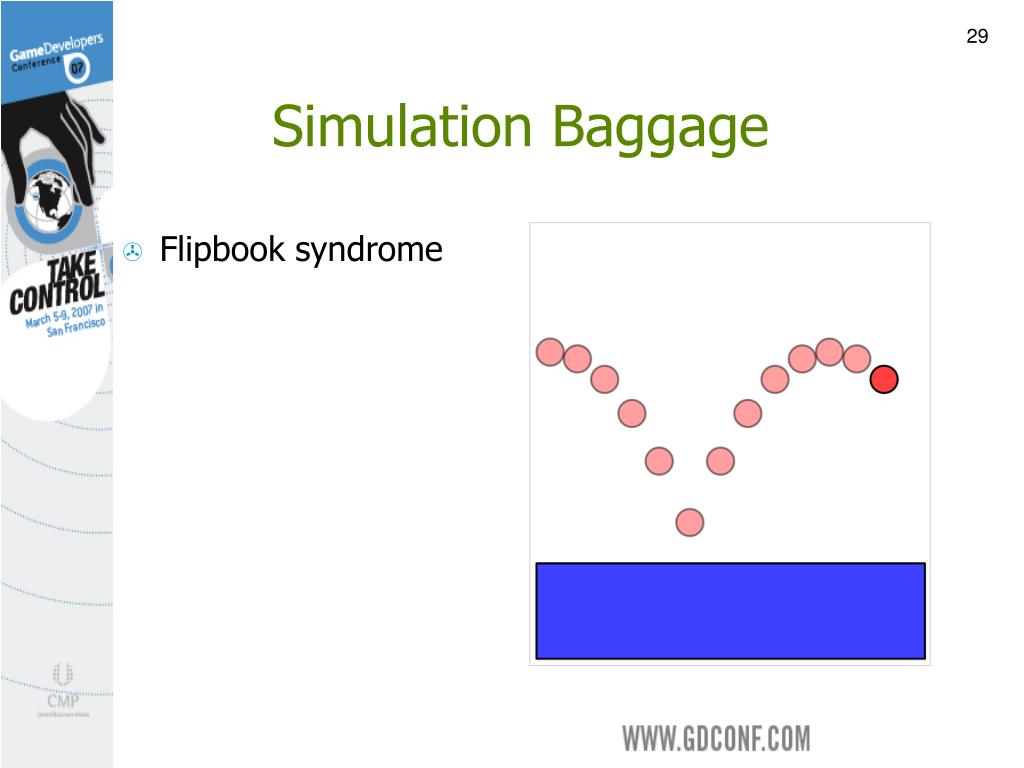

  29. Simulation Baggage • Flipbook syndrome

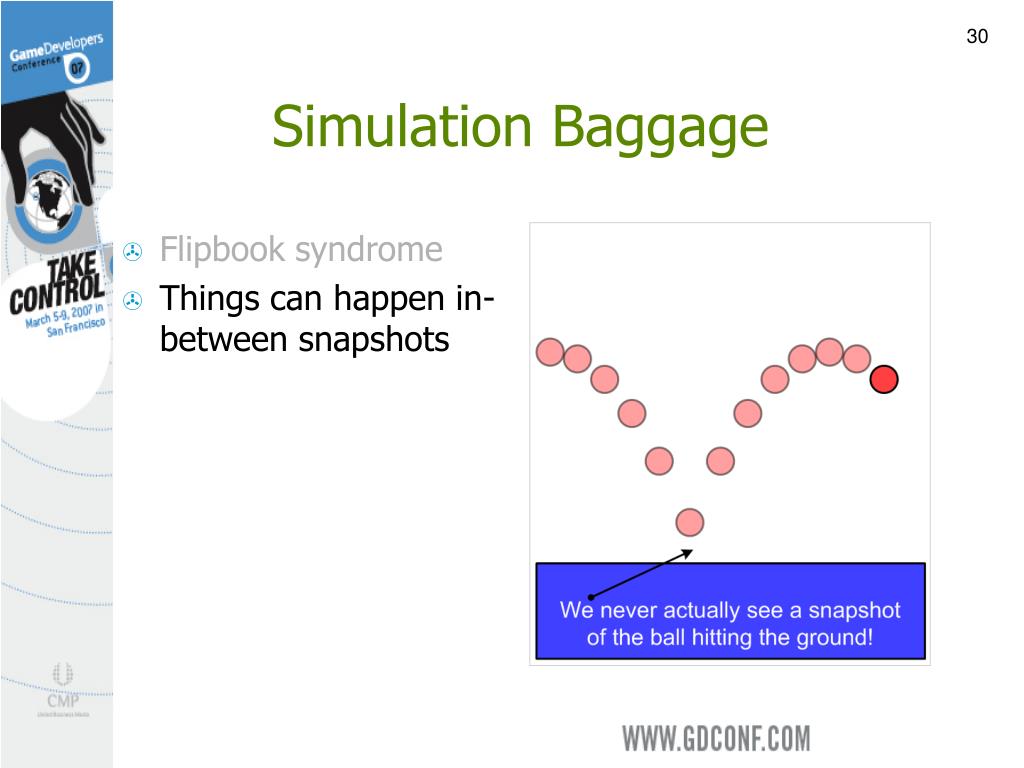

  30. Simulation Baggage • Flipbook syndrome • Things can happen in-between snapshots

  31. Simulation Baggage • Flipbook syndrome • Things mostly happen in-between snapshots

  32. Simulation Baggage • Flipbook syndrome • Things mostly happen in-between snapshots • Curved trajectories treated as piecewise linear

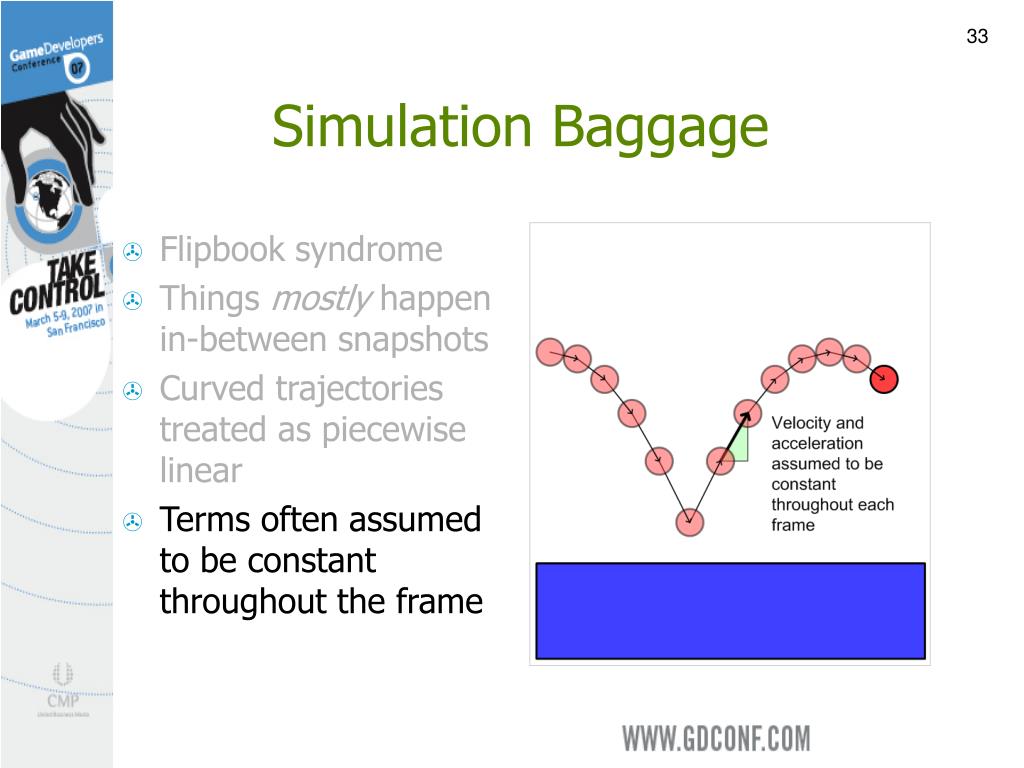

  33. Simulation Baggage • Flipbook syndrome • Things mostly happen in-between snapshots • Curved trajectories treated as piecewise linear • Terms often assumed to be constant throughout the frame

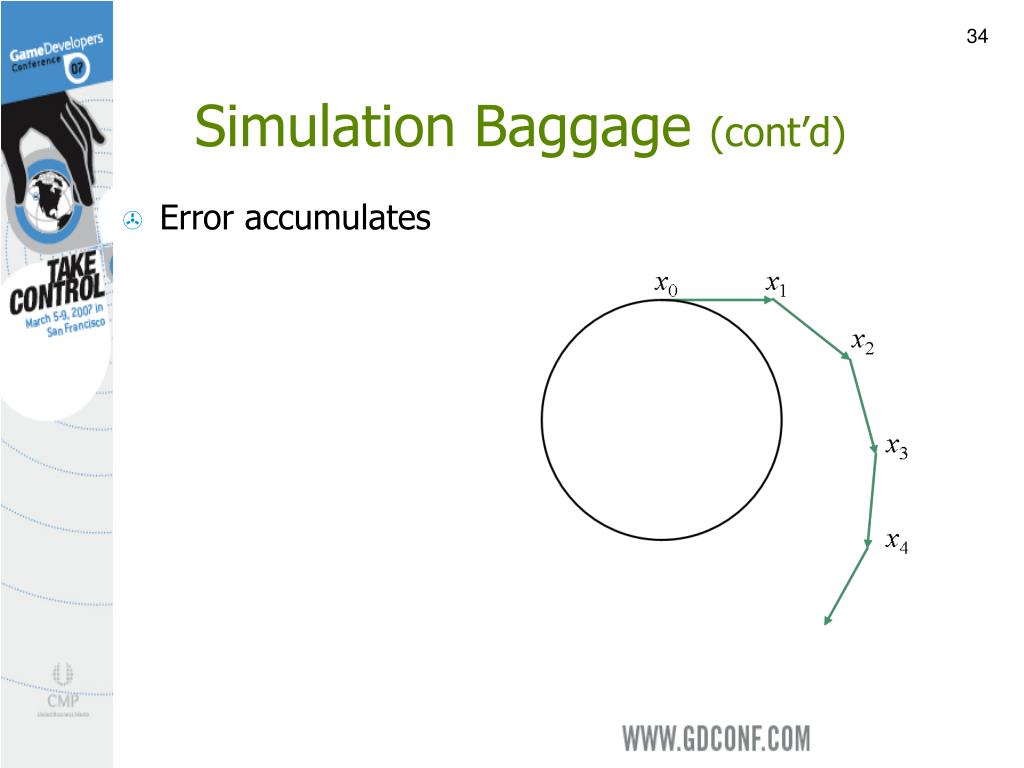

  34. Simulation Baggage (cont’d) • Error accumulates

  35. Simulation Baggage (cont’d) • Error accumulates • Energy is not always conserved • Energy loss can be undesirable • Energy gain is evil • Simulations explode!

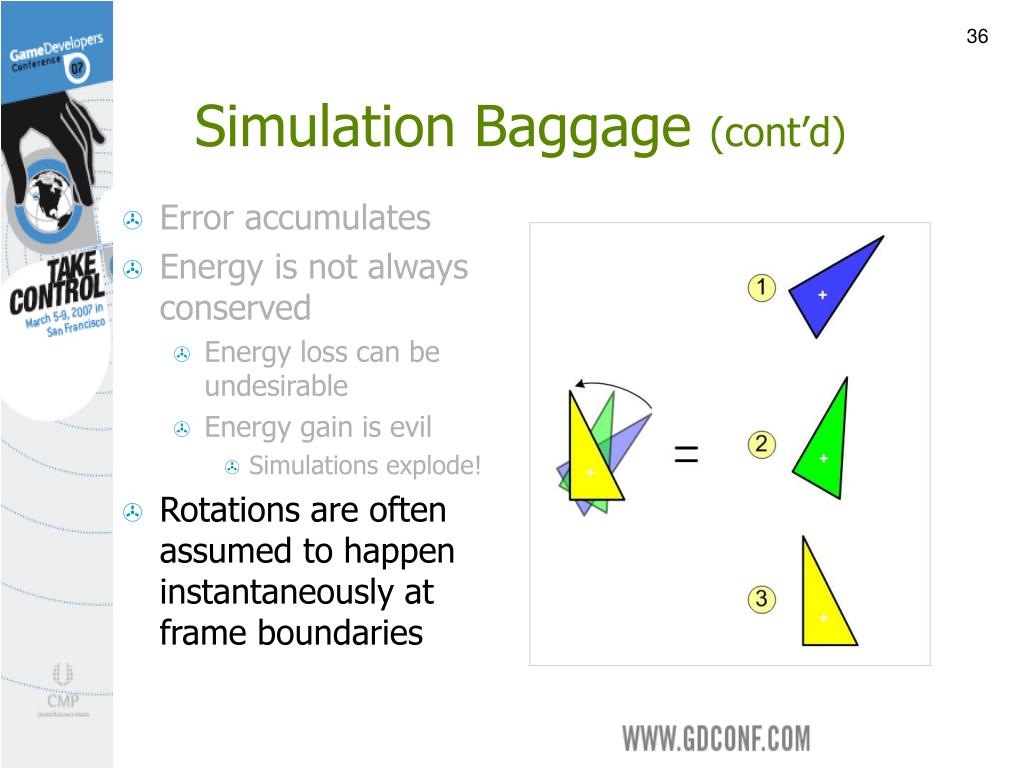

  36. Simulation Baggage (cont’d) • Error accumulates • Energy is not always conserved • Energy loss can be undesirable • Energy gain is evil • Simulations explode! • Rotations are often assumed to happen instantaneously at frame boundaries

  37. Simulation Baggage (cont’d) • Error accumulates • Energy is not always conserved • Energy loss can be undesirable • Energy gain is evil • Simulations explode! • Rotations are often assumed to happen instantaneously at frame boundaries • Numerical nightmares!

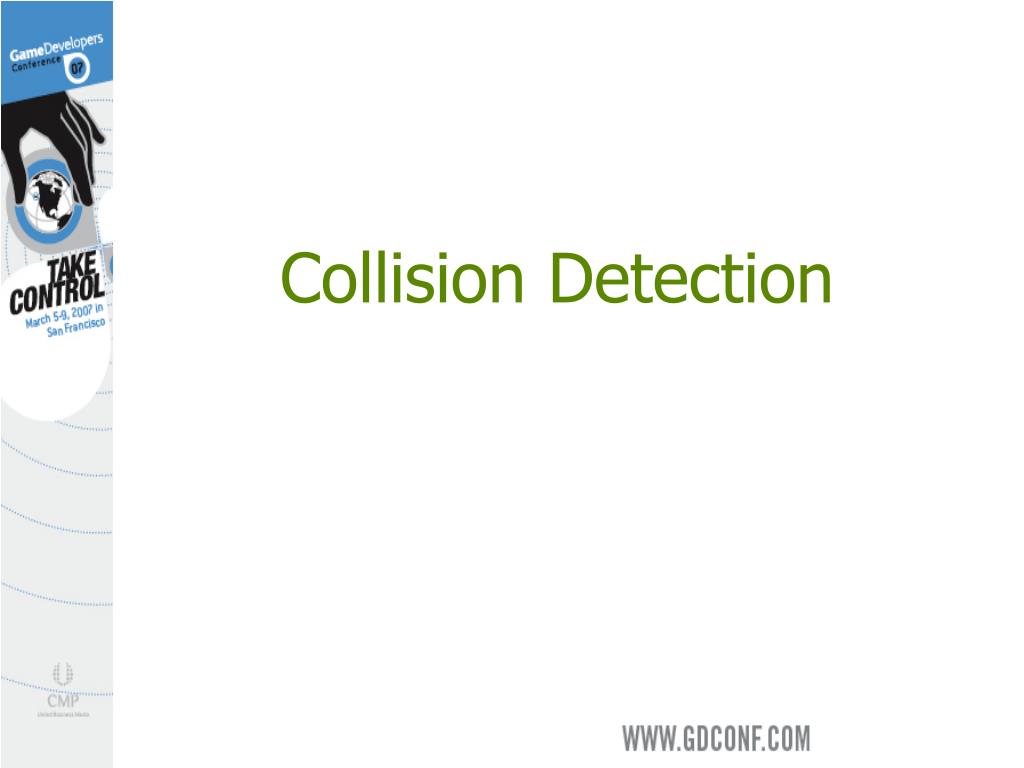

  38. Collision Detection

  39. Collision Detection • We need to determine if A and B intersect

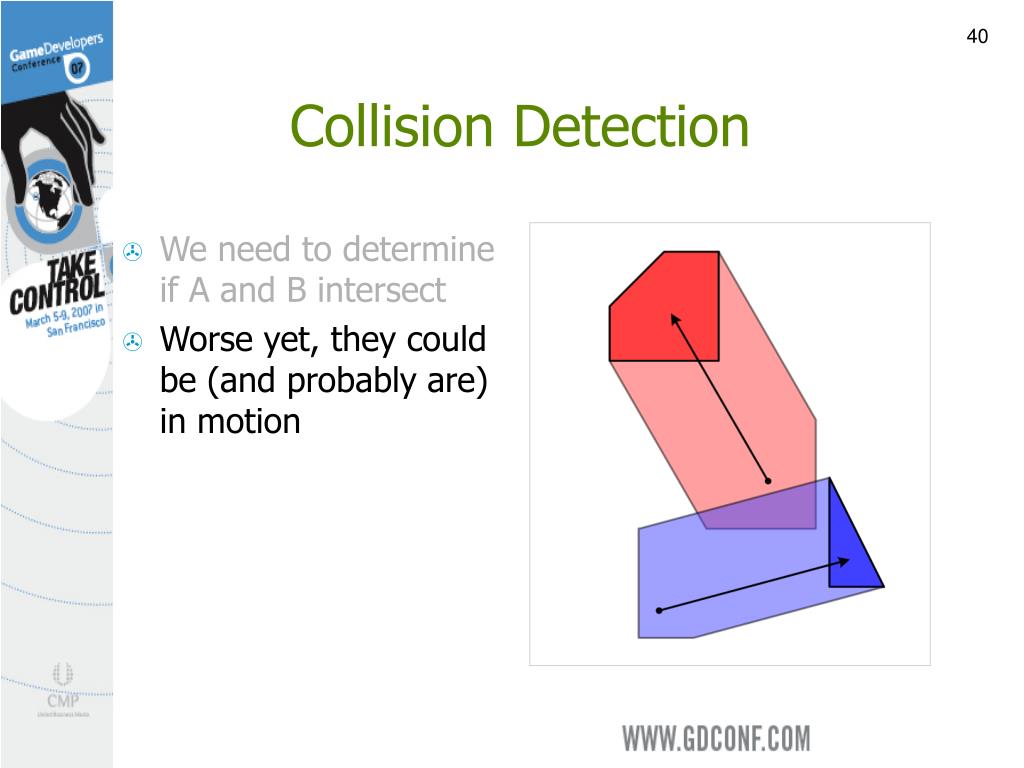

  40. Collision Detection • We need to determine if A and B intersect • Worse yet, they could be (and probably are) in motion

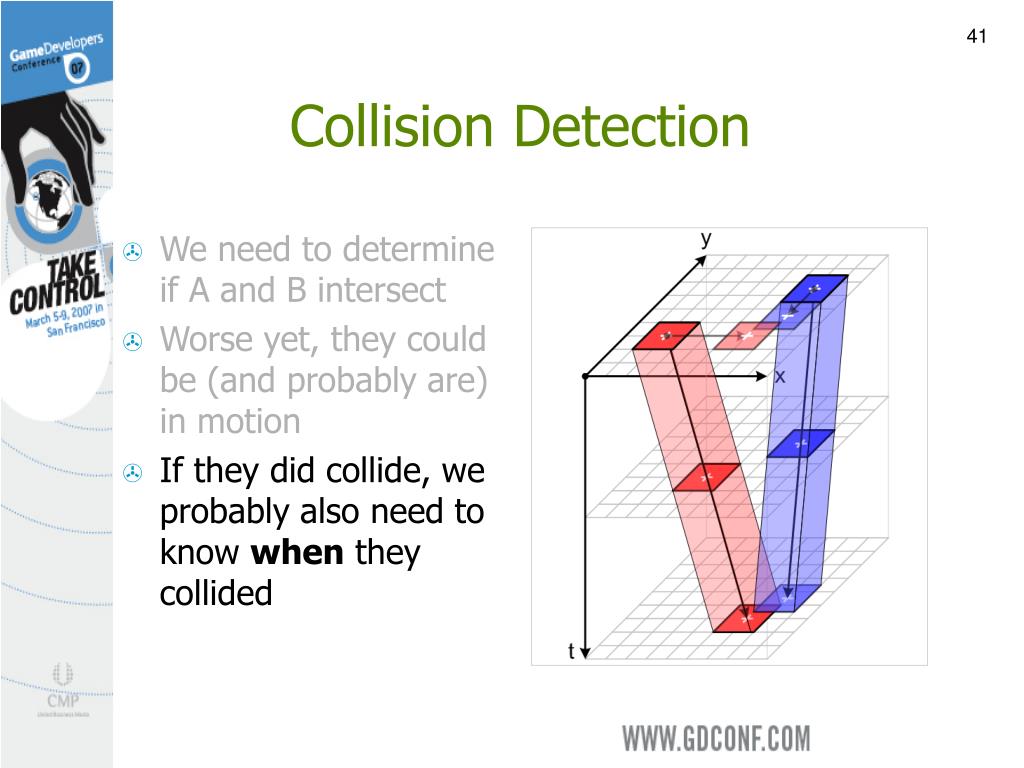

  41. Collision Detection • We need to determine if A and B intersect • Worse yet, they could be (and probably are) in motion • If they did collide, we probably also need to know when they collided

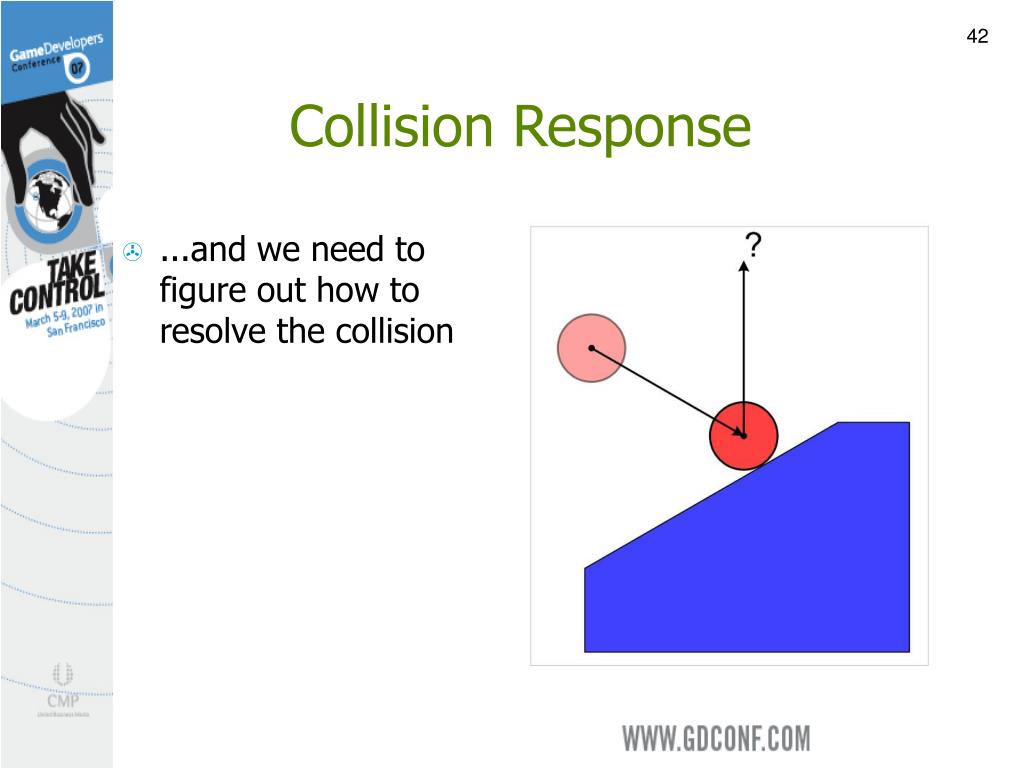

  42. Collision Response • ...and we need to figure out how to resolve the collision

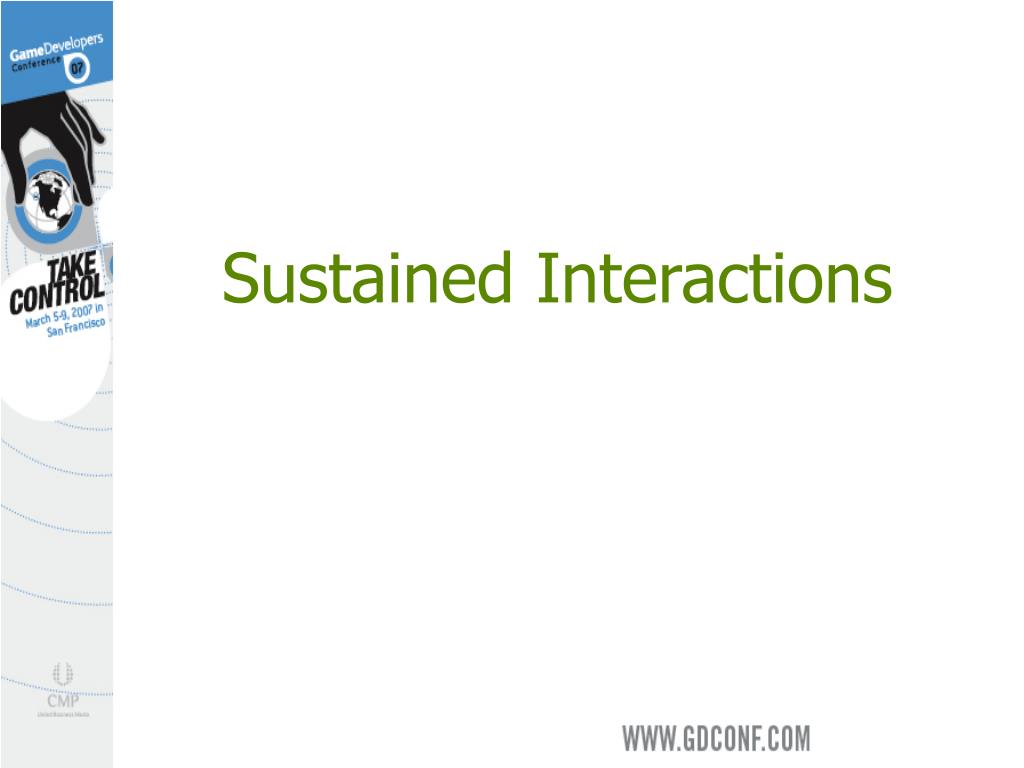

  43. Sustained Interactions

  44. Sustained Interactions • Surface contact

  45. Sustained Interactions • Surface contact • Edge contact

  46. Sustained Interactions • Surface contact • Edge contact • Contact points

  47. Sustained Interactions • Surface contact • Edge contact • Contact points • Different solutions

  48. Sustained Interactions • Surface contact • Edge contact • Contact points • Different solutions • Stacking

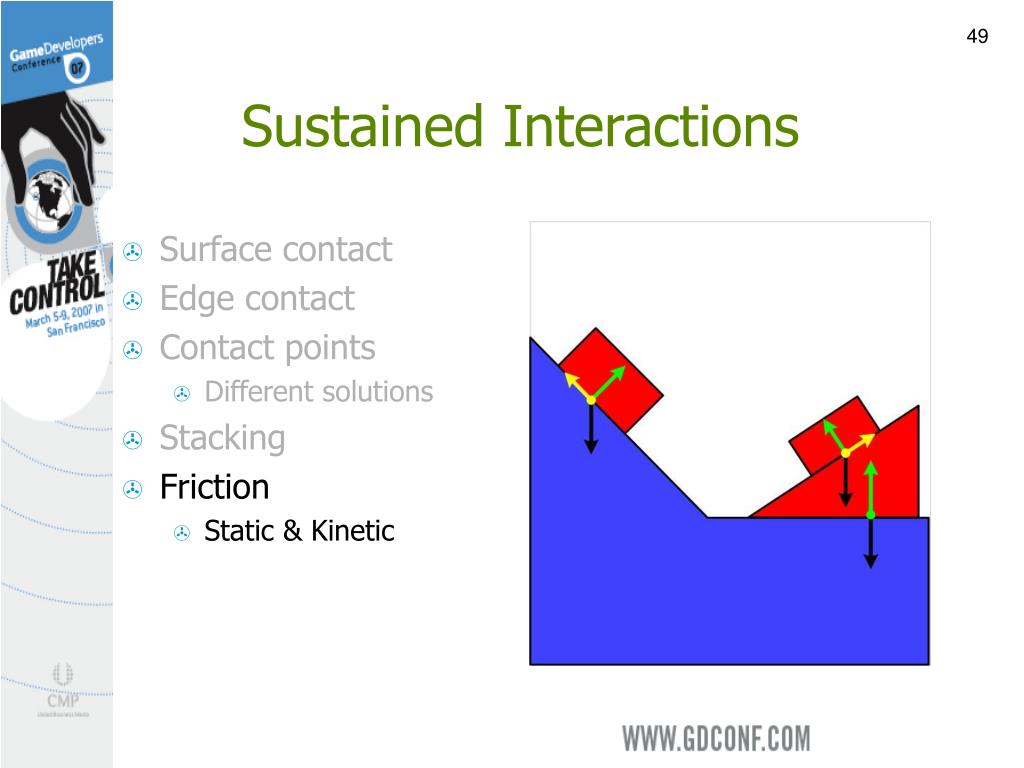

  49. Sustained Interactions • Surface contact • Edge contact • Contact points • Different solutions • Stacking • Friction • Static & Kinetic

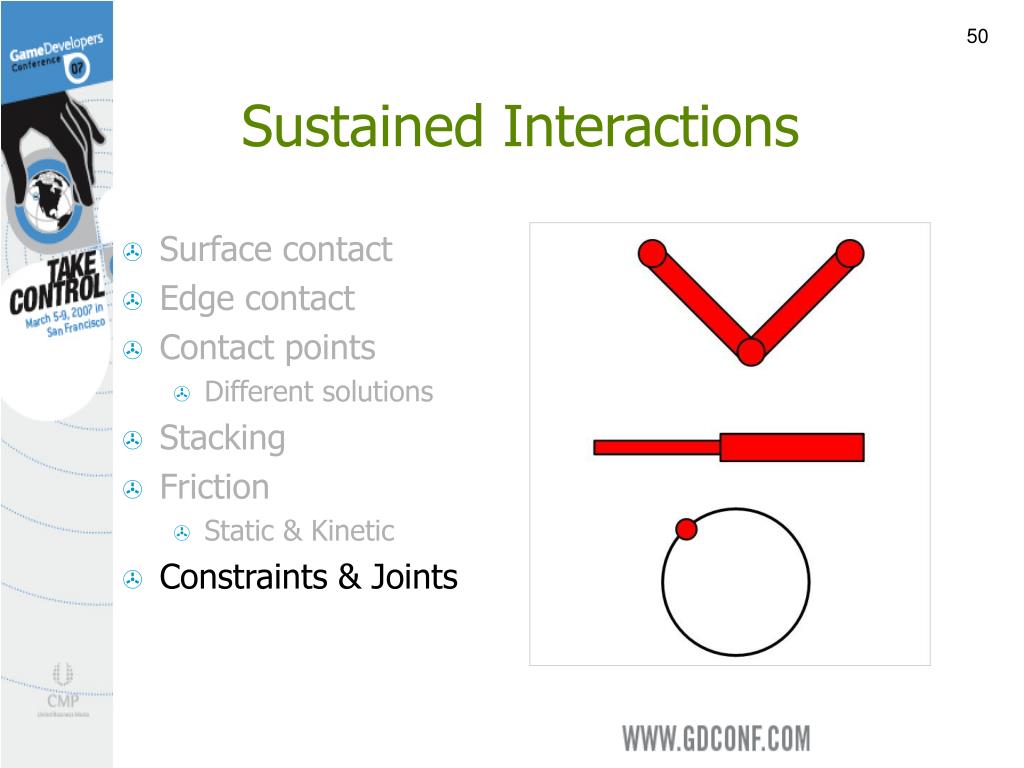

  50. Sustained Interactions • Surface contact • Edge contact • Contact points • Different solutions • Stacking • Friction • Static & Kinetic • Constraints & Joints
