  1. CHAPTER 5-2 5.10 ~ 5.15

  2. 5.10 Polysilicon Depletion

  3. 5.10 Polysilicon Depletion 5.10.1 5.10.2 5.10.3 5.10.4

  4. 5.10 Polysilicon Depletion 5.10.5 5.10.6 5.10.7 5.10.8 5.10.9 5.10.10 5.10.11

  5. 5.10 Polysilicon Depletion 5.10.12 5.10.13 5.10.14

  6. 5.10 Polysilicon Depletion

  7. 5.11 Quantum Mechanical Effects

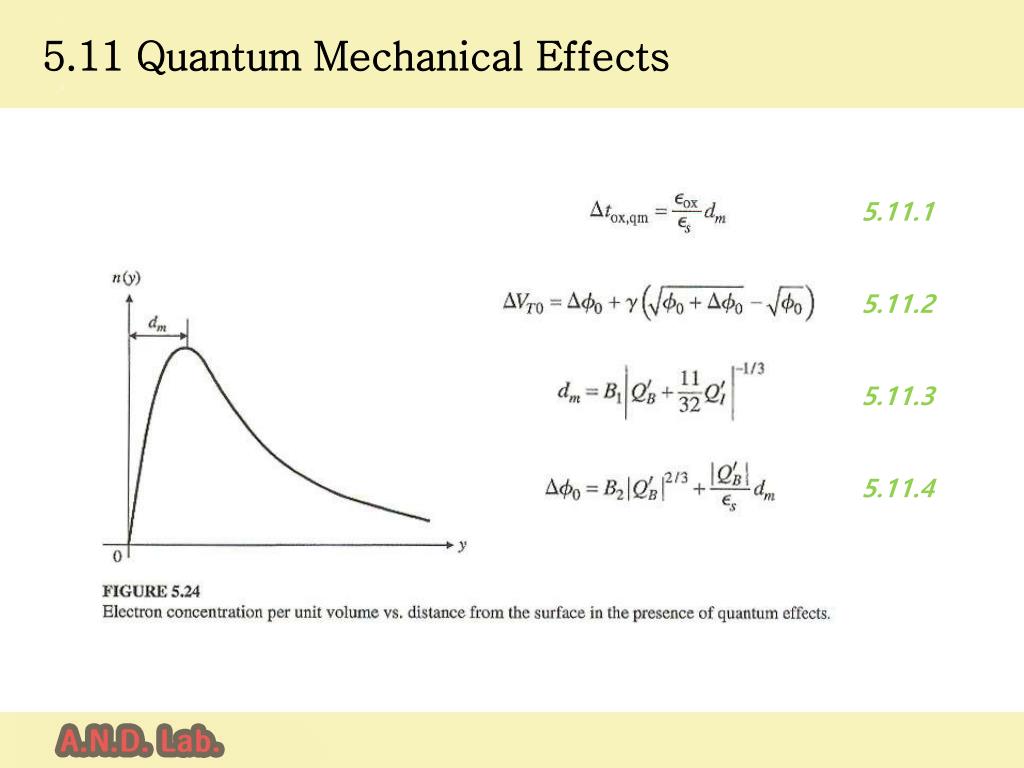

  8. 5.11 Quantum Mechanical Effects 5.11.1 5.11.2 5.11.3 5.11.4

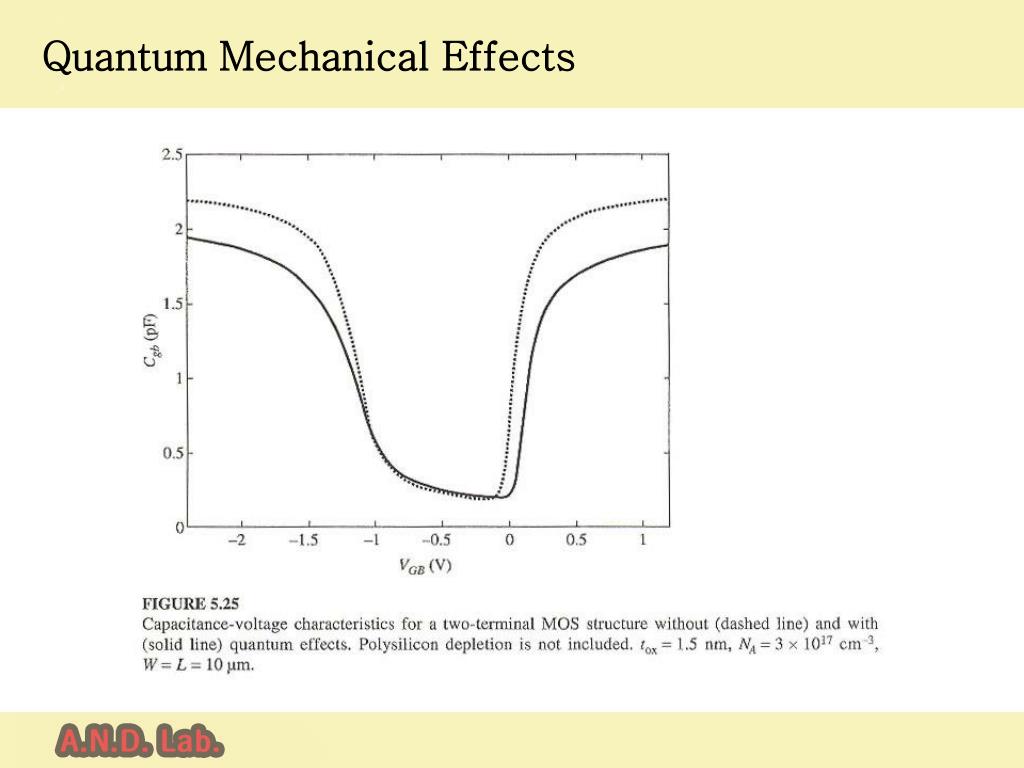

  9. Quantum Mechanical Effects

  10. 5.12 DC Gate Current

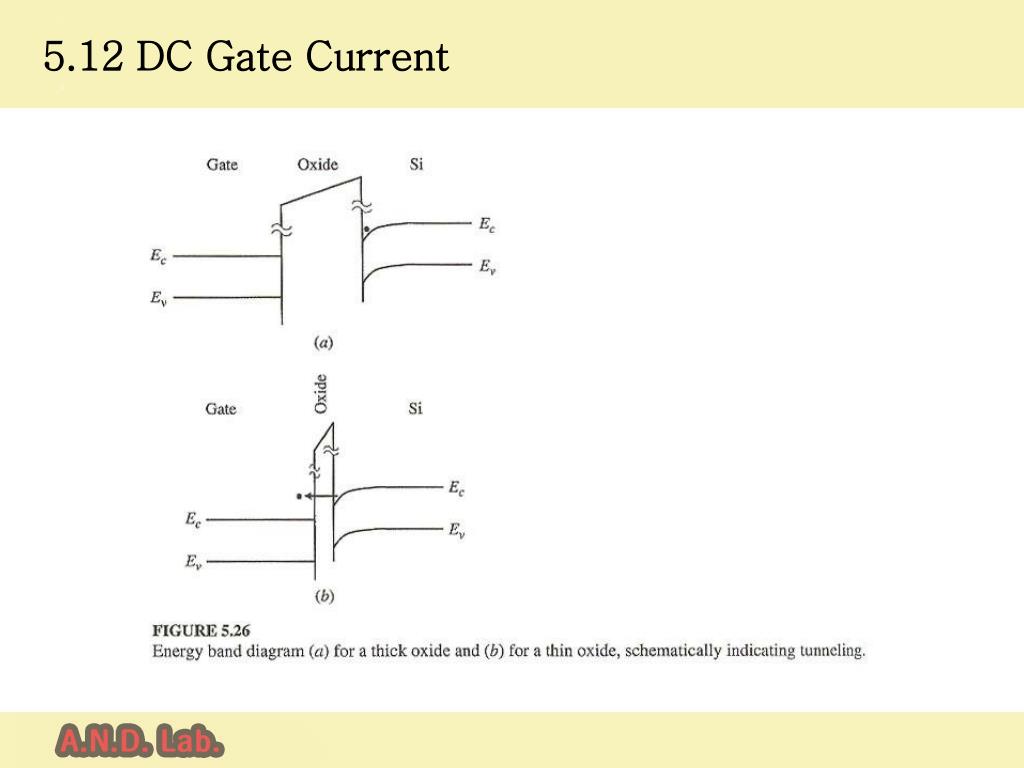

  11. 5.12 DC Gate Current

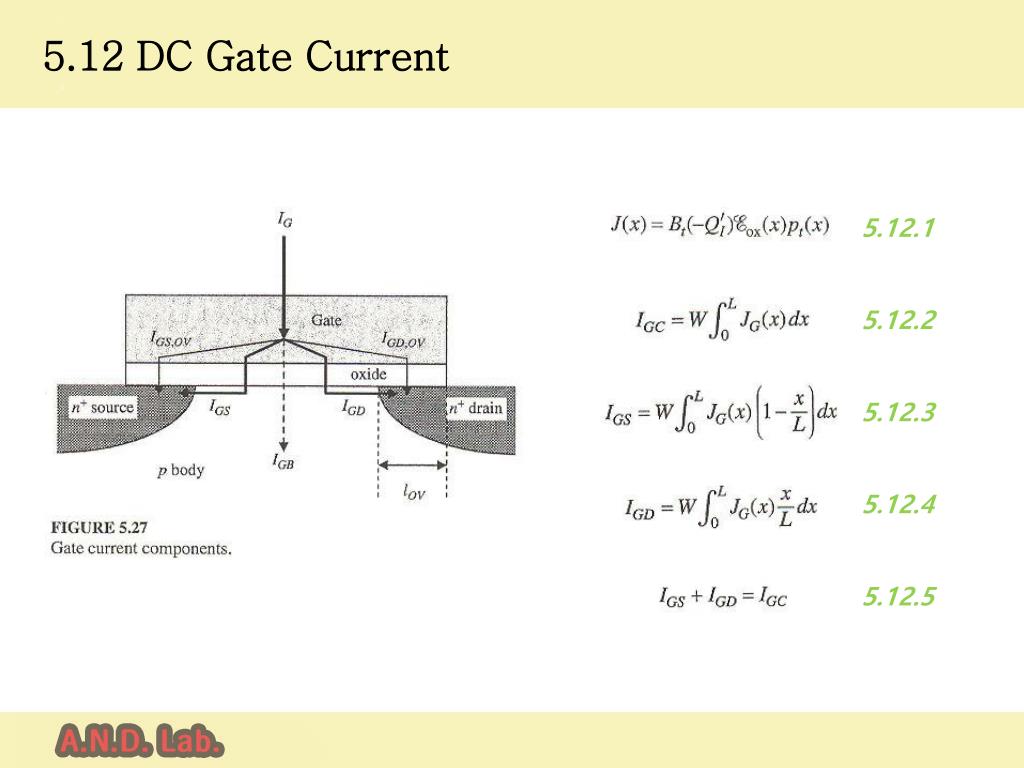

  12. 5.12 DC Gate Current 5.12.1 5.12.2 5.12.3 5.12.4 5.12.5

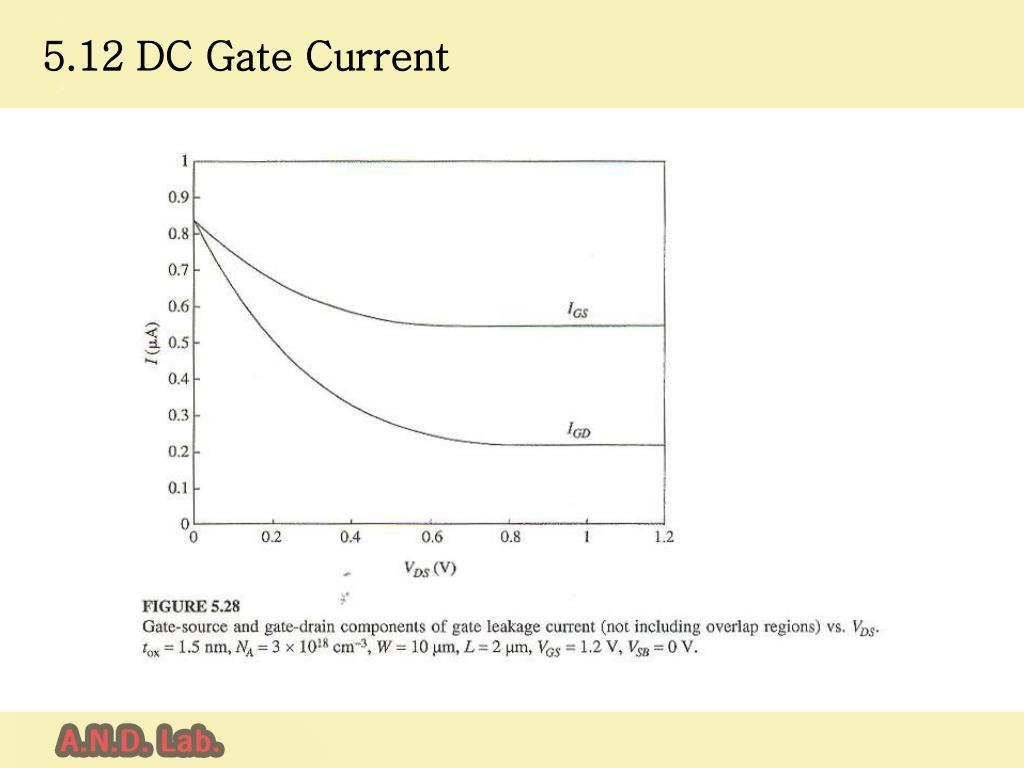

  13. 5.12 DC Gate Current

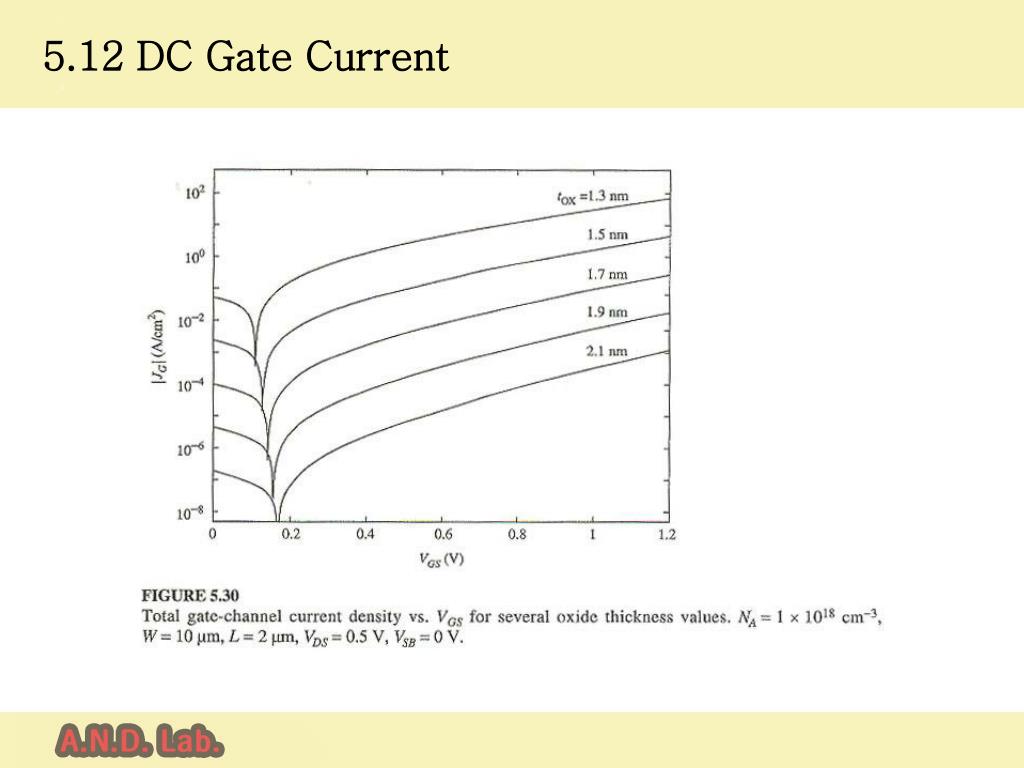

  14. 5.12 DC Gate Current

  15. 5.12 DC Gate Current

  16. 5.13 Junction Leakage; Band-to-Band Tunneling; GIDL

  17. 5.13 Junction Leakage; Band-to-Band Tunneling; GIDL 5.13.1

  18. 5.13 Junction Leakage; Band-to-Band Tunneling; GIDL 5.13.2 5.13.3 5.13.4 5.13.5 5.13.6 5.13.7 5.13.8

  19. 5.14 Leakage Currents - Particular Cases

  20. 5.14 Leakage Currents - Particular Cases

  21. 5.14 Leakage Currents - Particular Cases

  22. 5.15 The Quest for Ever-Smaller Devices

  23. 5.15 The Quest for Ever-Smaller Devices 5.15.1

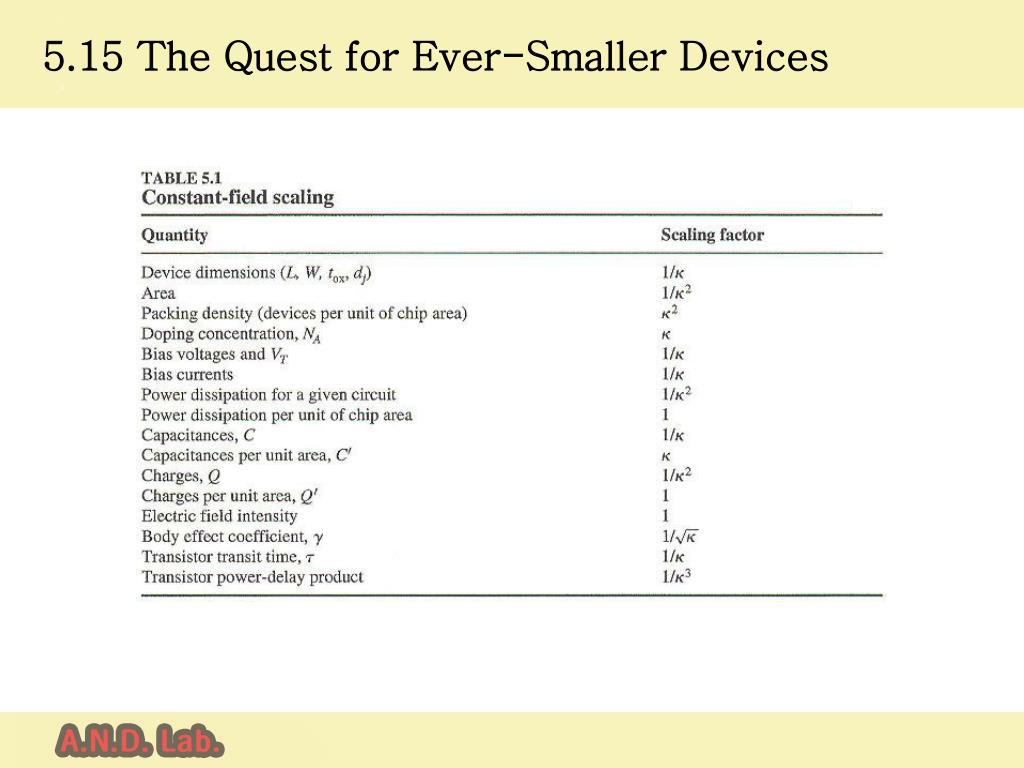

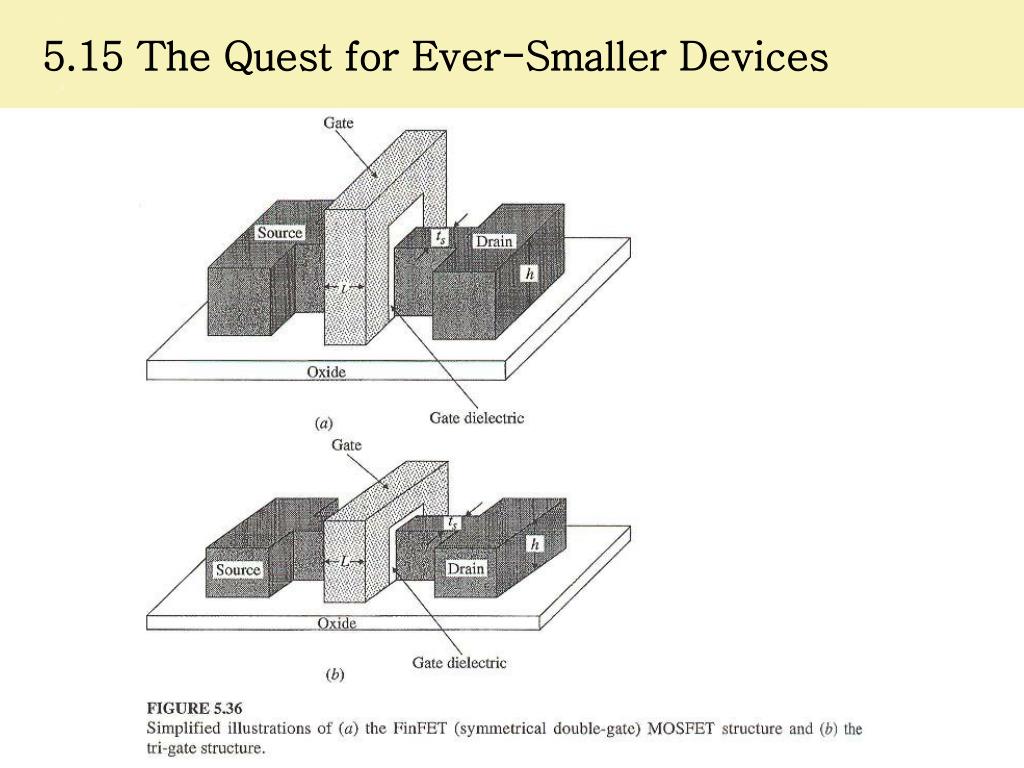

  24. 5.15 The Quest for Ever-Smaller Devices

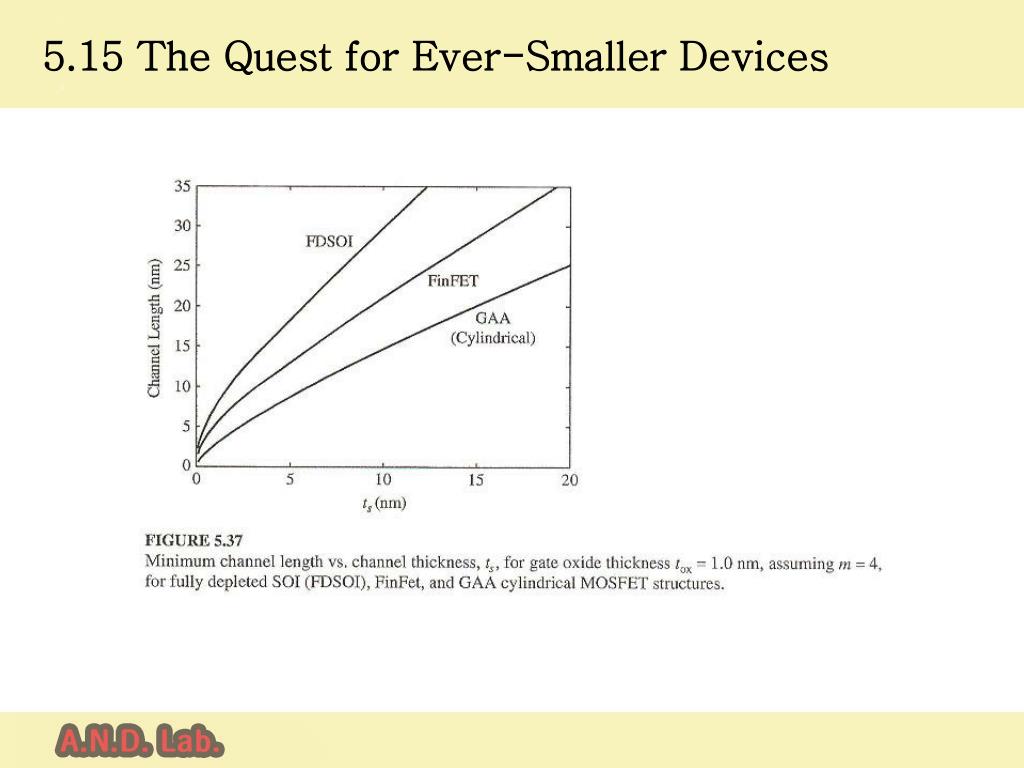

  25. 5.15 The Quest for Ever-Smaller Devices

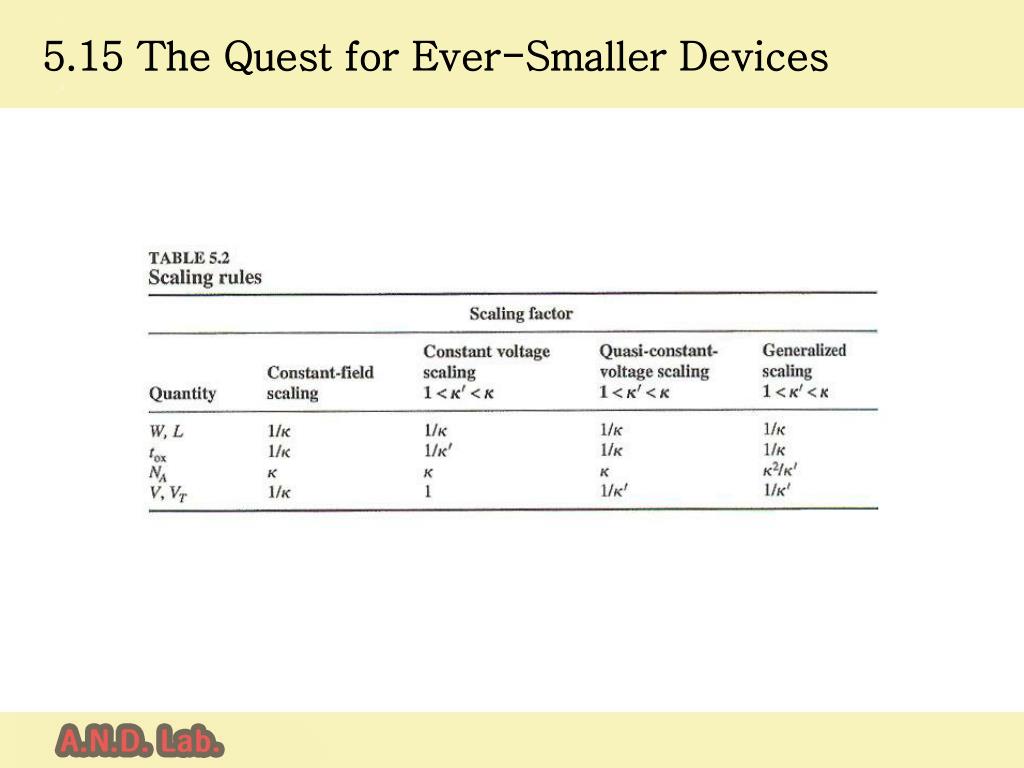

  26. 5.15 The Quest for Ever-Smaller Devices

  27. 5.15 The Quest for Ever-Smaller Devices
