  1. What to look for when completing an AWWA Water Audit for the first timeReinhard Sturm, Vice PresidentWater Systems Optimization, Inc.Paul Johnson, Vice PresidentWater Systems Optimization, Inc.

  2. WaterRF 4372 – Project Background and Scope • 11 participating utilities from NA • Review of existing water loss regulations and implementation experiences in NA • Review of international best practices in water loss regulation • Develop utility tested model for component analysis of real losses and evaluation of economically feasible water loss intervention strategies

  3. WRF 4372 – Project Status and Findings LATEST FINDINGS: WORK COMPLETED: • North American average break frequency literature review and analysis • Review of select international water loss guidelines and regulations • Review of national water audit data sets • Collection and review of water audits and leak repair data from participating utilities • Beta-testing of WaterRF software tool • Quality and consistency of leak repair data collection needs to be improved • Even aggressive water loss reporting regulations and progressive guidelines under-estimate data quality obstacles • Group of PU’s shows full range of water loss control experience: both exemplary utilities and those just starting

  4. California – CUWCC BMP1.2 BACKGROUND: • BMP1.2 – Water Loss Control Program (10years) • First four years focus on data validation and water loss accounting • Second phase to establish benchmarks and improvements to water loss performance • Six two-day workshops provided between 2010 and 2012 plus a webinar • WSO received the first data set of water audits for data validation

  5. California – CUWCC BMP1.2 2010 Water Data Analysis and Validation: • Simple steps of data validation were applied • Results highlight the problems utilities are facing when completing an audit for the first time!

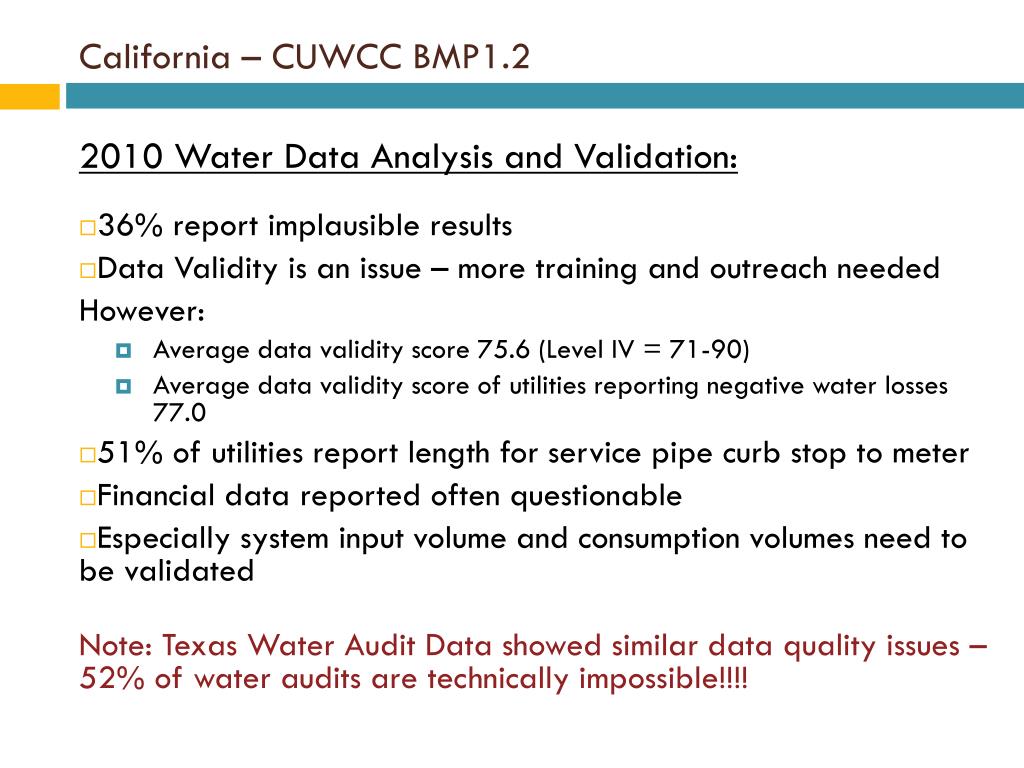

  6. California – CUWCC BMP1.2 2010 Water Data Analysis and Validation: • 36% report implausible results • Data Validity is an issue – more training and outreach needed However: • Average data validity score 75.6 (Level IV = 71-90) • Average data validity score of utilities reporting negative water losses 77.0 • 51% of utilities report length for service pipe curb stop to meter • Financial data reported often questionable • Especially system input volume and consumption volumes need to be validated Note: Texas Water Audit Data showed similar data quality issues – 52% of water audits are technically impossible!!!!

  7. California – CUWCC BMP1.2

  8. Water Audit Data Validation The Most Important Components

  9. Water Audit Tasks – Critical Data Validation • Task: Challenge Accuracy of System Input Meters Comparative Meter Test Volumetric Meter Test

  10. Water Audit Tasks – Critical Data Validation • Task: Challenge Accuracy of System Input Meters

  11. Water Audit Tasks – Critical Data Validation • Task: Challenge Accuracy of System Input Meters

  12. Water Audit Tasks – Critical Data Validation • Task: Challenge Accuracy of System Input Meters

  13. Water Audit Tasks – Critical Data Validation • Task: Challenge SCADA Data Accuracy

  14. Water Audit Tasks – Critical Data Validation • Task: Validate Billing Data Accuracy

  15. Water Audit Tasks – Critical Data Validation • Task: Validate Billing Data Accuracy • Validation is crucial • Second most significant volume that flows into AWWA water balance • Two components: • Billed metered consumption • Billed unmetered consumption

  16. Water Audit Tasks – Critical Data Validation • Task: Validate Billing Data Accuracy • Export of raw billing data (audit period plus 2 month on each side) • Typical billing data fields to be included: • Customer identification fields • Meter identification fields • Service type identification fields • Meter read and consumption fields – units • Trouble codes or flags

  17. Water Audit Tasks – Critical Data Validation • Task: Validate Billing Data Accuracy • Confirm relevant consumption volumes: • Which accounts need to be included/excluded • Water and Sewer accounts • Sewer only accounts • AG accounts • Irrigation accounts • System meters

  18. Water Audit Tasks – Critical Data Validation • Task: Validate Billing Data Accuracy • Validation of consumption volumes: • Look for duplicates – meter numbers – consumption volumes • Look for other irregularities: - change of meter size - number of estimates - high consumption - consecutive zero consumption - etc.

  19. Water Audit Tasks – Critical Data Validation • Task: Validate Billing Data Accuracy

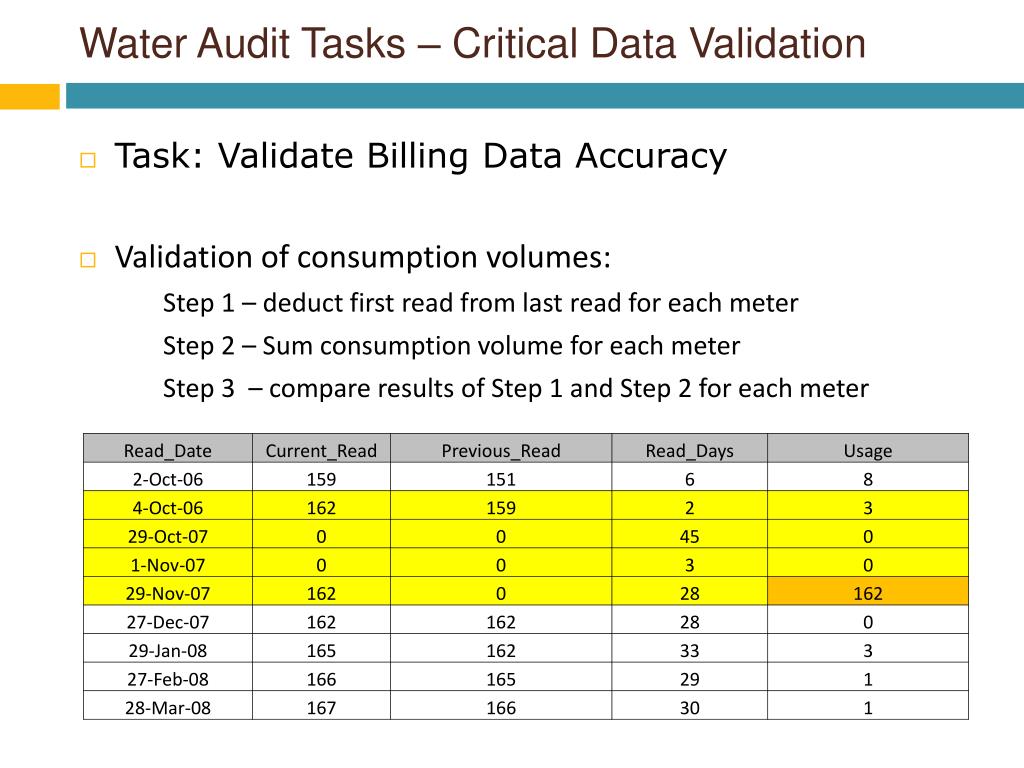

  20. Water Audit Tasks – Critical Data Validation • Task: Validate Billing Data Accuracy • Validation of consumption volumes: Step 1 – deduct first read from last read for each meter Step 2 – Sum consumption volume for each meter Step 3 – compare results of Step 1 and Step 2 for each meter

  21. Water Audit Tasks – Critical Data Validation • Task: Validate Billing Data Accuracy • Lag-time Analysis – the simple way:

  22. Water Audit Tasks – Critical Data Validation • Task: Validate Billing Data Accuracy • Lag-time Analysis – the simple way:

  23. Water Audit Tasks – Critical Data Validation • Task: Validate Billing Data Accuracy • Lag-time Analysis – PRORATING:

  24. Water Audit Tasks – Critical Data Validation • Task: Validate Billing Data Accuracy • Lag-time Analysis – PRORATING:

  25. Water Audit Tasks – Critical Data Validation • Task: Assess Customer Meter Accuracy

  26. Water Audit – Things to Consider • Bring all the stakeholders together • Discuss current data collection and validation efforts – get input from all departments • Have a water audit champion who collects all the data and puts the audit together • Use the AWWA water audit data validation score to assess current data validity and work on improving data validity over time • Use the audit as a management tool to improve financial viability of your utility

  27. Thank You! reinhard.sturm@wso.us paul.johnson@wso.us
