Enhancements and Future Directions for Libera Brilliance - Workshop Insights

This document summarizes key discussions from the June 2009 Libera Workshop, highlighting recent patches and future proposals for Libera Brilliance. The latest software release (version 2.04) incorporates feedback from users, addressing issues such as ADC offset compensation, beam lifetime measurements, and timestamping on data. The proposals include access to DSC coefficients and ADC underflow checking, aimed at improving functionality and design standards. This workshop serves as a platform to explore the potential advancements of Libera Brilliance in the future.

langer
Télécharger la présentation

Enhancements and Future Directions for Libera Brilliance - Workshop Insights

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

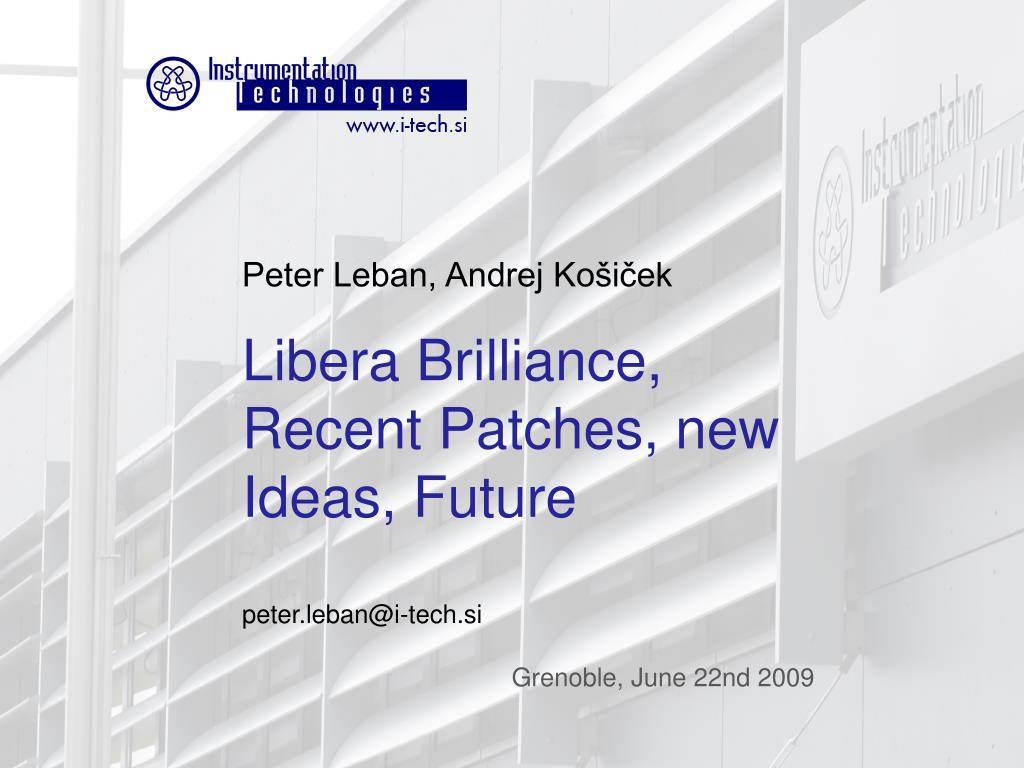

  1. Peter Leban, Andrej Košiček Libera Brilliance, Recent Patches, new Ideas, Future peter.leban@i-tech.si Grenoble, June 22nd 2009 Libera Workshop 2008

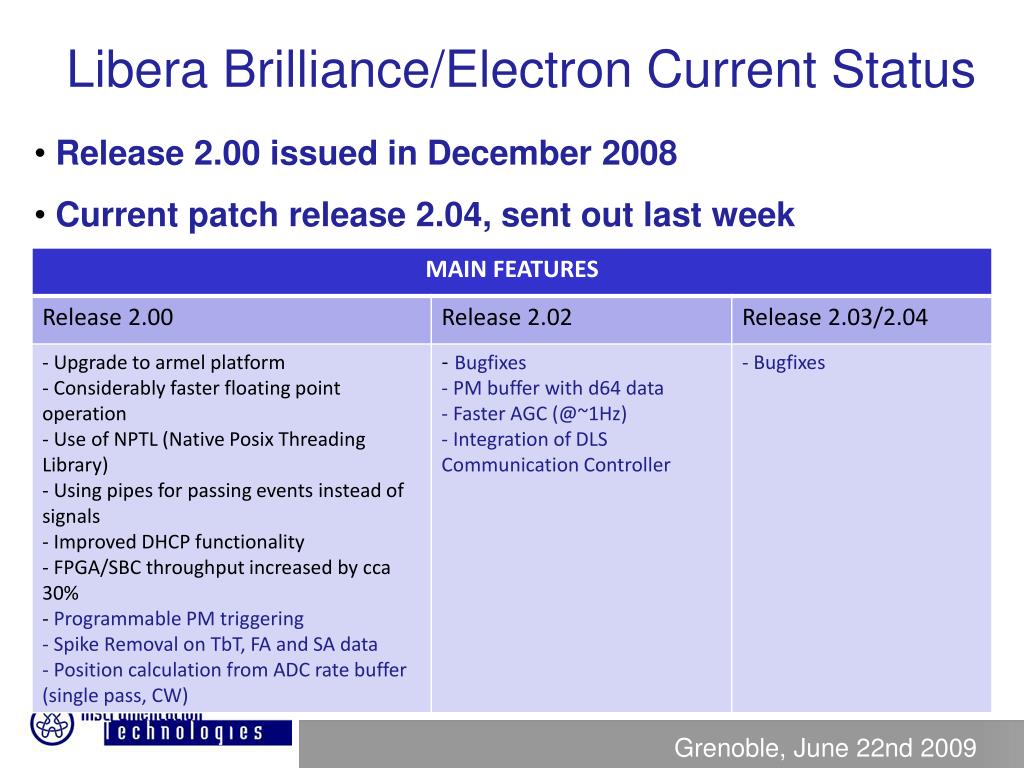

  2. Libera Brilliance/Electron Current Status • Release 2.00 issued in December 2008 • Current patch release 2.04, sent out last week

  3. 2.20 Propositions: Access to DSC Coefficients

  4. 2.20 Propositions: Beam life-time Measurements

  5. 2.20 Propositions: Standard & MAF Designs Together

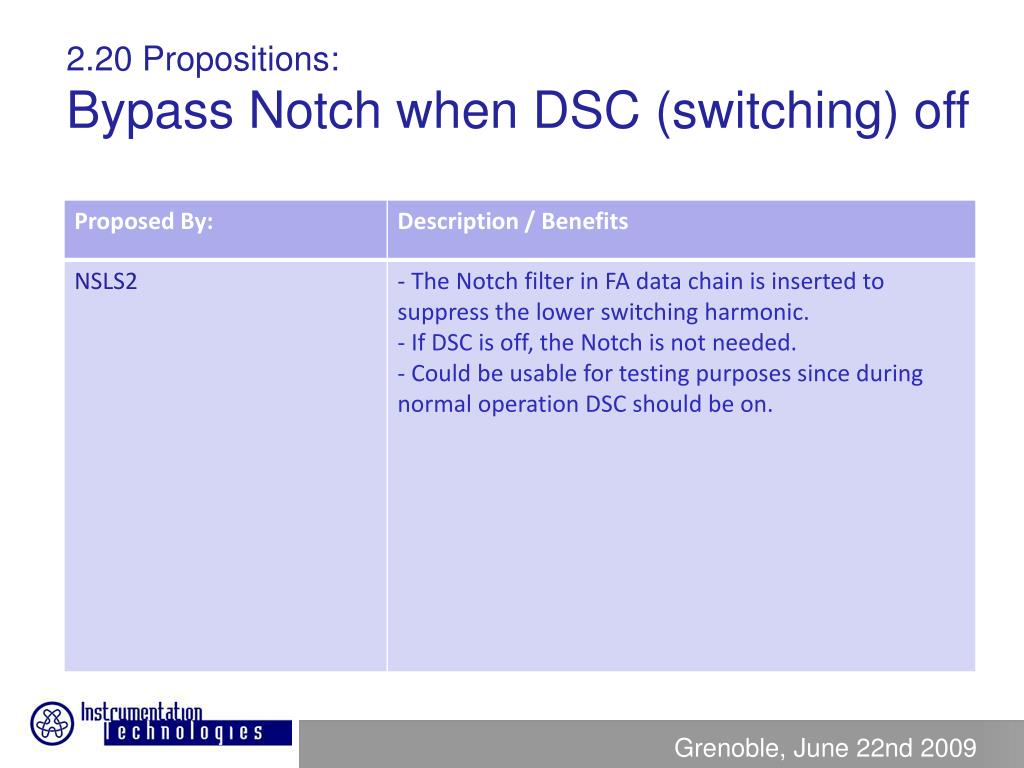

  6. 2.20 Propositions: Bypass Notch when DSC (switching) off

  7. 2.20 Propositions: ADC Offset Compensation

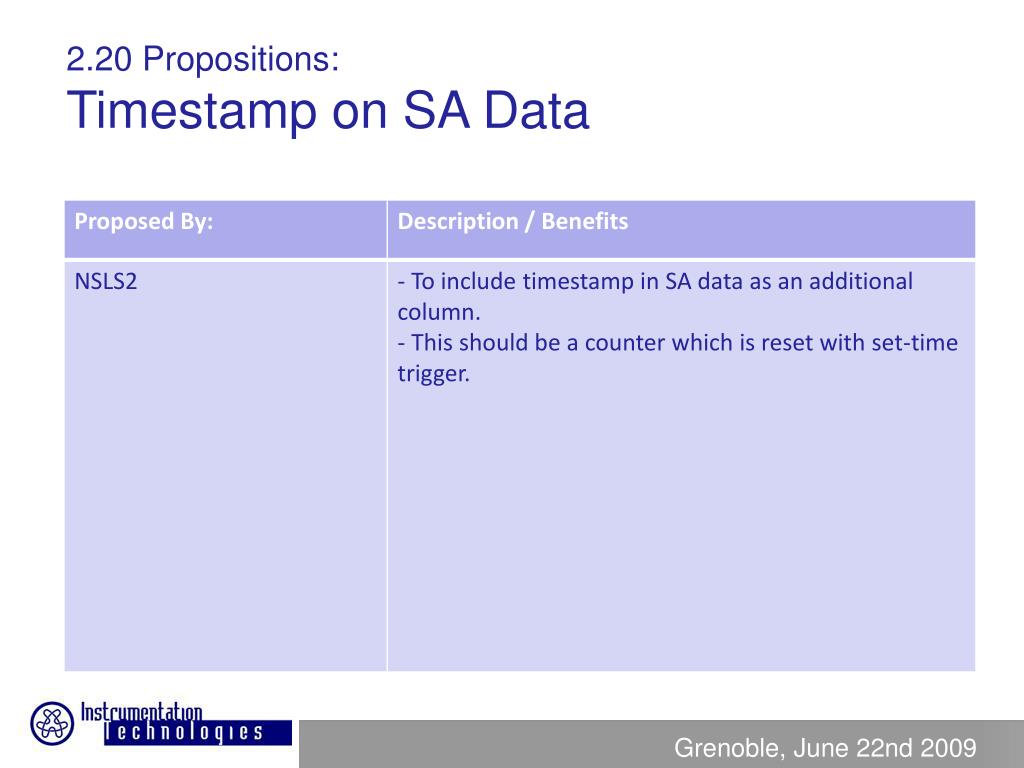

  8. 2.20 Propositions: Timestamp on SA Data

  9. 2.20 Propositions: ADC Underflow Checking

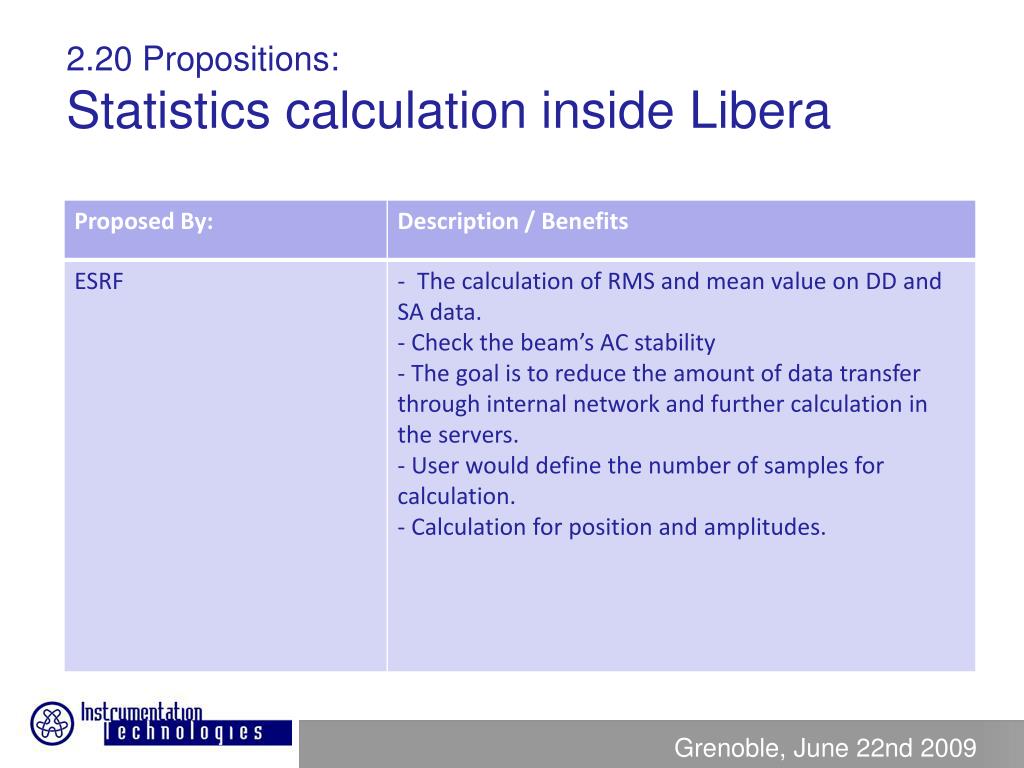

  10. 2.20 Propositions: Statistics calculation inside Libera

  11. Future of Libera Brilliance (dreaming…)

  12. Thank you for your attention.
