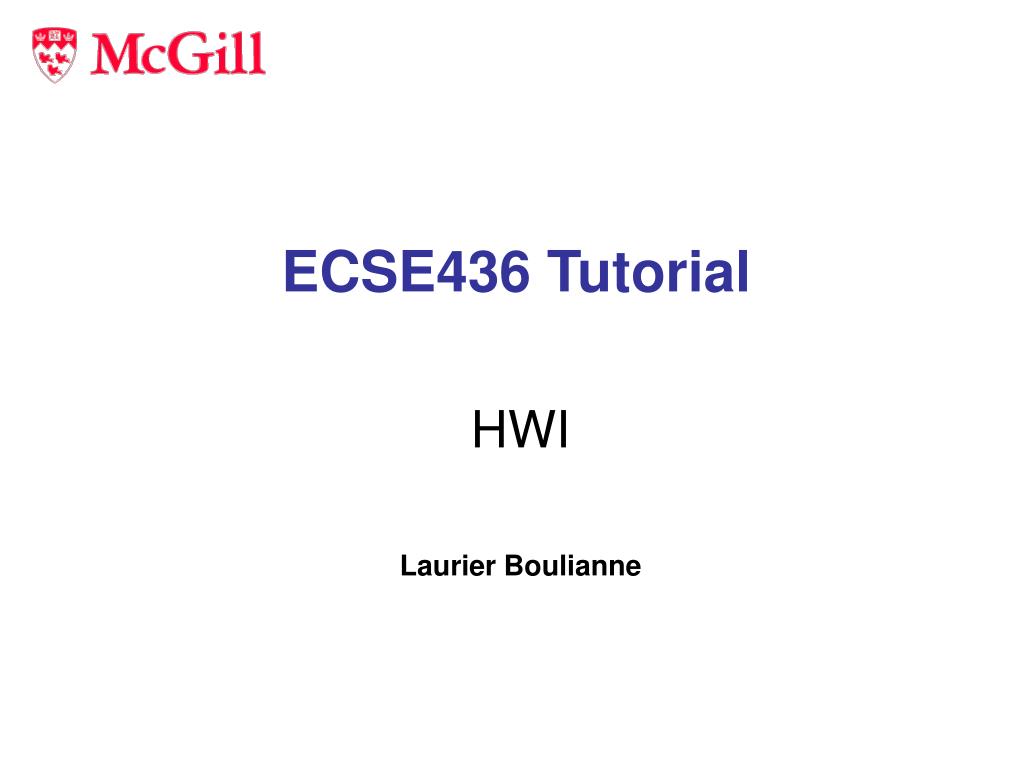

  1. ECSE436 Tutorial HWI Laurier Boulianne

  2. Questions

  3. Outline • Polling vs Hardware Interrupts • Interrupts • Interrupts • Implement Interrupts on the C6713 • Assignments

  4. POLLING vs HWI • 2 ways to get information in and out • Polling • Hardware Interrupts • HWI is more efficient

  5. Hardware Interrupts

  6. Hardware Interrupts

  7. Hardware Interrupts

  8. Interrupt Handler • Create a project as usual, make sure to create a DSP/BIOS configuration file • In order to enable interrupts, we need to do a few changes in the configuration file (.cdb).

  9. Interrupt Handler • First, in the configuration manager, expand the scheduling folder • Right-click on the “TSK - Task Manager” item, select “Properties”, and ensure that the Task Manager is NOT enabled

  10. Interrupt Handler • Expand the “HWI - Hardware Interrupt . . .” item, and select any of the interrupts from HWI INT4 to 15. Right-click on it, select properties.

  11. Interrupt Handler • Change the “Interrupt Source” to “MCSP 1 Receive”, and the “function” to the name of your interrupt handling routine, preceded by an underscore

  12. Interrupt Handler • Still in properties, select the “Dispatcher” tab, and enable it. Leave the other values unchanged.

  13. Changes in your C code • In your main function, after all other initializations are done (DSK6713 init(), AIC23 configs, etc.), write • IRQ_enable(IRQ_EVT_RINT1); • IRQ_globalEnable();

  14. Changes in your C code • Finally, write your ISR. • Do not forget to use the name that you entered in the configuration manager (minus the underscore) void myHandler(void) { ...your code... }

  15. Double Buffering • Remember that you need some way to process the data without it being overwritten with new data, so you need to implement some sort of double-buffering scheme A Process Data Write Data B

  16. Questions

  17. Assignments • Read C6713 One-day Workshop from TI (chapter 2) (WebCT) • Redo exercise given in the handout, but this time handle the I/O with interrupts instead of polling
