  1. Saving the World from Bad Beans Dave Clarke, Utrecht Michael Richmond, IBM ARC James Noble, VUW

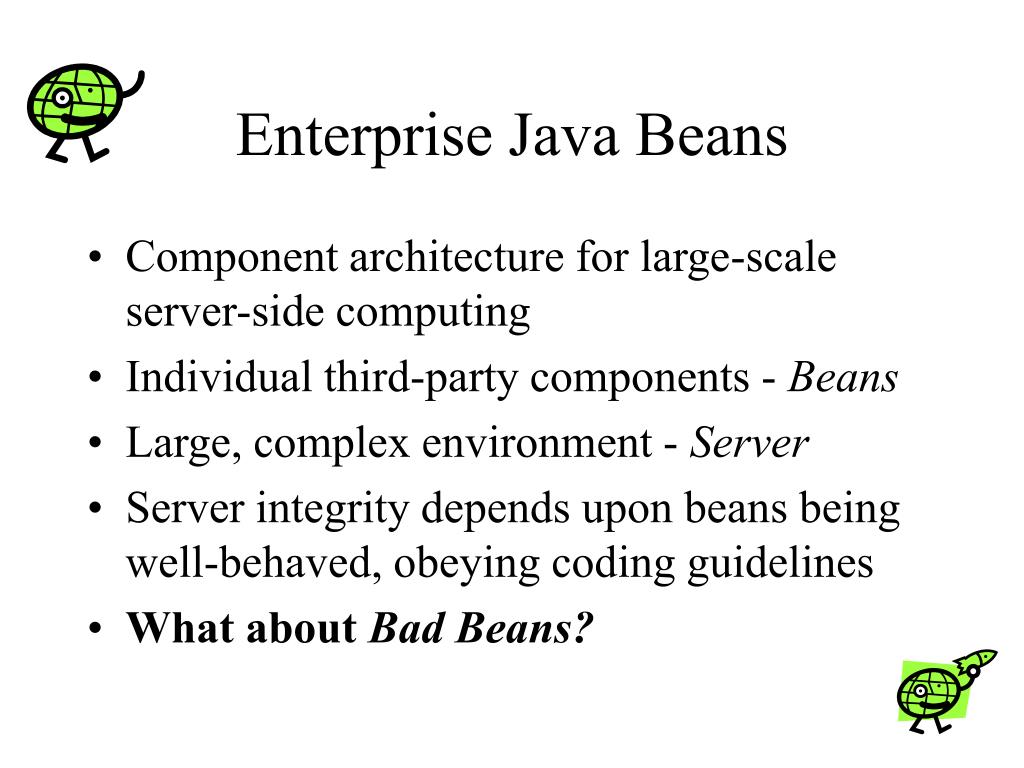

  2. Enterprise Java Beans • Component architecture for large-scale server-side computing • Individual third-party components - Beans • Large, complex environment - Server • Server integrity depends upon beans being well-behaved, obeying coding guidelines • What about Bad Beans?

  3. EJB Lifecycle

  4. EJB Structure and Containment

  5. EJB Structure • EJB Object (EJB) • Provides business functionality • EJB Interface (EJBObject) • Mediates access to EJB • Container • Offers server functions to Beans • Helper — aggregate subsidiary object • Transfer — moves data between EJBs

  6. EJB Interobject References

  7. EJB Interface and Container • EJB Interface and Container • Collaborate to provide services to beans • Security • Transactions • Persistence • EJB Architectural Assumption • All access to EJB Object is via EJB Interface • EJB Object contained within EJB Interface • Confinement breach breaks architecture

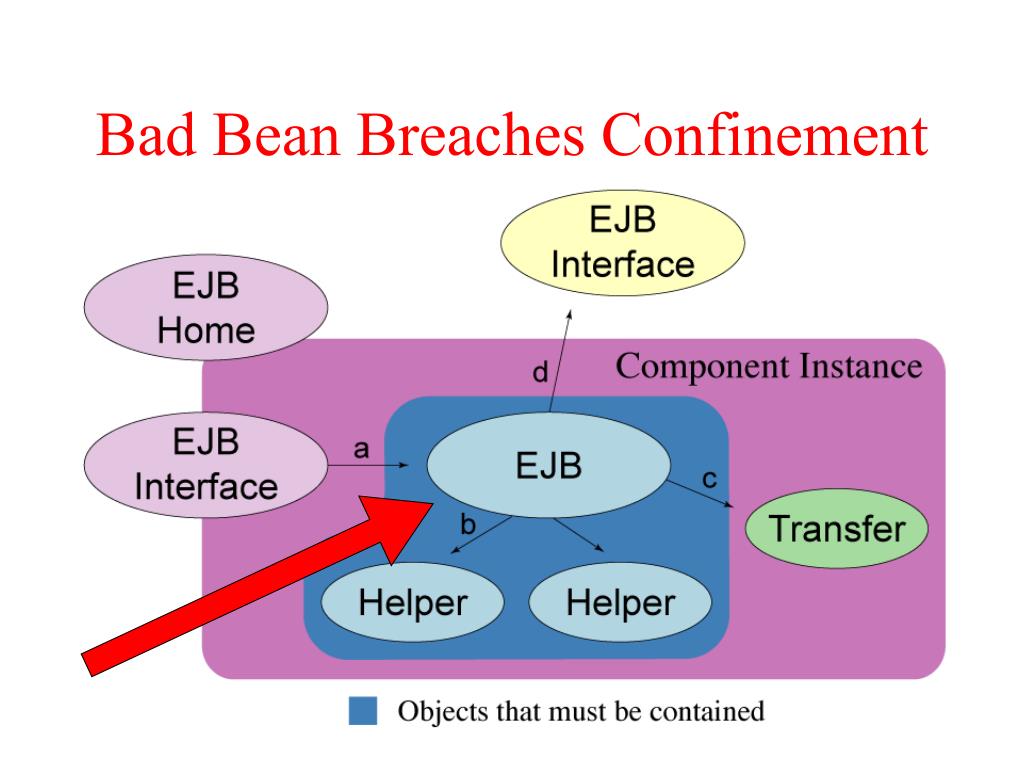

  8. Bad Bean Breaches Confinement

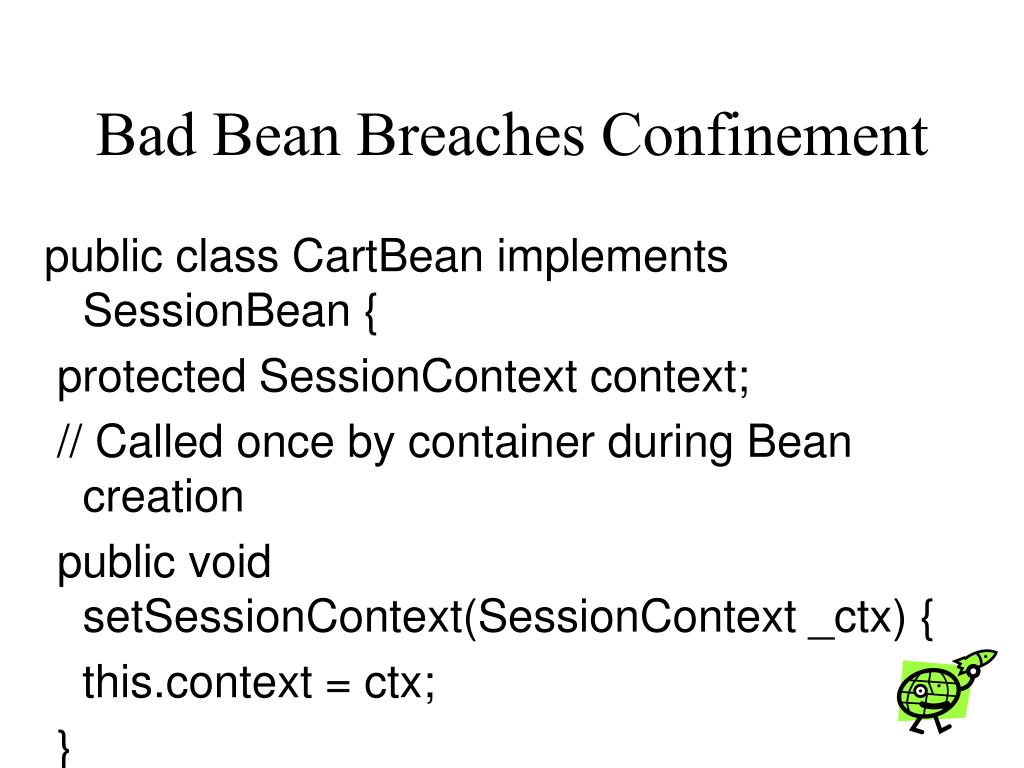

  9. Bad Bean Breaches Confinement public class CartBean implements SessionBean { protected SessionContext context; // Called once by container during Bean creation public void setSessionContext(SessionContext _ctx) { this.context = ctx; }

  10. Bad Bean Breaches Confinement // correct way to return reference to Bean public CartEJBI goodReturn() { return(context.getEJBObject()); } // incorrect way to return reference to Bean public CartEJBI badReturn() { return(this); }

  11. Bad Bean Breaches Confinement • Naïve class verification is not enough! class BadBean implements SessionBean { public Object exposeMyself() { return (Object) this; } Mole OopsIDidItAgain() { return new Mole(this); }

  12. Confinement Checking Confinement Checkers Prevent Exposure • Unit of confinement: Bean Instance • Inside: EJB Object, Helpers • Boundary: EJB Interface • Outside: everything else • Transfer objects may cross the boundary • Subject to restrictions • Server checks confinement during deployment

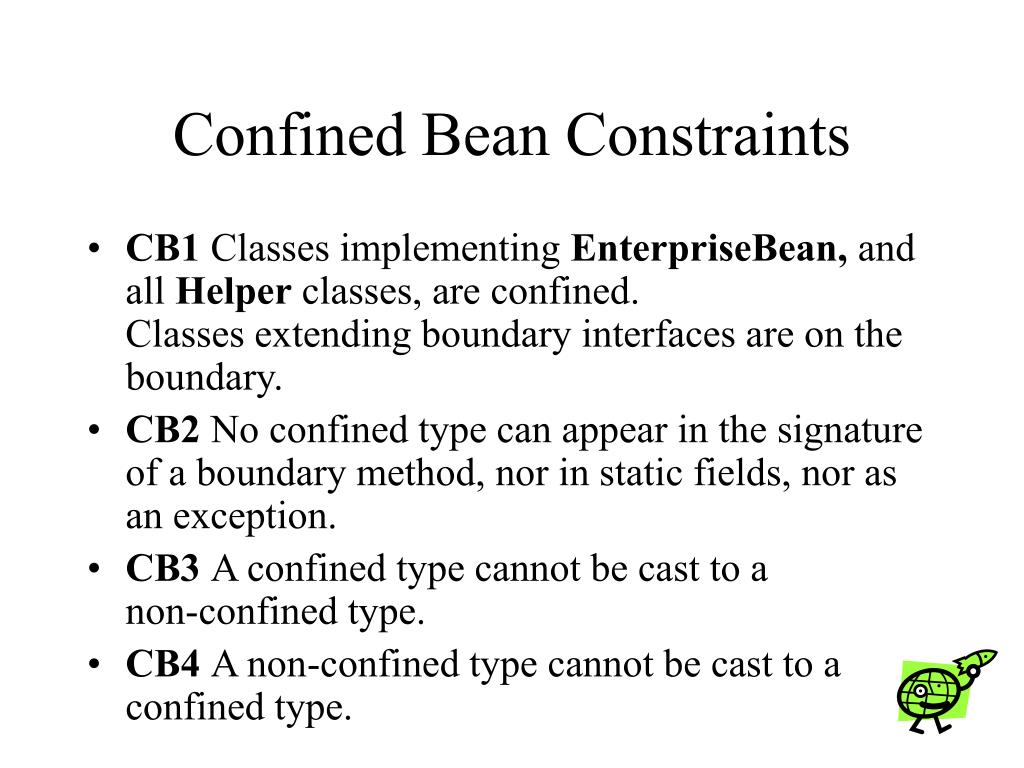

  13. Confined Bean Constraints • CB1 Classes implementing EnterpriseBean, and all Helper classes, are confined. Classes extending boundary interfaces are on the boundary. • CB2 No confined type can appear in the signature of a boundary method, nor in static fields, nor as an exception. • CB3 A confined type cannot be cast to a non-confined type. • CB4 A non-confined type cannot be cast to a confined type.

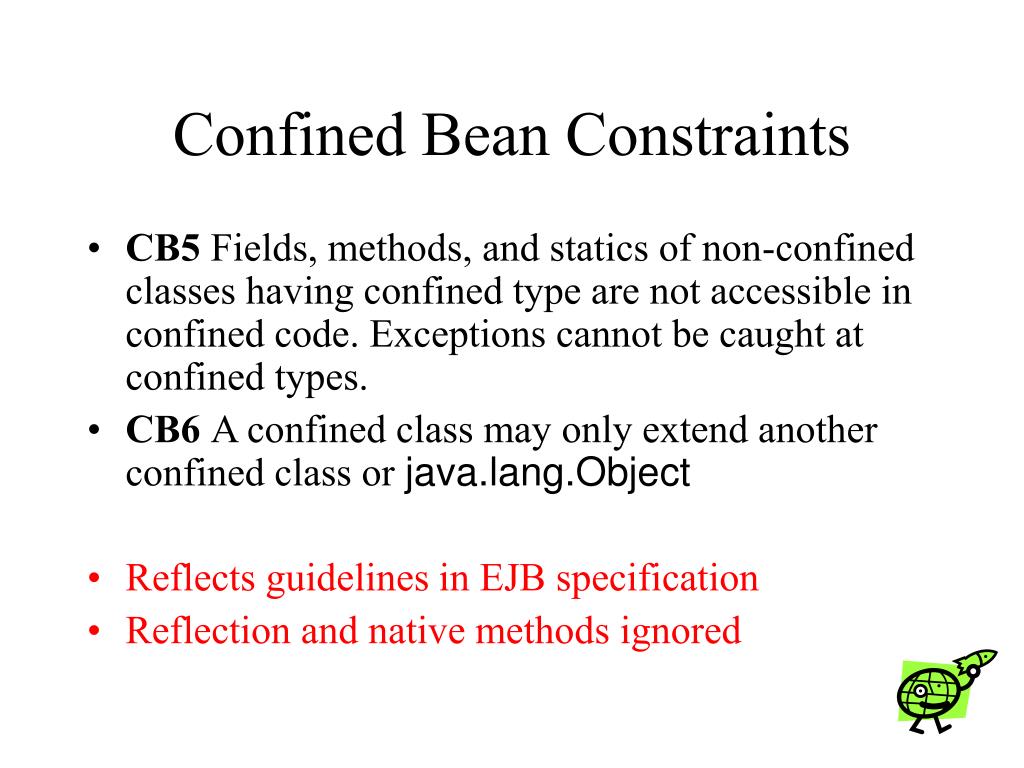

  14. Confined Bean Constraints • CB5 Fields, methods, and statics of non-confined classes having confined type are not accessible in confined code. Exceptions cannot be caught at confined types. • CB6 A confined class may only extend anotherconfined class or java.lang.Object • Reflects guidelines in EJB specification • Reflection and native methods ignored

  15. Checking Tool • We built a tool based on SOOT • Checks Bean class files at deployment time [dc] Processing class: mar.basicfail.SampleEJBI [dc] Class is on boundary - proceeding with boundary checks [dc] Boundary class has confined in interface (CB2). [dc] Offending Method (in return type): returnAsSessionBean [dc] Boundary class has confined in interface (CB2). [dc] Offending Method (in return type): returnAsSampleEJB [dc] Return statement violates CB3/4 [dc] Value type = mar.basicfail.SampleEJB [dc] Return type = java.lang.Object [dc] Offending statement: return r0 [dc] [dc] Deployment failed!!!

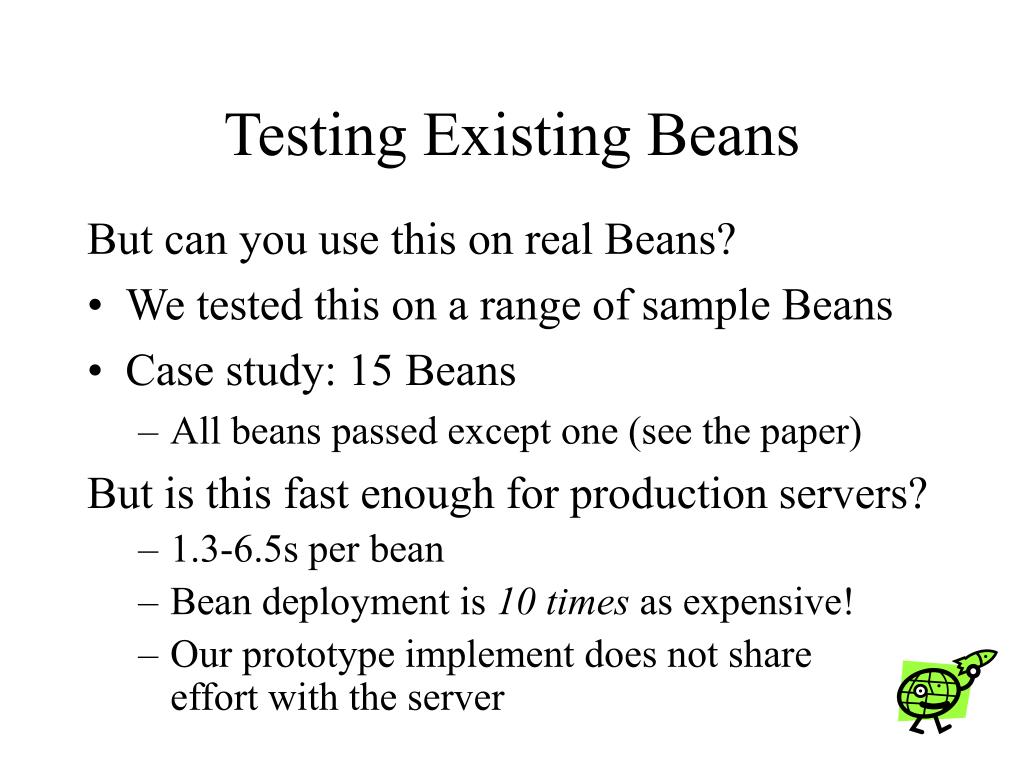

  16. Testing Existing Beans But can you use this on real Beans? • We tested this on a range of sample Beans • Case study: 15 Beans • All beans passed except one (see the paper) But is this fast enough for production servers? • 1.3-6.5s per bean • Bean deployment is 10 times as expensive! • Our prototype implement does not shareeffort with the server

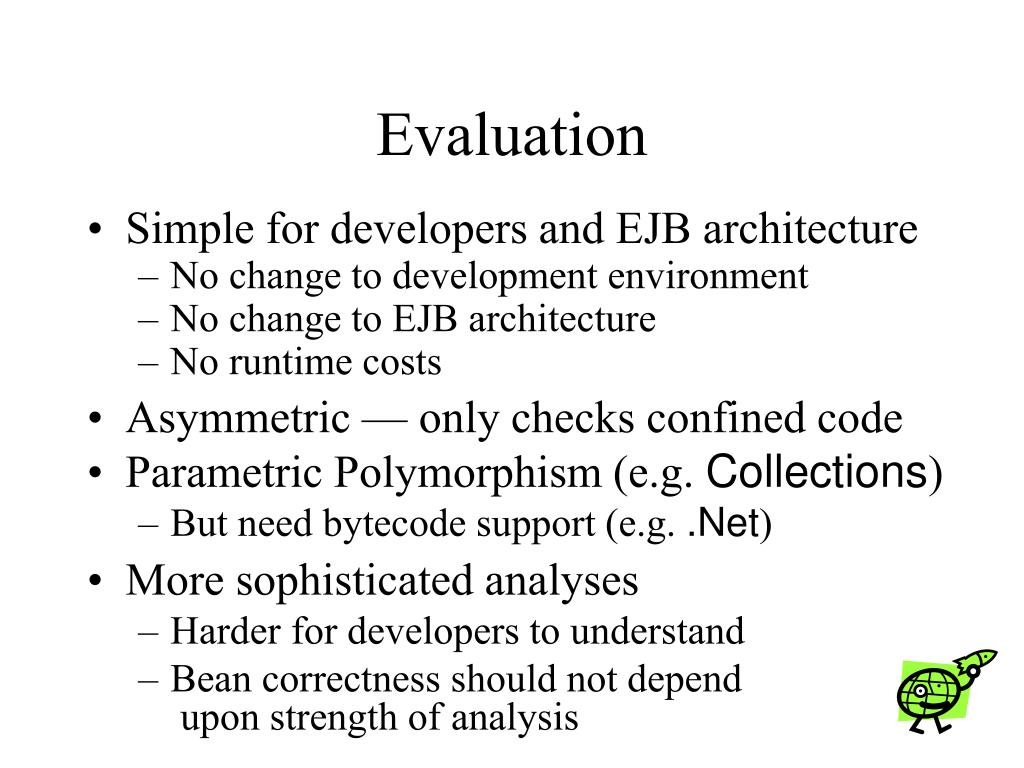

  17. Evaluation • Simple for developers and EJB architecture • No change to development environment • No change to EJB architecture • No runtime costs • Asymmetric — only checks confined code • Parametric Polymorphism (e.g. Collections) • But need bytecode support (e.g. .Net) • More sophisticated analyses • Harder for developers to understand • Bean correctness should not depend upon strength of analysis

  18. Confinement and Ownership Boyapati et al

  19. Conclusion • EJBs are susceptible to confinement errors • Direct references bypass the EJBInterface • Confinement checking prevents these errors • Check server side, at deployment time • Fast and efficient checker • Empirical testing • Existing well-written EJBs will pass the test • Pragmatic customisation via Transfer objects

  20. Credits • Department of Computer Science, Purdue • DARPA F33615-01-C-1894 • Royal Society of New Zealand Marsden Fund • Ward 16 Wellington Hospital
