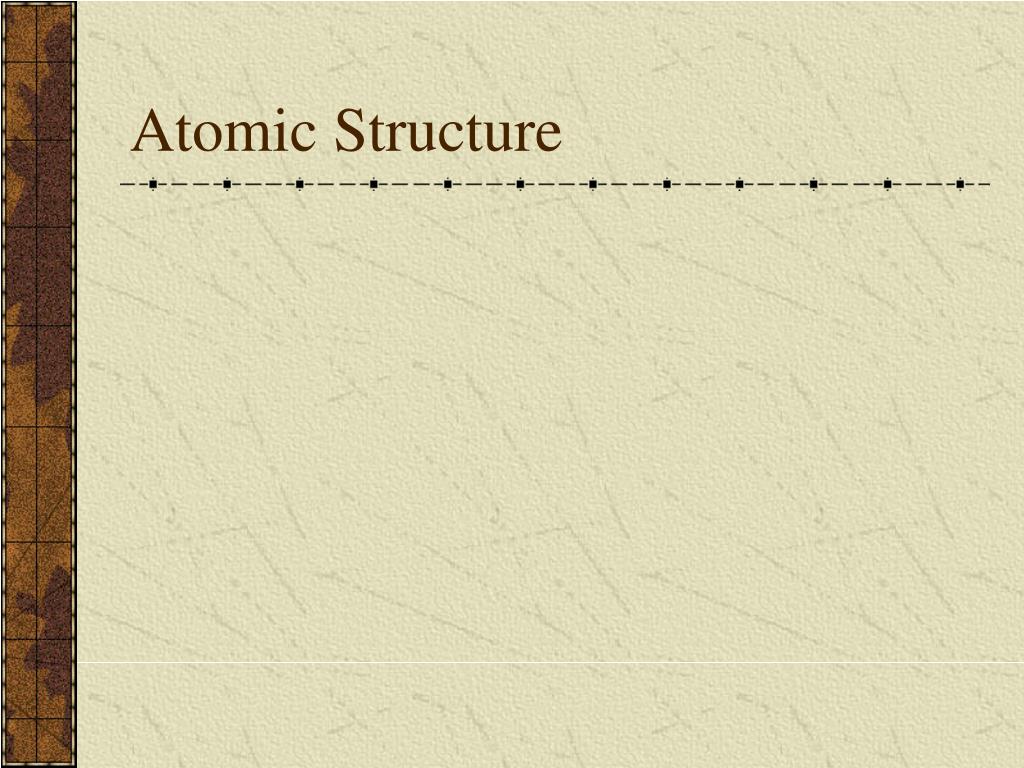

  1. Atomic Structure

  2. REVIEW • The atom is the smallest unit of an element that has the properties of that element. • According to Rutherford’s nuclear model of the atom, the nucleus is tiny, dense, and positively charged. • The rest of the atom, which is made of electrons, is very large compared to the nucleus and negatively charged.

  3. REVIEW Electron cloud Diffuse, negatively charged ~10-15 m ~10-10 m Nucleus Tiny, dense, positively charged

  4. Charge and Mass • Elementary charge (e) = 1.6x10-19 Coulombs • Coulomb (C) = SI unit of electric charge • Charge can be + or -. • For convenience’s sake, we write +1 instead of +1.6x10-19 C. • Also write -1 instead of -1.6x10-19 C. • Masses of atoms are measured in atomic mass units (amu). • 1 amu = 1/12 mass of carbon-12 atom. • 1 amu = 1.66x10-24 grams

  5. Subatomic Particles • Proton (p+) • Location: Nucleus • Charge: +1 • Mass: 1.007 amu • Neutron (no) • Location: Nucleus • Charge: neutral • Mass: 1.008 amu • Electron (e-) • Location: Electron cloud (outside nucleus) • Charge: -1 • Mass: 0.0005 amu

  6. Atomic Number (Z) • Atomic Number (Z) – number of p+ in the nucleus. • Atomic number of oxygen = 8 • All oxygen atoms have 8 p+. • No other type of atom has 8 p+. • Atomic number of uranium = 92 • All uranium atoms have 92 p+. • No other type of atom has 92 p+.

  7. Mass Number (A) • Mass Number (A) – combined number of p+ & no. • A = p+ + no • Number of no = A – Z • What is the mass number of an atom that has 8 p+ and 9 no? • ANSWER: 8 p+ + 9 no = 17 • How many no are in a titanium atom with a mass number of 48 (Z = 22 for titanium)? • ANSWER: A – Z = (48 – 22) = 26 no

  8. = protons = neutrons Z = A = Z = A = Z = A = Z = A = Atomic and Mass Numbers • What are the atomic and mass numbers of the following atoms? 1 1 2 3 1 2 4 7

  9. Isotopes • Isotopes – have the same number of p+ but diff. numbers of no. • Example: • All carbon atoms have 6 p+. • Some carbon atoms have 6 no, and some have 7 no. • Some carbon atoms have A = 12, and some have A = 13.

  10. Oxygen - 16 Oxygen - 17 Oxygen - 18 O - 16 O - 17 O - 18 A Z Isotopes • Three isotopes of oxygen: 8 p+ 8 p+ 8 p+ 8 no 9 no 10 no

  11. Average Atomic Mass • Average Atomic Mass – weighted average of the masses of all atoms in a sample. • The atomic mass given on the P.T. is a weighted average.

  12. Average Atomic Mass of Neon Atomic Number Avg. Atomic Mass

  13. Calculating Average Atomic Mass • The element silicon has three naturally-occurring isotopes: • Isotope Abundance Mass (amu) • Si-28 92.23% 27.977 • Si-29 4.68% 28.976 • Si-30 3.09% 29.974 • What is the average atomic mass of silicon?

  14. Calculating Average Atomic Mass • What is the atomic mass of silicon? • First convert all percentages to decimals: • 92.23%  0.9223 • 4.68%  0.0468 • 3.09%  0.0309 • Next multiply the decimals by the masses: • 0.9223 x 27.977 amu = 25.80 amu (4 SF) • 0.0468 x 28.976 amu = 1.36 amu (3 SF) • 0.0309 x 29.974 amu = 0.926 amu (3 SF) • Now add the results: • 25.80 + 1.36 + 0.926 = 28.09 amu (2 dec. places) • This agrees with the mass given on the periodic table.

  15. Calculating Average Atomic Mass • The element chlorine has two naturally-occurring isotopes: • Isotope Abundance Mass (amu) • Cl-35 75.78% 34.969 • Cl-37 24.22% 36.966 • What is the average atomic mass of chlorine?

  16. Calculating Average Atomic Mass x 34.969 amu x 36.966 amu = 26.50 amu = 8.953 amu 35.45 amu 0.7578 0.2422

  17. Calculating Average Atomic Mass • Iron has four naturally-occurring isotopes: • Isotope Abundance Mass(amu) • Fe-54 5.845% 53.940 • Fe-56 91.754% 55.935 • Fe-57 2.199% 56.935 • Fe-58 0.282% 57.933 • What is the average atomic mass of iron?

  18. Calculating Average Atomic Mass x 53.940 amu x 55.935 amu x 56.935 amu x 57.933 amu = 3.153 amu = 51.323 amu = 1.207 amu = 0.163 amu • 0.05845 • 0.91754 • 0.02119 • 0.00282 55.846 amu
