The Real Data Retrieving System integrates multiple data sources to provide comprehensive environmental surveillance and risk management for oil spills and other pollutants in the Canary Islands. It features real-time data capture of critical parameters such as sea currents, oil presence, meteorological conditions, and sea traffic. An early alert system evaluates risk scenarios and allows for emergency response protocol management. With advanced simulation tools based on the latest scientific research, the system predicts oil spill behavior and coastline impacts, facilitating effective resource management and response.
E N D

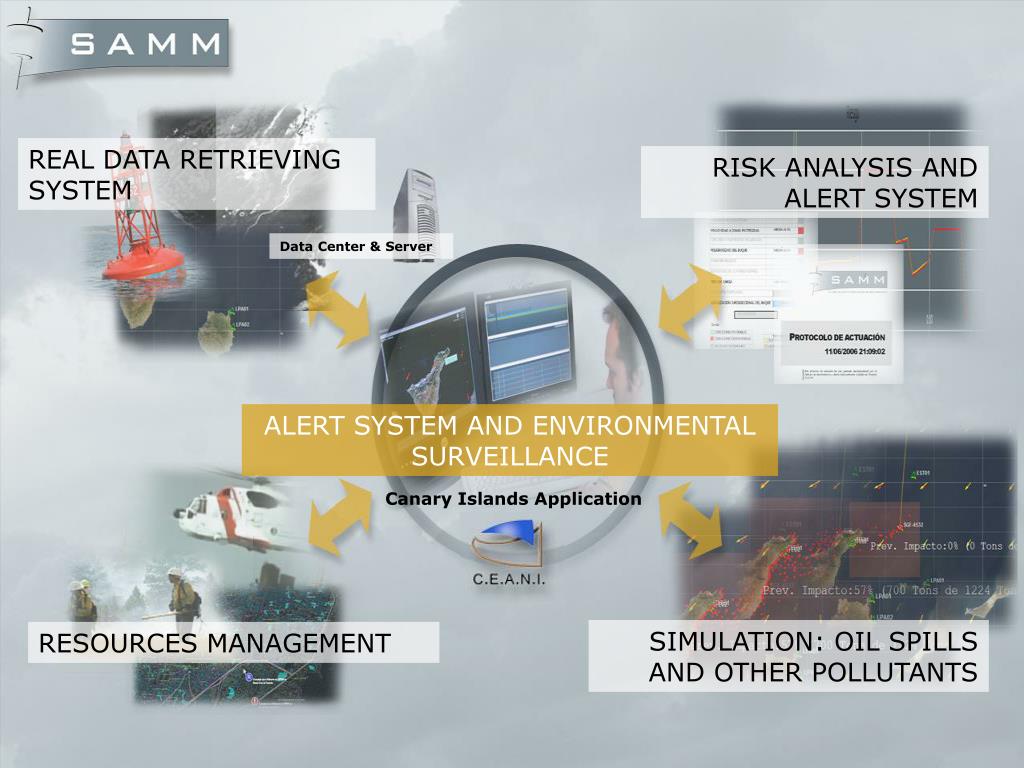

Esquema pricipal REAL DATA RETRIEVING SYSTEM RISK ANALYSIS AND ALERT SYSTEM Data Center & Server ALERT SYSTEM AND ENVIRONMENTAL SURVEILLANCE Canary Islands Application SIMULATION: OIL SPILLS AND OTHER POLLUTANTS RESOURCES MANAGEMENT

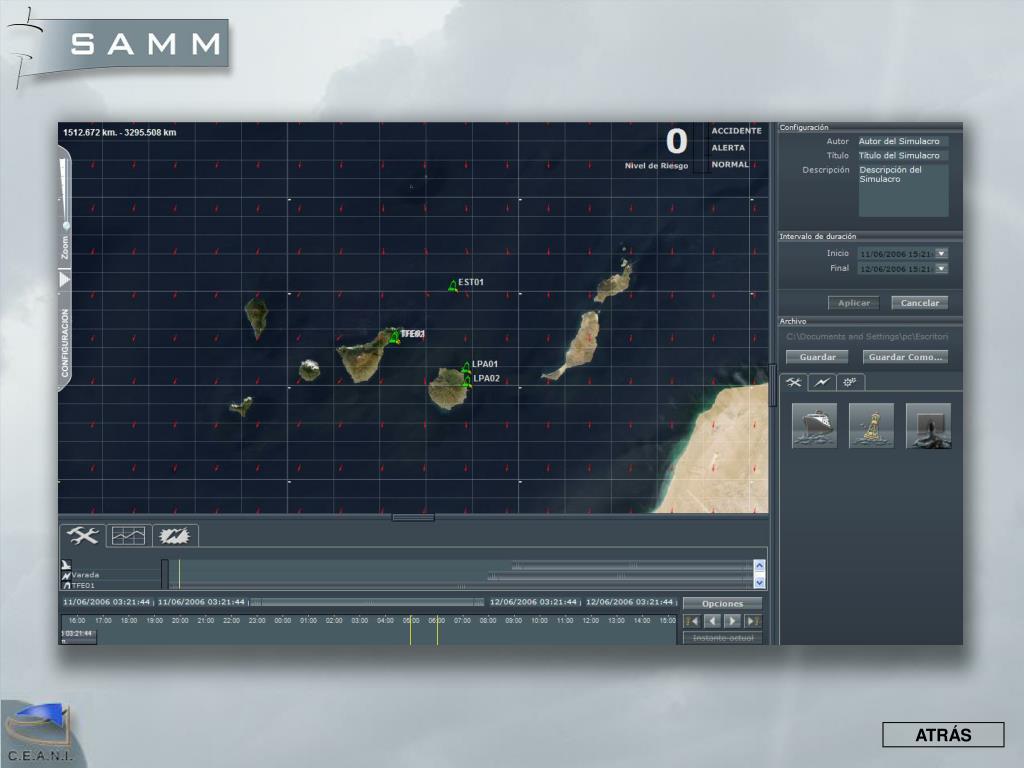

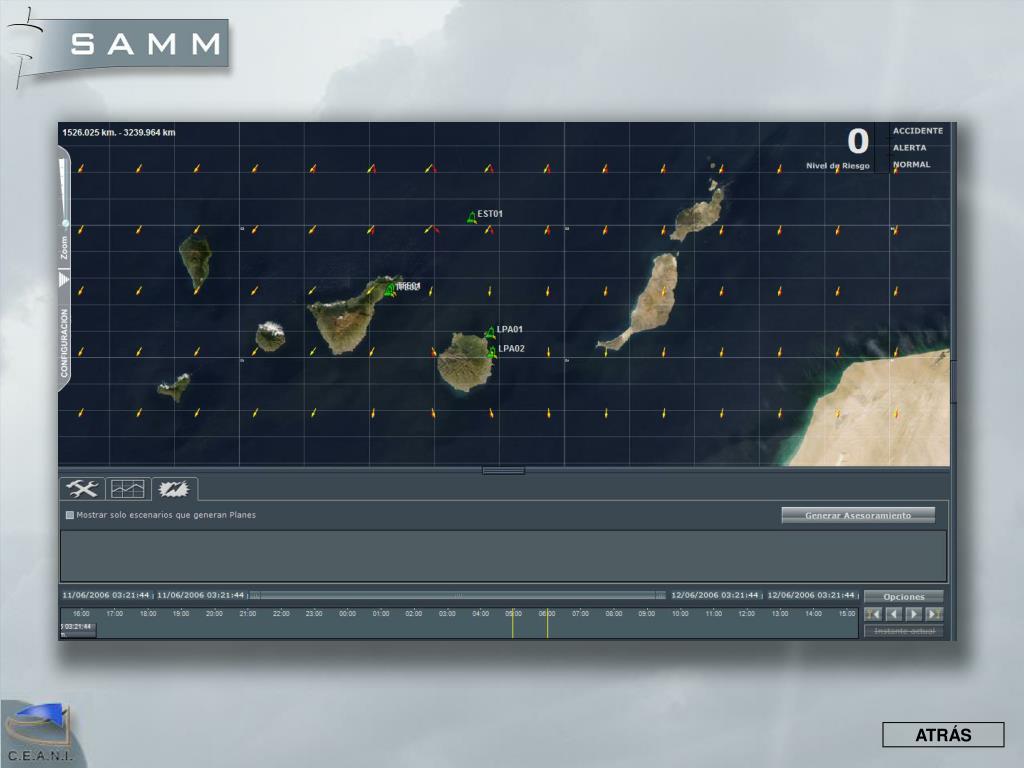

REAL DATA RETRIEVING SYSTEM Monitorizacion de datos en tiempo real • On-Line data capture • Automatically retrieved from many different sources • Manually inserted by users • - Wind (Velocity, direction, .. ) • - Sea currents (Velocity, direction, …) • - Oil in the water (Yes/No) • - Waves data • Temperature (Sea y Air) • Ship traffic • Other data (if available) • (planes, helicopters, emergency teams, …) • Active Data Management • Data Display System • Integrated History Archive • Data and software total interaction ATRÁS

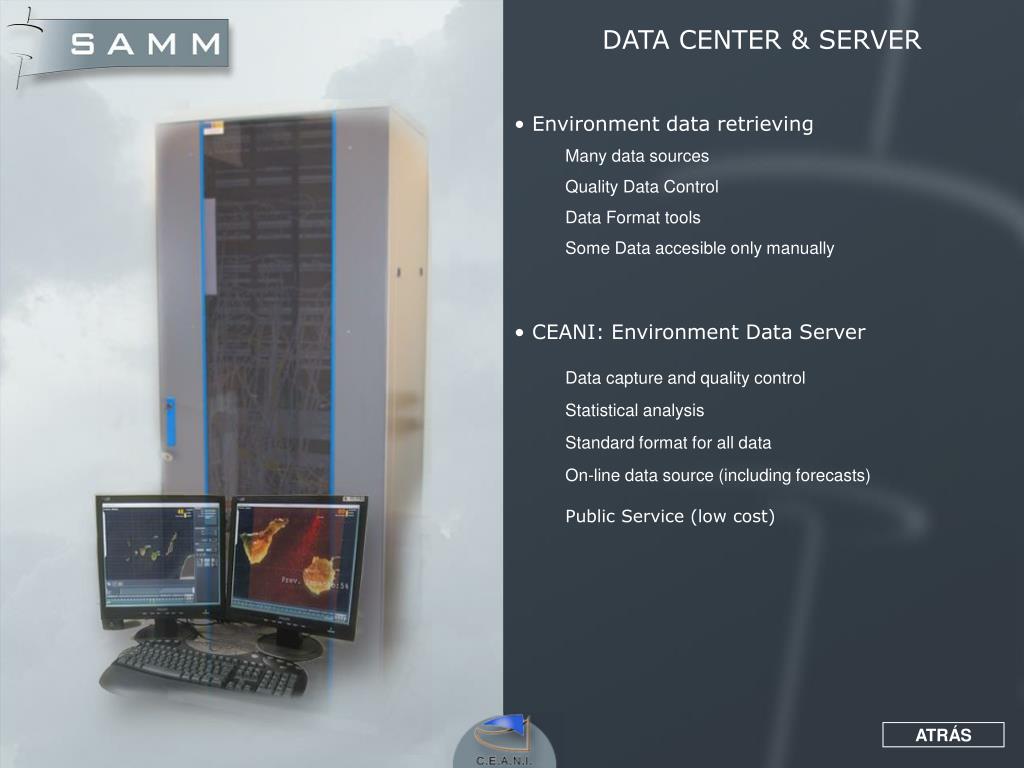

Concentrador de datos DATA CENTER & SERVER • Environment data retrieving • Many data sources • Quality Data Control • Data Format tools • Some Data accesible only manually • CEANI: Environment Data Server • Data capture and quality control • Statistical analysis • Standard format for all data • On-line data source (including forecasts) • Public Service (low cost) ATRÁS

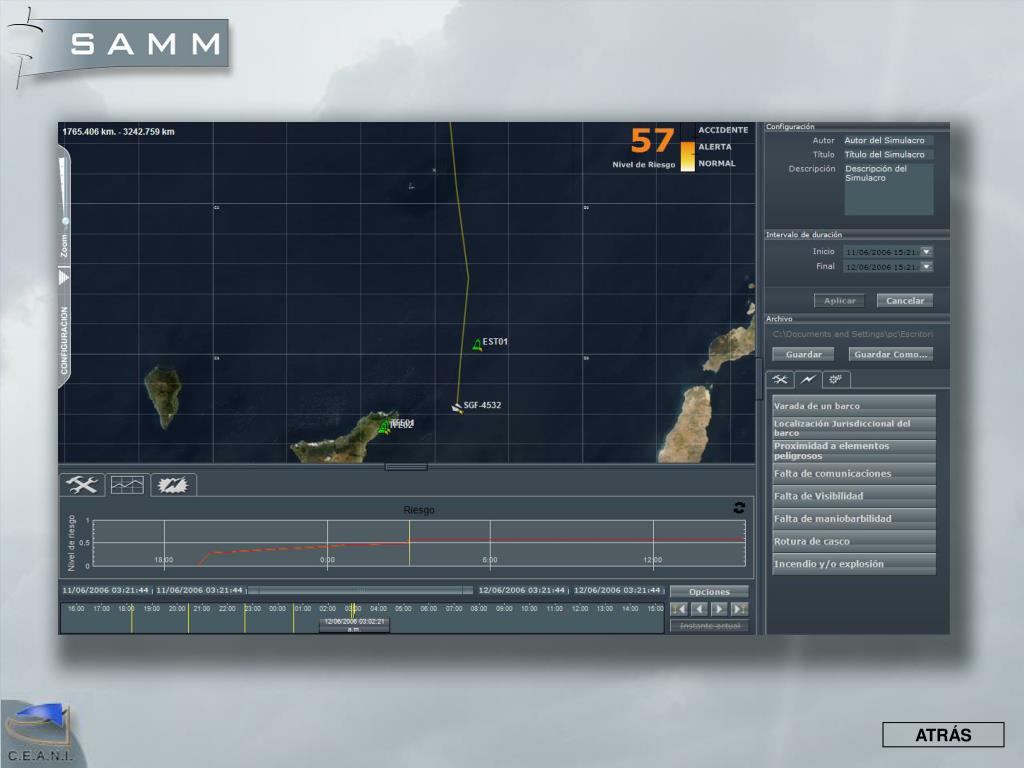

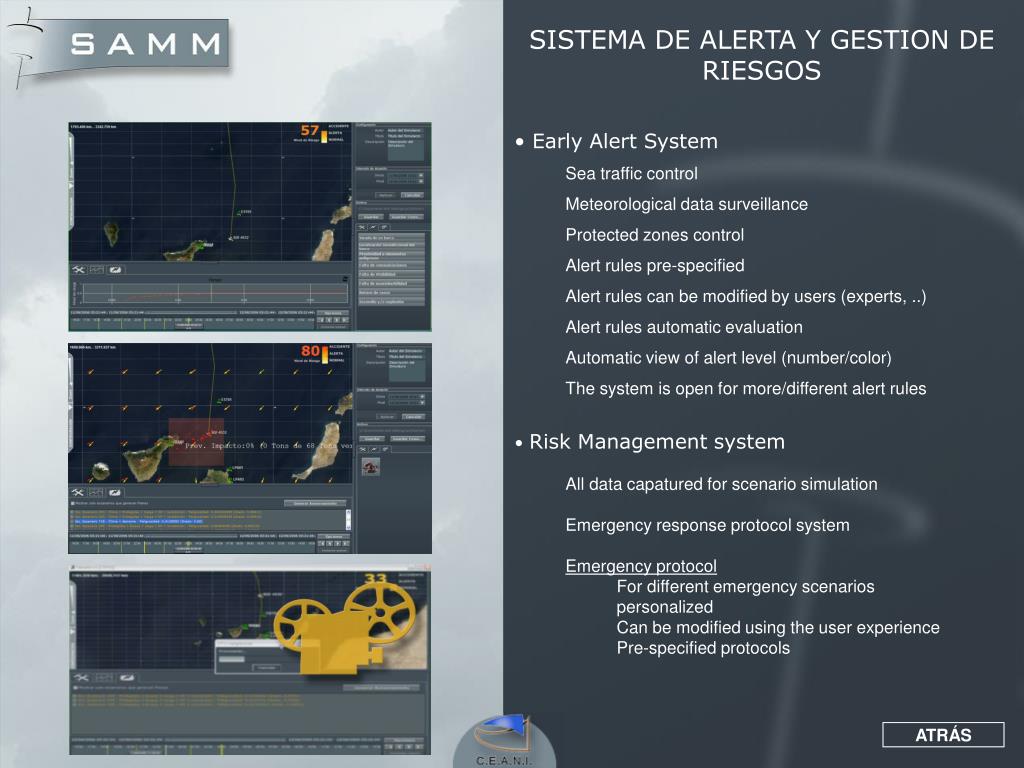

SISTEMA DE ALERTA Y GESTION DE RIESGOS • Early Alert System • Sea traffic control • Meteorological data surveillance • Protected zones control • Alert rules pre-specified • Alert rules can be modified by users (experts, ..) • Alert rules automatic evaluation • Automatic view of alert level (number/color) • The system is open for more/different alert rules • Risk Management system • All data capatured for scenario simulation • Emergency response protocol system • Emergency protocol • For different emergency scenarios • personalized • Can be modified using the user experience • Pre-specified protocols ATRÁS
RESOURCES MANAGEMENT • Management of available resources • Sea rescue teams & tools (ships, …) • Stock of materia to combat pollutants at sea (Barriers, Skimmers, … ) • Man-power available for emergencies • On line system of resources age and status • Geographic zoom • View of local available resources • Data of interest (Phone, … ) • Specific information services (webs, … ) ATRÁS

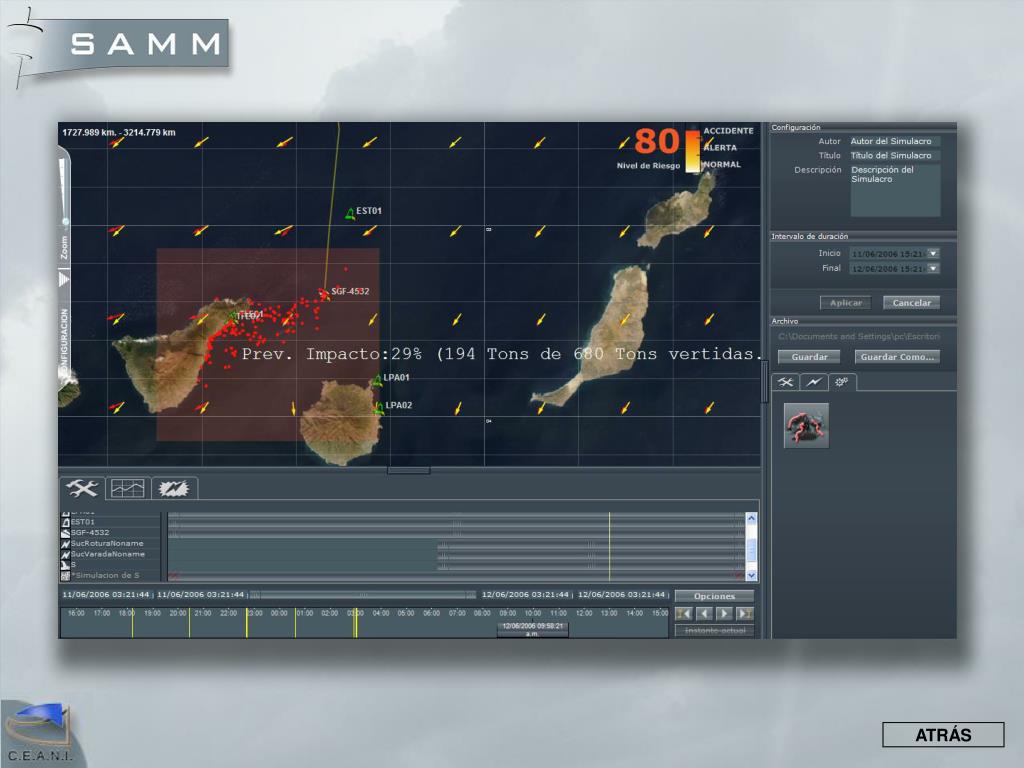

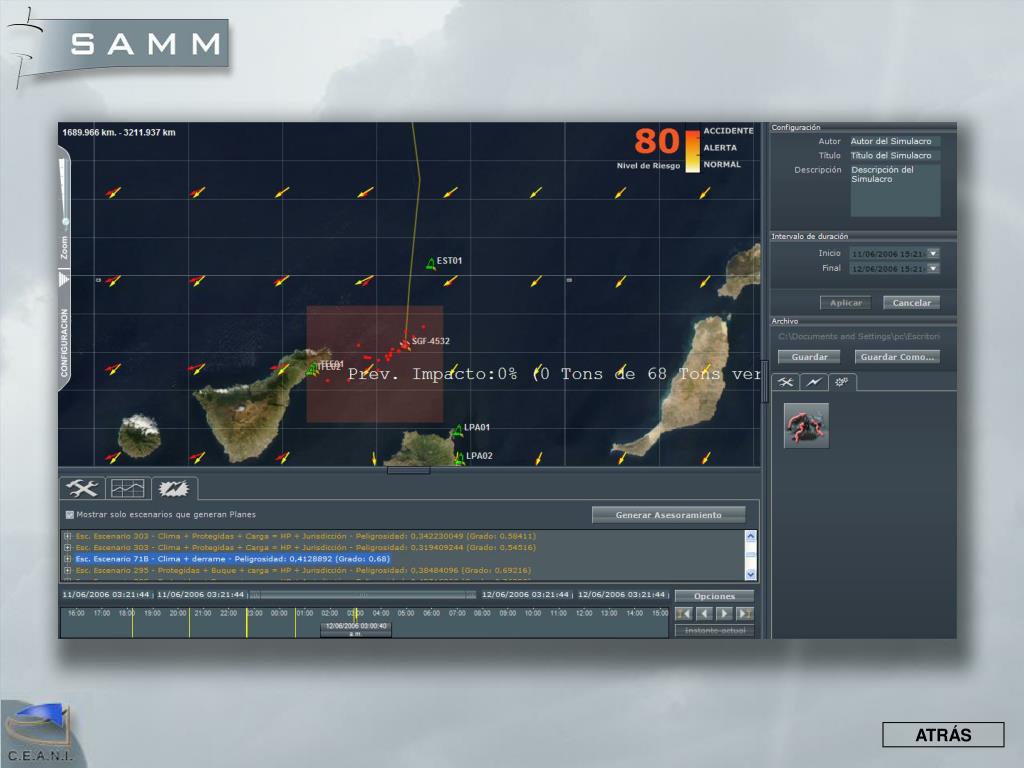

SIMULATION: OIL SPILLS AND OTHER POLLUTANTS • Simulation of oil spill scenarios • Include the most recent research developments: • Complex equations including: • Sea-Air movements • Oils spill behaviour forecasts: • Environmental conditions • Variable geometry of scenarios (coasts, …) • Physical and Chemical oil spill behaviour: • Age, Size, water level, … • Density and other properties • Complete Oil Catalog properties included • Coast Impact forecasts (time, size, chemical properties at the coast • Advanced simulation tools • Other simulations can be included: (pollutant and/or toxic clouds, Explosions,…) • Based on scientific developments already published during the las 15 years by the CEANI team. ATRÁS

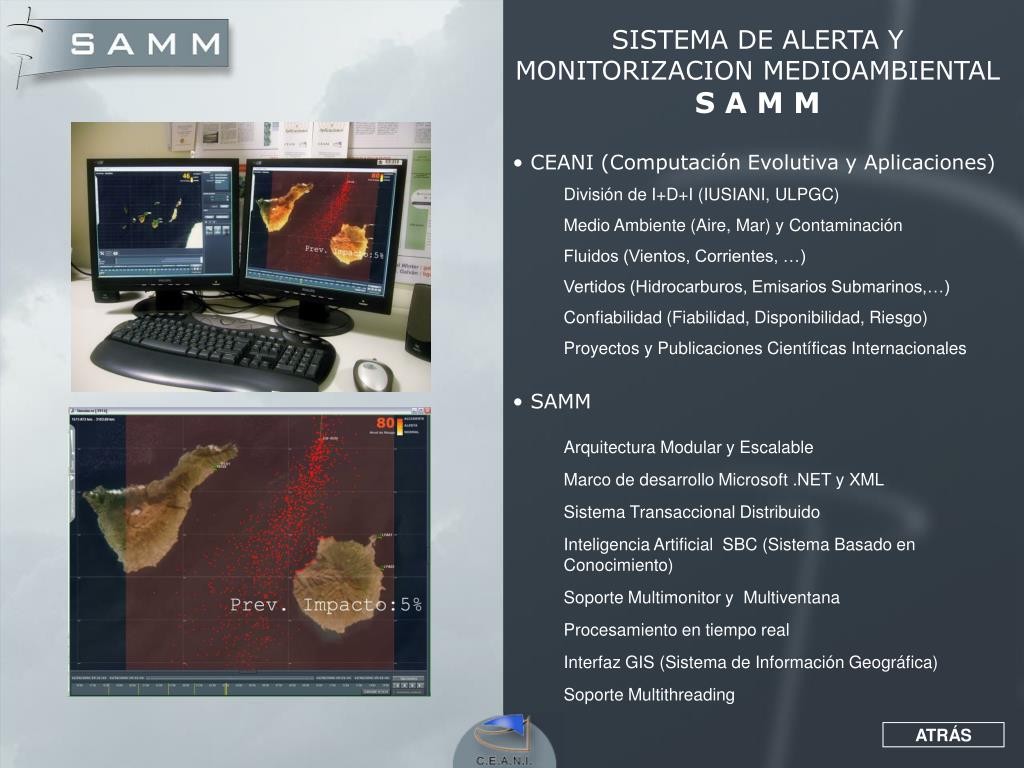

SISTEMA DE ALERTA Y MONITORIZACION MEDIOAMBIENTAL S A M M • CEANI (Computación Evolutiva y Aplicaciones) • División de I+D+I (IUSIANI, ULPGC) • Medio Ambiente (Aire, Mar) y Contaminación • Fluidos (Vientos, Corrientes, …) • Vertidos (Hidrocarburos, Emisarios Submarinos,…) • Confiabilidad (Fiabilidad, Disponibilidad, Riesgo) • Proyectos y Publicaciones Científicas Internacionales • SAMM • Arquitectura Modular y Escalable • Marco de desarrollo Microsoft .NET y XML • Sistema Transaccional Distribuido • Inteligencia Artificial SBC (Sistema Basado en • Conocimiento) • Soporte Multimonitor y Multiventana • Procesamiento en tiempo real • Interfaz GIS (Sistema de Información Geográfica) • Soporte Multithreading ATRÁS
