Purpose . Analyze force vectors in several situations of suspended masses. Predicting x and y components of forces (Free body diagrams: Done in the homework). Measuring x and y components of the forces. Encounter static and dynamic equilibrium situations. Static: acceleration = 0

lauren
Télécharger la présentation

Purpose

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Purpose • Analyze force vectors in several situations of suspended masses. • Predicting x and y components of forces (Free body diagrams: Done in the homework). • Measuring x and y components of the forces. • Encounter static and dynamic equilibrium situations. • Static: acceleration = 0 • Dynamic: acceleration  0

  2. Equipment • Two force sensors (static situations) • One force sensor and one photo gate (dynamic situation)

  3. Static Suspension of Mass on Strings Force Sensors must be aligned with strings for proper measurement of the force. tare buttons • Force sensors must be aligned and mass must be temporarily removed while taring the sensor. • Taring must be redone whenever force sensor is realigned. • Tare button is on the side of the force sensor.

  4. WRONG (not aligned) Force sensor will not measure the proper tension in the string.

  5. Dynamic Situation (Swinging Mass) Force sensor oriented so string is aligned at low point of motion. Photogate at low point of motion Photogate triggers force measurement at the right moment and measures velocity (actually measures time and calculates v).

  6. Q y x Dynamic Situation: Free Body Diagram At the lowest point of the swing: r T q ac = v2/r (direction of a is in the direction of the net force) mg cos q mg sin q mg W=mg (Note: This is just Newton’s second law: F = ma. Only T and W are forces! “ m ac“ is not a force!)

  7. Hit the “Scale to Fit” button here if you cannot see oscillations (F <0 if done correctly). Data acquisition starts here. This is also the moment in which the mass swings through the photo gate for the first time. Follow instructions

  8. Hints • In the static situations (no acceleration) we always have:  In the free body diagram the forces must always add up to zero. • For the dynamic situation you need only one force sensor: It must be the force sensor that is plugged into port A of the 750 interface. • Tare the force sensor before you hang the swinging mass on it.

  9. Hints In Part I you will be asked to calculate the % difference between your measured g and the accepted value of g (use 9.8 m/s2 for accepted value): In Part III you will also be asked to calculate the % uncertainty in your measurement of tension. With this we actually meant again the % deviation from the expected (calculated) value of T:

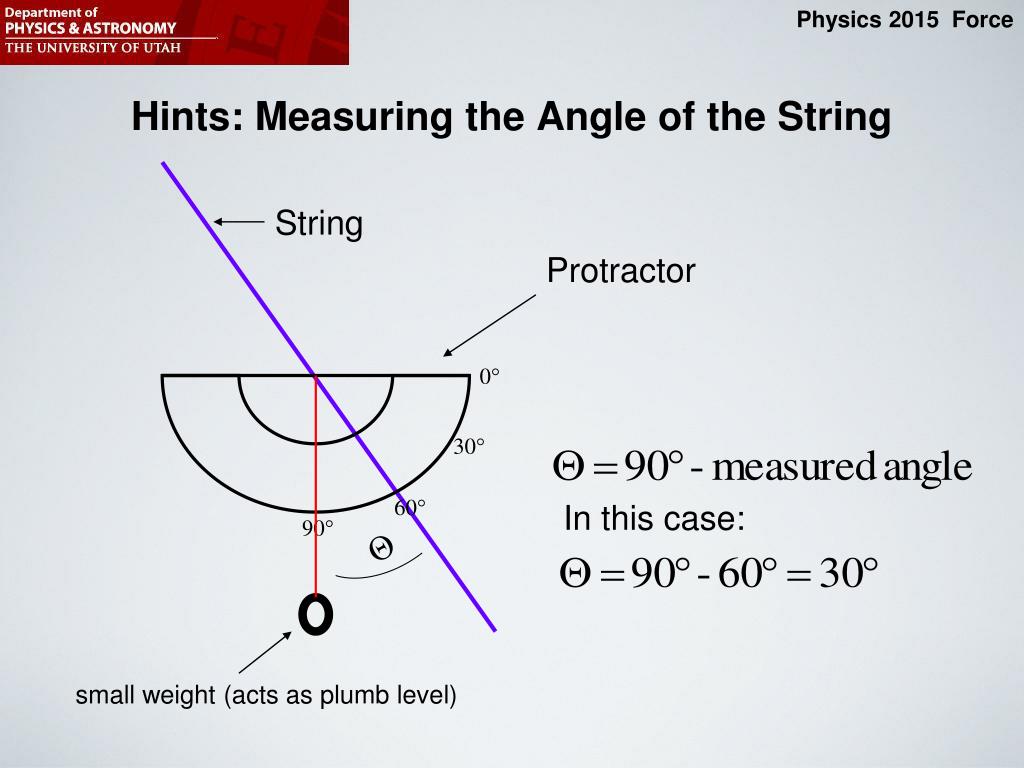

  10. Q 0° 30° 60° 90° Hints: Measuring the Angle of the String String Protractor In this case: small weight (acts as plumb level)

  11. Q Hints: Measuring the Angle of the String – Alternative Method String 90° In this case: 0° 60° 30°
