  1. X.S0017 Comments (Add OSA Mapping to IS-41) Zhang Yunyong,Zhang Zhijiang, Zhang Fan, Liu Yunjie September, 2004 http://www.chinaunicom.com.cn

  2. Content • Introduction • Current 3GPP OSA Mapping Specifications • Current 3GPP2 OSAMapping Specification and its Limitation • Call Control API to IS-41 Mapping • UI to IS-41 Mapping • User Location - User Status Service to IS-41 Mapping • Data Session Control Service to IS-41 Mapping • Proposal

  3. Introduction In this document we proposed four advices for X.S0017:  1.Section 15 defines the Mapping of the OSA/Parlay CC API Interfaces/methods, to ANSI IS-41D transactions, in an ANSI wireless network; 2.Section 16 defines the Mapping of the OSA/Parlay UI API Interfaces/methods, to ANSI IS-41D transactions, in an ANSI wireless network; 3.Section 17 defines the Mapping of the OSA/Parlay User Location - User Status API Interfaces/methods, to ANSI IS-41D transactions, in an ANSI wireless network; 4. Section 18 defines the Mapping of the OSA/Parlay Data Session Control API Interfaces/methods, to ANSI IS-41D transactions, in an ANSI wireless network.

  4. OSA API Mapping - 29.998-family 29.998-01 Overview 29.998-02 Not Applicable 29.998-03 Not Applicable 29.998-04-1 Generic Call Control – CAP mapping 29.998-04-2 Generic Call Control – INAP mapping 29.998-04-3 Generic Call Control – Megaco mapping 29.998-04-4 Multiparty Call Control – SIP mapping 29.998-05-1 User Interaction – CAP mapping 29.998-05-2 User Interaction – INAP mapping 29.998-05-3 User Interaction – Megaco mapping 29.998-05-4 User Interaction – SMS mapping 29.998-06 User Status and User Location – MAP mapping 29.998-07 Not Applicable 29.998-08 Data Session Control – CAP mapping 29.998-09 Not Applicable 29.998-10 Not Applicable 29.998-11 Not Applicable 29.998-12 Not Applicable 29.998-13 Not Applicable 29.998-14 Not Applicable Current 3GPP OSA Mapping Specifications

  5. Current 3GPP2 OSAMapping Specification and its Limitation • 3GPP had defined mapping from OSA to CAP, MAP , SIP and SMS in TS. 29.998; • 3GPP2 had published X.S0017 specification, but mapping from OSA to IS-41 had not been defined in it.

  6. Call Control API to IS-41 Mapping Generic Call Control ANSI Call Flows -Call Control Manager enableCallNotification disableCallNotification changeCallNotification getCriteria setCallLoadControl callNotificationInterrupted callNotificationContinued callAborted callEventNotify

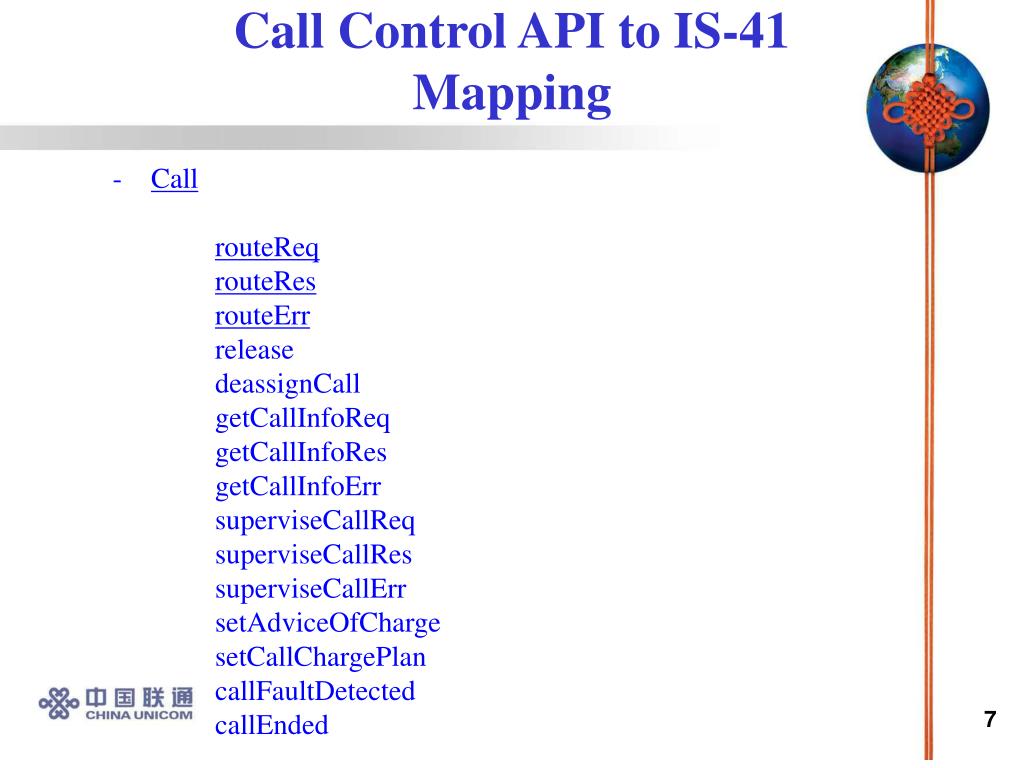

  7. Call Control API to IS-41 Mapping • Call • routeReq • routeRes • routeErr • release • deassignCall • getCallInfoReq • getCallInfoRes • getCallInfoErr • superviseCallReq • superviseCallRes • superviseCallErr • setAdviceOfCharge • setCallChargePlan • callFaultDetected • callEnded

  8. Call Control API to IS-41 Mapping Detailed Parameter Mappings -TpCallReportType -TpCallEventName

  9. UI to IS-41 Mapping Generic Message Transfer Service ANSI Call Flows -User Interaction createUI createUICall enableUINotification disableUINotification userInteractionEventNotify userInteractionAborted userInteractionNotificationInterrupted userInteractionNotificationContinued userInteractionFaultDetected sendInfoReq sendInfoRes sendInfoErr sendInfoAndCollectReq sendInfoAndCollectRes sendInfoAndCollectErr release abortActionReq abortActionRes abortActionErr

  10. UI to IS-41 Mapping User Interaction API to SMS Mapping -User Interaction createUI createUICall enableUINotification disableUINotification userInteractionEventNotify userInteractionAborted userInteractionNotificationInterrupted userInteractionNotificationContinued userInteractionFaultDetected sendInfoReq sendInfoRes sendInfoErr sendInfoAndCollectReq sendInfoAndCollectRes sendInfoAndCollectErr release abortActionReq abortActionRes abortActionErr

  11. User Location - User Status Service to IS-41 Mapping User Status Service ANSI Flows triggeredStatusReportingStartReq triggeredStatusReportingStop statusReportReq statusReportRes triggeredStatusReport Network User Location Call Flows locationReportReq locationReportRes locationReportErr periodicLocationReportingStartReq periodicLocationReportingStop periodicLocationReport periodicLocationReportErr triggeredLocationReportingStartReq triggeredLocationReportingStop triggeredLocationReport triggeredLocationReportErr

  12. Data Session Control Service to IS-41 Mapping Data Session Control Service ANSI Call Flows -Data Session Manager enableDataSessionNotification disableDataSessionNotification dataSessionEventNotify dataSessionAborted dataSessionNotificationInterrupted dataSessionNotificationContinued -Data Session ConnectReq connectRes connectErr release superviseDataSessionReq superviseDataSessionRes superviseDataSessionErr dataSessionFaultDetected setAdviceOfCharge setDataSessionChargePlan

  13. Proposal • Construct a new project/WI to study it. • The proposed text be discussed and accepted for X.S0017.

  14. Thanks alot! Please review the file for correctness and comments. (ftp://ftp.3gpp2.org/TSGX/Incoming/WG2-CSN/X20-20041018-009 X.S0017 comments--CCSA.doc) Wish you help on constructing the new project/WI.
