  1. Tables

  2. Basic Table Structure <table border="1">    <tr>       <td>Row 1, Col 1</td>       <td>Row 1, Col 2</td>       <td>Row 1, Col 3</td>    </tr>    <tr>       <td>Row 2, Col 1</td>       <td>Row 2, Col 2</td>       <td>Row 2, Col 3</td>    </tr> </table>

  3. Column Header

  4. Column Header (HTML) <table border="1">   <tr>       <th>Column 1</th>       <th>Column 2</th>       <th>Column 3</th>    </tr> <tr>       <td>Row 1, Col 1</td>       <td>Row 1, Col 2</td>       <td>Row 1, Col 3</td>    </tr>    <tr>       <td>Row 2, Col 1</td>       <td>Row 2, Col 2</td>       <td>Row 2, Col 3</td>    </tr> </table>

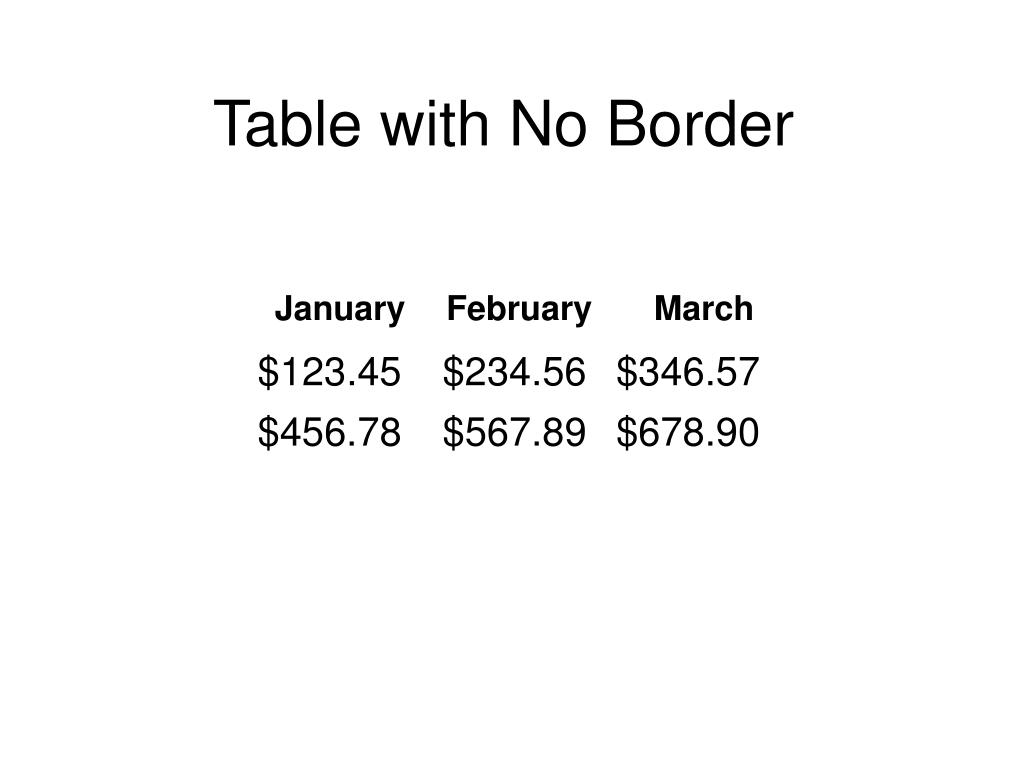

  5. Table with No Border

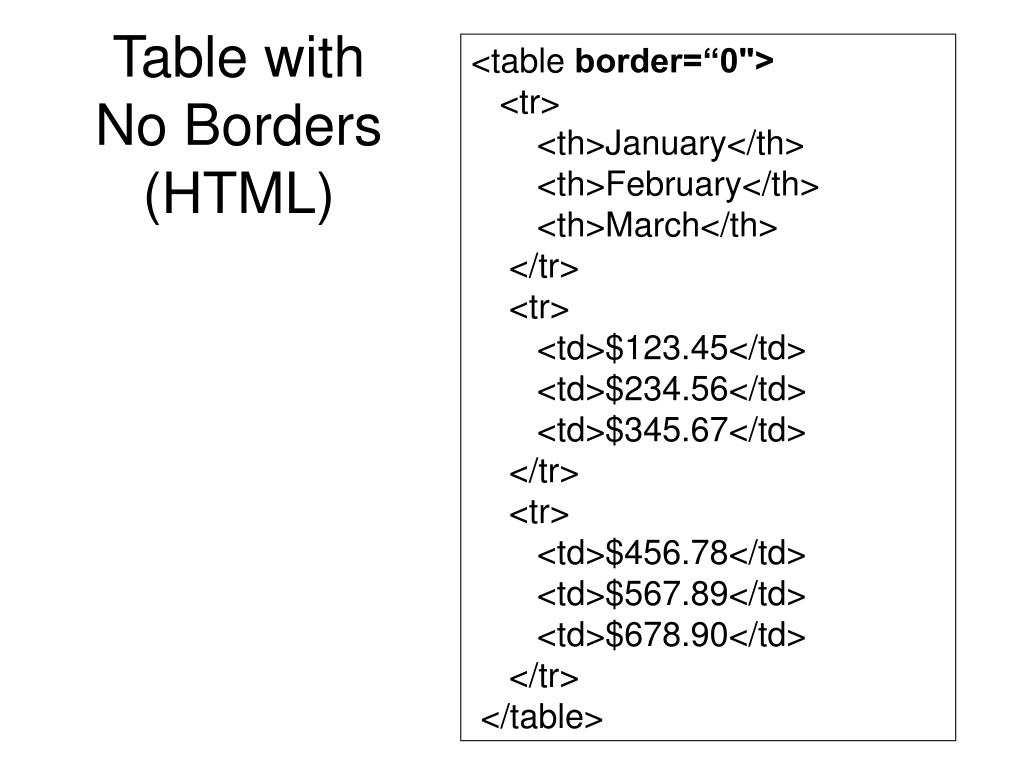

  6. Table with No Borders (HTML) <table border=“0">   <tr>       <th>January</th>       <th>February</th>       <th>March</th>    </tr> <tr>       <td>$123.45</td>       <td>$234.56</td>       <td>$345.67</td>    </tr>    <tr>       <td>$456.78</td>       <td>$567.89</td>       <td>$678.90</td>    </tr> </table>

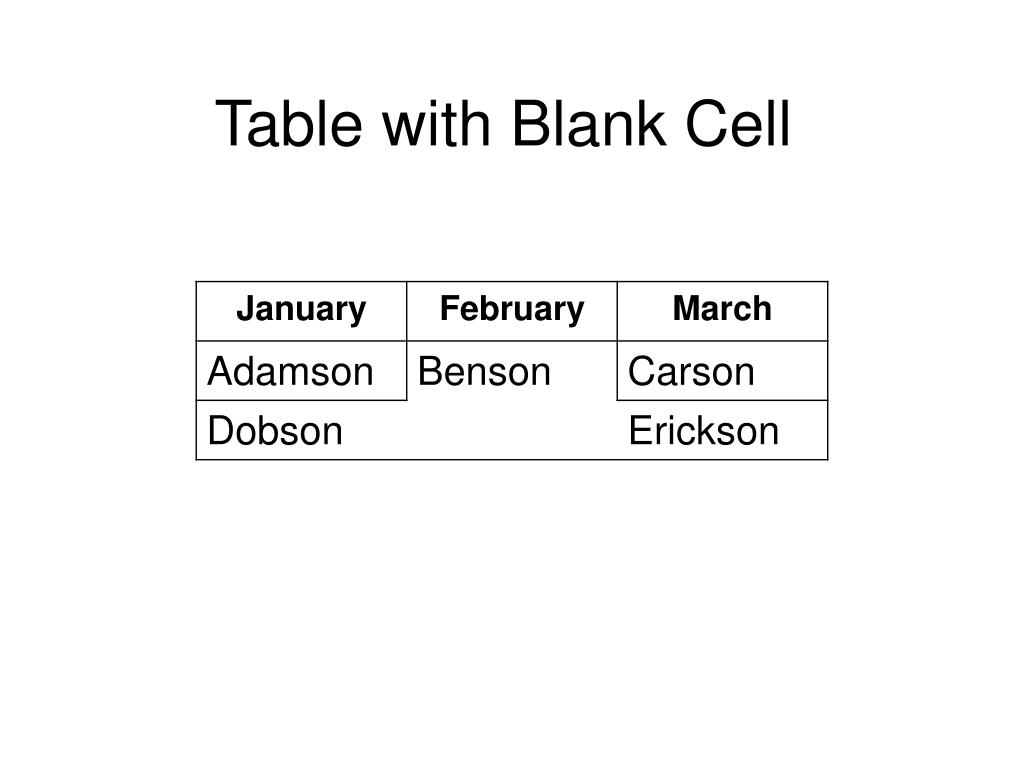

  7. Table with Blank Cell

  8. Solution for Table with Blank Cell <table border=1> <tr> <th>January</th> <th>February</th> <th>March</th> </tr> <tr> <td>Adamson</td> <td>Benson</td> <td>Carson</td> </tr> <tr> <td>Dobson</td> <td> </td> <td>Erickson</td> </tr> <table> <td><br></td> or <td>&nbsp;</td>

  9. Table with Blank Cellwith Borders

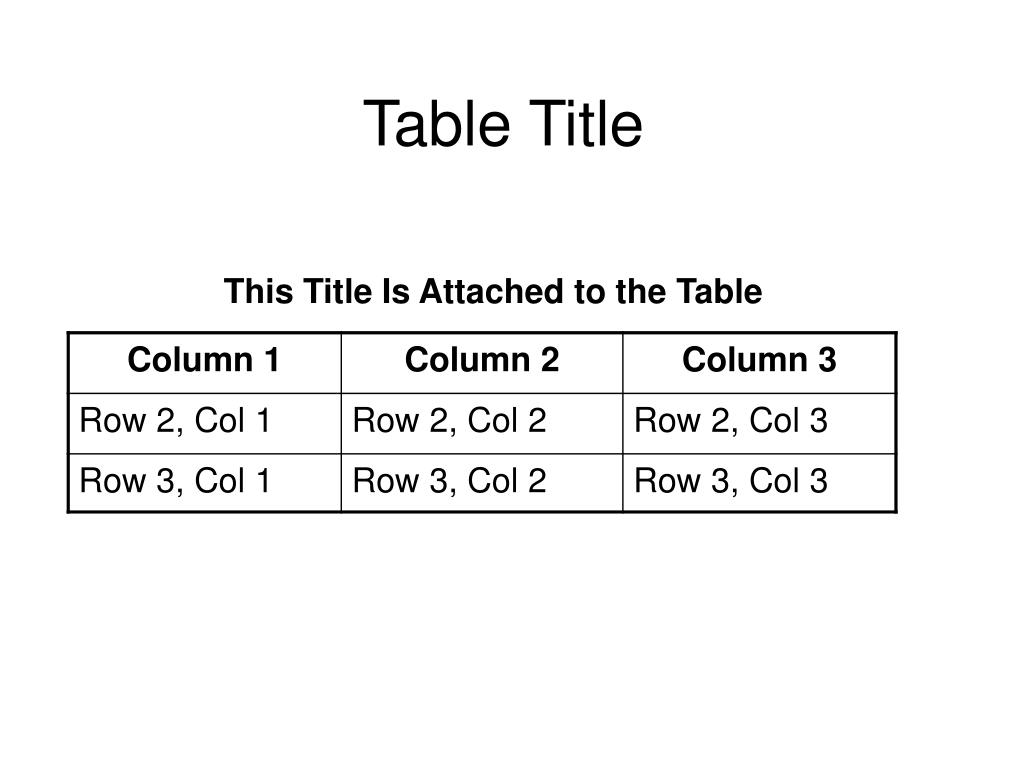

  10. Table Title This Title Is Attached to the Table

  11. TableTitle (HTML) <table border=“0"> <caption><b>This title is attached to the table</b></caption>   <tr>       <th>Row 2, Col 1</th>       <th>Row 2, Col 2</th>       <th>Row 2, Col 3</th>    </tr> <tr>       <td>Row 3, Col 1</td>       <td>Row 3, Col 2</td>       <td>Row 3, Col 3</td>    </tr> </table>

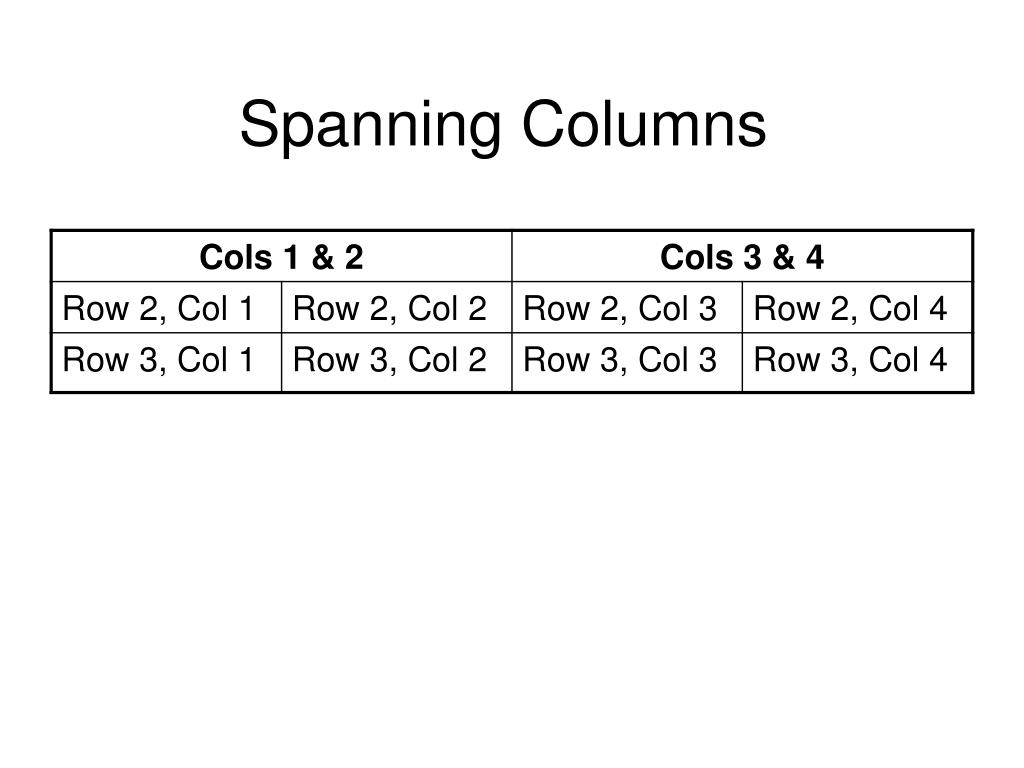

  12. Spanning Columns

  13. <table border=“0">   <tr>       <th colspan=”2”>Cols 1 & 2</th>       <th colspan=“2”>Cols 3 & 4</th>    </tr> <tr>       <td>Row 2, Col 1</td>       <td>Row 2, Col 2</td>       <td>Row 2, Col 3</td>      <td>Row 2, Col 4</td>    </tr>    <tr>       <td>Row 3, Col 1</td>       <td>Row 3, Col 2</td>       <td>Row 3, Col 3</td>       <td>Row 3, Col 4</td>    </tr> </table> Spanning Columns (HTML)

  14. Spanning Rows

  15. Spanning Rows (HTML) <table border=“0">   <tr>       <td rowspan=”2”>Rows 1 & 2</td>       <td>Row 1, Col 2</td>       <td>Row 1, Col 3</td>    </tr> <tr>       <td>Row 2, Col 2</td>       <td>Row 2, Col 3</td>    </tr>    <tr>       <td rowspan=“2”>Row 3 & 4</td>       <td>Row 3, Col 2</td>       <td>Row 3, Col 3</td>    </tr> <tr>       <td>Row 4, Col 2</td>       <td>Row 4, Col 3</td>    </tr> </table>

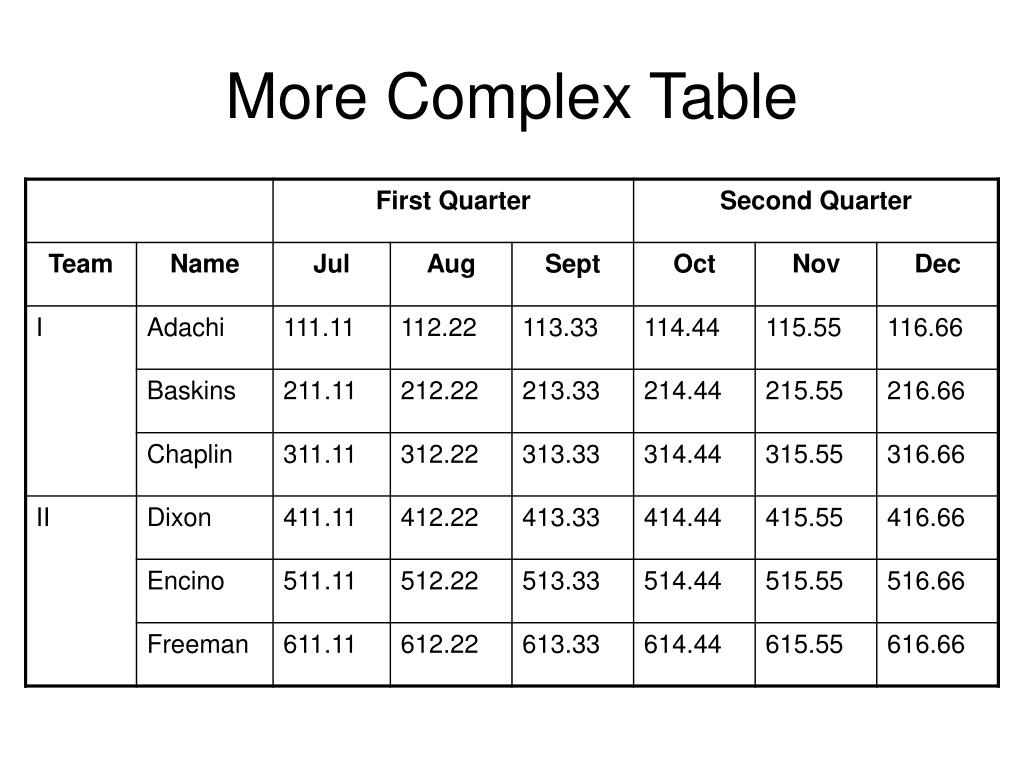

  16. More Complex Table

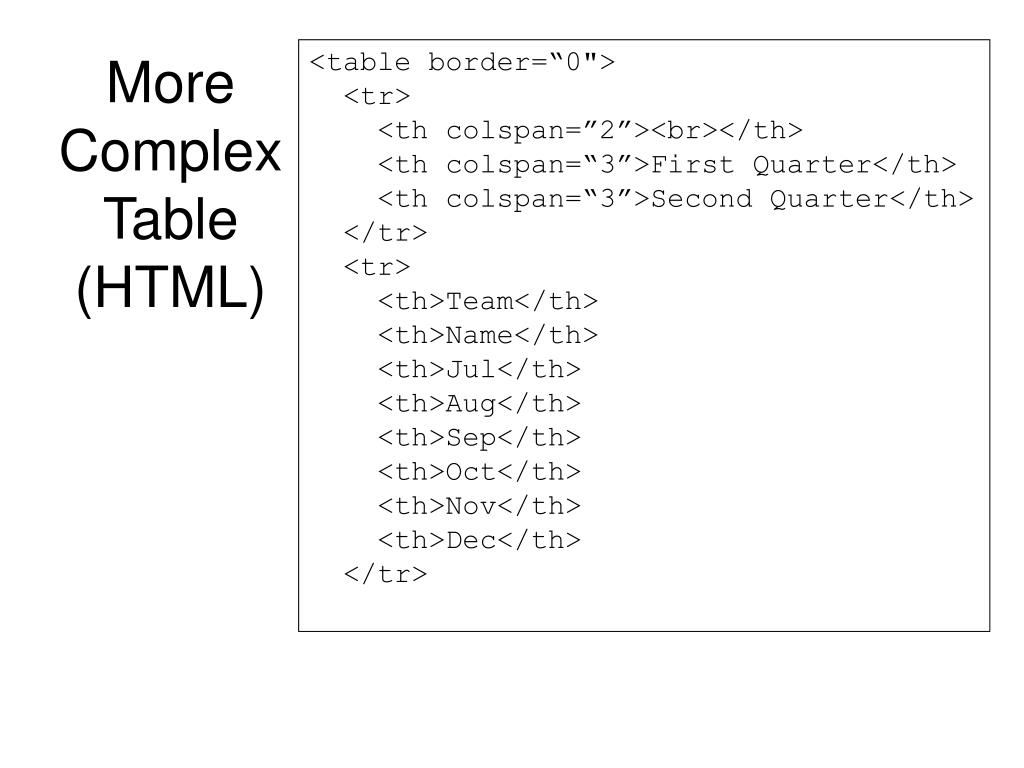

  17. More Complex Table (HTML) <table border=“0">  <tr>    <th colspan=”2”><br></th>    <th colspan=“3”>First Quarter</th>    <th colspan=“3”>Second Quarter</th>  </tr> <tr>    <th>Team</th>    <th>Name</th>    <th>Jul</th>    <th>Aug</th>    <th>Sep</th>    <th>Oct</th>    <th>Nov</th>    <th>Dec</th>  </tr>

  18. More Complex Table (HTML) <tr> <td ROWSPAN=3>I</td> <td>Adachi</td> <td>111.11</td> <td>112.22</td> <td>113.33</td> <td>114.44</td> <td>115.55</td> <td>116.66</td> </tr> <tr> <td>Baskins</td> <td>211.11</td> <td>212.22</td> <td>213.33</td> <td>214.44</td> <td>215.55</td> <td>216.66</td> </tr>

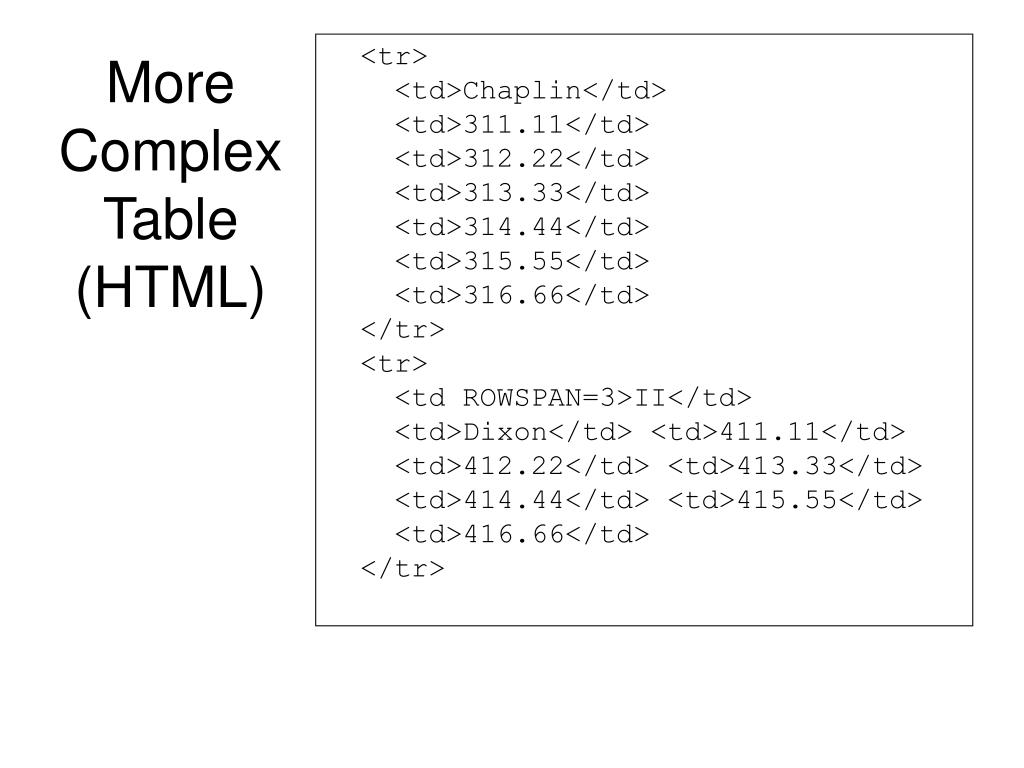

  19. More Complex Table (HTML) <tr> <td>Chaplin</td> <td>311.11</td> <td>312.22</td> <td>313.33</td> <td>314.44</td> <td>315.55</td> <td>316.66</td> </tr> <tr> <td ROWSPAN=3>II</td> <td>Dixon</td> <td>411.11</td> <td>412.22</td> <td>413.33</td> <td>414.44</td> <td>415.55</td> <td>416.66</td> </tr>

  20. More Complex Table (HTML) <tr> <td>Encino</td> <td>511.11</td> <td>512.22</td> <td>513.33</td> <td>514.44</td> <td>515.55</td> <td>516.66</td> </tr> <tr> <td>Freeman</td> <td>611.11</td> <td>612.22</td> <td>613.33</td> <td>614.44</td> <td>615.55</td> <td>616.66</td> </tr></table>

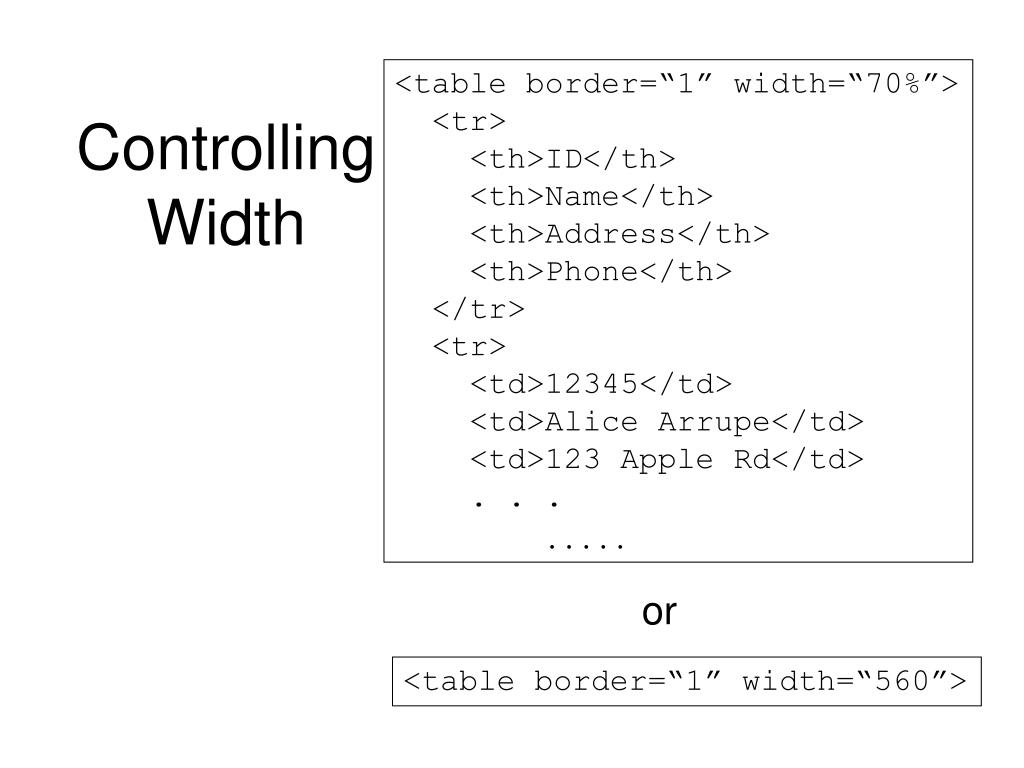

  21. Controlling Width <table border=“1” width=“70%”> <tr> <th>ID</th> <th>Name</th> <th>Address</th> <th>Phone</th> </tr> <tr> <td>12345</td> <td>Alice Arrupe</td> <td>123 Apple Rd</td> . . . . . . . . or <table border=“1” width=“560”>

  22. Controlling Cell Width

  23. Controlling Cell Width <table border=“1” width=“500”> <tr> <th width=“5%”>ID</th> <th width=“30%”>Name</th> <th width=“55%”>Address</th> <th width=“10%”>Phone</th> </tr> <tr> <td>12345</td> <td>Alice Arrupe</td> <td>123 Apple Rd</td> <td>111-2121</td> </tr> <tr> <td>23456</td> <td>Bobbie Benton</td> ...

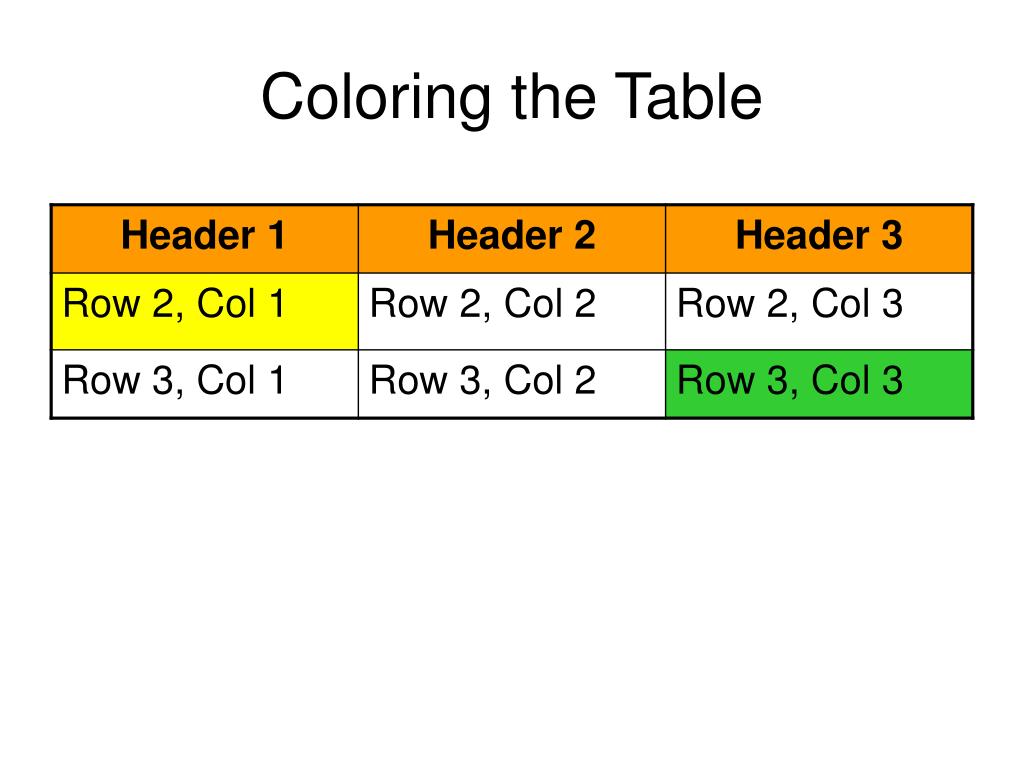

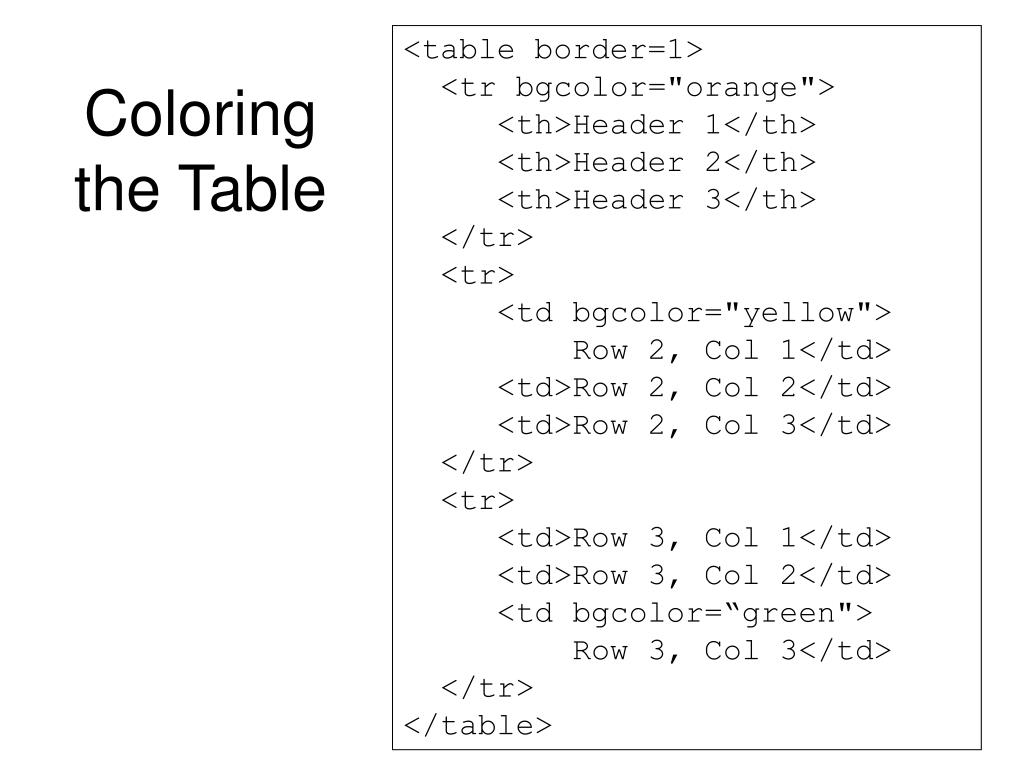

  24. Coloring the Table

  25. <table border=1> <tr bgcolor="orange"> <th>Header 1</th> <th>Header 2</th> <th>Header 3</th> </tr> <tr> <td bgcolor="yellow"> Row 2, Col 1</td> <td>Row 2, Col 2</td> <td>Row 2, Col 3</td> </tr> <tr> <td>Row 3, Col 1</td> <td>Row 3, Col 2</td> <td bgcolor=“green"> Row 3, Col 3</td> </tr> </table> Coloring the Table

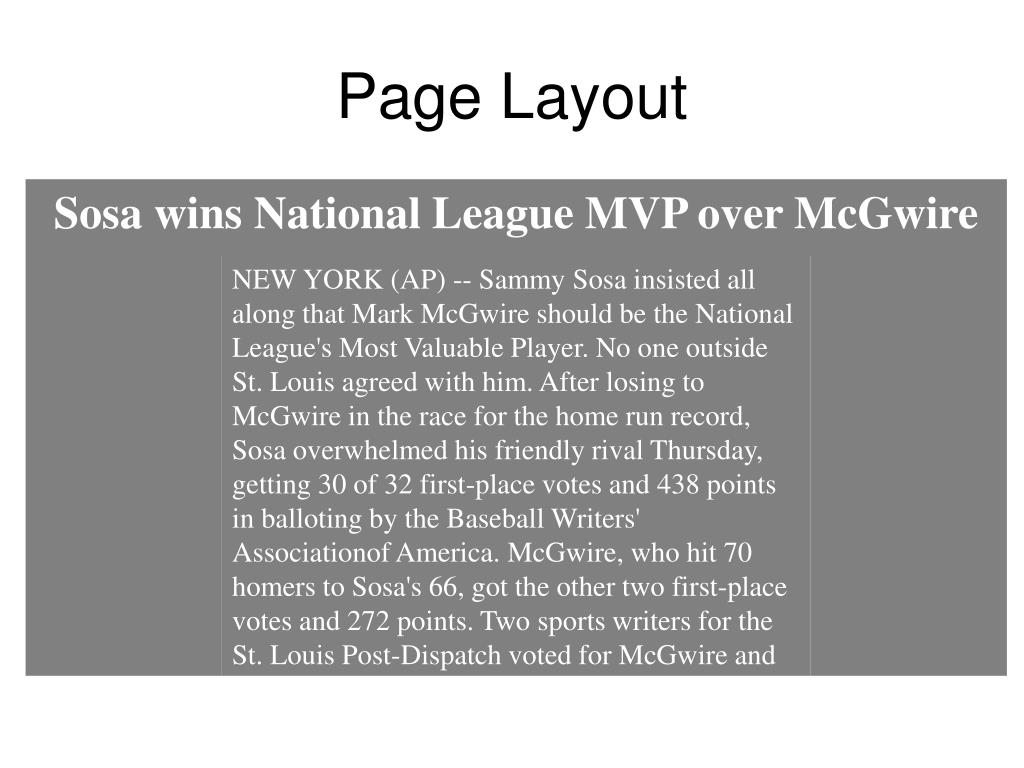

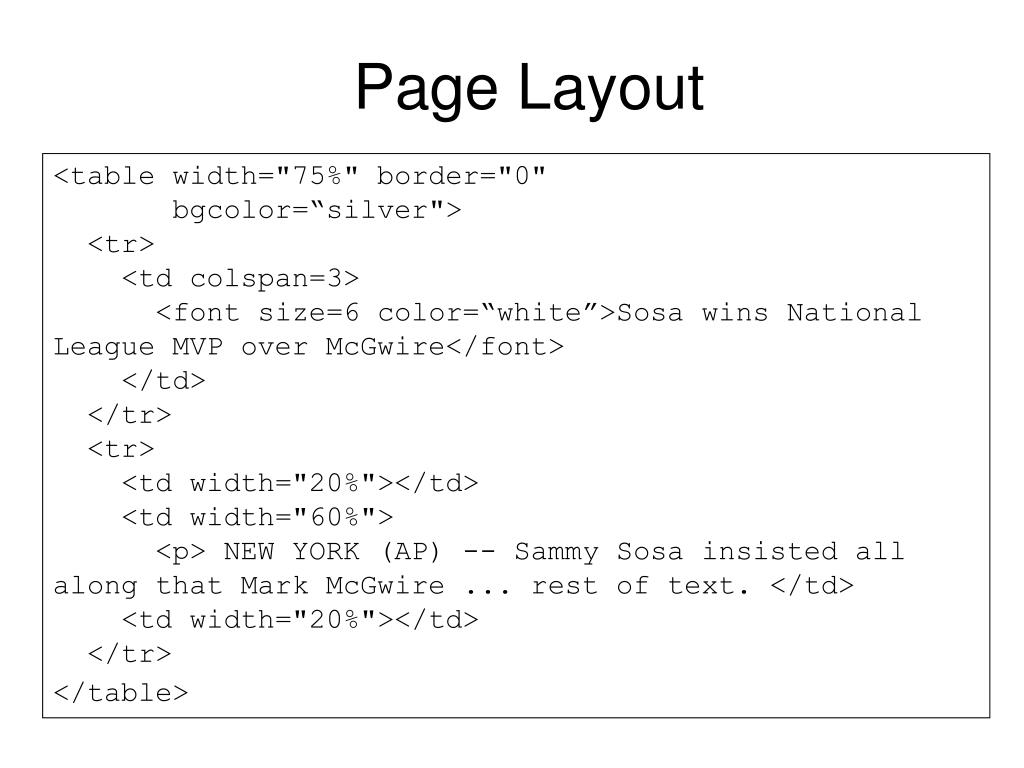

  26. Page Layout

  27. Page Layout <table width="75%" border="0" bgcolor=“silver"> <tr> <td colspan=3> <font size=6 color=“white”>Sosa wins National League MVP over McGwire</font> </td> </tr> <tr> <td width="20%"></td>   <td width="60%"> <p> NEW YORK (AP) -- Sammy Sosa insisted all along that Mark McGwire ... rest of text. </td> <td width="20%"></td>  </tr> </table>
