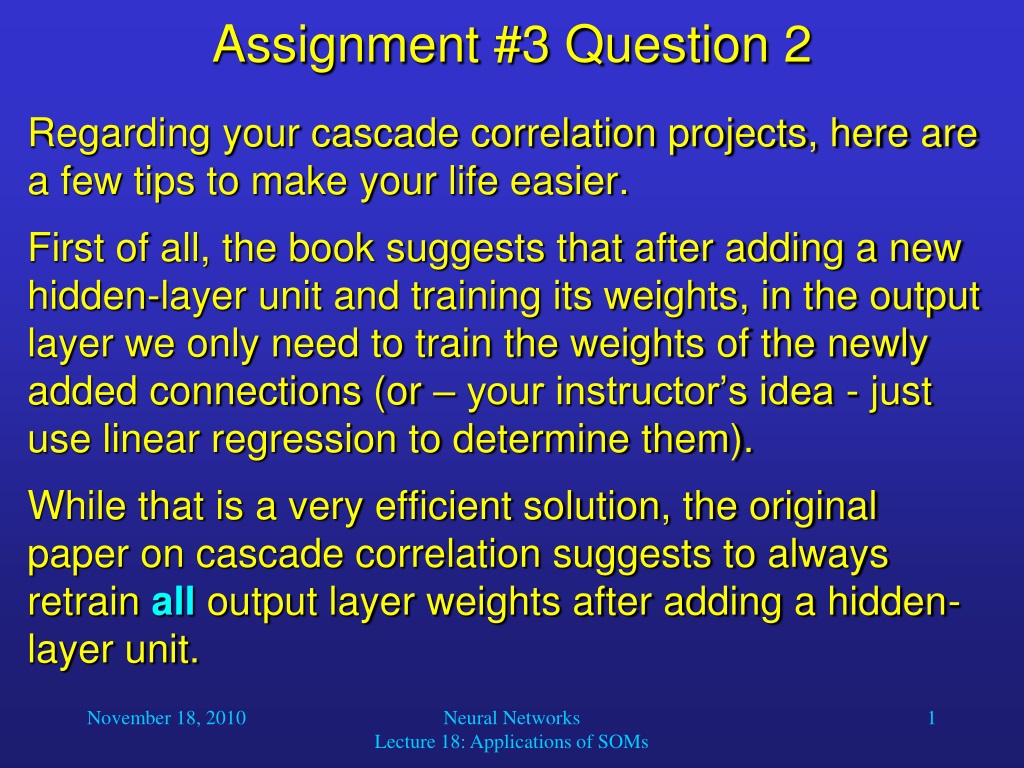

1. Assignment #3 Question 2 • Regarding your cascade correlation projects, here are a few tips to make your life easier. • First of all, the book suggests that after adding a new hidden-layer unit and training its weights, in the output layer we only need to train the weights of the newly added connections (or – your instructor’s idea - just use linear regression to determine them). • While that is a very efficient solution, the original paper on cascade correlation suggests to always retrain all output layer weights after adding a hidden-layer unit. Neural Networks Lecture 18: Applications of SOMs

2. Assignment #3 Question 2 • This will require more training, but it may find a better (=lower error) overall solution for the weight vectors. • Furthermore, it will be easier for you to use the same training procedure over and over again instead of writing a single-weight updating function or a linear regression function. • For this output weight training, you can simply use your backpropagation algorithm and remove the hidden-layer training. • The cascade correlation authors suggest Quickprop for speedup, but Rprop also works. Neural Networks Lecture 18: Applications of SOMs

3. Assignment #3 Question 2 • In order to train the weights of a new hidden-layer unit, you need to know the current error for each output neuron and each exemplar. • You can compute these values once and store them in an array. • After creating a new hidden unit with random weights and before training it, determine the current sign Sk of the covariance between the unit’s output and the error in output unit k (do not update Skduring training, it can lead to convergence problems). Neural Networks Lecture 18: Applications of SOMs

4. Assignment #3 Question 2 • For the hidden-layer training, you can also use Quickprop or Rprop. • Once a new hidden-layer unit has been installed and trained, its weights and thus its output for a given network input will never change. • Therefore, you can store the outputs of all hidden units in arrays and use these stored data for the remainder of the network buildup/training. • No optimizations are required for this question (sorry, no prizes here), but it is interesting to try it anyway. Neural Networks Lecture 18: Applications of SOMs

5. Self-Organizing Maps (Kohonen Maps) output vector o • Network structure: … O1 O2 O3 Om … x1 x2 xn input vector x Neural Networks Lecture 18: Applications of SOMs

6. Self-Organizing Maps (Kohonen Maps) Neural Networks Lecture 18: Applications of SOMs

7. Unsupervised Learning in SOMs In the textbook, a different kind of neighborhood function is used. Instead of having a smooth, continuous function (i, k) to indicate connection strength, a neighborhood boundary is defined. All neurons within the neighborhood of the winner unit adapt their weights to the current input by exactly the same proportion . The size of the neighborhood is decreased over time. Neural Networks Lecture 18: Applications of SOMs

8. Unsupervised Learning in SOMs N.hood for 0  t < 10 N.hood for 10  t < 20 N.hood for 20  t < 30 N.hood for 30  t < 40 N.hood for t > 39 Neural Networks Lecture 18: Applications of SOMs

9. 0 20 100 1000 10000 25000 Unsupervised Learning in SOMs Example I: Learning a one-dimensional representation of a two-dimensional (triangular) input space: Neural Networks Lecture 18: Applications of SOMs

10. Unsupervised Learning in SOMs Example II: Learning a two-dimensional representation of a two-dimensional (square) input space: Neural Networks Lecture 18: Applications of SOMs

11. Unsupervised Learning in SOMs Example III:Learning a two-dimensional mapping of texture images Neural Networks Lecture 18: Applications of SOMs

12. Unsupervised Learning in SOMs Examples IV and V:Learning two-dimensional mappings of RGB colors and NFL images: http://www.shy.am/2005/12/kohonen-self-organizing-map-demos/ Example VI: Interactive SOM learning of two- and three-dimensional shapes: http://www.cs.umb.edu/~marc/cs672/wsom.exe Neural Networks Lecture 18: Applications of SOMs

13. Unsupervised Learning in SOMs Example VII:A Self-organizing Semantic Map for Information Retrieval (Xia Lin, DagobertSoergel, Gary Marchionini) http://www.cs.umb.edu/~marc/cs672/lin1991.pdf Neural Networks Lecture 18: Applications of SOMs
