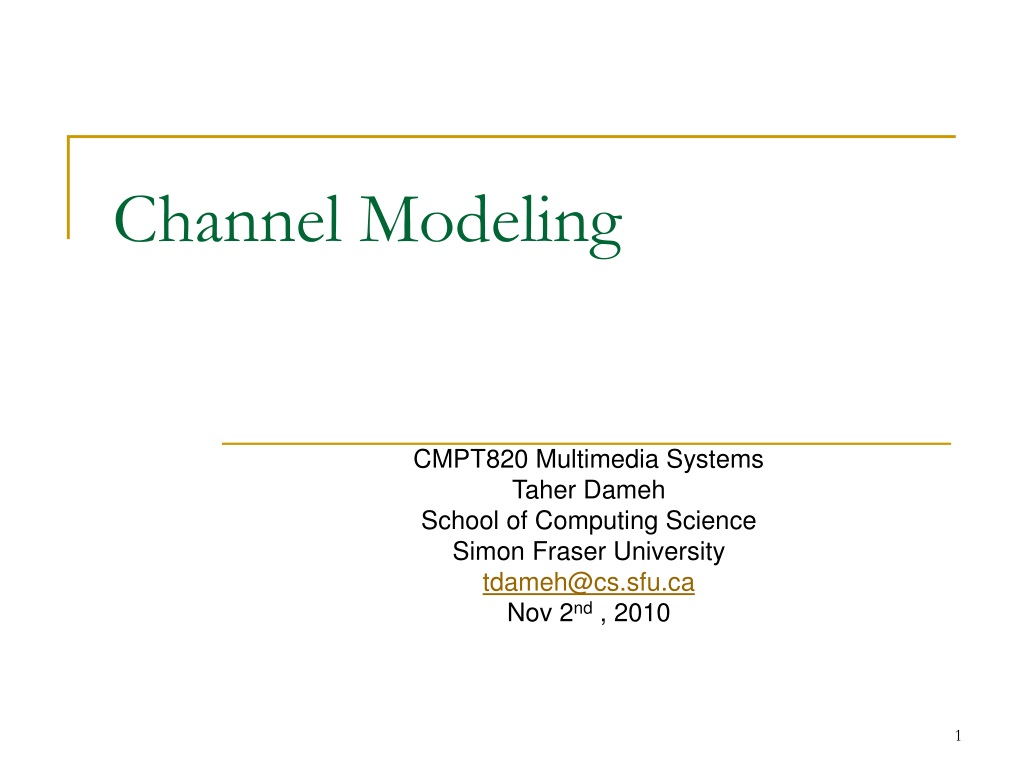

  1. Channel Modeling CMPT820 Multimedia Systems Taher Dameh School of Computing Science Simon Fraser University tdameh@cs.sfu.ca Nov 2nd , 2010

  2. Outline • Introduction • Basic Probability Theory and Information Theory Concepts. • Discreet Random variables • Entropy • Mutual Information • Channel Capacities • Discrete MemoryLess Channels (DMC) • Binary Erasure Channel (BEC) • Packet Erasure Channel (PEC) • Cascaded BEC • BEC with Feedback • Channels with memory • Gilbertmodel • Evaluating a desired loss/recovery probability • Packet Correlation • Cascaded Channels

  3. Introduction • Why to model channels ? • Play a crucial role in the design and development of multimedia applications as well as resilience techniques to protect the content over the Internet. • End-to-end multimedia applications parameters influence the particulate techniques used for recovering lost packets. • the application designer may choose to adopt a strategy for recovering lost packets that is based on retransmission, Forward Error Correction (FEC), or both. • We will cover fundamental analysis tools that are used to characterize the loss performance of channels and networks that carry multimedia packets • Then (next talk) describe a comprehensive Internet video study conducted for gaining insight into a variety end-end performance parameters that are crucial for real-time multimedia applications.

  4. Discrete Random Variable Probability Mass Functions: Joint Probability Mass Functions Example of pmf for d.r.v X Marginal Probability Mass Functions: Conditional Probability Mass Functions: Independent Random Variables: Joint pmf for two r.v X and Y

  5. Entropy Entropy (uncertainty ): measure of the amount of uncertainty (randomness) associated with the value of the discrete random variable X (the expected value of the information content of X) 0 <= H(X) <= Log L ; where X have L possible values Joint entropy Conditional entropy (equivocation)

  6. Mutual Information Individual (H(X),H(Y)), joint (H(X,Y)), and conditional entropies for a pair of correlated subsystems X,Y with mutual information I(X; Y).

  7. Mutual Information • mutual information measures the information that X and Y share: it measures how much knowing one of these variables reduces our uncertainty about the other. For example, • if X and Y are independent, then knowing X does not give any information about Y and vice versa, so their mutual information is zero. • if X and Y are identical then all information conveyed by X is shared with Y: knowing X determines the value of Y and vice versa. As a result, in the case of identity the mutual information is the same as the uncertainty contained in Y (or X) alone, namely the entropy of Y (or X: clearly if X and Y are identical they have equal entropy). • The mutual information of X relative to Y is given by:

  8. Channel Capacity • its the maximum amount of error-free digital data (that is, information) that can be transmitted over a communication link with a specified bandwidth in the presence of noise interference, ( Shannon limit or Shannon capacity) or ( the theoretical maximum information transfer rate of the channel ). • is given by the maximum of the mutual information between the input and output of the channel, where the maximization is with respect to the input distribution Information theory, developed by Claude E. Shannon during World War II Bits or packets per channel use

  9. Discrete Memoryless Channels DMC Communication system p(y|x) that expresses the probability of observing the output symbol y given that we send the symbol x. The channel is said to be memoryless if the probability distribution of the output depends only on the input at that time and is conditionally independent of previous channel inputs or outputs.

  10. Binary Erasure Channel (BEC) * The input X: binary (Bernoulli) random variable (0 or 1) : The loss (erased or deleted) probability The output Y: ternary random variable (0,1 or erasure) * introduced by Peter Elias of MIT in 1954 as a toy example.

  11. BEC No Error occur over a BEC as: Pr[Y=0 | X=1] = Pr[Y=1 | X=0] = 0 . This capacity, which is measured in “bits” per “channel use,” can be achieved when the channel input X is a uniform random variable with Pr[X = 0] = Pr[X =1] = 1/2.

  12. Packet Erasure Channel (PEC) • The multimedia content is usually packetized and transmitted over internet link as “integrated vectors” of bits rather than individual bits (the bits on same packet are 100% dependent on each other; either all transmitted successfully or all bits are erased) • The input is a vector of random variables : is a binary random variable The capacity in this case is measured in “packets” per “channel use.”

  13. Cascaded BEC Channels • Lets assume that we have two BEC channels that are in cascade (two internet links over which multimedia packets are routed): • Then the loss probability for the two channels could be different : Assuming the two channels are independent • For L cascaded links of BEC-independent channels: • The Overall channel capacity:

  14. The end-end path of L BEC channels is equivalent to a BEC channel with an effective end-end loss probability: • the overall capacity C of the end-to-end route is bounded by the capacity Cmin of the link with the smallest capacity among all cascaded channels in the route. In other words, C ≤ Cmin = mini(Ci). • Cmin should not be confused by the “bottleneck” bandwidth Bmin. • Rtotal=BC • Rtotal<=Mini(Ri)=mini(BiCi)

  15. The BEC Channel with Feedback • It is quite common for many Internet applications, including multimedia ones, to support some form of feedback from the receiver to the transmitter. This could include feedback regarding requests for retransmissions of lost packets. • what happens to the overall performance bounds of such channels with feedback? • Information theory provides an interesting and arguably a surprising answer for any (DMC) Channel, feedback does not improve (or worsen for that matter) : Discrete memoryless channel with feedback * * Proof: Elements of Information Theory, Second Edition, Thomas M. Cover, Joy A. Thomas p216

  16. Cascaded BEC/PEC with feedback • For cascaded BEC/PEC with feedback on an end-end bases: • If the feedback is done on a link-by-link basis, then the overall channel capacity of a cascaded set of links is bounded by the capacity of the “bottlneck” link: • The aforementioned results for channel capacity with feedback are applicable to memoryless channels. Meanwhile, it has been well established that channels with memory could increase their capacity by employing feedback. The performance aspects of channels with memory are addressed next.

  17. Packet Losses over channel with memory • Packet losses over Internet links and routes exhibit a high level of correlation and tend to occur in bursts. This observation, which has been well established by several Internet packet-loss studies, indicates that Internet links and routes exhibit memory. • The most popular analysis and modeling tool used to capture memory is based on Markov chains • A special case of Markov channels is the Gilbert–Elliott channel, which consists of a two-state Markov chain • Good State (G) : the receiver receives all packets correctly • Bad State (B) : all packets are lost

  18. Gilbert–Elliott channel • G and B: represent the Good state and the Bad state, respectively • pGG = 1 - pGB and pBB = 1 – pBG • The steady state probabilities :

  19. Evaluating a desired loss/recovery probability • We want to evaluate receiving i packets among n packets transmitted over Gilbert erasure channels. • Construct another Markov process by extending the two-state Gilbert model using the number of correctly received packets as the indexes for the sate of the extended Markov process The probability that the sender transmits n packets and the receiver correctly receives i packets is the probability that the process starts at G0 or B0 and is in state Gi or Bi after n stages.

  20. The generating function [5] ФG0Gi (z) of φG0Gi (n) taking the inverse Z transform, we have: The detail of the derivation of this equation is outlined in Appendix A in [3].

  21. Similarly, it can be shown that:

  22. If we use φ(n, i) to represent the probability that the sender transmits n packets and the receiver correctly receives i packets, then: • For FEC codes, we are often concerned about the probability that a node can receive enough packets to decode an FEC block. For a (n, k) FEC code, this probability (decodable probability) is:

  23. Packet Correlation over Channels with Memory • A more useful insight and analysis can be gained by considering other parameter pairs: • The average loss p • the packet correlation ρ, where: • The Steady state probabilities are directly related to the average loss rate : • The packet erasure correlation ρ provides an average measure of how the states of two consecutive packets are correlated to each other: • when ρ = 0, the loss process is memoryless (BEC) • as the value of ρ increases, then the states of two consecutive packets become more and more correlated.

  24. Probability of receiving i packets given that the transmitter sends n = 30 packets, for loss probability p = 0.1;

  25. A detailed view of the probability of receiving i packets given that the transmitter sends n packets; as the correlation is strong, once the process initially starts in bad or good state, it has the inertia to stay at that state

  26. the average decodable probability of a receiver when the sender sends FEC blocks through a Gilbert channel. The block size n is set 30, the average loss rate of the channel is set to be 1%; k is changed from 20 to 30, and the packet correlation ρ is changed from 0 to 0.9.

  27. Packet Losses over cascaded channels with memory • Internet routes and paths consist of multiple links that can be modeled as cascaded channels. Further, each of these links/channels usually exhibits memory. A representation of the reception of i packets when transmitting n packets over two-cascaded channels with memory.

  28. the desired probability φ(n, i) of receiving i packets at the output of these two cascaded channels when the transmitter sends n packets into the input of the first channel in other words:

  29. Hence if the cascaded channels with memory are Gilbert channels, then

  30. Now for N channels with memory: A more Compact representation is :

  31. References • [1] Schaar and Chou (editors), Multimedia over IP and Wireless Networks: Compression, Networking, and Systems, Elsevier, 2007. • [2] Thomas M. Cover, Joy A. Thomas, Elements of Information Theory, Second Edition, Wiley, 1991. • [3] M. Wu and H. Radha. “Network-Embedded FEC (NEF) Performance for Multi-Hop Wireless Channels with Memory,” IEEE International Conference on Communications (ICC), May 2005. • [4] M.Wu and H. Radha. “Network Embedded FEC for Overlay and P2P Multicast over Channels with Memory,” Conference on Information Sciences and Systems (CISS), Johns Hopkins University, March 2005. • [5] R. A. Howard, Dynamic Probabilistic Systems. New York: Wiley, 1971.
