  1. Connect To Success

  2. Selection & Proper Installation of Coax Connectors

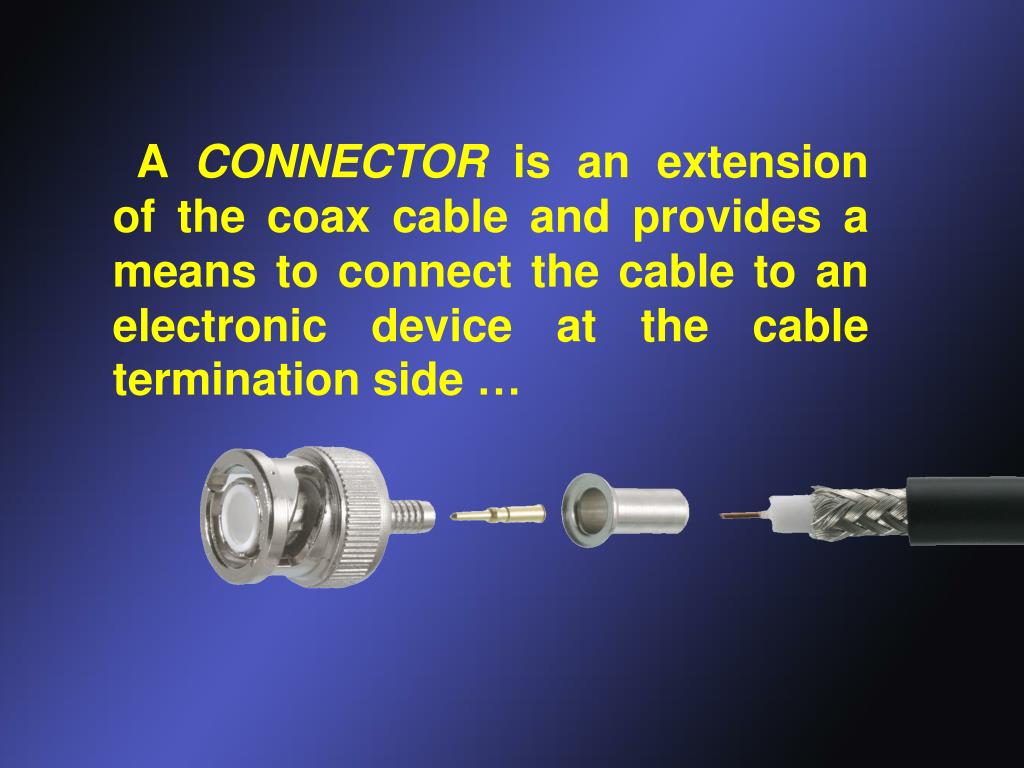

  3. A CONNECTOR is an extension of the coax cable and provides a means to connect the cable to an electronic device at the cable termination side …

  4. Impedance 75 Ohm BNC 50 Ohm BNC

  5. Twist-On GEM Part # 302-4TP

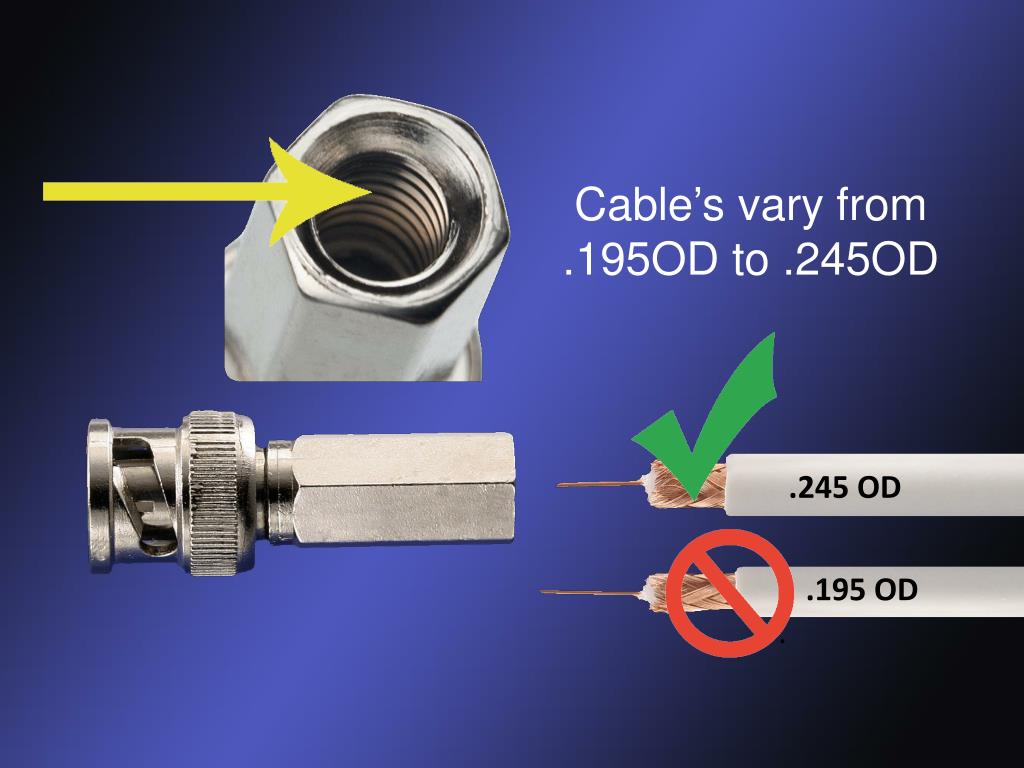

  6. Cable’s vary from .195OD to .245OD .245 OD .195 OD .

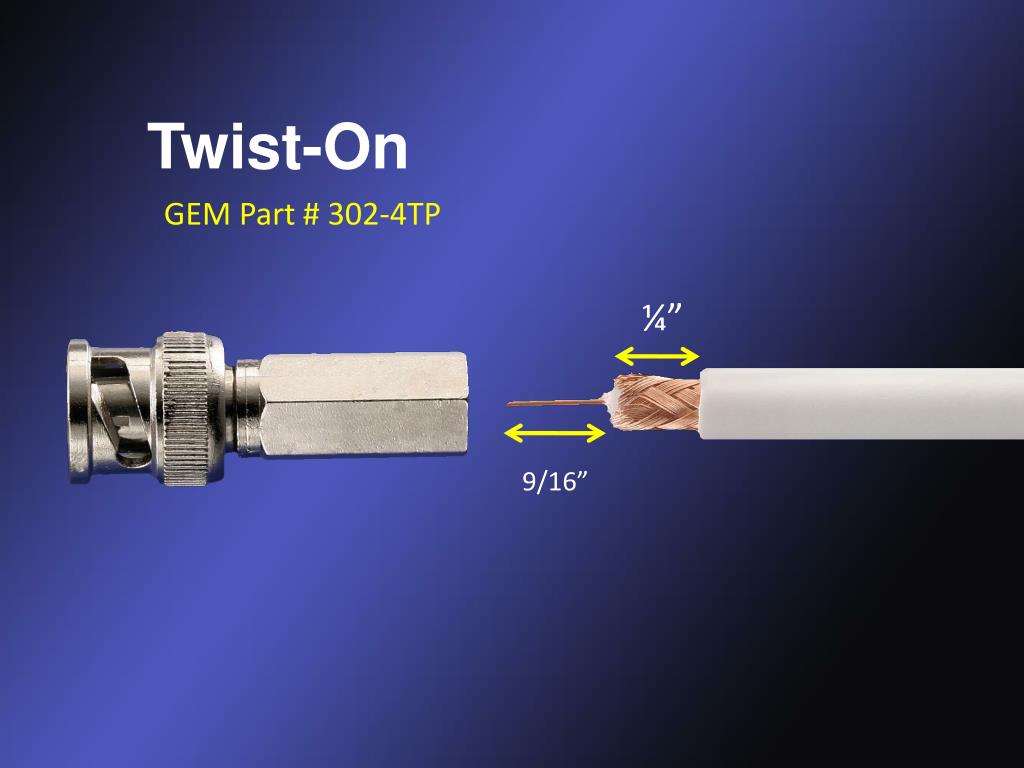

  7. Twist-On GEM Part # 302-4TP ¼” 9/16”

  8. Twist-On GEM Part # 302-4TP

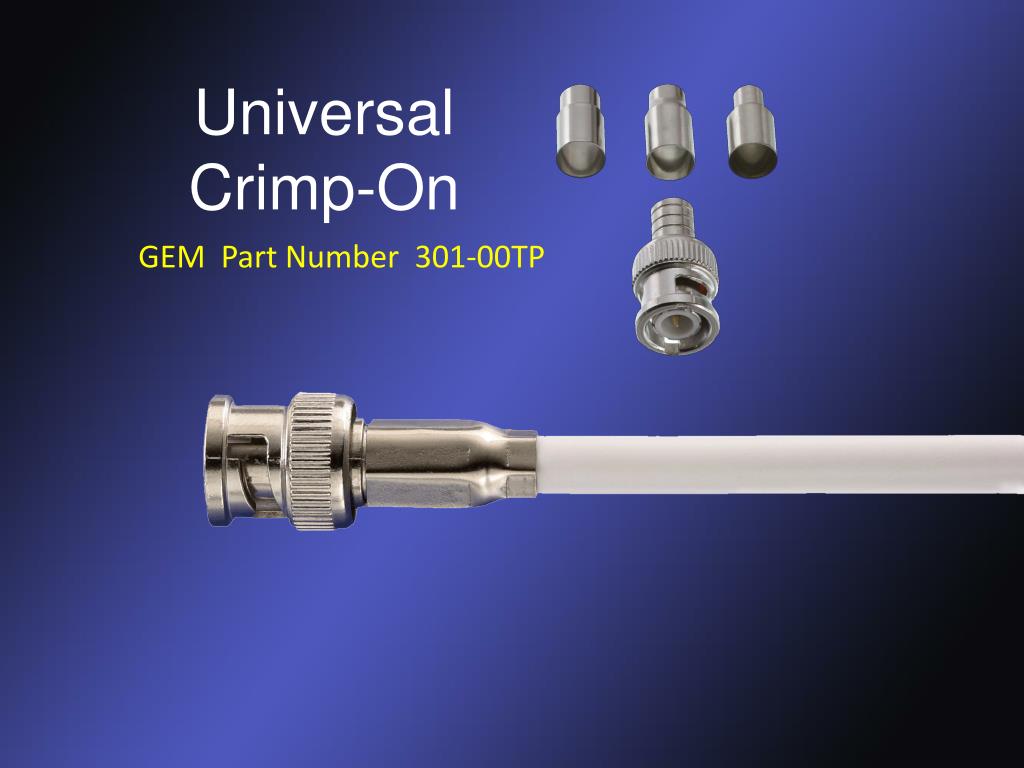

  9. Universal Crimp-On GEM Part Number 301-00TP

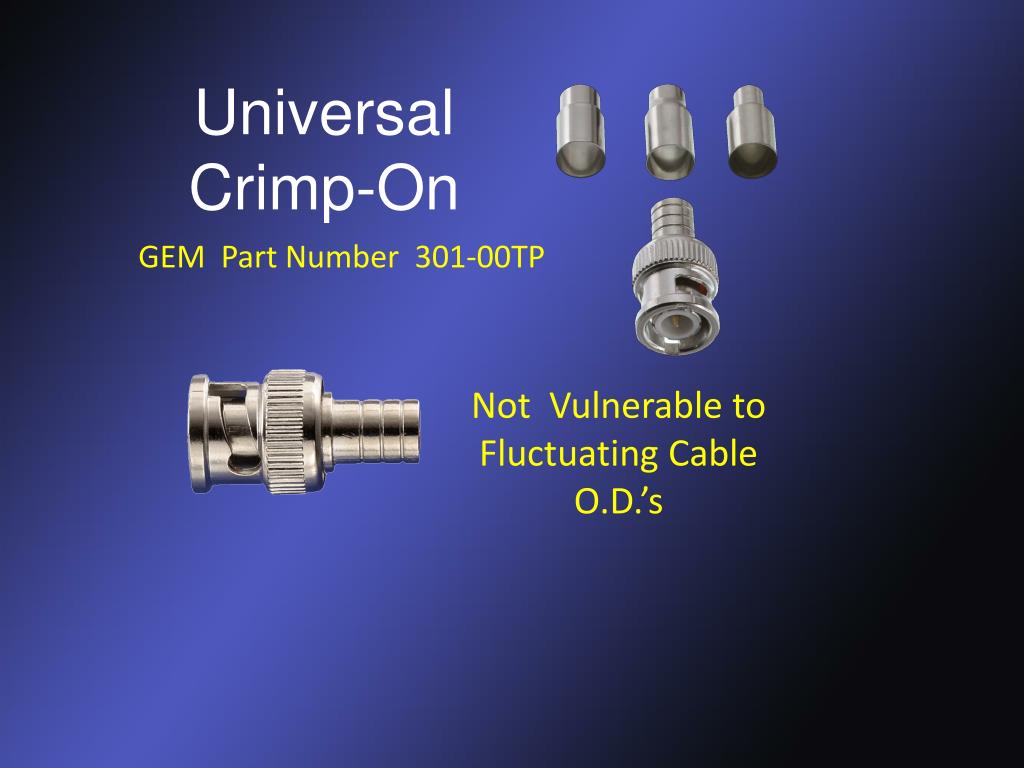

  10. Universal Crimp-On GEM Part Number 301-00TP Not Vulnerable to Fluctuating Cable O.D.’s

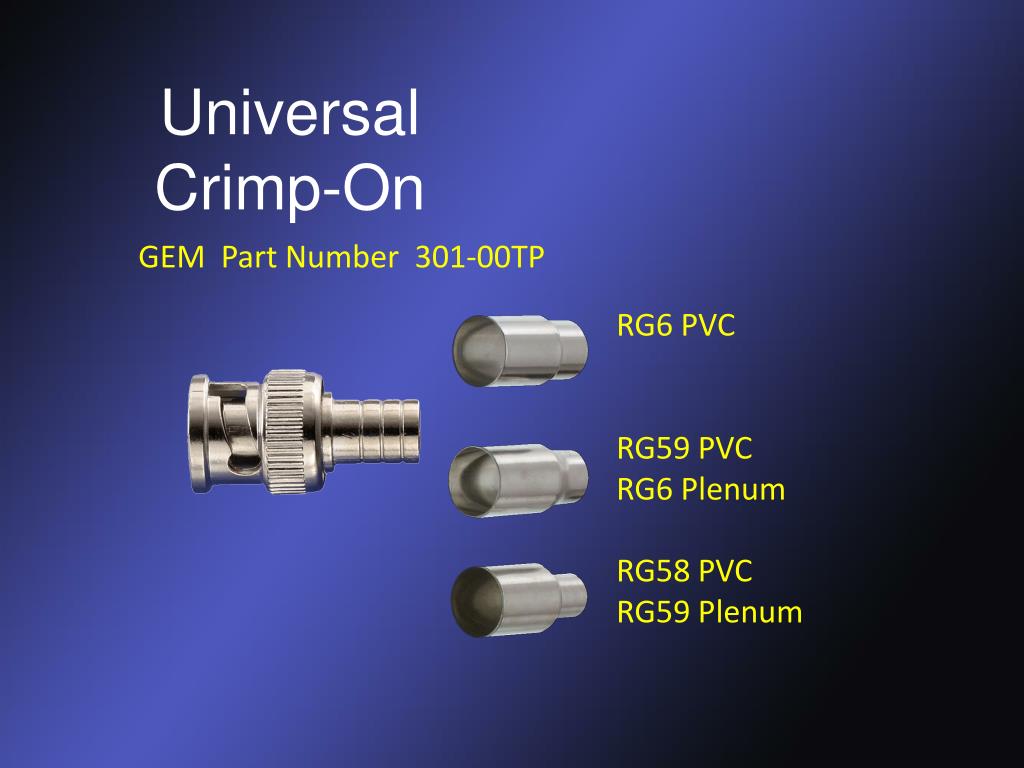

  11. Universal Crimp-On GEM Part Number 301-00TP RG6 PVC RG59 PVC RG6 Plenum RG58 PVC RG59 Plenum

  12. Universal Crimp-On GEM Part Number 301-00TP

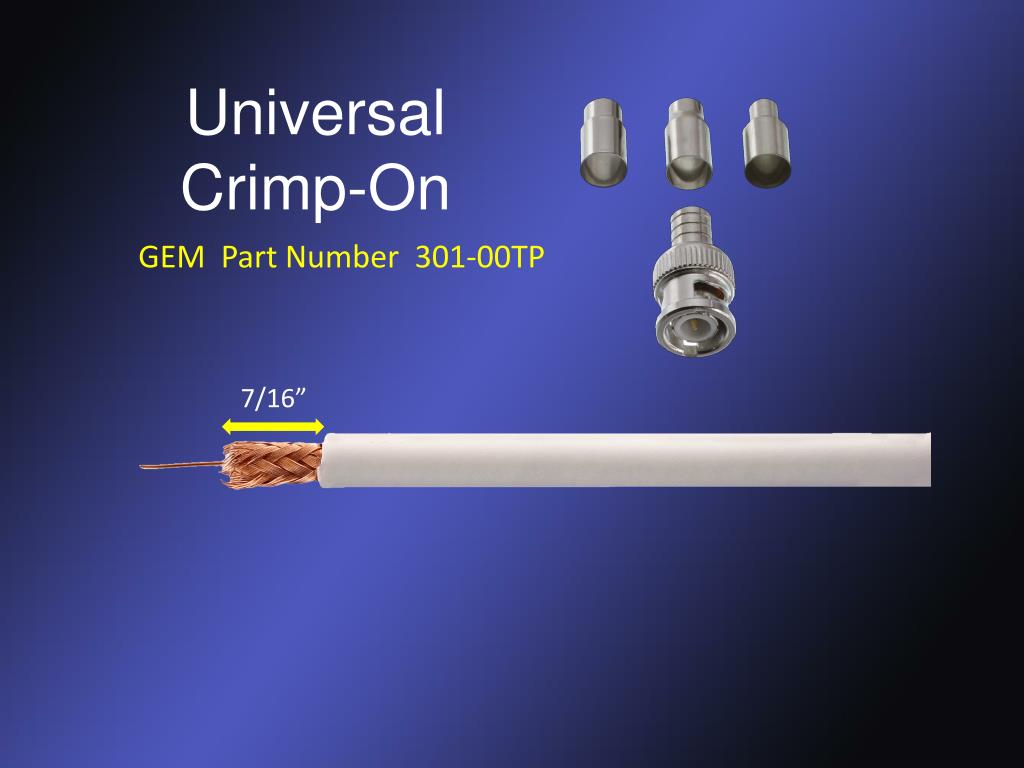

  13. Universal Crimp-On GEM Part Number 301-00TP 7/16”

  14. Universal Crimp-On GEM Part Number 301-00TP Crimp Ferrule 1/4” Fold Braid 1/16”

  15. Universal Crimp-On GEM Part Number 301-00TP

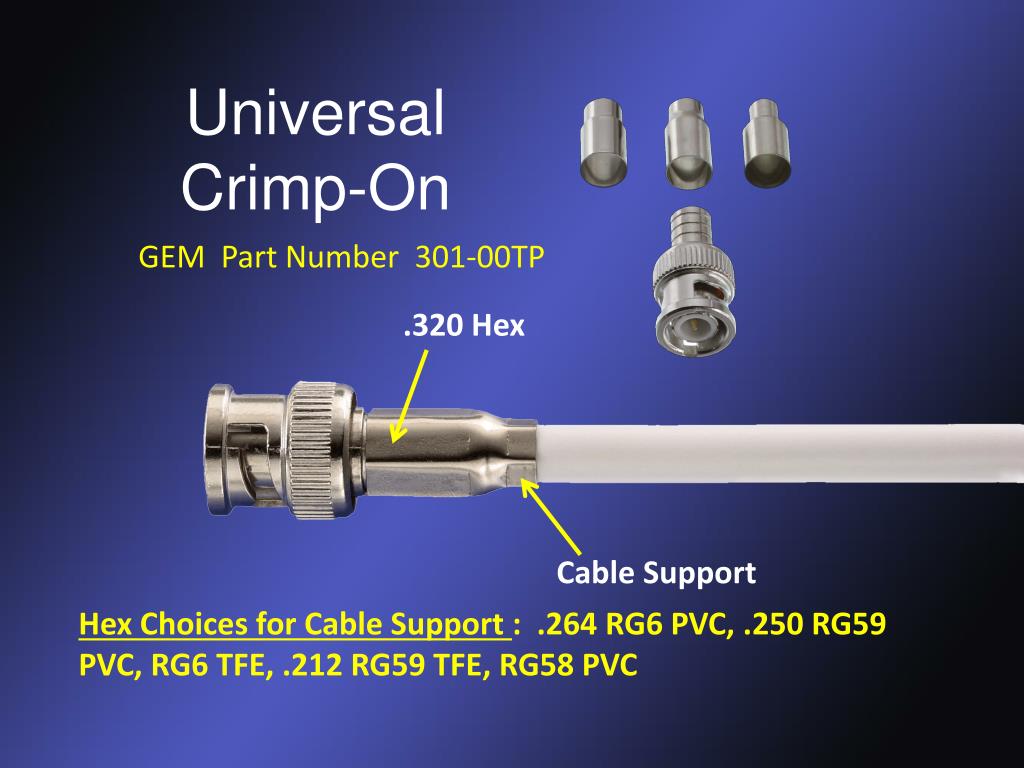

  16. Universal Crimp-On GEM Part Number 301-00TP .320 Hex Cable Support Hex Choices for Cable Support : .264 RG6 PVC, .250 RG59 PVC, RG6 TFE, .212 RG59 TFE, RG58 PVC

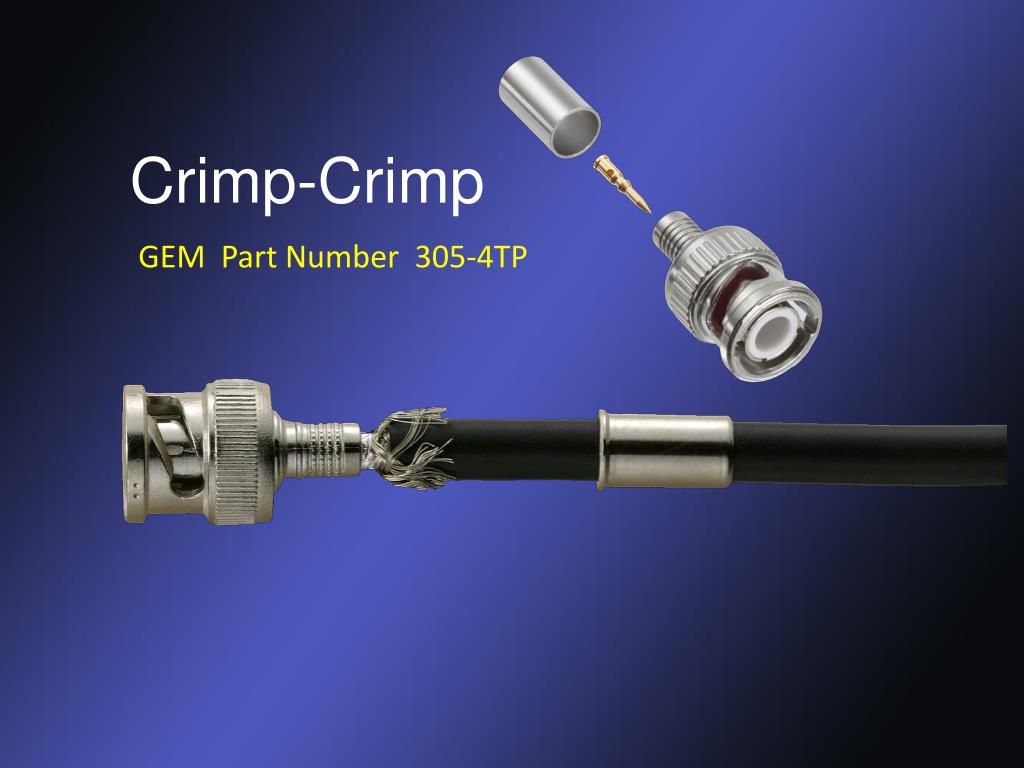

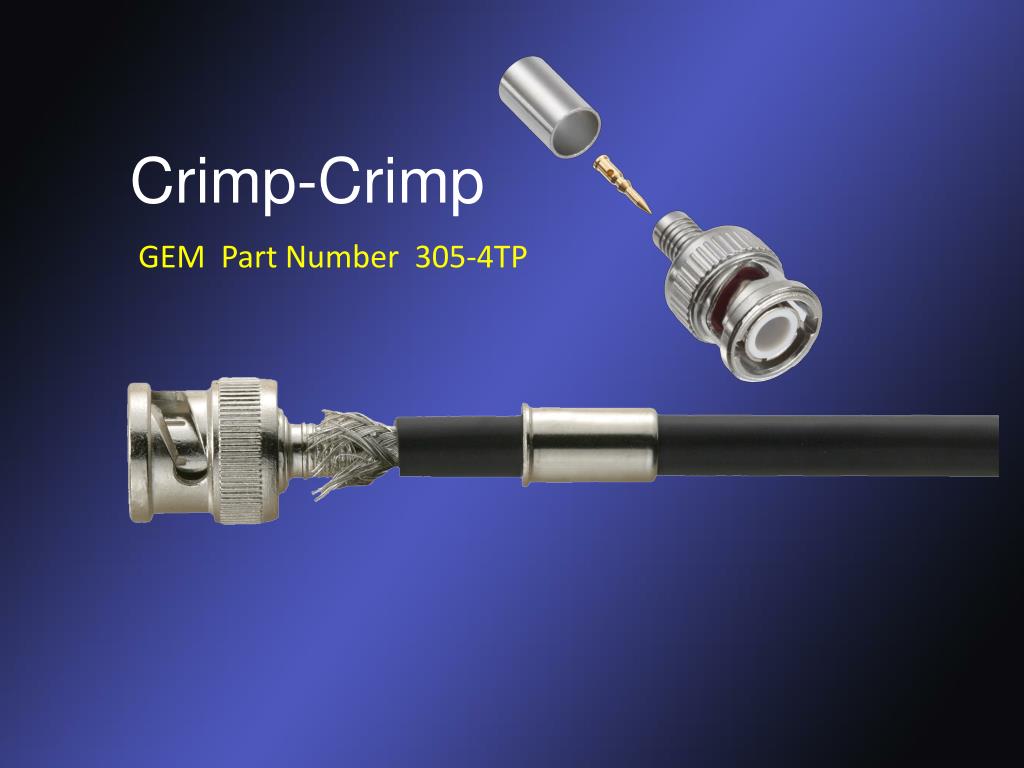

  17. Crimp-Crimp GEM Part Number 305-4TP

  18. Crimp-Crimp GEM Part Number 305-4TP Used for Higher Frequency Applications above 2 GHz Center Contact more closely matched to Center Contact of cable

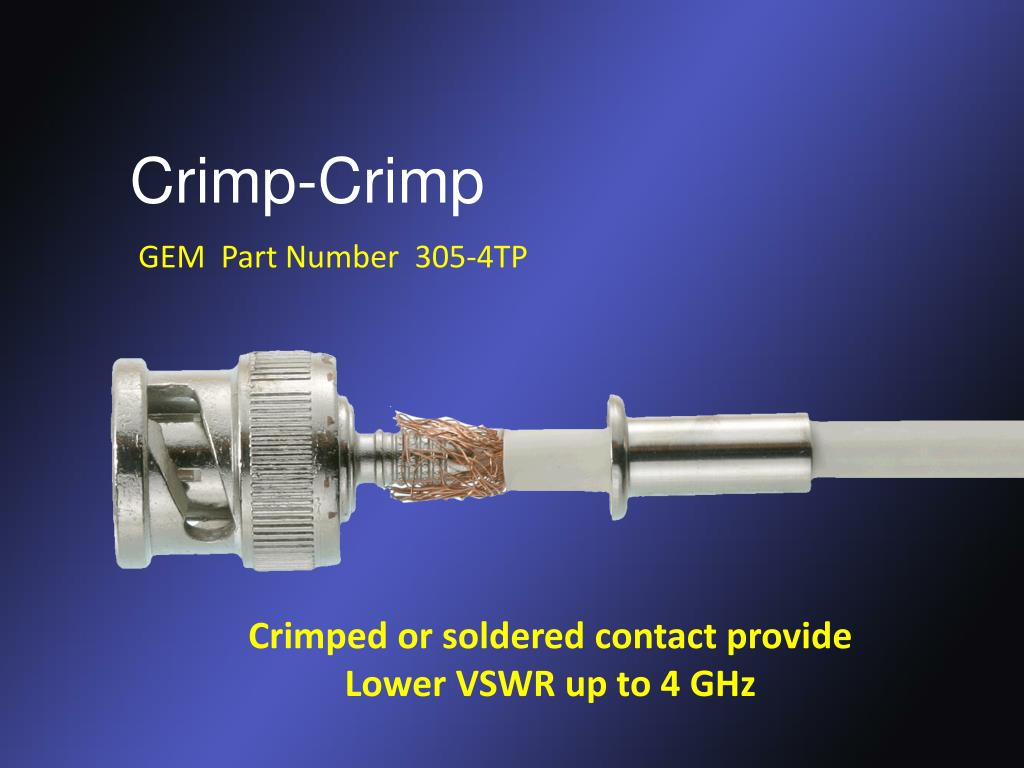

  19. Crimp-Crimp GEM Part Number 305-4TP Crimped or soldered contact provide Lower VSWR up to 4 GHz

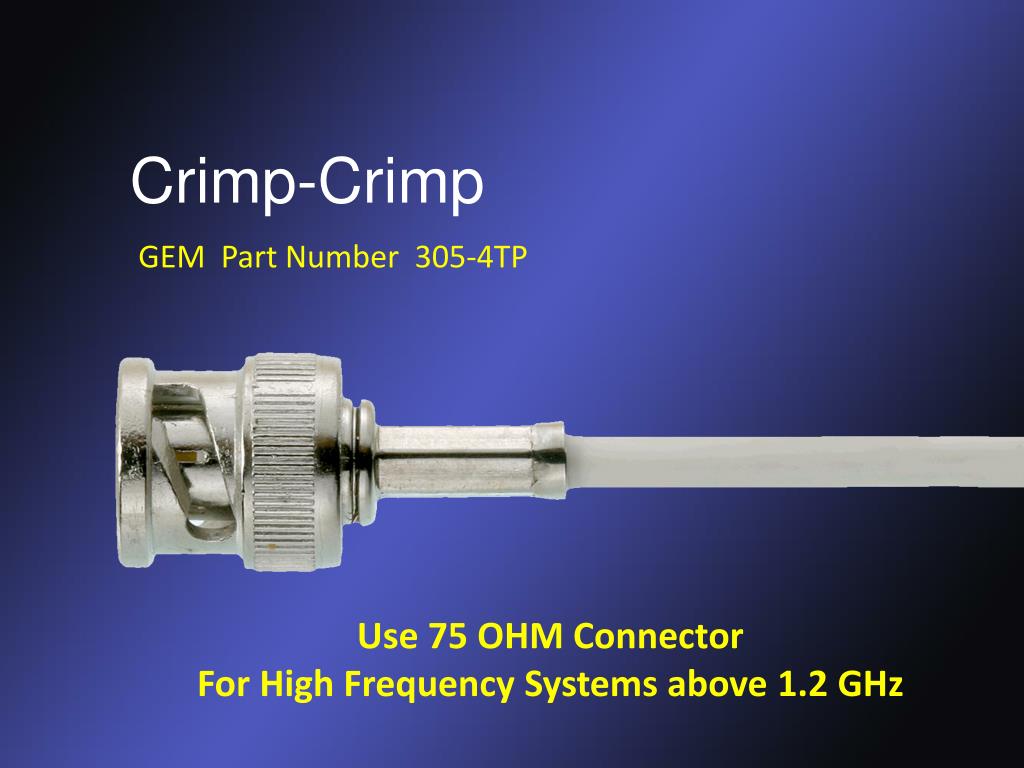

  20. Crimp-Crimp GEM Part Number 305-4TP Use 75 OHM Connector For High Frequency Systems above 1.2 GHz

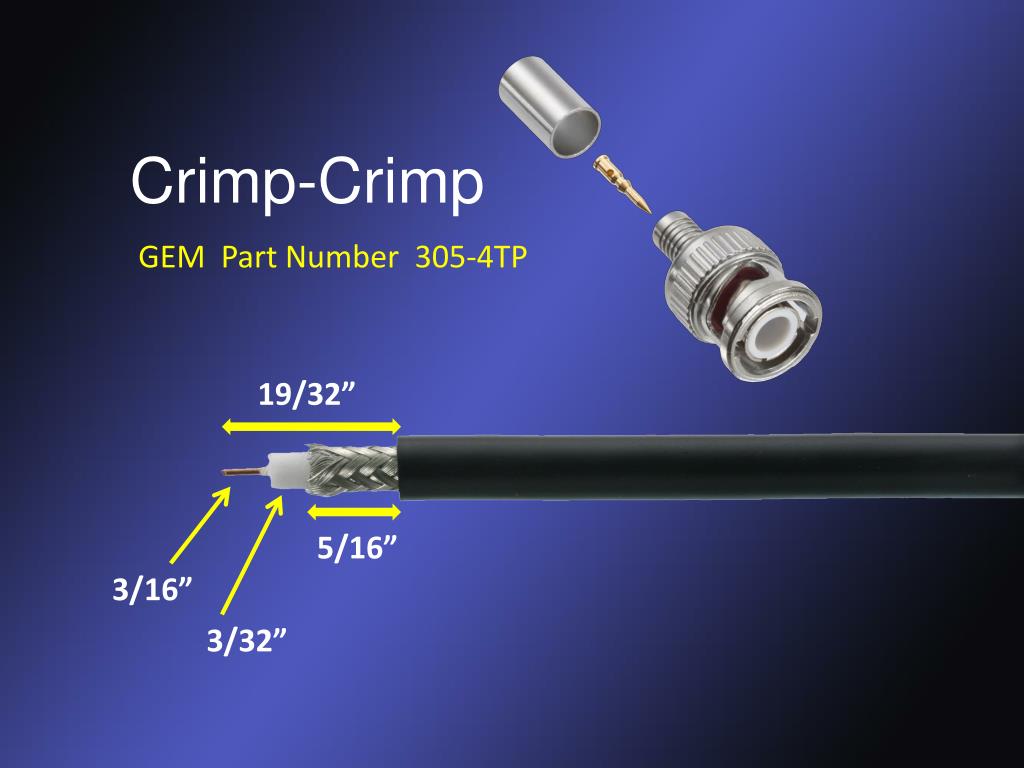

  21. Crimp-Crimp GEM Part Number 305-4TP 19/32” 5/16” 3/16” 3/32”

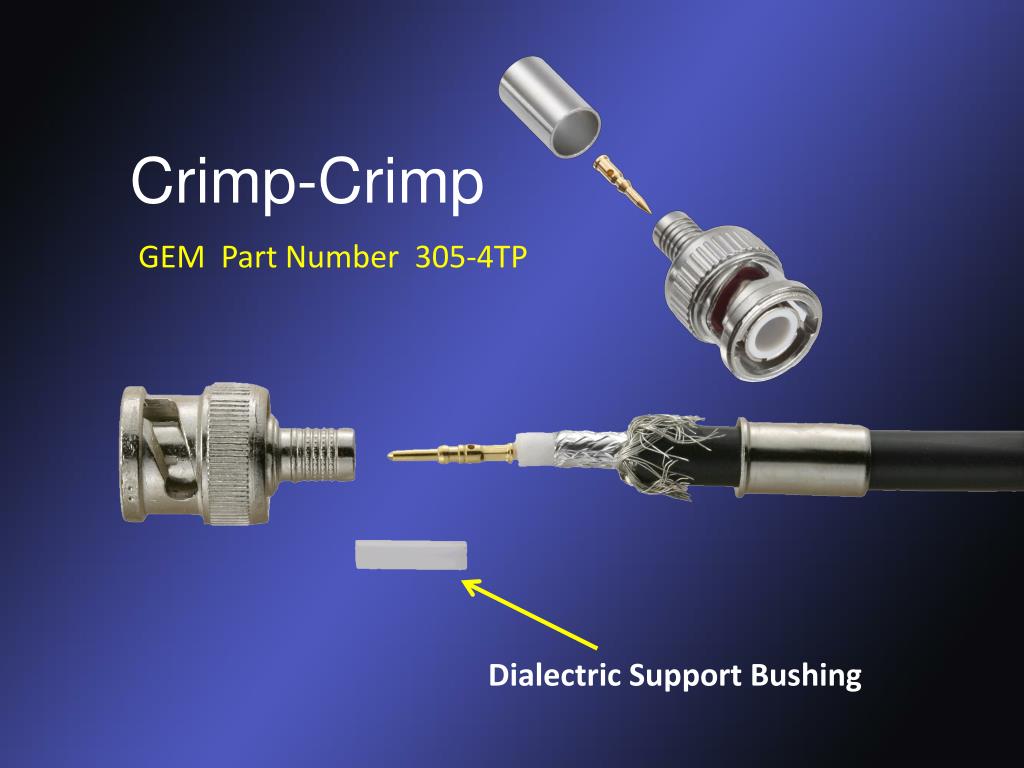

  22. Crimp-Crimp GEM Part Number 305-4TP Dialectric Support Bushing

  23. Crimp-Crimp GEM Part Number 305-4TP

  24. Crimp-Crimp GEM Part Number 305-4TP

  25. Crimp-Crimp GEM Part Number 305-4TP

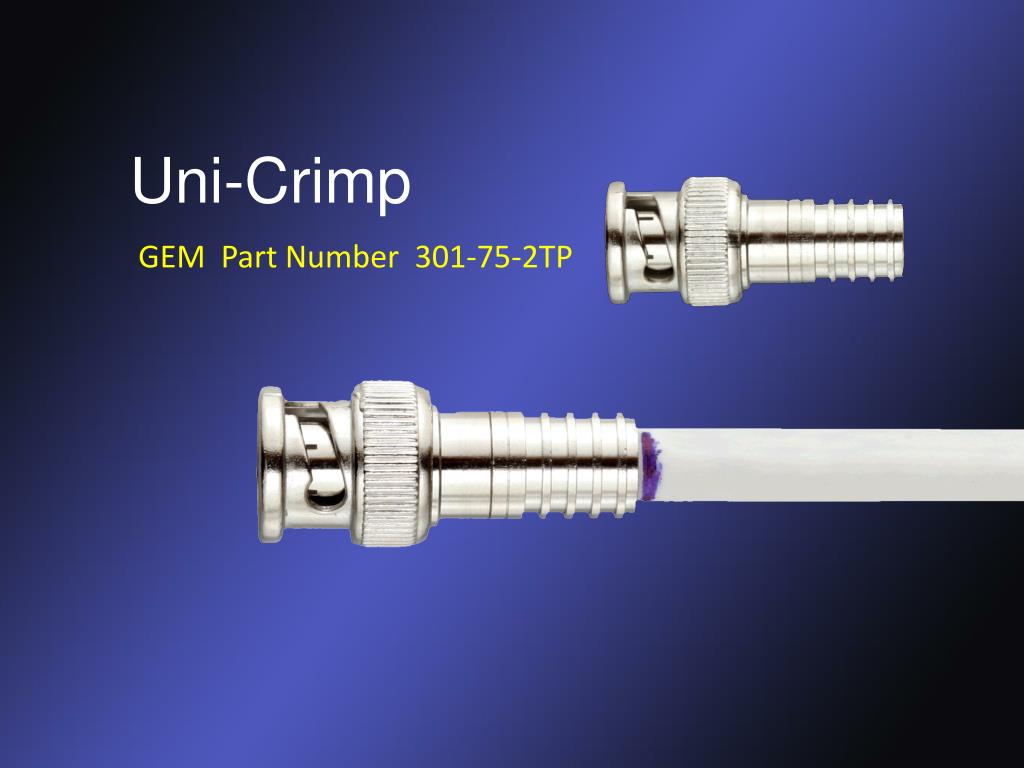

  26. Uni-Crimp GEM Part Number 301-75-2TP

  27. Uni-Crimp GEM Part Number 301-75-2TP Cost Effective Compression Seal Type Connector

  28. Uni-Crimp GEM Part Number 301-75-2TP Internal Cone Design Identical to the Compression Seal

  29. Uni-Crimp GEM Part Number 301-75-2TP .320 HEX

  30. Uni-Crimp GEM Part Number 301-75-2TP

  31. Uni-Crimp GEM Part Number 301-75-2TP Cone Slides Between Dielectric and Inner Braid

  32. Uni-Crimp GEM Part Number 301-75-2TP

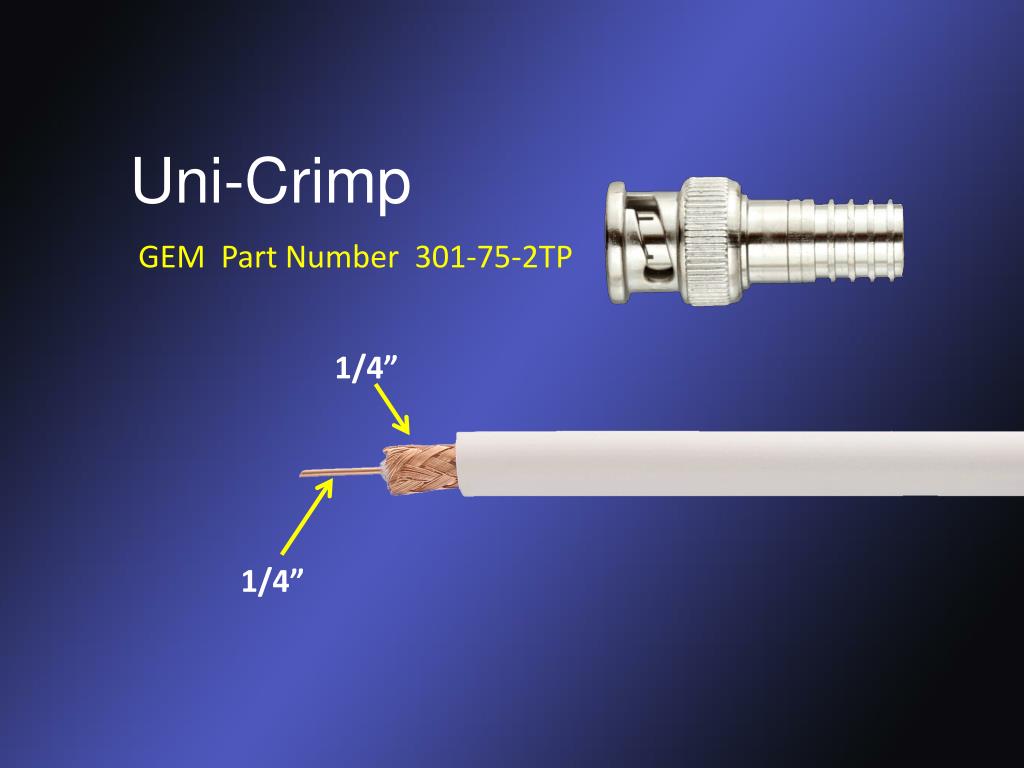

  33. Uni-Crimp GEM Part Number 301-75-2TP 1/4” 1/4”

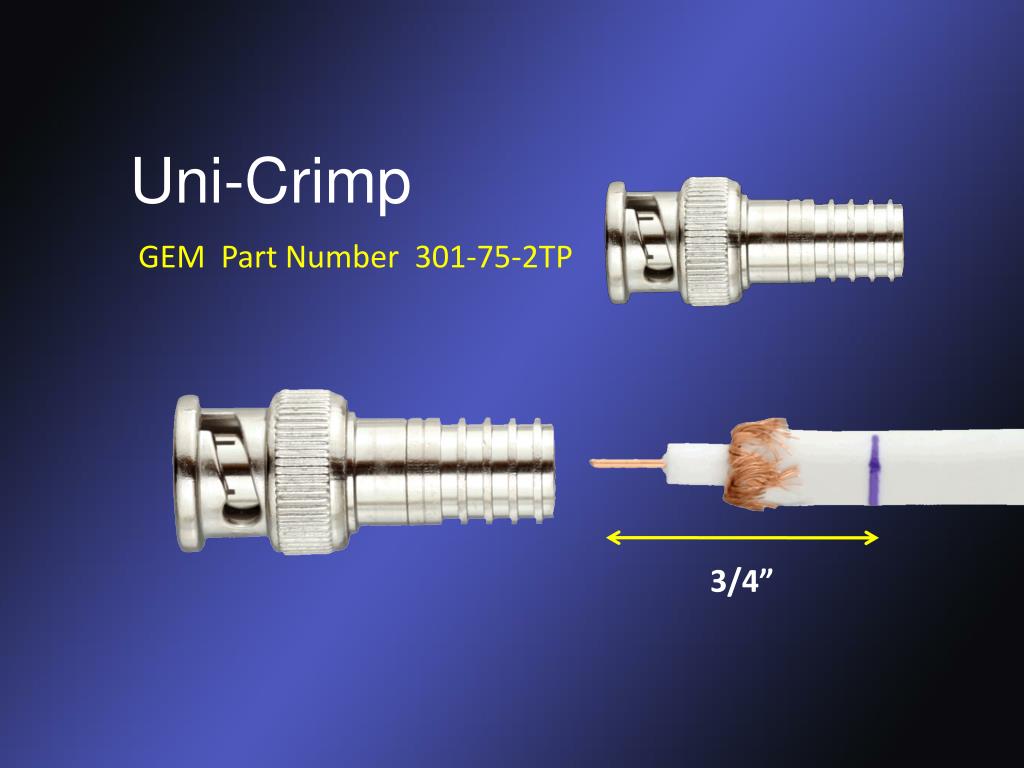

  34. Uni-Crimp GEM Part Number 301-75-2TP 3/4”

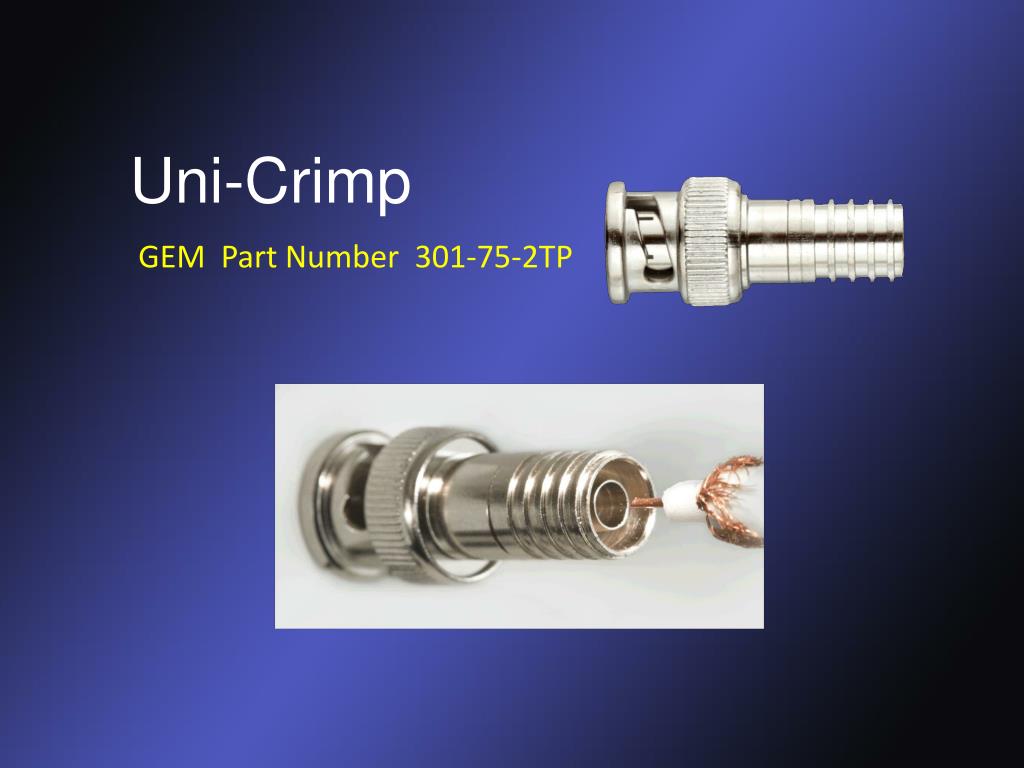

  35. Uni-Crimp GEM Part Number 301-75-2TP

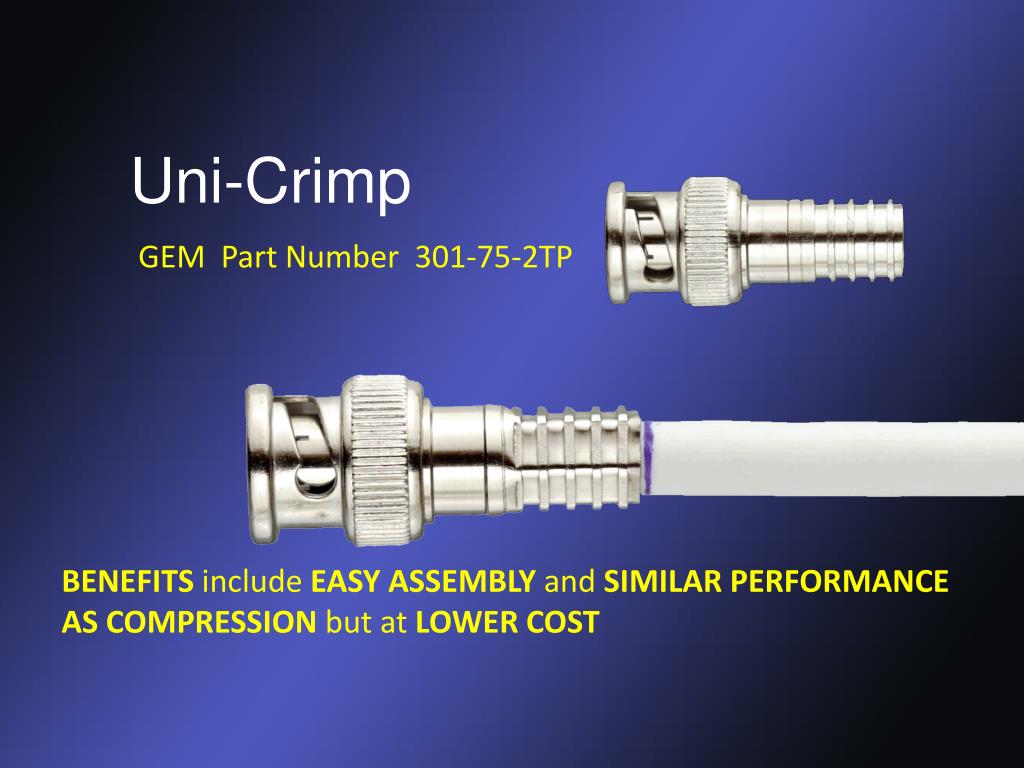

  36. Uni-Crimp GEM Part Number 301-75-2TP BENEFITS include EASY ASSEMBLY and SIMILAR PERFORMANCE AS COMPRESSION but at LOWER COST

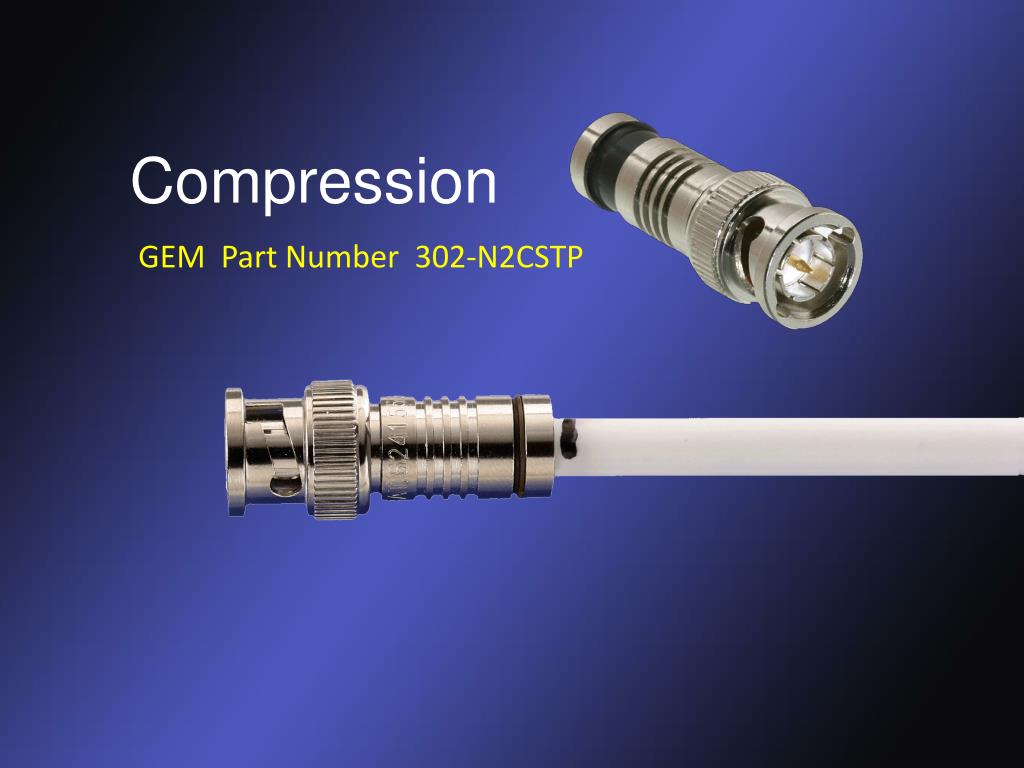

  37. Compression GEM Part Number 302-N2CSTP

  38. Compression GEM Part Number 302-N2CSTP Accepts RG 59 Cable Range of .195 - .245

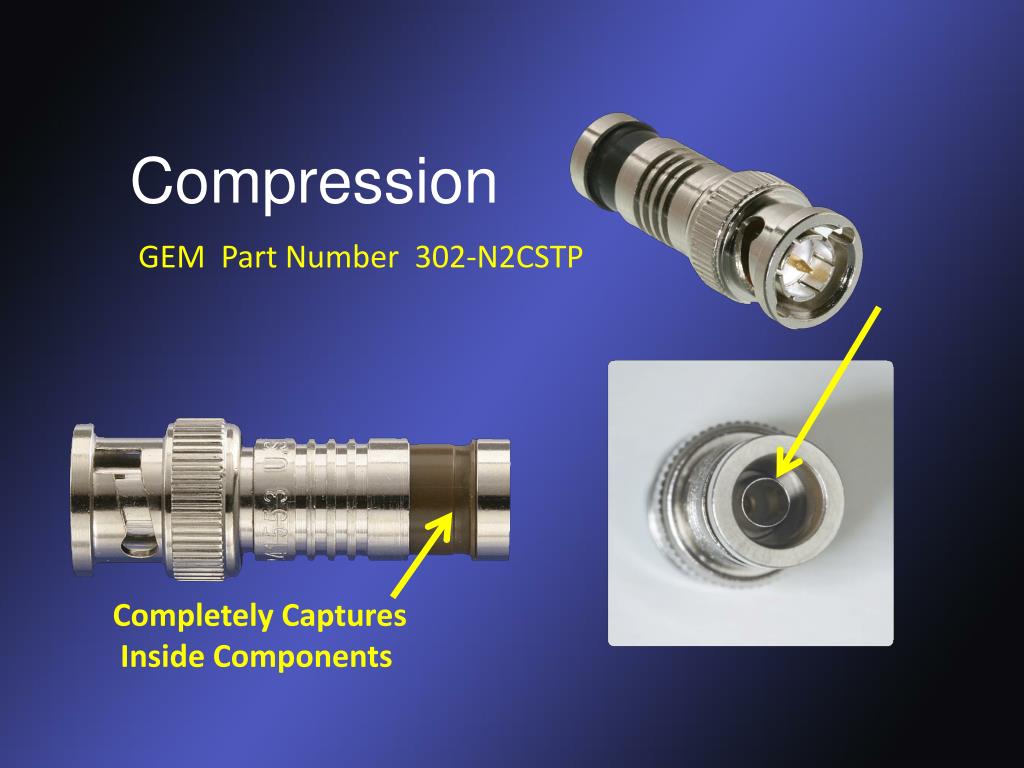

  39. Compression GEM Part Number 302-N2CSTP Completely Captures Inside Components

  40. Compression GEM Part Number 302-N2CSTP Mechanical Superiority Over Other Connector Styles

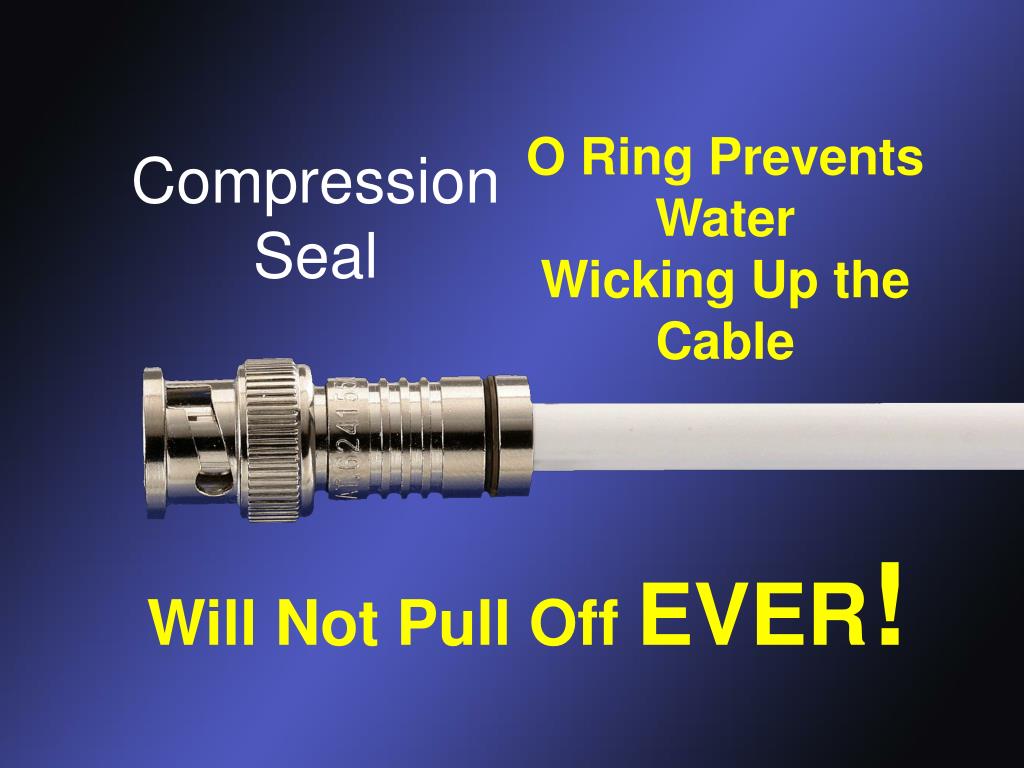

  41. O Ring Prevents Water Wicking Up the Cable Compression Seal Will Not Pull Off EVER!

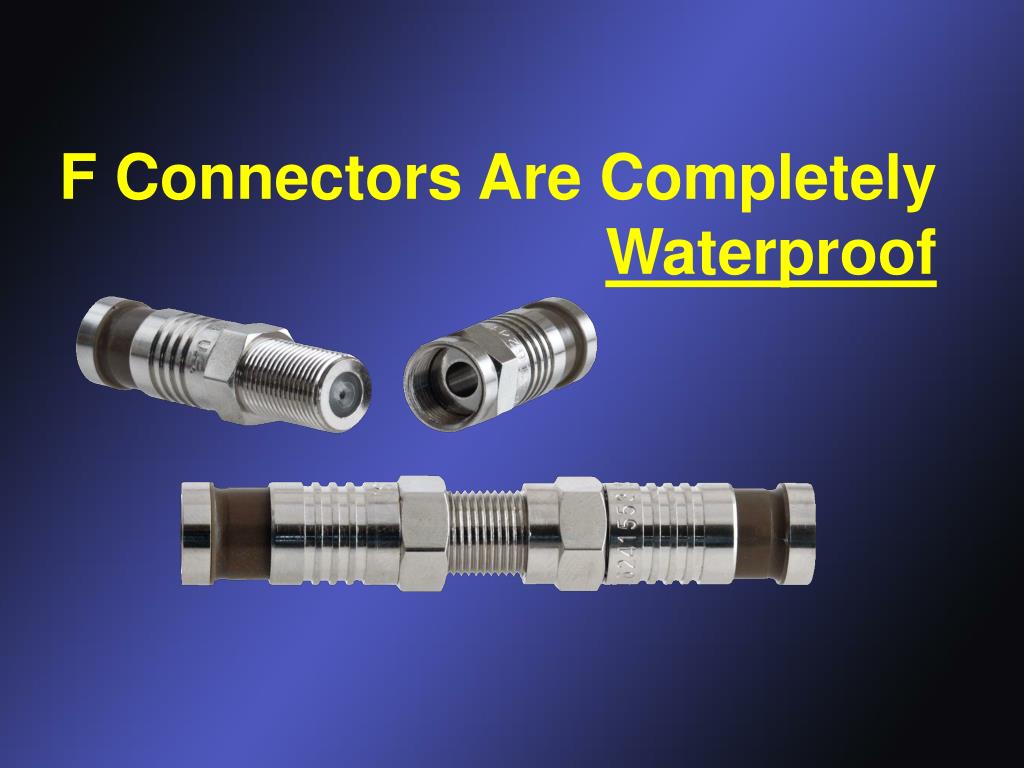

  42. F Connectors Are Completely Waterproof

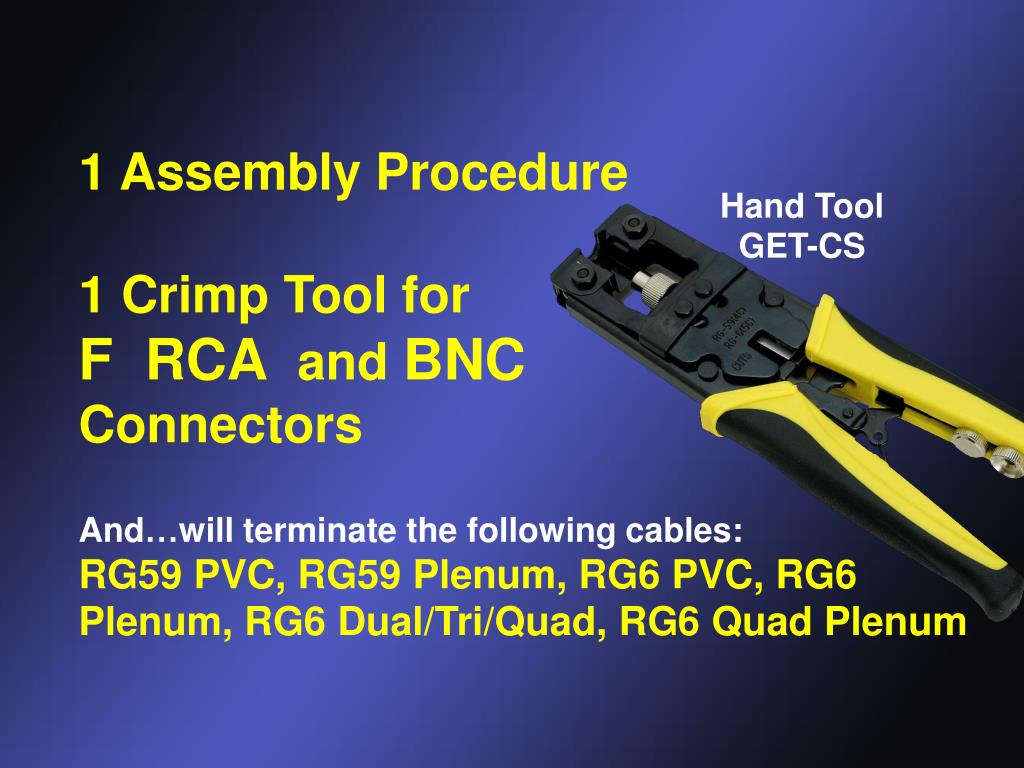

  43. 1 Assembly Procedure 1 Crimp Tool for F RCA and BNC Connectors Hand Tool GET-CS And…will terminate the following cables: RG59 PVC, RG59 Plenum, RG6 PVC, RG6 Plenum, RG6 Dual/Tri/Quad, RG6 Quad Plenum

  44. NO CONNECTORFAILURESEVER!
