  1. Chapter 6 Stability & Cloud development

  2. Importance of Clouds • Release heat to atmosphere • Help regulate energy balance • Indicate physical processes

  3. Atmospheric Stability • Clouds from as air rises and cools • Adiabatic processes: change in temperature without giving or removing • Dry rate = 10°C/1000m • Moist rate = 6°C/1000m • Stability is a state of equilibrium in terms atmospheric movement; no vertical movement occurs

  4. Determining Stability • Warm air rises or is unstable • Cool air sinks or is stable • Compare air parcel lapse rate to environmental lapse rate

  5. Stepped Art Fig. 6-2, p. 143

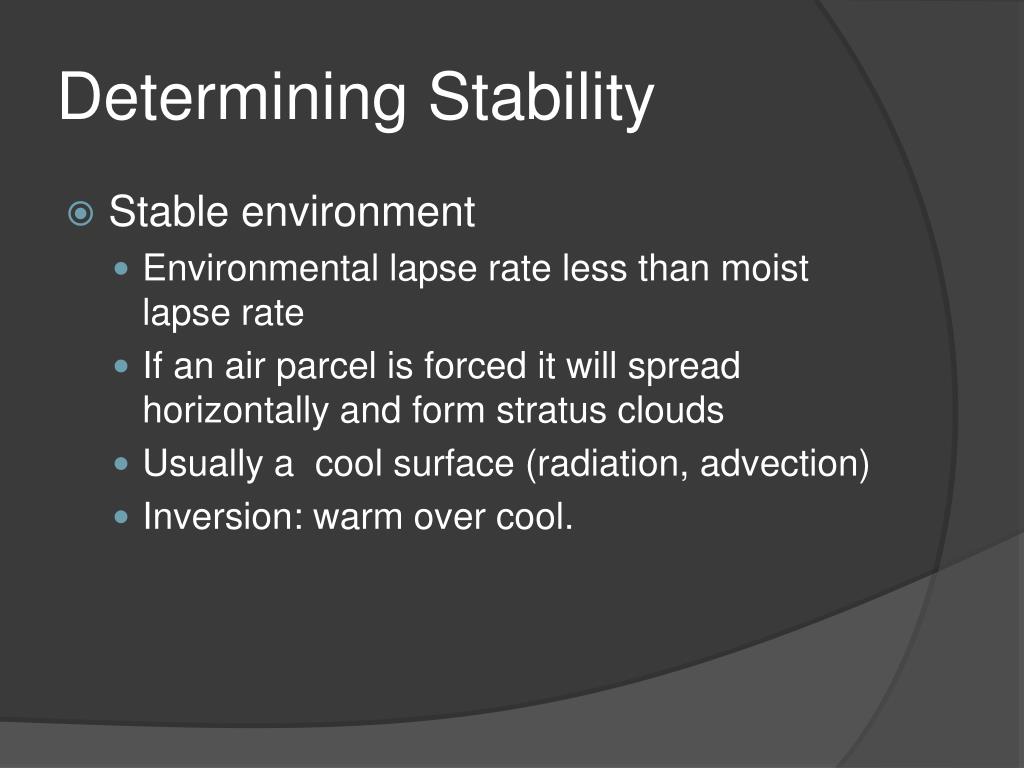

  6. Determining Stability • Stable environment • Environmental lapse rate less than moist lapse rate • If an air parcel is forced it will spread horizontally and form stratus clouds • Usually a cool surface (radiation, advection) • Inversion: warm over cool.

  7. Determining Stability • Special Topic: Subsidence Inversions • Strong subsidence exacerbates air pollution due to the lack of vertical motion. • Pollution is not diluted.

  8. Determining Stability • An Unstable Atmosphere • Environmental lapse rate greater than the dry adiabatic lapse rate • As air parcel rises it forms a vertical cloud • Convection, thunderstorms, severe weather

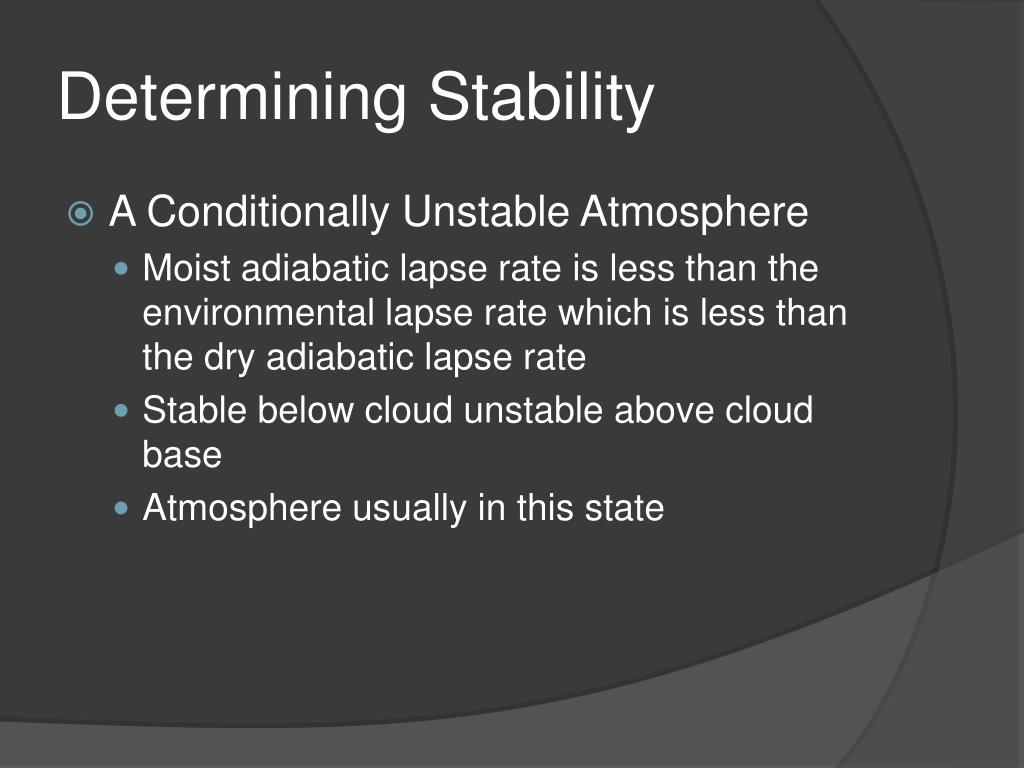

  9. Determining Stability • A Conditionally Unstable Atmosphere • Moist adiabatic lapse rate is less than the environmental lapse rate which is less than the dry adiabatic lapse rate • Stable below cloud unstable above cloud base • Atmosphere usually in this state

  10. Determining Stability • Causes of Instability • Cool air aloft (advection, radiation cooling in clouds) • Warming of surface (insolation, advection, warm surface)

  11. Cloud Development • Clouds develop as an air parcel rises and cools below the dew point. • Usually a trigger or process is need to initiate the rise of an air parcel.

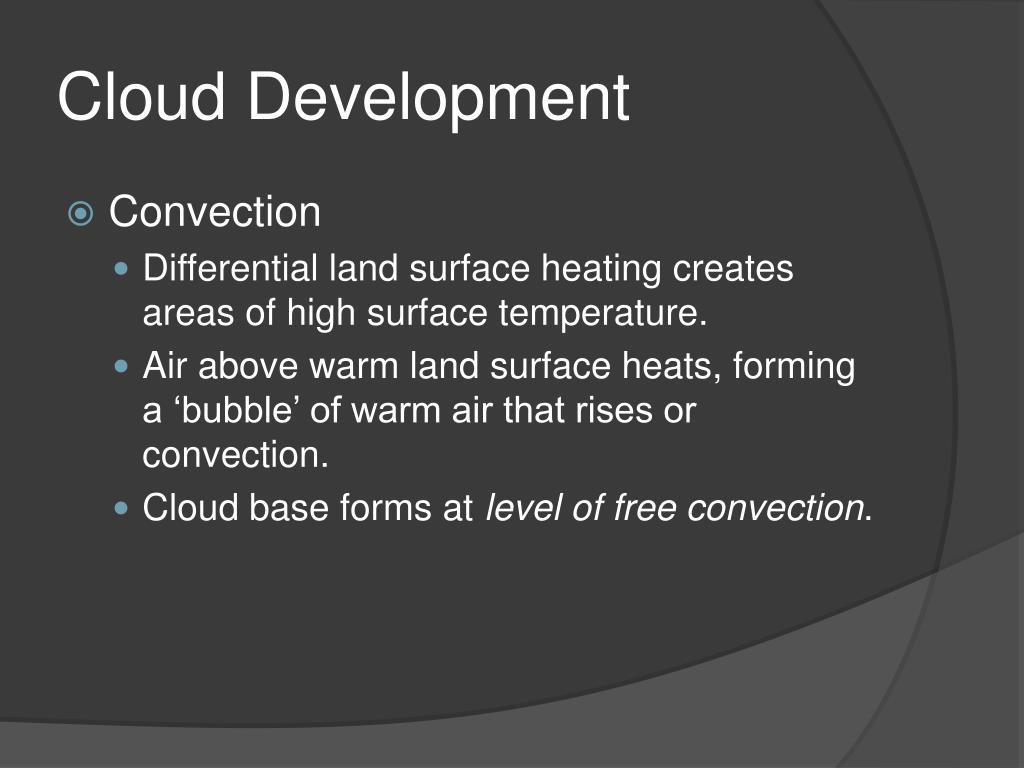

  12. Cloud Development • Convection • Differential land surface heating creates areas of high surface temperature. • Air above warm land surface heats, forming a ‘bubble’ of warm air that rises or convection. • Cloud base forms at level of free convection.

  13. Stepped Art Fig. 6-16, p. 152

  14. Cloud Development • Topography • Orographic uplift • Orographic clouds • Windward, leeward, rain shadow • Lenticular clouds

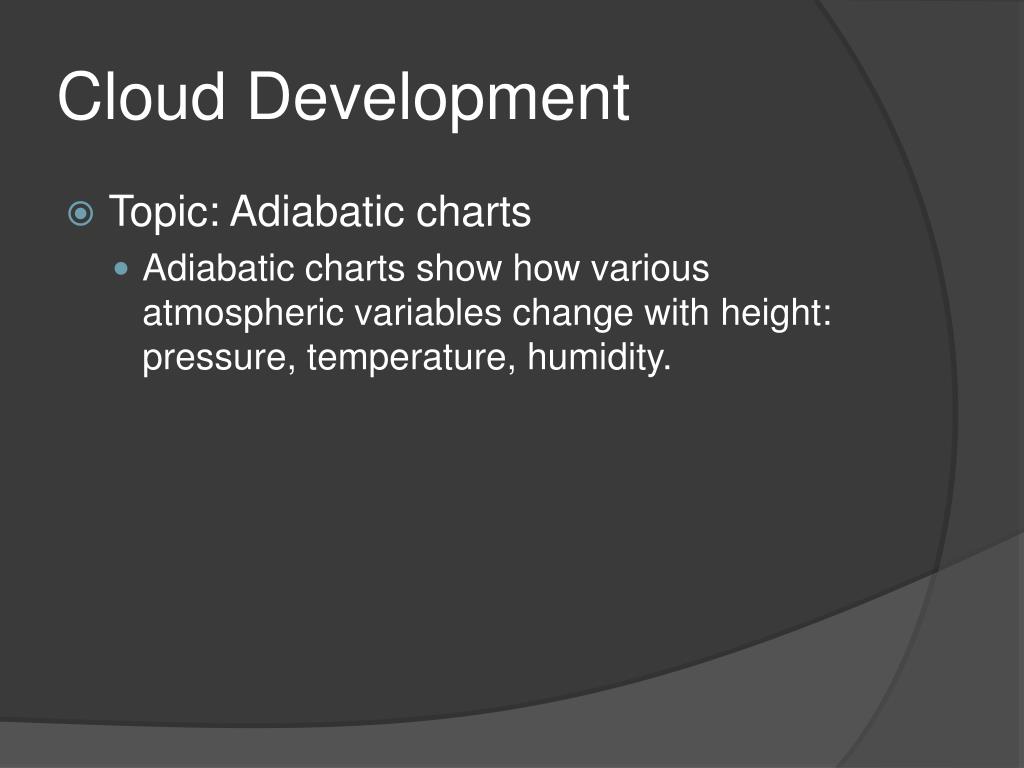

  15. Cloud Development • Topic: Adiabatic charts • Adiabatic charts show how various atmospheric variables change with height: pressure, temperature, humidity.

  16. Cloud Development • Changing cloud forms • Stratus clouds can change to cumulus clouds if the top of the cloud cools and the bottom of the cloud warms. • Alto cumulus castellanus: towers on alto stratus • If moist stable air without clouds is mixed or stirred it can form stratocumulus clouds.
