  1. National Taiwan Ocean University Department of Communications, Navigation and Control Engineering A Two Degrees of Freedom PID Control System, its Features and Applications Masanori Yukitomo, Takashi Shigemasa , Yasushi Baba, Fumio Kojima Speaker：林湧傑 ID：19967042 Date：11/17/2010

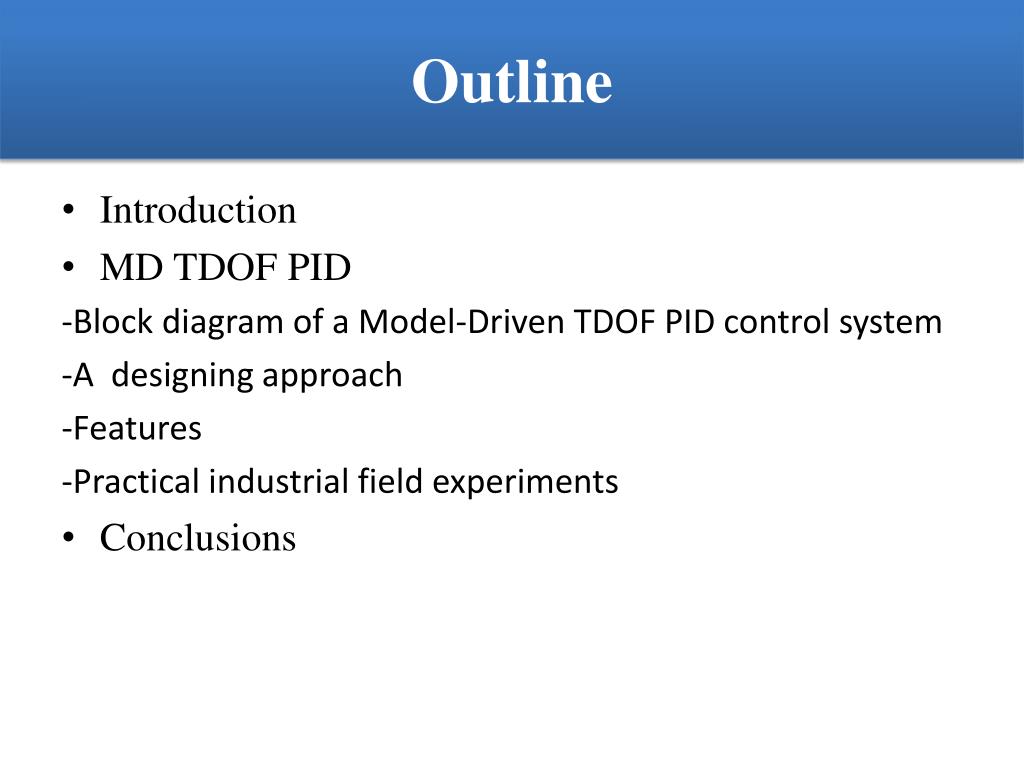

  2. Outline • Introduction • MD TDOF PID -Block diagram of a Model-Driven TDOF PID control system -A designing approach -Features -Practical industrial field experiments • Conclusions

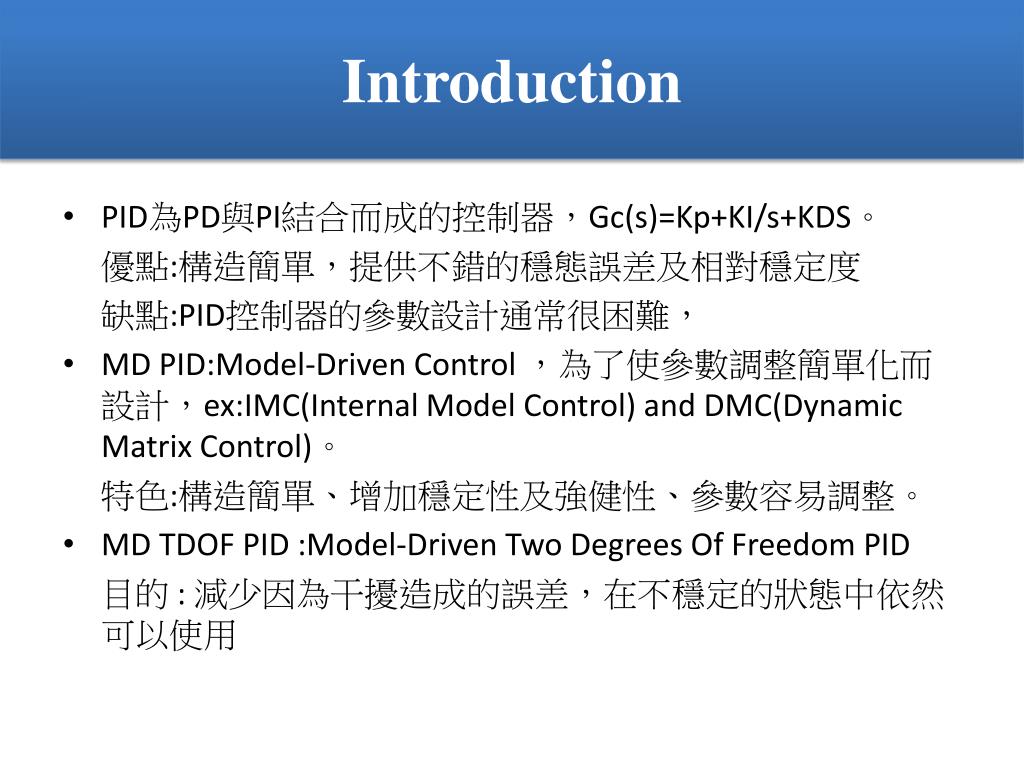

  3. Introduction • PID為PD與PI結合而成的控制器，Gc(s)=Kp+KI/s+KDS。 優點:構造簡單，提供不錯的穩態誤差及相對穩定度 缺點:PID控制器的參數設計通常很困難， • MD PID:Model-Driven Control ，為了使參數調整簡單化而設計，ex:IMC(Internal Model Control) and DMC(Dynamic Matrix Control)。 特色:構造簡單、增加穩定性及強健性、參數容易調整。 • MD TDOF PID :Model-Driven Two Degrees Of Freedom PID 目的 : 減少因為干擾造成的誤差，在不穩定的狀態中依然可以使用

  4. Block diagram of a Model-Driven TDOF PID control system (a)Set-point filter (b)Main controller: Gain . Q filter(second order) . Delay model with dead time(first order) (c) PD feedback compensator

  5. Designing Approach • Step 1:PD feedback compensator 功能:(a) stabilize even unstable processes P(s) (b) compensate the transfer function from v to y 設計方法: 找出P(s)的轉移函數，接著調整F(s) 讓G(s)近似於

  6. Designing Approach • Step 2: Main Controller (a)KC = K :Gain (b)TC = T :Time constant (c)LC = L :Dead time • Step 3: Set-point filter

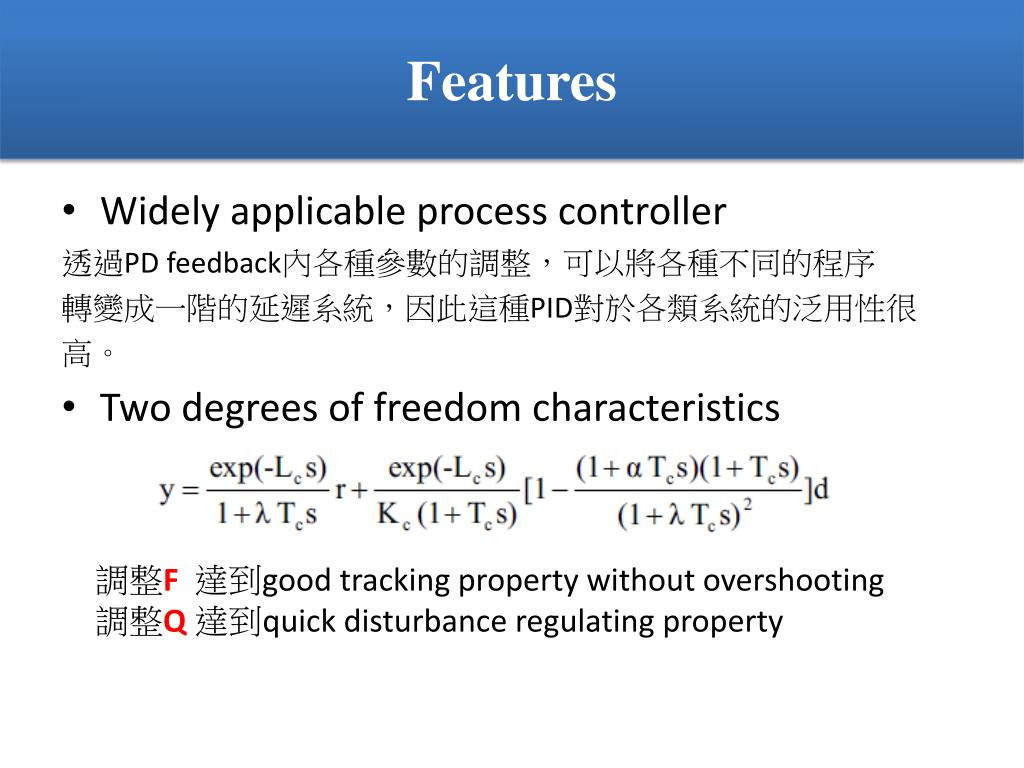

  7. Features • Widely applicable process controller 透過PDfeedback內各種參數的調整，可以將各種不同的程序 轉變成一階的延遲系統，因此這種PID對於各類系統的泛用性很 高。 • Two degrees of freedom characteristics 調整F 達到good tracking property without overshooting 調整Q 達到quick disturbanceregulatingproperty

  8. Practical industrial field experiments • Boiler test plant (a) 傳統PID(IMC) MDTDOFPID 以IAE(絕對誤差積分準則)及settling time(安定時間)來比較，MD TDOF PID 皆優於傳統的PID

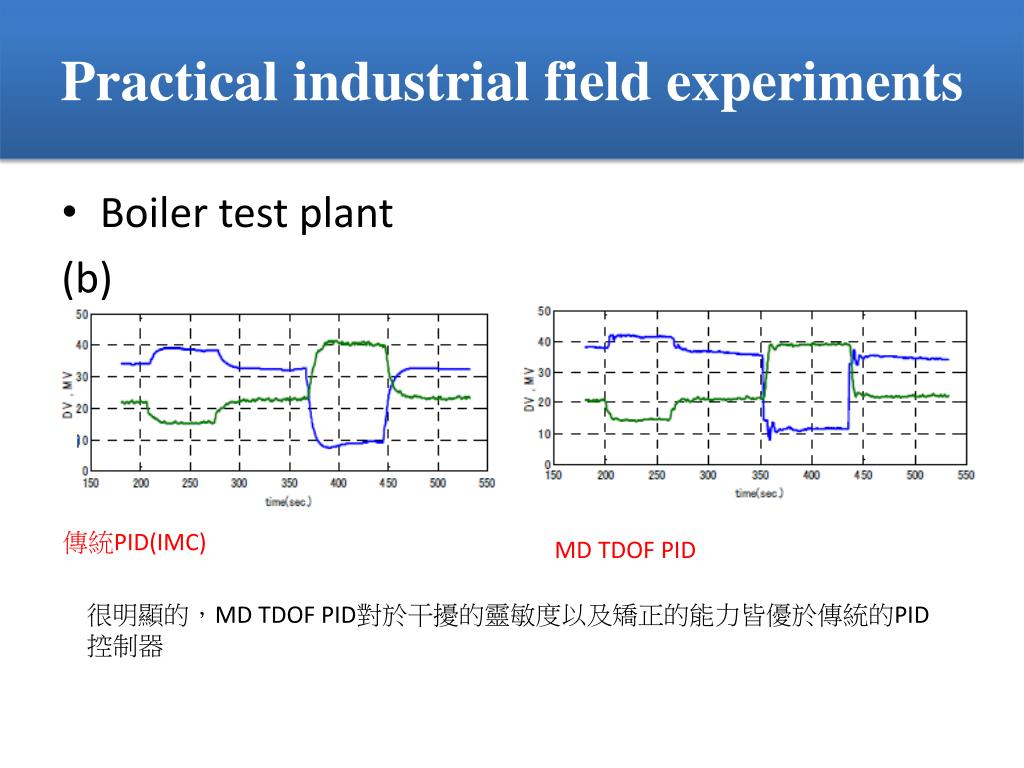

  9. Practical industrial field experiments • Boiler test plant (b) 傳統PID(IMC) MDTDOFPID 很明顯的，MD TDOF PID對於干擾的靈敏度以及矯正的能力皆優於傳統的PID控制器

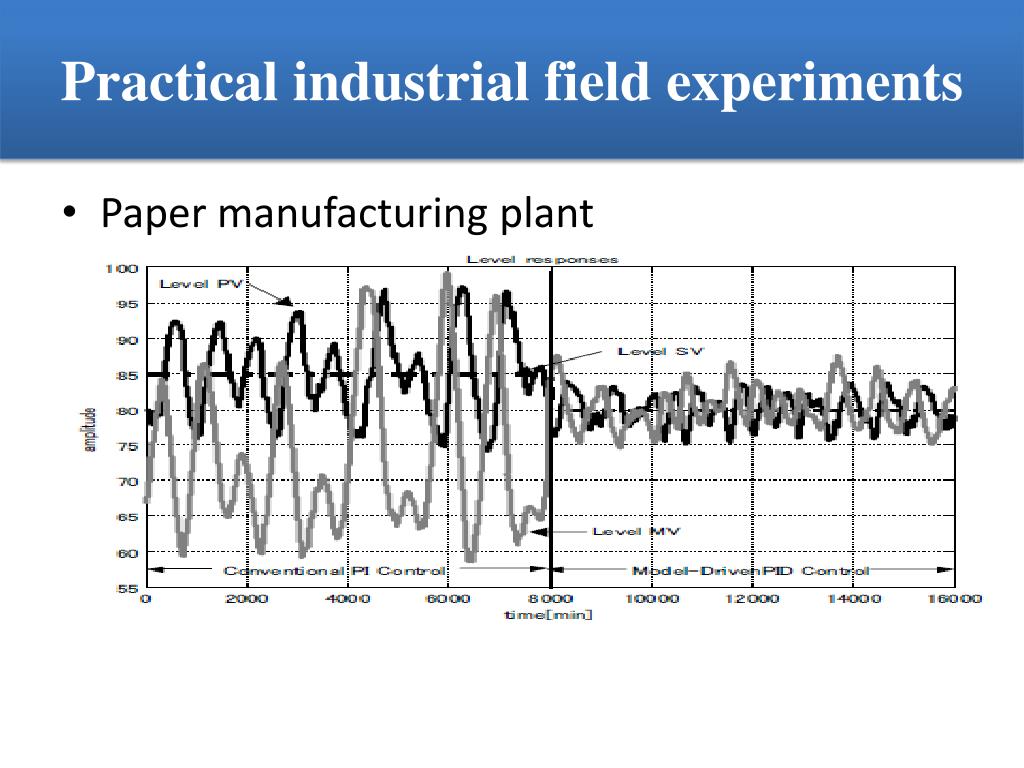

  10. Practical industrial field experiments • Paper manufacturing plant

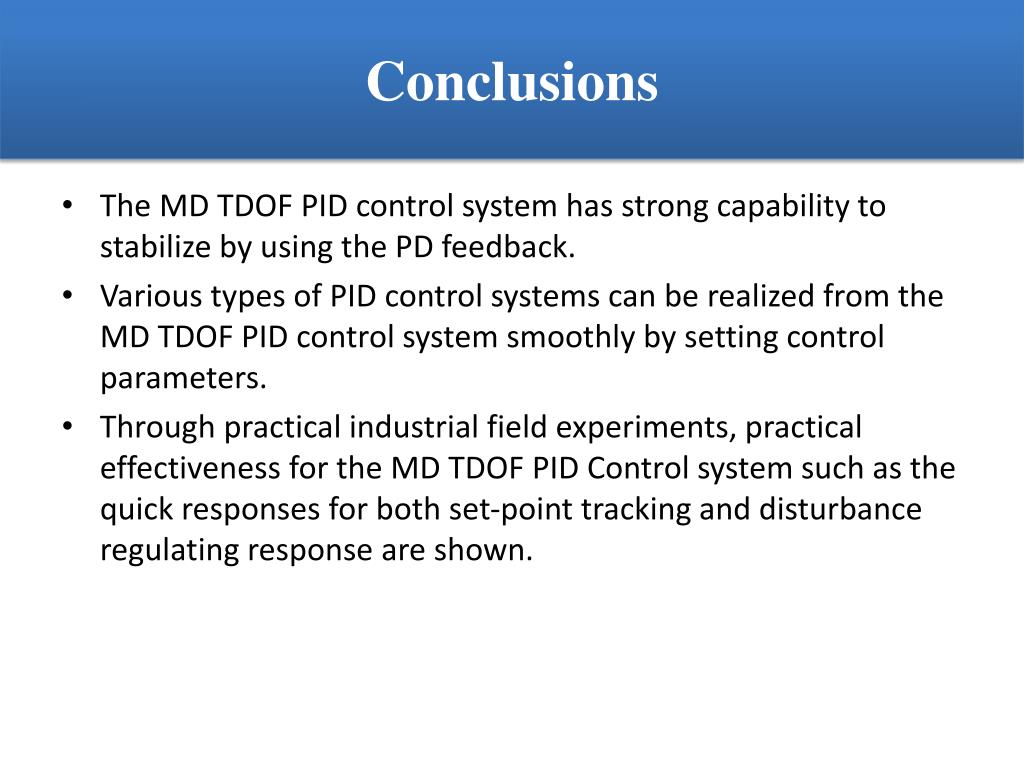

  11. Conclusions • The MD TDOF PID control system has strong capability to stabilize by using the PD feedback. • Various types of PID control systems can be realized from the MD TDOF PID control system smoothly by setting control parameters. • Through practical industrial field experiments, practical effectiveness for the MD TDOF PID Control system such as the quick responses for both set-point tracking and disturbance regulating response are shown.

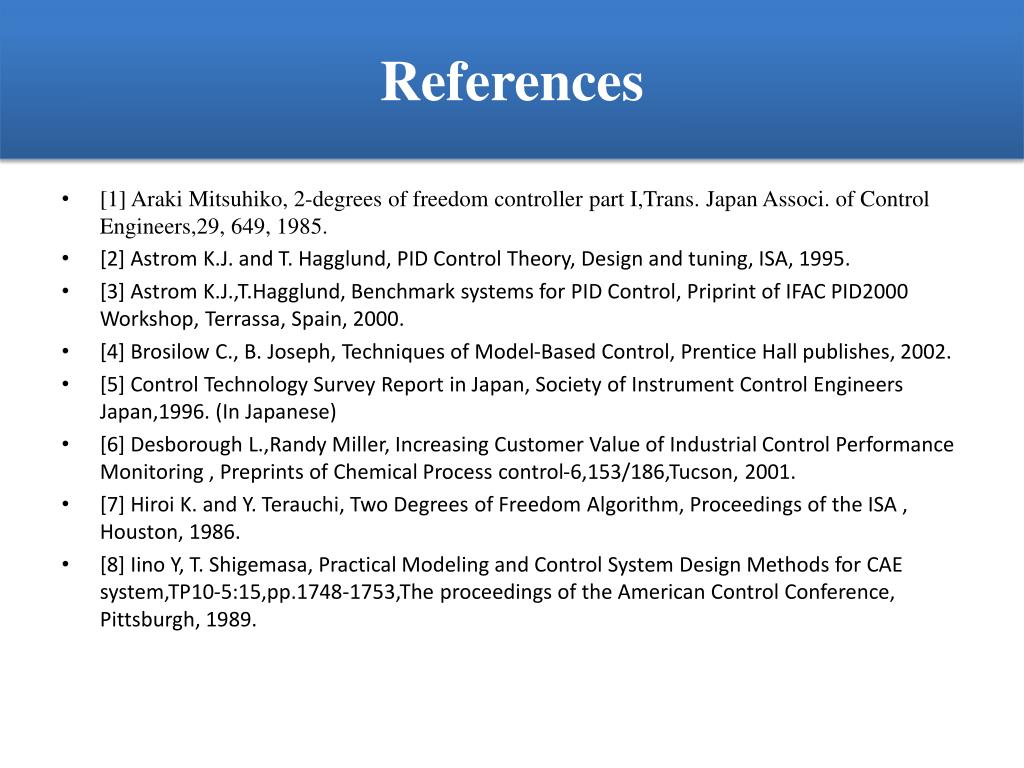

  12. References • [1] Araki Mitsuhiko, 2-degrees of freedom controller part I,Trans. Japan Associ. of Control Engineers,29, 649, 1985. • [2] Astrom K.J. and T. Hagglund, PID Control Theory, Design and tuning, ISA, 1995. • [3] Astrom K.J.,T.Hagglund, Benchmark systems for PID Control, Priprint of IFAC PID2000 Workshop, Terrassa, Spain, 2000. • [4] Brosilow C., B. Joseph, Techniques of Model-Based Control, Prentice Hall publishes, 2002. • [5] Control Technology Survey Report in Japan, Society of Instrument Control Engineers Japan,1996. (In Japanese) • [6] Desborough L.,Randy Miller, Increasing Customer Value of Industrial Control Performance Monitoring , Preprints of Chemical Process control-6,153/186,Tucson, 2001. • [7] Hiroi K. and Y. Terauchi, Two Degrees of Freedom Algorithm, Proceedings of the ISA , Houston, 1986. • [8] Iino Y, T. Shigemasa, Practical Modeling and Control System Design Methods for CAE system,TP10-5:15,pp.1748-1753,The proceedings of the American Control Conference, Pittsburgh, 1989.

  13. References • [9] Kimura H, Is the Model a Good Controller? – Perspectives on Brain Motor Control,39 the IEEE Conference on Decision and Control, , Sydney, 2000. • [10] Kitamori Toshiyuki, A design method for control systems based upon partial knowledge about controlled processes, Trans. of Society of Instrument and Control Engineers,15-4,549-555, 1979. (In Japanese) • [11] Kitamori Toshiyuki, Partial Model Matching Method conformable to Physical and Engineering Actualities,Preprints of 1st IFAC Symposium on System Structure and Control, 2001. • [12] Morari M. and E. Zafiriou, Robust Process Control.,Prentice-Hall, Inc.Englewood Cliffs, N.J., 1989. • [13] Rivera,D.E.,M.Morari,and S.Skogestad, “Internal Model Control 4.PID Controller Design, ”Ind.Eng. Chem. Process Des. Dev.25 ,252, 1986 • [14] Shigemasa T., Y. Iino and M. Kanda, Two Degrees of Freedom PID Auto-tuning Controller, 87-1191, Proceedings of the ISA, Anaheim, 1987. • [15] Shigemasa T., M. Yukitomo, R. Kuwata, T. Hattori and Y.Baba, A Model-Driven PID Controller, Proceedings of INTERMAC 2001, Tokyo, 2001.

  14. References • [16] Shigemasa T., M. Yukitomo, R. Kuwata, A Model-Driven PID Control System and its Case Studies, PP.571/576, Proceedings of the 2002 IEEE International Conference on Control Applications Glasgow, 2002. • [17] Shinskey F.G, PID-DEADTIME CONTROL OF DISTRIBUTED PROCESS, Preprint of the IFAC PID2000 Workshop, Terrassa, Spain, 2000. • [18] Shinskey F.G, Feedback Controllers for the Process Industries, McGraw-Hill, 1994. • [19] Starr J., Realization of truncated impulse responses with prescribed uncertainty, IFAC’81 world Congress, Kyoto, Japan, 1981. • [20] Suda N., PID Control, Asakura Publishing Company, 1992.(In Japanese) • [21] Takatsu H., T. Itou, Future Needs for Control Theory in Industry-- Report of the Control Technology Survey in Japanese Industry, IEEE Trans. on Control Systems Technology, 07-03, pp.298-305, 1999
