  1. Today’s Material • The dynamic equivalence problem • a.k.a. Disjoint Sets/Union-Find ADT • Covered in Chapter 8 of the textbook

  2. Motivation • Consider the relation “=” between integers • For any integer A, A = A (reflexive) • For integers A and B, A = B means that B = A (symmetric) • For integers A, B, and C, A = B and B = C means that A = C (transitive) • Consider cities connected by two-way roads • A is trivially connected to itself • A is connected to B means B is connected to A • If A is connected to B and B is connected to C, then A is connected to C

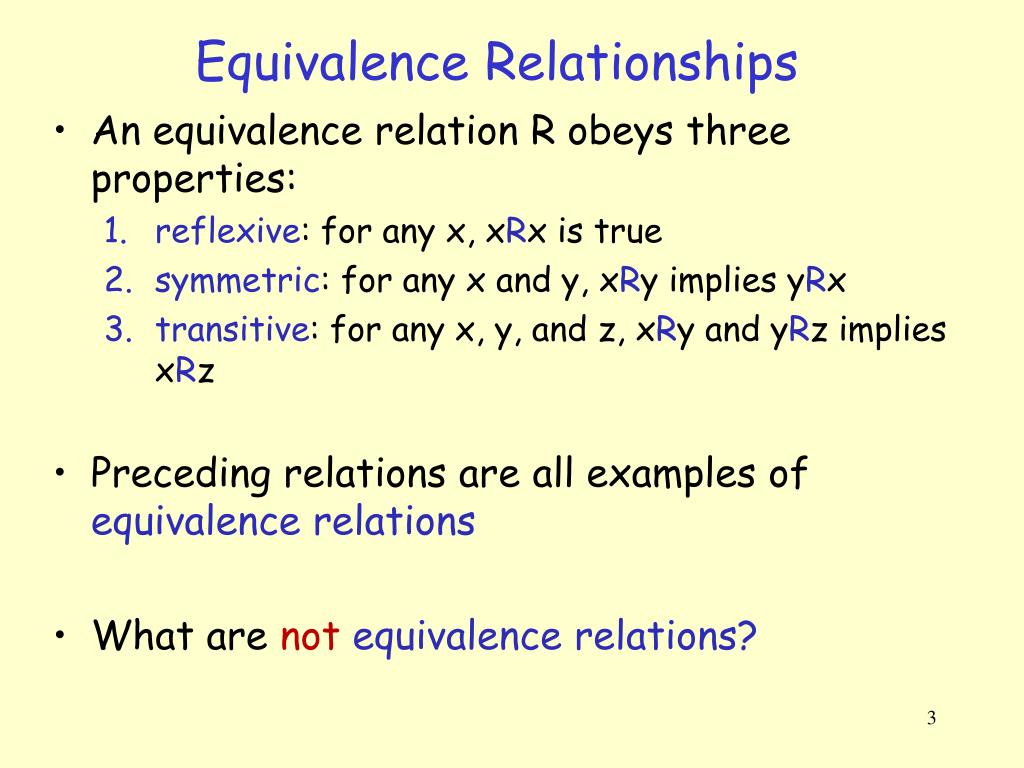

  3. Equivalence Relationships • An equivalence relation R obeys three properties: • reflexive: for any x, xRx is true • symmetric: for any x and y, xRy implies yRx • transitive: for any x, y, and z, xRy and yRz implies xRz • Preceding relations are all examples of equivalence relations • What are notequivalence relations?

  4. Equivalence Relationships • An equivalence relation R obeys three properties: • reflexive: for any x, xRx is true • symmetric: for any x and y, xRy implies yRx • transitive: for any x, y, and z, xRy and yRz implies xRz • What about “<” on integers? • 1 and 2 are violated • What about “≤” on integers? • 2 is violated

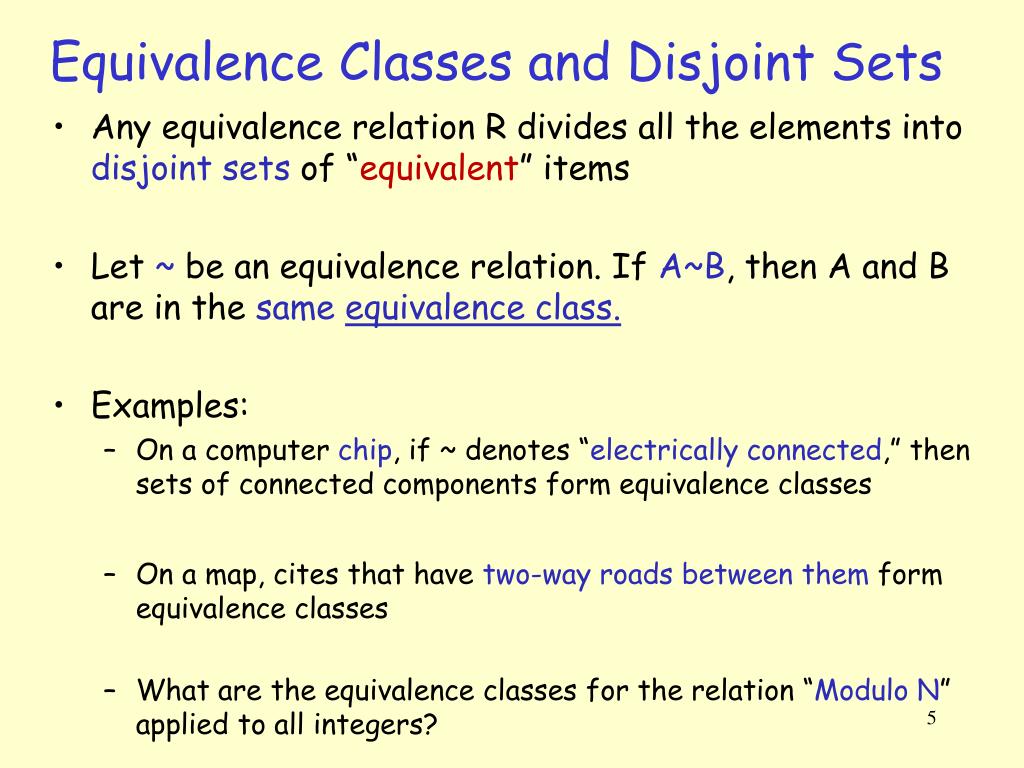

  5. Equivalence Classes and Disjoint Sets • Any equivalence relation R divides all the elements into disjoint sets of “equivalent” items • Let ~ be an equivalence relation. If A~B, then A and B are in the same equivalence class. • Examples: • On a computer chip, if ~ denotes “electrically connected,” then sets of connected components form equivalence classes • On a map, cites that have two-way roads between them form equivalence classes • What are the equivalence classes for the relation “Modulo N” applied to all integers?

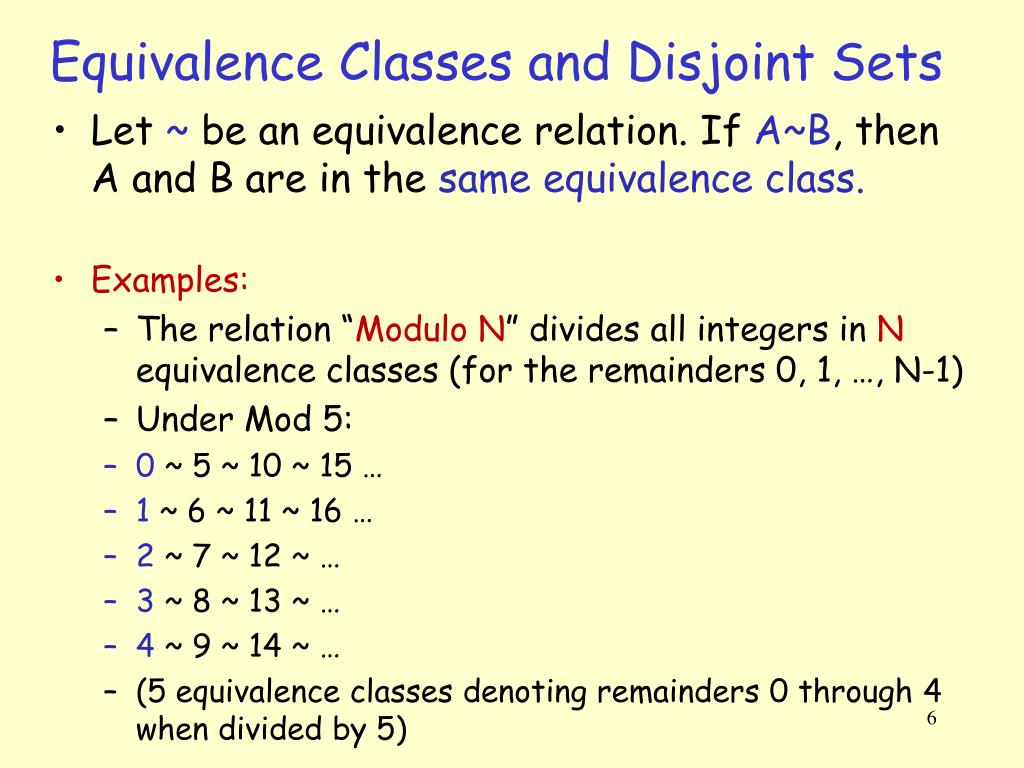

  6. Equivalence Classes and Disjoint Sets • Let ~ be an equivalence relation. If A~B, then A and B are in the same equivalence class. • Examples: • The relation “Modulo N” divides all integers in N equivalence classes (for the remainders 0, 1, …, N-1) • Under Mod 5: • 0 ~ 5 ~ 10 ~ 15 … • 1 ~ 6 ~ 11 ~ 16 … • 2 ~ 7 ~ 12 ~ … • 3 ~ 8 ~ 13 ~ … • 4 ~ 9 ~ 14 ~ … • (5 equivalence classes denoting remainders 0 through 4 when divided by 5)

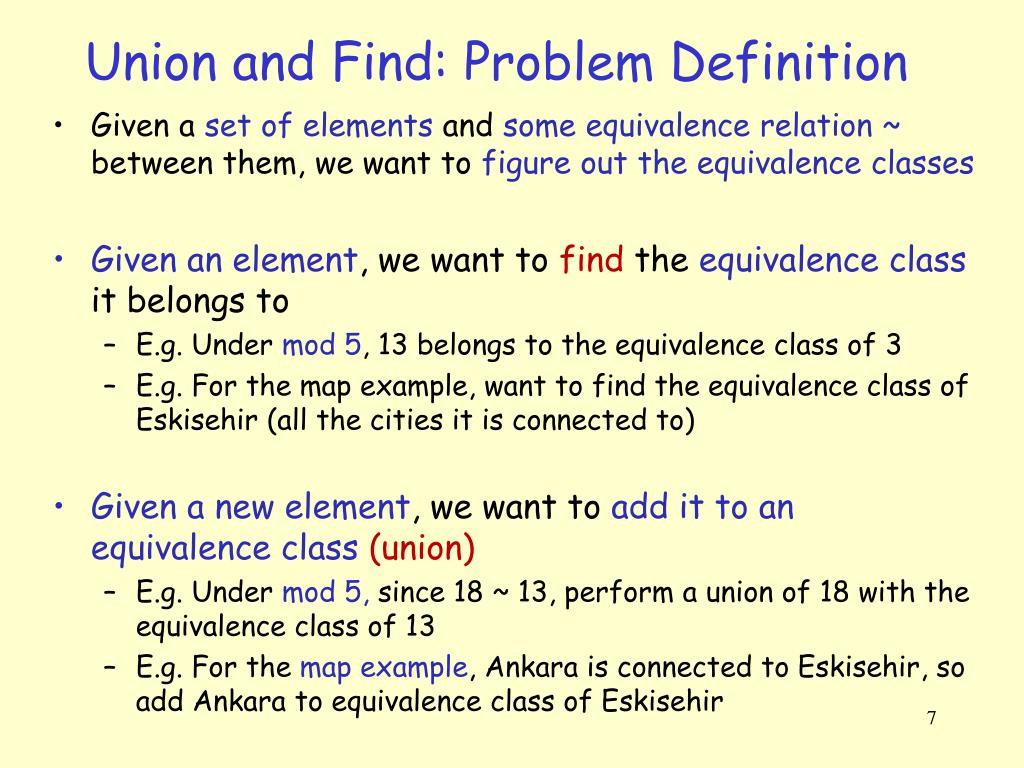

  7. Union and Find: Problem Definition • Given a set of elements and some equivalence relation ~ between them, we want to figure out the equivalence classes • Given an element, we want to find the equivalence class it belongs to • E.g. Under mod 5, 13 belongs to the equivalence class of 3 • E.g. For the map example, want to find the equivalence class of Eskisehir (all the cities it is connected to) • Given a new element, we want to add it to an equivalence class (union) • E.g. Under mod 5, since 18 ~ 13, perform a union of 18 with the equivalence class of 13 • E.g. For the map example, Ankara is connected to Eskisehir, so add Ankara to equivalence class of Eskisehir

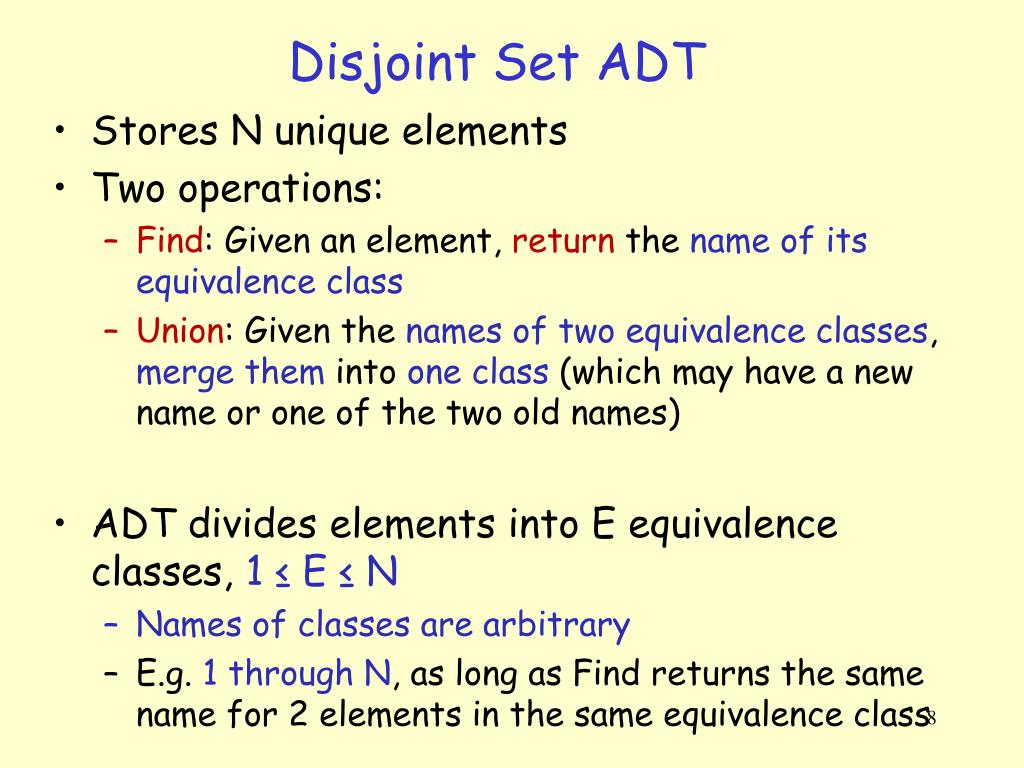

  8. Disjoint Set ADT • Stores N unique elements • Two operations: • Find: Given an element, return the name of its equivalence class • Union: Given the names of two equivalence classes, mergethem into one class (which may have a new name or one of the two old names) • ADT divides elements into E equivalence classes, 1 ≤ E ≤ N • Names of classes are arbitrary • E.g. 1 through N, as long as Find returns the same name for 2 elements in the same equivalence class

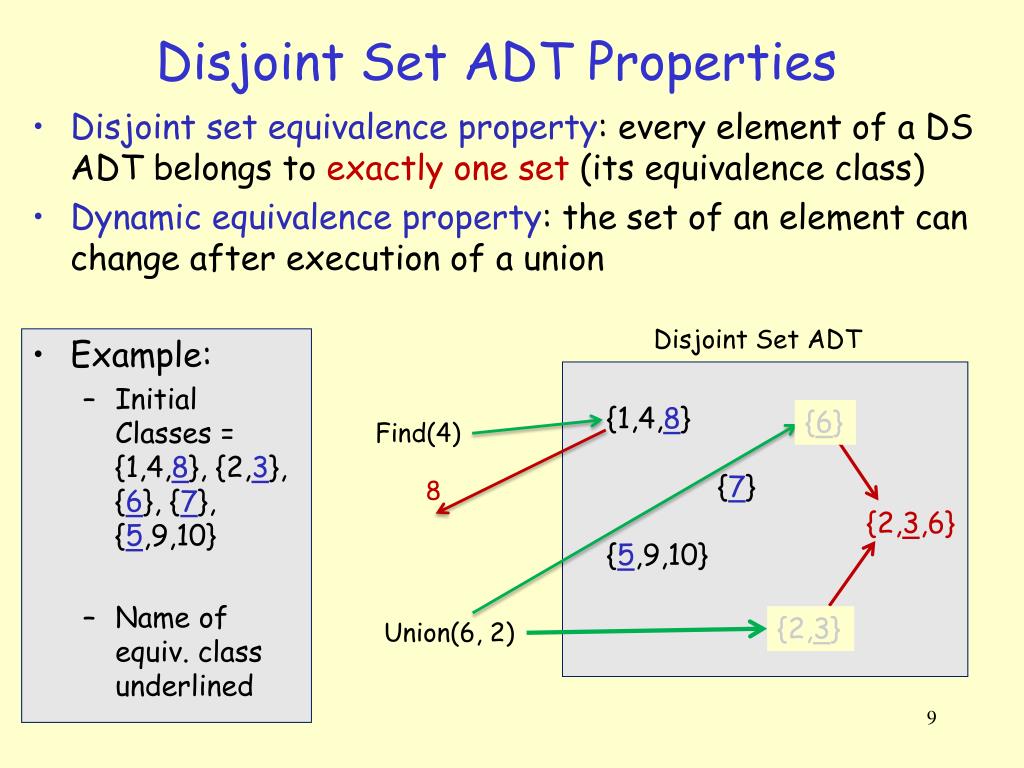

  9. Disjoint Set ADT Properties • Disjoint set equivalence property: every element of a DS ADT belongs to exactly one set (its equivalence class) • Dynamic equivalence property: the set of an element can change after execution of a union Disjoint Set ADT • Example: • Initial Classes = {1,4,8}, {2,3}, {6}, {7}, {5,9,10} • Name of equiv. class underlined {1,4,8} {6} {7} {5,9,10} {2,3} {6} Find(4) 8 {2,3,6} {2,3} Union(6, 2)

  10. Disjoint Set ADT: Formal Definition • Given a set U = {a1, a2, … , an} • Maintain a partition of U, a set of subsets (or equivalence classes) of U denoted by {S1, S2, …, Sk} such that: • each pair of subsets Si and Sj are disjoint • together, the subsets cover U • each subset has a unique name • Union(a, b) creates a new subset which is the union of a’s subset and b’s subset • Find(a) returns the unique name for a’s subset

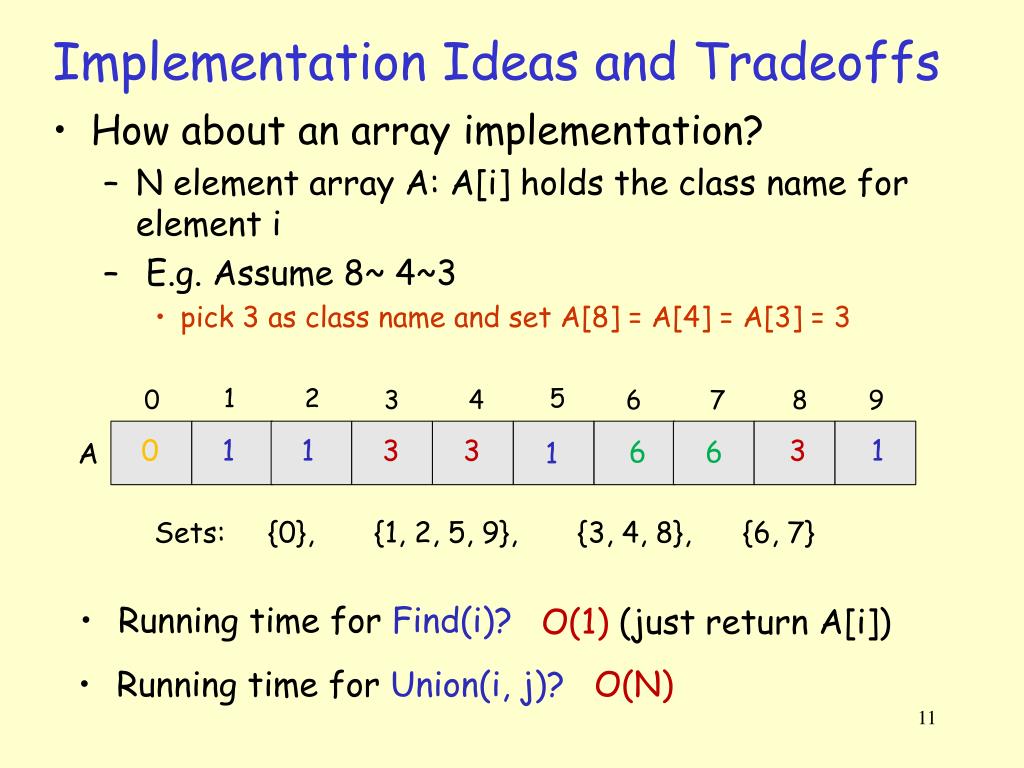

  11. Implementation Ideas and Tradeoffs • How about an array implementation? • N element array A: A[i] holds the class name for element i • E.g. Assume 8~ 4~3 • pick 3 as class name and set A[8] = A[4] = A[3] = 3 1 2 5 0 3 4 6 7 8 9 0 1 1 3 3 3 1 6 6 A 1 Sets: {0}, {1, 2, 5, 9}, {3, 4, 8}, {6, 7} • Running time for Find(i)? O(1) (just return A[i]) O(N) • Running time for Union(i, j)?

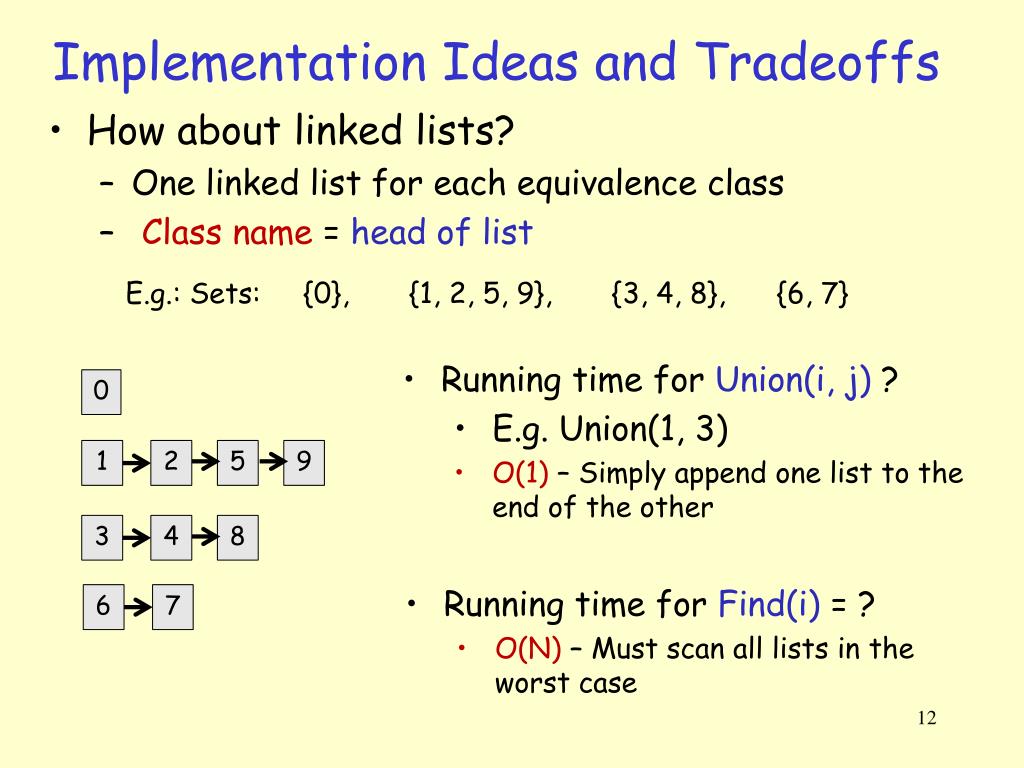

  12. Implementation Ideas and Tradeoffs • How about linked lists? • One linked list for each equivalence class • Class name = head of list E.g.: Sets: {0}, {1, 2, 5, 9}, {3, 4, 8}, {6, 7} • Running time for Union(i, j) ? • E.g. Union(1, 3) • O(1) – Simply append one list to the end of the other 0 1 2 5 9 3 4 8 • Running time for Find(i) = ? • O(N) – Must scan all lists in the worst case 6 7

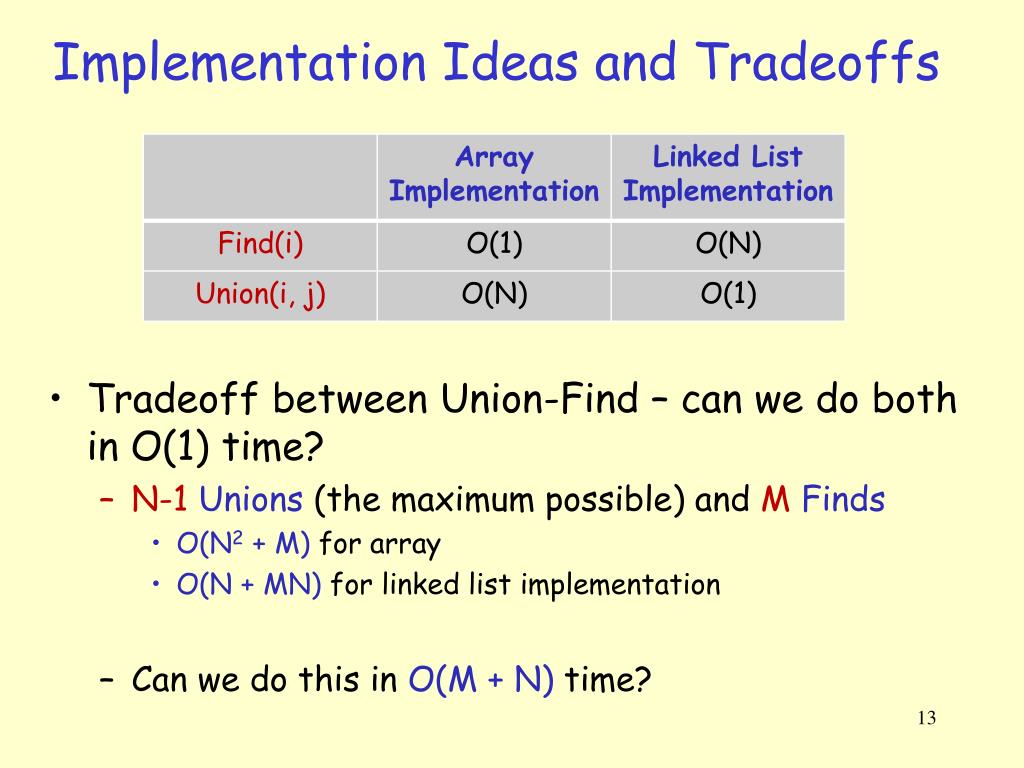

  13. Implementation Ideas and Tradeoffs • Tradeoff between Union-Find – can we do both in O(1) time? • N-1 Unions (the maximum possible) and MFinds • O(N2 + M) for array • O(N + MN) for linked list implementation • Can we do this in O(M + N) time?

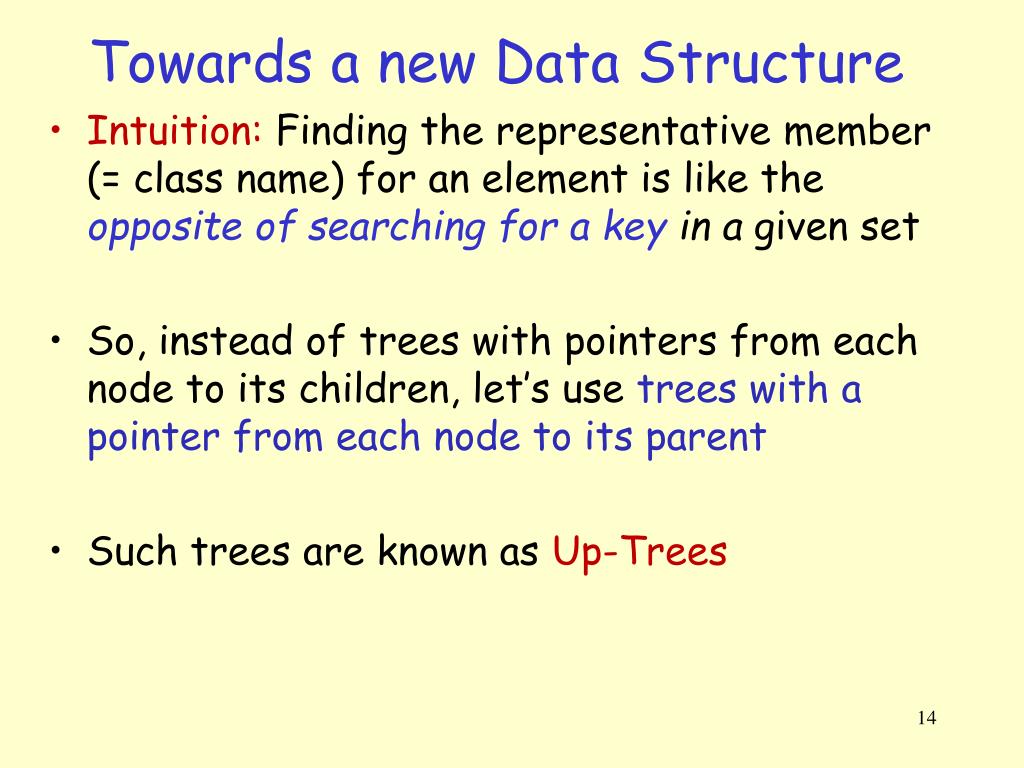

  14. Towards a new Data Structure • Intuition: Finding the representative member (= class name) for an element is like the opposite of searching for a key in a given set • So, instead of trees with pointers from each node to its children, let’s use trees with a pointer from each node to its parent • Such trees are known as Up-Trees

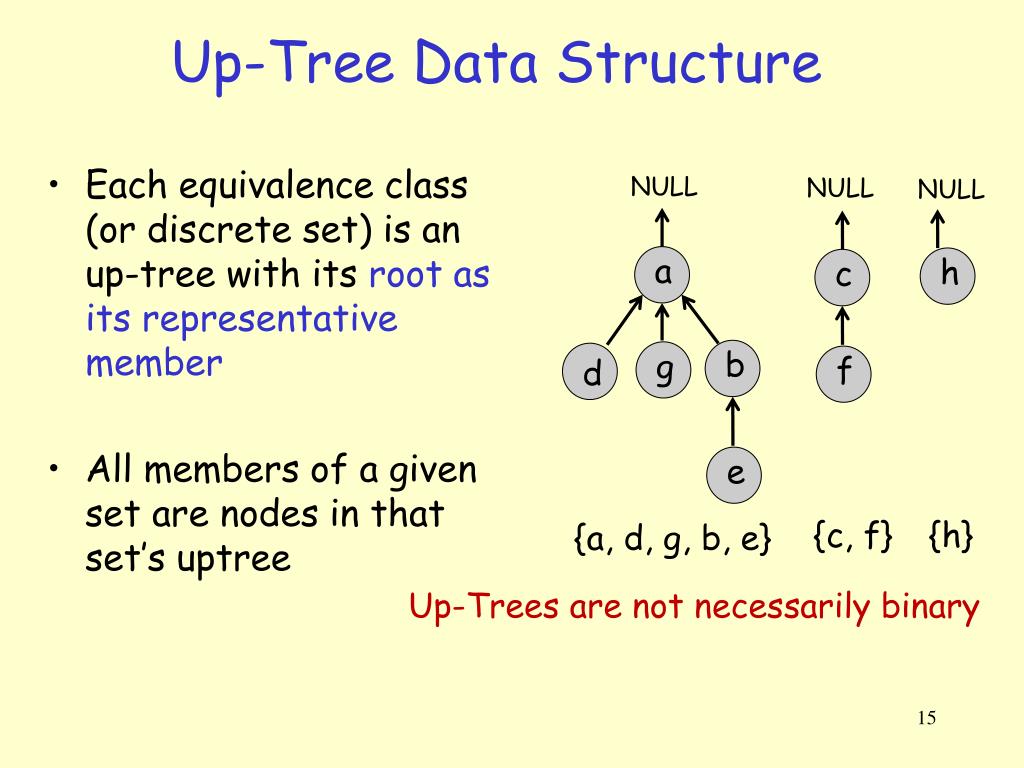

  15. Up-Tree Data Structure • Each equivalence class (or discrete set) is an up-tree with its root as its representative member • All members of a given set are nodes in that set’s uptree d b g f a c h e NULL NULL NULL {c, f} {h} {a, d, g, b, e} Up-Trees are not necessarily binary

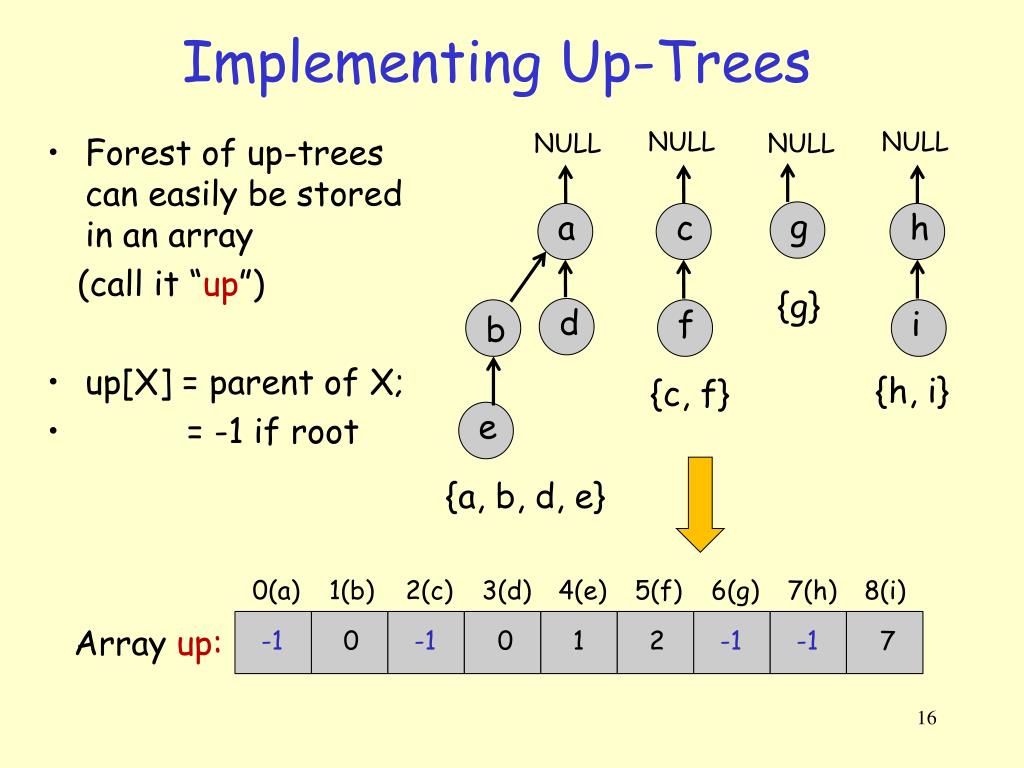

  16. Implementing Up-Trees • Forest of up-trees can easily be stored in an array (call it “up”) • up[X] = parent of X; • = -1 if root NULL NULL NULL NULL b f c a d e g i h {g} {h, i} {c, f} {a, b, d, e} 4(e) 7(h) 3(d) 8(i) 0(a) 1(b) 2(c) 6(g) 5(f) -1 -1 -1 -1 1 0 2 0 7 Array up:

  17. Example Find • Find(x): Just follow parent pointers to the root • Find(e) = a • Find(f) = c • Find(g) = g NULL NULL NULL NULL b c f h i g a d e {g} {h, i} {c, f} {a, b, d, e} 4(e) 7(h) 3(d) 8(i) 0(a) 1(b) 2(c) 6(g) 5(f) -1 -1 -1 -1 1 0 2 0 7 Array up: Find(e)

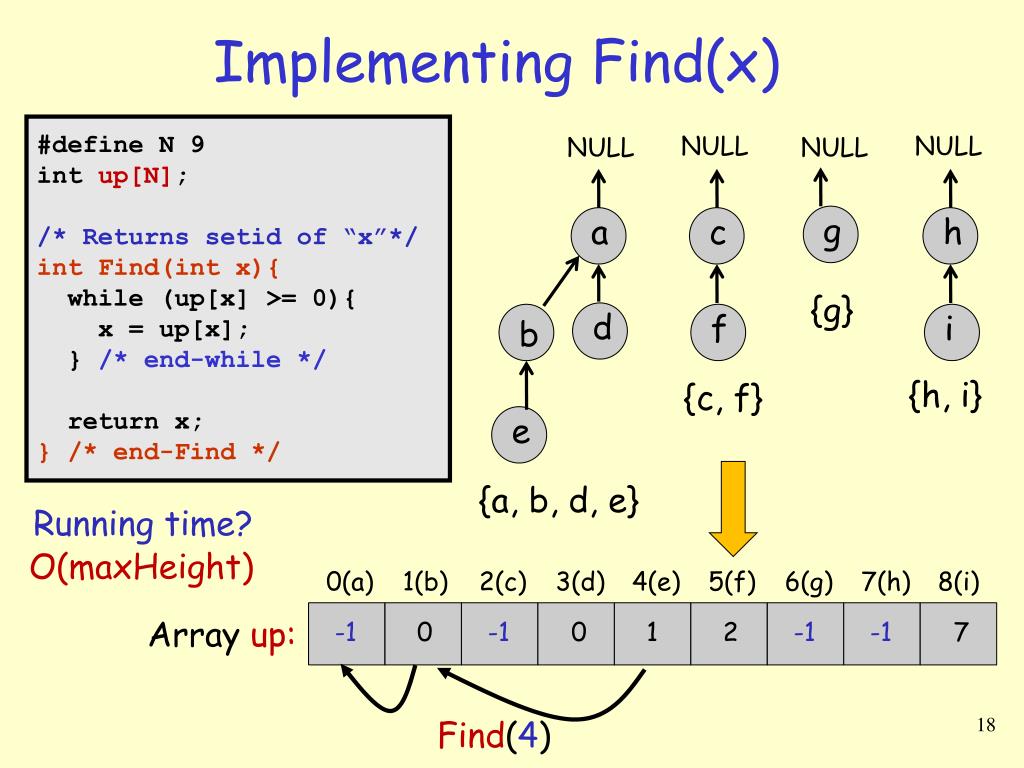

  18. Implementing Find(x) #define N 9 intup[N]; /* Returns setid of “x”*/ int Find(int x){ while (up[x] >= 0){ x = up[x]; } /* end-while */ return x; } /* end-Find */ NULL NULL NULL NULL b e i d a h c f g {g} {h, i} {c, f} {a, b, d, e} Running time? O(maxHeight) 4(e) 7(h) 3(d) 5(f) 8(i) 6(g) 0(a) 2(c) 1(b) -1 -1 -1 -1 1 2 0 0 7 Array up: Find(4)

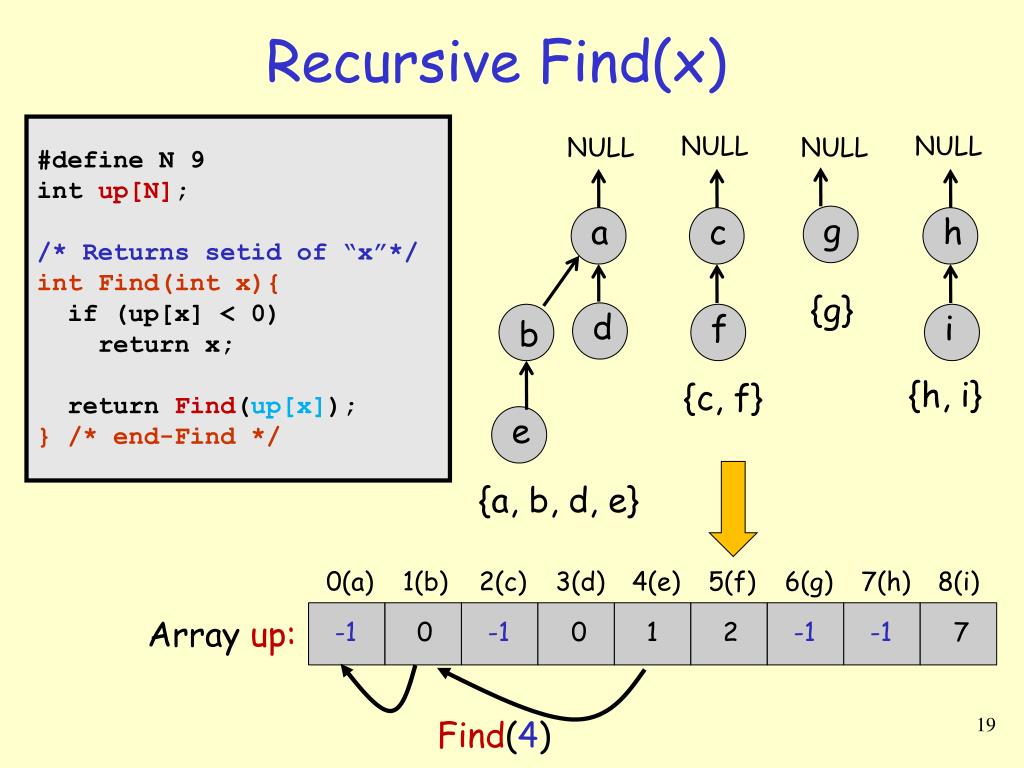

  19. Recursive Find(x) #define N 9 intup[N]; /* Returns setid of “x”*/ int Find(int x){ if (up[x] < 0) return x; return Find(up[x]); } /* end-Find */ NULL NULL NULL NULL b e i h g f a d c {g} {h, i} {c, f} {a, b, d, e} 4(e) 7(h) 3(d) 8(i) 0(a) 1(b) 2(c) 6(g) 5(f) -1 -1 -1 -1 1 0 2 0 7 Array up: Find(4)

  20. Example Union • Union(x, y): Just hang one root from the other! • Union(c, a) NULL NULL NULL NULL b f c a d e g h i {g} {h, i} {a, b, d, e, c, f} 4(e) 7(h) 3(d) 8(i) 1(b) 2(c) 6(g) 5(f) 0(a) -1 -1 -1 1 0 2 0 7 Array up: 2 -1

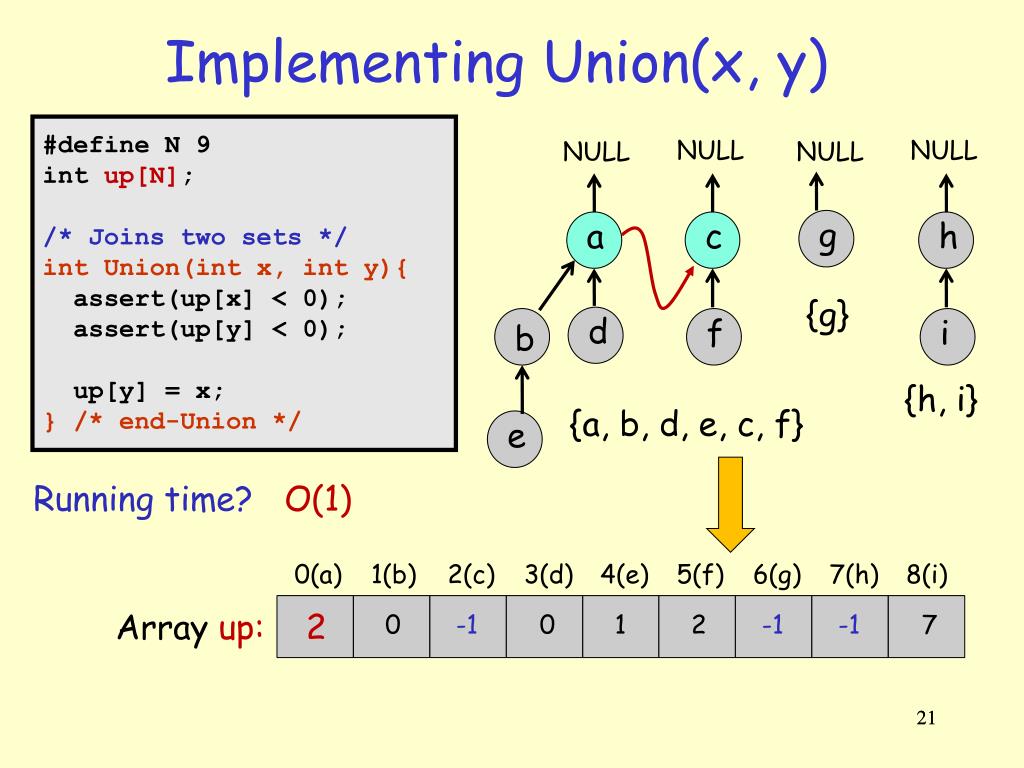

  21. Implementing Union(x, y) #define N 9 intup[N]; /* Joins two sets */ int Union(int x, int y){ assert(up[x] < 0); assert(up[y] < 0); up[y] = x; } /* end-Union */ NULL NULL NULL NULL b a d g e c f h i {g} {h, i} {a, b, d, e, c, f} Running time? O(1) 7(h) 8(i) 6(g) 5(f) 0(a) 1(b) 2(c) 4(e) 3(d) 2 -1 -1 -1 0 2 1 7 0 Array up: 21

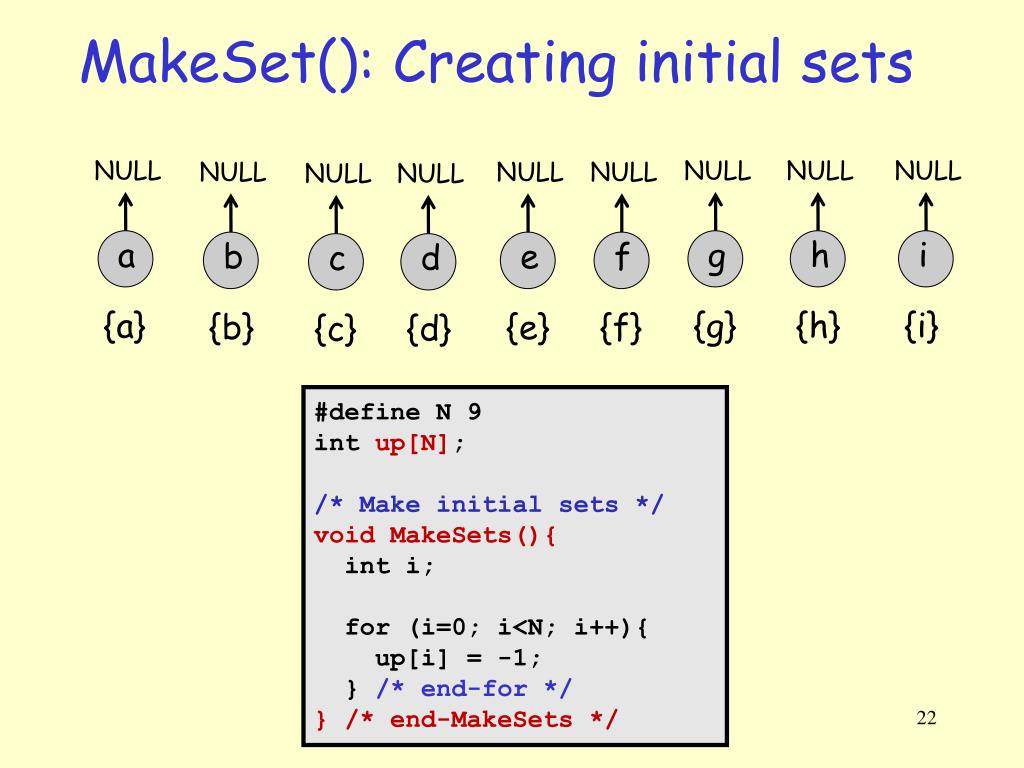

  22. MakeSet(): Creating initial sets NULL NULL NULL NULL NULL NULL NULL NULL NULL f d a b c g h i e {a} {g} {h} {i} {b} {e} {f} {c} {d} #define N 9 intup[N]; /* Make initial sets */ void MakeSets(){ inti; for (i=0; i<N; i++){ up[i] = -1; } /* end-for */ } /* end-MakeSets */

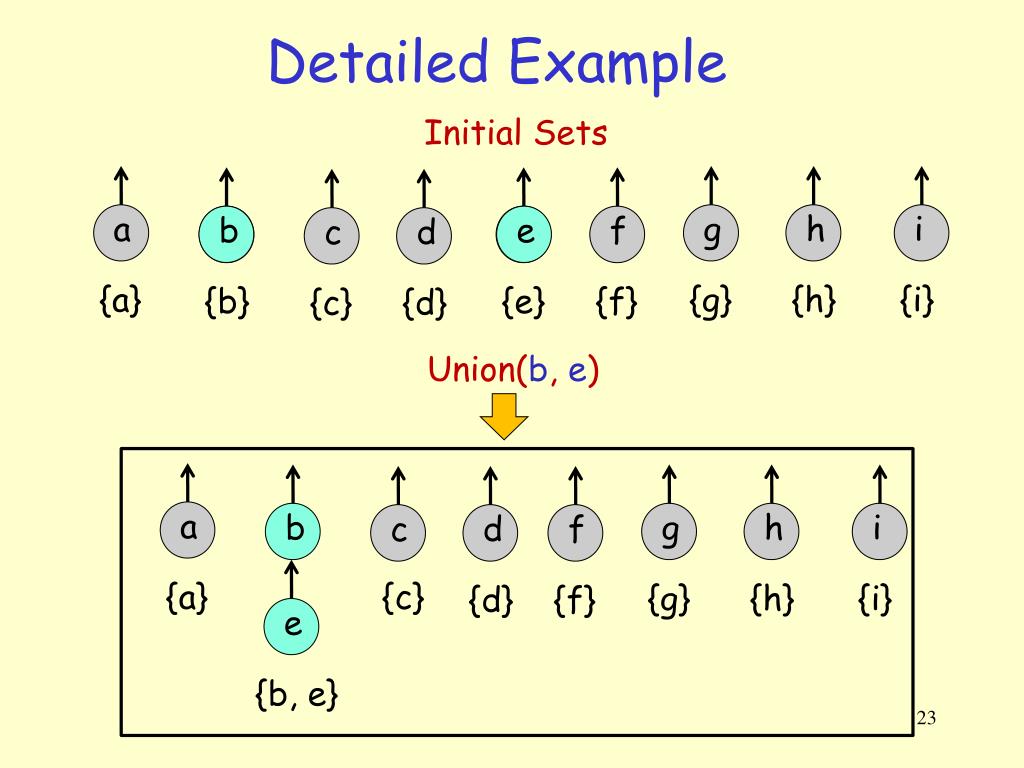

  23. Detailed Example Initial Sets d c f i g h e b b e a g h e c b f d i a {a} {g} {h} {i} {b} {e} {f} {c} {d} Union(b, e) {a} {c} {g} {h} {i} {d} {f} {b, e}

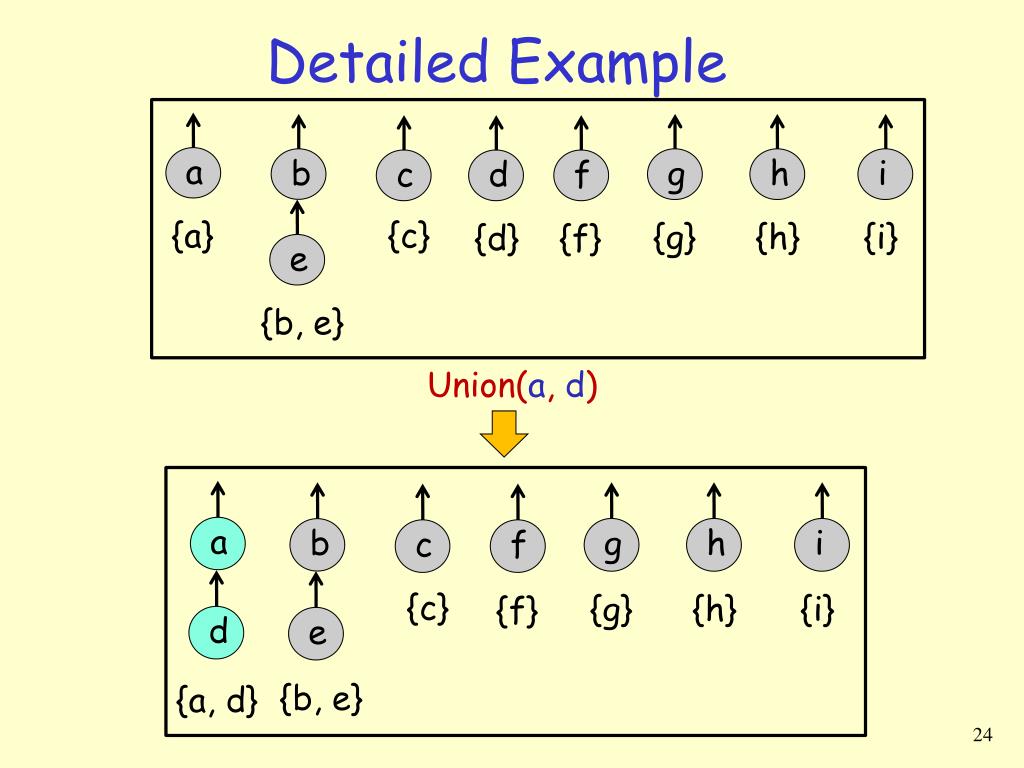

  24. Detailed Example a d i g h d c f i g h e e b b a f c {a} {c} {g} {h} {i} {d} {f} {b, e} Union(a, d) {c} {g} {h} {i} {f} {b, e} {a, d}

  25. Detailed Example a b e i c f g h {c} {g} {h} {i} {f} d {b, e} {a, d} Union(a, b) a g h i c f {c} {g} {h} {i} {f} d b e {a, d, b, e}

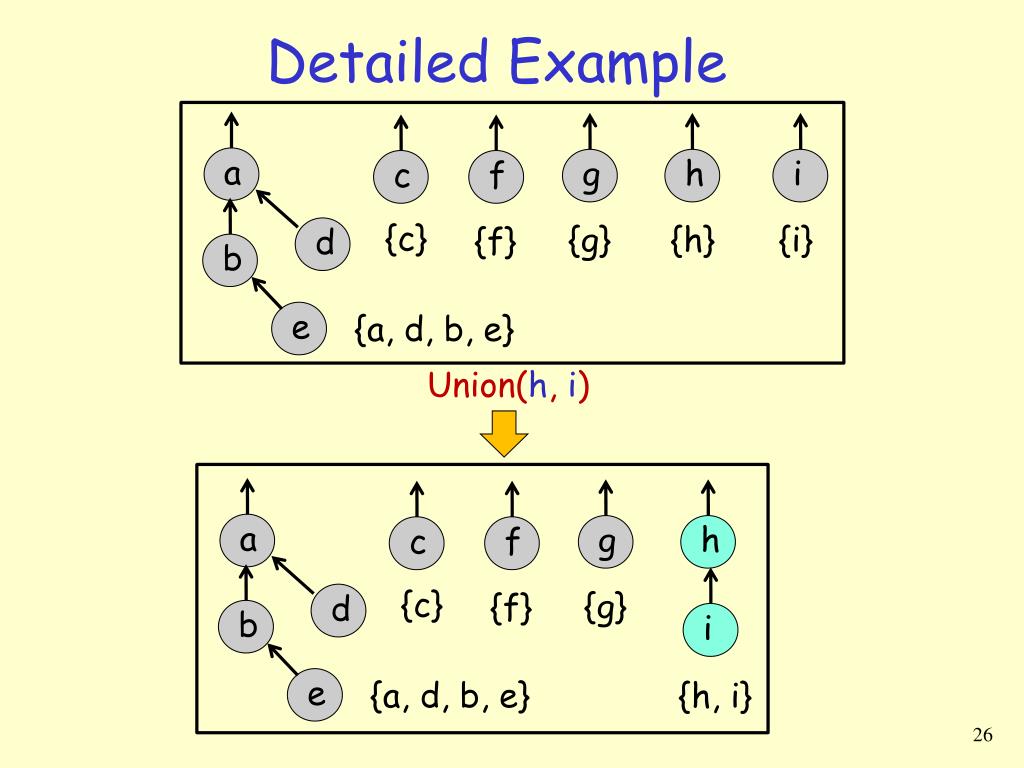

  26. Detailed Example a g h i c f {c} {g} {h} {i} {f} d b e {a, d, b, e} Union(h, i) a g h c f {c} {g} {f} d b i e {a, d, b, e} {h, i}

  27. Detailed Example a g h c f {c} {g} {f} d b i e {a, d, b, e} {h, i} Union(c, f) a g h c {g} d b i f {c, f} e {h, i} {a, d, b, e}

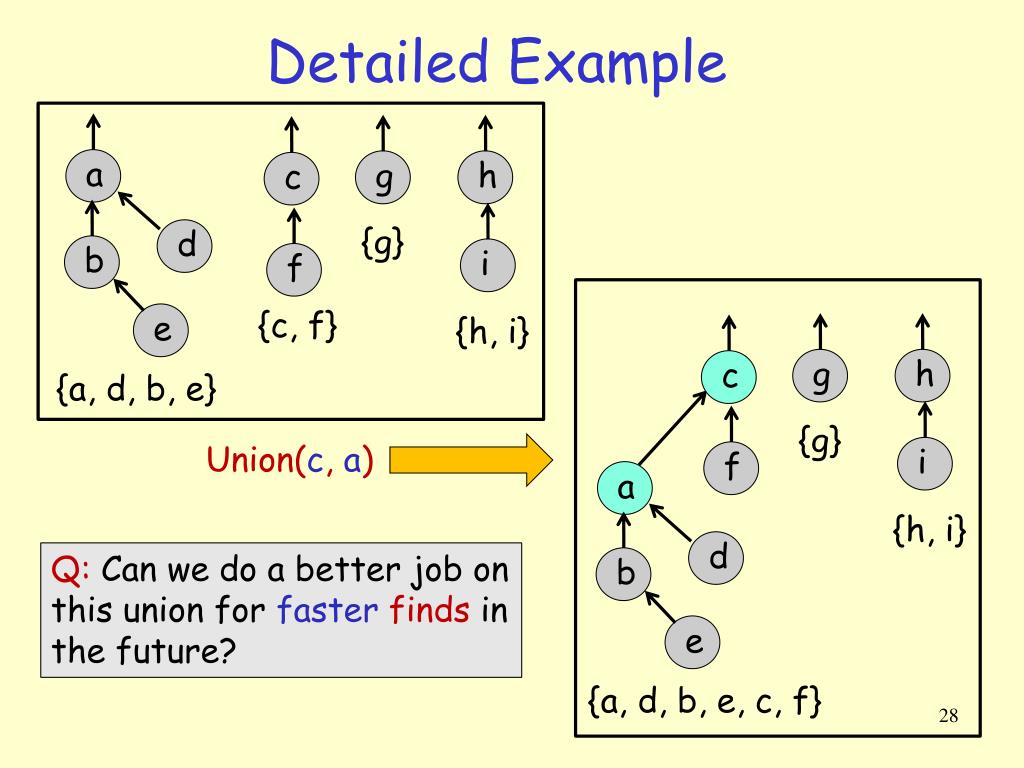

  28. Detailed Example a g h c {g} d b i f {c, f} e {h, i} g h c {a, d, b, e} {g} Union(c, a) i f a {h, i} d Q: Can we do a better job on this union for fasterfinds in the future? b e {a, d, b, e, c, f}

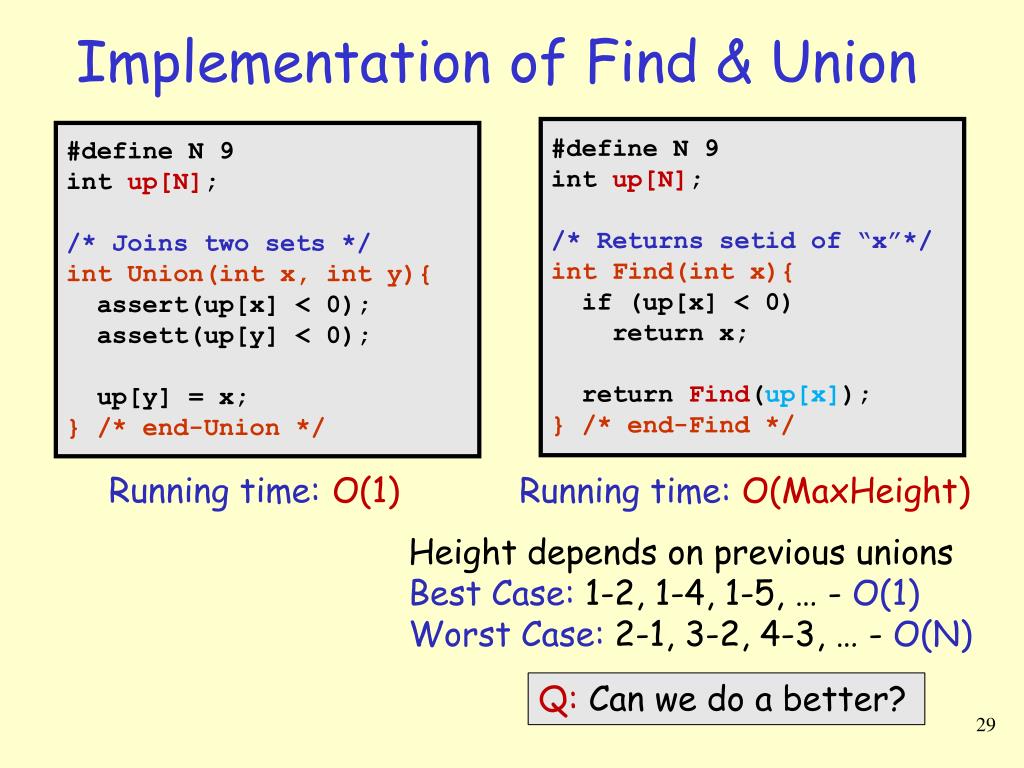

  29. Implementation of Find & Union #define N 9 intup[N]; /* Returns setid of “x”*/ int Find(int x){ if (up[x] < 0) return x; return Find(up[x]); } /* end-Find */ #define N 9 intup[N]; /* Joins two sets */ int Union(int x, int y){ assert(up[x] < 0); assett(up[y] < 0); up[y] = x; } /* end-Union */ Running time: O(1) Running time: O(MaxHeight) Height depends on previous unions Best Case: 1-2, 1-4, 1-5, … - O(1) Worst Case: 2-1, 3-2, 4-3, … - O(N) Q: Can we do a better?

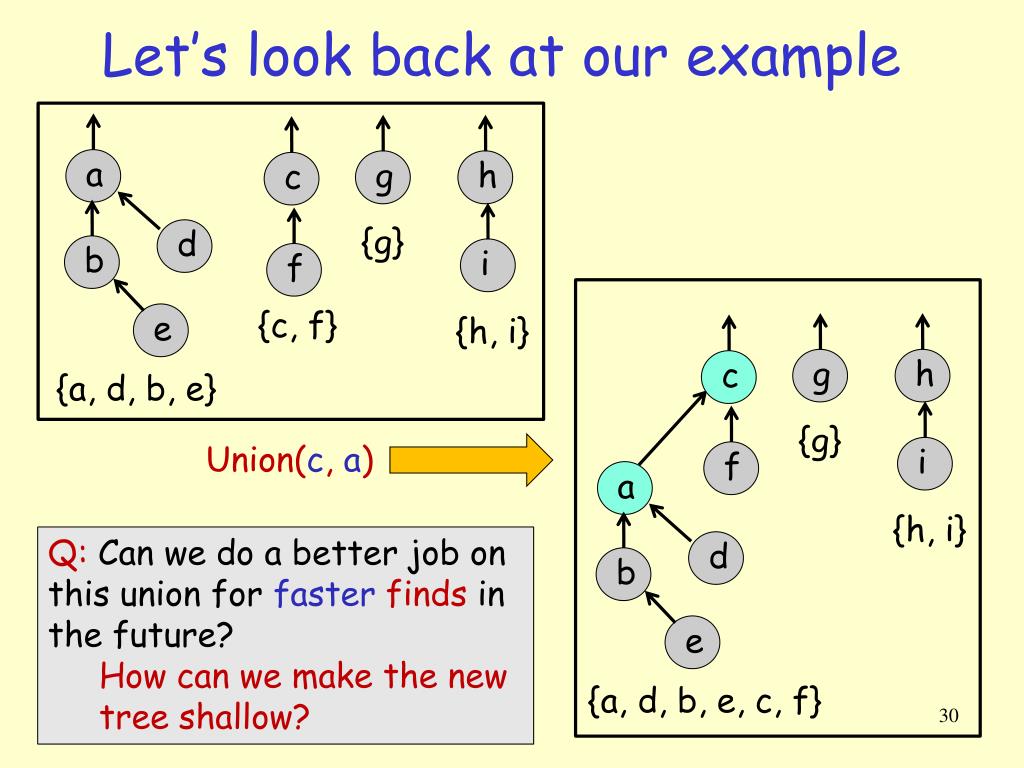

  30. Let’s look back at our example a g h c {g} d b i f {c, f} e {h, i} g h c {a, d, b, e} {g} Union(c, a) i f a {h, i} • Q: Can we do a better job on this union for fasterfinds in the future? • How can we make the new tree shallow? d b e {a, d, b, e, c, f}

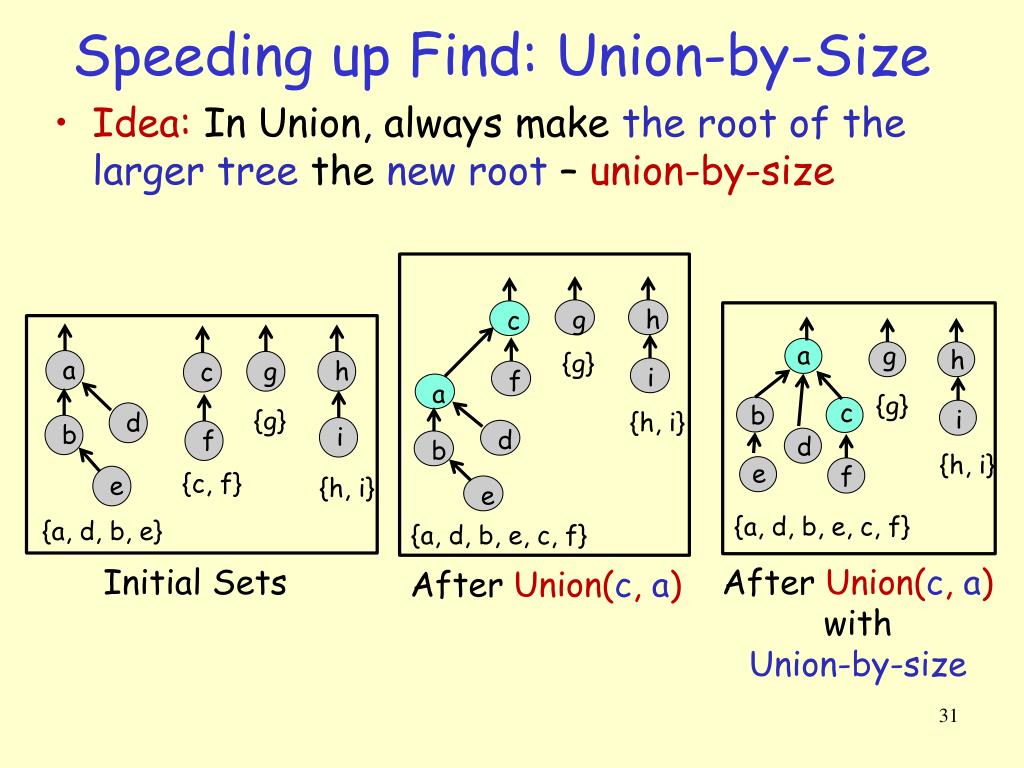

  31. Speeding up Find: Union-by-Size • Idea: In Union, always make the root of the larger tree the newroot – union-by-size a g h g h c {g} c b i {g} d i f {h, i} a e g h c f a {h, i} {a, d, b, e, c, f} {g} d d b i f b After Union(c, a) with Union-by-size Initial Sets After Union(c, a) {c, f} e {h, i} e {a, d, b, e} {a, d, b, e, c, f}

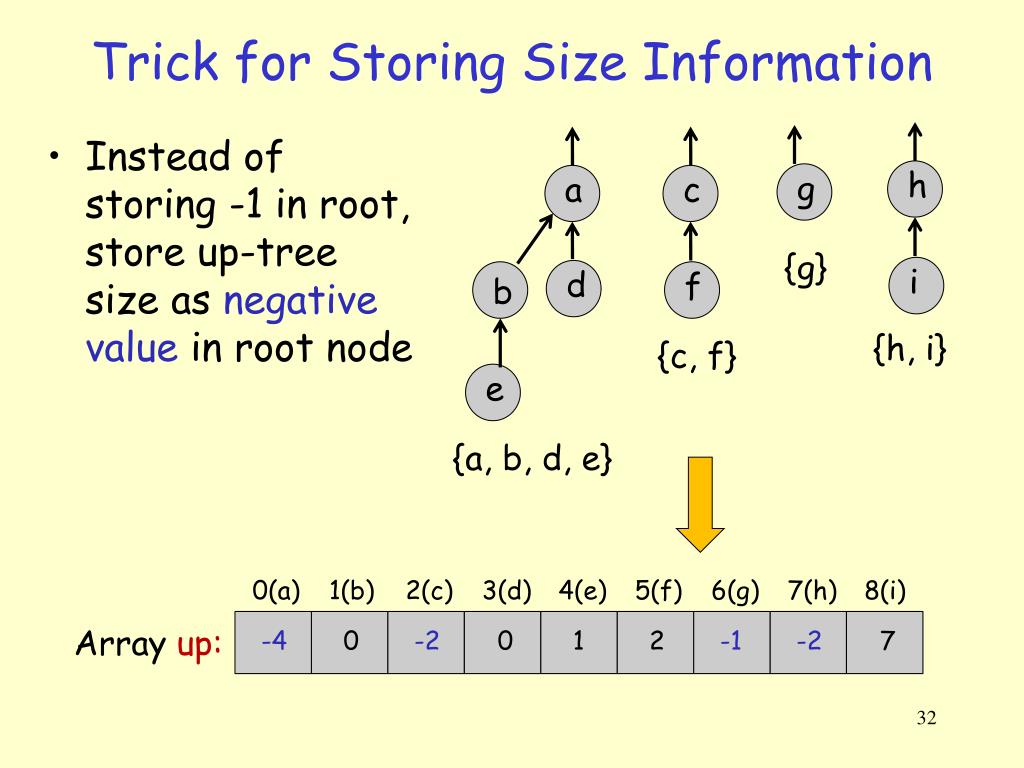

  32. Trick for Storing Size Information • Instead of storing -1 in root, store up-tree size as negative value in root node b c f a d e g h i {g} {h, i} {c, f} {a, b, d, e} 4(e) 7(h) 3(d) 6(g) 5(f) 0(a) 1(b) 8(i) 2(c) -2 -4 -2 -1 1 2 0 0 7 Array up:

  33. Implementing Union-by-Size #define N 9 intup[N]; /* Joins two sets. Assumes x & y are roots */ int Union(int x, int y){ assert(up[x] < 0); assert(up[y] < 0); if (up[x] < up[y]){ // x is bigger. Join y to x up[x] += up[y]; up[y] = x; } else { // y is bigger. Join x to y up[y] += up[x]; up[x] = y; } /* end-else */ } /* end-Union */ Running time? O(1) 33

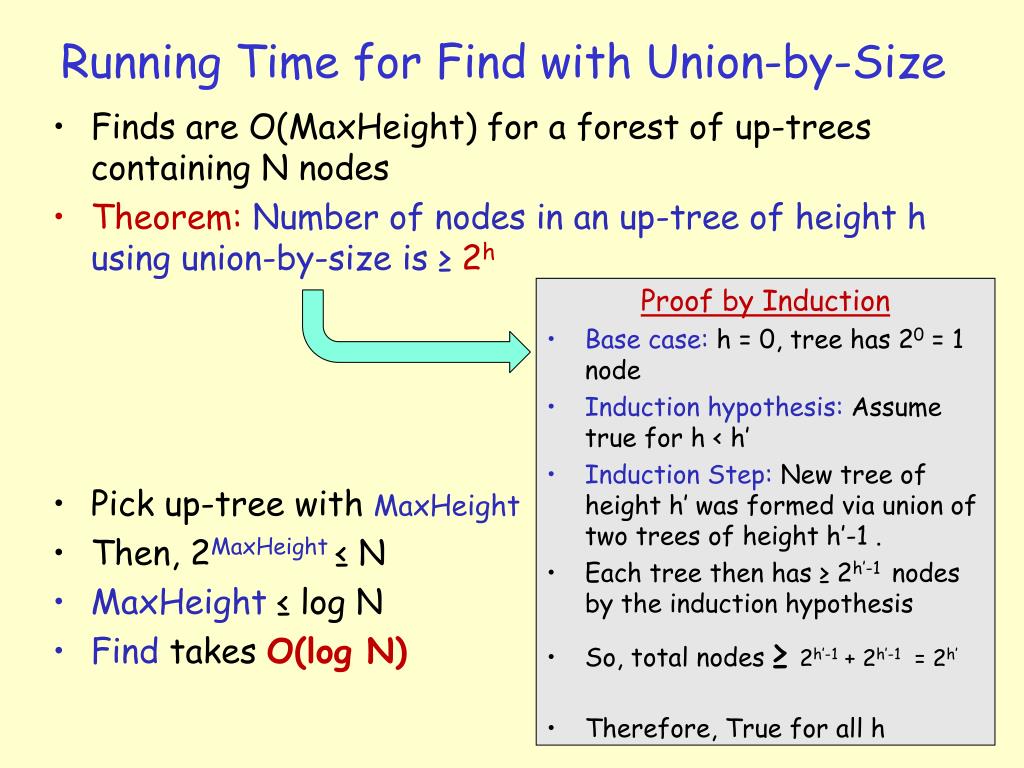

  34. Running Time for Find with Union-by-Size • Finds are O(MaxHeight) for a forest of up-trees containing N nodes • Theorem: Number of nodes in an up-tree of height h using union-by-size is ≥ 2h • Pick up-tree with MaxHeight • Then, 2MaxHeight ≤ N • MaxHeight ≤ log N • Find takes O(log N) • Proof by Induction • Base case: h = 0, tree has 20 = 1 node • Induction hypothesis: Assume true for h < h′ • Induction Step: New tree of height h′ was formed via union of two trees of height h′-1 . • Each tree then has ≥ 2h’-1nodes by the induction hypothesis • So, total nodes ≥ 2h’-1 + 2h’-1 = 2h’ • Therefore, True for all h

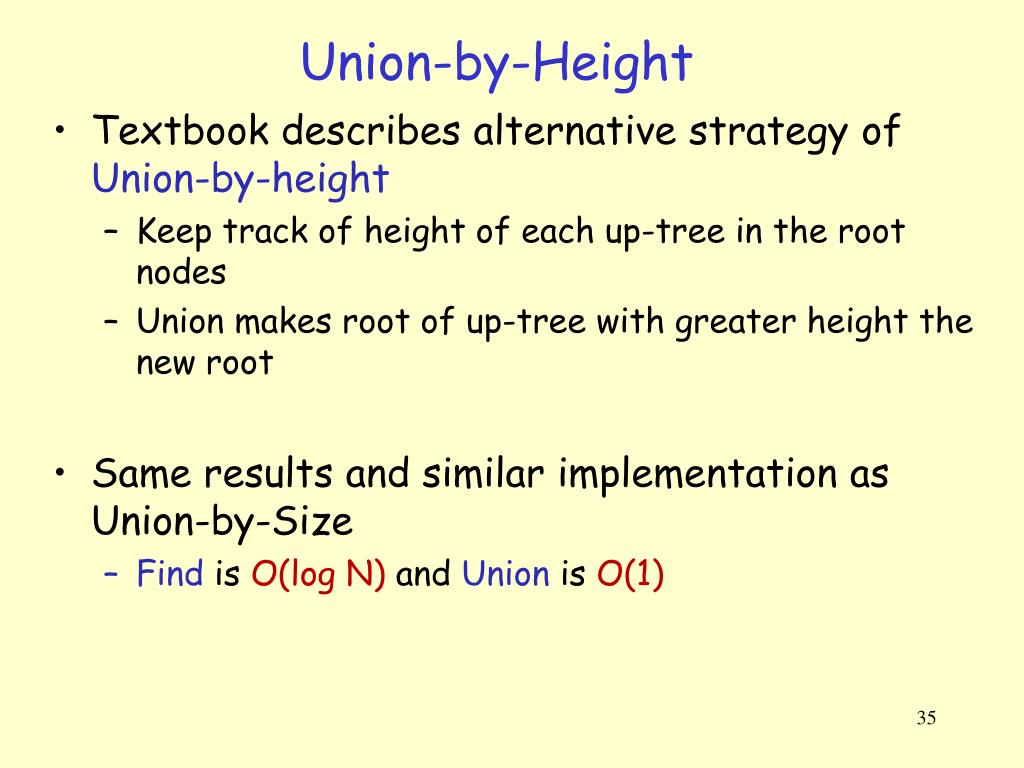

  35. Union-by-Height • Textbook describes alternative strategy of Union-by-height • Keep track of height of each up-tree in the root nodes • Union makes root of up-tree with greater height the new root • Same results and similar implementation as Union-by-Size • Find is O(log N) and Union is O(1)

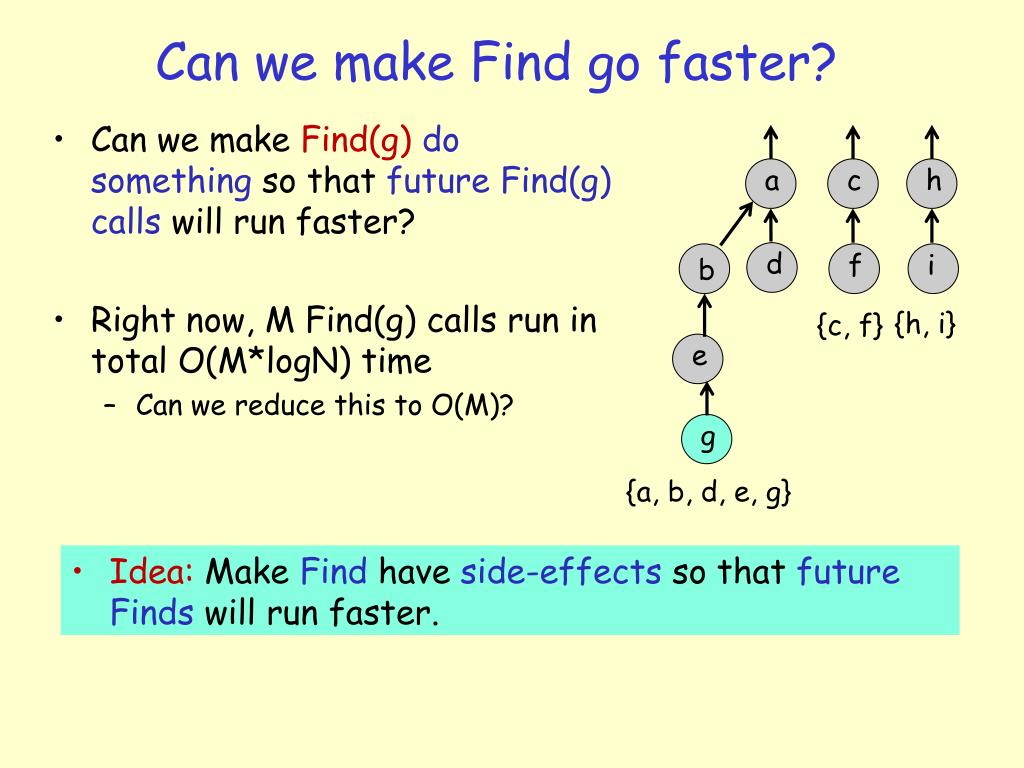

  36. Can we make Find go faster? • Can we make Find(g)do something so that future Find(g) calls will run faster? • Right now, M Find(g) calls run in total O(M*logN) time • Can we reduce this to O(M)? b e g c f a d h i {h, i} {c, f} {a, b, d, e, g} • Idea: Make Find have side-effects so that future Finds will run faster.

  37. Introducing Path Compression • Path Compression: Point everything along path of a Find to root • Reduces height of entire access path to 1 • Finds get faster! b b f i h c d e g e g c f i d a h a Find(g) {h, i} {c, f} {h, i} {c, f} {a, b, d, e, g} {a, b, d, e, g}

  38. Another Path Compression Example b a g e c f i d h c a f g h b e Find(g) {c, f} {c, f} i d {a, b, d, h, e, i, g} {a, b, d, h, e, i, g}

  39. Implementing Path Compression • Path Compression: Point everything along path of a Find to root • Reduces height of entire access path to 1 • Finds get faster! Running time: O(MaxHeight) #define N … intup[N]; /* Returns setid of “x” */ int Find(int x){ if (up[x] < 0) return x; int root = Find(up[x]); up[x] = root; /* Point to the root */ return root; } /* end-Find */ • But, what happens to the tree height over time? • It gets smaller • What’s the total running time if we do M Finds? • Turns out this is equal to O(M*InvAccerman(M, N))

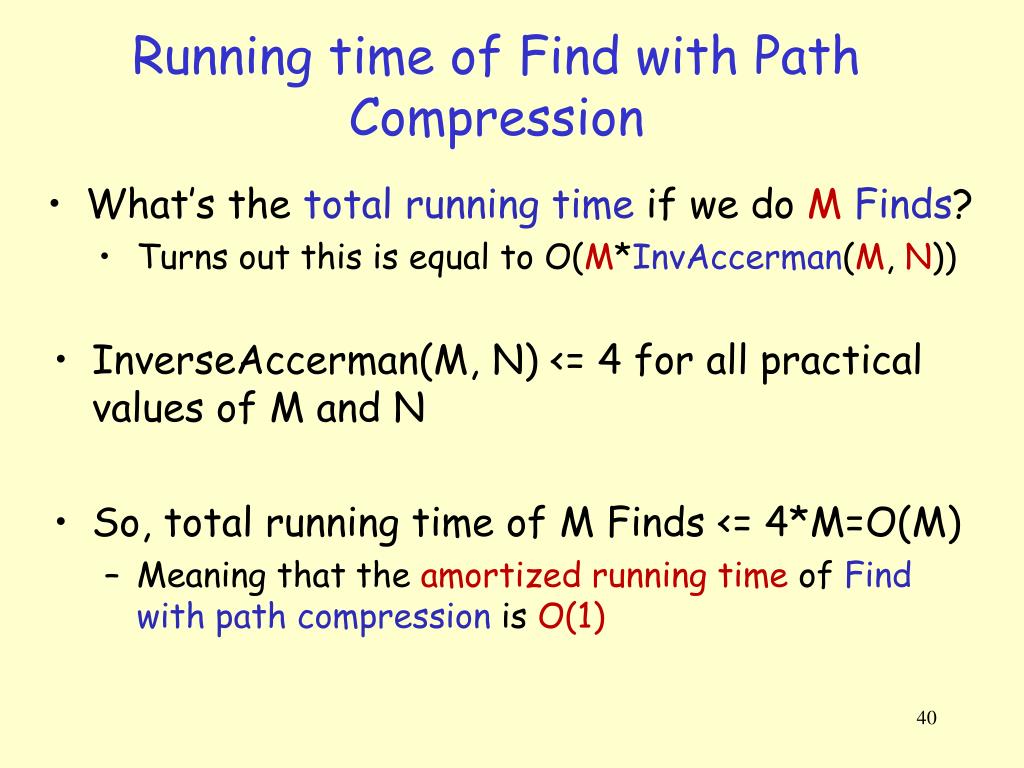

  40. Running time of Find with Path Compression • What’s the total running time if we do MFinds? • Turns out this is equal to O(M*InvAccerman(M, N)) • InverseAccerman(M, N) <= 4 for all practical values of M and N • So, total running time of M Finds <= 4*M=O(M) • Meaning that the amortized running time of Findwith path compression is O(1)

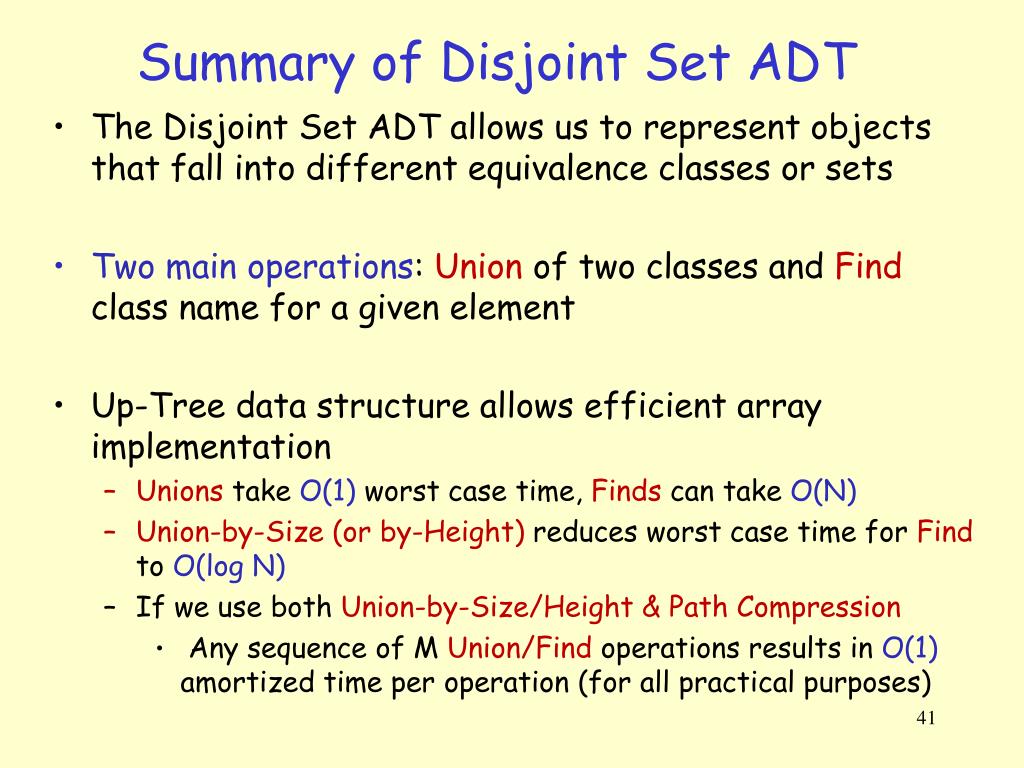

  41. Summary of Disjoint Set ADT • The Disjoint Set ADT allows us to represent objects that fall into different equivalence classes or sets • Two main operations: Union of two classes and Find class name for a given element • Up-Tree data structure allows efficient array implementation • Unions take O(1) worst case time, Finds can take O(N) • Union-by-Size (or by-Height) reduces worst case time for Find to O(log N) • If we use both Union-by-Size/Height & Path Compression • Any sequence of M Union/Find operations results in O(1) amortized time per operation (for all practical purposes)

  42. Applications of Disjoint Set ADT • Disjoint sets can be used to represent: • Cities on a map (disjoint sets of connected cities) • Electrical components on chip • Computers connected in a network • Groups of people related to each other by blood • Textbook example: Maze generation using Unions/Finds: • Start with walls everywhere and each cell in a set by itself • Knock down walls randomly and Union cells that become connected • Use Find to find out if two cells are already connected • Terminate when starting and ending cell are in same set i.e. connected (or when all cells are in same set)

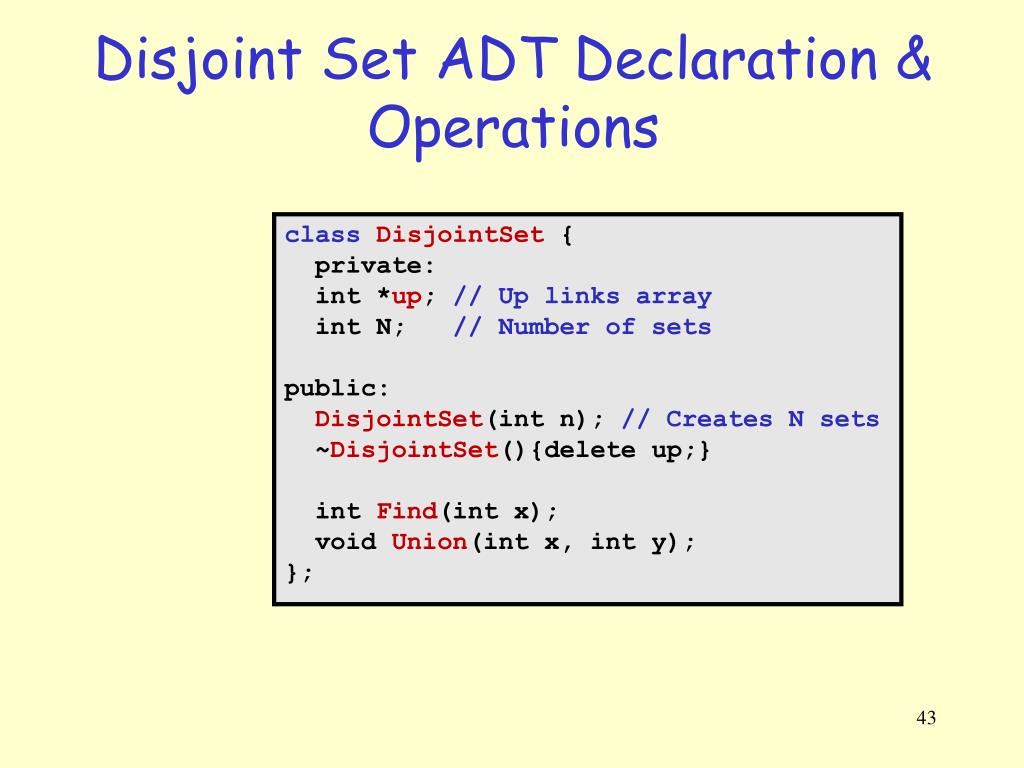

  43. Disjoint Set ADT Declaration & Operations classDisjointSet{ private: int *up; // Up links array int N; // Number of sets public: DisjointSet(int n); // Creates N sets ~DisjointSet(){delete up;} intFind(int x); void Union(int x, int y); };

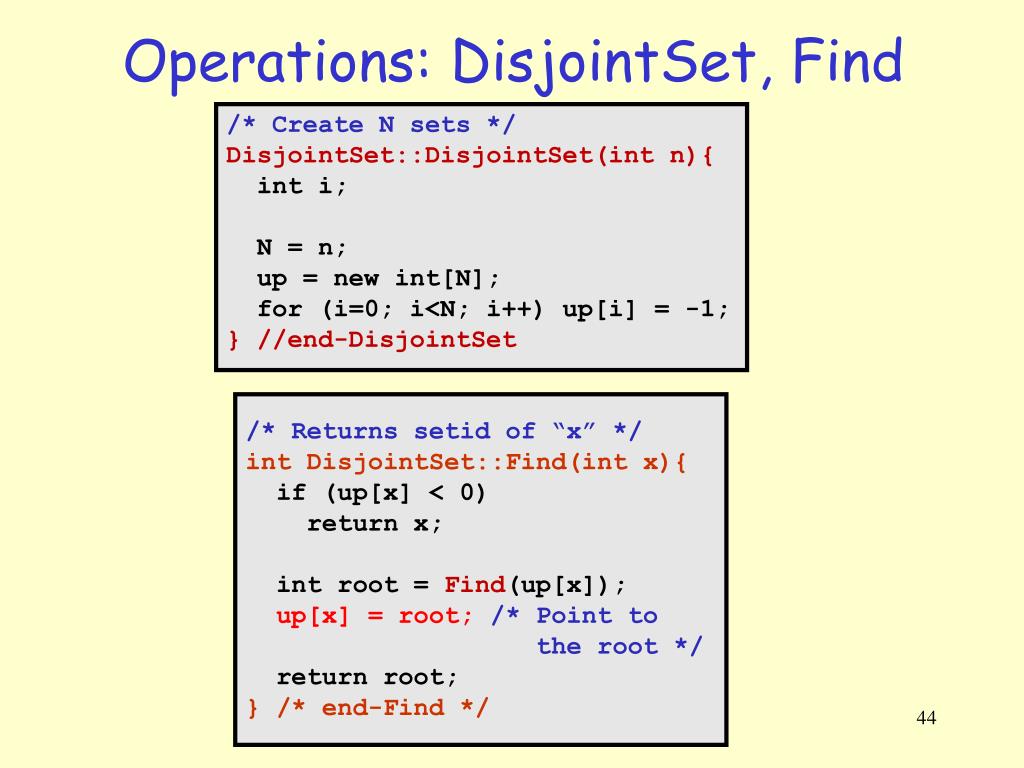

  44. Operations: DisjointSet, Find /* Create N sets */ DisjointSet::DisjointSet(int n){ inti; N = n; up = new int[N]; for (i=0; i<N; i++) up[i] = -1; } //end-DisjointSet /* Returns setid of “x” */ intDisjointSet::Find(int x){ if (up[x] < 0) return x; int root = Find(up[x]); up[x] = root; /* Point to the root */ return root; } /* end-Find */

  45. Operations: Union (by size) /* Joins two sets. Assumes x & y are roots */ intDisjointSet::Union(int x, int y){ assert(up[x] < 0); assert(up[y] < 0); if (up[x] < up[y]){ // x is bigger. Join y to x up[x] += up[y]; up[y] = x; } else { // y is bigger. Join x to y up[y] += up[x]; up[x] = y; } /* end-else */ } /* end-Union */
