QED Framework: Efficient Temporal Region Query Processing for Dense Data Analysis

len-schroeder avatar
len-schroeder
18 diapositives · 337 Views · Nov 06, 2014

The QED (Querying temporal Dense region) framework addresses the challenge of discovering dense regions in datasets over specified time intervals. Traditional methods often ignore temporal aspects, risking loss of valuable insights since different patterns may emerge across varying time periods. The QED framework uses an offline phase to create summarized RF-trees for individual time slots, followed by an online phase that combines these trees and executes user queries. This allows for efficient querying over different density thresholds and time slots, unlocking hidden patterns in data.

QED Framework: Efficient Temporal Region Query Processing for Dense Data Analysis - slide 1
01 / 18QED Framework: Efficient Temporal Region Query Processing for Dense Data Analysis
1 / 17

Télécharger la présentation

QED Framework: Efficient Temporal Region Query Processing for Dense Data Analysis
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. QED: An Efficient Framework for Temporal Region Query Processing Yi-Hong Chu朱怡虹 Network Database Laboratory Dept. of Electrical Engineering National Taiwan University

  2. Introduction • Dense Region Query • Data records are viewed as data points in the d-dimensional data space constructed by the d-attributes. • Locate the regions with higher density than their surroundings. Salary (*1000) Dense region Age

  3. Grid-based Approach • The data space is divided into non-overlapping rectangular grids (cells). • Density of a cell: the percentage of data points contained in this cell Salary (*1000) Dense cell Maximal connected dense cells Dense region Age 0 10 20 30 40 50 60 70 80 90 100

  4. Motivation • Previous research tends to ignore the time feature of the data. They execute queries over the entire database. • However, different dense regions may be discovered if different time periods are taken into consideration. (the density of a cell: ) • Discovering dense regions over different time intervals is crucial for users to get the interesting patterns hidden in data.

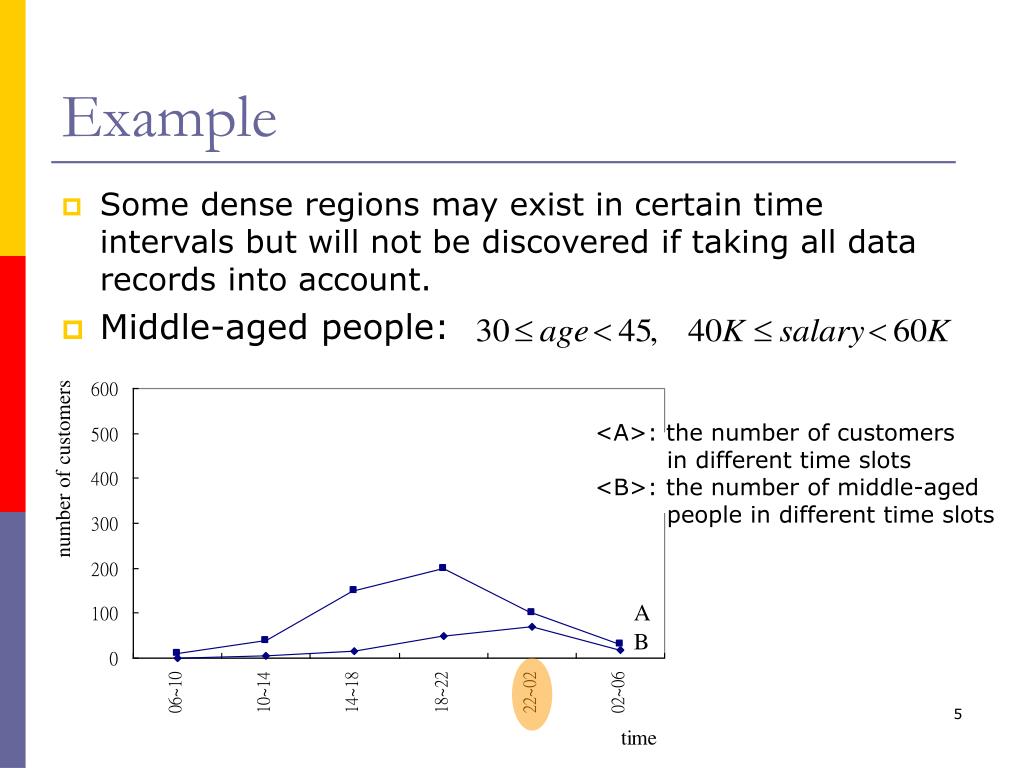

  5. Example • Some dense regions may exist in certain time intervals but will not be discovered if taking all data records into account. • Middle-aged people: <A>: the number of customers in different time slots <B>: the number of middle-aged people in different time slots

  6. Temporal Dense Region Query • Dense Region Discovery in the constrained time intervals. • E.g., each Sunday in May, • Time slots: • Derived by segmenting the data points with a time granularity, e.g. hour, week, month, etc. • For users to specify a variety of time periods of interest • Problem Definition: • Given a set of time slots, and the density threshold ρ, find the dense regions in the queried time slots.

  7. QED Framework • Challenge • The queried time intervals are unknown in advance. • QED (Querying tEmporal Dense region) • Offline Maintaining Phase • Construct a summarized data structure, RF-tree, for each time slot • Online Clustering Phase • Answer various user queries based on the RF-trees

  8. Temporal Dense Region Query W1 Combine Query Result W2 W3 Online query processing phase Offline maintaining phase QED Framework

  9. Offline Maintaining Phase- Construct the RF-trees • Basic Idea: • A number of cells having nearly the density value can be summarized by their average density value. • Uniform Region • A region where the cells contained in it have nearly of the same density value region

  10. Uniform Region • Entropy-based approach • Entropy of a region • Maximum entropy of a region • Uniform region

  11. Example (Uniform Region) • Case 1: • Case 2: Region A Region A

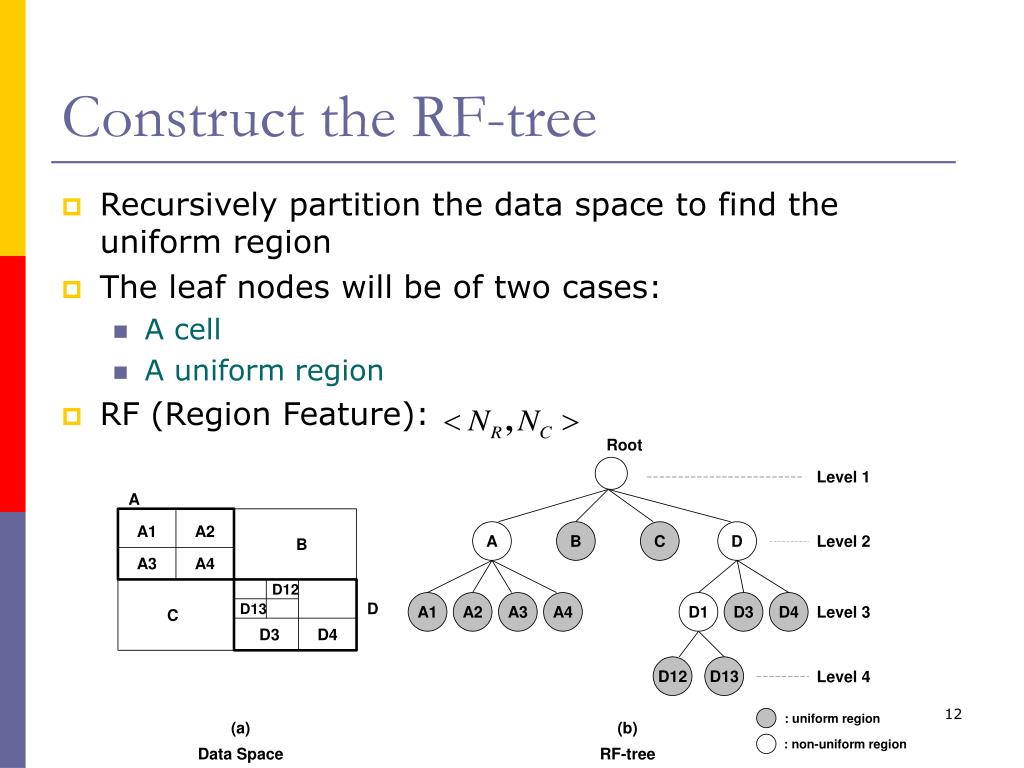

  12. Construct the RF-tree • Recursively partition the data space to find the uniform region • The leaf nodes will be of two cases: • A cell • A uniform region • RF (Region Feature):

  13. Online Query Processing Phase • Step1: Combine the RF-trees of the queried time slots. • Step2: Execute the query on the combined RF-tree.

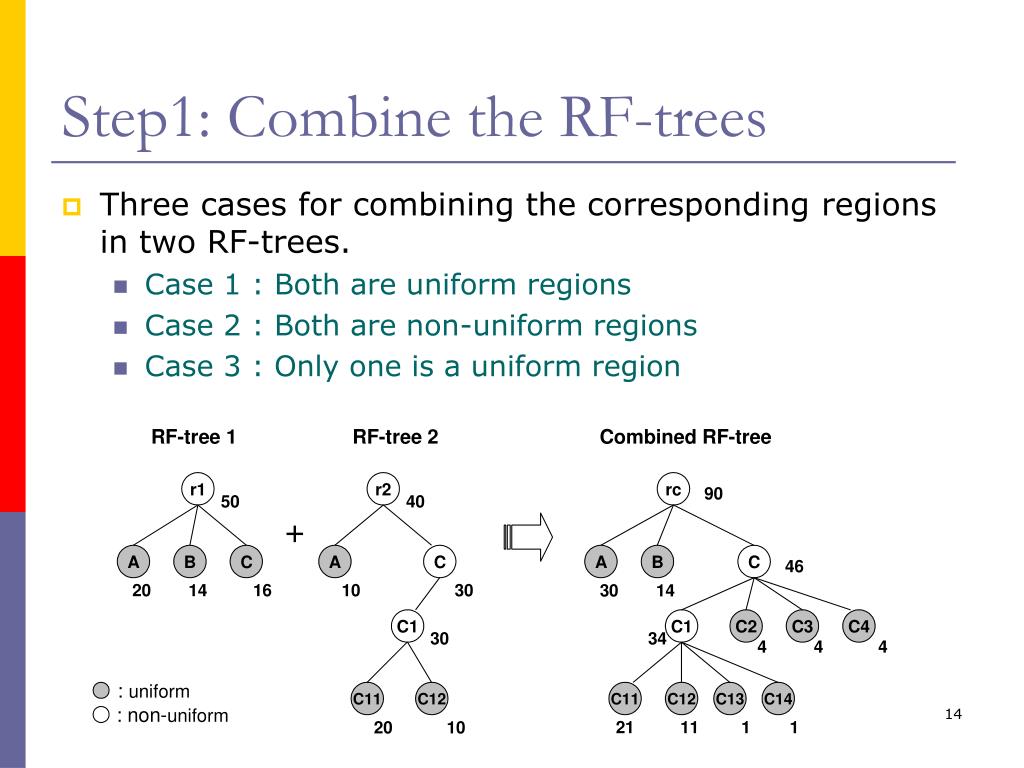

  14. Step1: Combine the RF-trees • Three cases for combining the corresponding regions in two RF-trees. • Case 1 : Both are uniform regions • Case 2 : Both are non-uniform regions • Case 3 : Only one is a uniform region

  15. Step2: Execute the query • All leaf nodes in the combined RF-trees are examined to discover the dense cells in the data space. • The leaf nodes will be of two cases: • A cell • A uniform region: compare the average density with the density thresholdρ • The leaf nodes containing dense cells will be put into a queue for further dense region discovery.

  16. Conclusion • The problem of temporal dense region query is explored to discover dense regions in the queried time slots. • We also propose the QED framework to execute temporal dense region queries. • QED is advantageous in that various queries with different density thresholds and time slots can be efficiently supported by using the concept of time slot and proposed RF-tree.

  17. References • Yi-Hong Chu, Kun-Ta Chuang, Ming-Syan Chen, QED: an Efficient Framework for Temporal Dense Region Processing, in Proc. of PAKDD, 2005. • W. Wang, J. Yang, and R. Muntz1997, STING: A Statistical Information Grid Approach to Spatial Data Mining, in Proc. of VLDB, 1997. • D,-S. Cho, B-H.Hong, and J.Max. Efficient Region Query Processing by Optimal Page Ordering. In Proc. of ADBIS-DASFAA, 2000.

  18. Thank You~ Q & A
