  1. Power Saving and Clock Sync Ten H. Lai

  2. Problem, Problem, Problem! ???

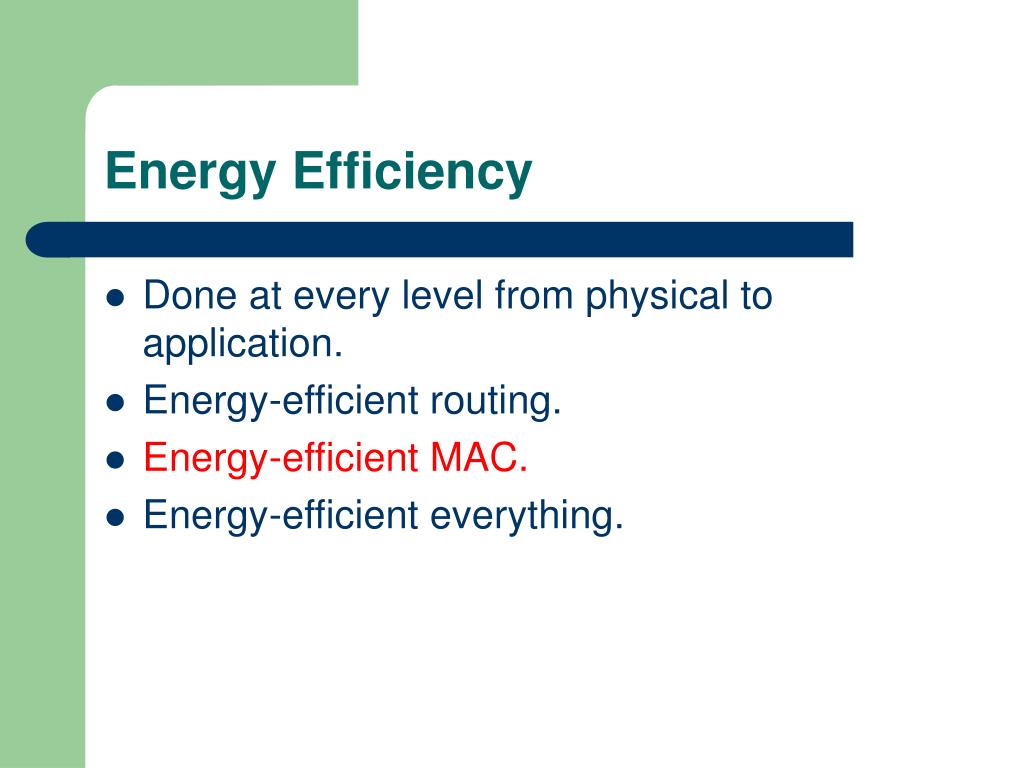

  3. Energy Efficiency • Done at every level from physical to application. • Energy-efficient routing. • Energy-efficient MAC. • Energy-efficient everything.

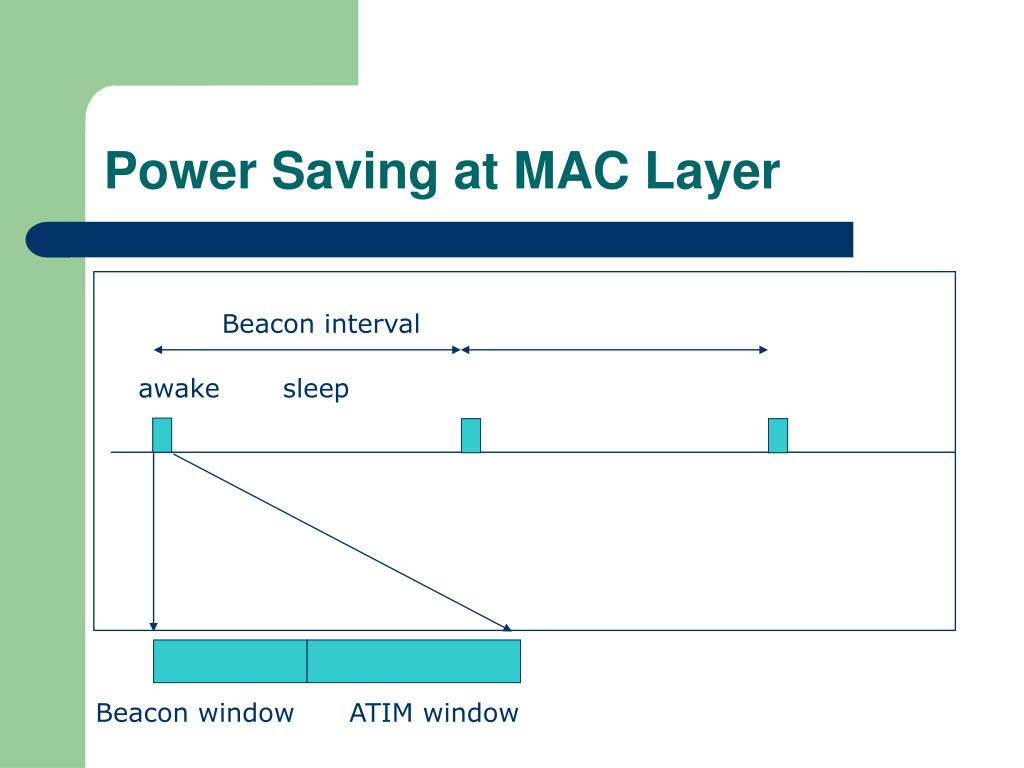

  4. Power Saving at MAC Layer Beacon interval awake sleep Beacon window ATIM window

  5. Time Sync Is Necessary/Important • Really? • What if it is difficult or impossible to synchronize clocks?

  6. To sync or not to sync? • Yes global synchronization • Nono synchronization • Partially local synchronization

  7. No Synchronization (0) • “Power-Saving Protocols for IEEE 802.11-BasedMulti-Hop Ad Hoc Networks” • INFOCOM 2002 • Y.C.Tseng, C.S. Hsu, T.Y. Hsieh • NCTU

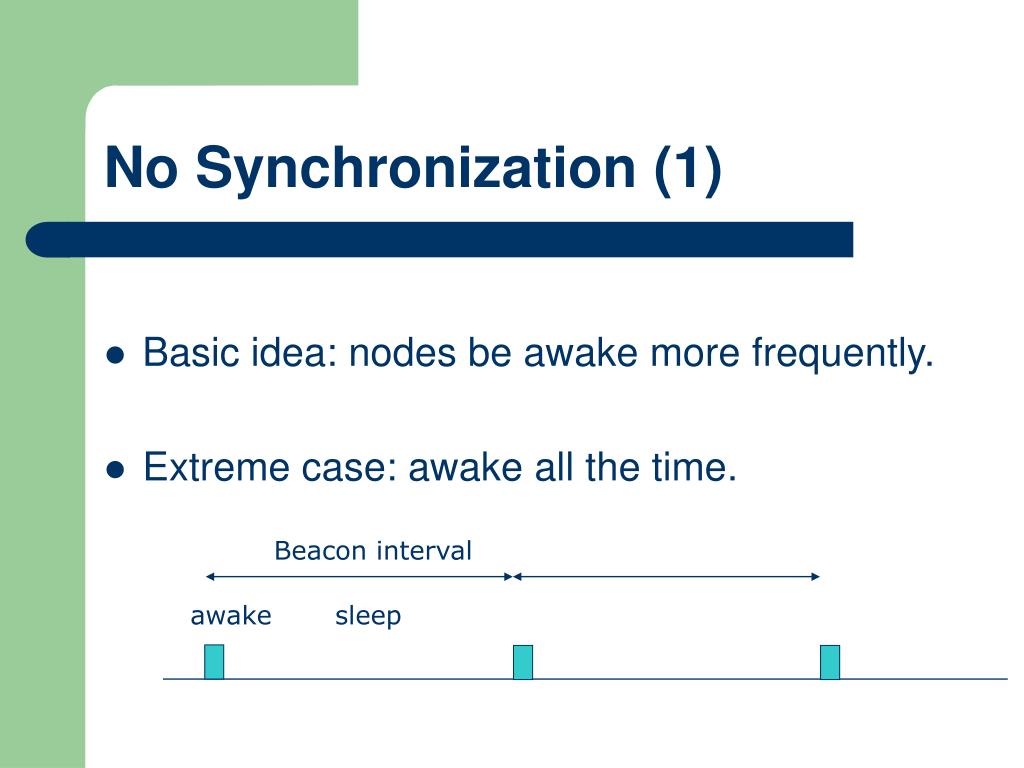

  8. No Synchronization (1) • Basic idea: nodes be awake more frequently. • Extreme case: awake all the time. Beacon interval awake sleep

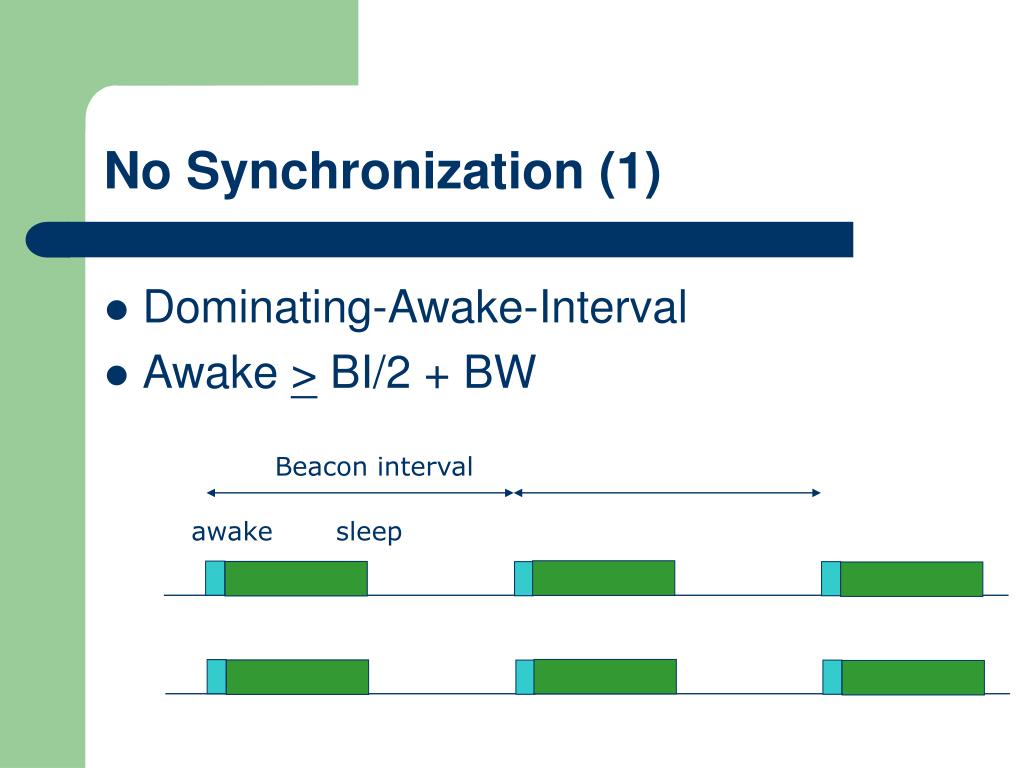

  9. No Synchronization (1) • Dominating-Awake-Interval • Awake > BI/2 + BW Beacon interval awake sleep

  10. No Synchronization (1) • Dominating-Awake-Interval • Awake > BI/2 + BW Beacon interval awake sleep

  11. No Synchronization (2) • Periodical-Fully-Awake-Interval

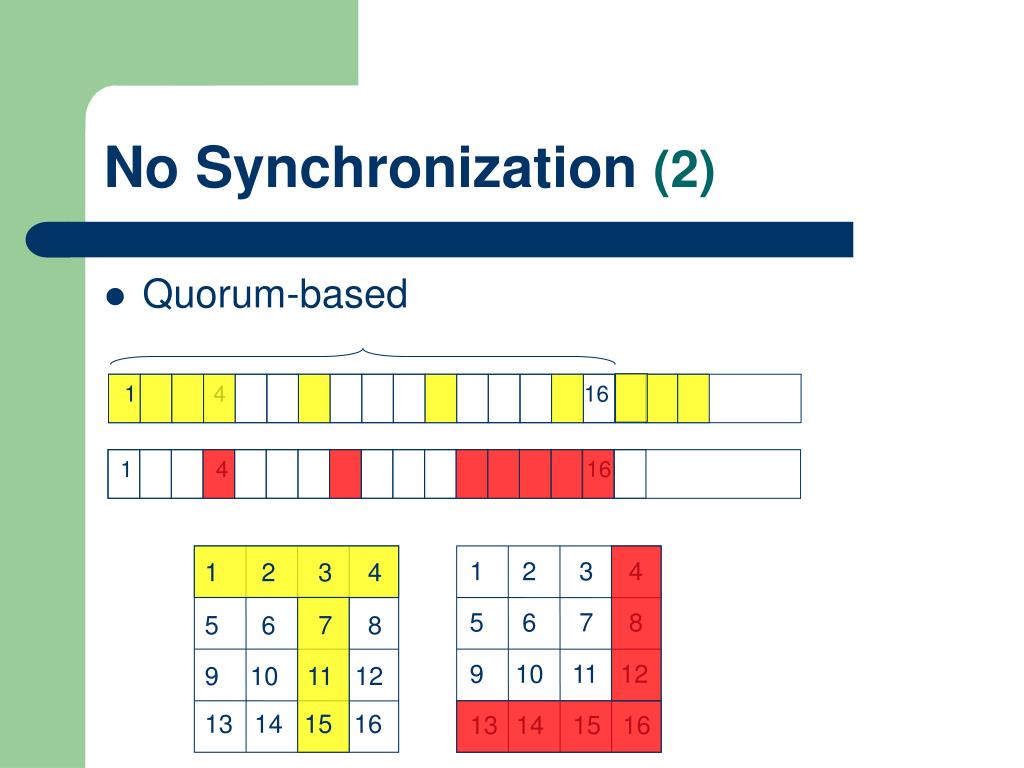

  12. No Synchronization (2) • Quorum-based 1 4 16 1 4 16 1 2 3 4 • 2 3 4 • 6 7 8 • 10 11 12 • 13 14 15 16 5 6 7 8 • 10 11 12 • 13 14 15 16

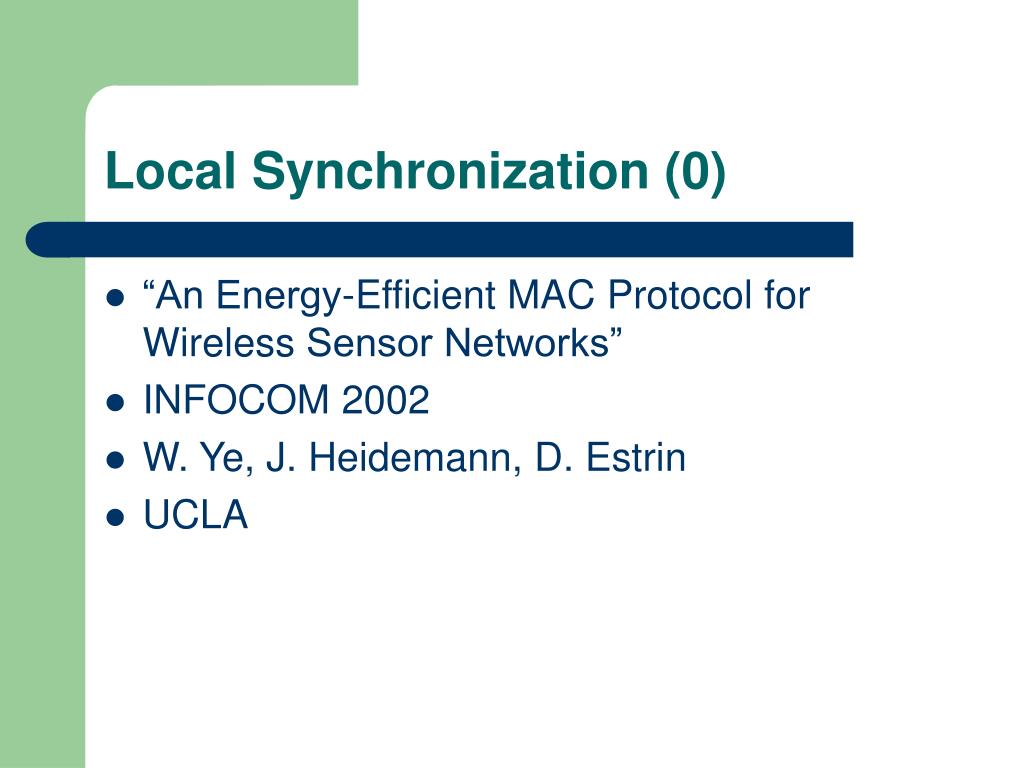

  13. Local Synchronization (0) • “An Energy-Efficient MAC Protocol for WirelessSensor Networks” • INFOCOM 2002 • W. Ye, J. Heidemann, D. Estrin • UCLA

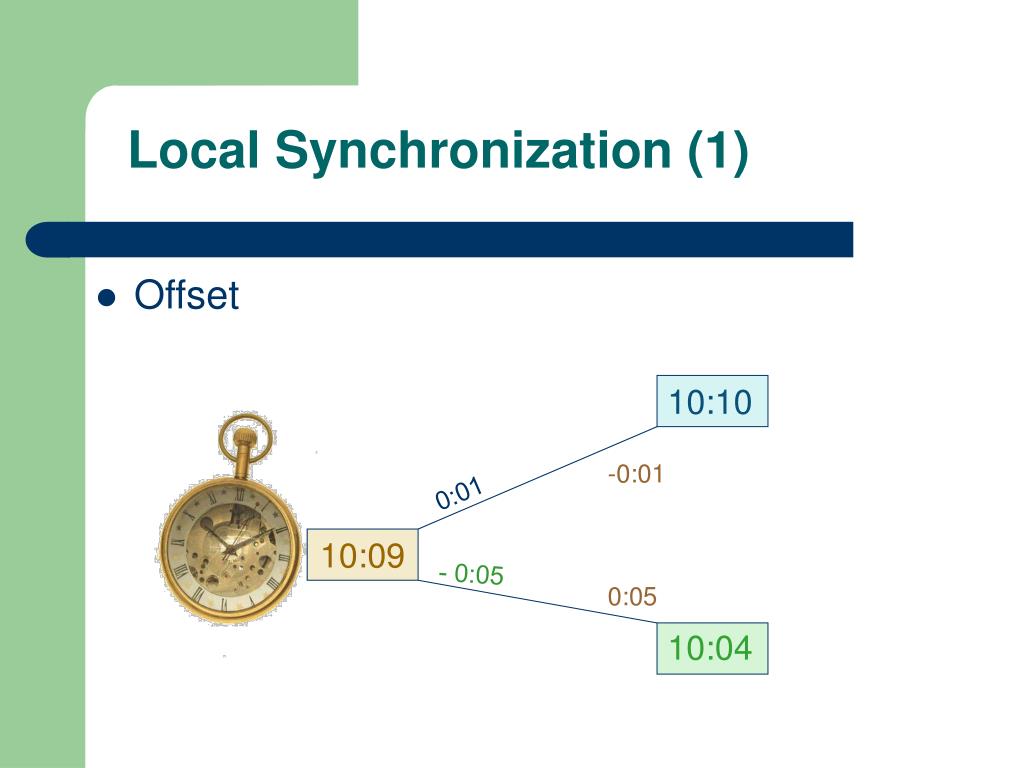

  14. Local Synchronization (1) • Offset 10:10 10:04 -0:01 0:05 0:01 10:09 - 0:05

  15. Local Synchronization (2) • Nodes of same color -- synchronize with each other. • Nodes of different colors – know each other’s timing

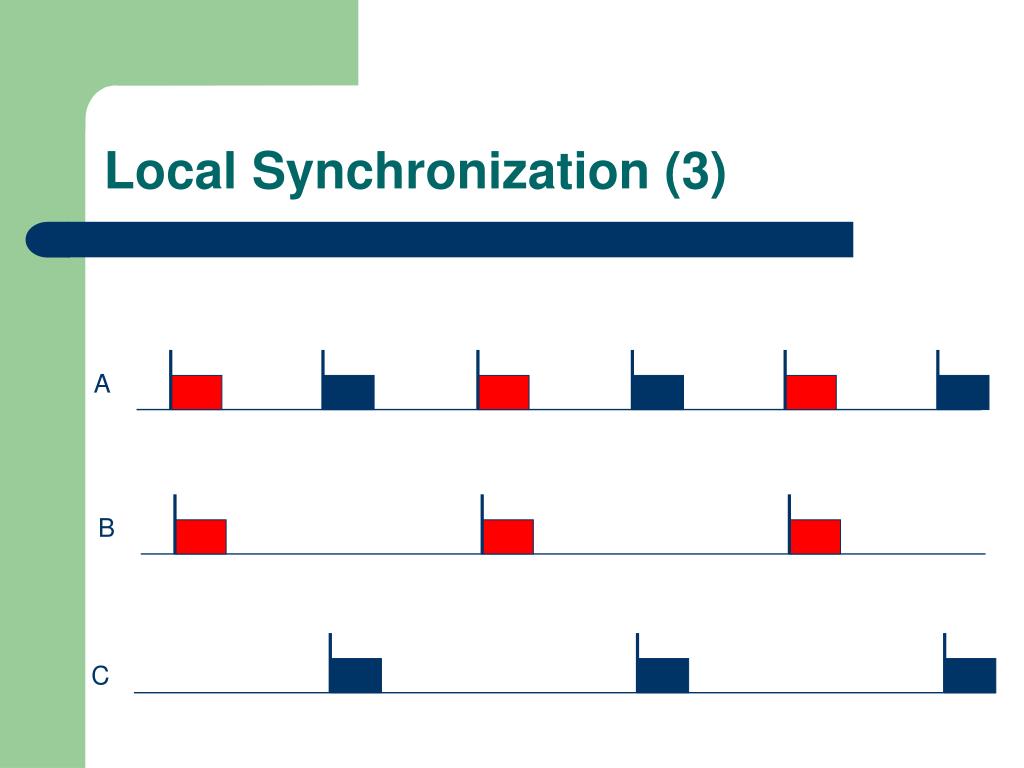

  16. Local Synchronization (3) A B C

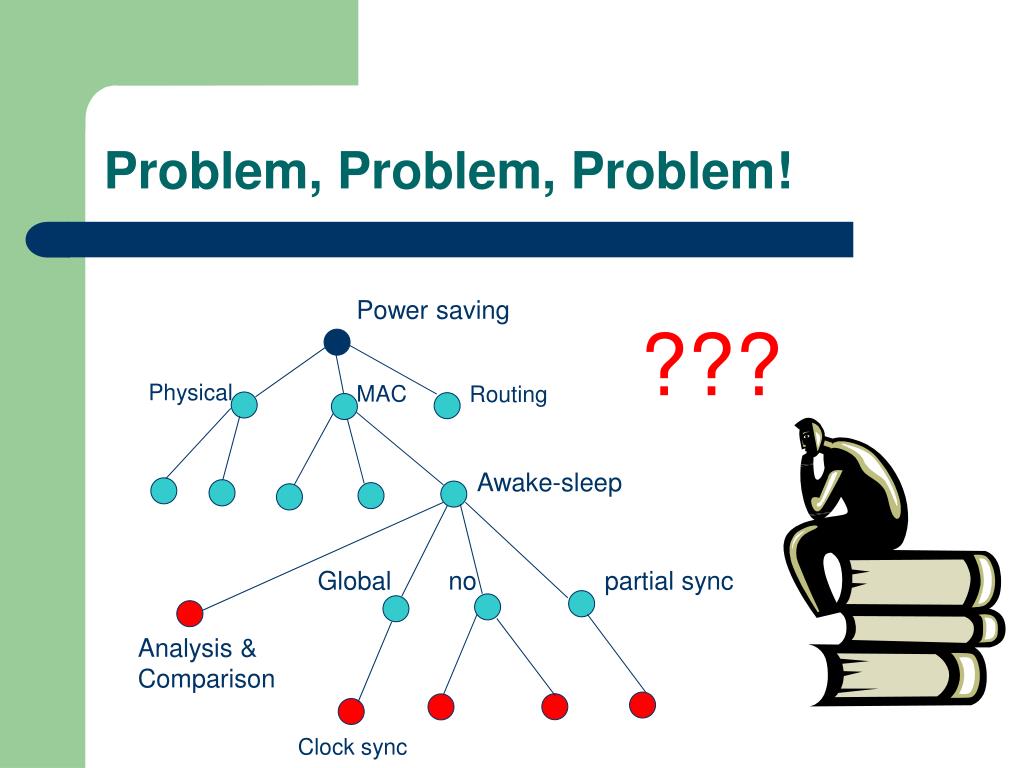

  17. Problem, Problem, Problem! Power saving ??? Physical MAC Routing Awake-sleep Global no partial sync Analysis & Comparison Clock Sync

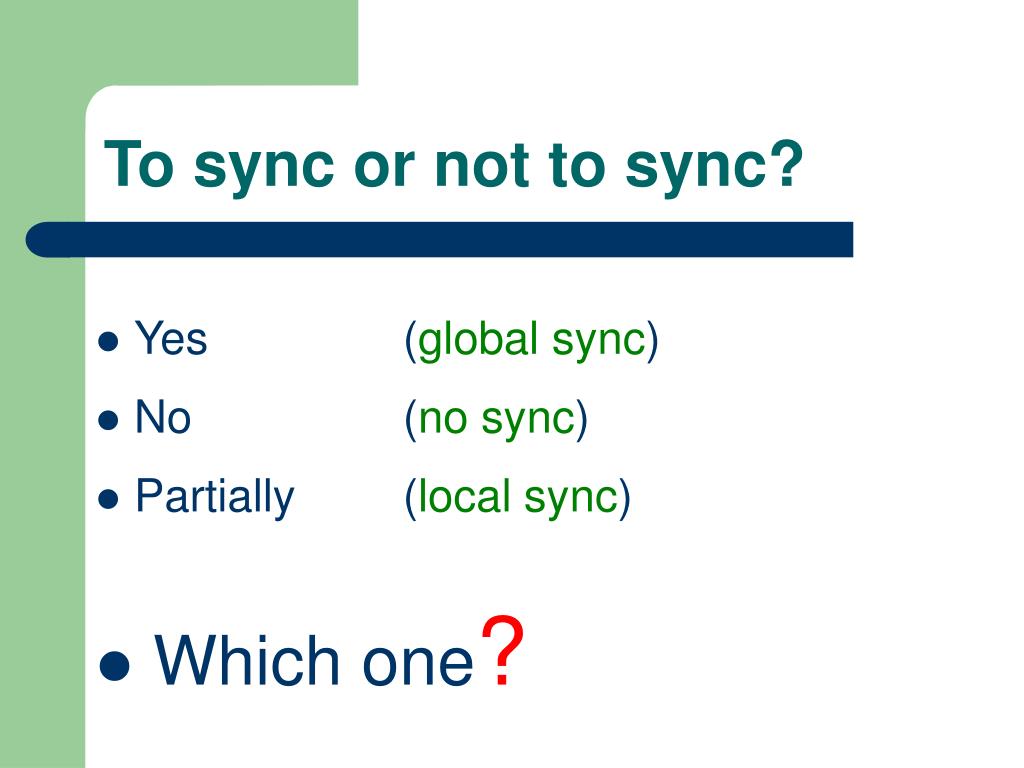

  18. To sync or not to sync? • Yes (global sync) • No (no sync) • Partially (local sync) • Which one?

  19. Analysis of energy saving (1) • No data traffic • Parameters

  20. Analysis of energy saving (2)

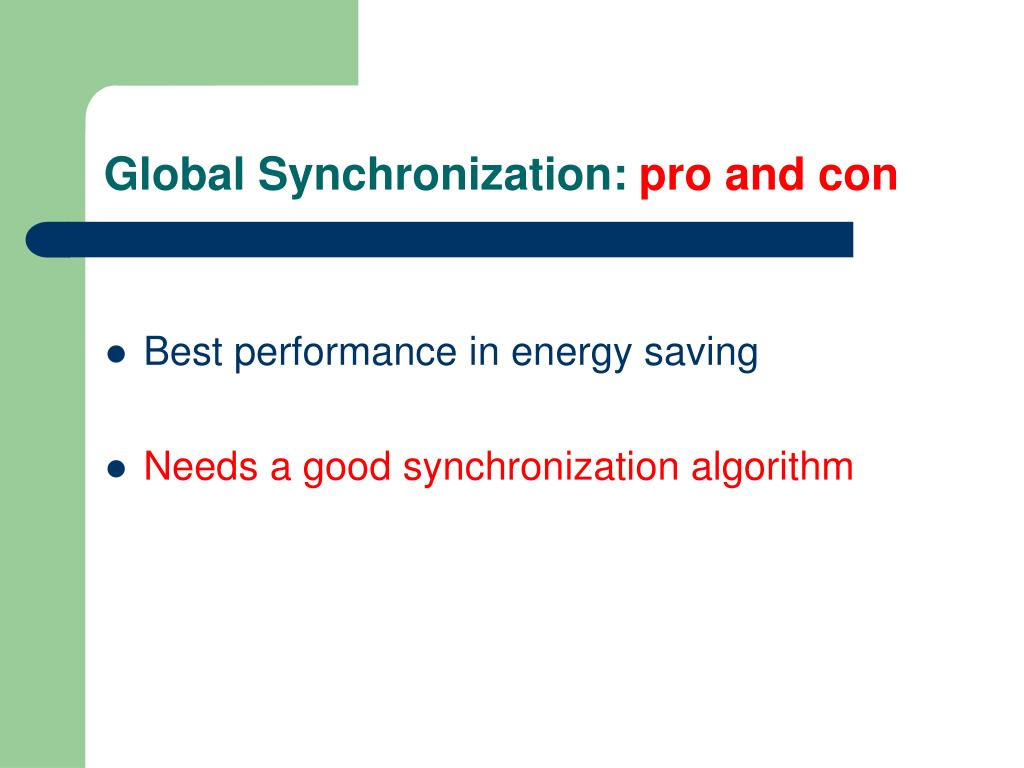

  21. Global Synchronization: pro and con • Best performance in energy saving • Needs a good synchronization algorithm

  22. No Synchronization – pro and con • Simple -- no need for clock sync • Less efficient in power saving 1 4 16 1 4 16

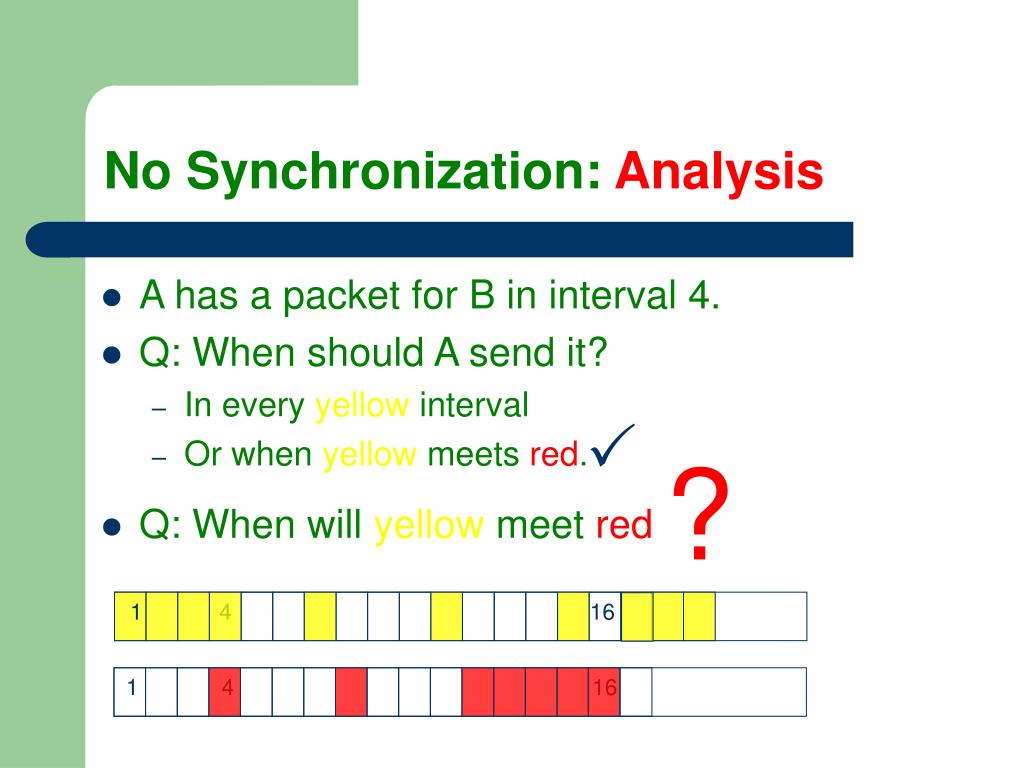

  23. No Synchronization: Analysis • A has a packet for B in interval 4. • Q: When should A send it? • In every yellowinterval • Or when yellow meets red. • Q: When will yellowmeetred  ? 1 4 16 1 4 16

  24. No Synchronization – pro andcon • Less efficient in power saving • Simple -- no need for clock sync • Simpler – clock sync is simpler and more scalable ? 1 4 16 1 4 16

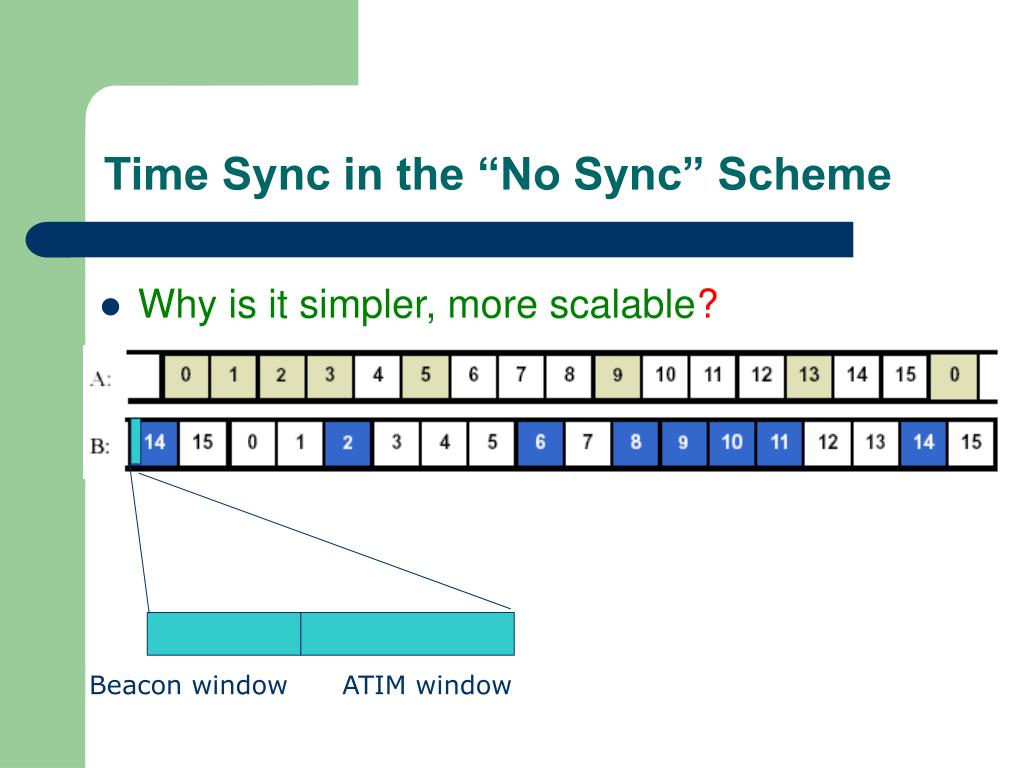

  25. Time Sync in the “No Sync” Scheme • Why is it simpler, more scalable? Beacon window ATIM window

  26. A major drawback with no sync • Broadcast/multicast is inefficient

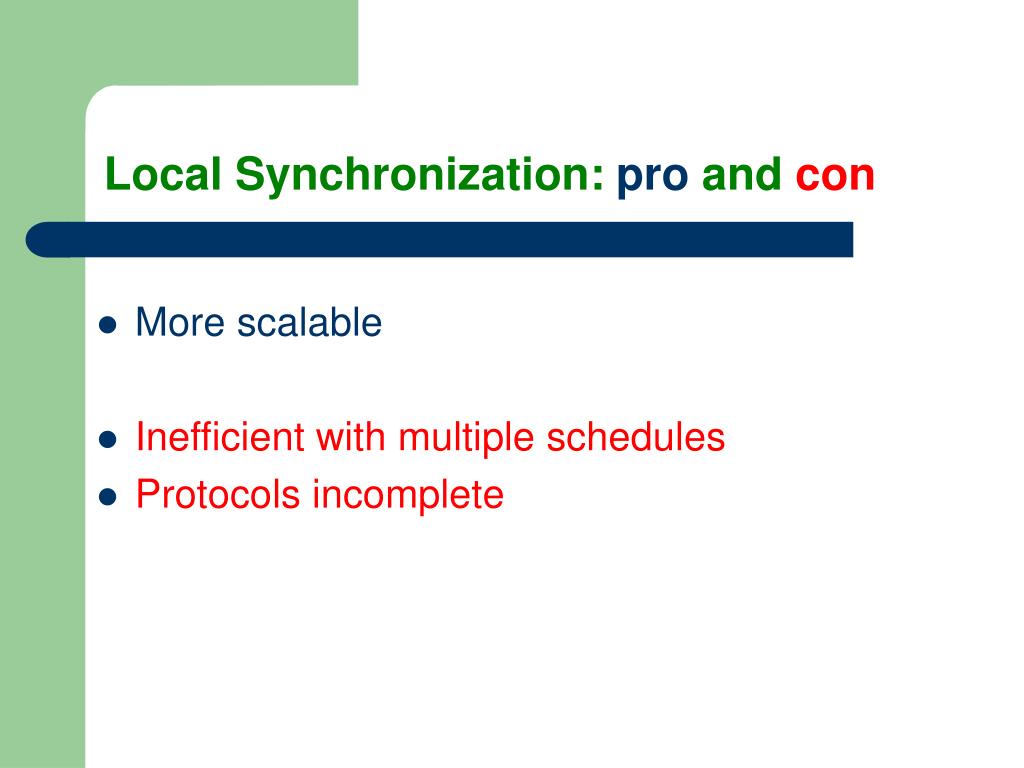

  27. Local Synchronization: proand con • More scalable • Inefficient with multiple schedules • Protocols incomplete

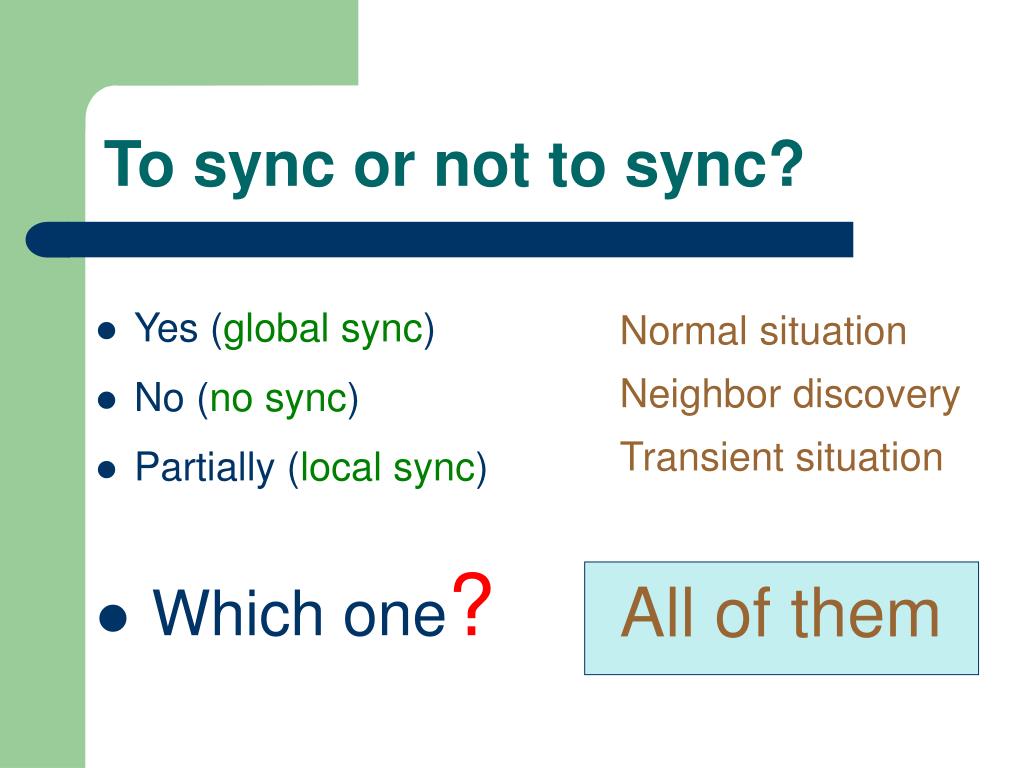

  28. To sync or not to sync? • Yes (global sync) • No (no sync) • Partially (local sync) • Which one? Normal situation Neighbor discovery Transient situation All of them

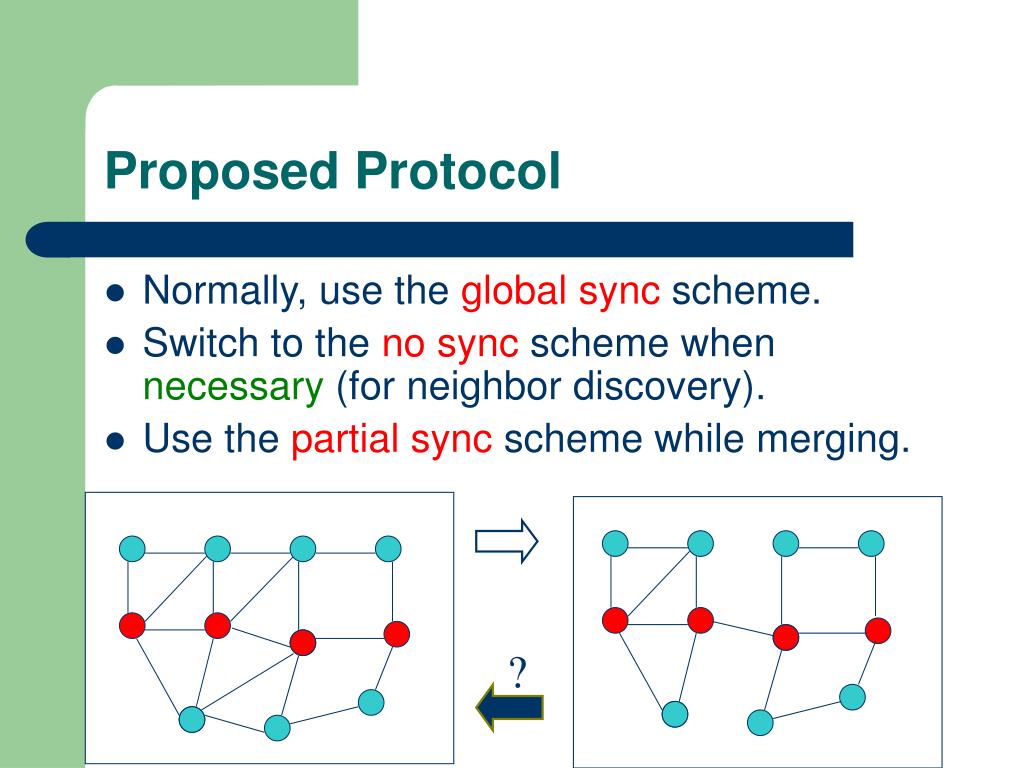

  29. Proposed Protocol • Normally, use the global sync scheme. • Switch to the no sync scheme when necessary (for neighbor discovery). • Use the partial sync scheme while merging. ?

  30. Problem, Problem, Problem! Power saving ??? Physical MAC Routing Awake-sleep Global no partial sync Analysis & Comparison Clock sync

  31. Follow-ups on no-sync • “Asynchronous Wakeup for Ad Hoc Networks,” Mobihoc’03 • “Quorum-Based Asynchronous Power-Saving Protocols for IEEE 802.11Ad Hoc Networks,” ICPP’03(Best paper award)

  32. Problem, Problem, Problem! ???

  33. 金剛經的智慧 • 所謂 … 即非 … 是名 … • The so calledno synchronization is not no synchronization; it’s named no synchronization.

  34. No Synchronization • Quorum-based 1 4 16 1 4 16 1 2 3 4 • 2 3 4 • 6 7 8 • 10 11 12 • 13 14 15 16 5 6 7 8 • 10 11 12 • 13 14 15 16

  35. T = {0, 1, …, n-1} • Quorum: any subset of T • View T as a matrix and pick a row and a column as the quorum • Property A: No matter how asynchronous, every two nodes have at least one overlap in every T slots.

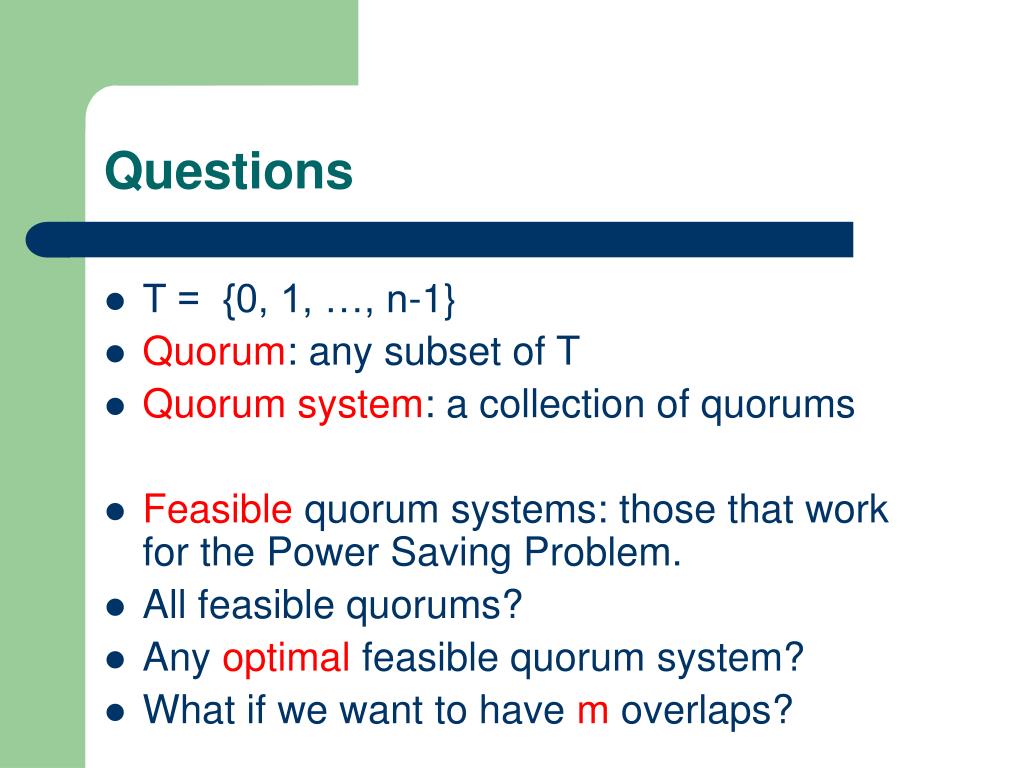

  36. Questions • T = {0, 1, …, n-1} • Quorum: any subset of T • Quorum system: a collection of quorums • Feasible quorum systems: those that work for the Power Saving Problem. • All feasible quorums? • Any optimal feasible quorum system? • What if we want to have m overlaps?

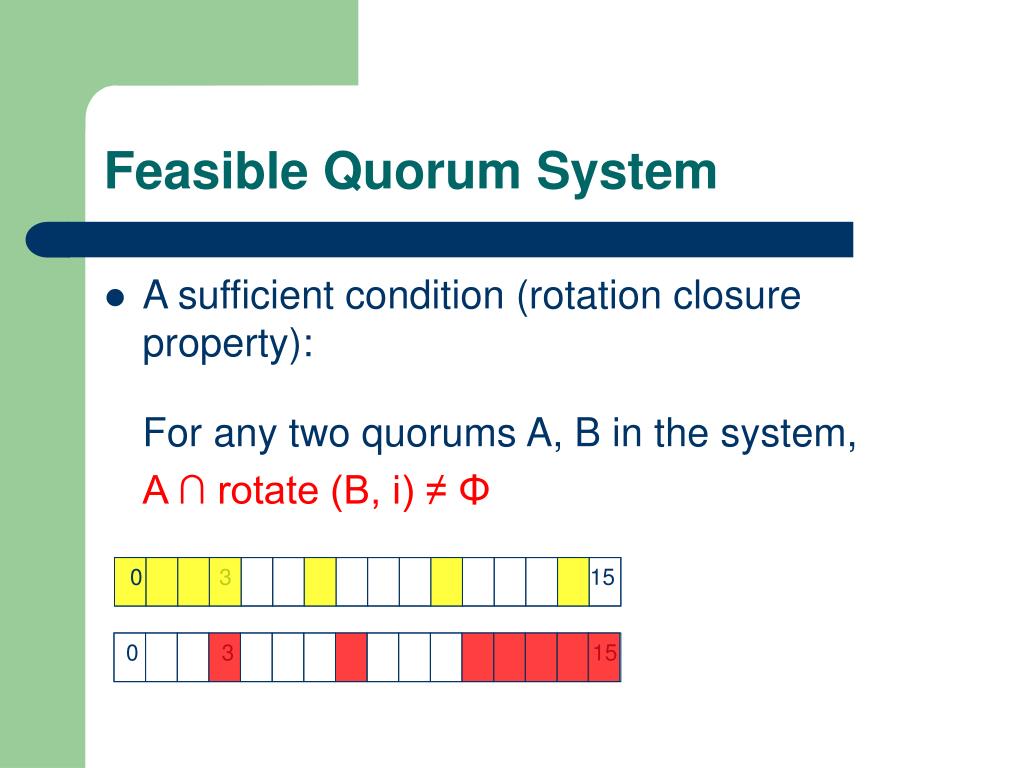

  37. Feasible Quorum System • A sufficient condition (rotation closure property): For any two quorums A, B in the system, A ∩ rotate (B, i) ≠ Φ 0 3 15 0 3 15

  38. Quorum Size • Given T = {0, 1, …, n-1} • Quorum: the smaller, the better (energy efficient) • Closure property |quorum| ≥ sqrt(n)

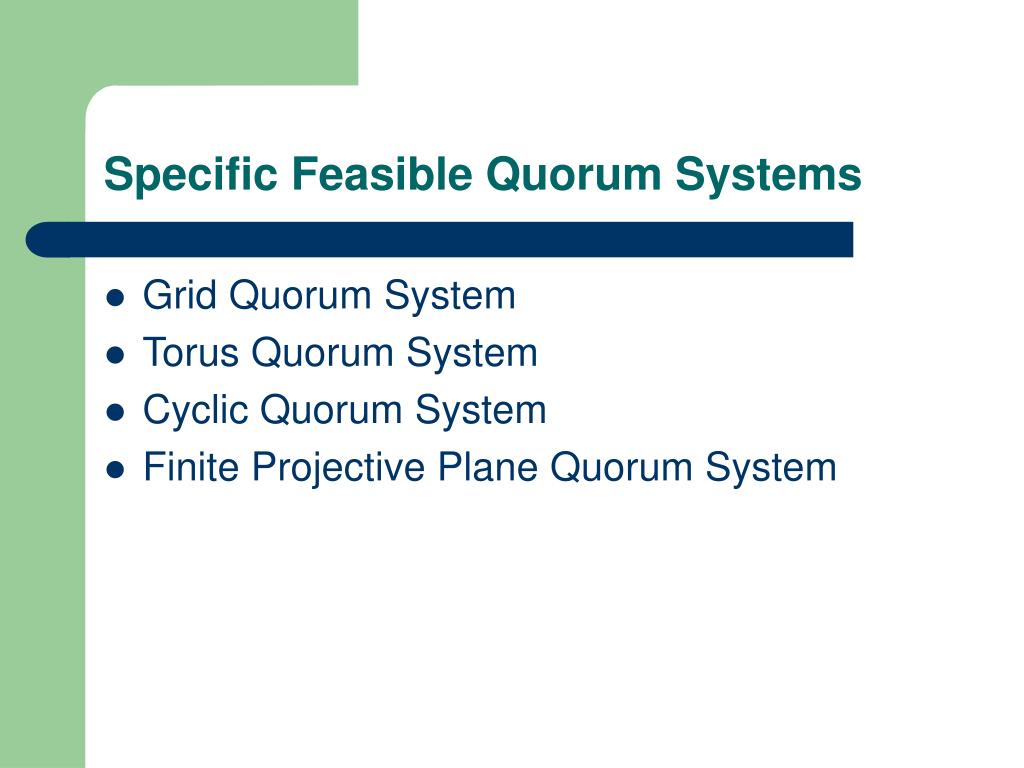

  39. Specific Feasible Quorum Systems • Grid Quorum System • Torus Quorum System • Cyclic Quorum System • Finite Projective Plane Quorum System

  40. Quorum Systems with a Single Quorum • T = {0, 1, …, n-1}. H is a subset of T. • {H} is a quorum system iff … H is a difference set of T. • H is a difference set of T iff for every i in T, i = x-y mod n for some x, y in H. • {0, 1, 2, 4} is a difference set of {0,1, …, 7}.

  41. Quorum Systems with multiple overlaps • E-Torus Quorum System • e-torus(k1) and e-torus(k2) have (k1+k2)/2 overlaps. • Can be used to dynamically adjust the number of overlaps.

  42. Problem, Problem, Problem! Power saving ??? Physical MAC Routing Awake-sleep S-MAC Global no partial sync Analysis & Comparison Clock sync

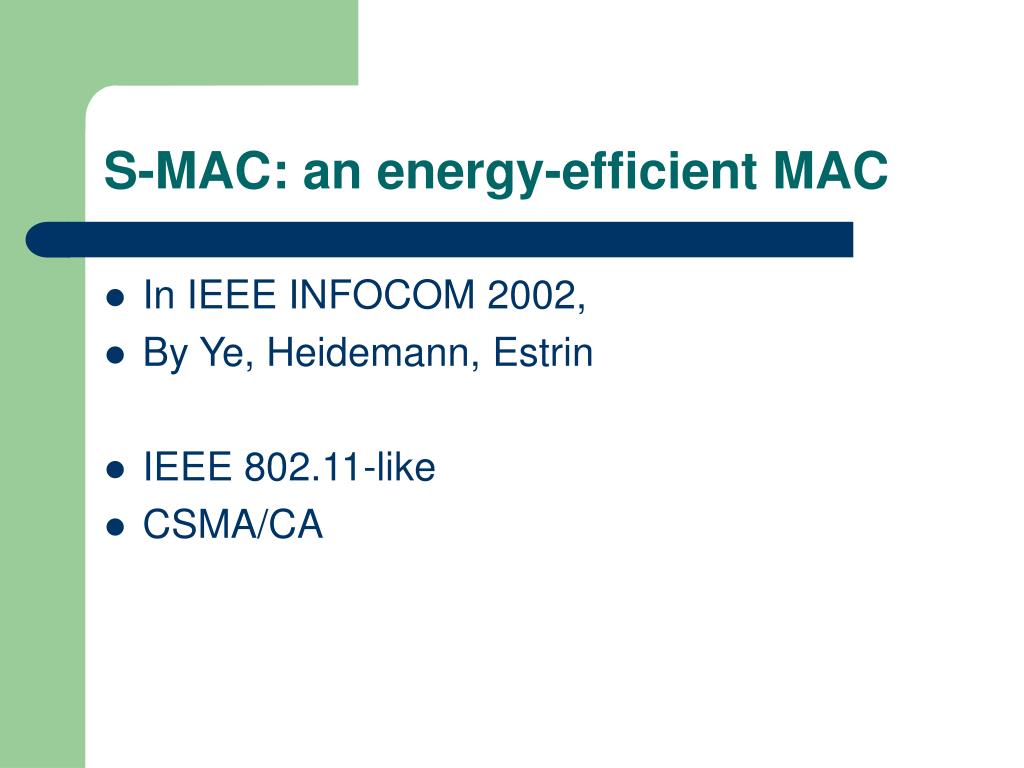

  43. S-MAC: an energy-efficient MAC • In IEEE INFOCOM 2002, • By Ye, Heidemann, Estrin • IEEE 802.11-like • CSMA/CA

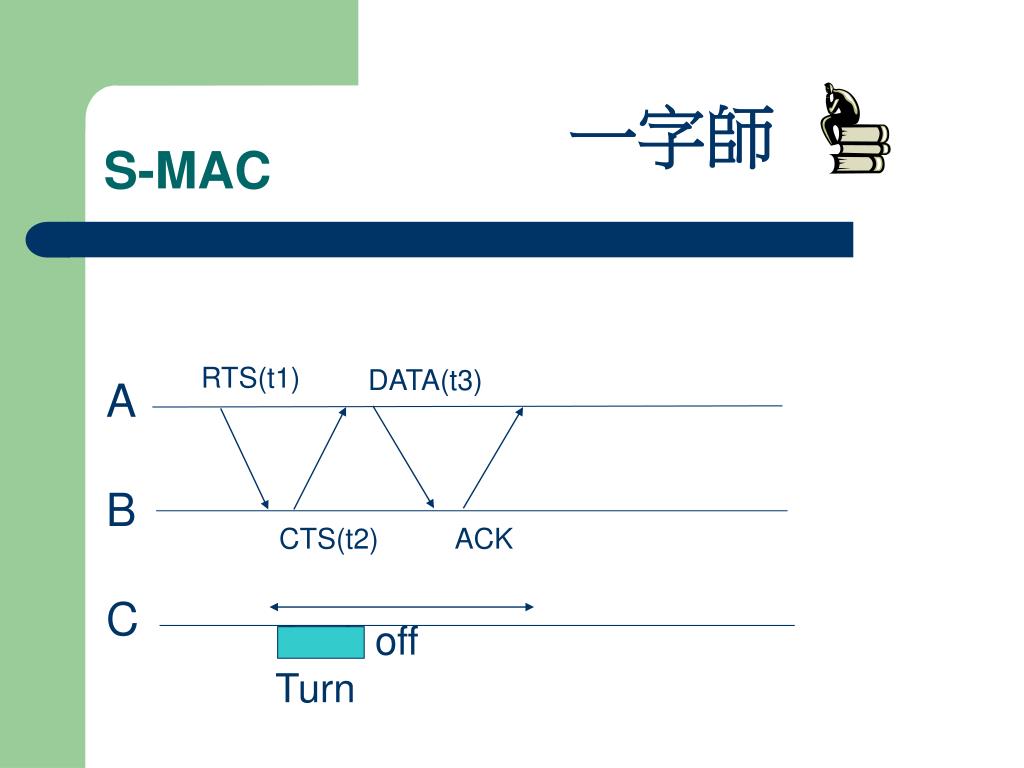

  44. S-MAC 一字師 RTS(t1) DATA(t3) A B C CTS(t2) ACK Back off Turn
