  1. Chapter Seven Local Area Networks: The Basics Data Communications and Computer Networks: A Business User’s Approach Sixth Edition

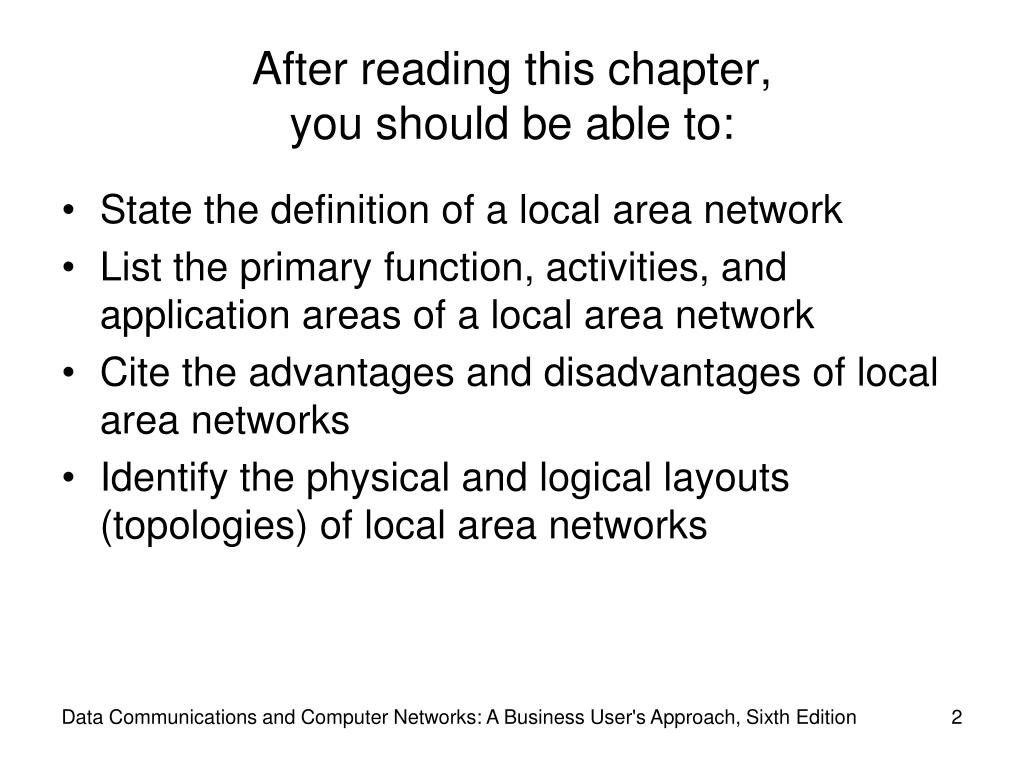

  2. After reading this chapter, you should be able to: • State the definition of a local area network • List the primary function, activities, and application areas of a local area network • Cite the advantages and disadvantages of local area networks • Identify the physical and logical layouts (topologies) of local area networks Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

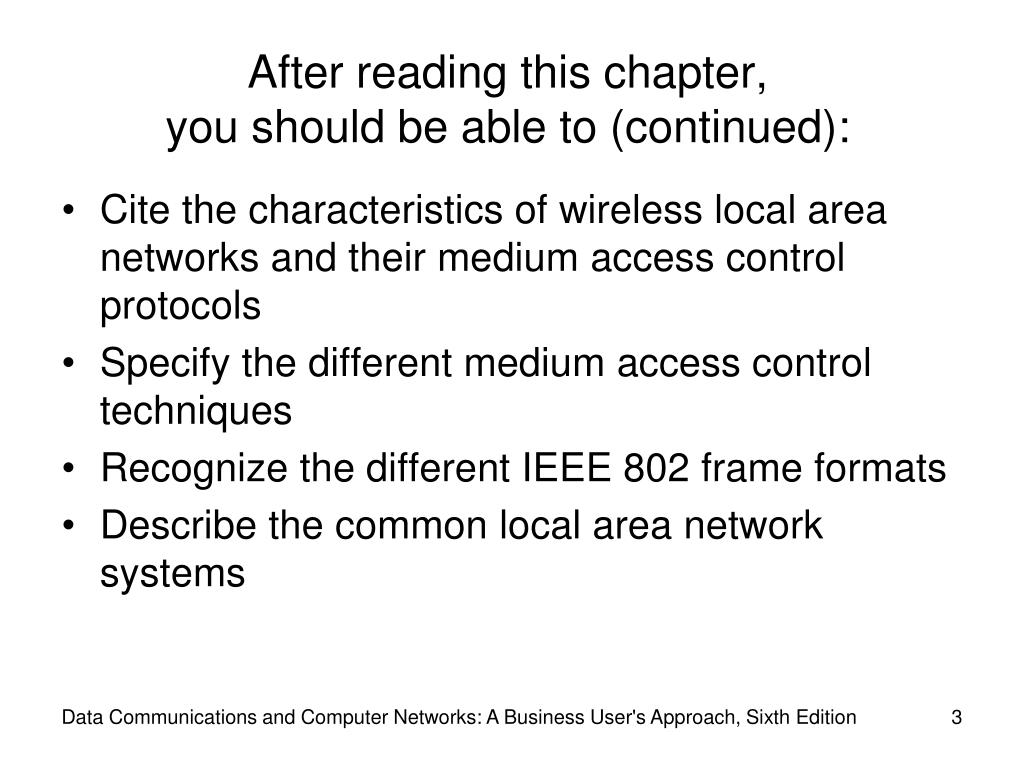

  3. After reading this chapter, you should be able to (continued): • Cite the characteristics of wireless local area networks and their medium access control protocols • Specify the different medium access control techniques • Recognize the different IEEE 802 frame formats • Describe the common local area network systems Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

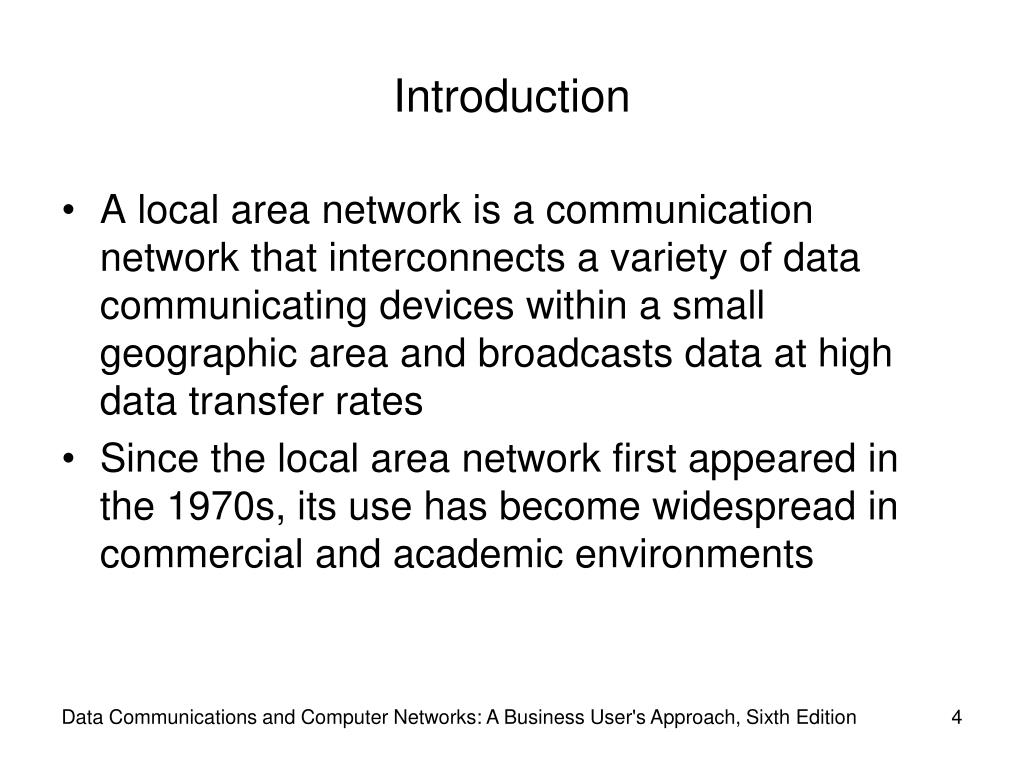

  4. Introduction • A local area network is a communication network that interconnects a variety of data communicating devices within a small geographic area and broadcasts data at high data transfer rates • Since the local area network first appeared in the 1970s, its use has become widespread in commercial and academic environments Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

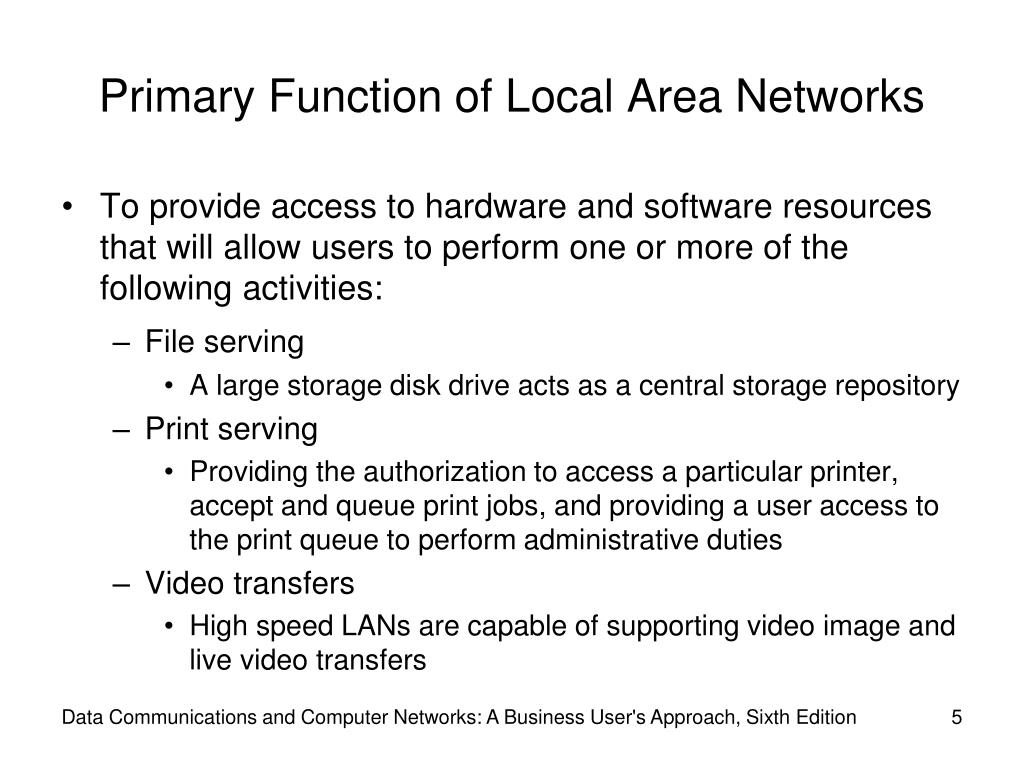

  5. Primary Function of Local Area Networks • To provide access to hardware and software resources that will allow users to perform one or more of the following activities: • File serving • A large storage disk drive acts as a central storage repository • Print serving • Providing the authorization to access a particular printer, accept and queue print jobs, and providing a user access to the print queue to perform administrative duties • Video transfers • High speed LANs are capable of supporting video image and live video transfers Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

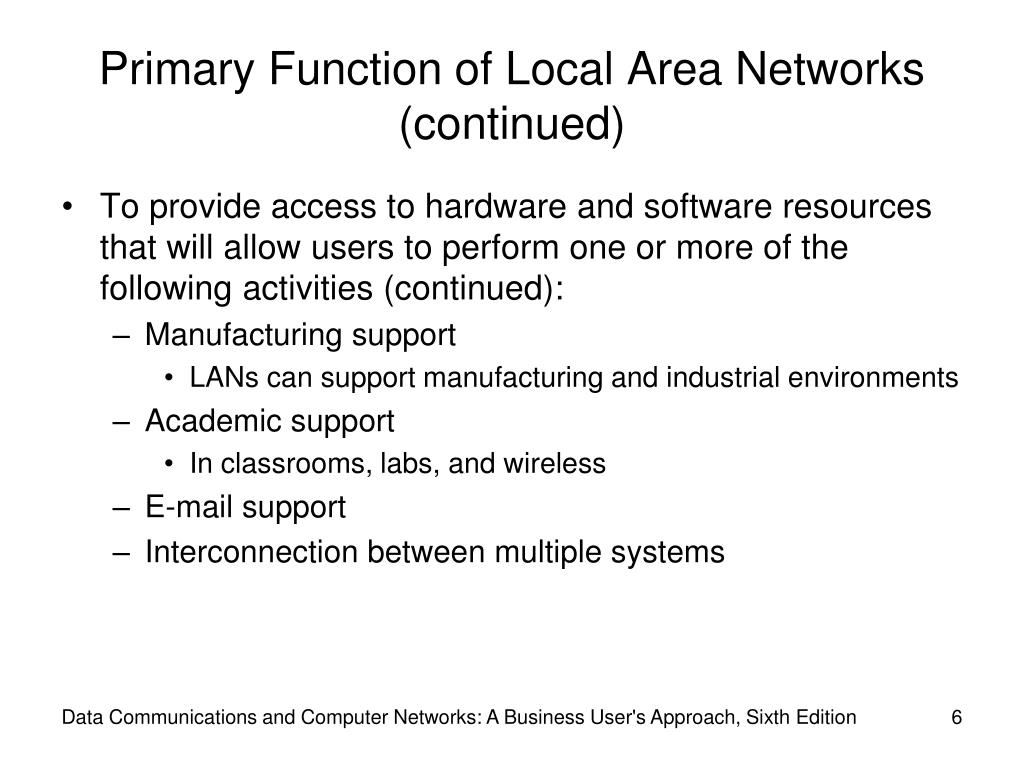

  6. Primary Function of Local Area Networks (continued) • To provide access to hardware and software resources that will allow users to perform one or more of the following activities (continued): • Manufacturing support • LANs can support manufacturing and industrial environments • Academic support • In classrooms, labs, and wireless • E-mail support • Interconnection between multiple systems Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

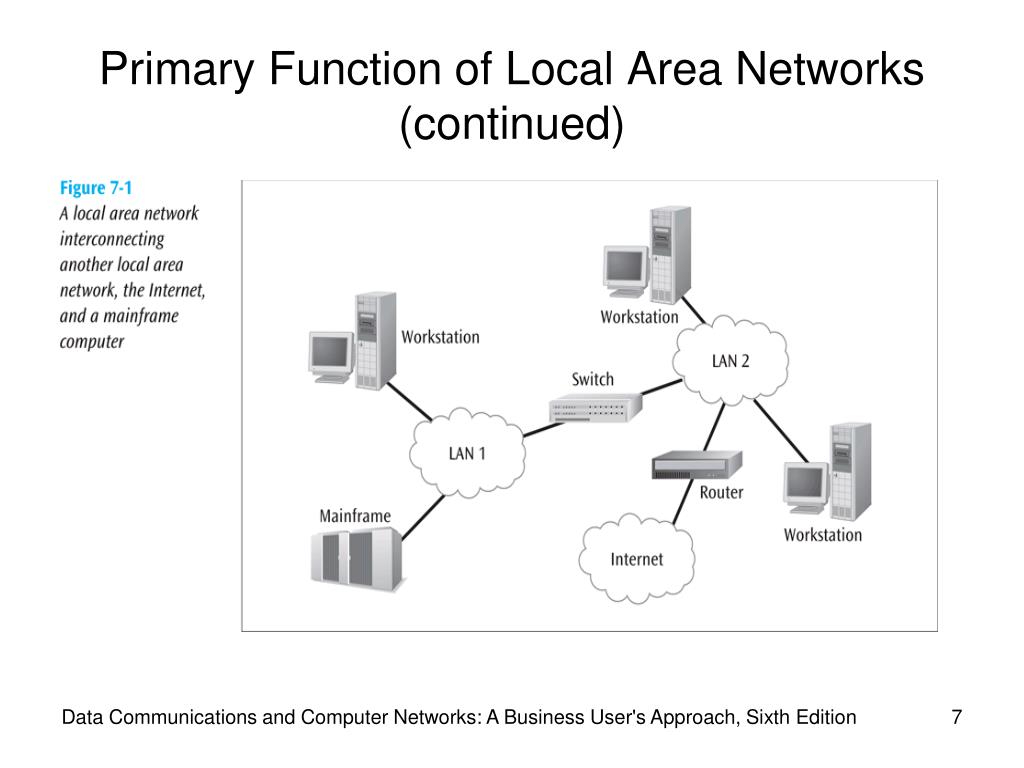

  7. Primary Function of Local Area Networks (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

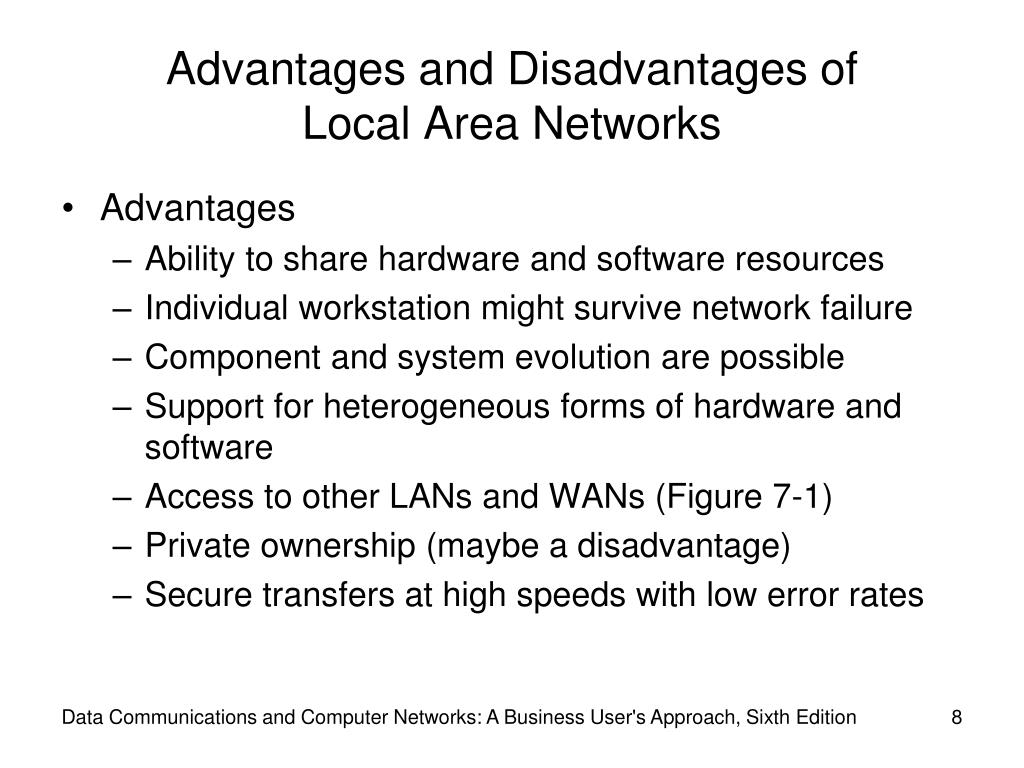

  8. Advantages and Disadvantages of Local Area Networks • Advantages • Ability to share hardware and software resources • Individual workstation might survive network failure • Component and system evolution are possible • Support for heterogeneous forms of hardware and software • Access to other LANs and WANs (Figure 7-1) • Private ownership (maybe a disadvantage) • Secure transfers at high speeds with low error rates Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  9. Advantages and Disadvantages of Local Area Networks (continued) • Disadvantages • Equipment and support can be costly • Level of maintenance continues to grow • Private ownership (lease option attractive for some) • Some types of hardware may not interoperate • Just because a LAN can support two different kinds of packages does not mean their data can interchange easily • LAN is only as strong as its weakest link, and there are many links Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  10. The First Local Area Network – The Bus/Tree • The original topology • Workstation has a network interface card (NIC) that attaches to the bus (a coaxial cable) via a tap • Data can be transferred using either baseband digital signals or broadband analog signals Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  11. Bus/Tree (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

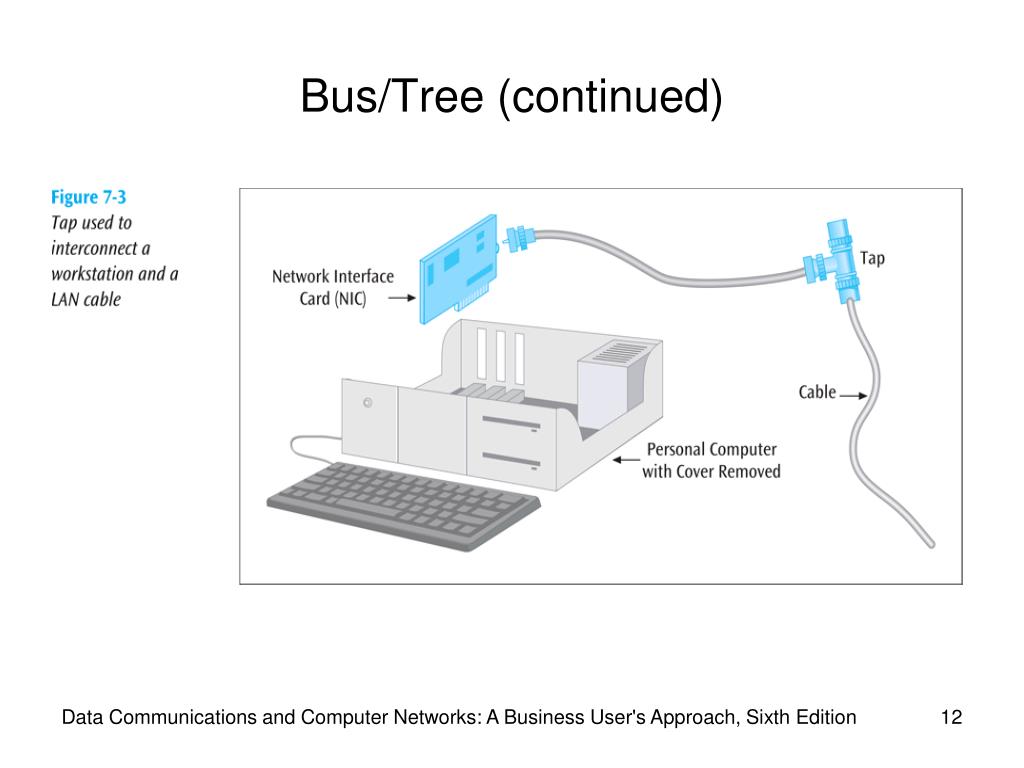

  12. Bus/Tree (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

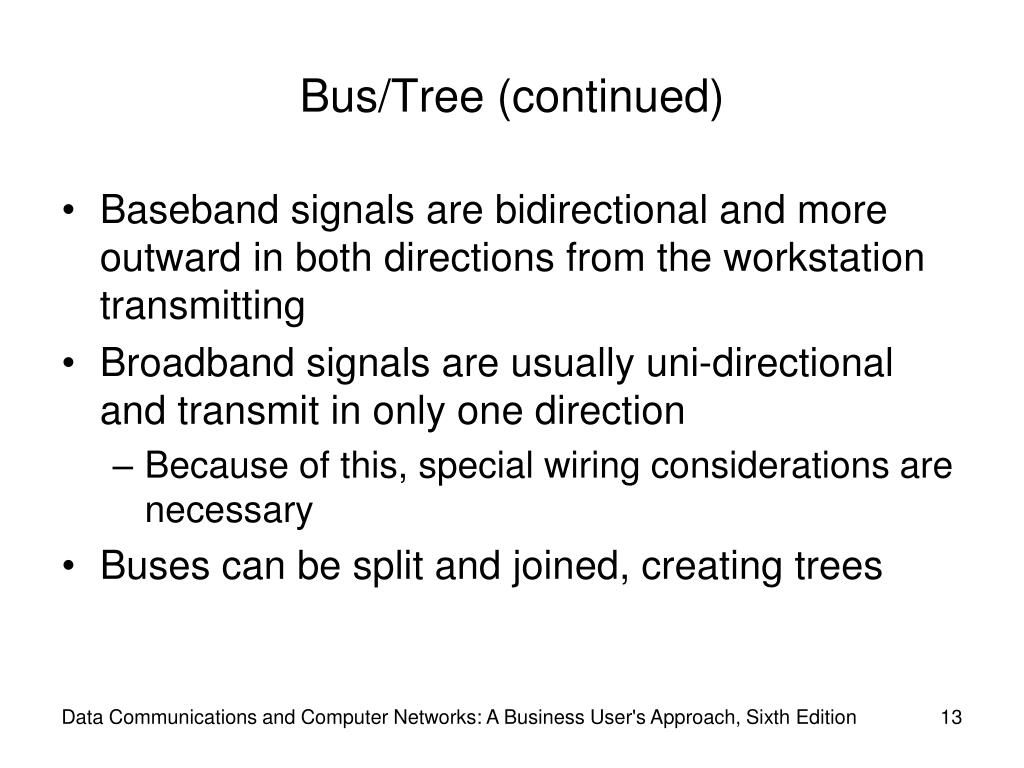

  13. Bus/Tree (continued) • Baseband signals are bidirectional and more outward in both directions from the workstation transmitting • Broadband signals are usually uni-directional and transmit in only one direction • Because of this, special wiring considerations are necessary • Buses can be split and joined, creating trees Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

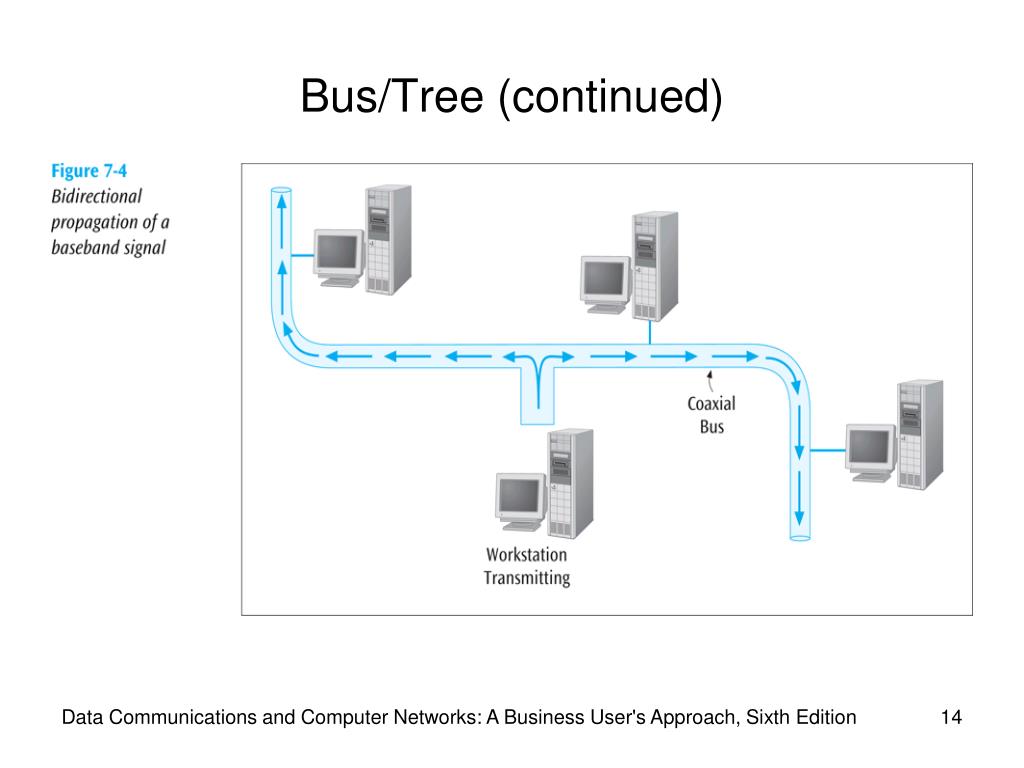

  14. Bus/Tree (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

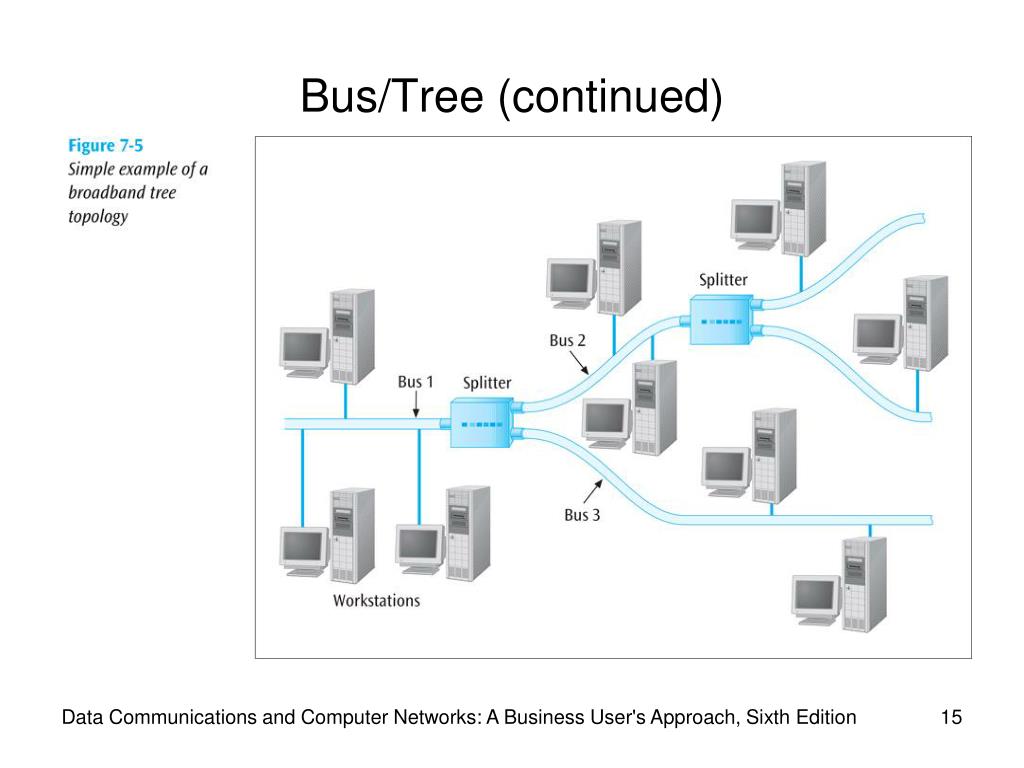

  15. Bus/Tree (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

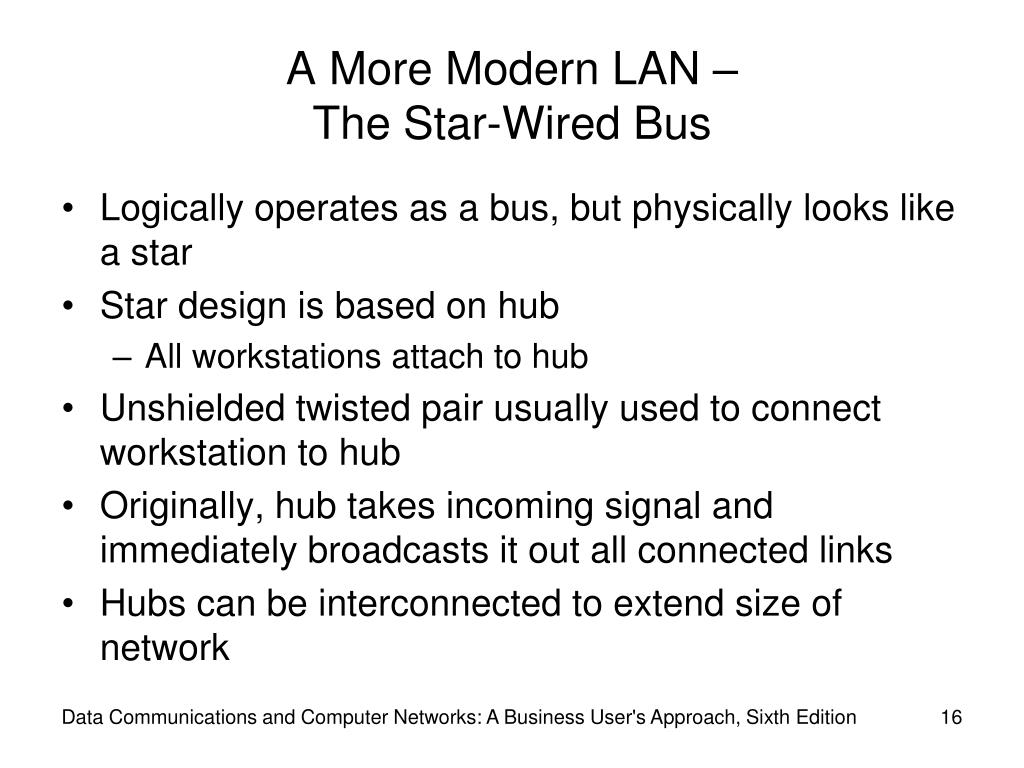

  16. A More Modern LAN –The Star-Wired Bus • Logically operates as a bus, but physically looks like a star • Star design is based on hub • All workstations attach to hub • Unshielded twisted pair usually used to connect workstation to hub • Originally, hub takes incoming signal and immediately broadcasts it out all connected links • Hubs can be interconnected to extend size of network Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  17. Star-Wired Bus (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

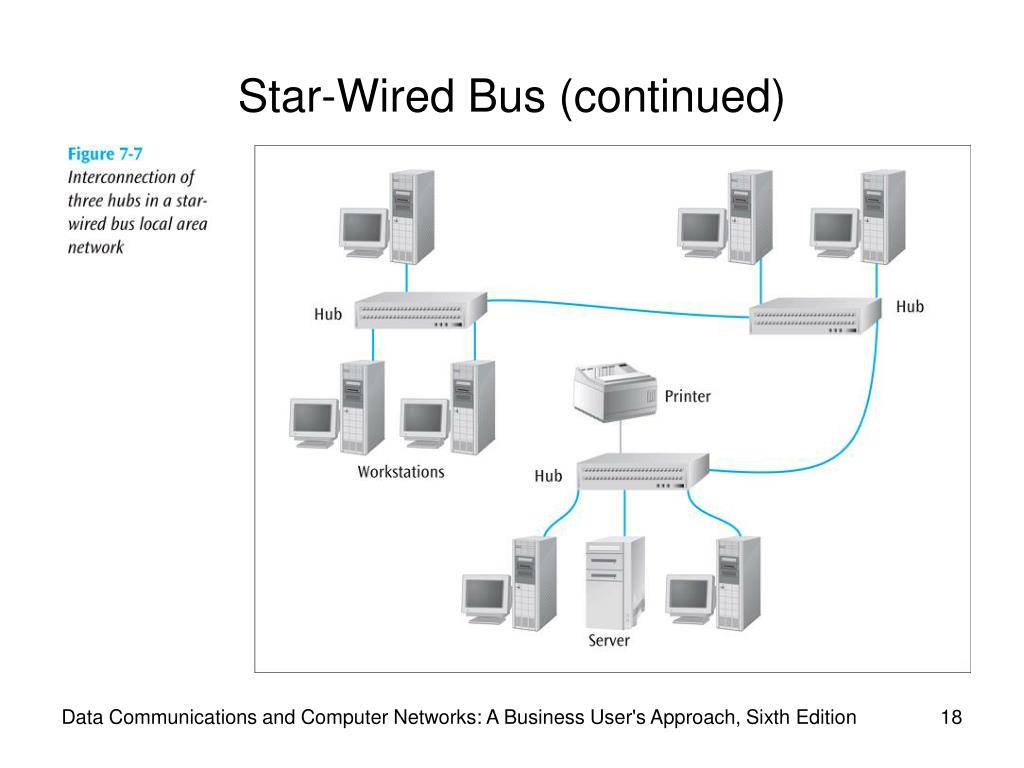

  18. Star-Wired Bus (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  19. Star-Wired Bus (continued) • Modular connectors and twisted pair make installation and maintenance of star-wired bus better than standard bus • Hubs can be interconnected with twisted pair, coaxial cable, or fiber-optic cable • Biggest disadvantage = when one station talks, everyone hears it • This is called a shared network • All devices are sharing the network medium Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  20. Medium Access Control Protocols • How does a workstation get its data onto the LAN medium? • A medium access control protocol is the software that allows workstations to “take turns” at transmitting data • Two basic categories: • Contention-based protocols • Round-robin protocols Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  21. Contention-Based Protocols • Essentially first-come, first-served • Most common example is carrier sense multiple access with collision detection (CSMA/CD) • If no one is transmitting, workstation can transmit • If someone else is transmitting, workstation “backs off” and waits Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

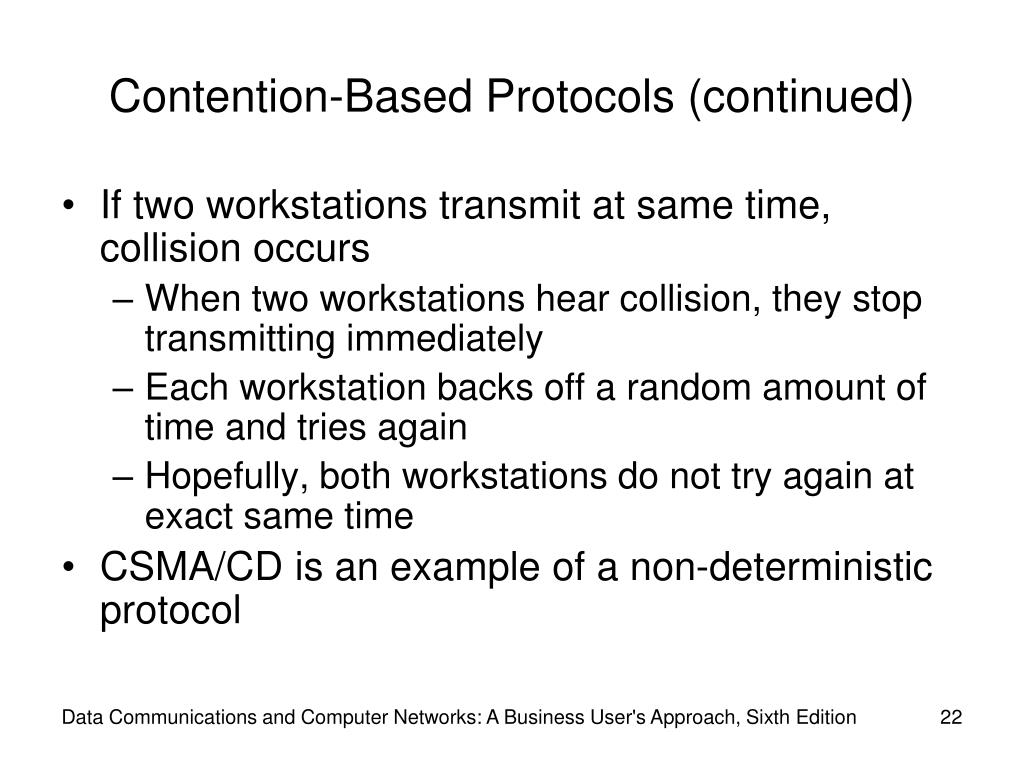

  22. Contention-Based Protocols (continued) • If two workstations transmit at same time, collision occurs • When two workstations hear collision, they stop transmitting immediately • Each workstation backs off a random amount of time and tries again • Hopefully, both workstations do not try again at exact same time • CSMA/CD is an example of a non-deterministic protocol Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  23. Contention-Based Protocols (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  24. Switches • The hub is a simple device that transmits an incoming frame out all the other ports on the hub • The switch has intelligence and can filter out and forward frames based on their NIC address • A switch maintains internal port table(s) that keep track of which frames arrived on which ports • Switches have eliminated many hubs Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

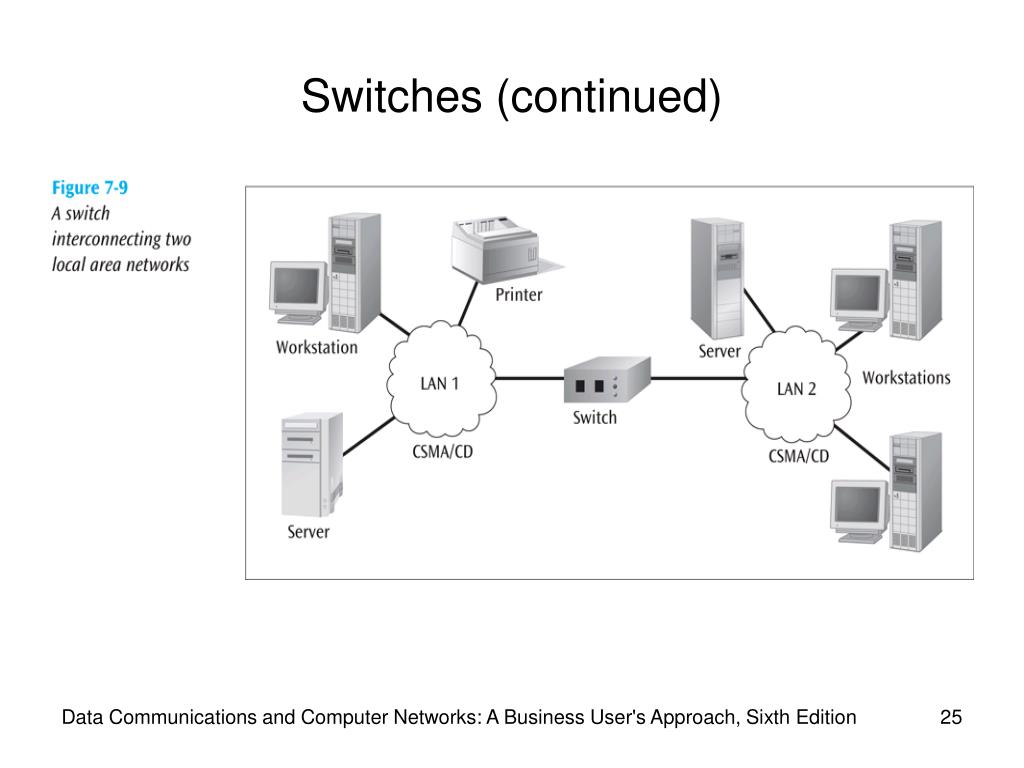

  25. Switches (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  26. Switches (continued) • A switch observes each frame that arrives at a port, extracts the source address from the frame, and places that address in the port’s routing table • A transparent switch is found with CSMA/CD LANs Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

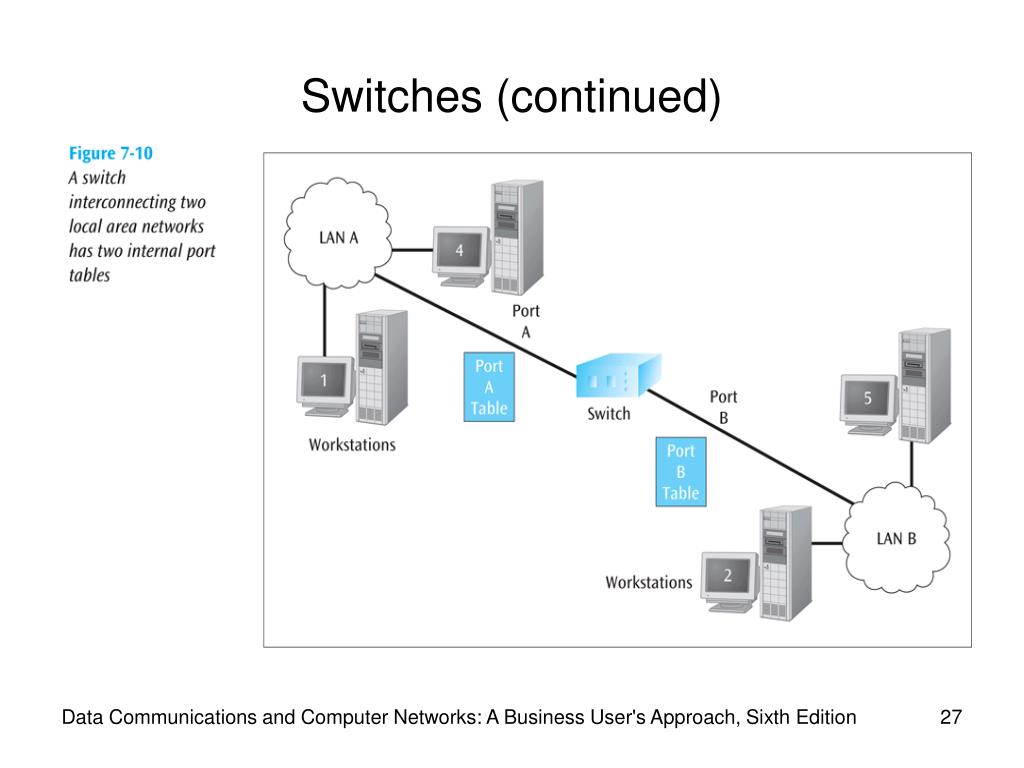

  27. Switches (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

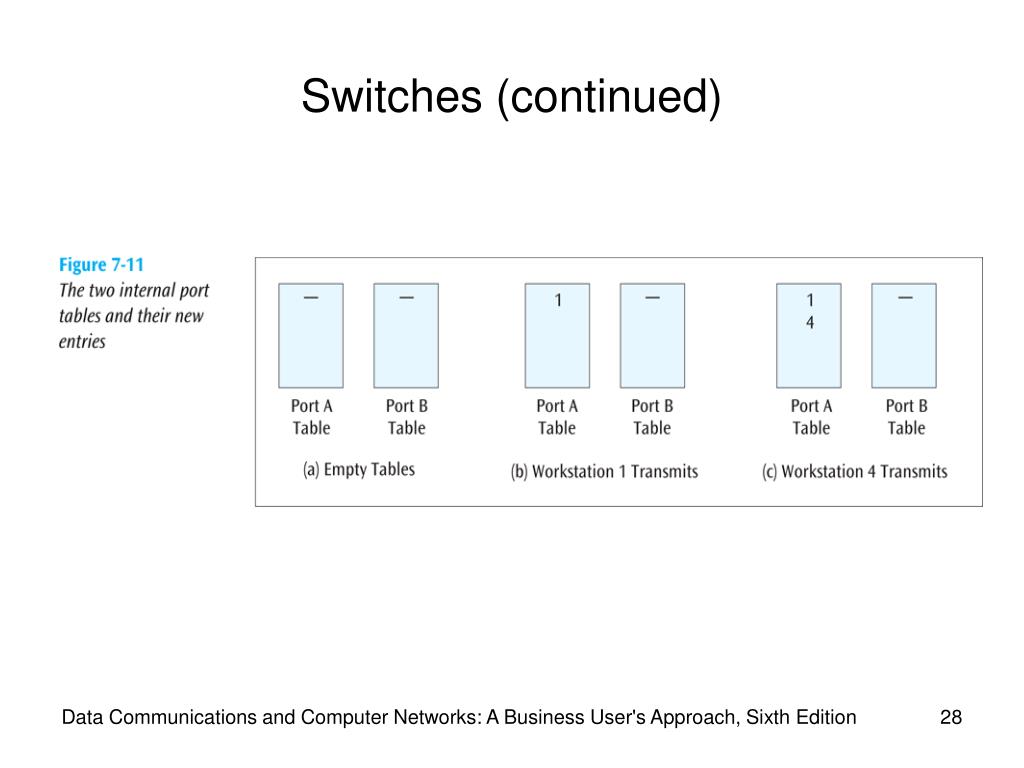

  28. Switches (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  29. Switches (continued) • Workstations that connect to a hub are on a shared segment • Workstations that connect to a switch are on a switched segment Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  30. Switches (continued) • The backplane of a switch is fast enough to support multiple data transfers at one time • A switch that employs cut-through architecture is passing on frame before entire frame has arrived at switch • Multiple workstations connected to a switch use dedicated segments • This is a very efficient way to isolate heavy users from the network • Can allow simultaneous access to multiple servers, or multiple simultaneous connections to a single server Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  31. Switches (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

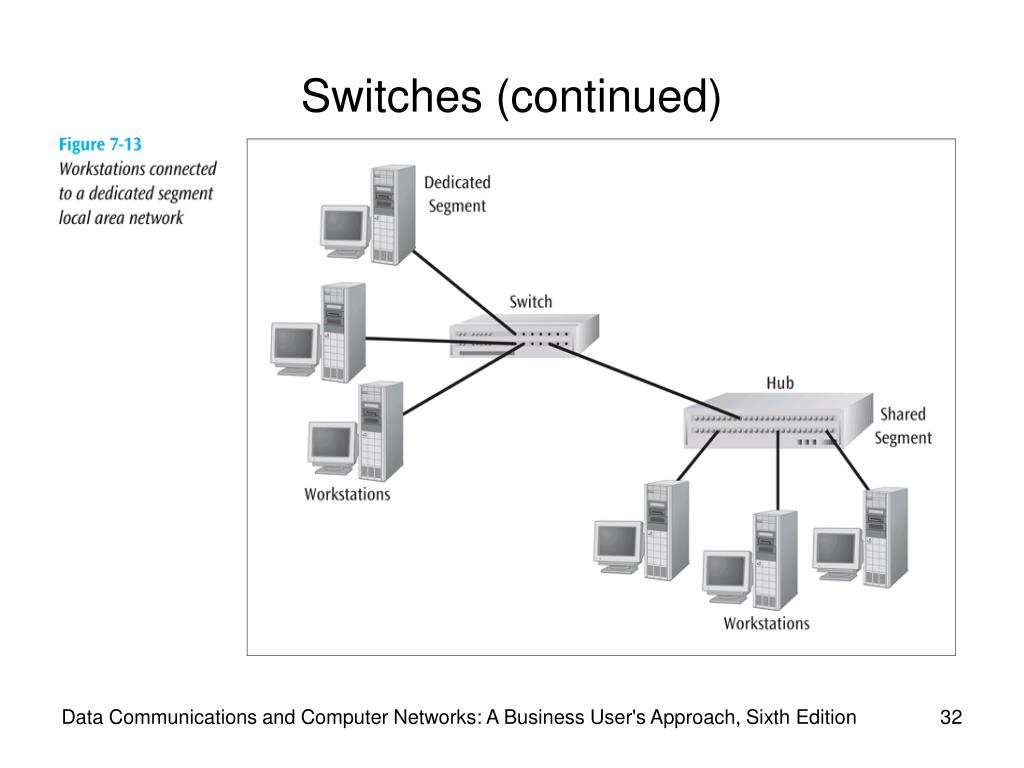

  32. Switches (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

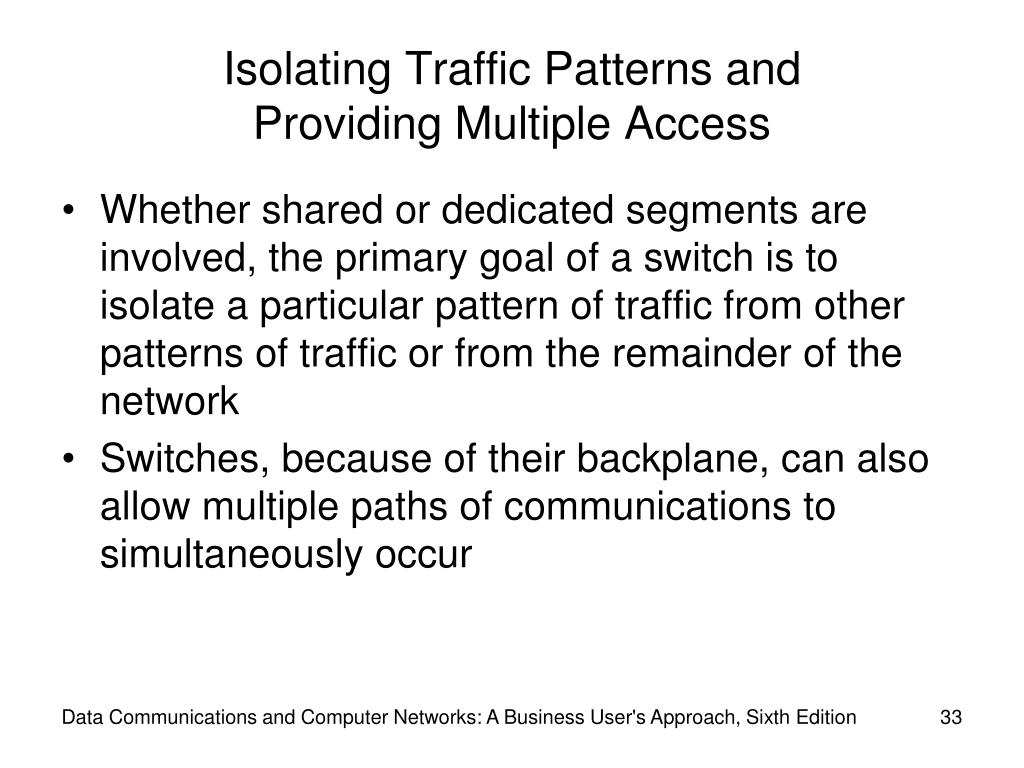

  33. Isolating Traffic Patterns and Providing Multiple Access • Whether shared or dedicated segments are involved, the primary goal of a switch is to isolate a particular pattern of traffic from other patterns of traffic or from the remainder of the network • Switches, because of their backplane, can also allow multiple paths of communications to simultaneously occur Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  34. Switches (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  35. Switches (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

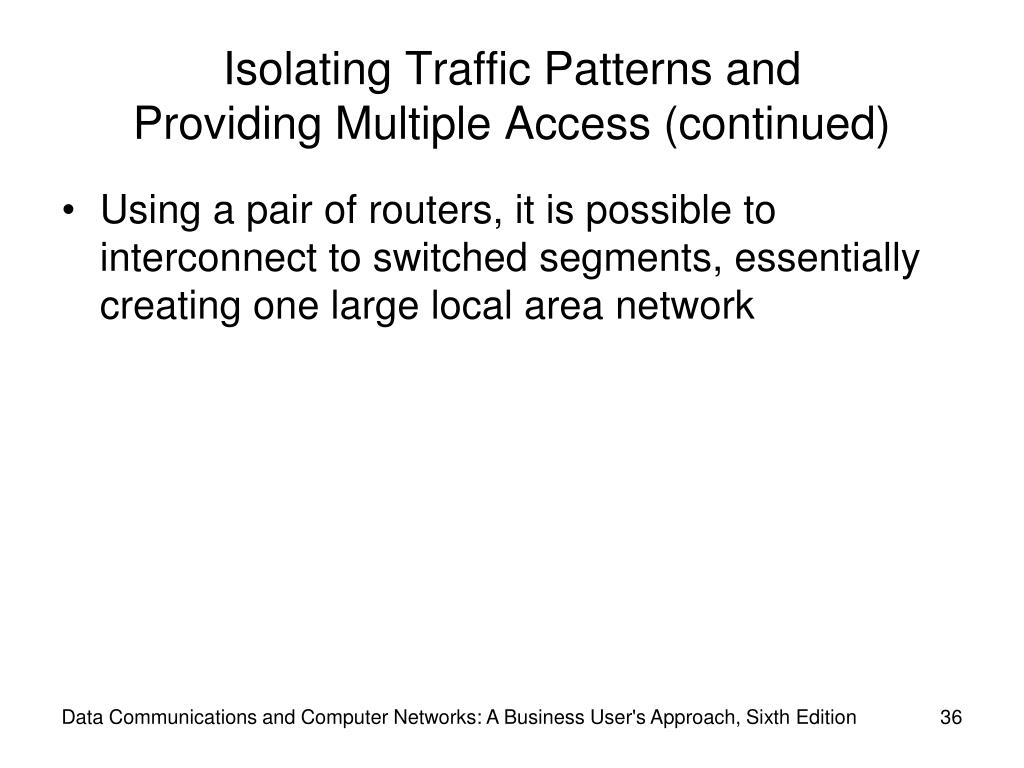

  36. Isolating Traffic Patterns and Providing Multiple Access (continued) • Using a pair of routers, it is possible to interconnect to switched segments, essentially creating one large local area network Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  37. Switches (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  38. Full-Duplex Switches • Allow for simultaneous transmission and reception of data to and from a workstation • This full-duplex connection helps to eliminate collisions • To support a full-duplex connection to a switch, at least two pairs of wires are necessary • One for the receive operation • One for the transmit operation • Most people install four pairs today, so wiring is not the problem Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

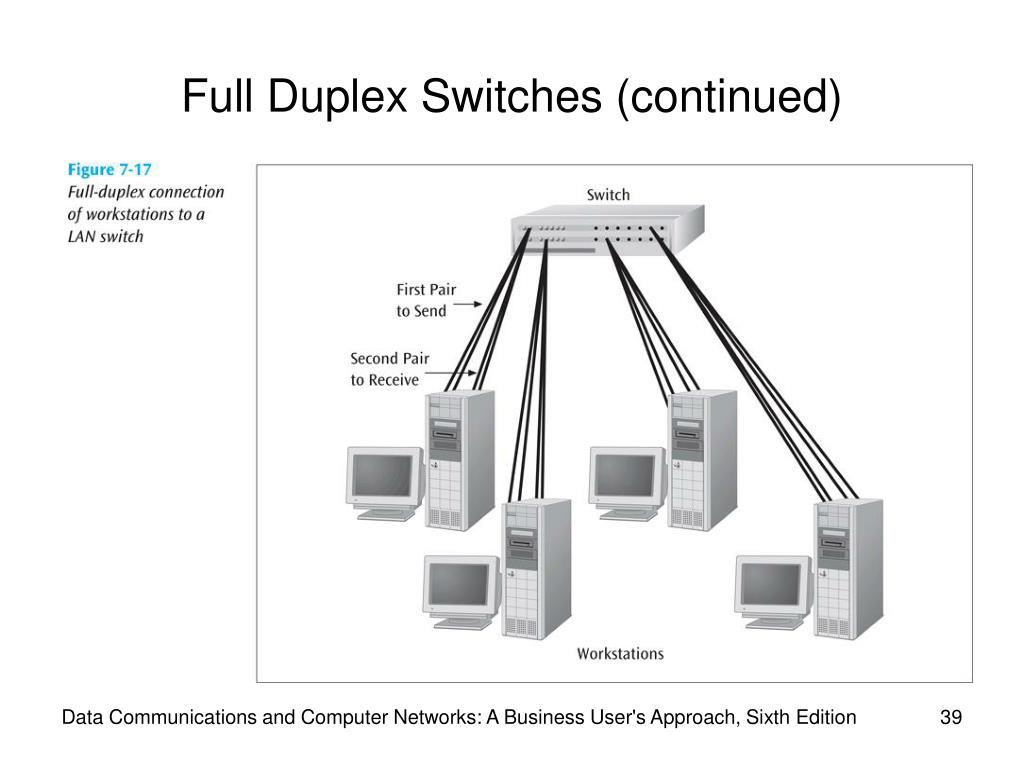

  39. Full Duplex Switches (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

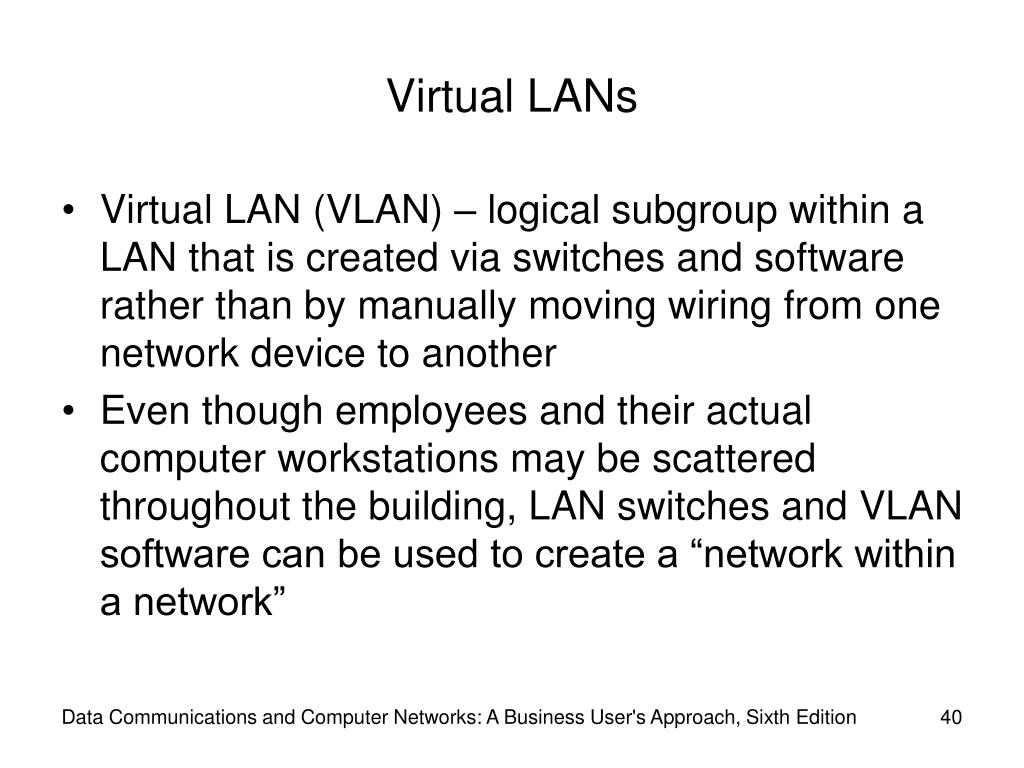

  40. Virtual LANs • Virtual LAN (VLAN) – logical subgroup within a LAN that is created via switches and software rather than by manually moving wiring from one network device to another • Even though employees and their actual computer workstations may be scattered throughout the building, LAN switches and VLAN software can be used to create a “network within a network” Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  41. Virtual LANs (continued) • A relatively new standard, IEEE 802.1Q, was designed to allow multiple devices to intercommunicate and work together to create a virtual LAN • Instead of sending technician to a wiring closet to move a workstation cable from one switch to another, an 802.1Q-compliant switch can be remotely configured by a network administrator Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

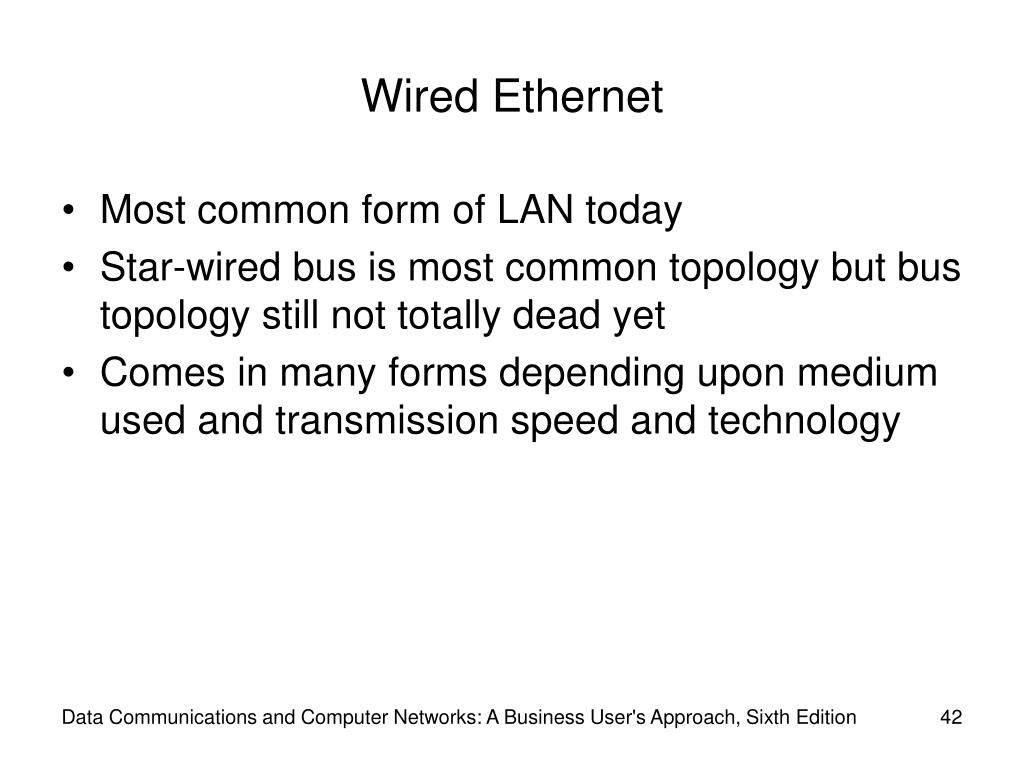

  42. Wired Ethernet • Most common form of LAN today • Star-wired bus is most common topology but bus topology still not totally dead yet • Comes in many forms depending upon medium used and transmission speed and technology Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

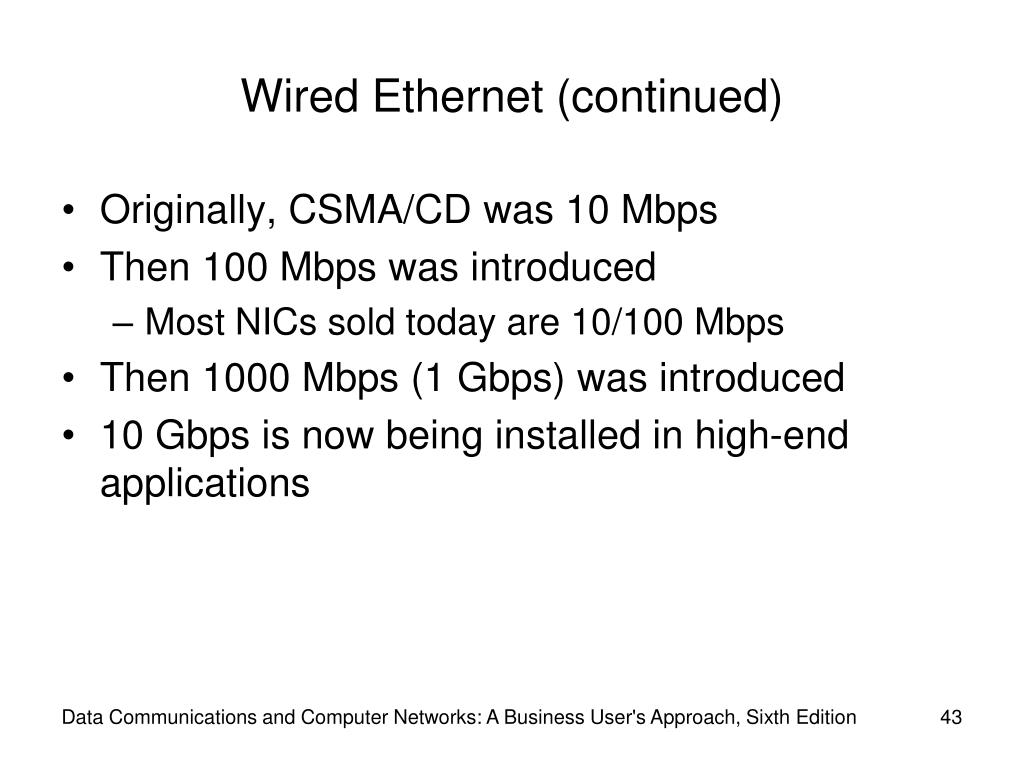

  43. Wired Ethernet (continued) • Originally, CSMA/CD was 10 Mbps • Then 100 Mbps was introduced • Most NICs sold today are 10/100 Mbps • Then 1000 Mbps (1 Gbps) was introduced • 10 Gbps is now being installed in high-end applications Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  44. Wired Ethernet (continued) • 1000 Mbps introduces a few interesting wrinkles: • Transmission is full-duplex (separate transmit and receive), thus no collisions • Prioritization is possible using 802.1p protocol • Topology can be star or mesh (for trunks) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

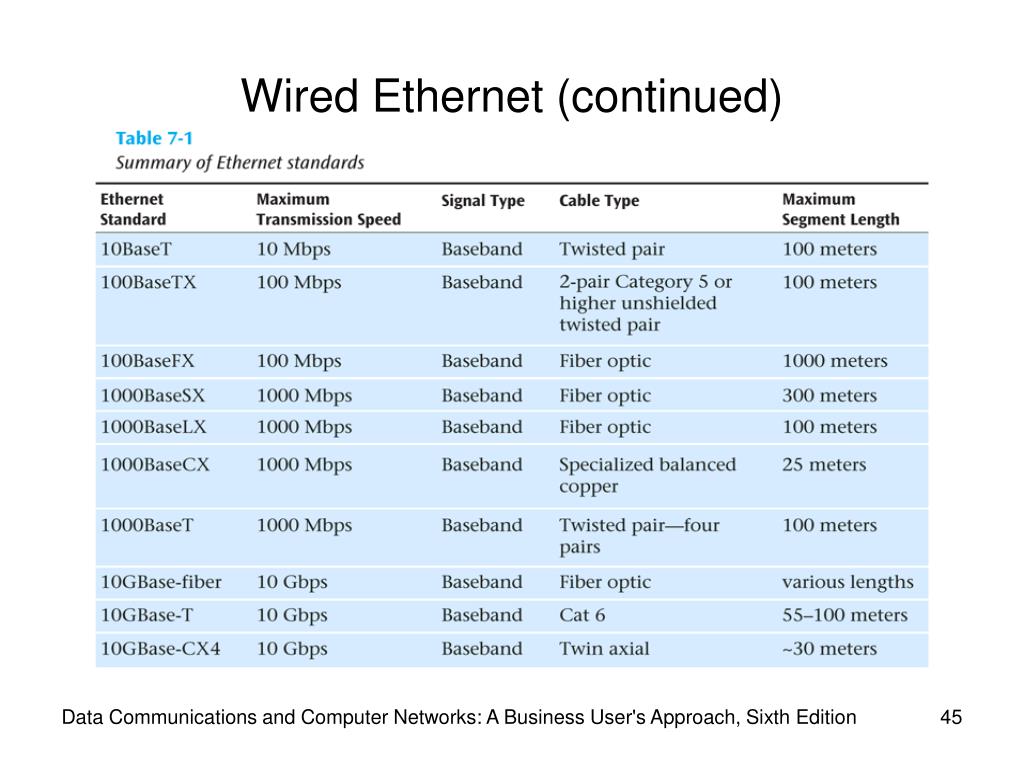

  45. Wired Ethernet (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  46. Wired Ethernet (continued) • One of the latest features is power over Ethernet (PoE) • What if you have a remote device that has an Ethernet connection? • It will require a power connection • What if you don’t have an electrical outlet nearby? • Use PoE • Power to drive Ethernet NIC is sent over wiring along with usual Ethernet signals Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

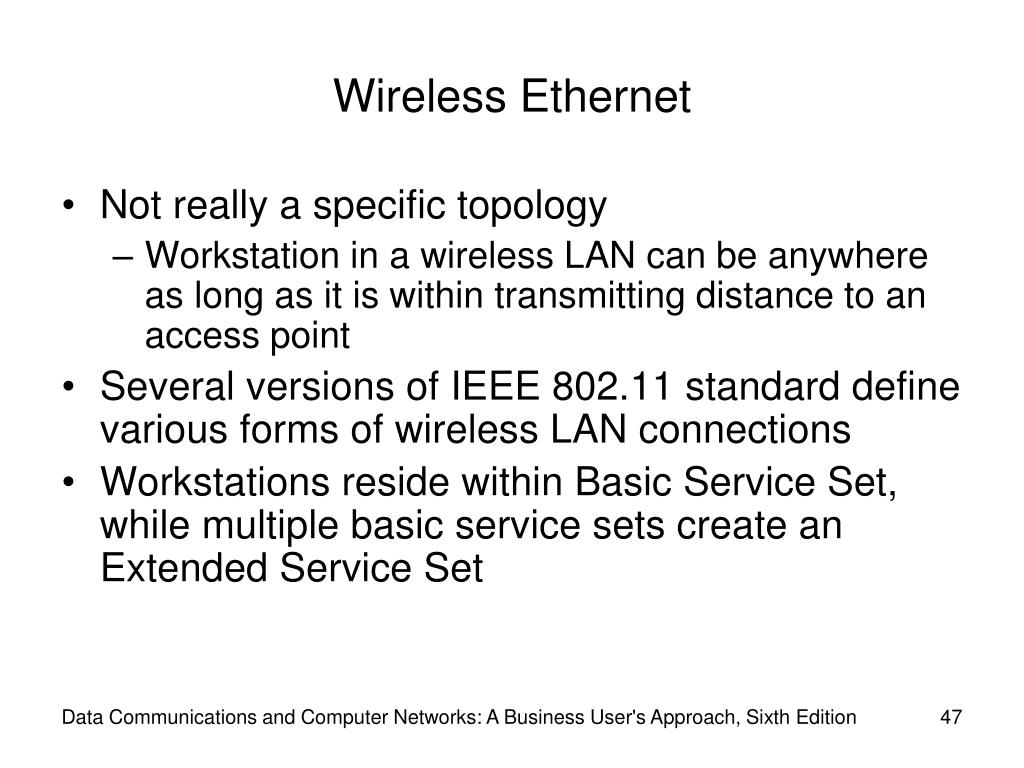

  47. Wireless Ethernet • Not really a specific topology • Workstation in a wireless LAN can be anywhere as long as it is within transmitting distance to an access point • Several versions of IEEE 802.11 standard define various forms of wireless LAN connections • Workstations reside within Basic Service Set, while multiple basic service sets create an Extended Service Set Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  48. Wireless Ethernet (continued) • Two basic components necessary: • Client radio • Usually a PC card with an integrated antenna installed in a laptop or workstation • Access point (AP) • An Ethernet port plus a transceiver • AP acts as a bridge between the wired and wireless networks and can perform basic routing functions • Workstations with client radio cards reside within Basic Service Set, while multiple basic service sets create an Extended Service Set Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

  49. Wireless Ethernet (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition

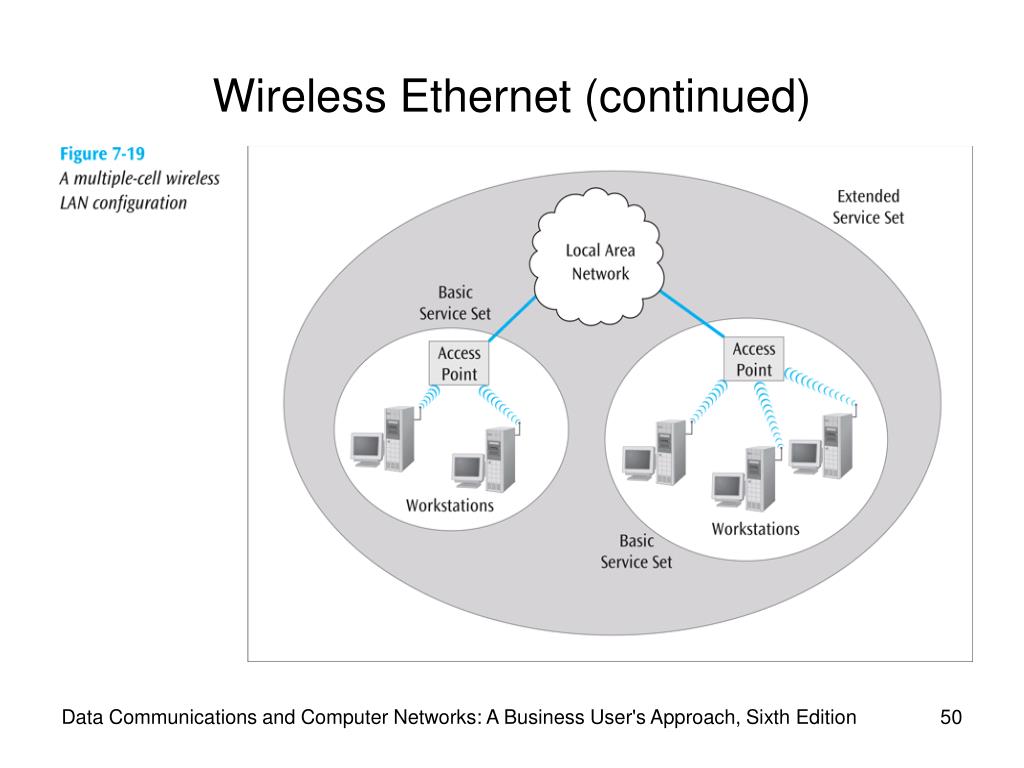

  50. Wireless Ethernet (continued) Data Communications and Computer Networks: A Business User's Approach, Sixth Edition
