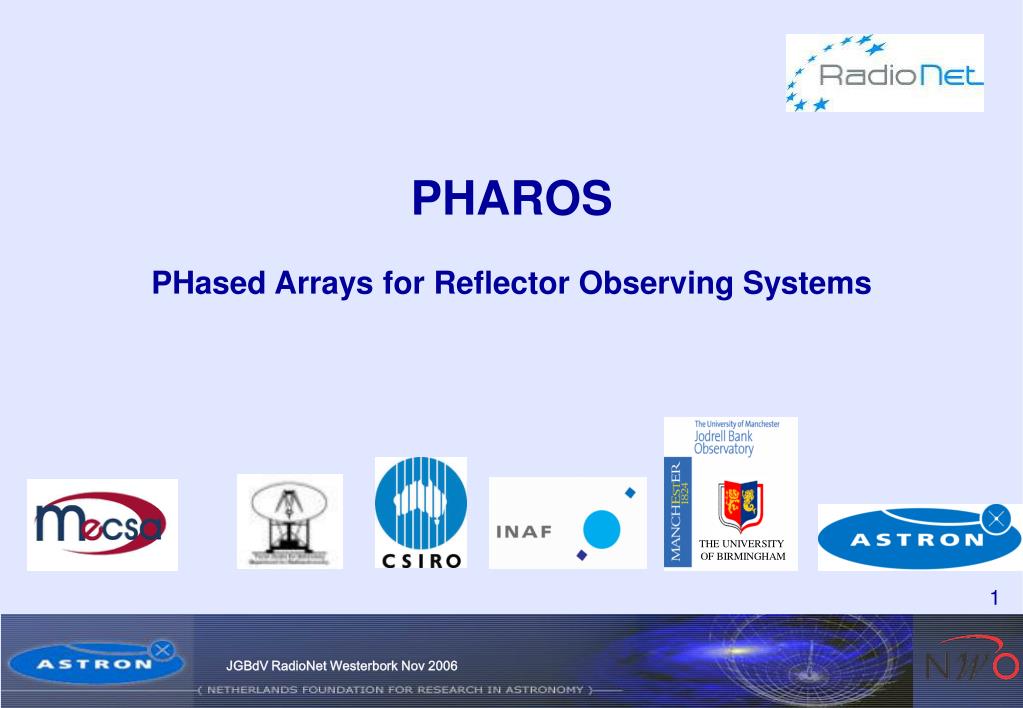

  1. THE UNIVERSITY OF BIRMINGHAM PHAROSPHased Arrays for Reflector Observing Systems

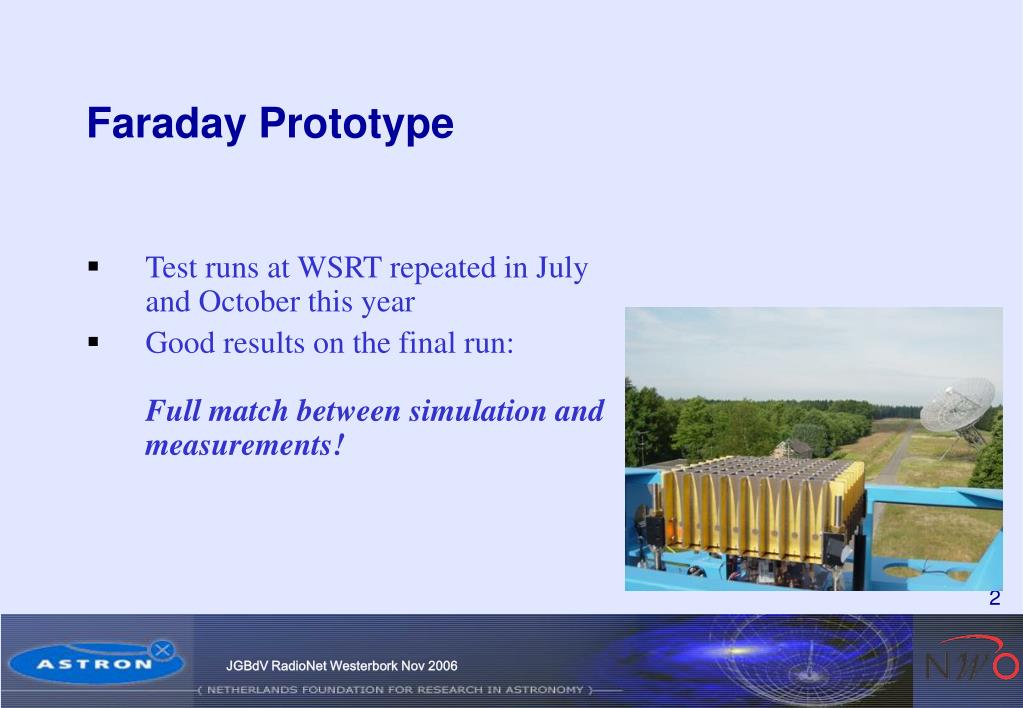

  2. Faraday Prototype • Test runs at WSRT repeated in July and October this year • Good results on the final run:Full match between simulation and measurements!

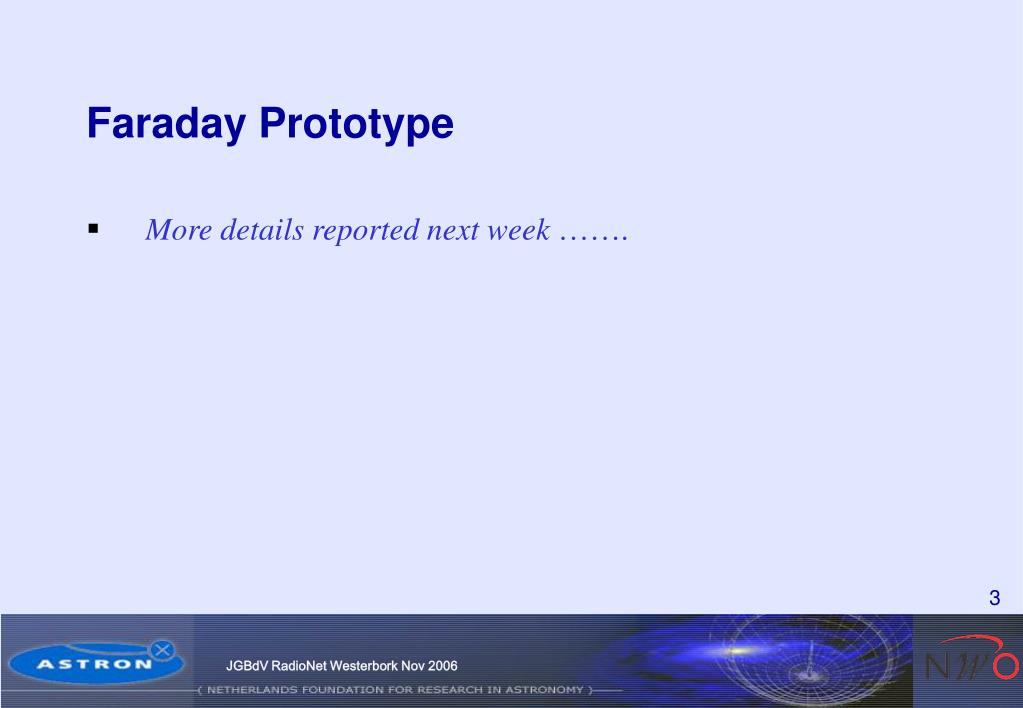

  3. Faraday Prototype • More details reported next week …….

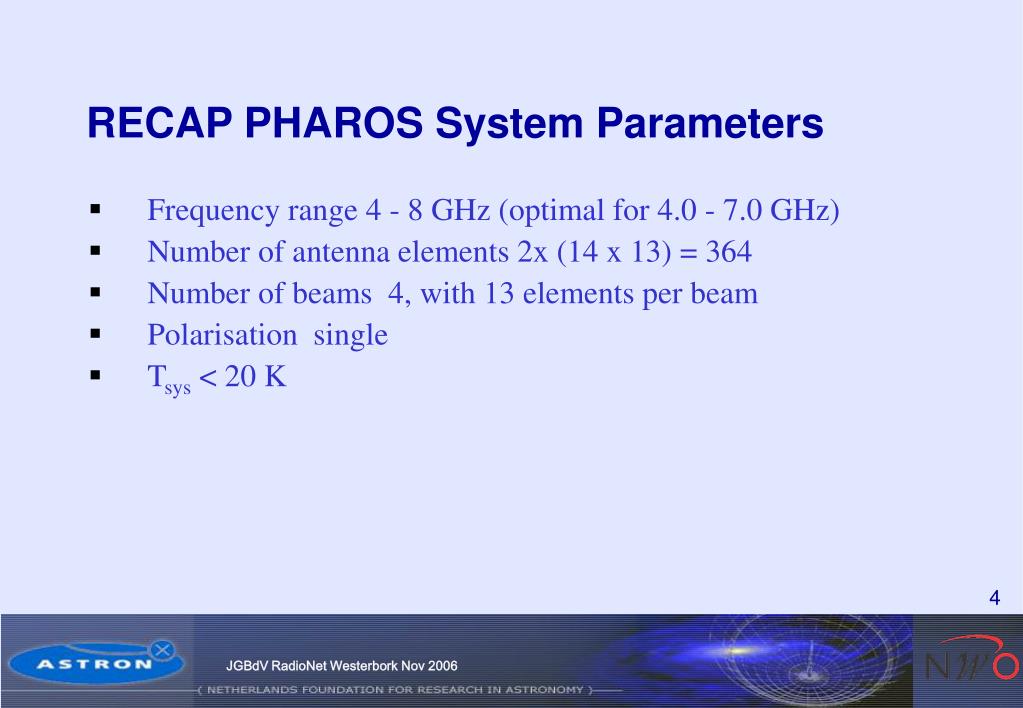

  4. RECAP PHAROS System Parameters • Frequency range 4 - 8 GHz (optimal for 4.0 - 7.0 GHz) • Number of antenna elements 2x (14 x 13) = 364 • Number of beams 4, with 13 elements per beam • Polarisation single • Tsys < 20 K

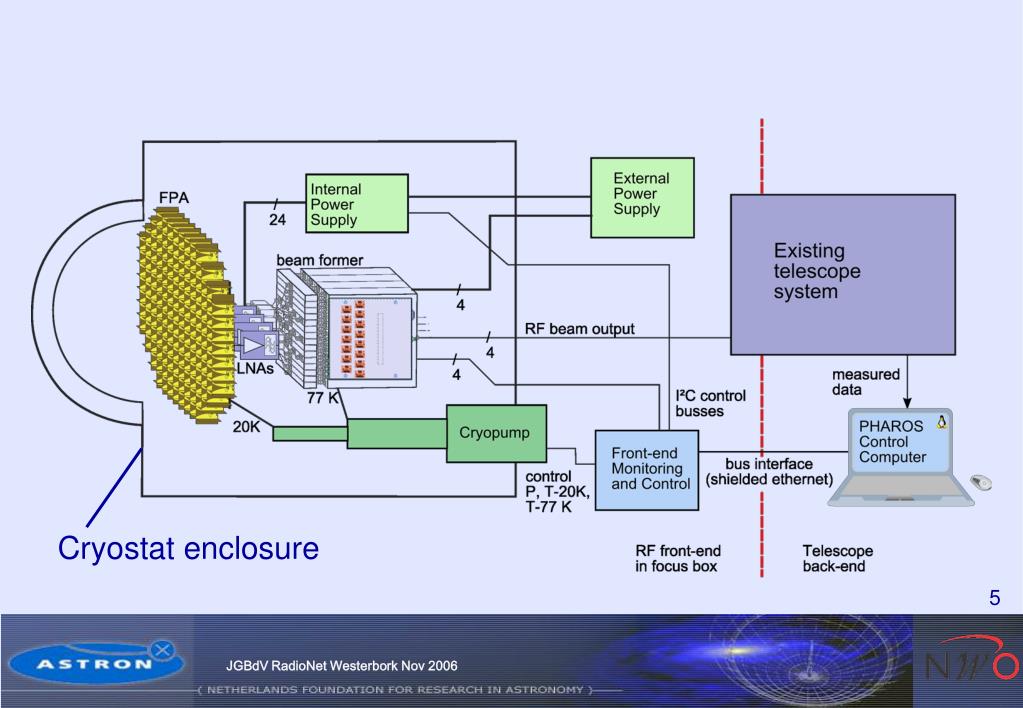

  5. Cryostat enclosure

  6. Beam-former

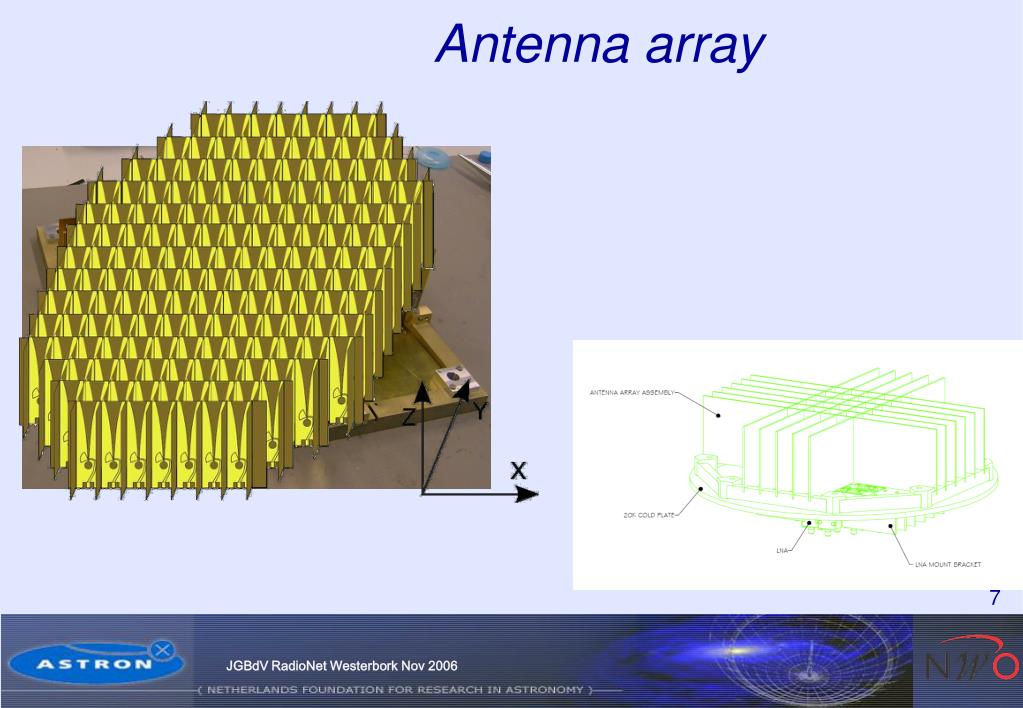

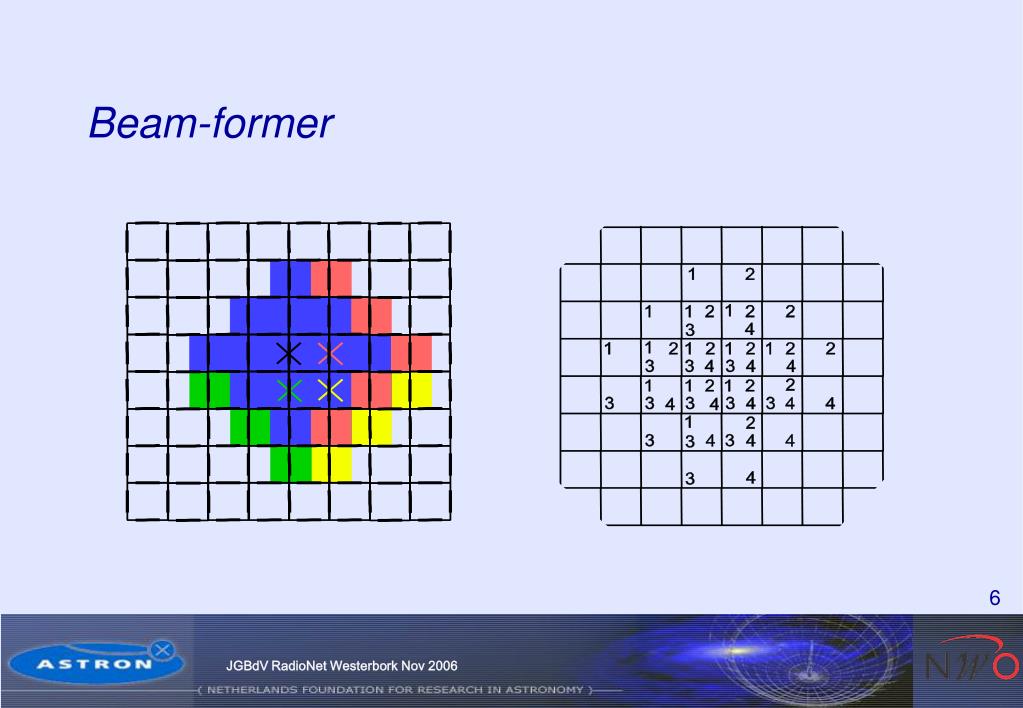

  7. Antenna array

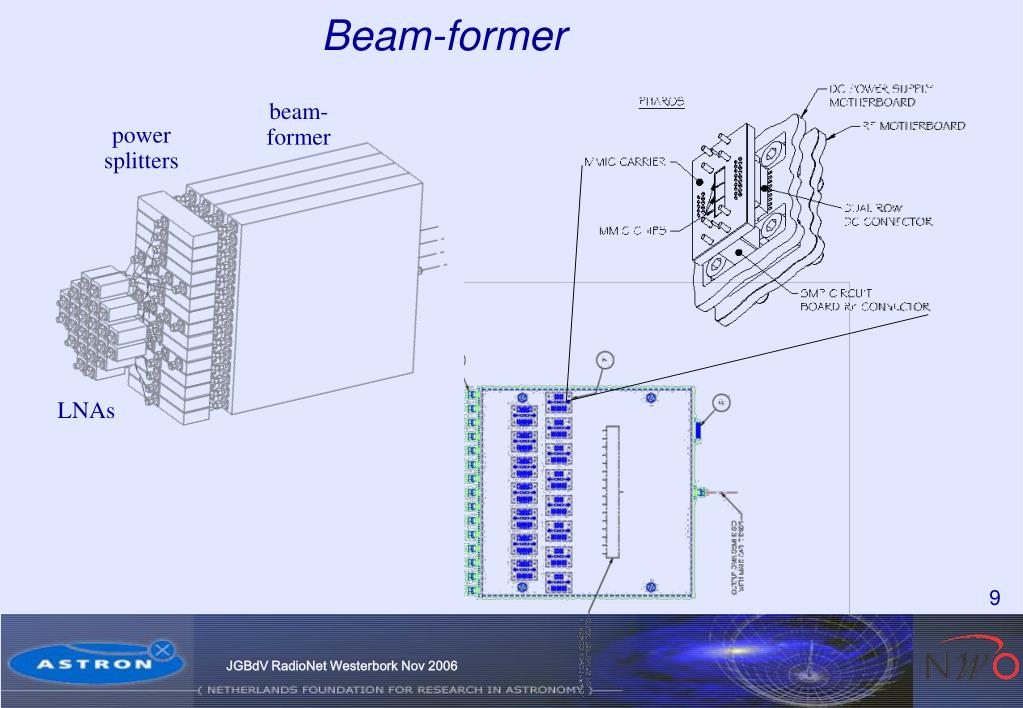

  8. Beam-former beam- former power splitters LNAs

  9. Cryostat

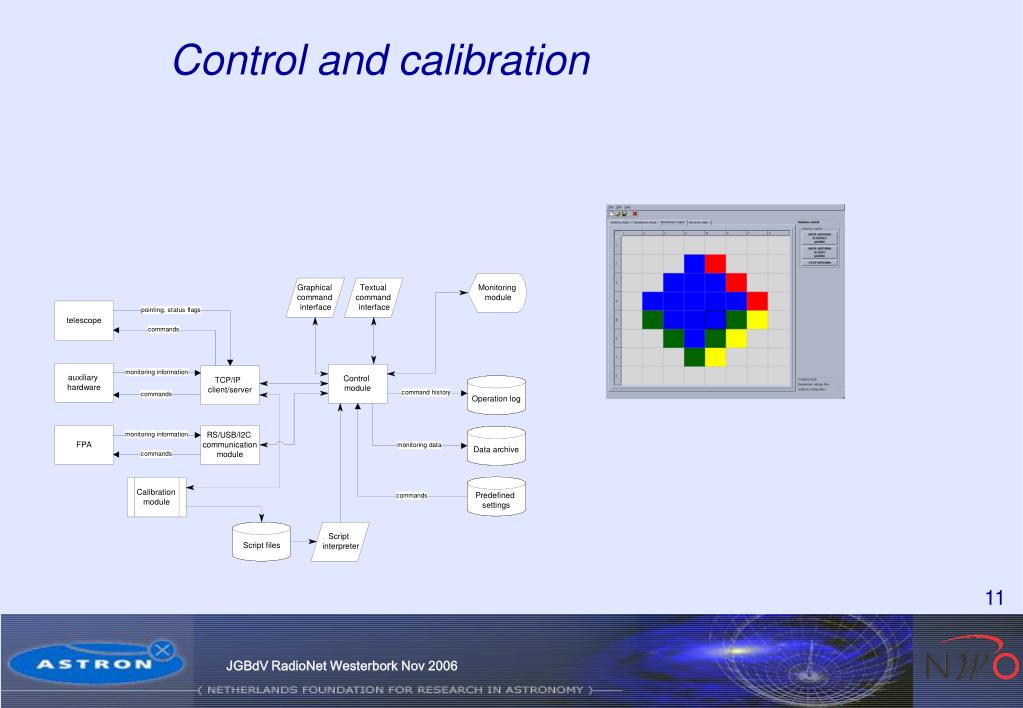

  10. Control and calibration

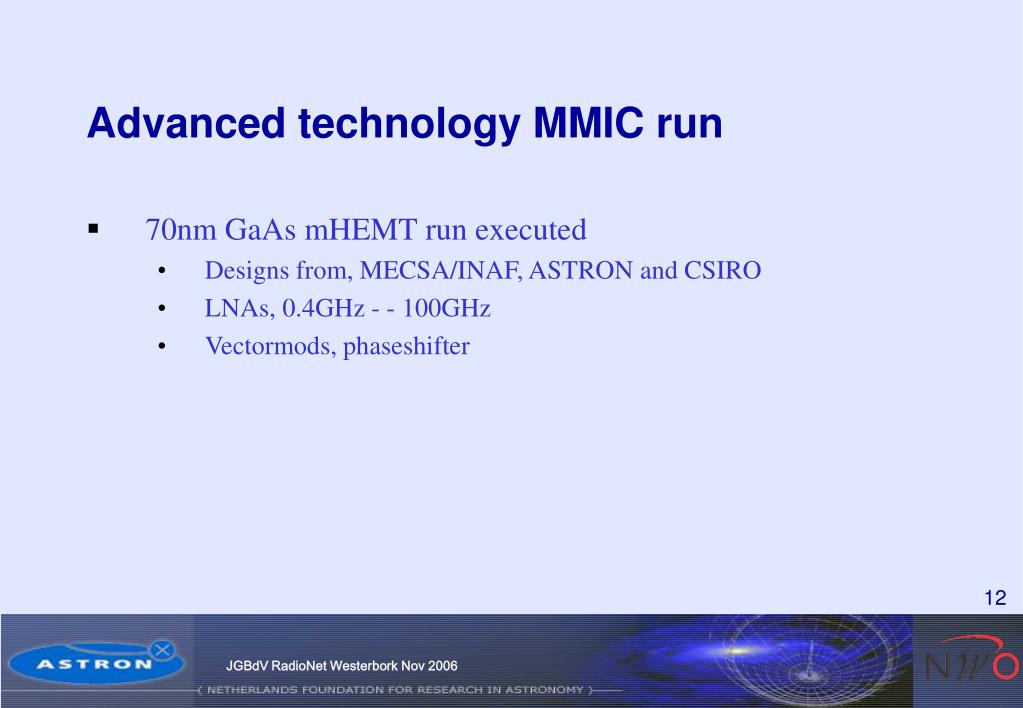

  11. Advanced technology MMIC run • 70nm GaAs mHEMT run executed • Designs from, MECSA/INAF, ASTRON and CSIRO • LNAs, 0.4GHz - - 100GHz • Vectormods, phaseshifter

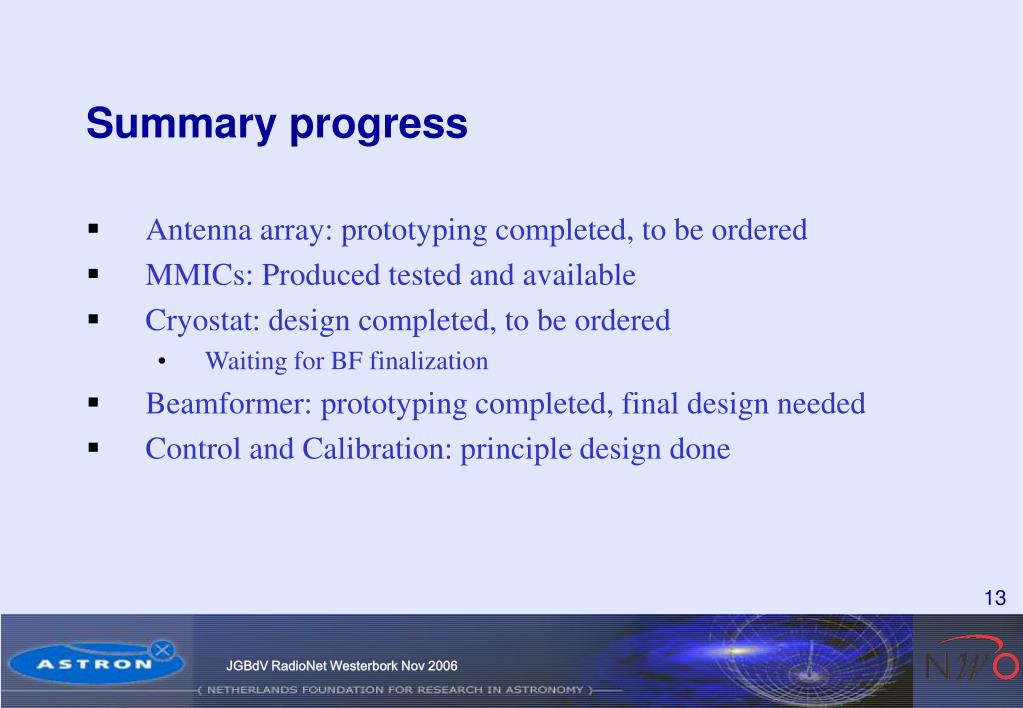

  12. Summary progress • Antenna array: prototyping completed, to be ordered • MMICs: Produced tested and available • Cryostat: design completed, to be ordered • Waiting for BF finalization • Beamformer: prototyping completed, final design needed • Control and Calibration: principle design done

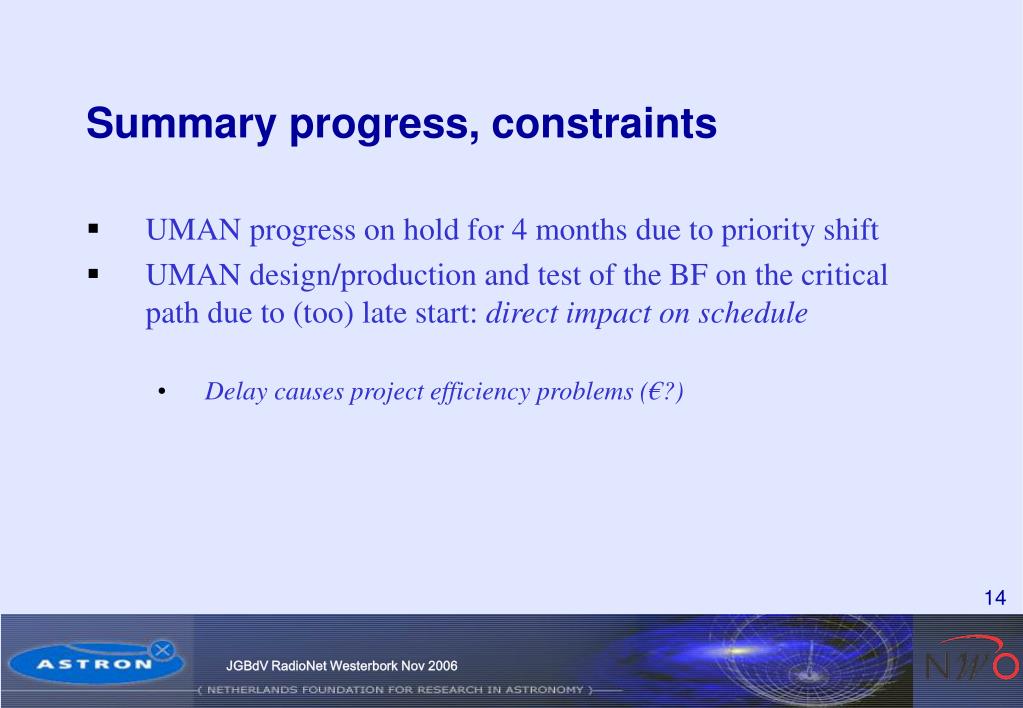

  13. Summary progress, constraints • UMAN progress on hold for 4 months due to priority shift • UMAN design/production and test of the BF on the critical path due to (too) late start: direct impact on schedule • Delay causes project efficiency problems (€?)

  14. Summary progress, euros • MECSA: completion expected within budget • ASTRON: manhour costs overrun expected • INAF: no budget constraints • UBIR: no budget constraints • TCfA: no budget constraints • UMAN: tbd
