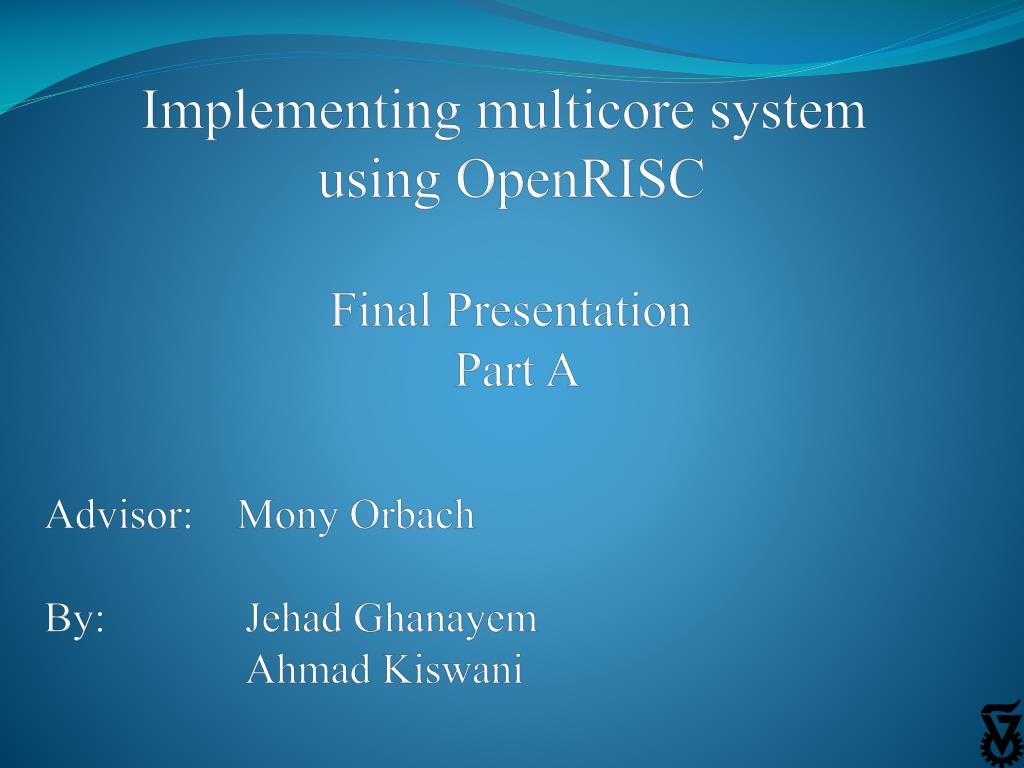

  1. Implementing multicore system using OpenRISC Final Presentation Part A Advisor: Mony Orbach By: Jehad Ghanayem Ahmad Kiswani

  2. Content • Project Goals. • Workflow • Background. • System configuration. • Working environment. • System simulation. • System synthesis. • Benchmark. • Multicore.

  3. Project Goals Project Goal: building a SoC based on a multicore implementation of the OpenRISC CPU. Term A Goals: • Building a SoC based on an OpenRISCCPU. • Benchmarking the system for future reference. • Exploring multicore architectures.

  4. Term A - Workflow • Learning the OpenRISC architecture. • Learning Verilog HDL. • Choosing a SoC. • Getting familiar with the work environment. • Configuring the SoC. • Simulation and Synthesis. • Benchmarking for future reference. • Choosing a multicore architecture.

  5. The OpenRisc CPU • The OpenRISC 1200 is a synthesizable CPU core maintained by developers at OpenCores. • The OR1200 design is an open source (under LGPL GNU) implementation of the OpenRISC 1000 RISC architecture • 1-way set associative 4KB instruction and data cache. • Harvard architecture. • No divide implementation (done by software). • Disabled DSP unit. • Includes a Timer.

  6. Choosing the SoC orpSoC minSoC • Reference design. • Different FPGA’s needs different ports. • Developed by OpenCores. • More IP cores: • UART. • Ethernet. • VGA. • AC97… • Suitable for running Linux. • Generic design. • Developed by Raul Fajardo. • Minimal implementation, only: • UART • Ethernet. • Only the basics, meant to be configured. • simpler, but more advanced RAM model. • Less FPGA resources.

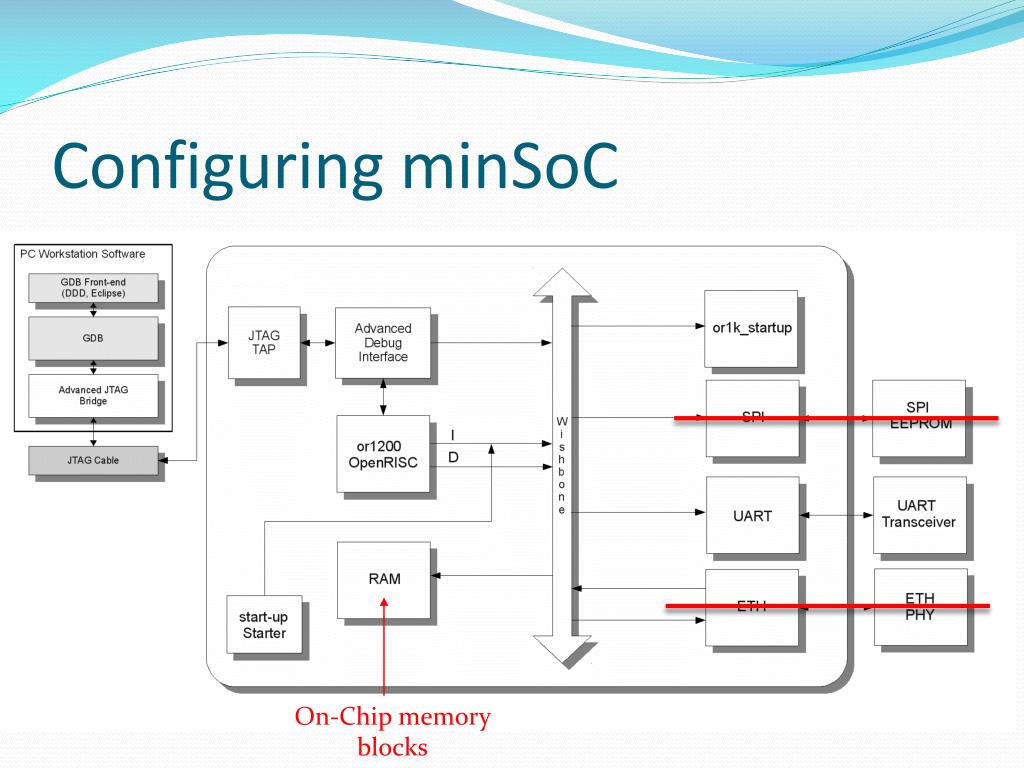

  7. Configuring minSoC On-Chip memory blocks

  8. FPGA used • XUPV5 Board

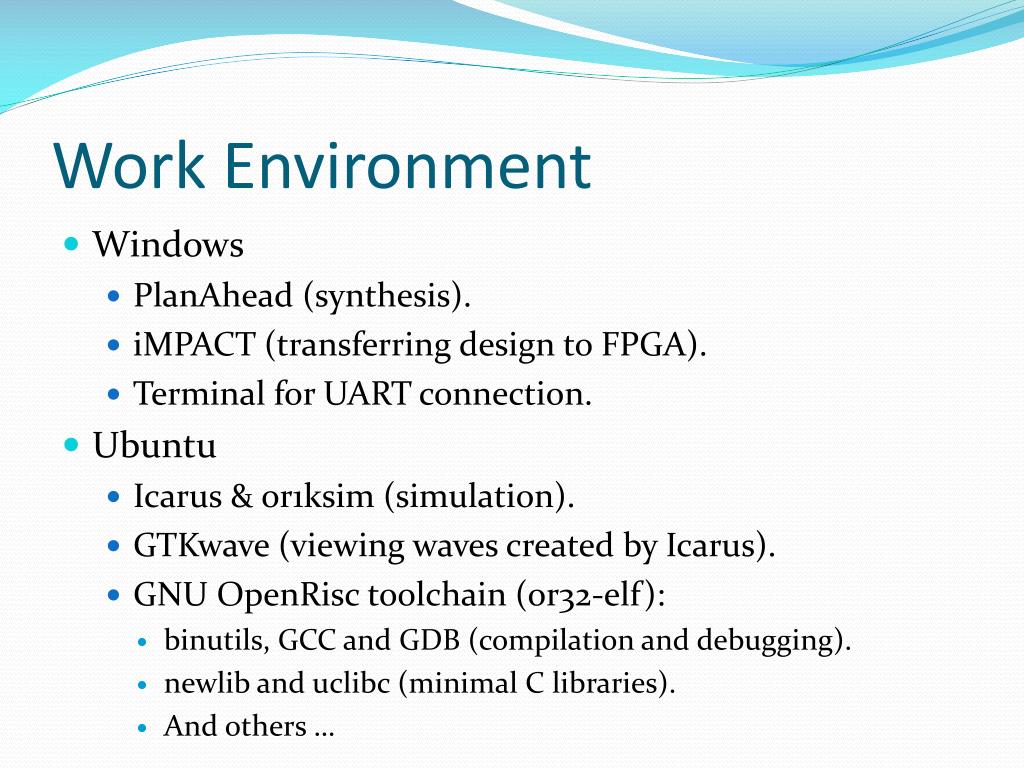

  9. Work Environment • Windows • PlanAhead (synthesis). • iMPACT (transferring design to FPGA). • Terminal for UART connection. • Ubuntu • Icarus & or1ksim (simulation). • GTKwave (viewing waves created by Icarus). • GNU OpenRisc toolchain (or32-elf): • binutils, GCC and GDB (compilation and debugging). • newlib and uclibc (minimal C libraries). • And others …

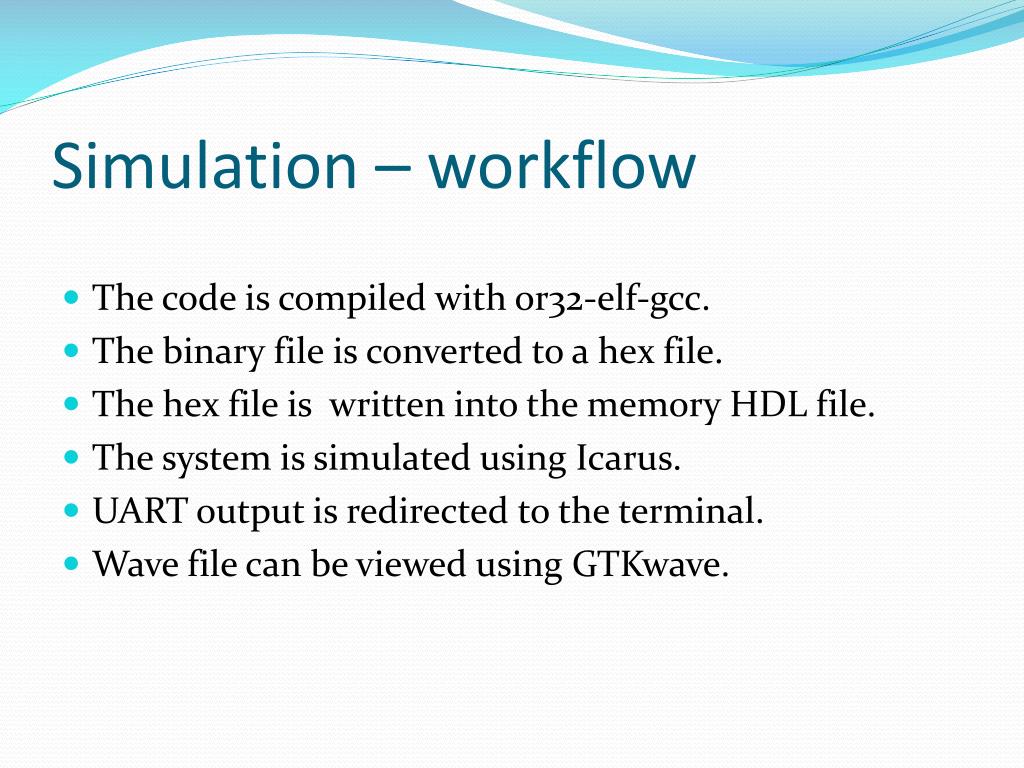

  10. Simulation – workflow • The code is compiled with or32-elf-gcc. • The binary file is converted to a hex file. • The hex file is written into the memory HDL file. • The system is simulated using Icarus. • UART output is redirected to the terminal. • Wave file can be viewed using GTKwave.

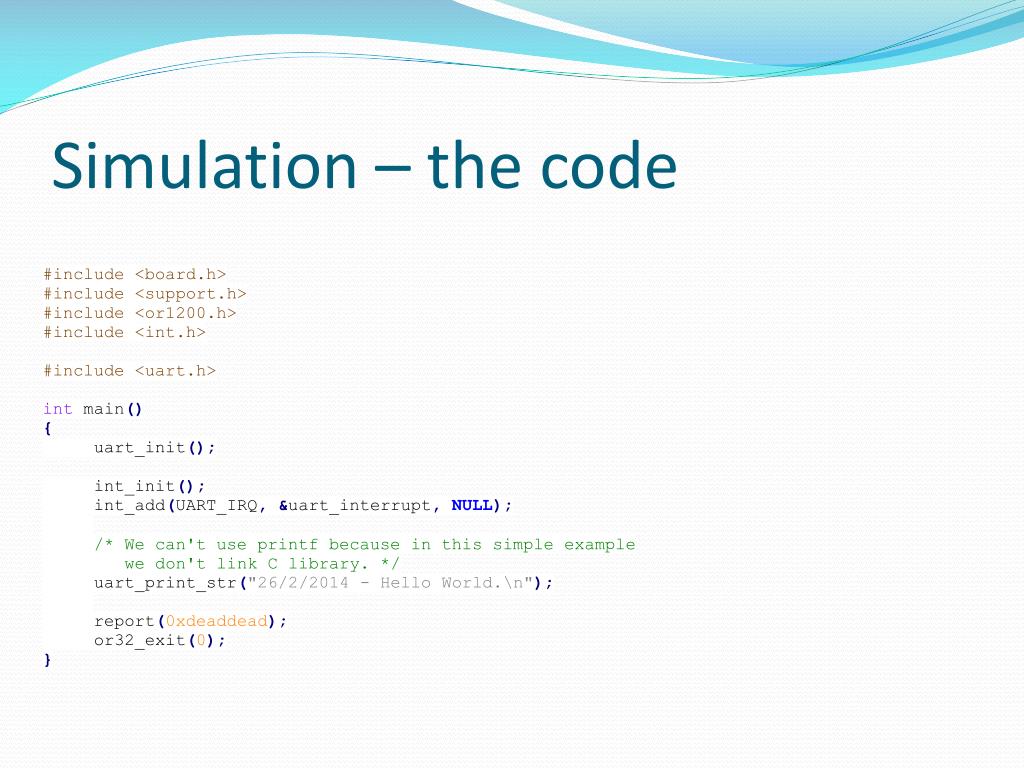

  11. Simulation – the code

  12. Simulation - results 32 36 2f 32 2f 32 30 31 34 20 2d 20 48 65 6c 6c 6f 20 57 6f 72 6c 64 2e 26/2/2014 - Hello World.

  13. Synthesis – workflow • The hex file is written to the memory model. • RTL design is transferred to planAhead. • Synthesis. • Generating Bitstream file. • Using iMPACT to program the FPGA. • UART output is displayed on the terminal.

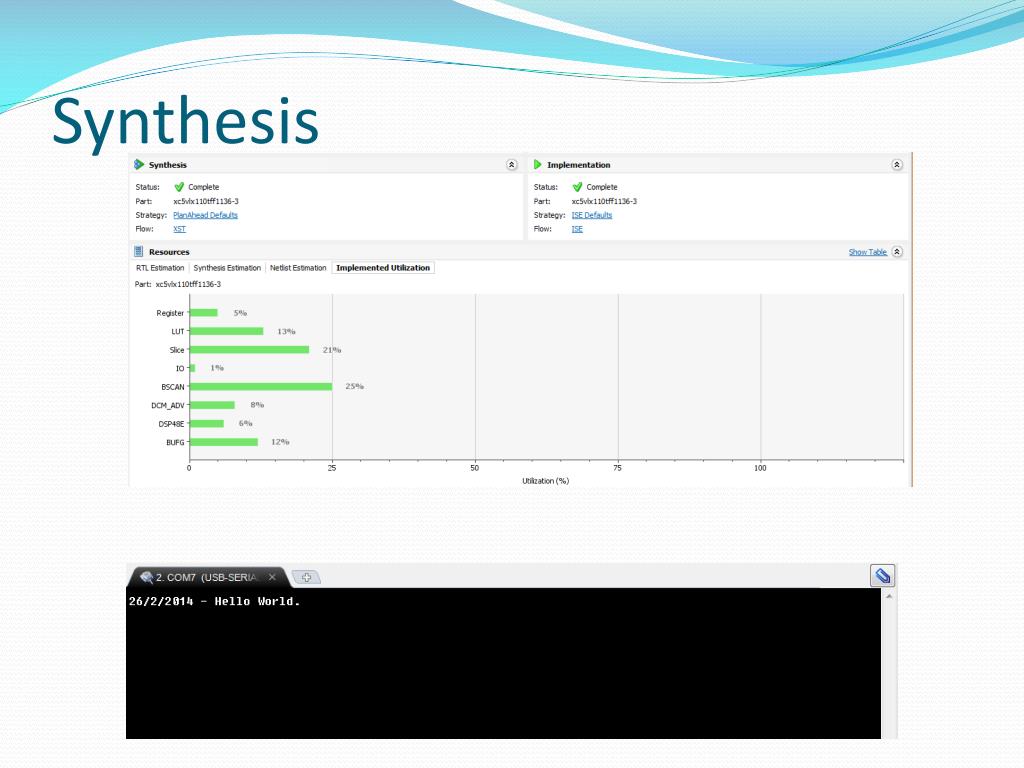

  14. Synthesis

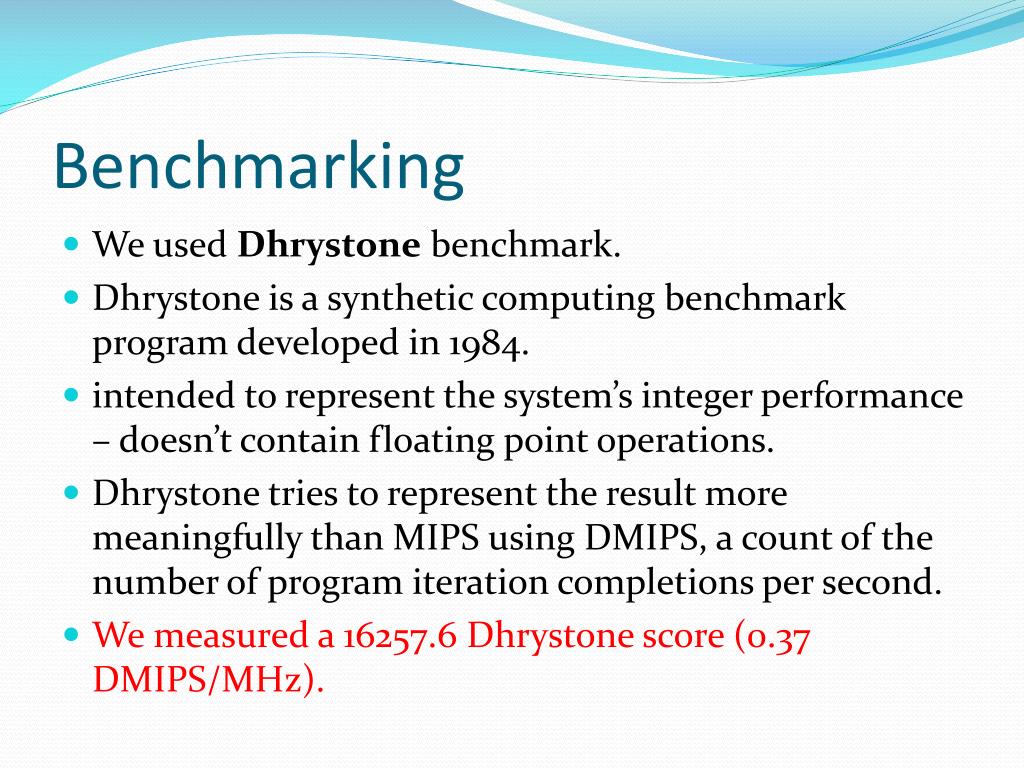

  15. Benchmarking • We used Dhrystonebenchmark. • Dhrystone is a synthetic computing benchmark program developed in 1984. • intended to represent the system’s integer performance – doesn’t contain floating point operations. • Dhrystone tries to represent the result more meaningfully than MIPS using DMIPS, a count of the number of program iteration completions per second. • We measured a 16257.6 Dhrystone score (0.37 DMIPS/MHz).

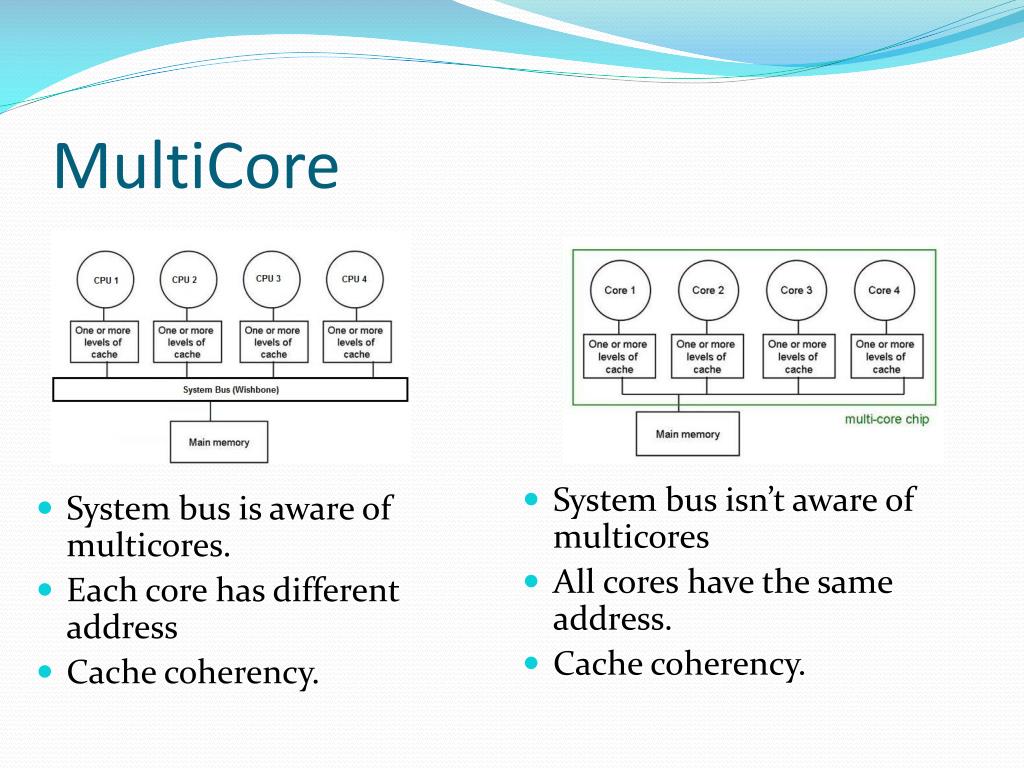

  16. MultiCore • System bus isn’t aware of multicores • All cores have the same address. • Cache coherency. • System bus is aware of multicores. • Each core has different address • Cache coherency.

  17. MultiCore – Tiled architecture • Scalable. • CPU remains intact. • NoC handles cache coherencies. • NoC handles resources allocation.

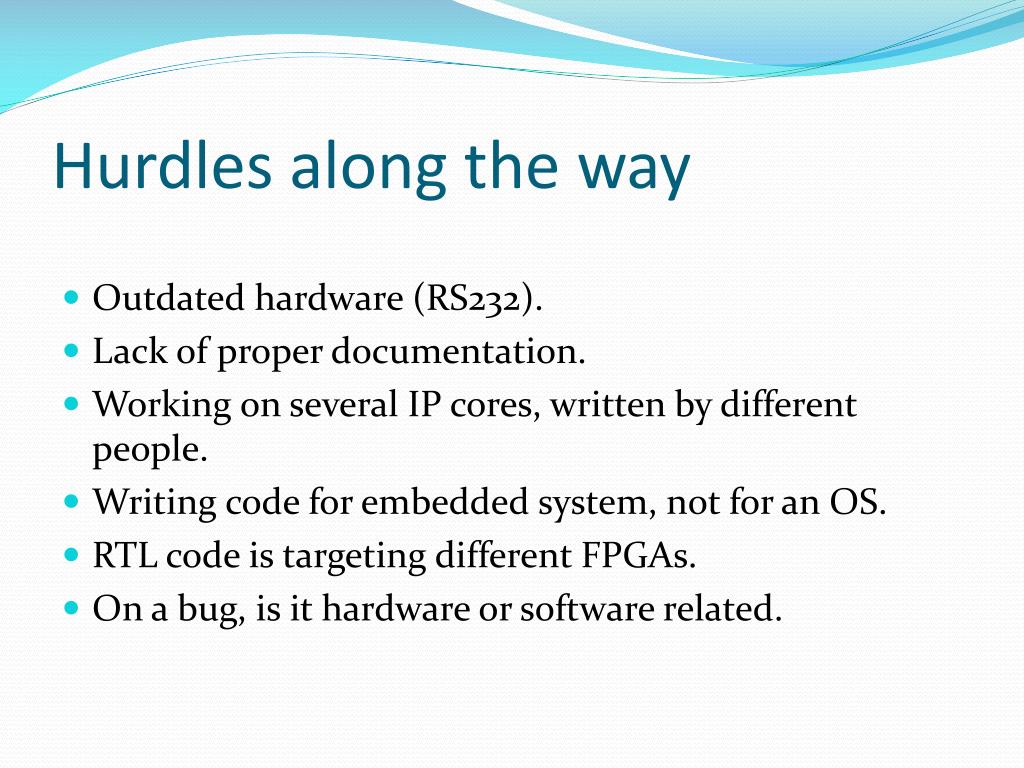

  18. Hurdles along the way • Outdated hardware (RS232). • Lack of proper documentation. • Working on several IP cores, written by different people. • Writing code for embedded system, not for an OS. • RTL code is targeting different FPGAs. • On a bug, is it hardware or software related.

  19. Achievements • Learned Verilog HDL. • Learned Linux OS basics. • Learned to work with Xilinx FPGAs and software. • Design on multiple levels, from a hardware RTL design to a C software. • Learned New hardware architecture and software toolchain. • Project goals: • Building a SoC based on an OpenRISC CPU………. • Benchmarking the system for future reference….. • Exploring multicore architectures………………………
