  1. Implementing multicore system using OpenRISC Advisor: MonyOrbach By: JehadGhanayem Ahmad Kiswani

  2. Content • Project Goals. • Term A Goals. • Quick Overview of Term A Goals. • Term B Goals. • Gantt Chart. • Requests.

  3. Project Goal Using the open source single core OpenRISC 1200 CPU to implement a multicore system. • The OpenRISC 1200 is a synthesizable CPU core maintained by developers at OpenCores. • The OR1200 design is an open source (under LGPL GNU) implementation of the OpenRISC 1000 RISC architecture.

  4. Term A Primary Goal: building an OpenRISC based system on FPGA. • Configuring the CPU. • Building a SoC. • Simulation and Synthesis • Implementation • Debugging • Benchmarking for future reference.

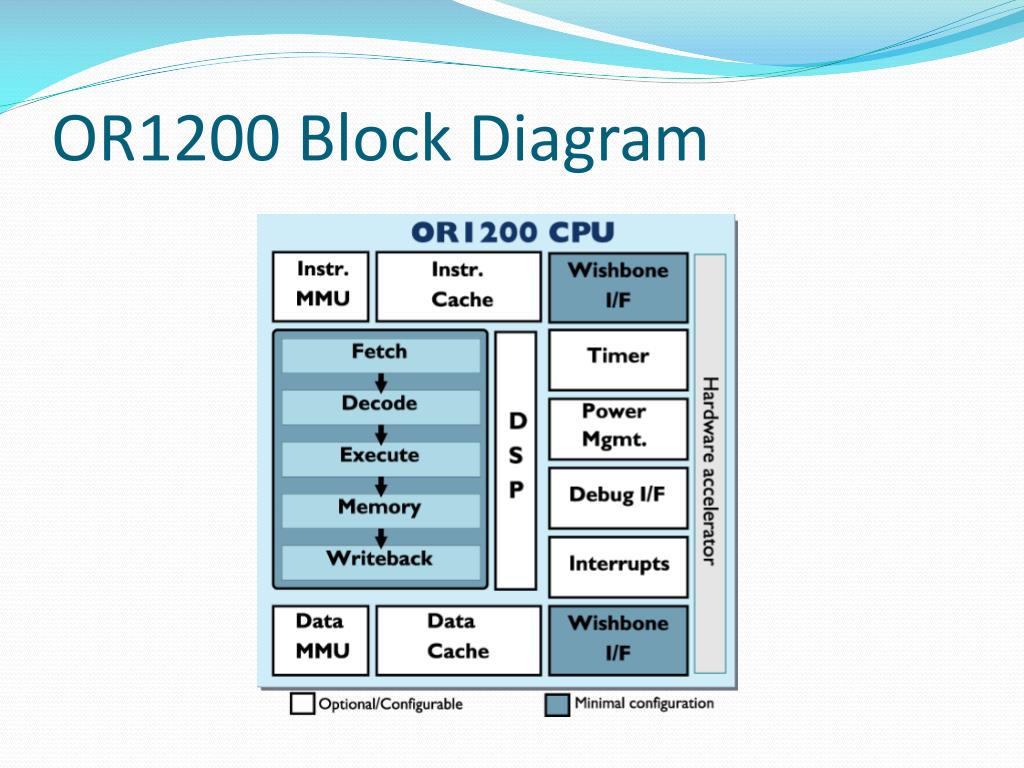

  5. OR1200 Block Diagram

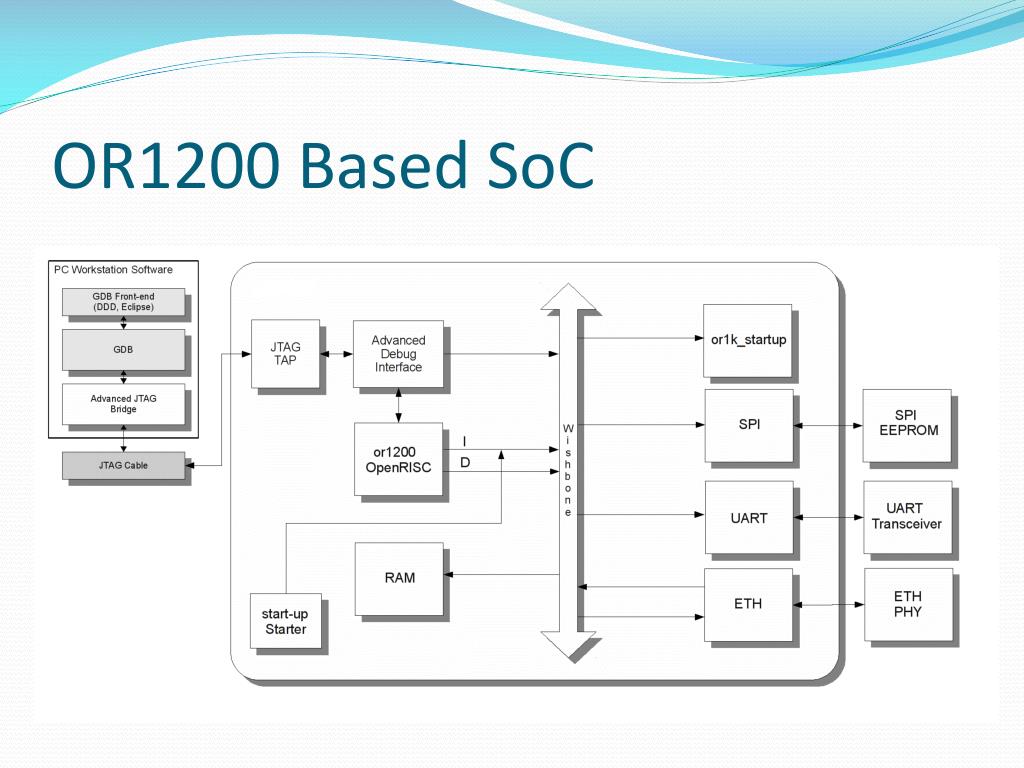

  6. OR1200 Based SoC

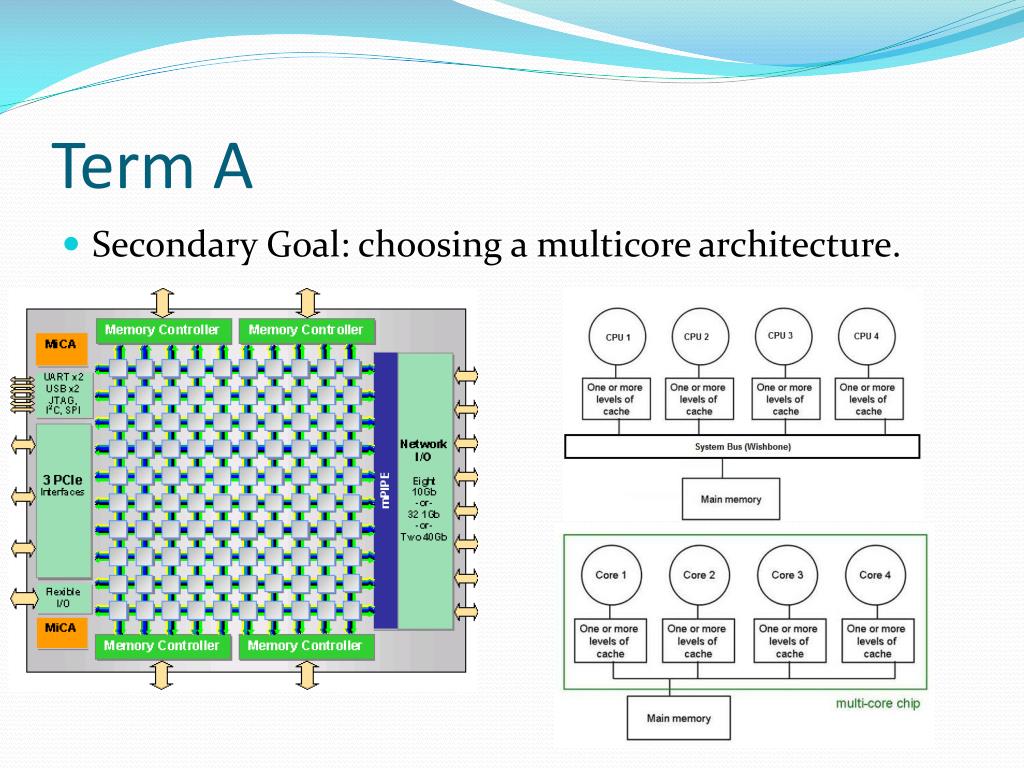

  7. Term A • Secondary Goal: choosing a multicore architecture.

  8. Background Needed • Logic Design. • Computer architecture. • OpenRISC architecture. • Multicore architectures. • Wishbone bus. • Verilog. • FPGA tools. • Linux toolchain(uClib,binutils, GCC, GDB).

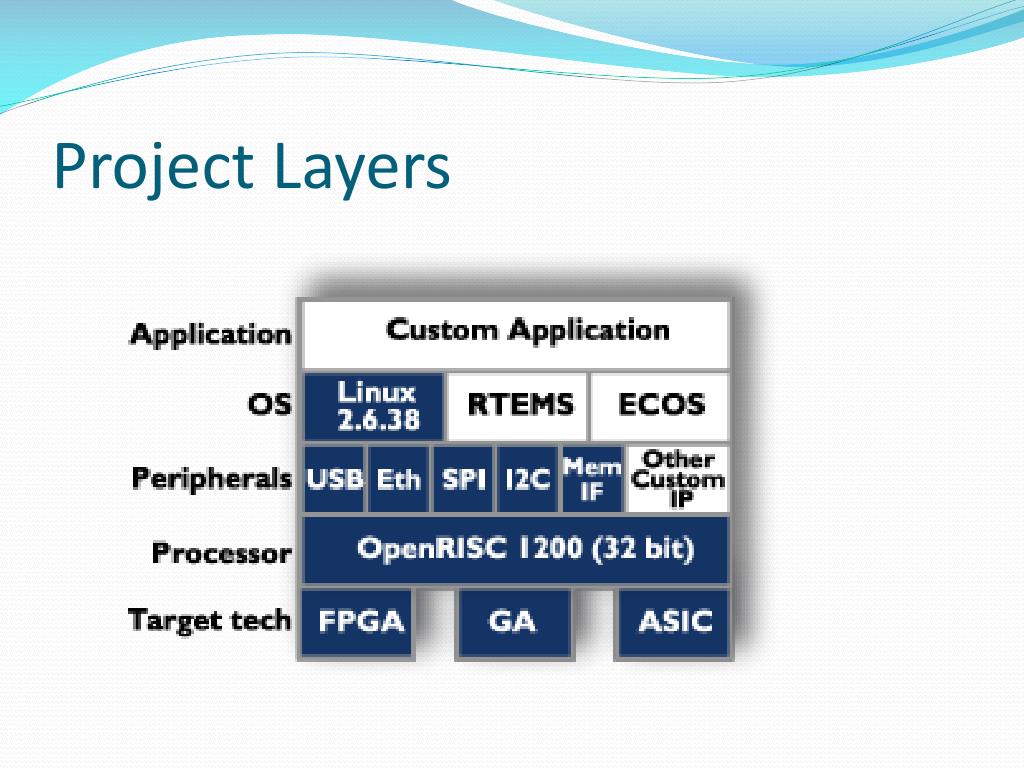

  9. Project Layers

  10. Challenges • The work is done on multiple levels, from a hardware RTL design to a C software. • We aren’t working just with OR1200, but an entire SoC. • Numerous units and different architectures go into the design. • Hardware and software together. • The lack of proper documentation for several components of the system.

  11. Term B Primary Goal: building a SoC based on a multicore implementation of the OpenRISC. • Choosing multicore architecture. • Choosing the number of cores (could it be dynamic ?). • Designing, implementing and debugging the system. • Benchmarking.

  12. Where Are We Now • We finished most of the reading, Still need to read about: • Wishbone bus. • Verilog (partial). • The real work starts now • We should have synthesis of the system in the next 4-6 weeks.

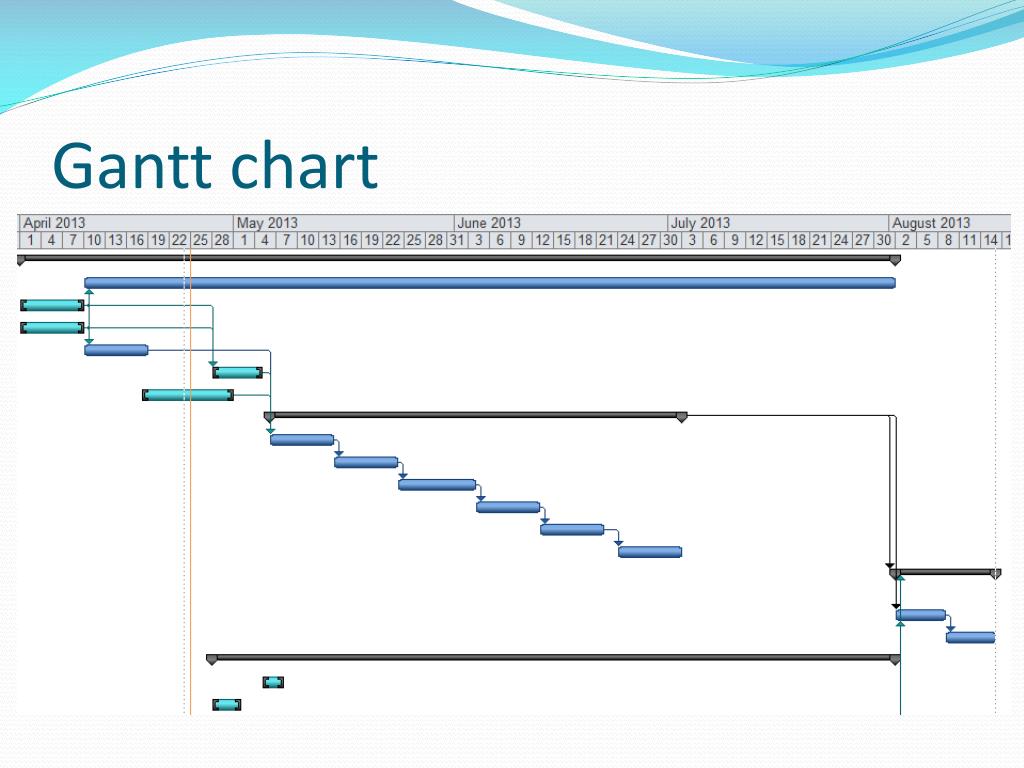

  13. Gantt chart

  14. Requests • VirtualBox: open source software under GNU GPL. allows the guest OS to run on virtual environment within the host OS. • VirtualBox Extension pack: allows the guest OS access to the USB. • FPGA:Xilinx XUP5. • Extra HD space: 15GB in total. • Virtualbox base image = 5GB • Virtualbox image with development tools = 8GB • Source code of the core = 3GB • 15% extra space
